but on another note, today was the first of 10 work days to get the frame off to the blaster. i actually made a timeline, and if i stick to it, i will have frame paint pics on the 31st of this month.

today the body got pulled and put on stands in the garage. i then had to pull the motor and trans and get the frame up on the rotisserie. i also started to weld up the rear section of the frame that was notched for the exhaust.

so, 1 day down and 9 to go. and im currently on schedule!!!! days 2-5 will come at the end of next week on my 4 day. i work a few shifts with a damn wedding in between.

[DriverzInc]

Your tires arrived today.

[mc84_zz4]

^^ now that's good news!, pre-congratulations on your parole from Wheel Jail!
Can't wait to see some update pics...

[The WidowMaker]

^^ now that's good news!, pre-congratulations on your parole from Wheel Jail!
Can't wait to see some update pics...

if paint jail is as easy as wheel jail then i'm set. jon and jason are awesome!

wheel pics should be coming soon!!!!

[bullitt4110]

Wow! That is amazing! Cant wait to see what the end result is.

[The WidowMaker]

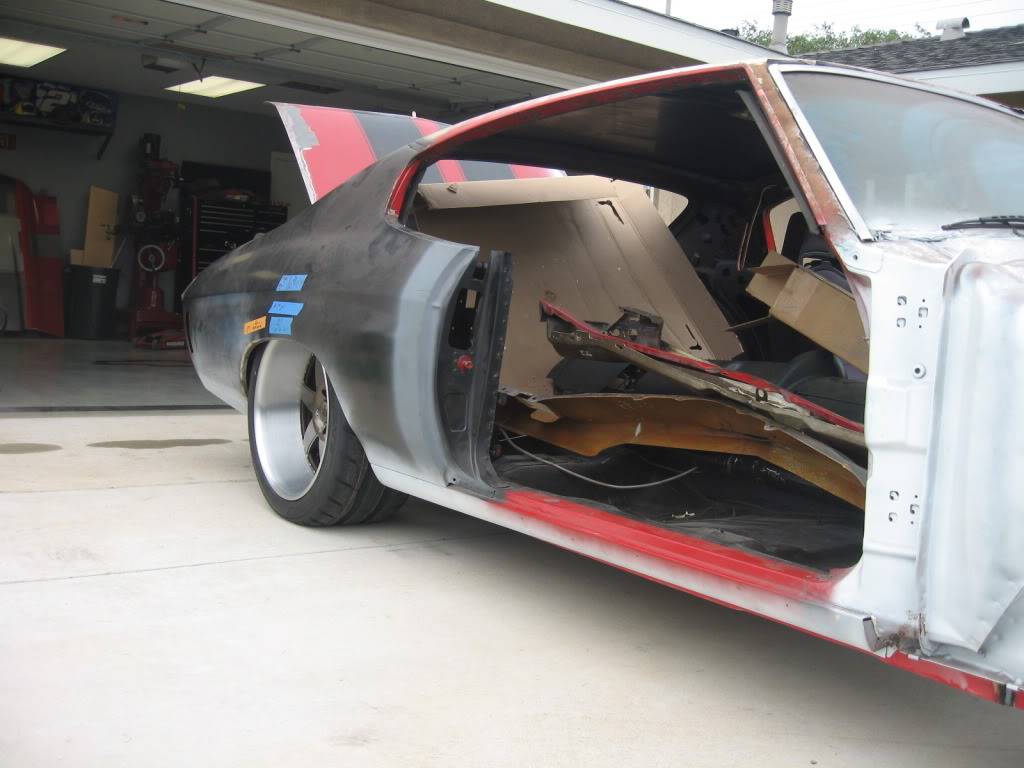

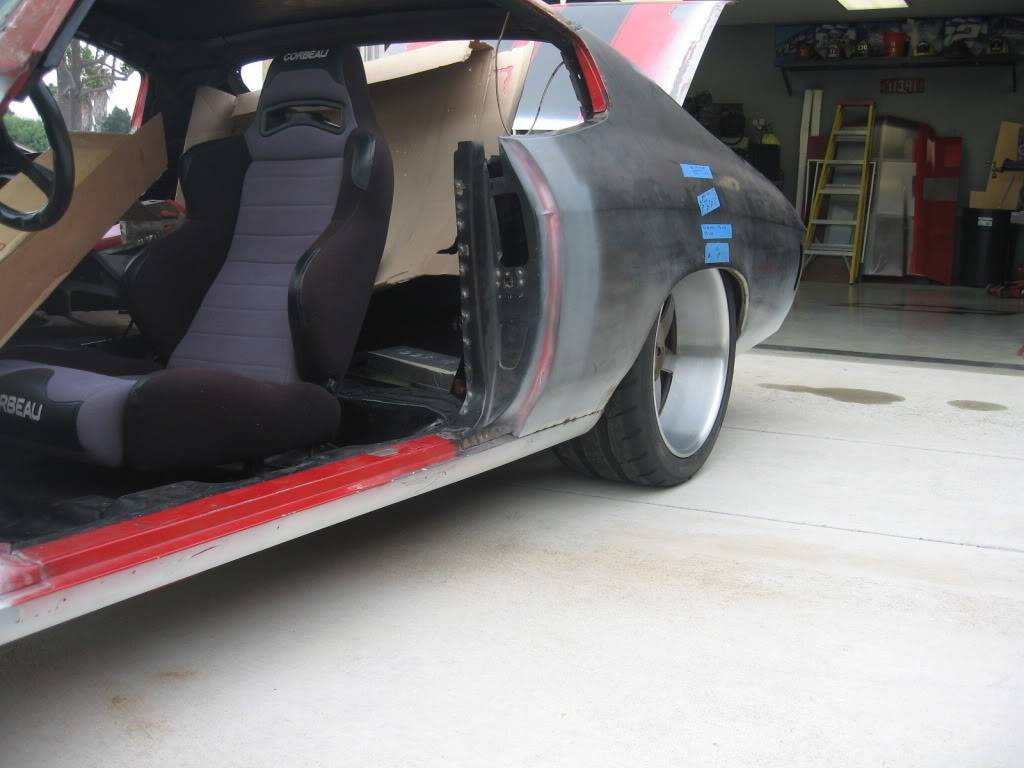

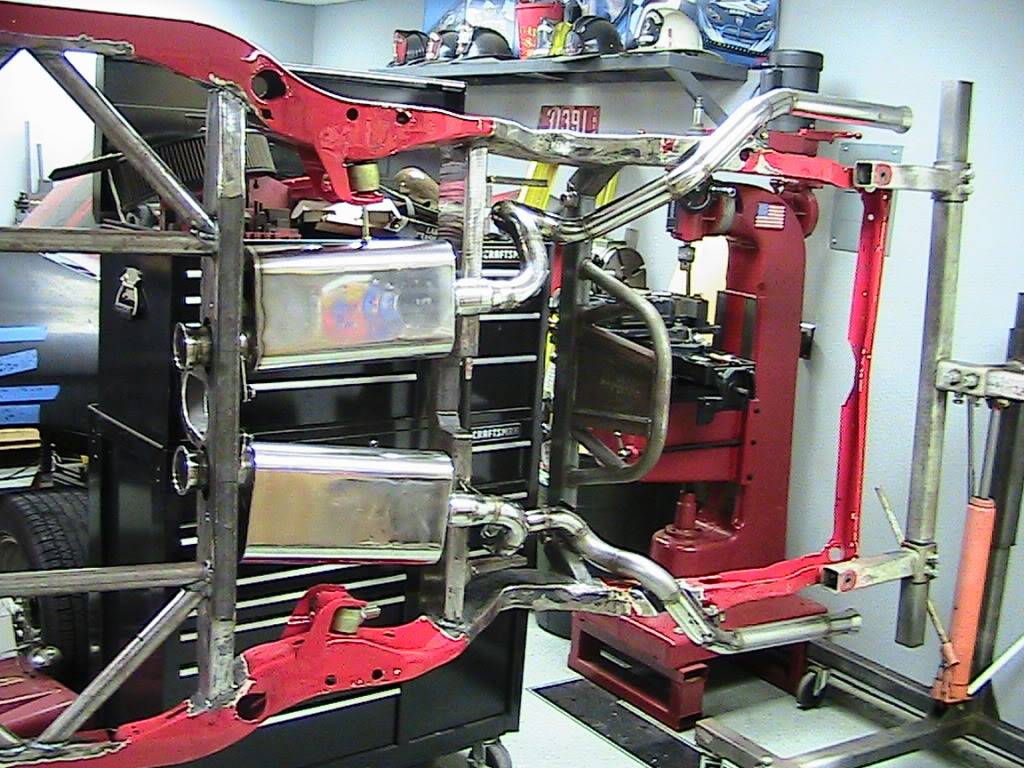

here are a few pics from today. i got both sides fully notched and cleaned up in the rear. i had planned on welding up the 4" holes in the mid cross, but that will be tomorrow morning.

you can also see how much having the body on the jack stands and the frame on the rotisserie screws up the garage. if its the other way around, the body can hover on the rotisserie almost above the frame and take up a ton less room. i cant wait until the frame is on the ground for good!!!!

[navyflyer72]

Amazing fab work! Like everyone else, can' wait to see her on the ground!

[The WidowMaker]

i got a little more done today. unfortunately the watts crossmember had to be notched for exhaust clearance. if i would have known how low i was going to make it sit i would have welded the attachment points on the 12 bolt at a different angle. at the time i set it up, the rearend was hitting the frame at the end of its travel and there was still plenty of room for the exhaust.

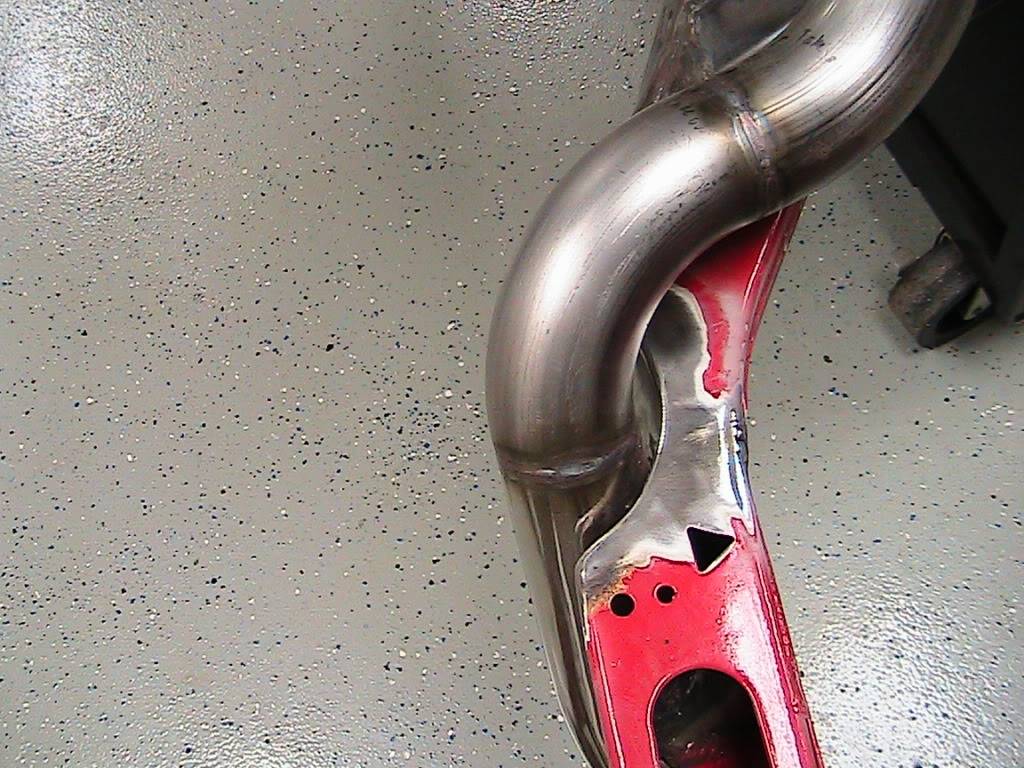

so, the rear cross was notched and i got it smoothed today. i also finished the mid cross through holes, finished welding up the trans mounting points, took care of the droop stops to keep the front uca's from hitting the frame when jacking up the front end and also ground all the paint and filler out of the frame seams so i can weld them up more than the factory did. i never did it the first time, but i'm going to take the time now.

also, my wheels are supposed to be dropped off tomorrow morning!!!! i plan to take them out to jon for tires some time in the afternoon.

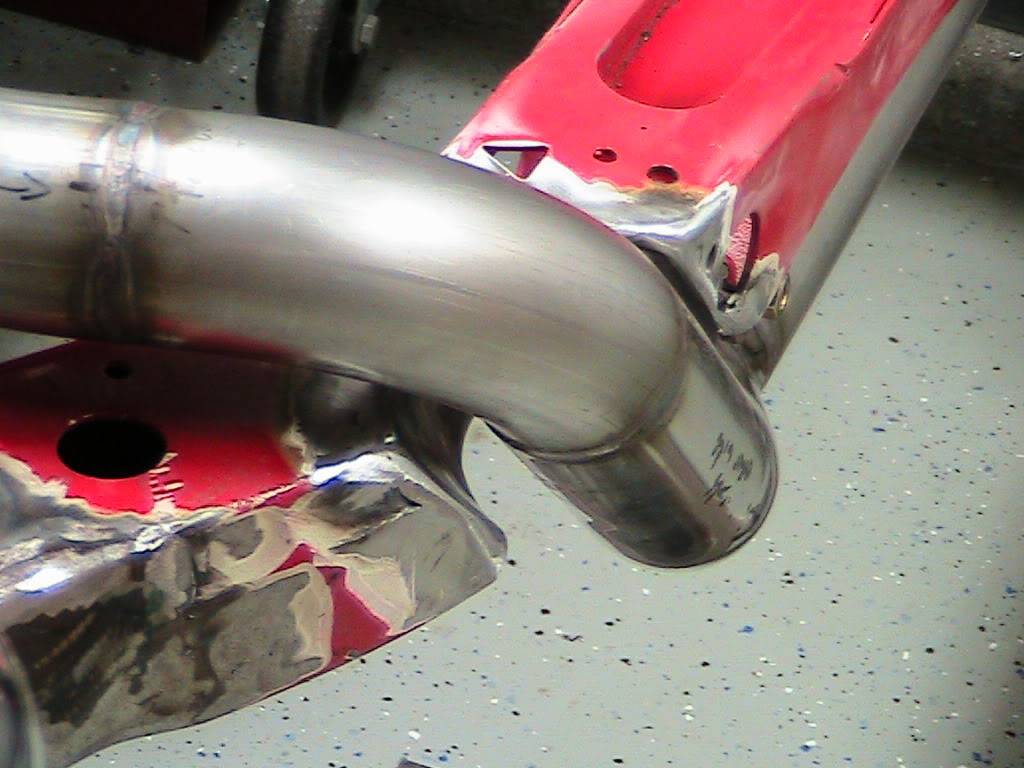

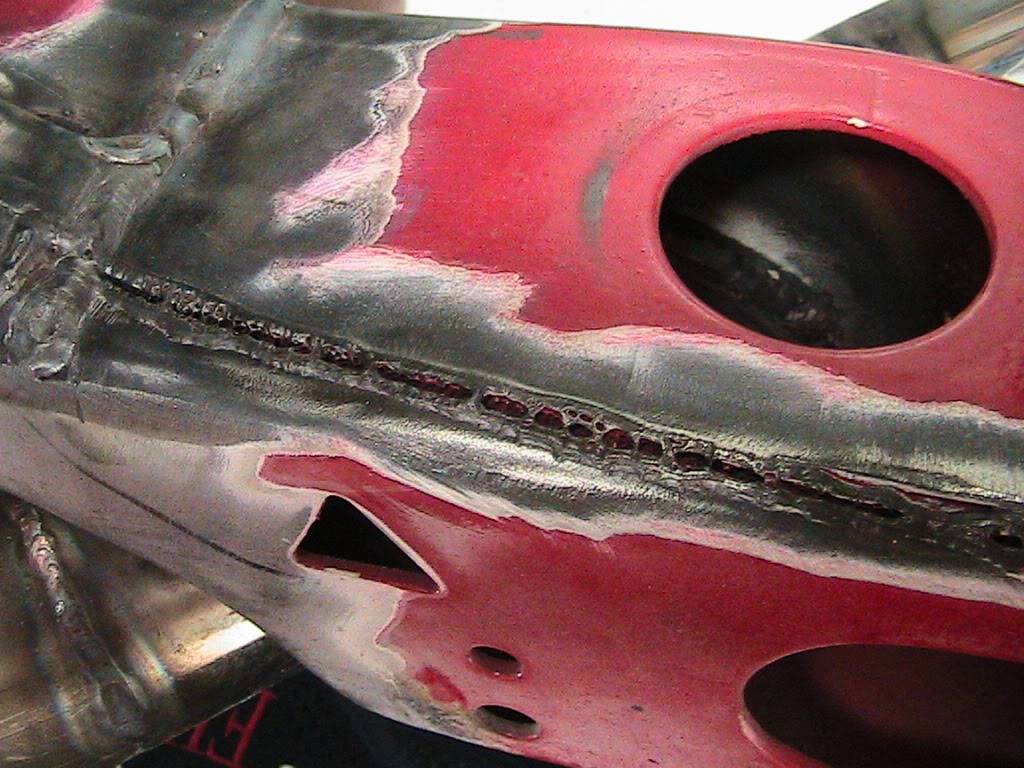

check out a pic of how some of the factory seams look??????? did they put a roll of 70s6 in a flux machine, or just run out of gas???
