      1967 Corvair - Project Sanity

      Time to post few pics of my current project - 1967 Corvair. I call it Project Sanity.



      Here is some background: You may ask why Corvair ? I always liked the lines and the size of the 'late model', 65-69, Corvair, but wasn't too thrilled by the powertrain. I've been looking for a project car for a while, I've seen few G body Malibus - I really like these, but what I've seen was more than disappointing, at least during the time when I was looking around. When I came across this Corvair in April of last year, 2015, I pulled a trigger on it and got it home. On the same day, I also picked up a 87 G body frame. I already had a plan on what's really going to happen to a Corvair if I get my hands on a good candidate. That's how my project was born.

      The essentials of Project Sanity - 1967 Corvair: Front engine - RWD drive by means of a G body frame swap, LS1, T56, 18" rims, corner carver.

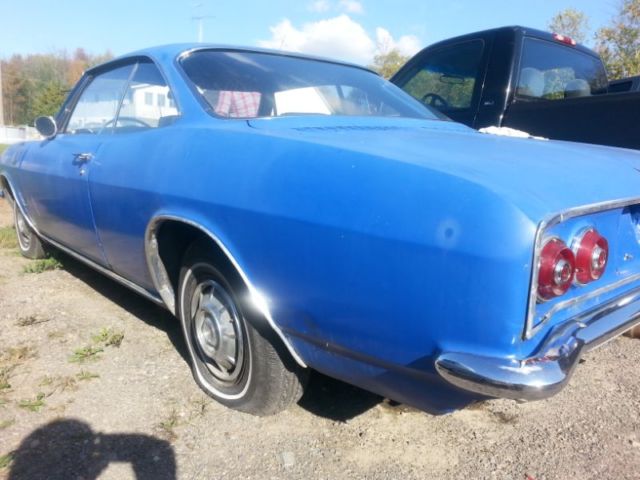

      Few pics of what it looked like back in April of 2015:


      Name:  _27 (3).JPG
Views: 6064
Size:  70.0 KB

      Name:  _27 (6).JPG
Views: 5405
Size:  59.7 KB

      Name:  _27 (7).JPG
Views: 5414
Size:  60.1 KB

      Name:  _27 (4).JPG
Views: 5331
Size:  48.4 KB

      G body frame:

      Name:  _27.JPG
Views: 5305
Size:  112.5 KB

      I began slow, cleaned my garage to make sure I have a clean and organized work area. I am working in a single car garage so my work space is very minimal. I also picked up a LS1, T56, rear end, brakes etc. out of a 2000 Z28 being parted out.

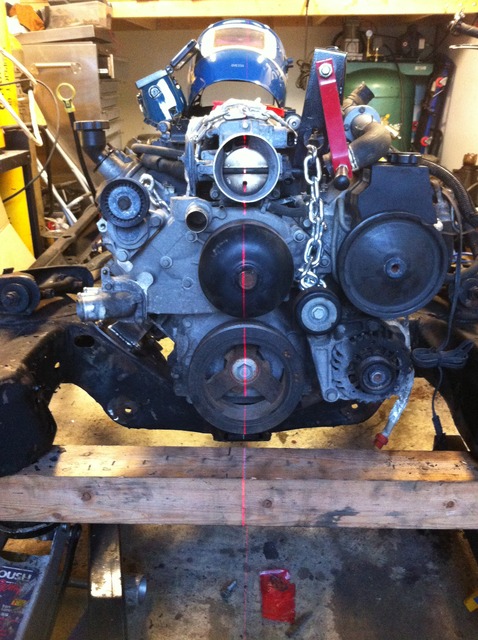

      I began by working on the frame, I stripped it from all components, mocked up the engine and transmission to get a good idea where it will be. I decided to mount the engine and transmission with the center line lining up with the center line of the frame instead of the stock G body offset to the passenger side. I fabricated my own engine mounts and notched the front cross member. This allowed me to use the stock F-body oil pan and A/C compressor along with the alternator.

      Name:  IMG_1558.jpg
Views: 5106
Size:  129.4 KB

      Name:  IMG_1552.jpg
Views: 5095
Size:  110.2 KB

      Name:  IMG_1549.jpg
Views: 5138
Size:  129.3 KB

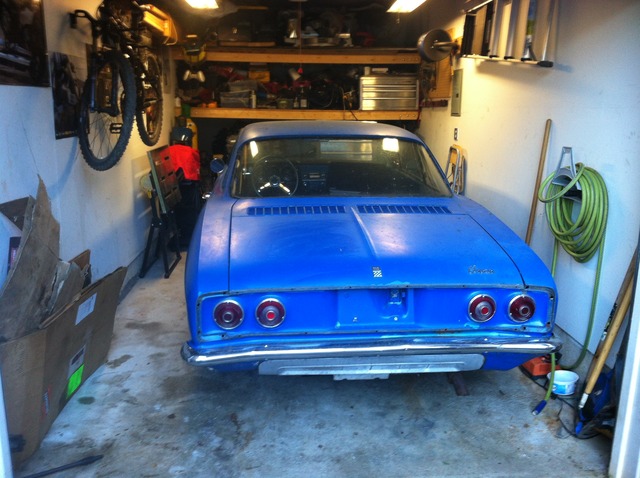

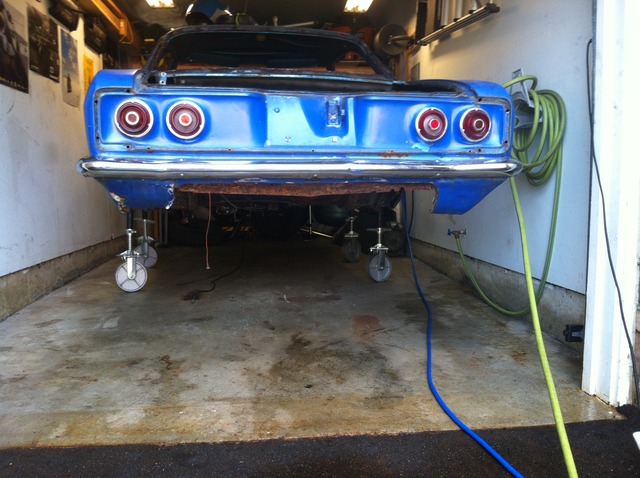

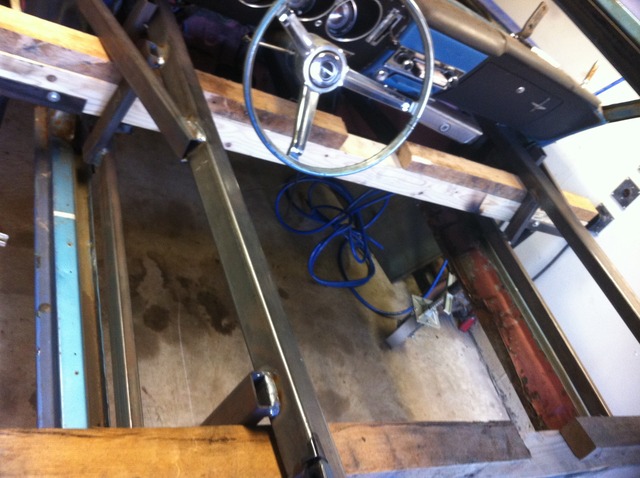

      Right after I sent the frame out to get it sandblasted and while it was out, I began stripping the Corvair. I knew I had to engineer a way to get the body up in the air to allow me to work under the body fitting the frame and at the same time keeping structural integrity of the body. I welded up a frame inside the body that was strong and rigid enough to allow me to lift the body up by it. Once the body was up in the air, the wrenches and plasma cutter came out. The flat air cooled six and a two speed Powegrlide along with rear and front suspension, brakes, etc. came out. I ended up with just the shell, minus the floor.


      Name:  IMG_1615.jpg
Views: 5270
Size:  110.6 KB

      Name:  IMG_1657.jpg
Views: 5070
Size:  107.2 KB

      Name:  IMG_1663.jpg
Views: 5033
Size:  102.6 KB

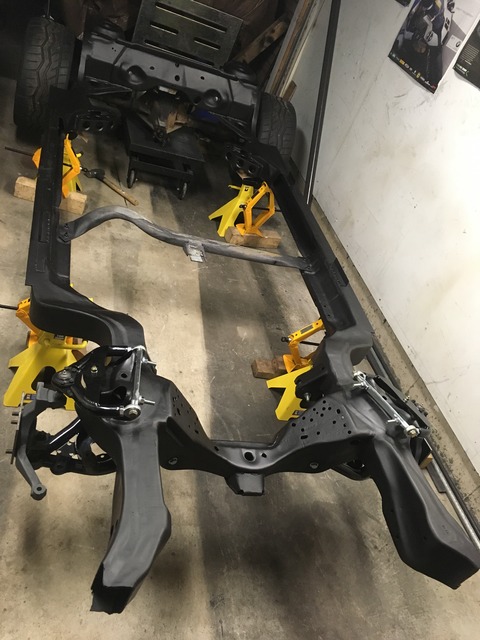

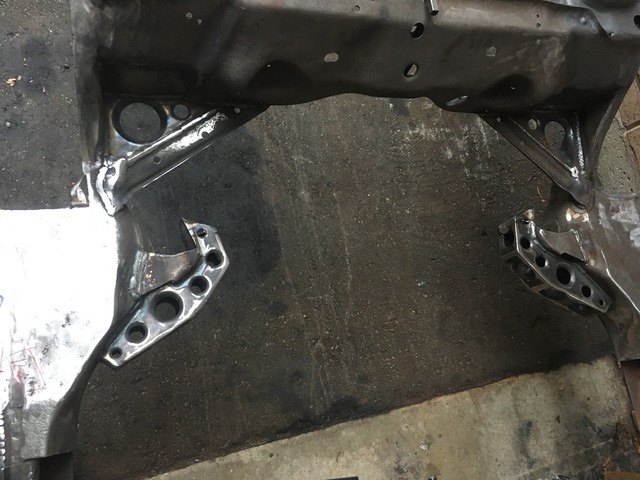

      I knew I had to modify few things to make it all work together. Countless measurements and mock up sessions took place. Most of the modifications were done to the frame in order to make it fit the body. Along the way I notched and rearranged the rear frame rails, added few reinforcements here and there and when I was finally done working on the frame, I primed everything in black epoxy. I am going with UMI suspension components, I got the front adjustable upper and lower arms along with S10 spindles. I statically aligned the front suspension at ride height for 0.5 degrees of negative camber and 6.5 degrees of caster. This will get my wheels where they need to be so when the body and frame are married everything will be where is should.



      Name:  IMG_2334.jpg
Views: 6198
Size:  122.2 KB

      Name:  IMG_2333.jpg
Views: 5023
Size:  102.0 KB

      Name:  IMG_2336_1.jpg
Views: 5063
Size:  88.4 KB

      Name:  IMG_2374.jpg
Views: 5062
Size:  104.1 KB

      So this is where I am at. I am planning to marry the body to the frame later on this week, pictures from the wedding are coming !!
      Matt
      1967 Corvair - Project Sanity

      I just get things done instead of talking about getting them done. I don't go out and party. I don't smoke, drink or do drugs and I'm not married, that leaves a lot of time for my work - Henry Rollins


    2. #2
      Join Date
      Apr 2015
      Location
      SoCal
      Posts
      165
      Country Flag: United States
      Wonderfully outside the box... And judging by the work so far you "may" have done some fabrication work in the past. Looks awesome.
      CAM-T Autocross Fox Mustang
      LX mustang autocross on the "cheap"...
      1953 PickEmUp
      1953 Chev Pickemup

    3. #3
      Join Date
      Sep 2004
      Location
      DFW, Texas
      Posts
      216
      Country Flag: United States
      Love where this is heading!

    4. #4
      Join Date
      May 2011
      Location
      Chippewa Falls, WI
      Posts
      290
      Country Flag: United States
      Looking forward to updates, how close is the wheelbase to wheel openings?
      Justin N.

      1966 Chevelle
      1992 GMC Typhoon
      1989 Jeep Wrangler CJ 6.0 Twin Turbo
      1981 Jeep CJ7

    5. #5
      Join Date
      Oct 2016
      Location
      Auckland, New Zealand
      Posts
      57
      Country Flag: New Zealand
      Great project! Keep the reports coming please.
      cheers Russell

      My 1957 Pontiac StarChief powered by a 5.3 LS with a 4L60E transmission, on 18" US Mags Big Slots.

    6. #6
      Join Date
      Nov 2006
      Location
      Ma.
      Posts
      5,530
      Country Flag: United States
      Nice build. Going to be interesting.
      Wayne
      Car FINALLY home !!!!!! lol
      Project FNQUIK https://www.pro-touring.com/showthre...ghlight=FNQUIK

    7. #7
      Join Date
      Oct 2013
      Location
      H-Town, TX
      Posts
      349
      Country Flag: United States
      This is going to be fun to watch- always like the 65+ vairs. My dad had a black 67 Monza convertible.

    8. #8
      Join Date
      Dec 2015
      Location
      Mississauga, ON
      Posts
      48
      Country Flag: Canada
      I made some good progress this week. I will briefly cover frame mods for some of you that would like to take a project such as this on. The G body frame needs to be widened to about 56". I did that by welding a 3/16" angle along the outside frame rails and extending the rear as shown in the picture below.

      Name:  IMG_2409.jpg
Views: 4830
Size:  73.4 KB

      Name:  IMG_2411.jpg
Views: 4809
Size:  93.5 KB

      Name:  IMG_2425.jpg
Views: 4979
Size:  132.9 KB

      When you cut the floor out and the inside rocker panels out of the Corvair, you got to separate the upper pinch weld. The folded 'U channel' you are left with, is the piece that will sit on the frame. I drilled holes in mine so I can plug weld it to the frame

      Name:  IMG_2417.jpg
Views: 4815
Size:  93.3 KB

      As far as the frame goes, you will have to cut the front rails, few inches ahead of the front sway bar mount bolts. In the rear, just after the shock and spring mount bracket. You will also have to 'rearrange' the rear frame rails so you can mate them to the existing Corvair rear rails.

      Name:  IMG_2413.jpg
Views: 5006
Size:  146.6 KB

      Name:  IMG_2433.jpg
Views: 4793
Size:  70.7 KB

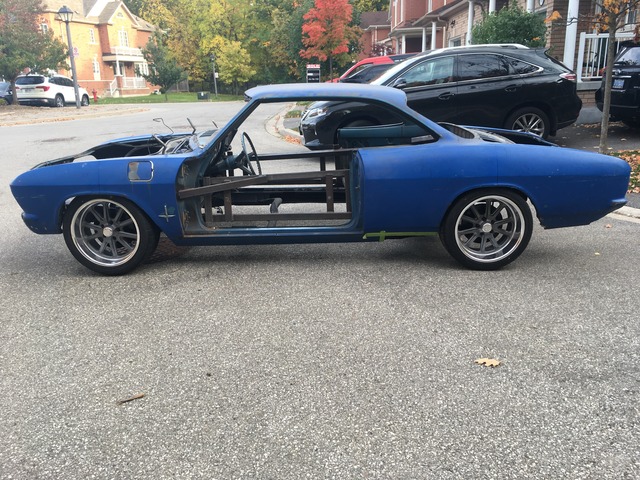

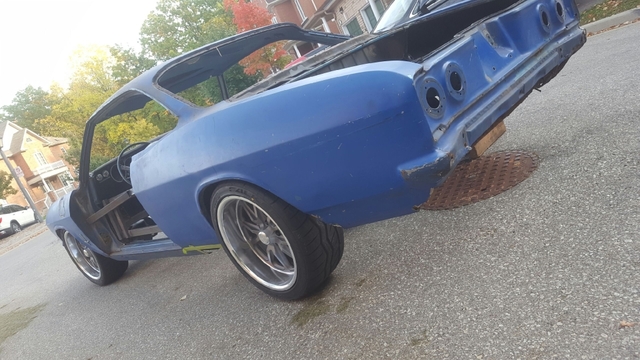

      Once you fit everything together, the wheel base, track width all align, weld the body onto the frame:

      Name:  IMG_2429.jpg
Views: 6263
Size:  142.2 KB

      Name:  IMG_2428.jpg
Views: 7108
Size:  157.6 KB

      Name:  IMG_2427.jpg
Views: 8681
Size:  152.3 KB

      Name:  Resized_20161015_170233.jpg
Views: 4817
Size:  182.3 KB

      Matt
      1967 Corvair - Project Sanity

      I just get things done instead of talking about getting them done. I don't go out and party. I don't smoke, drink or do drugs and I'm not married, that leaves a lot of time for my work - Henry Rollins

    9. #9
      Join Date
      Oct 2013
      Location
      H-Town, TX
      Posts
      349
      Country Flag: United States
      Damn that is cool!!

    10. #10
      Join Date
      Nov 2006
      Location
      Ma.
      Posts
      5,530
      Country Flag: United States
      Nice!
      Wayne
      Car FINALLY home !!!!!! lol
      Project FNQUIK https://www.pro-touring.com/showthre...ghlight=FNQUIK

    11. #11
      Join Date
      Aug 2014
      Posts
      435
      Country Flag: United States
      Well, Sh*t! That escalated quickly! Looks great! lol

    12. #12
      Join Date
      Dec 2015
      Location
      Mississauga, ON
      Posts
      48
      Country Flag: Canada

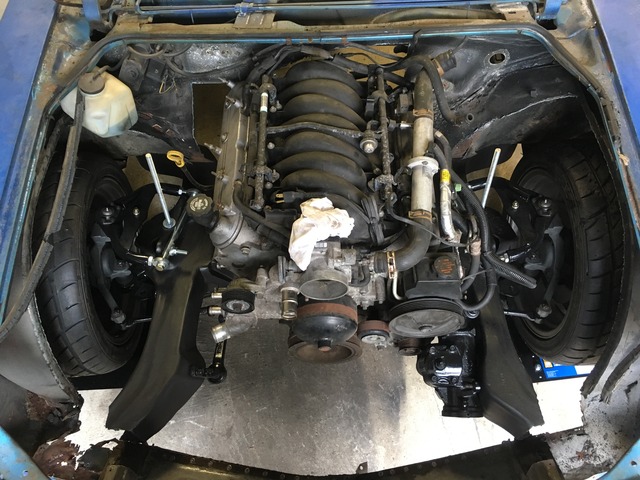

      I had a productive weekend, on top of getting the body on the frame, I managed to get the engine in.

      Name:  IMG_2456.jpg
Views: 6011
Size:  126.8 KB

      Good news is that it went in very easy, bad news is the location of it in respect to the body. I need to move it forward and go back to the original G body engine placement - slight passenger side offset. Oil pan and alternator won't fit anymore.

      Another positive is that the Corvair steering column and G body steering box align pretty well, few vertical degrees off. I will be upgrading the column anyway, but at least the location won't have to change by much. Wiper motor won't have to be changed or relocated. I will need to go with a manual master cylinder, no room for a brake booster.

      Name:  IMG_2436.jpg
Views: 9351
Size:  117.3 KB

      It looks like this will be it for this season, the temperature is dropping here soon and considering the fact that I only get to work on my project weather and free time permitting, changing the location of the engine will happen in the warm spring.
      Matt
      1967 Corvair - Project Sanity

      I just get things done instead of talking about getting them done. I don't go out and party. I don't smoke, drink or do drugs and I'm not married, that leaves a lot of time for my work - Henry Rollins

    13. #13
      Join Date
      Mar 2009
      Location
      San Antonio, TX
      Posts
      1,703
      Dang! that's impressive! Pat yourself on the back.
      I am really interested how much better the weight ratio ends up, compared to the regular G-Body F/R weight ratio.
      It has a much shorter front overhand, about 150 lbs less of engine, and more cabin placed further rearward.
      I think it will end up close to damn good.
      This is going to be really cool!
      Dave
      84 Monte SS - just a few bolt-ons

    14. #14
      Join Date
      Dec 2015
      Location
      Mississauga, ON
      Posts
      48
      Country Flag: Canada
      It looks like we will have few warm days coming up so I will be able to experiment with the engine fitment. In mean time I prepared:

      - new engine mount plates, both engine and frame
      - engine mount bushing sleeves, I will be going with polyurethane this time around
      - valley lift plate

      Name:  IMG_2486.jpg
Views: 4506
Size:  92.0 KB

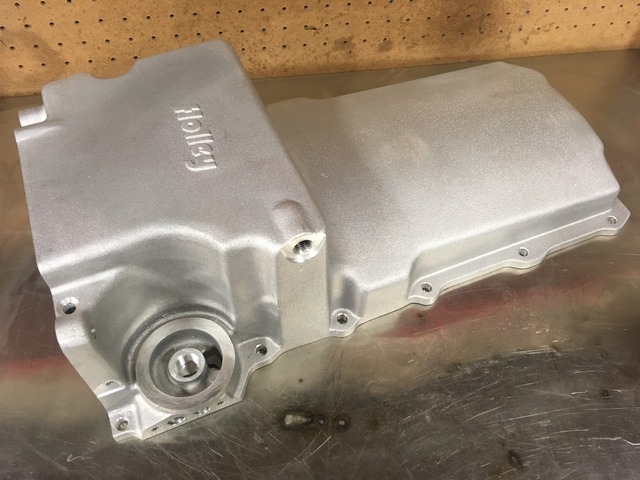

      and I also got a Holley 302-1 oil pan that will offer more clearance where needed as compared to the F body pan I've been planing to use
