      Project M.D the 69 Camaro

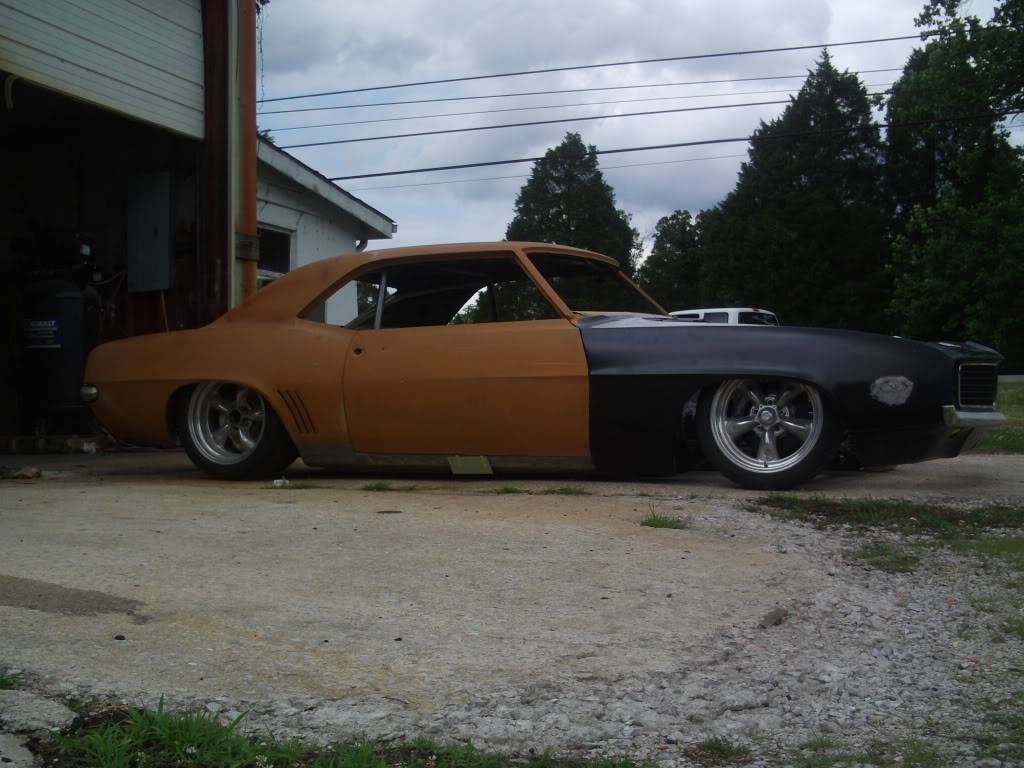

      here it is. today we brought home another project. 69 camaro born as a plain jane 6cyl 3 on the tree butter-nut yellow car. it will be alot more. plans call for a ride height of around 4in with air. alot of very subtle body mods and either an ls3 or ls7 with a 6spd then 9in to round it all out. hope you enjoy

      Attached Images Attached Images


    2. #2
      Join Date
      Dec 2006
      Location
      Arlington Heights, IL
      Posts
      792
      Sittin' low! Very nice car.
      1969 Camaro under construction.
      1967 firebird. 6.0/t56. Ridetech stage 2. Moser 9 inch. Forgeline wheels.(SOLD)

    3. #3
      Join Date
      Nov 2008
      Location
      iceland
      Posts
      1,859
      Country Flag: Iceland

    4. #4
      Join Date
      Jan 2009
      Posts
      343
      so starting your own shop is a very tedious task and alot of running around and setting on the phone so not alot of work has been done but here it is.
      1 drip rail is shaved
      2 window channels front and rear were replaced
      3 braced the car for the channeling
      4 fixed rust in pass door and striped paint

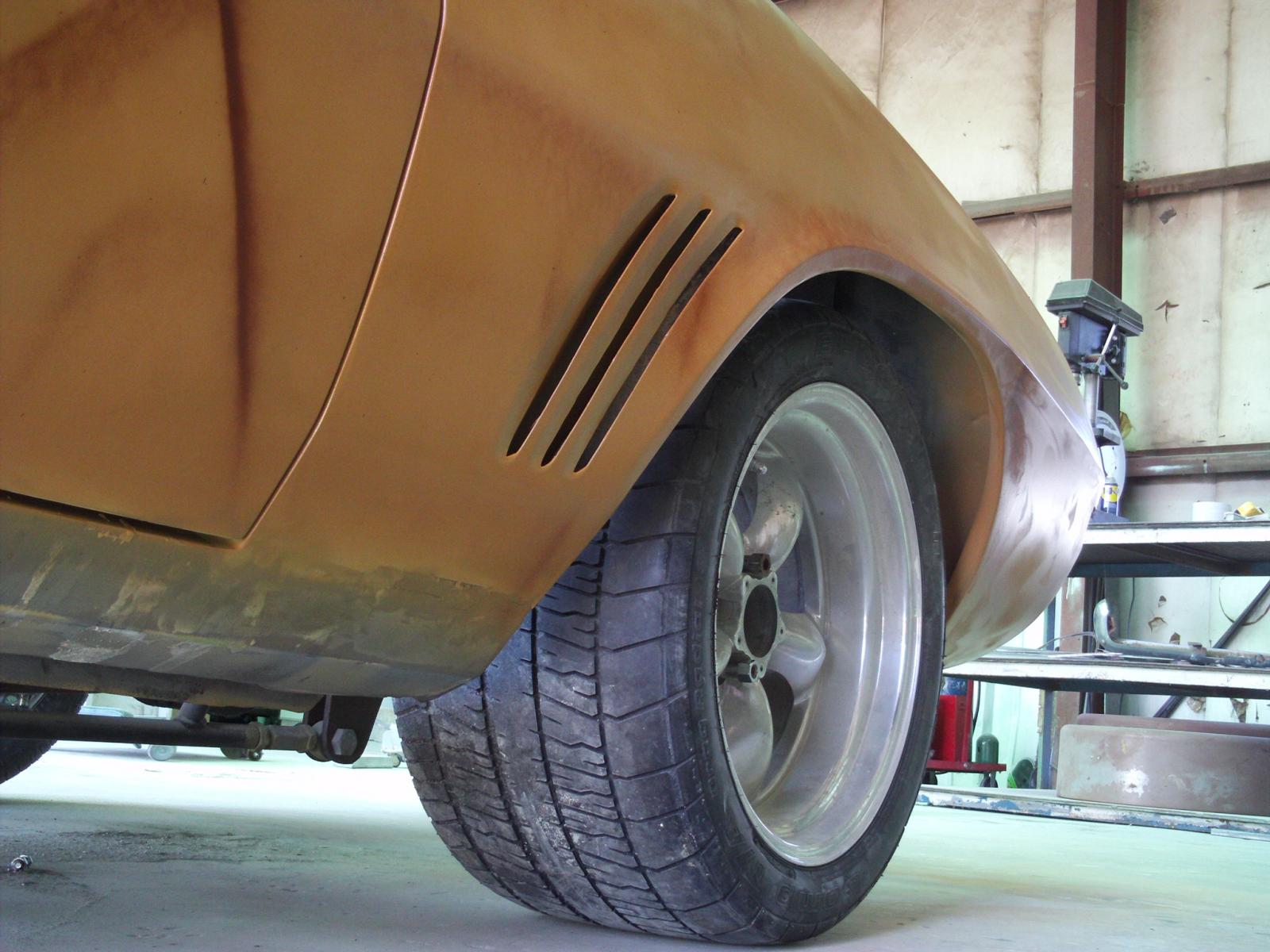

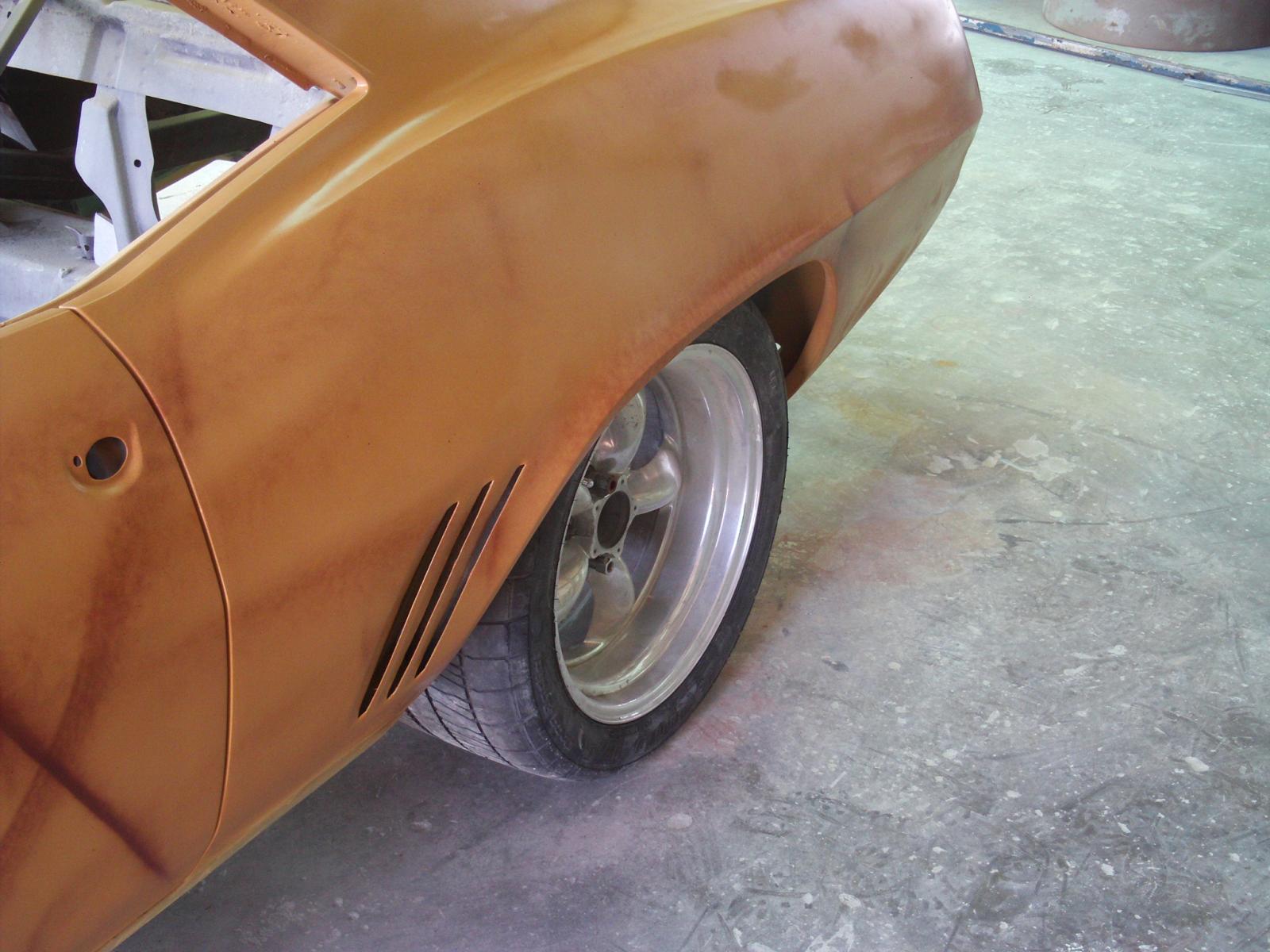

      5 cut open quarter vents

      6 ordered willwood 6piston breaks from frank at prodigy
      7 ordered airride from air ride tech
      8 ordered subframe from checkered racing
      9 ordered roll cage from autoweld chassis

      not alot of progress for me but considering that 3 days were spent setting up my shop and then the time spent on the phone or running around i'm happy.
      Attached Images Attached Images

    5. #5
      Join Date
      Jan 2009
      Posts
      343
      plans consist of

      1 an lsx shp
      omething (owner will build it and be around 625)
      2 viper spec t56
      3 3 link rear on air
      4 complete frame and raised floor for exhoust and frame
      5 custom exhoust coming out of either rockers or rear pan
      6 comlete custom interior with black leather and painted cage
      7 shaved marker lights and tucked bumpers
      8 maybe late model handles not sure yet
      9 custom front splitter
      10 rear defuser
      11 forgeline wheels in 18s or 19s
      and more to come as it comes to mind but hopefully with enuff 14 hour days this will be completed by the goodguys show in nashville at the end of june so wish me luck and free parts are great

    6. #6
      Join Date
      Jan 2009
      Posts
      343

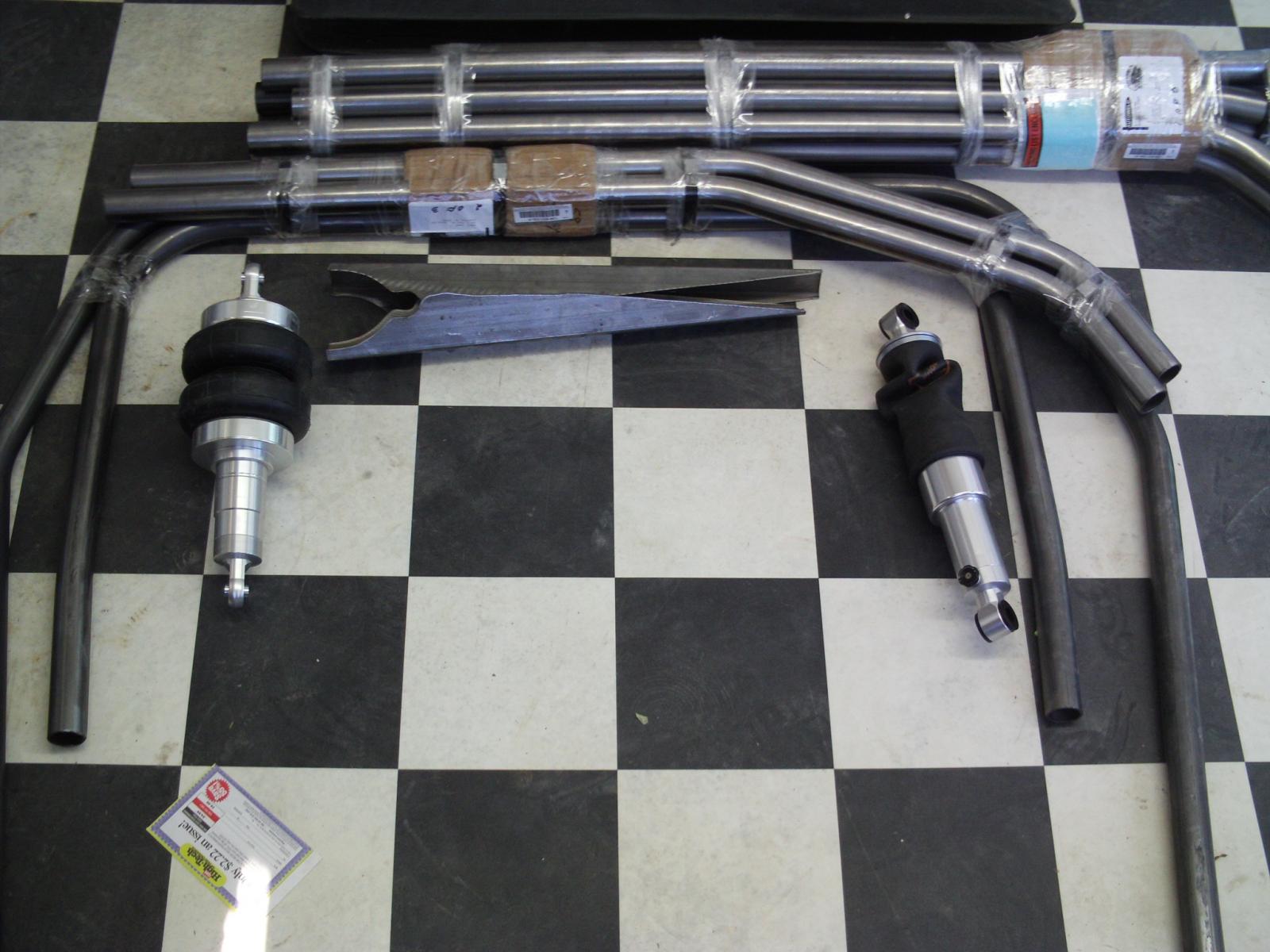

      well lil progress got the pass side and roof along with the door jambs in primer. also recieved alot of parts from ricks first gen so will be busy for the next couple of days with that
      Attached Images Attached Images

    7. #7
      Join Date
      Nov 2008
      Location
      Iceland
      Posts
      896
      Country Flag: Iceland

    8. #8
      Join Date
      Jan 2009
      Posts
      343

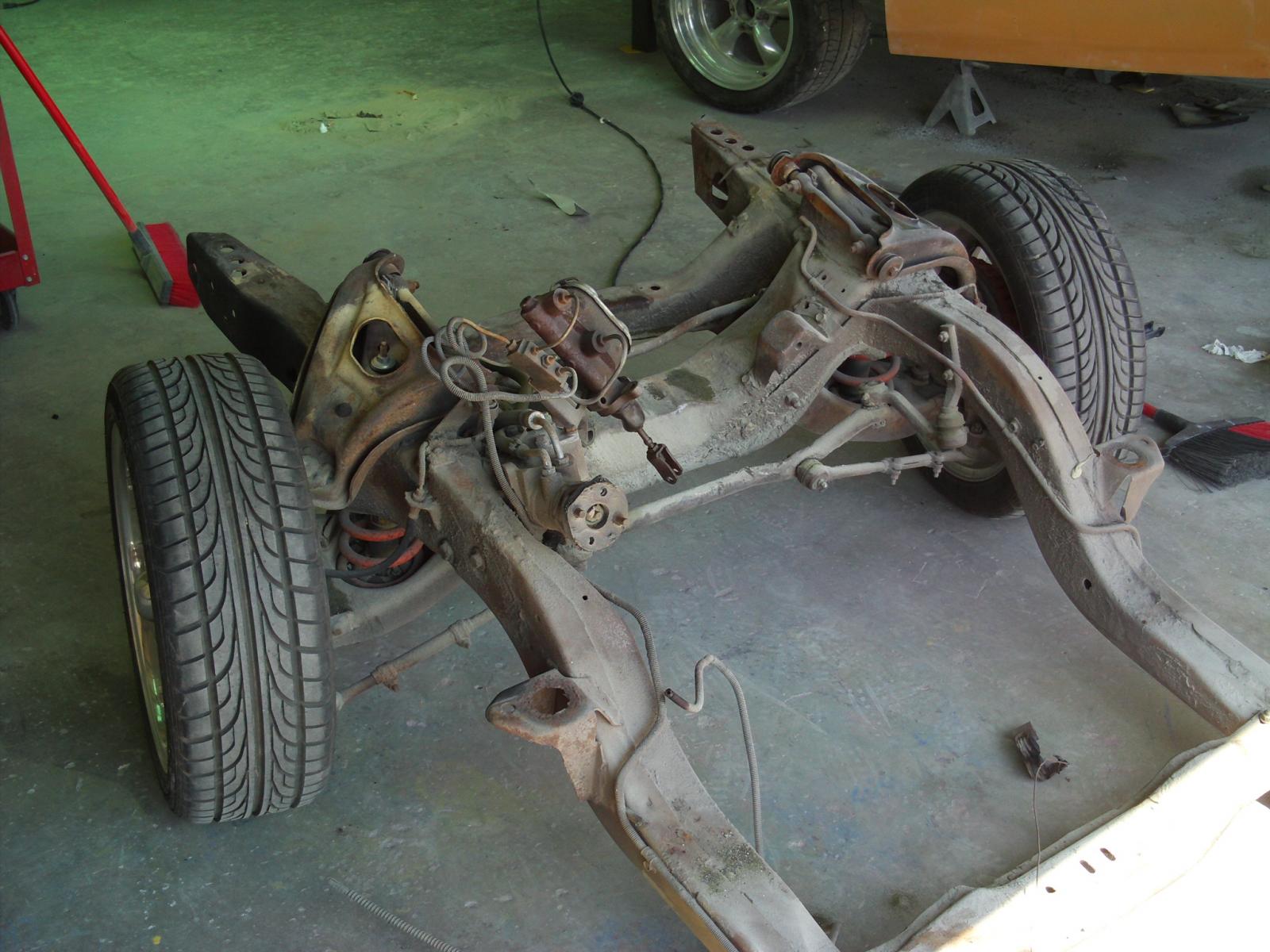

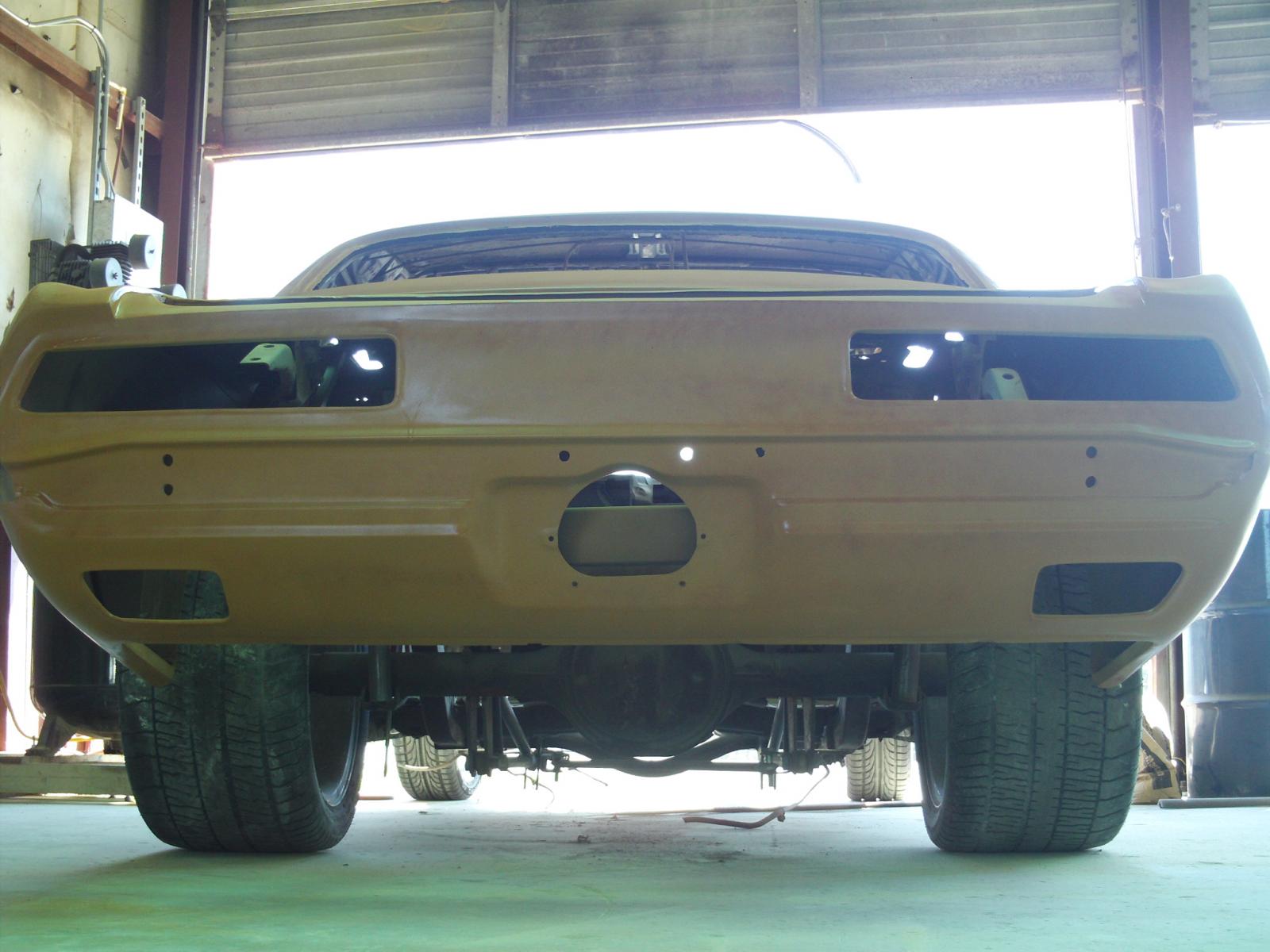

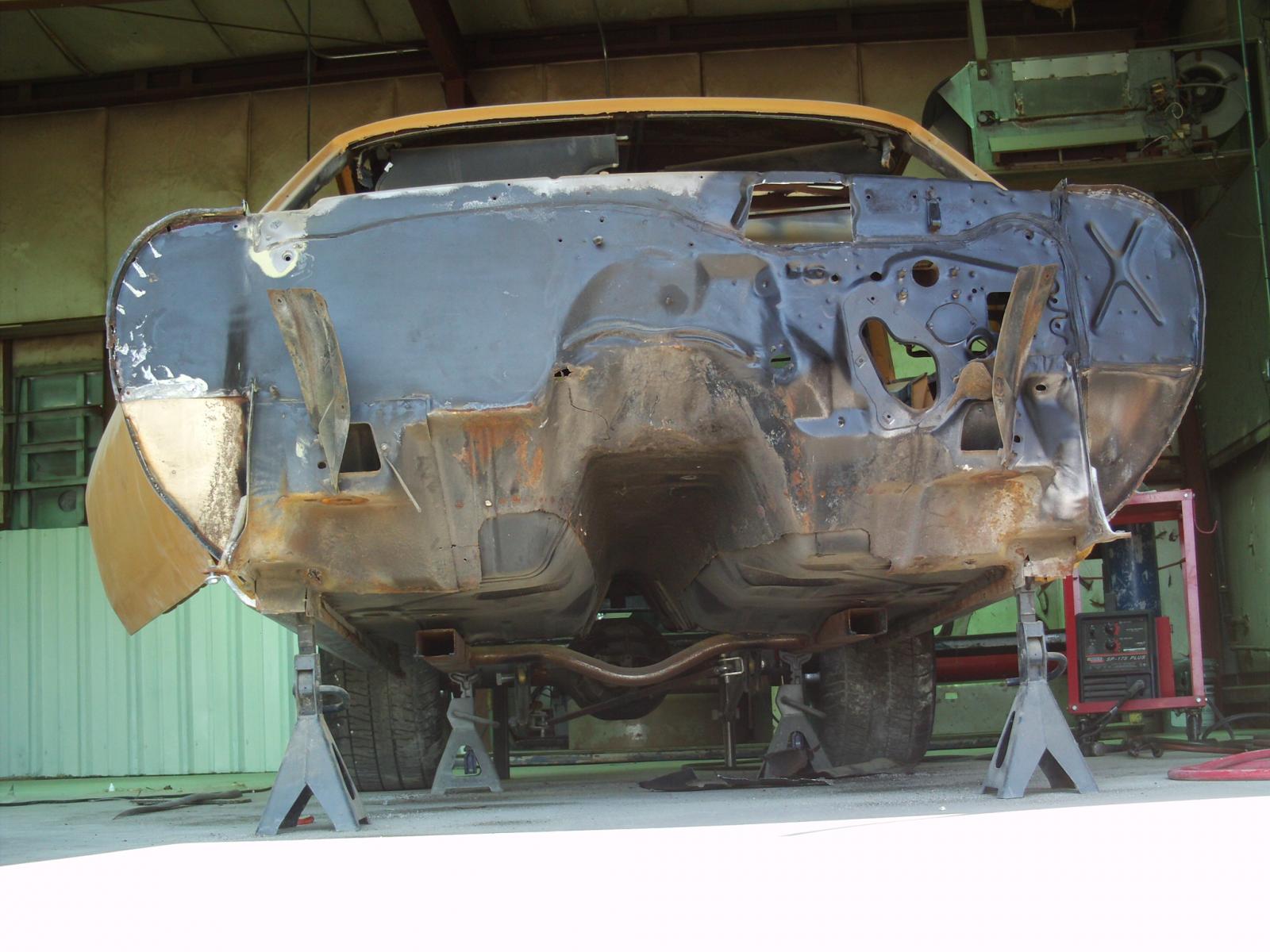

      well little more work today. got the tail pan and all of the truck cut out for a. the new tail pan and b. the new floor rear suspention and gas tank. o and a little work to the new tail pan. do ya like it?
      Attached Images Attached Images

    9. #9
      Join Date
      Jan 2008
      Location
      Austin, TX
      Posts
      28
      Looks GREAT!

    10. #10
      Join Date
      Jan 2009
      Posts
      343
      slow progress pics comeing soon

    11. #11
      Join Date
      Jan 2009
      Posts
      343

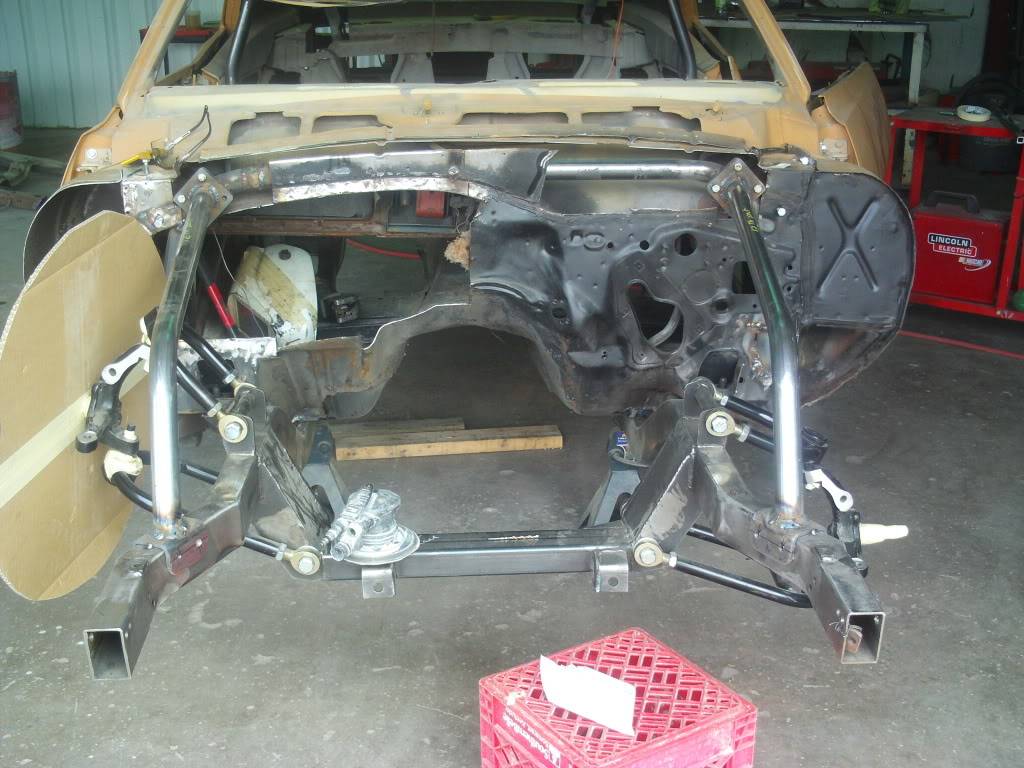

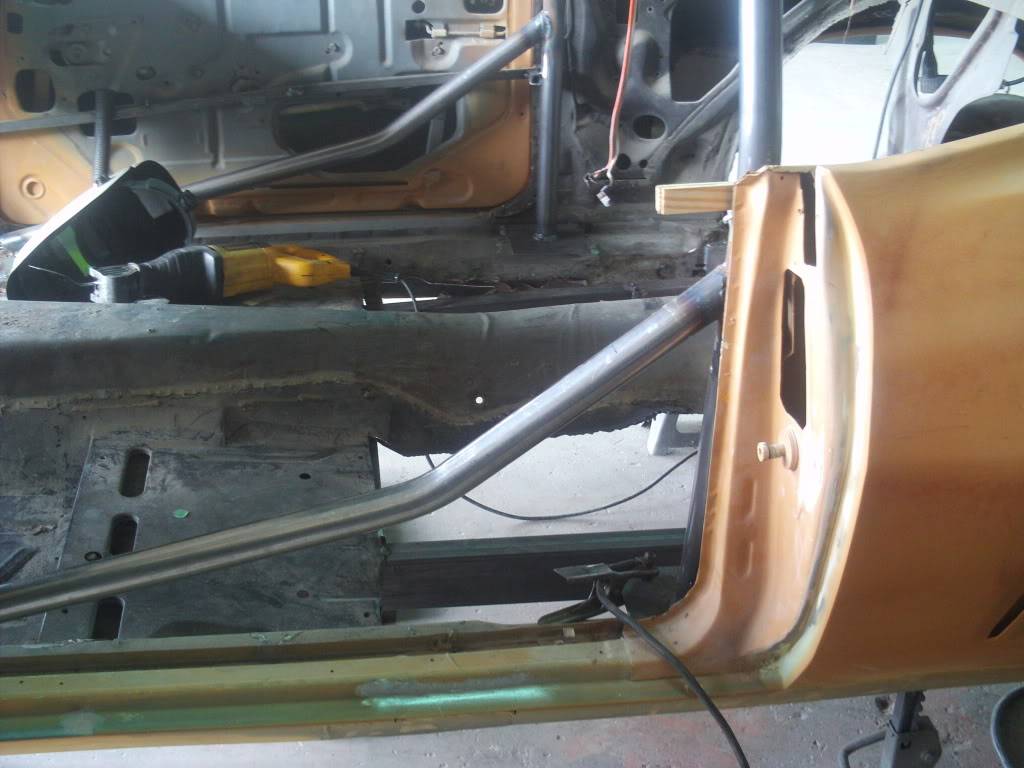

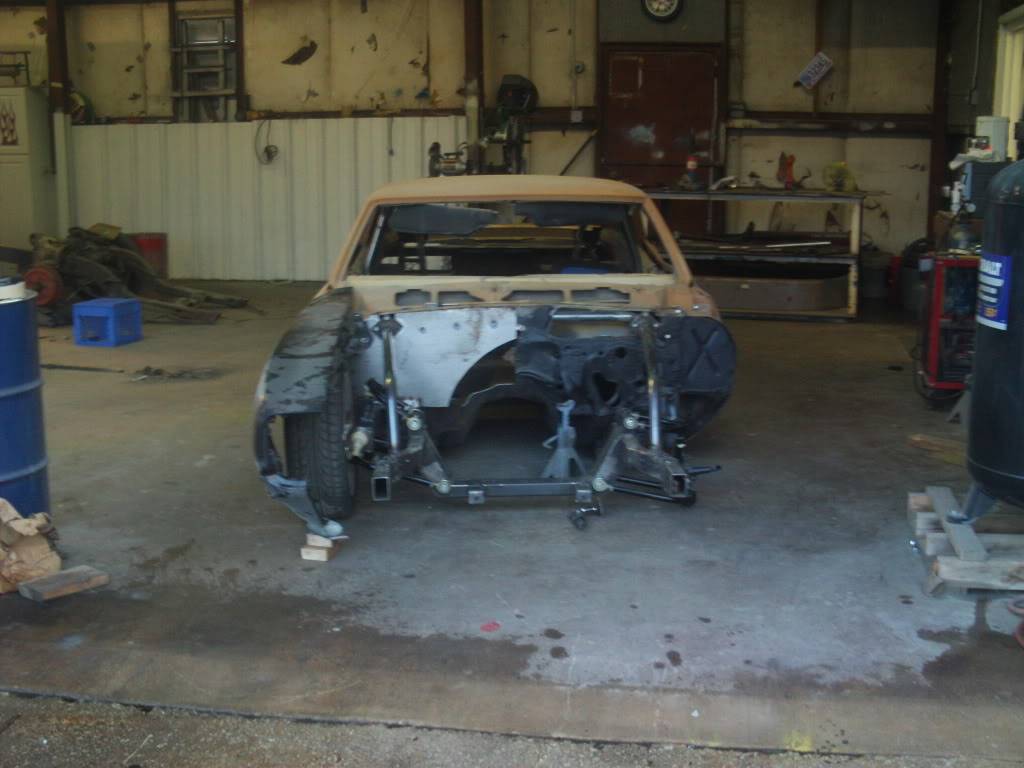

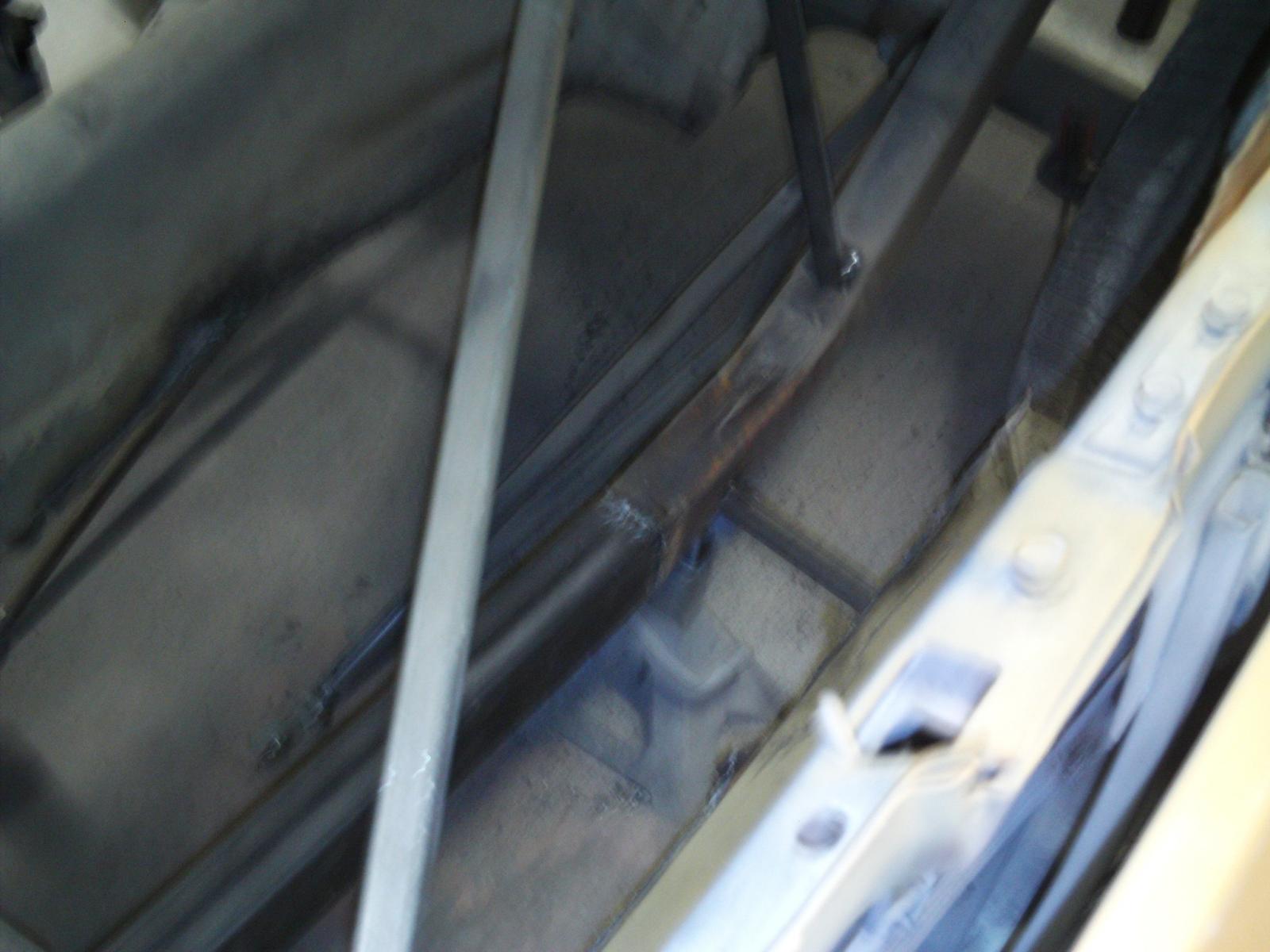

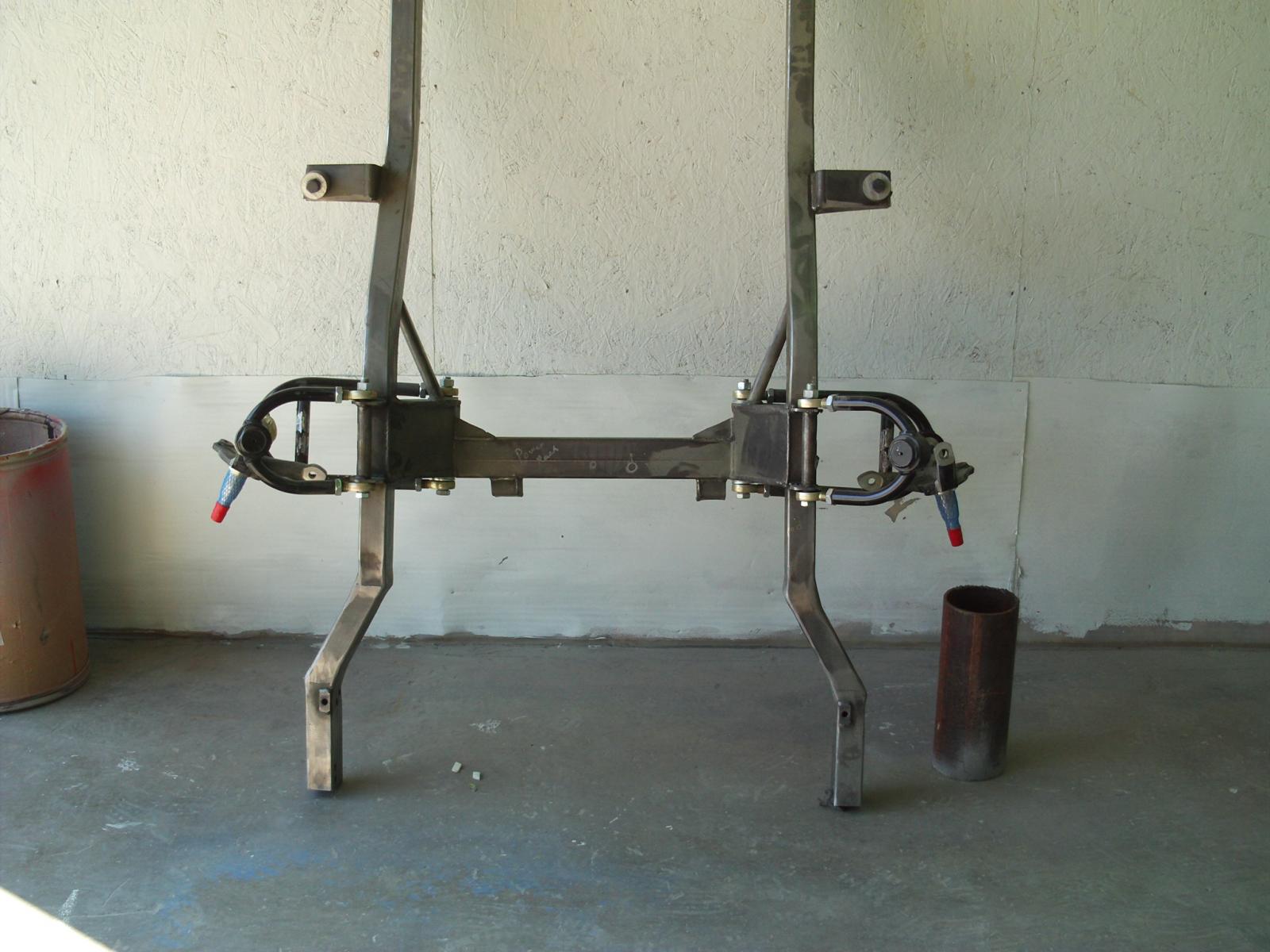

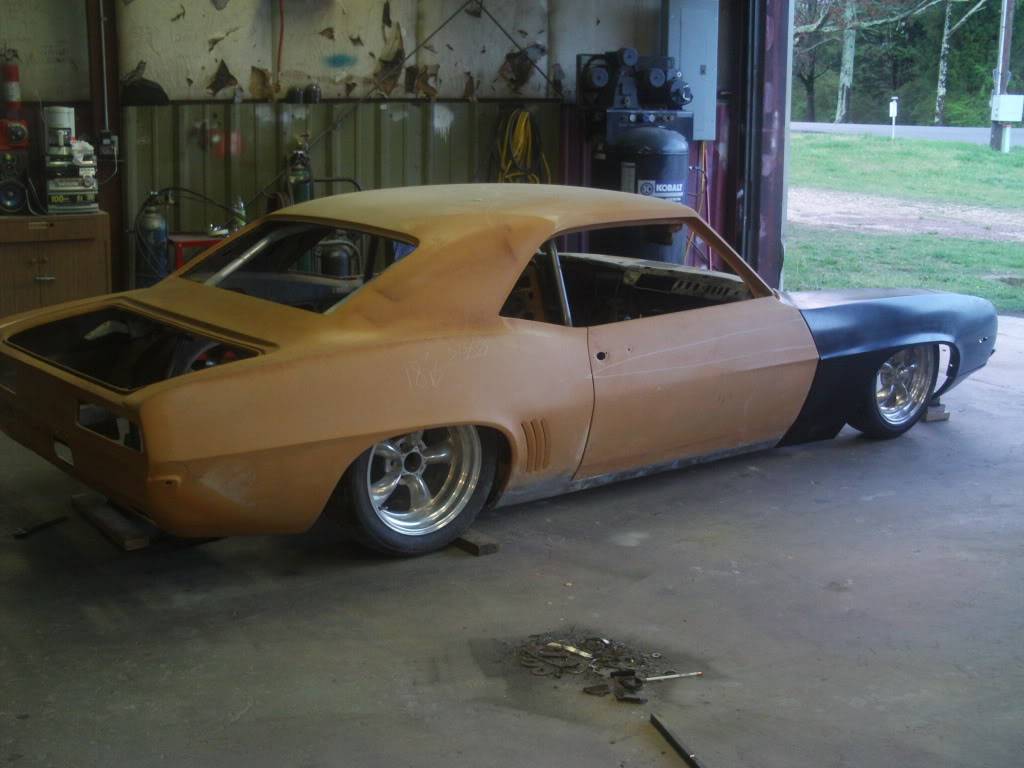

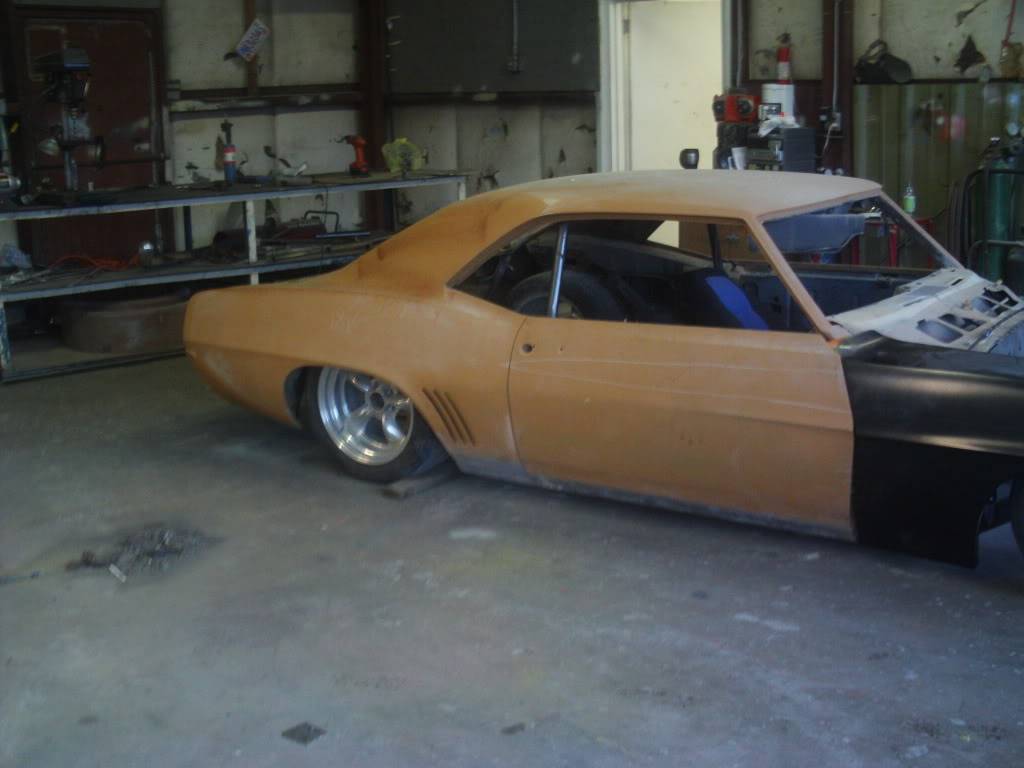

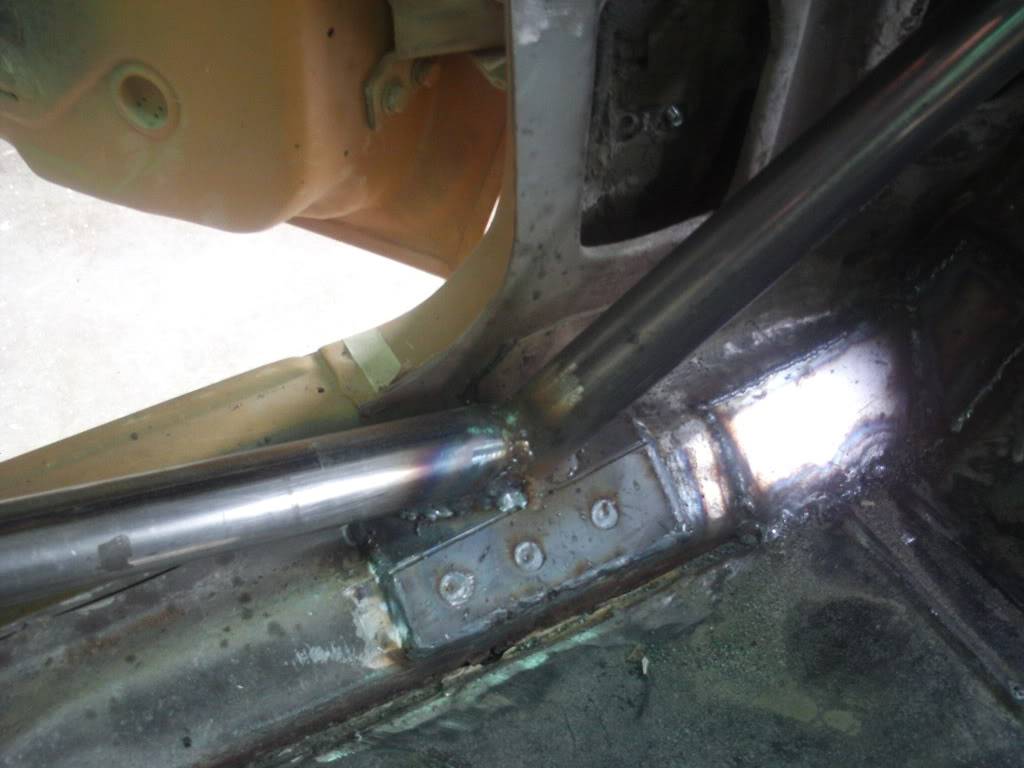

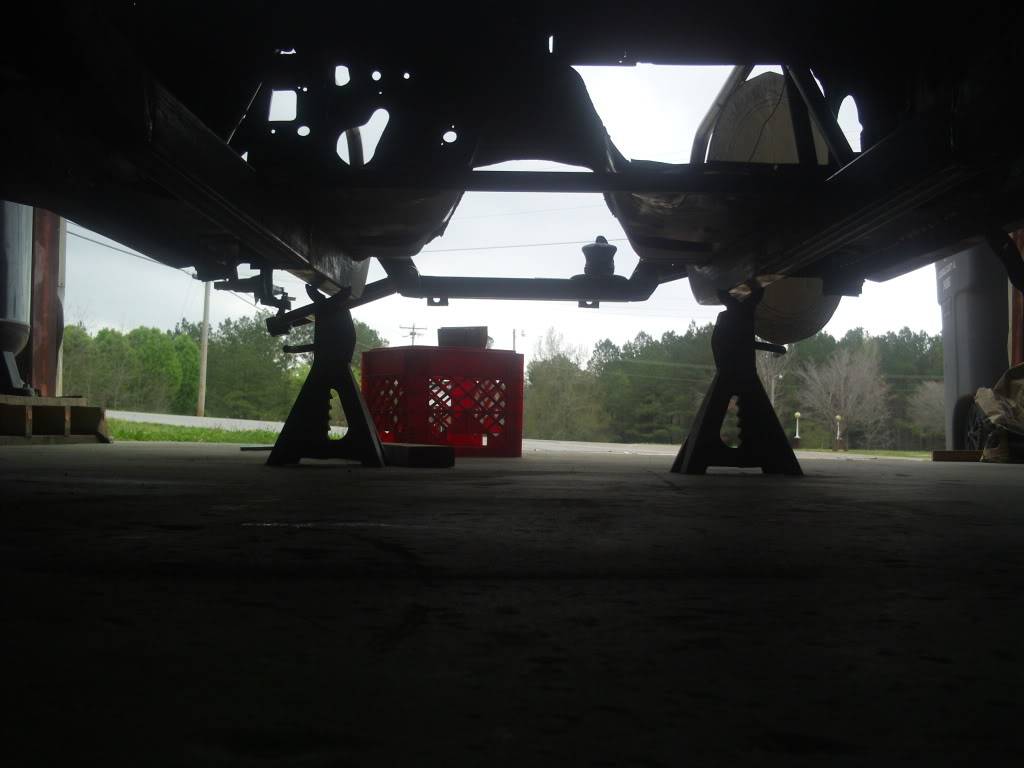

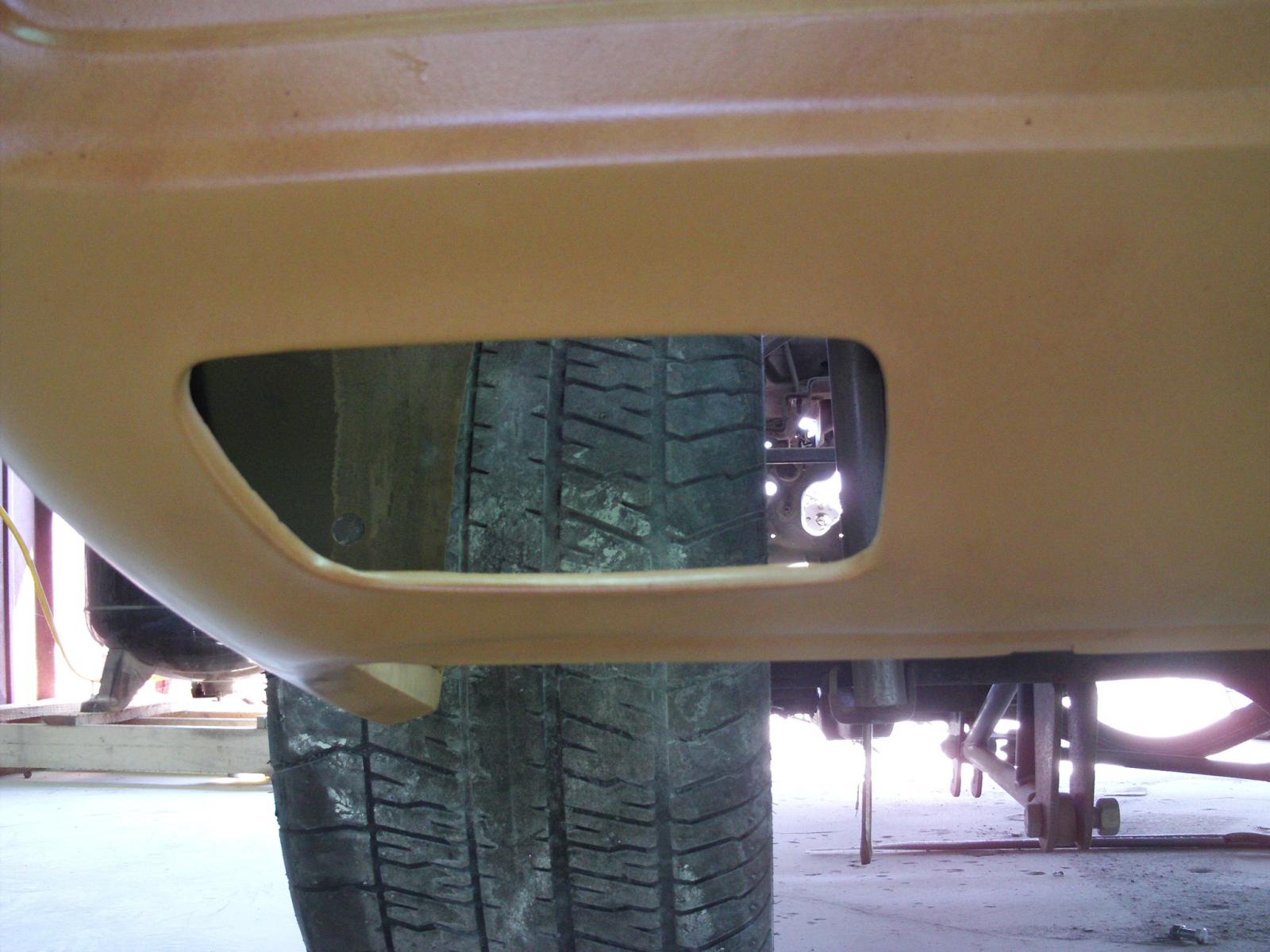

      well i just rolled in from panama city beach for springbreak (i'm only 22) and decided to update the pics of EXCESS. well a little work has taken place, made new brace for rear bumper, finished exhoust ports, and bodywork to rear and driver side so the body is in primer except for the rockers wich i have plans for. the suspention is finally comeing together with the front subframe finnally welded in and raised almost 2 inches without sacrifising any headroom. so the rest of this week will be slow because of all the measuring with installing the front bags and rollcage and the fact that i just got back from springbreak and am a little ruff. but heres the pics and let me know what you think. and please someone tell me how to make the pics bigger
      Attached Images Attached Images

    12. #12
      Join Date
      Jun 2007
      Location
      Dayton Ohio
      Posts
      1,283

    13. #13
      Join Date
      Jan 2009
      Posts
      343
      well its been a while since i updated this project so here we go. in no paticular order may i add
      Josey Sandy
      have'n a badass car and not driving it is like having a playboy model as a wife and not......well, you know.

    14. #14
      Join Date
      Jan 2009
      Posts
      343



      Josey Sandy
      have'n a badass car and not driving it is like having a playboy model as a wife and not......well, you know.

    15. #15
      Join Date
      Jan 2009
      Posts
      343








      Josey Sandy
      have'n a badass car and not driving it is like having a playboy model as a wife and not......well, you know.

    16. #16
      Join Date
      Jan 2009
      Posts
      343





      me doin a little work
      Josey Sandy
      have'n a badass car and not driving it is like having a playboy model as a wife and not......well, you know.

    17. #17
      Join Date
      Jan 2009
      Posts
      343

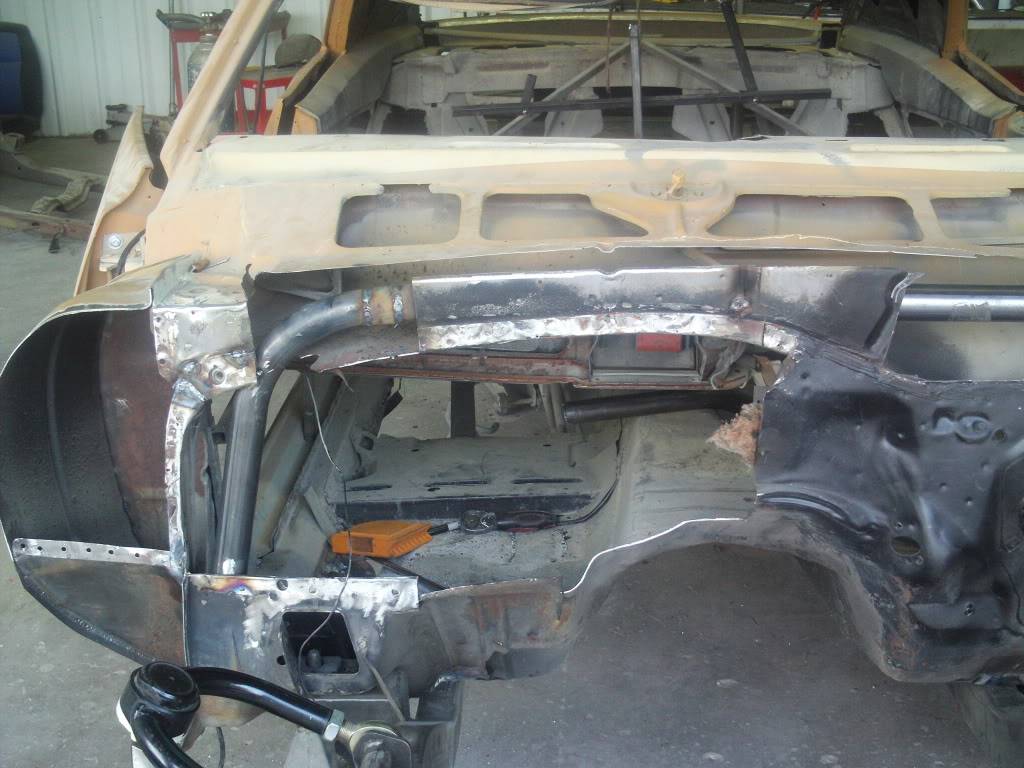

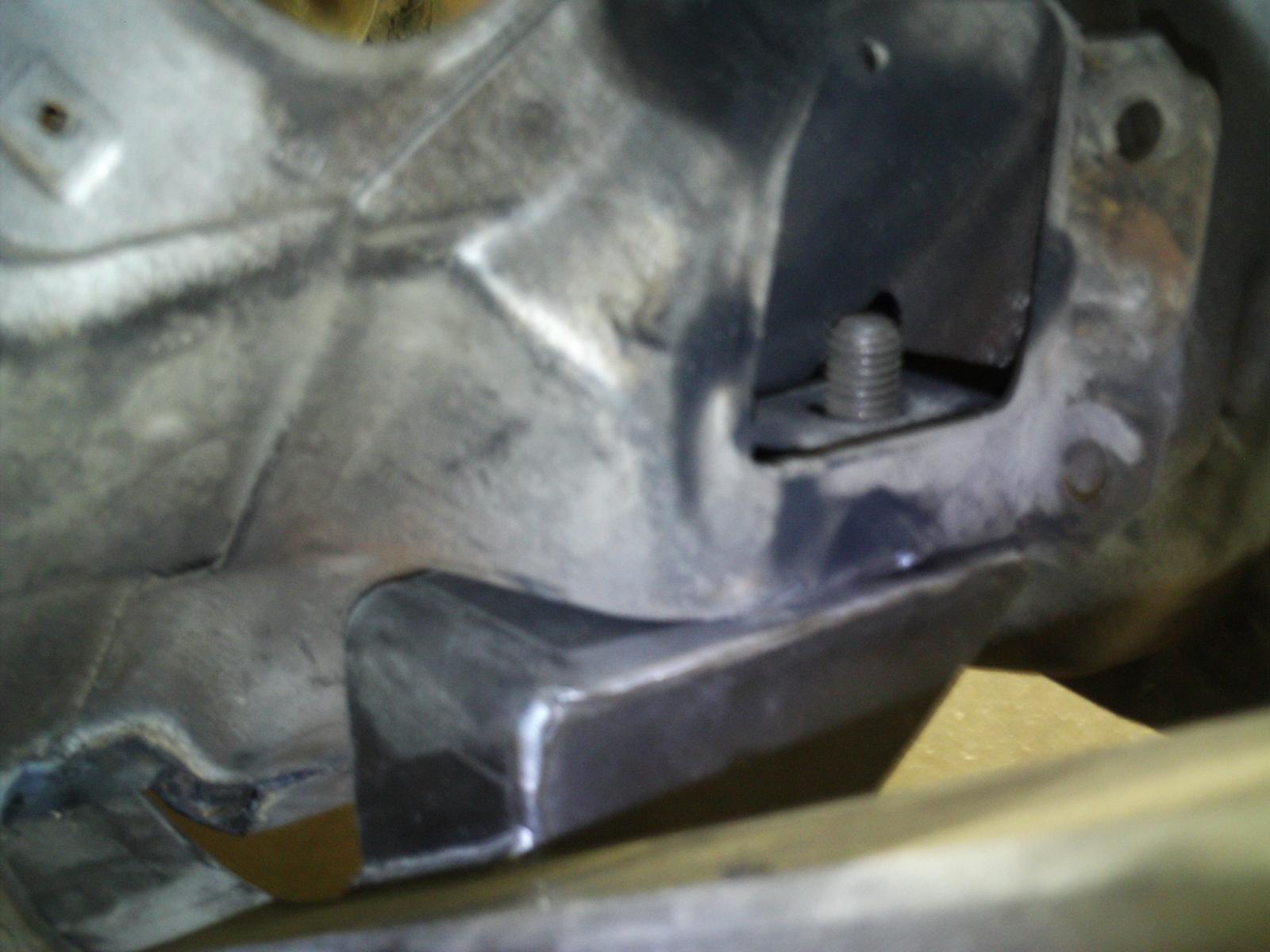

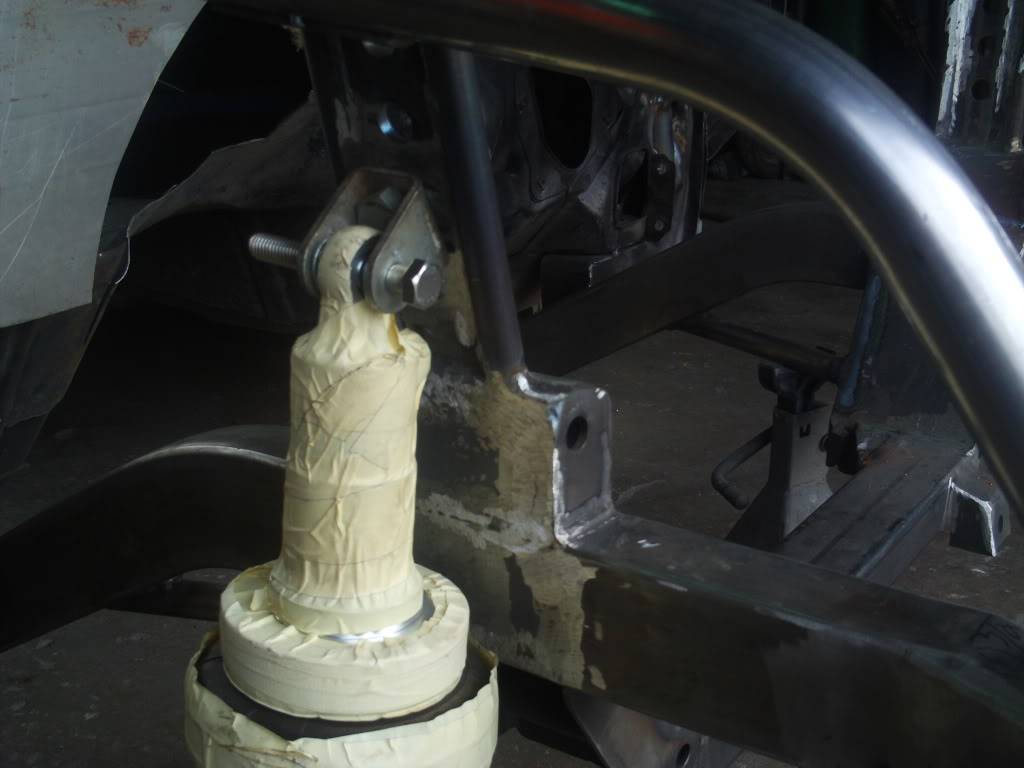

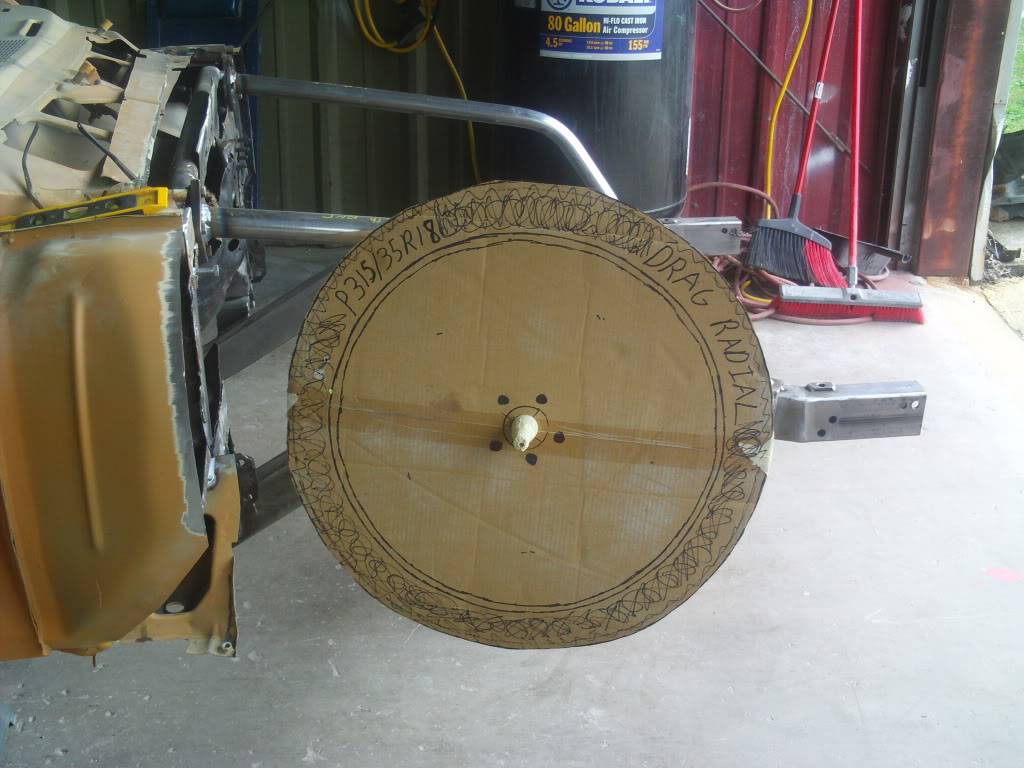

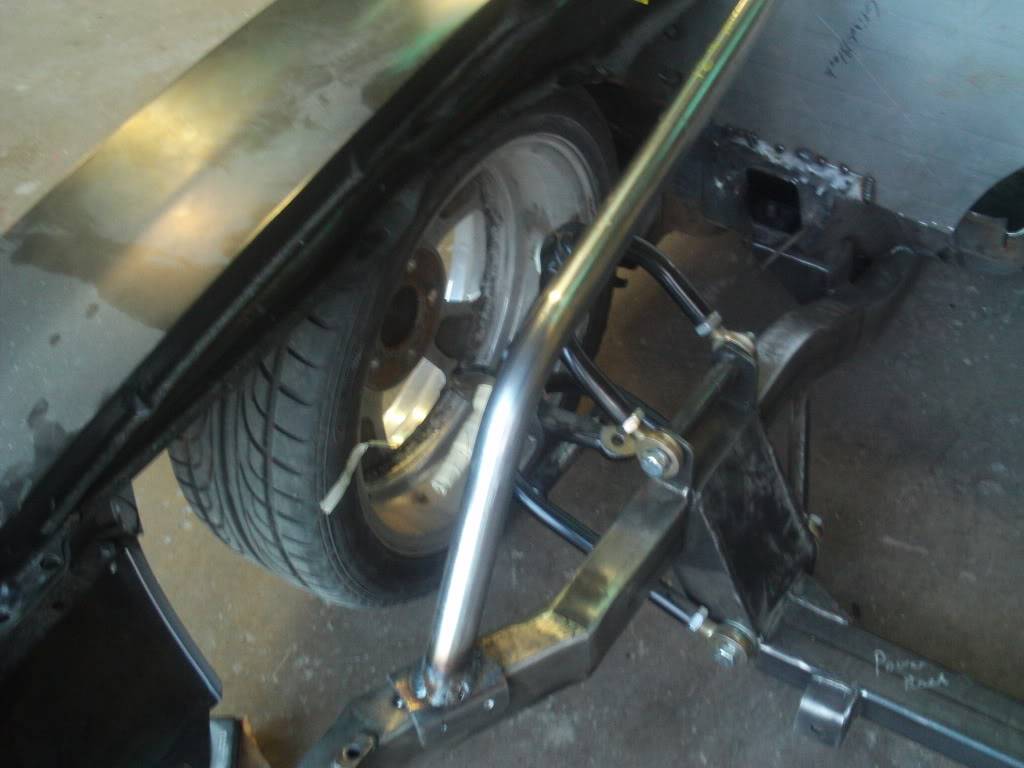

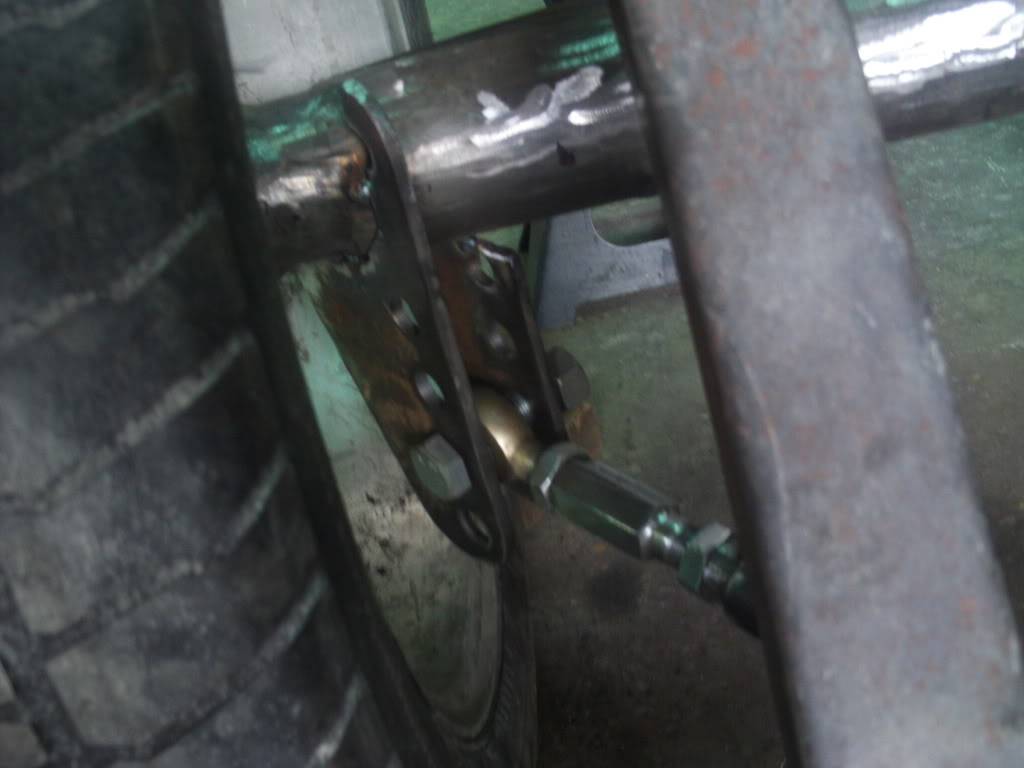

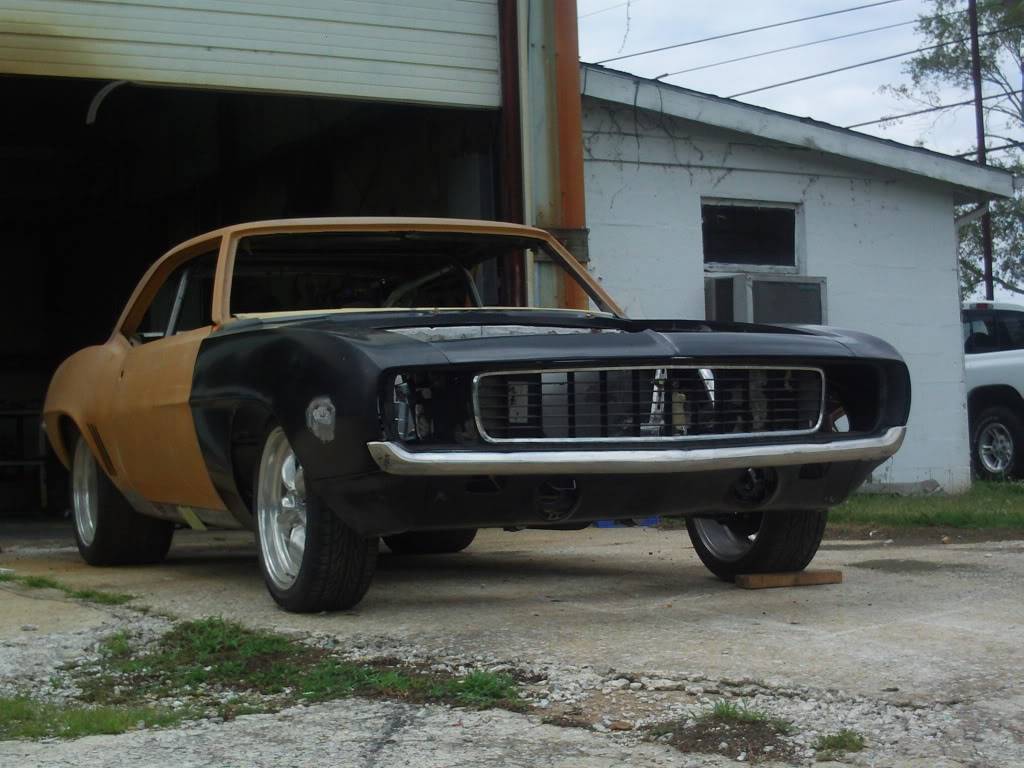

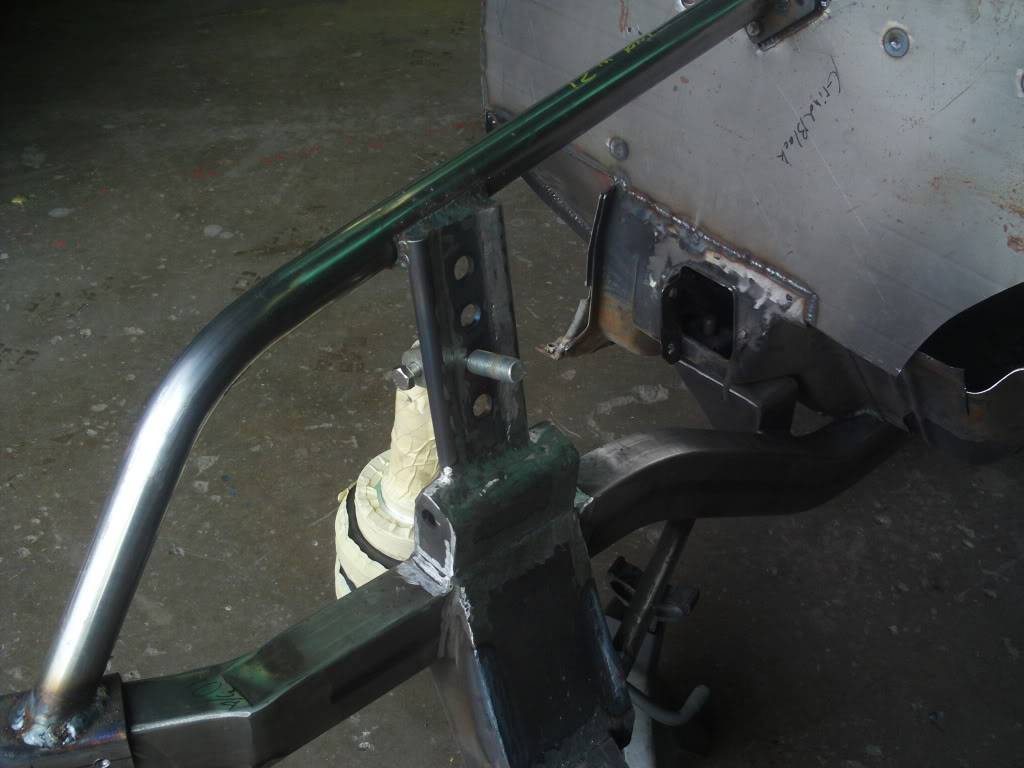

      the car has seen alot of work since these last pics but cant take any for i found out that putting your camera in your pocket does not keep it dry enuff when your stuck in a downpoor. but since pics the front has had a few new brackers for the bags made and a notched and smoother core. the firewall has be finished on both sides. the rear suspention has been changed from a 3link to a 4link and now has custom floor pans covering it all. tubs were also made to cover the huge wheels and i started tucking the rear bumper. and thanks to my donated 6.0 lq4 i have begun mocking up the motor mounts
      Josey Sandy
      have'n a badass car and not driving it is like having a playboy model as a wife and not......well, you know.

    18. #18
      Join Date
      Jan 2009
      Posts
      343

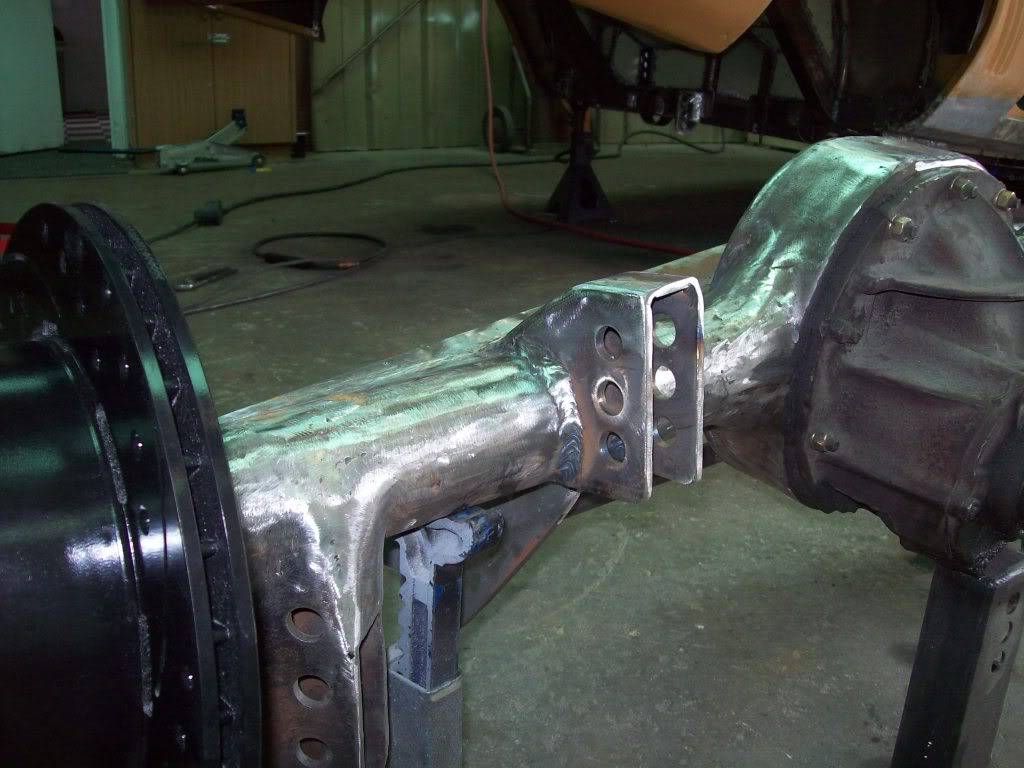

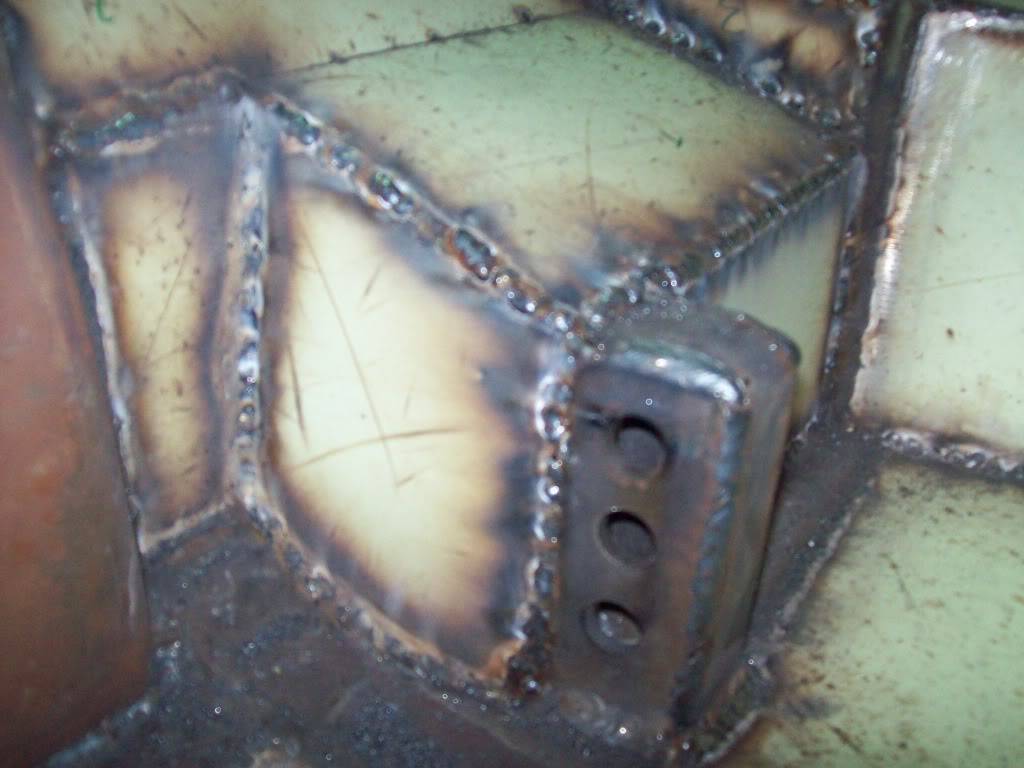

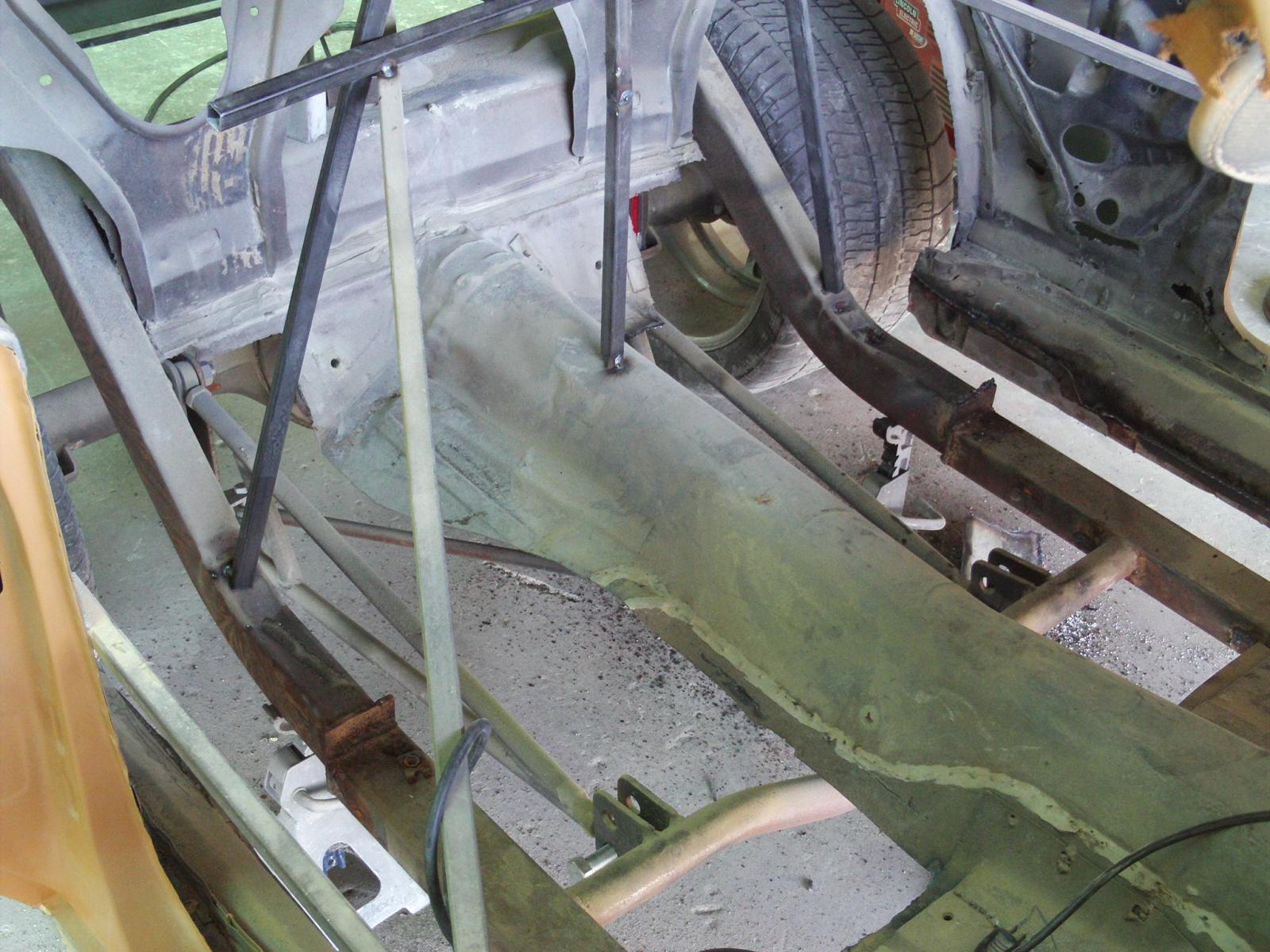

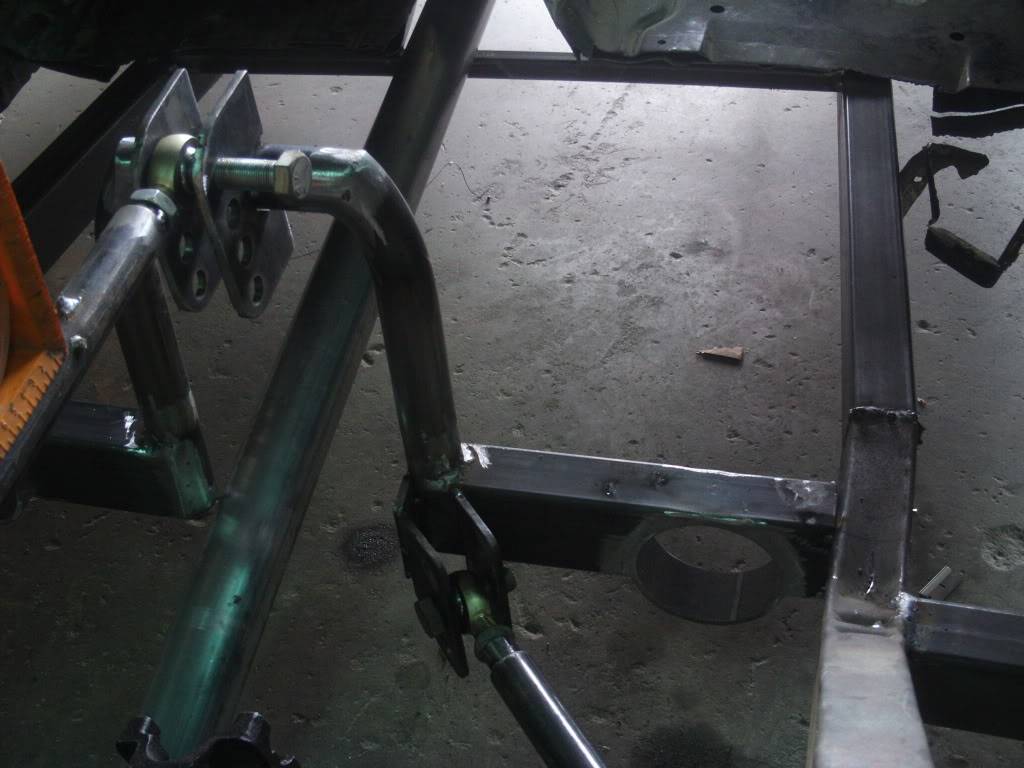

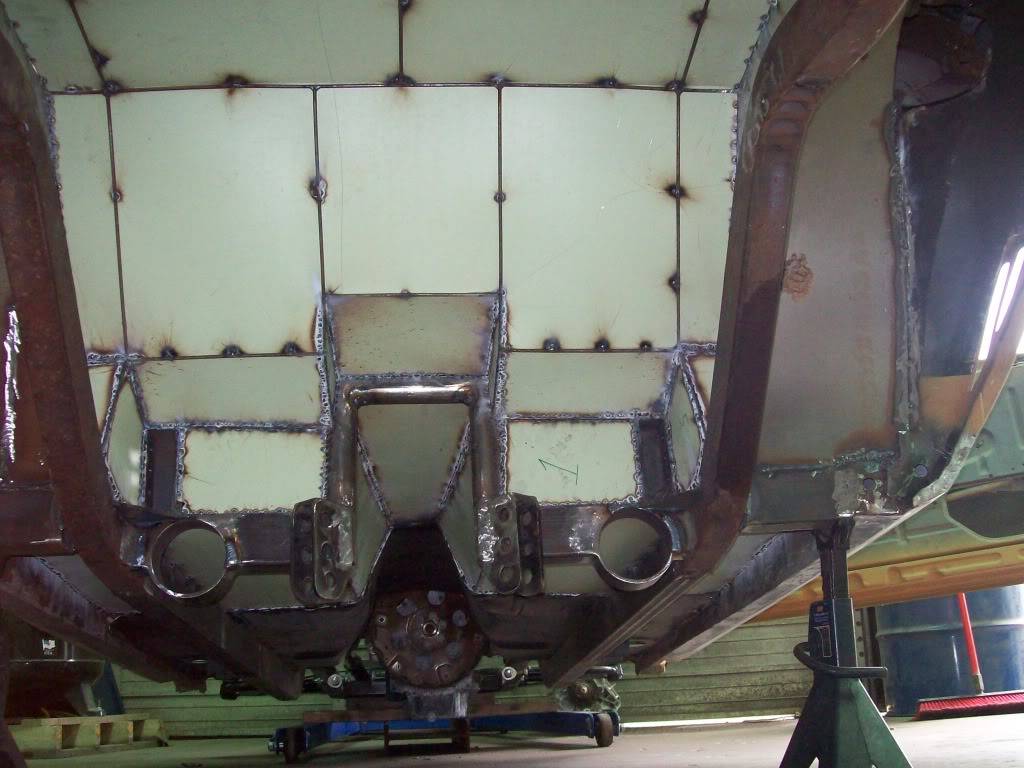

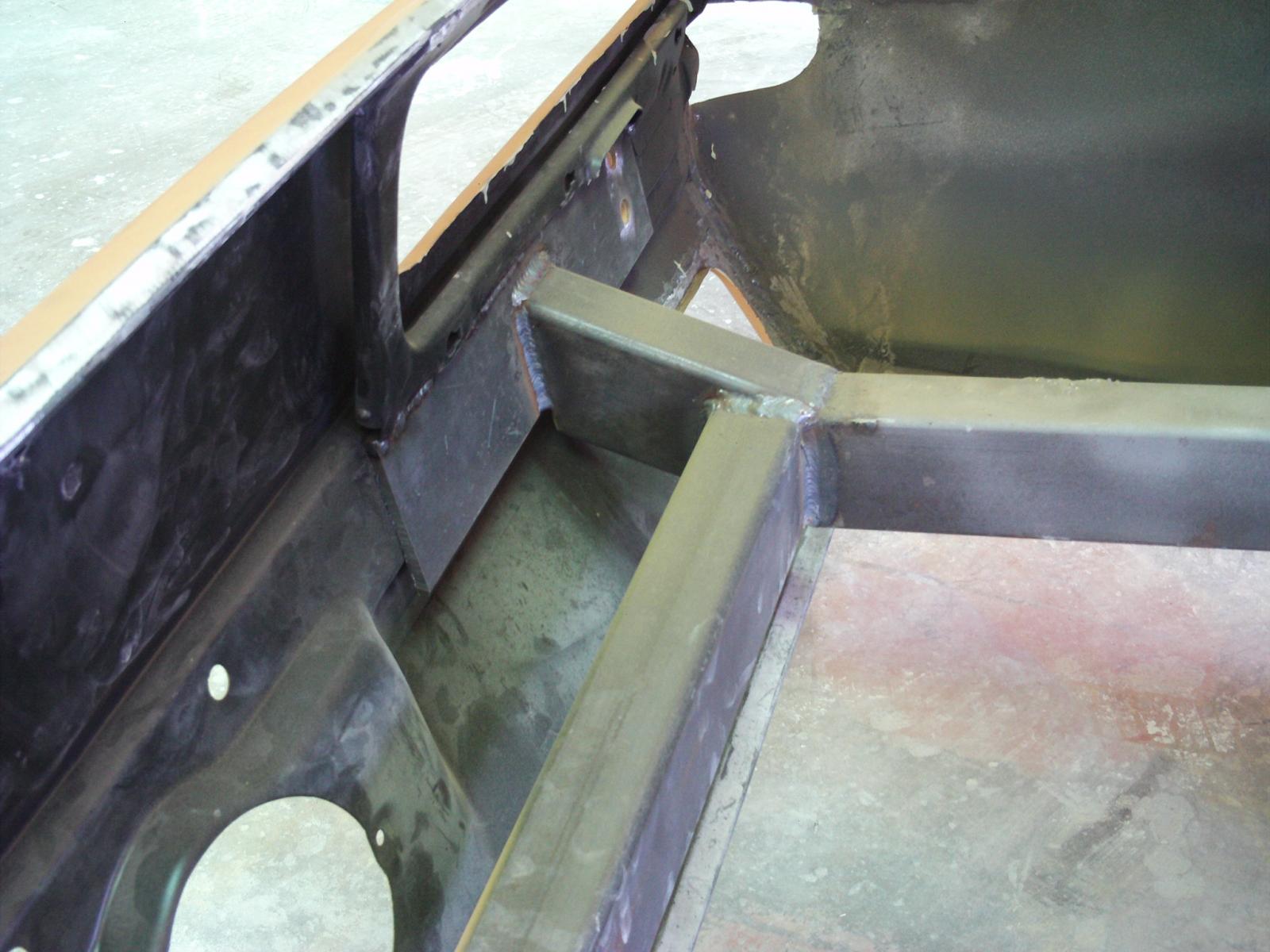

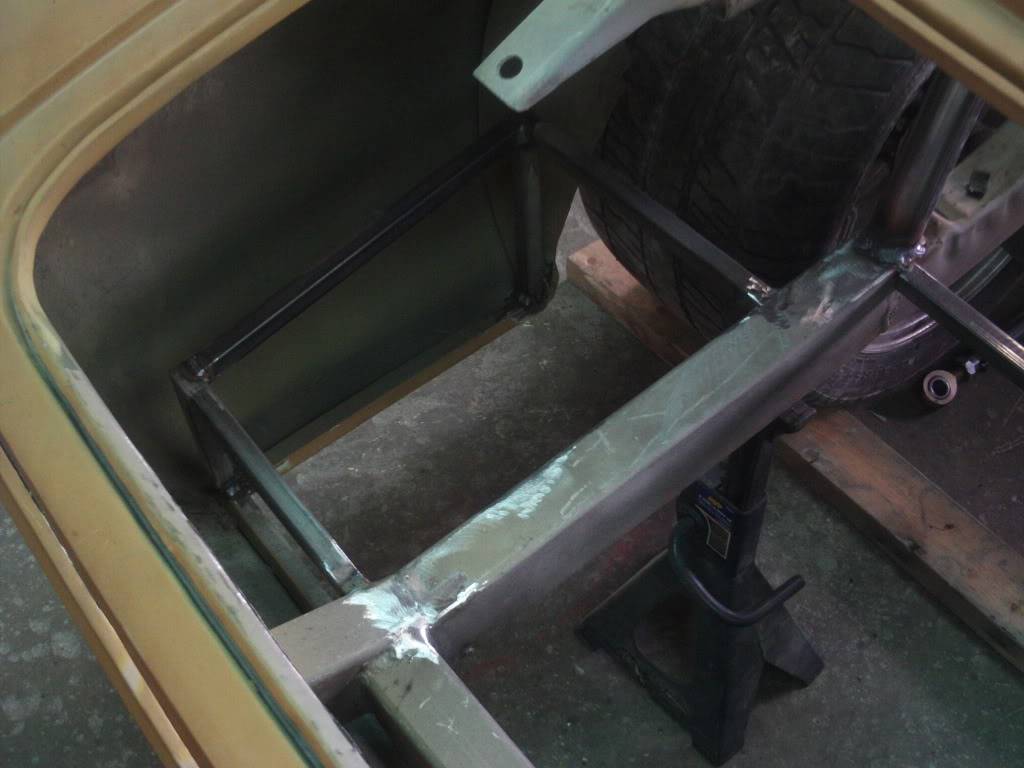

      well a litlle more work done. the rear suspention finished up and some floor pans to make it actually feel like a car again.

      /IMG]



      e/019.jpg[/IMG]

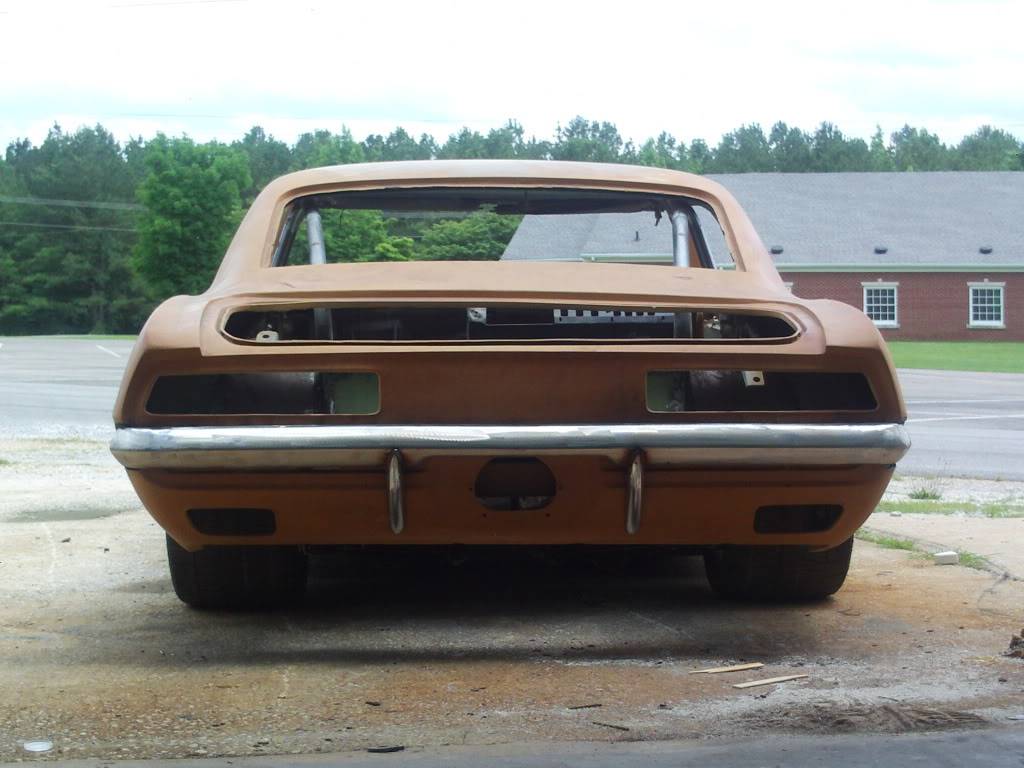

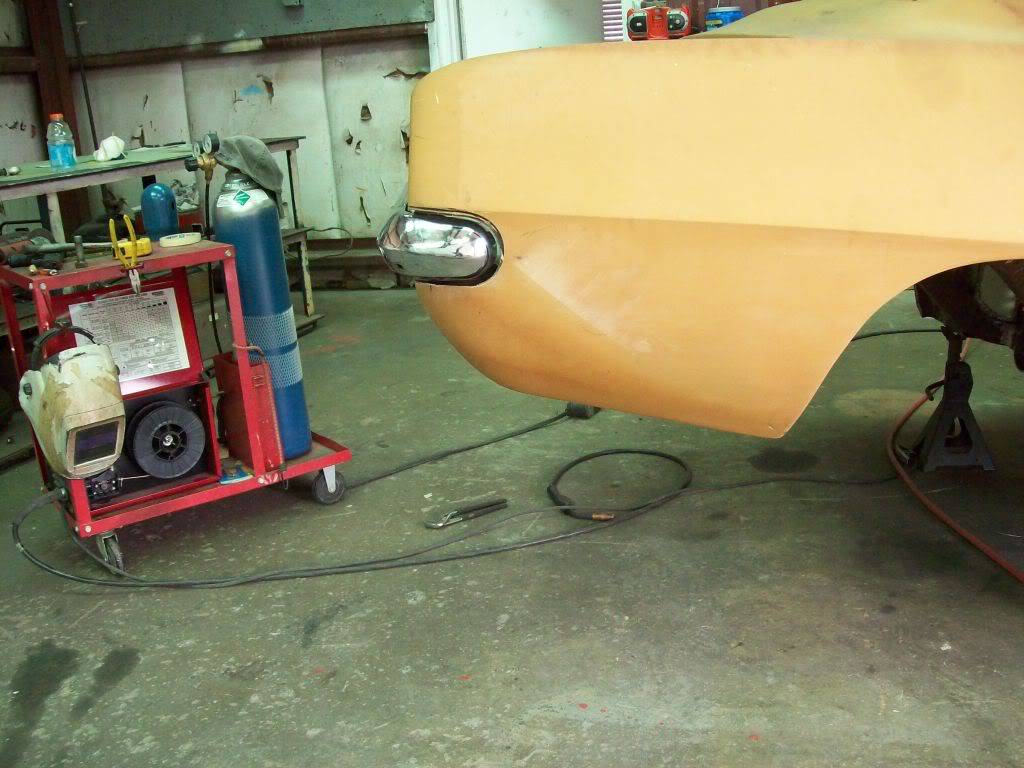

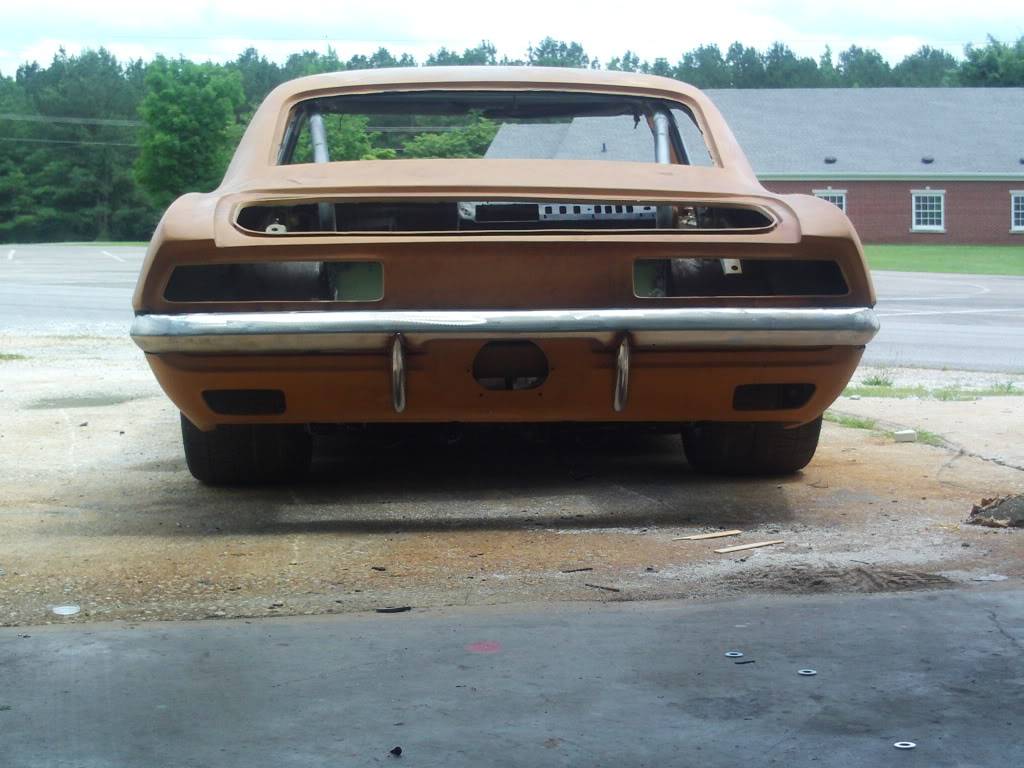

      and the start of the rear bumper

      Josey Sandy
      have'n a badass car and not driving it is like having a playboy model as a wife and not......well, you know.

    19. #19
      Join Date
      Nov 2006
      Location
      Ma.
      Posts
      5,569
      Country Flag: United States
      Nice progress its looking good
      Wayne
      Car FINALLY home !!!!!! lol
      Project FNQUIK https://www.pro-touring.com/showthre...ghlight=FNQUIK

    20. #20
      Join Date
      Jan 2009
      Posts
      343
