1970 Elcamino build!

[Threepointtwo]

Nice work. I love El Caminos. I had one in high school and used to back down the boar ramp into the water and could load a jet ski right into the bed.

[David Sloan]

1387135[/URL]]Nice work. I love El Caminos. I had one in high school and used to back down the boar ramp into the water and could load a jet ski right into the bed.

thank you sir!

[David Sloan]

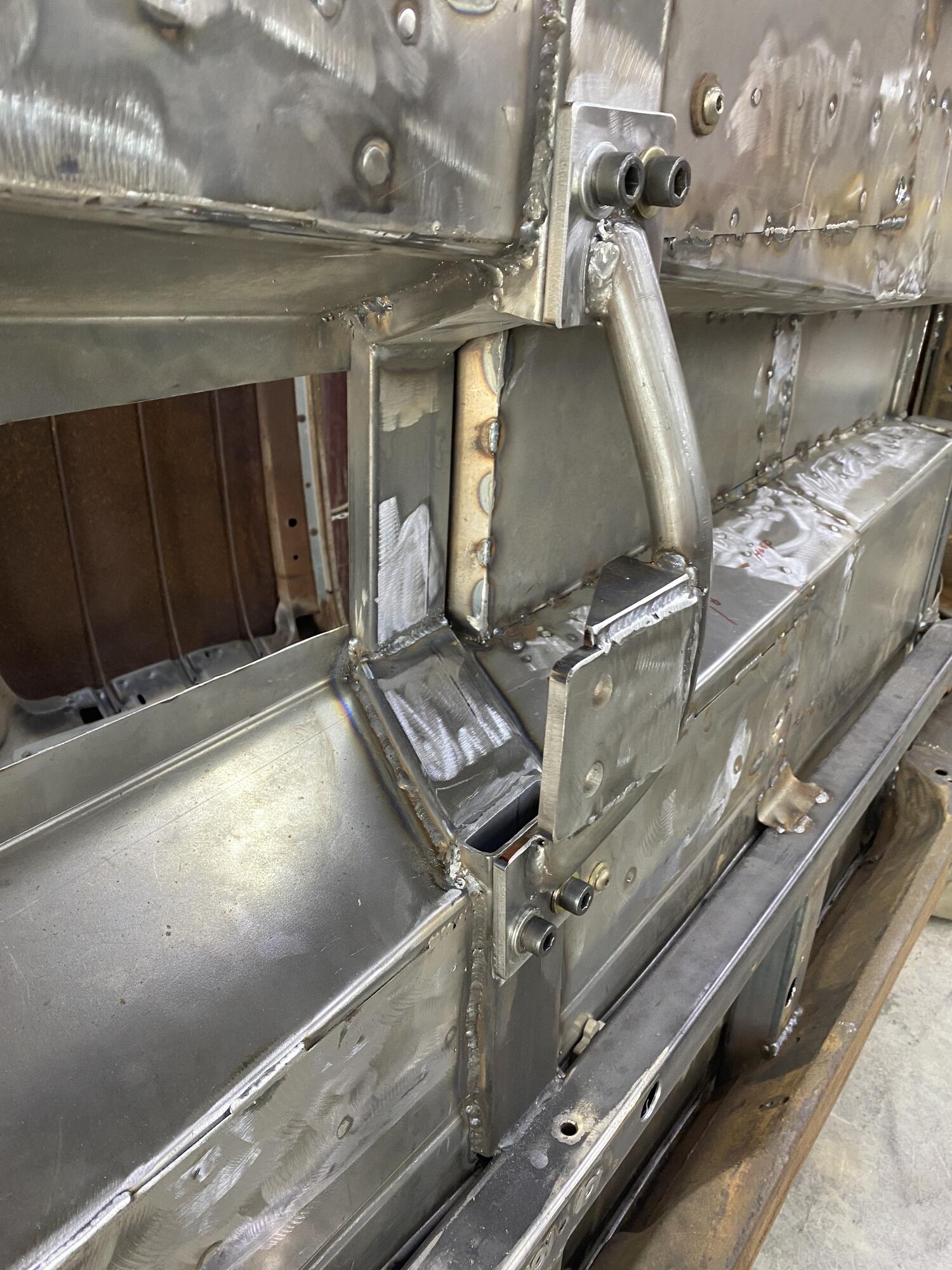

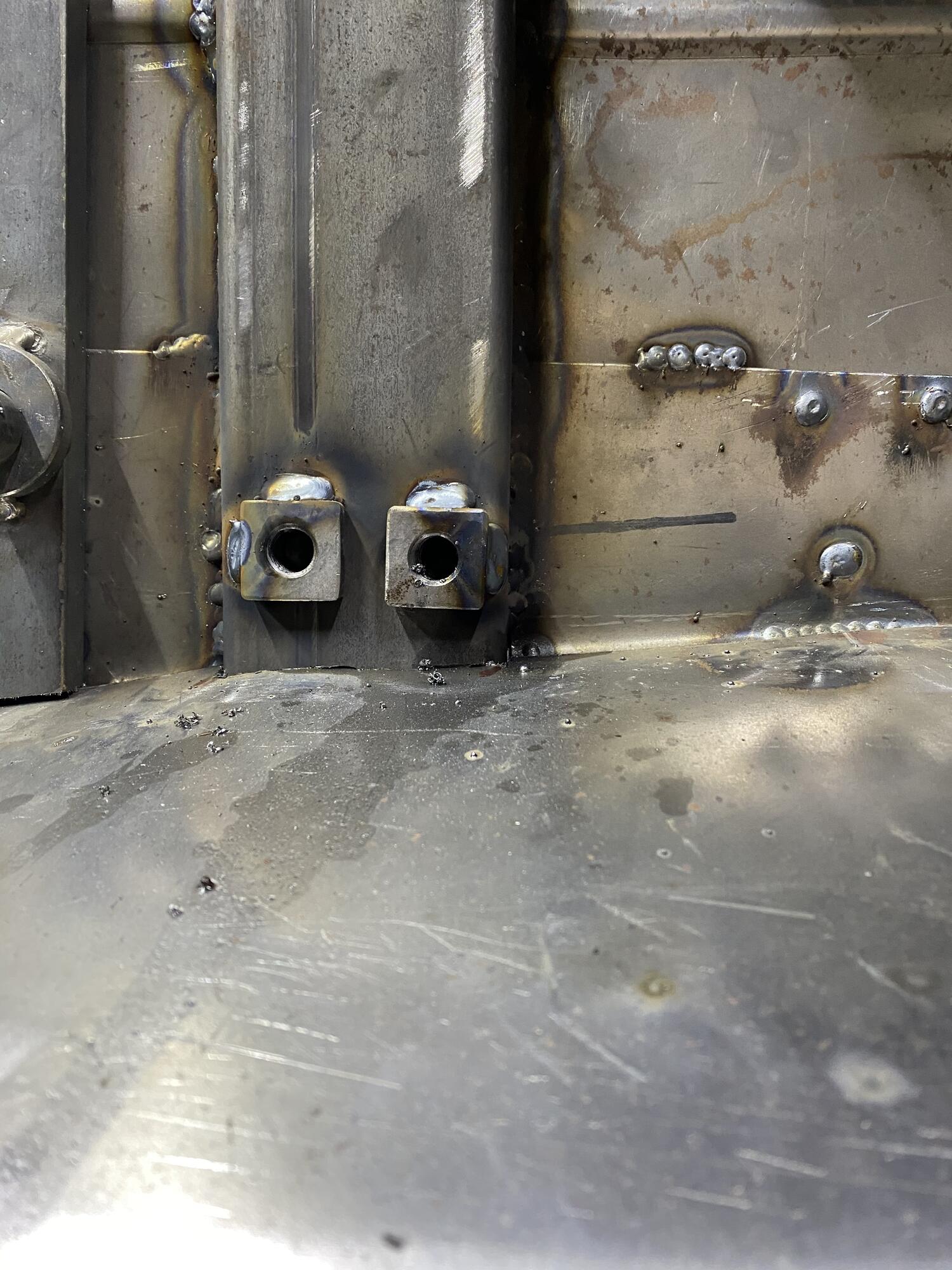

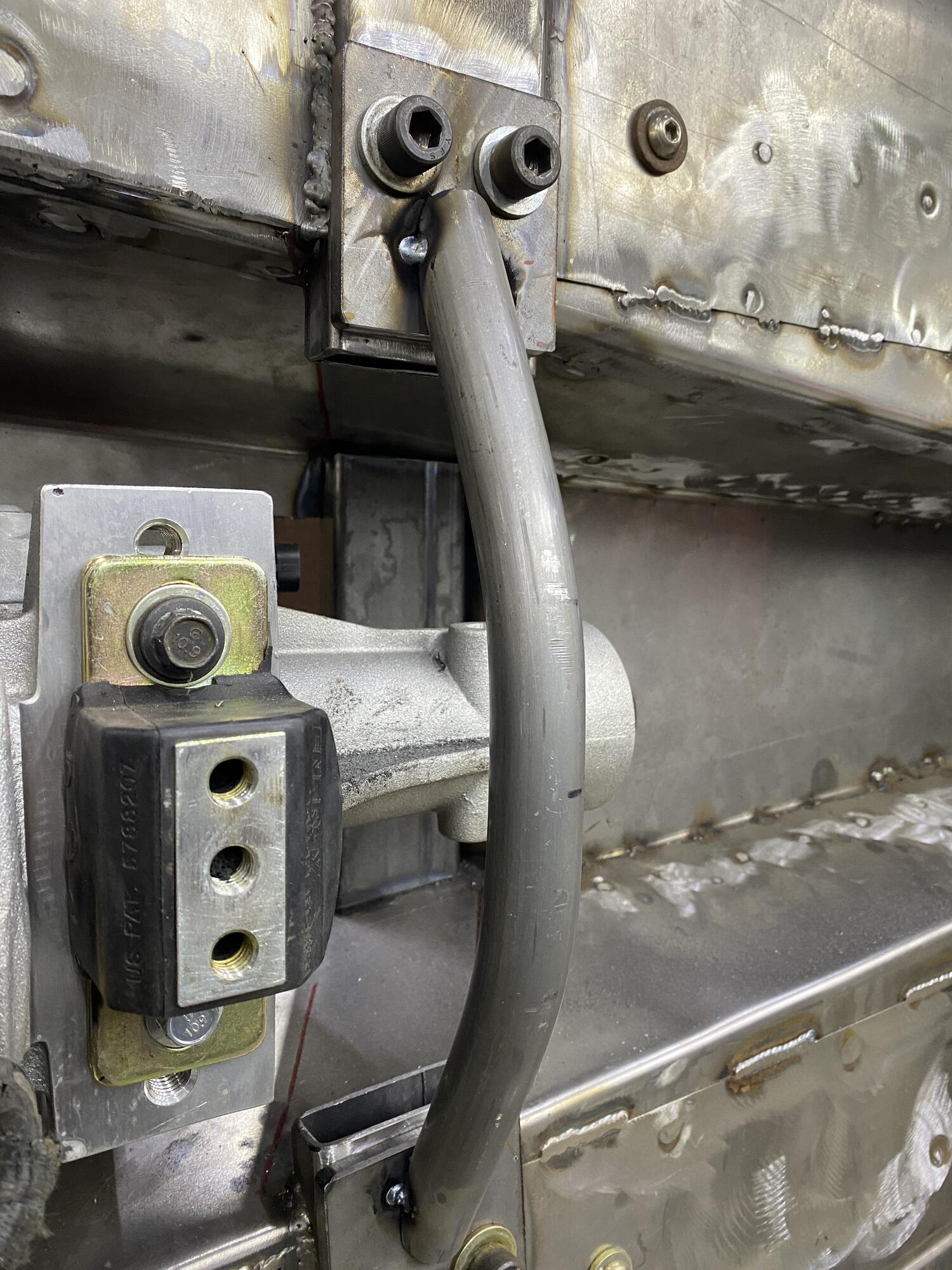

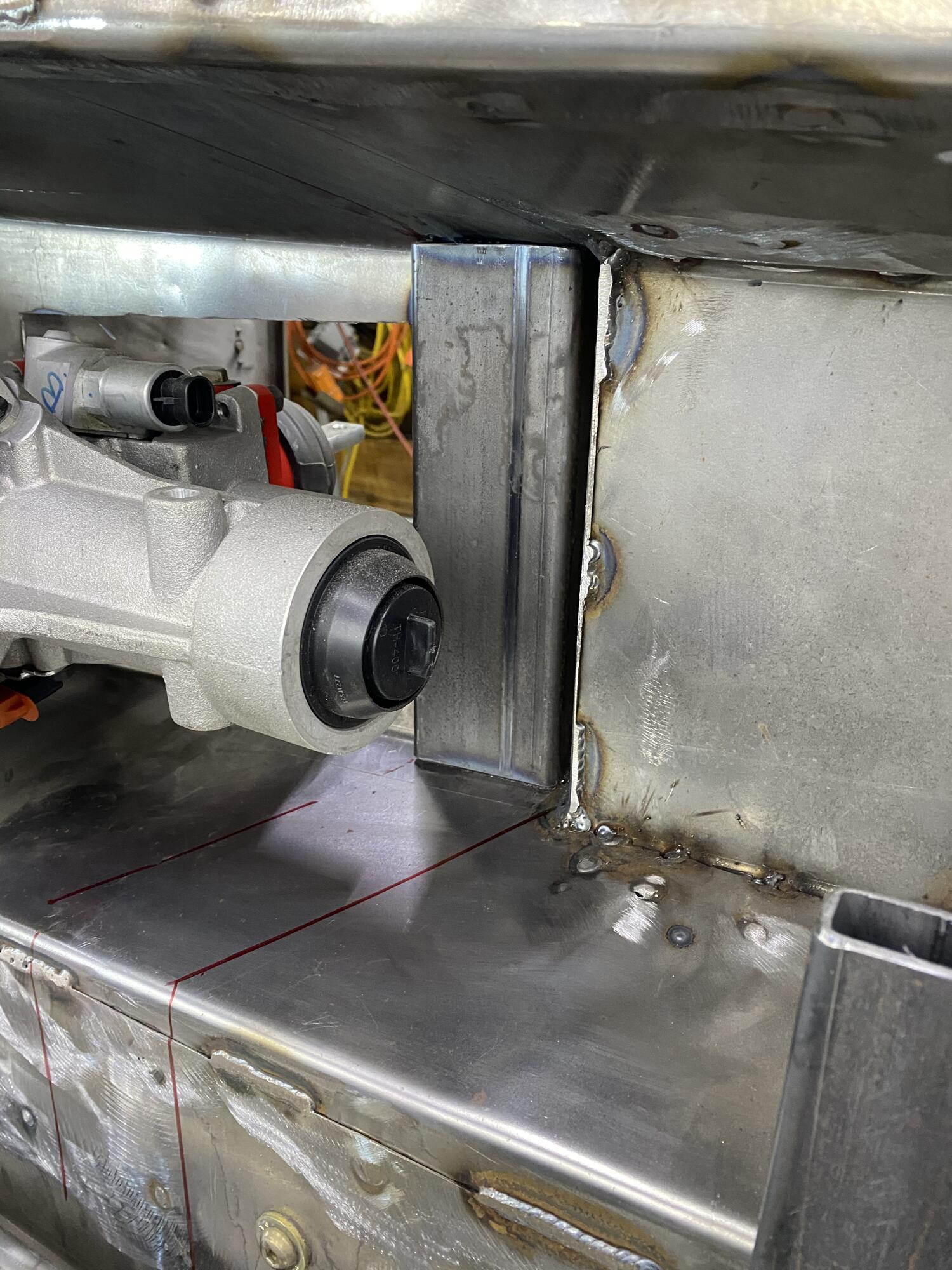

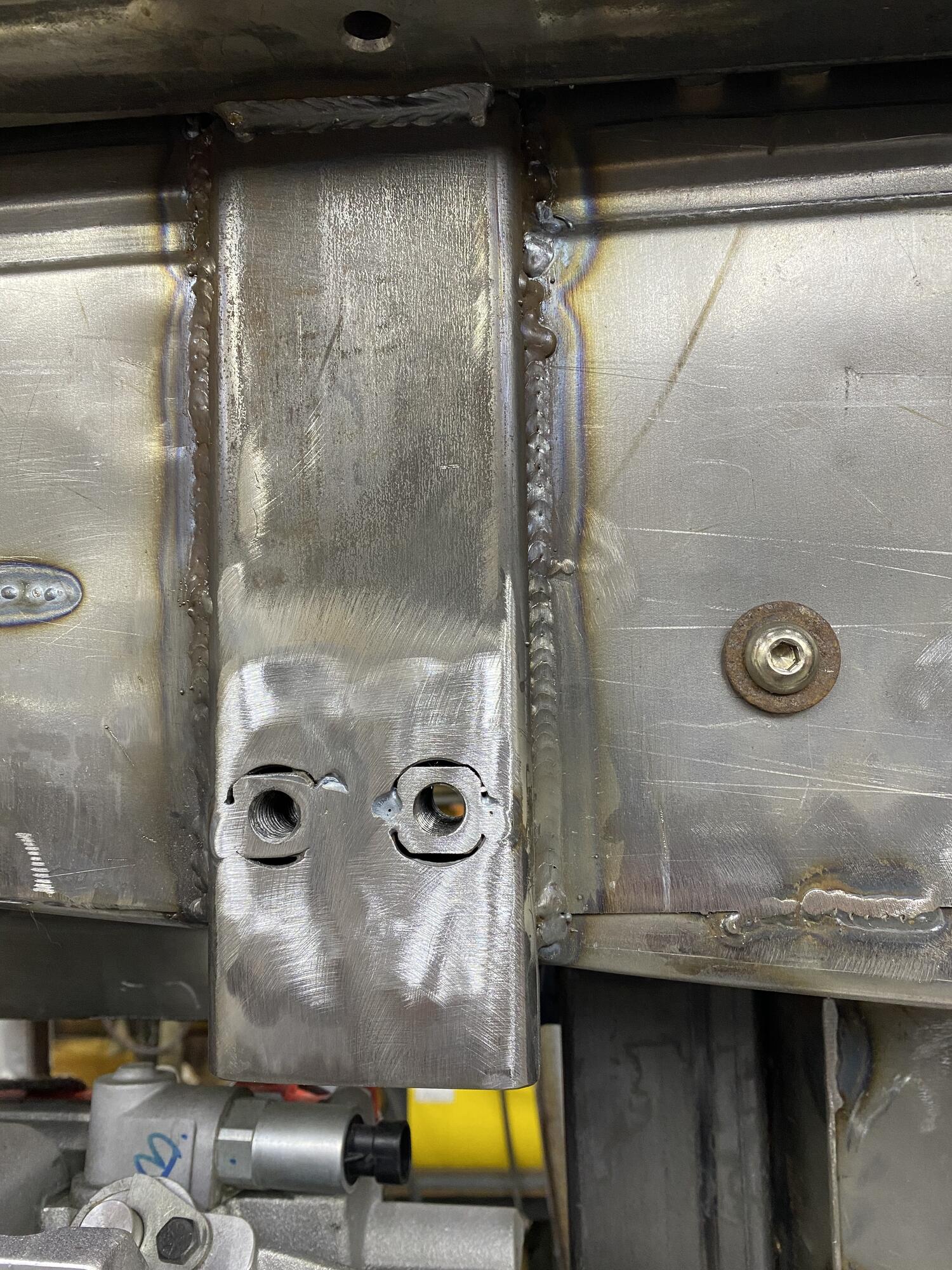

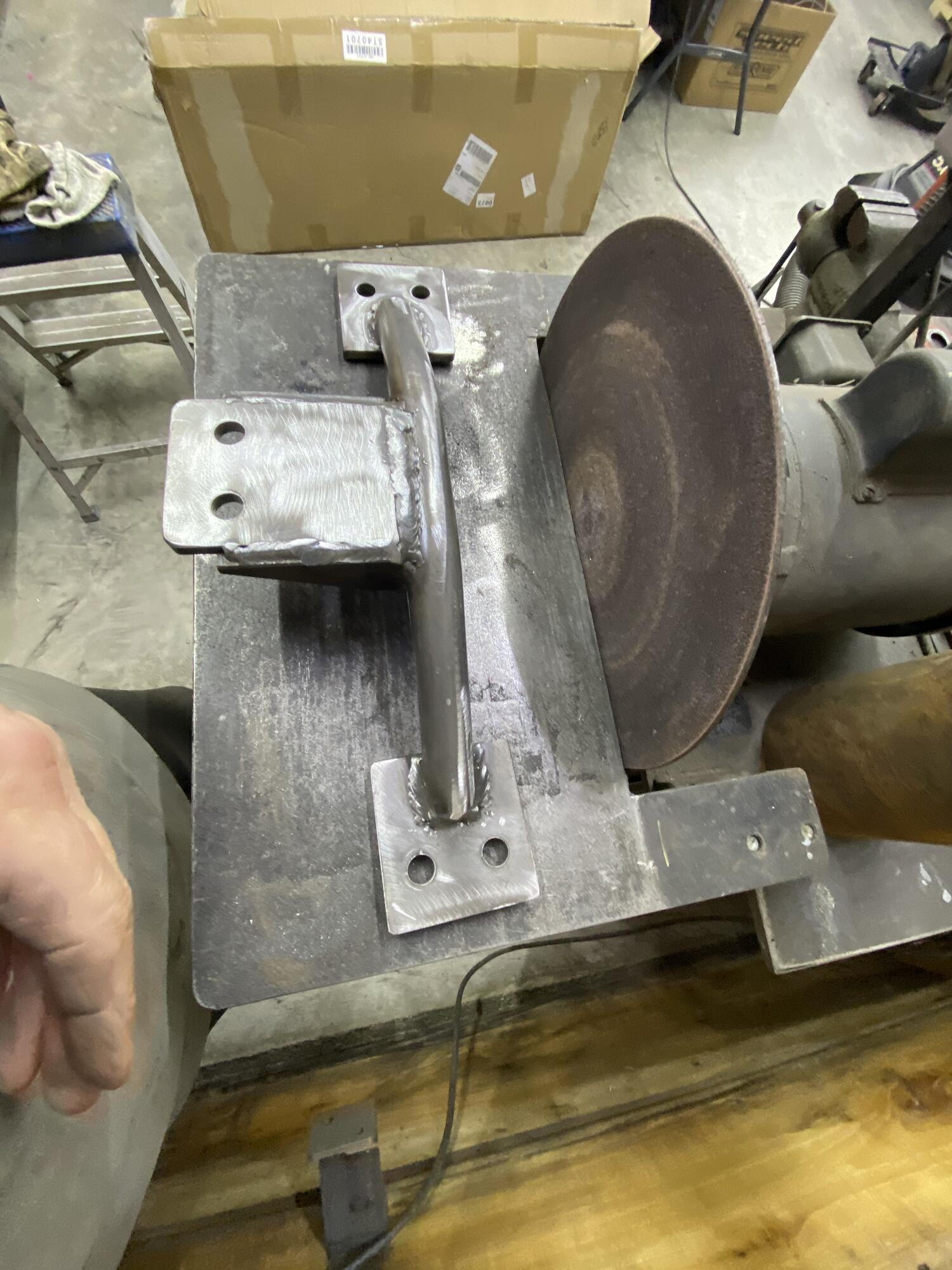

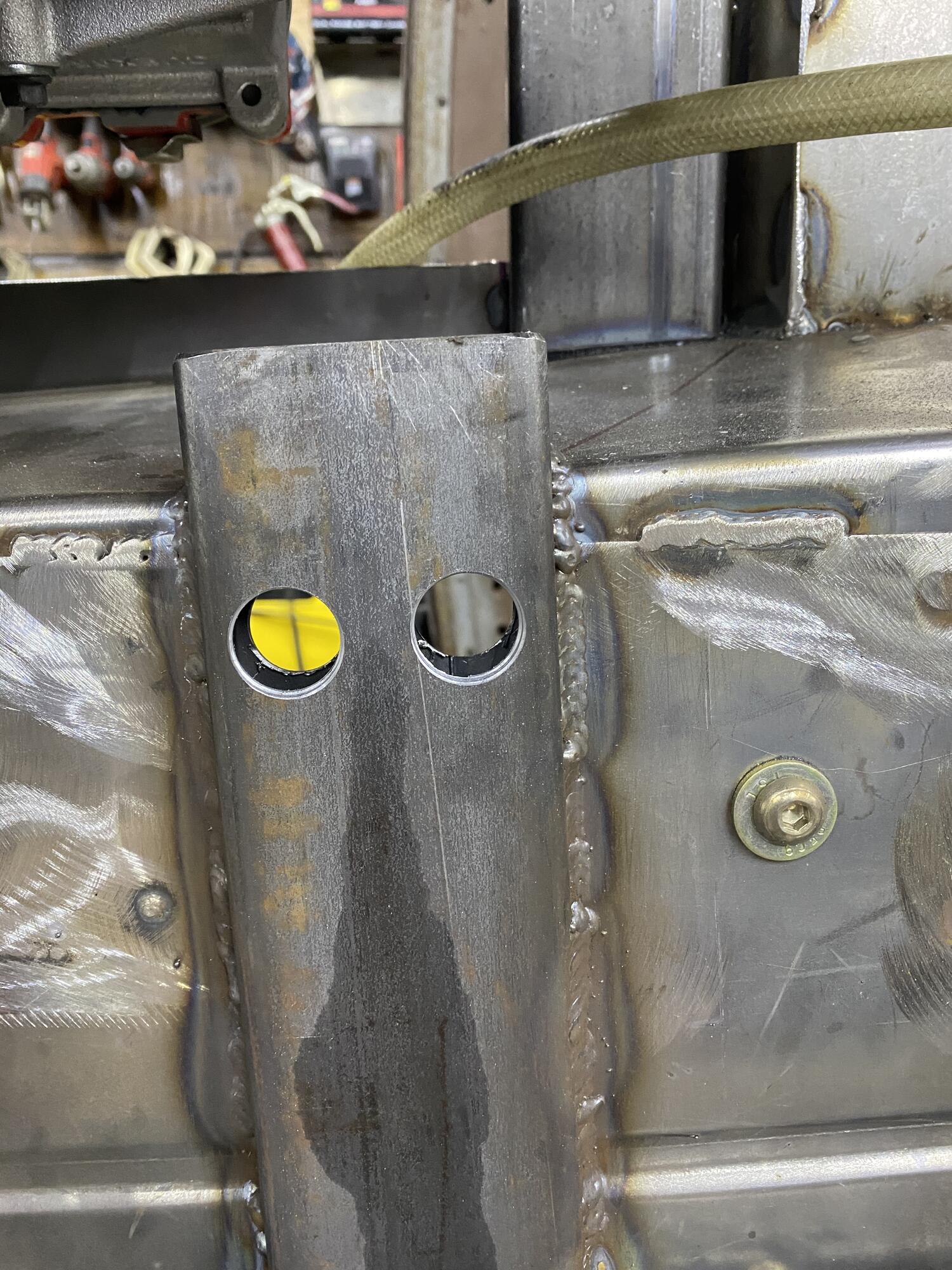

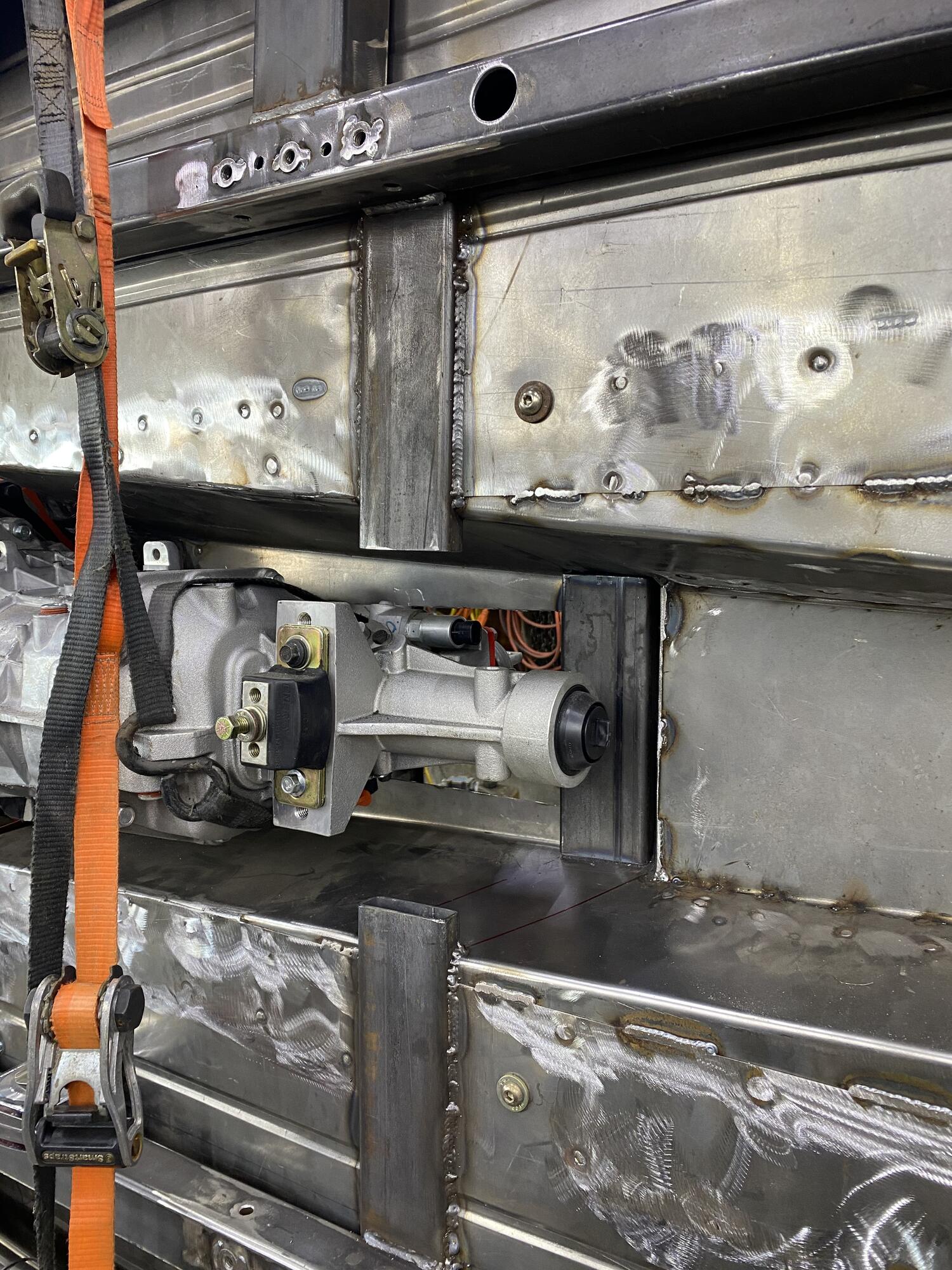

Transmission cross member. I had a temporary cross member in the car and needed to build something better. This is what I came up with!

[andrewb70]

Very cool! I am eager to see how this turbo setup works.

Andrew

[David Sloan]

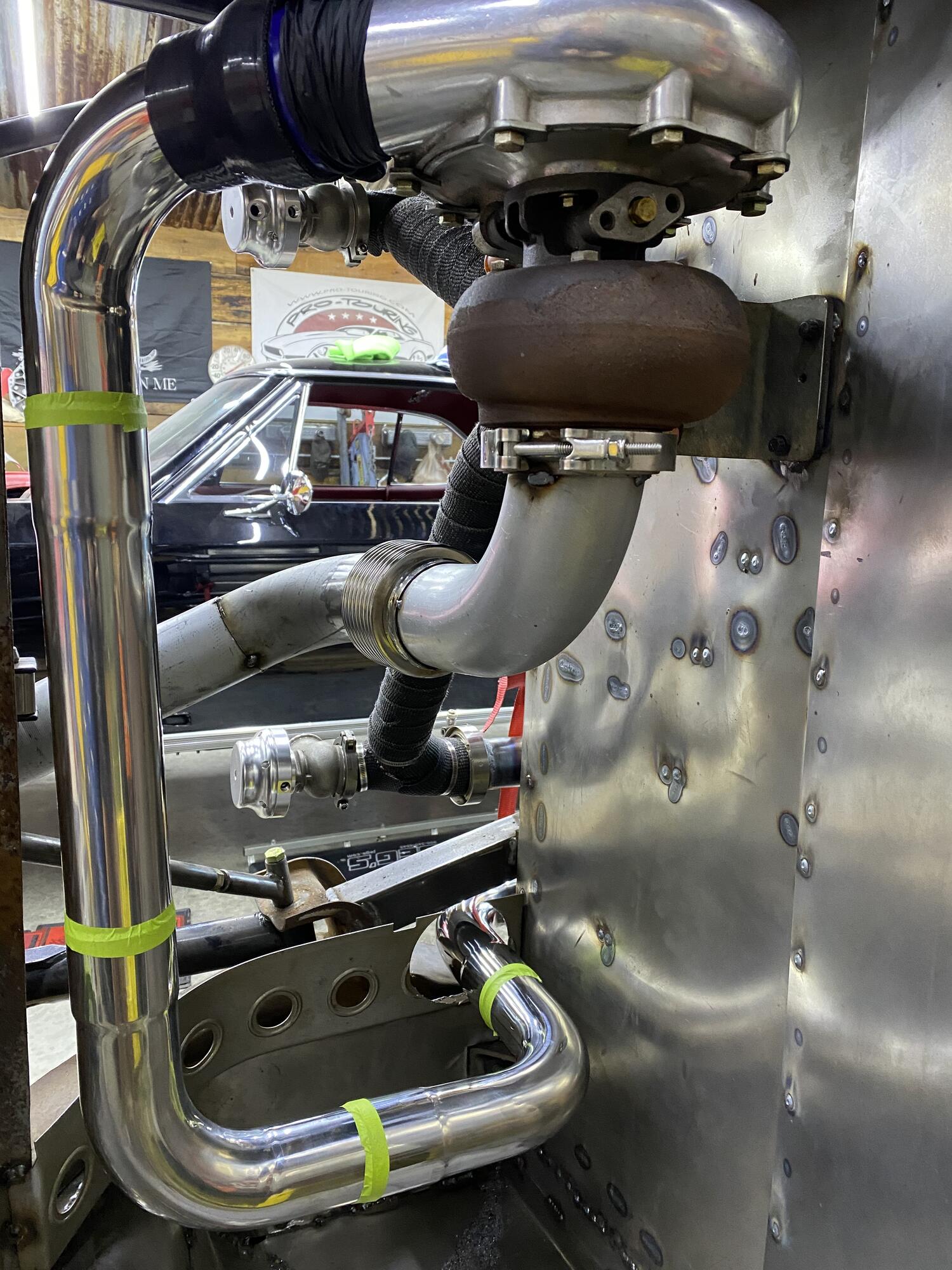

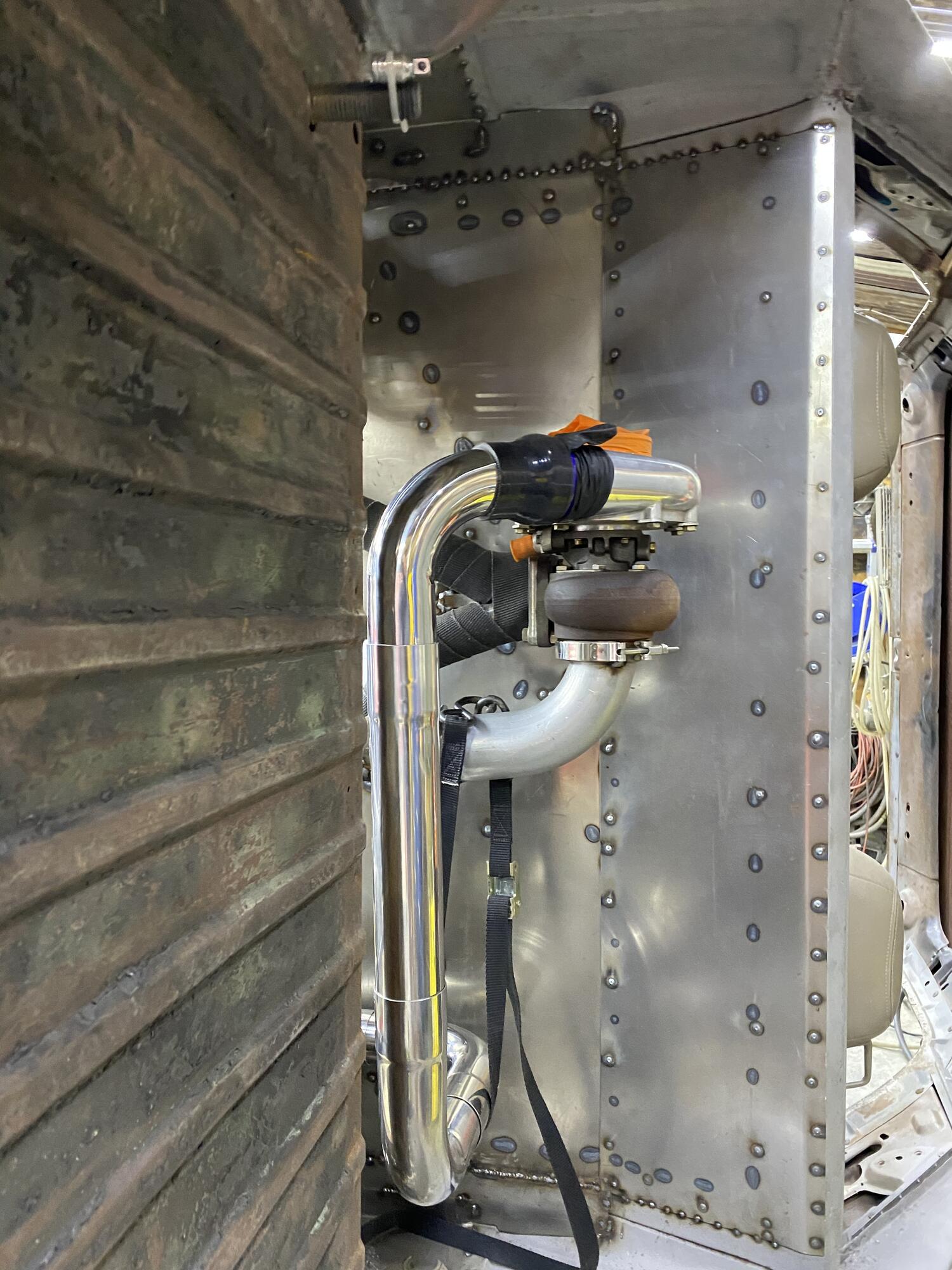

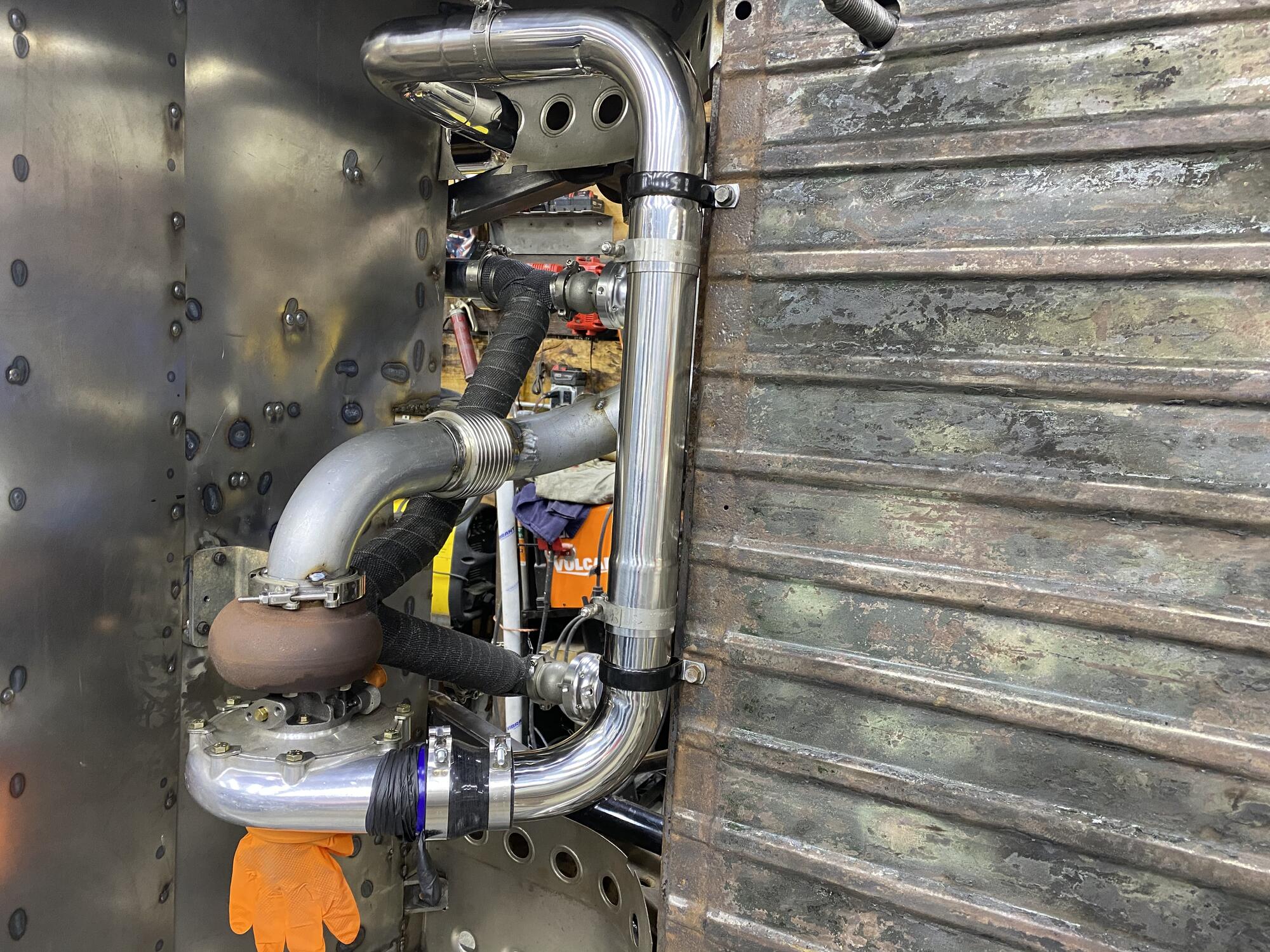

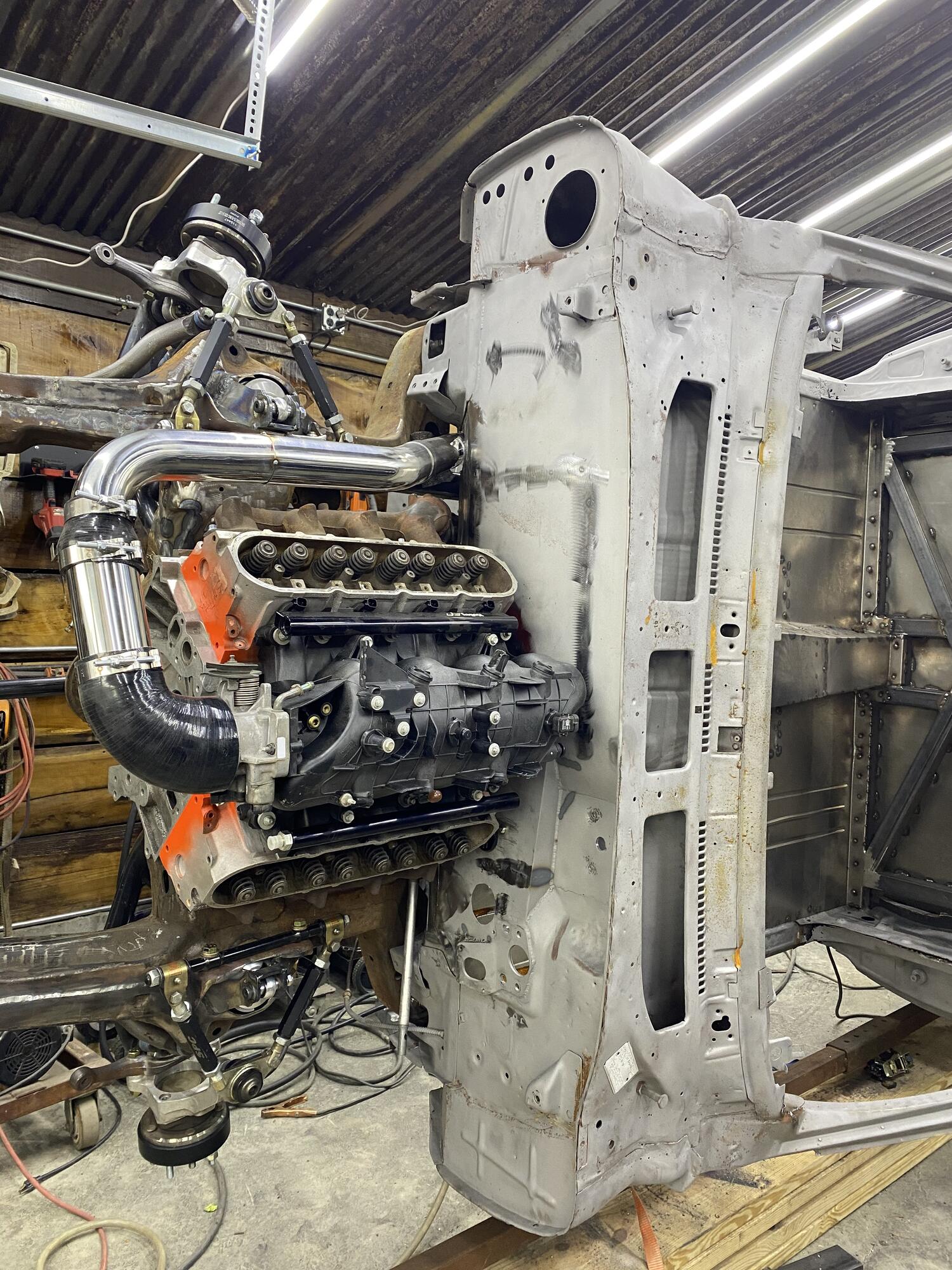

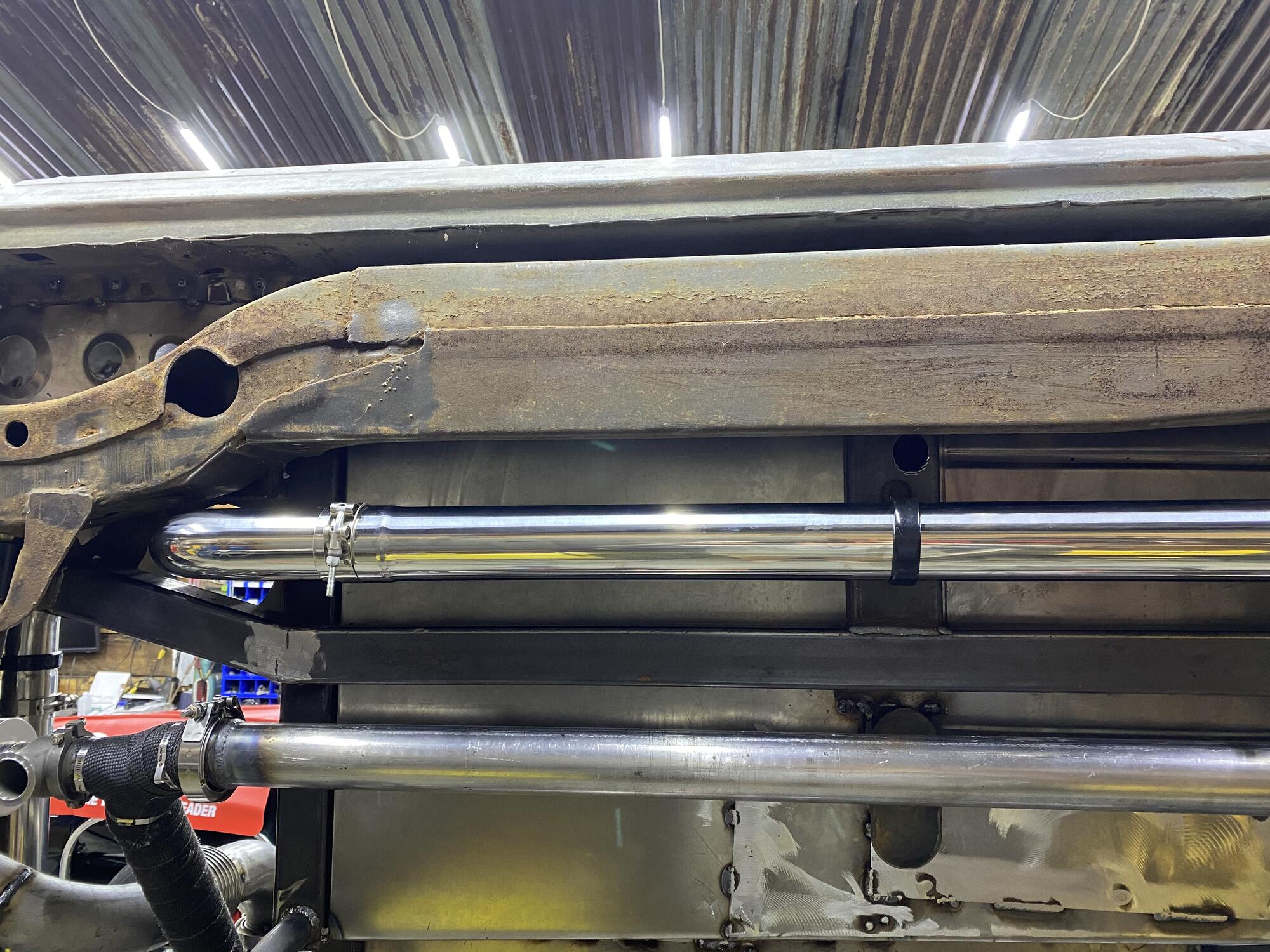

Figuring out the cold side. Got the tubing mocked up then I liked it so I made it permanent.
I will have to figure out the intercooler after the car comes off the rotisserie.

[andrewb70]

Is there an intercooler somewhere?

Andrew

[David Sloan]

Is there an intercooler somewhere?

Andrew

Yes sir
it will be in the front of the car, I was thinking about putting it in the bed but changed my mind.
When the body comes off the rotisserie then I can start figuring out how to make it fit!
i did a temporary hook up to the throttle body as I have been told I wouldn’t need the intercooler because of the distance from the turbo to the throttle body.
my first turbo build learning as we go.

[andrewb70]

I am learning that turbo cars get very complicated very quickly and there is SO MUCH plumbing!

Andrew

[David Sloan]

I am learning that turbo cars get very complicated very quickly and there is SO MUCH plumbing!

Andrew

yes yes they do.lol!
I been thinking I should have just put it up front like everybody else.
could have saved $200 in tubing.

[David Sloan]

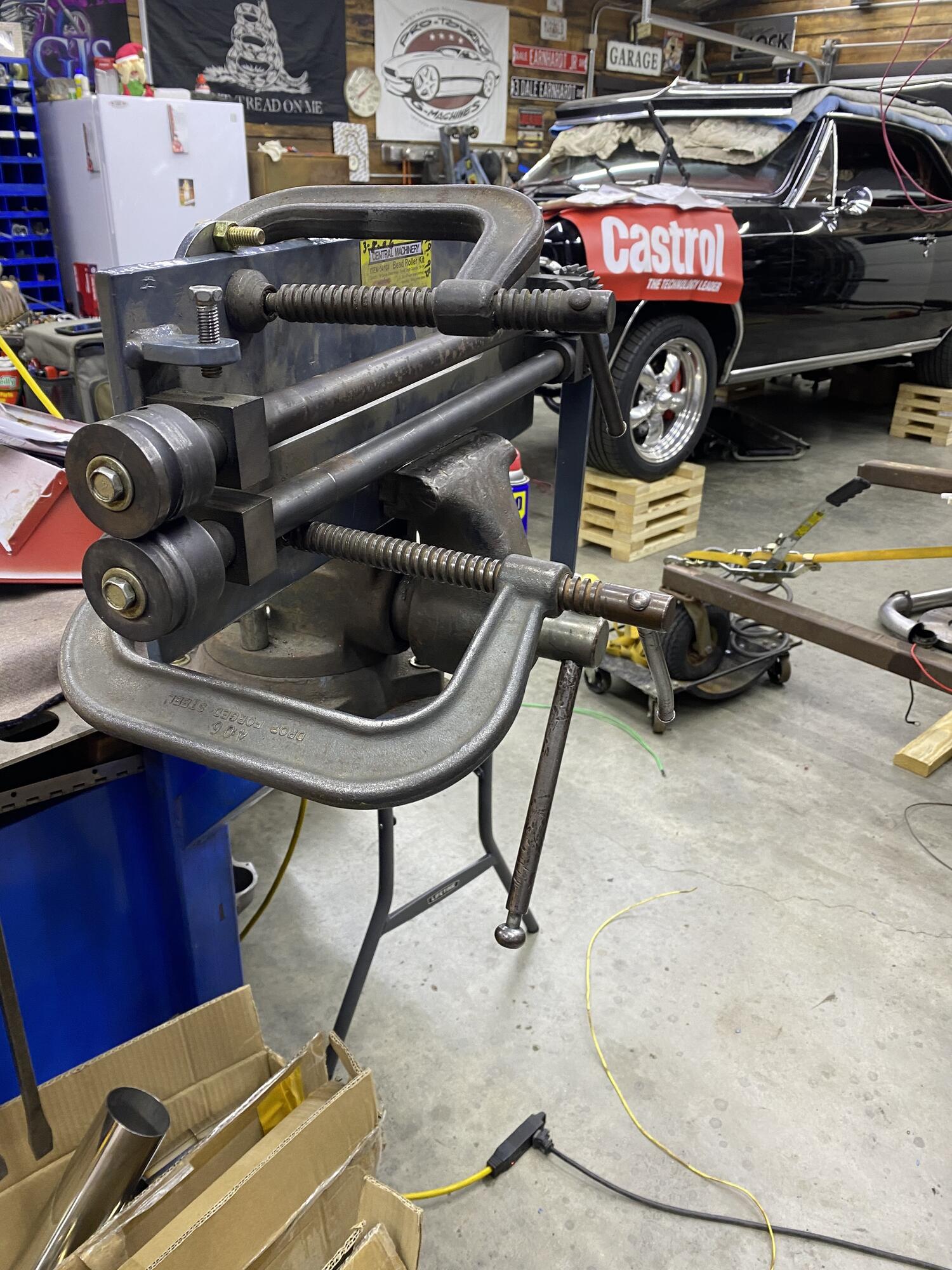

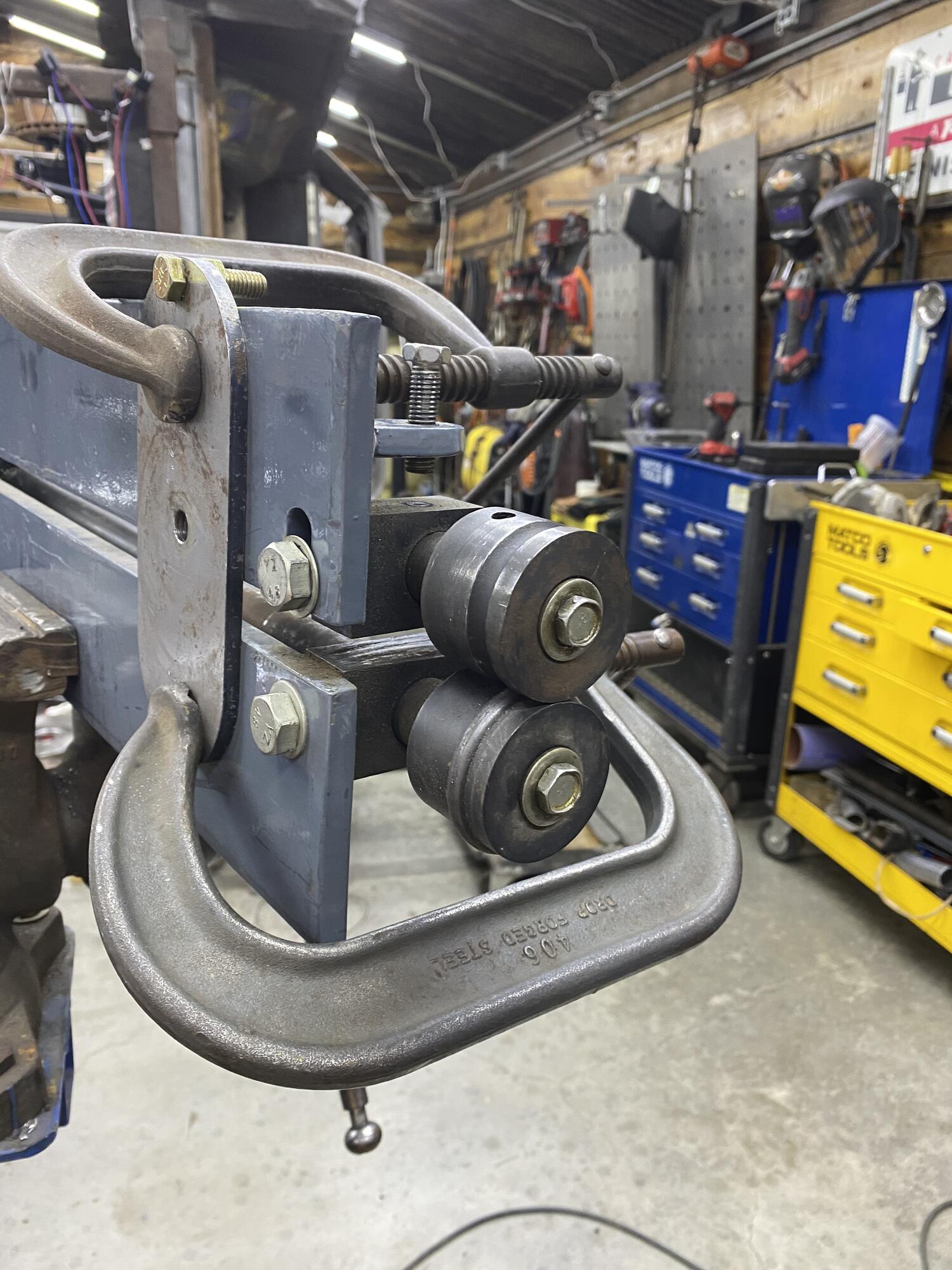

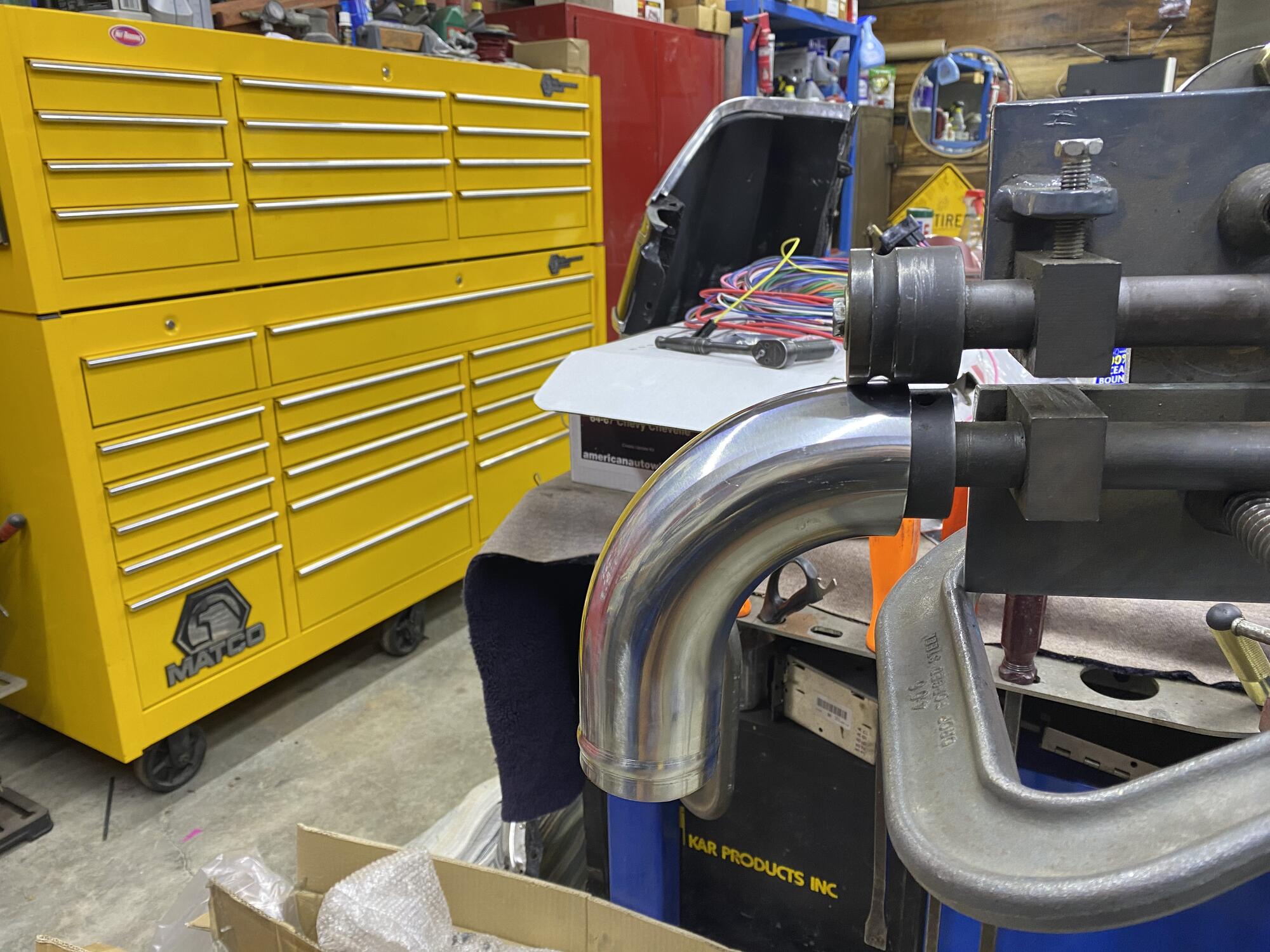

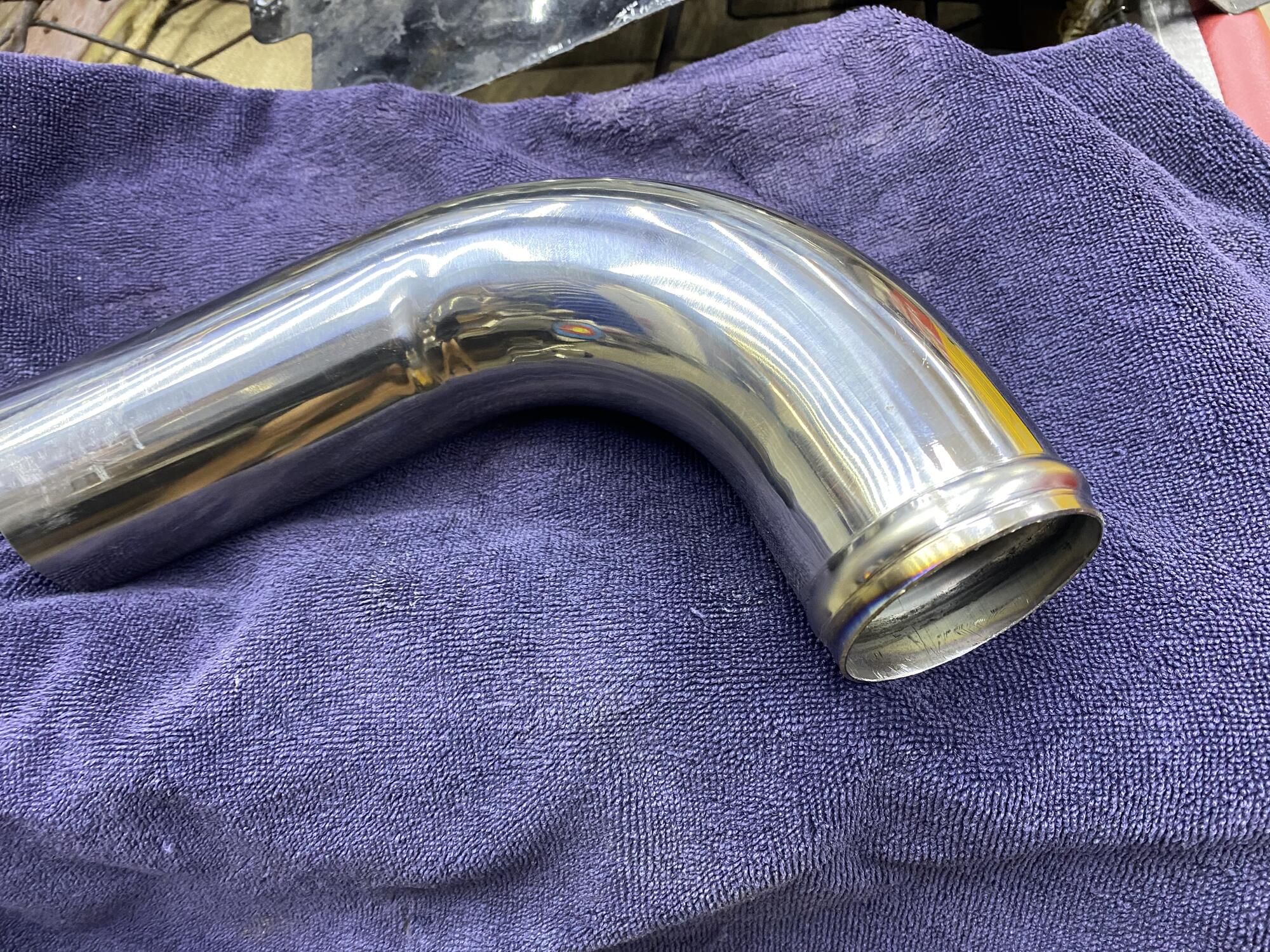

On the cold side I needed to make some beads around the ends to help hold the connectors/clamps to the tubing so I took this cheap bead roller and tried it out, it didn’t want to do the mild stainless tubing. It would flex badly.
Took a couple c clamps and a piece of 1/4” plate and that seemed to work pretty good!

[David Sloan]

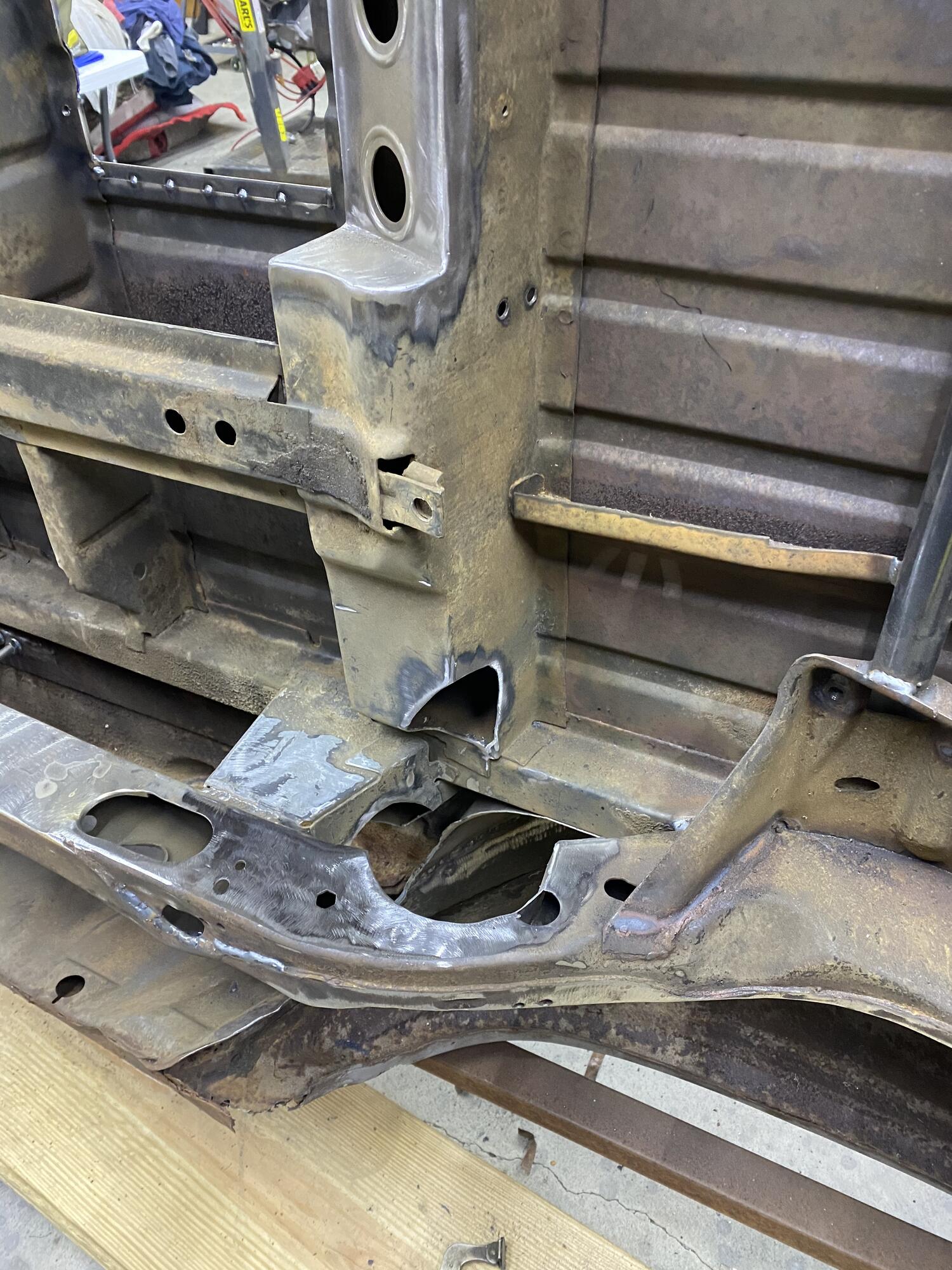

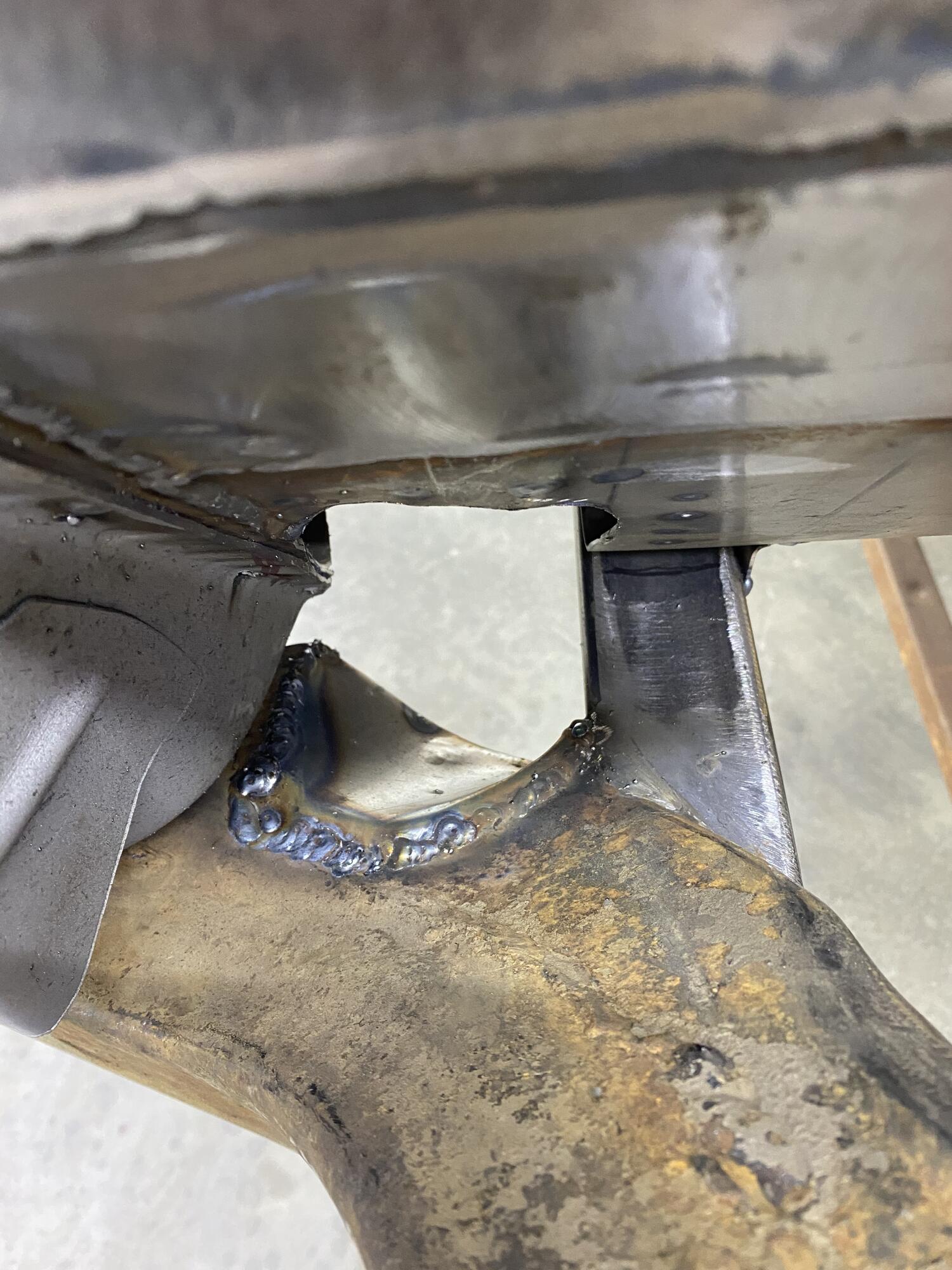

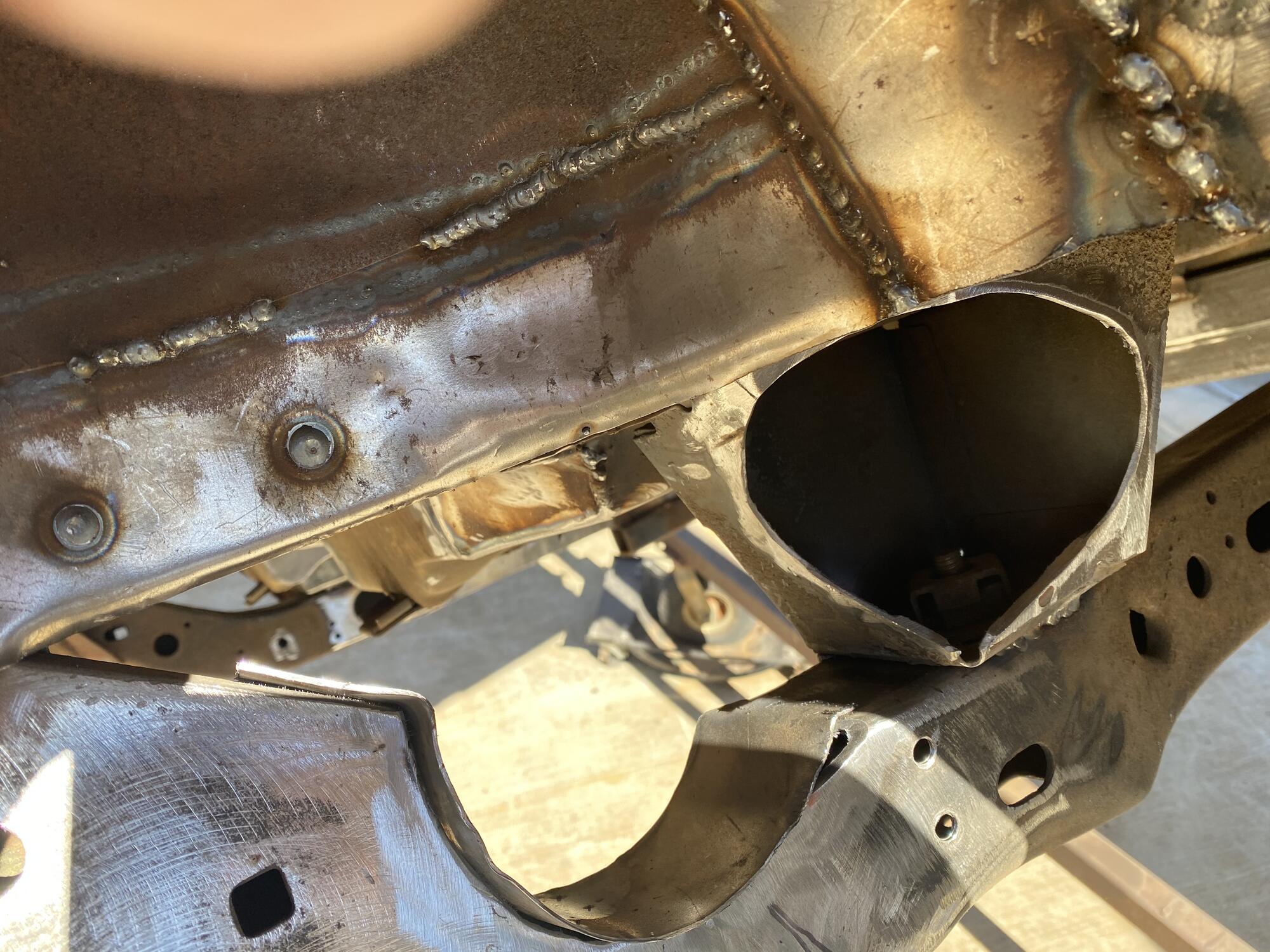

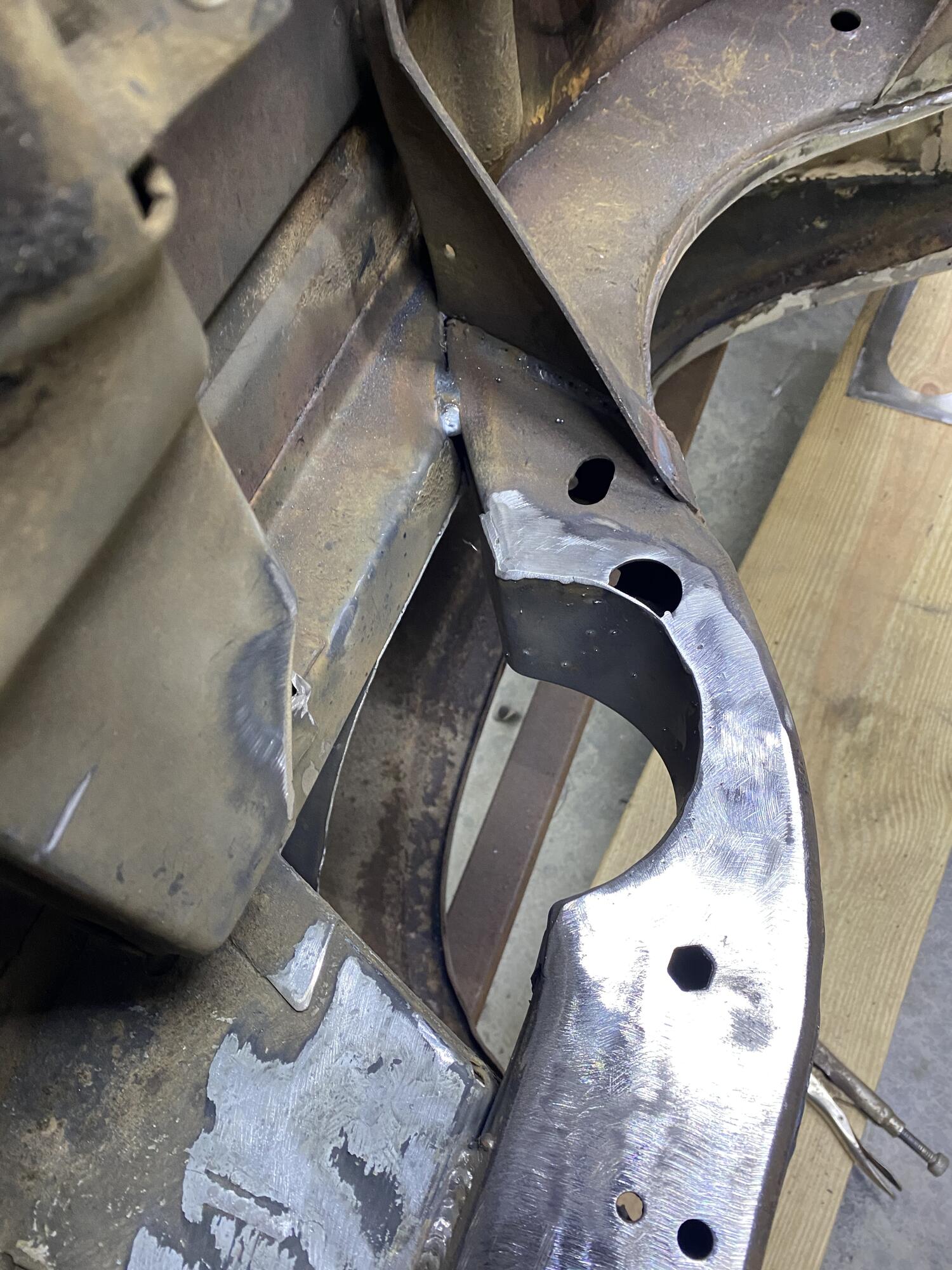

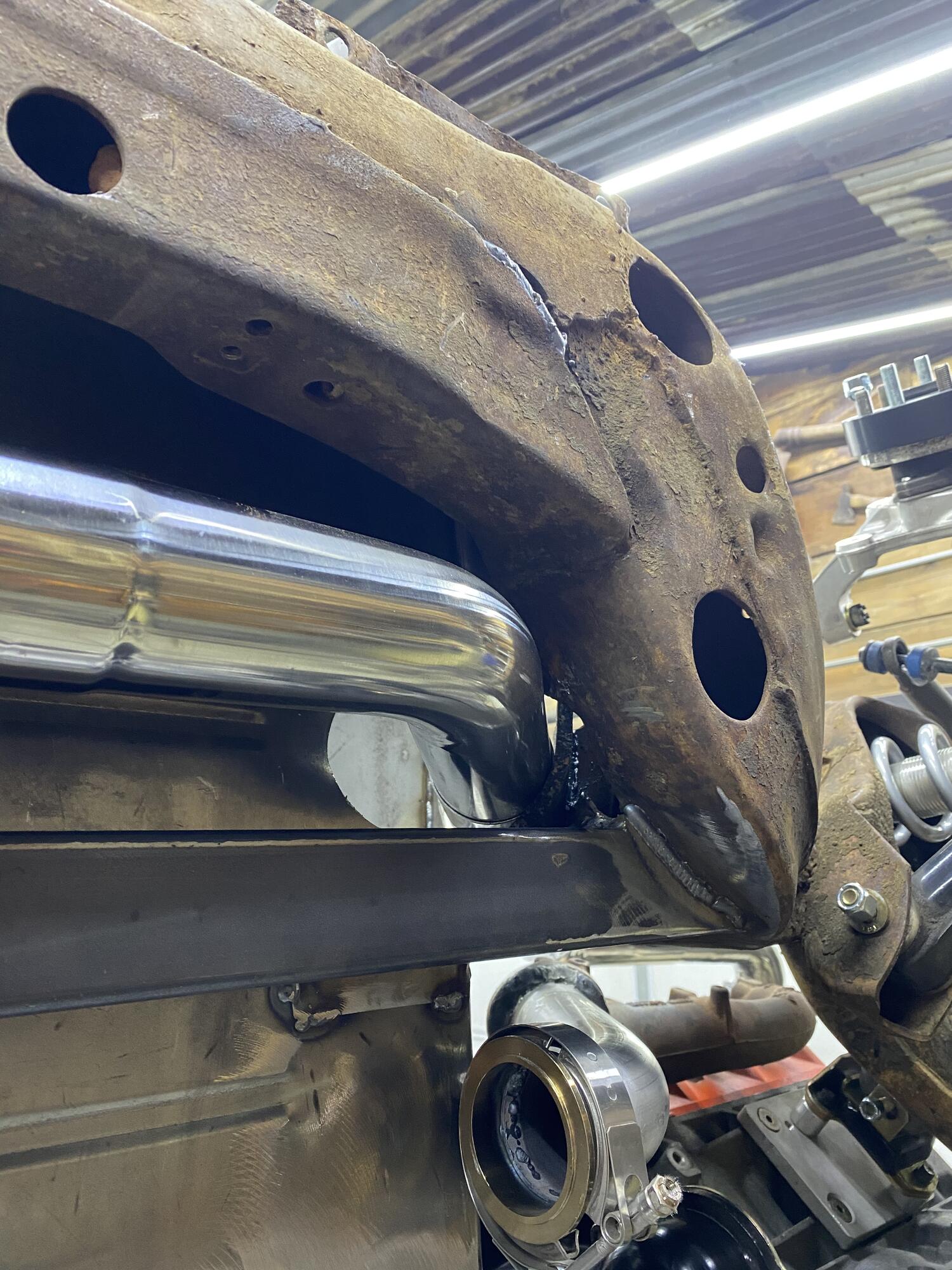

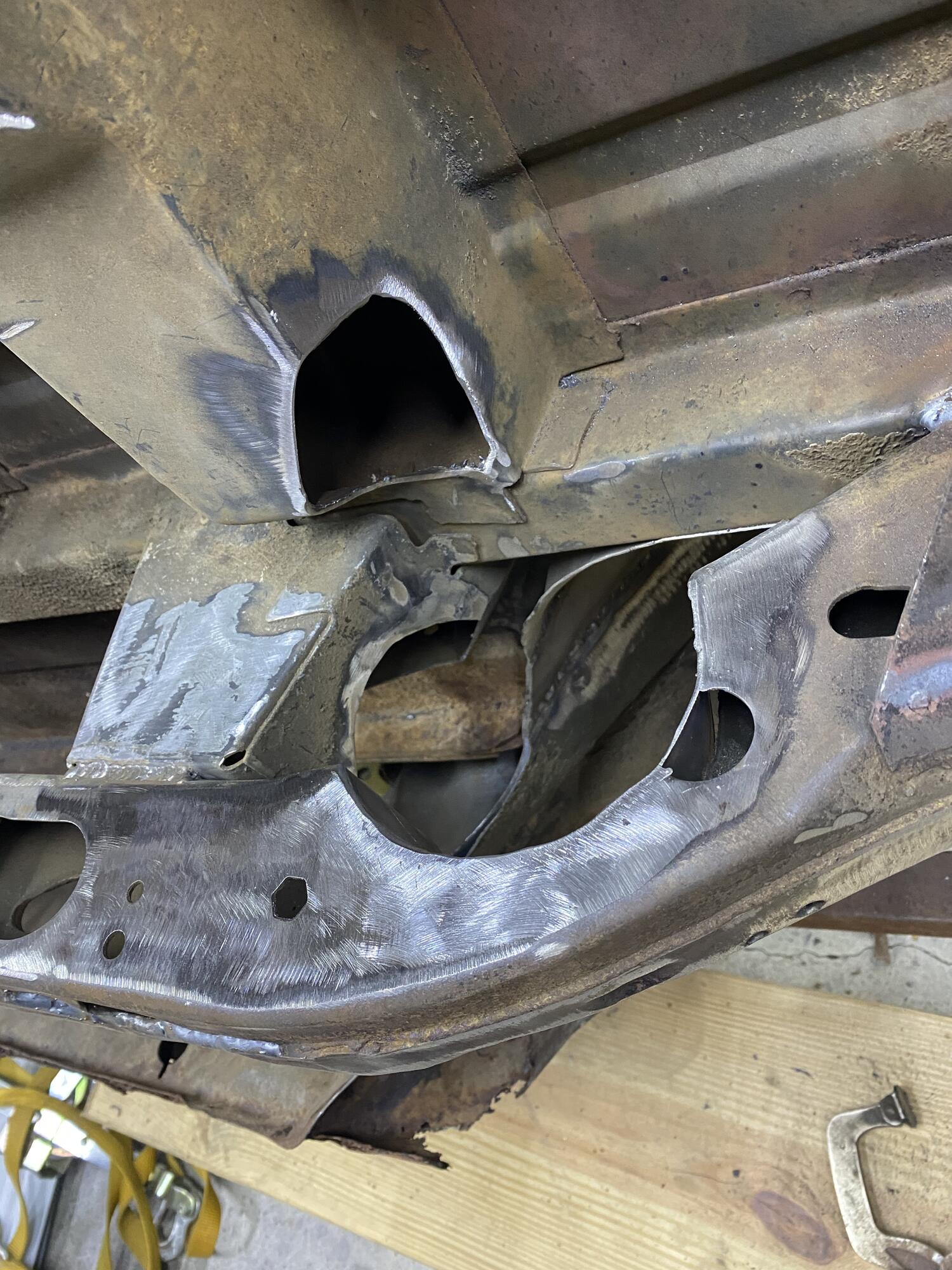

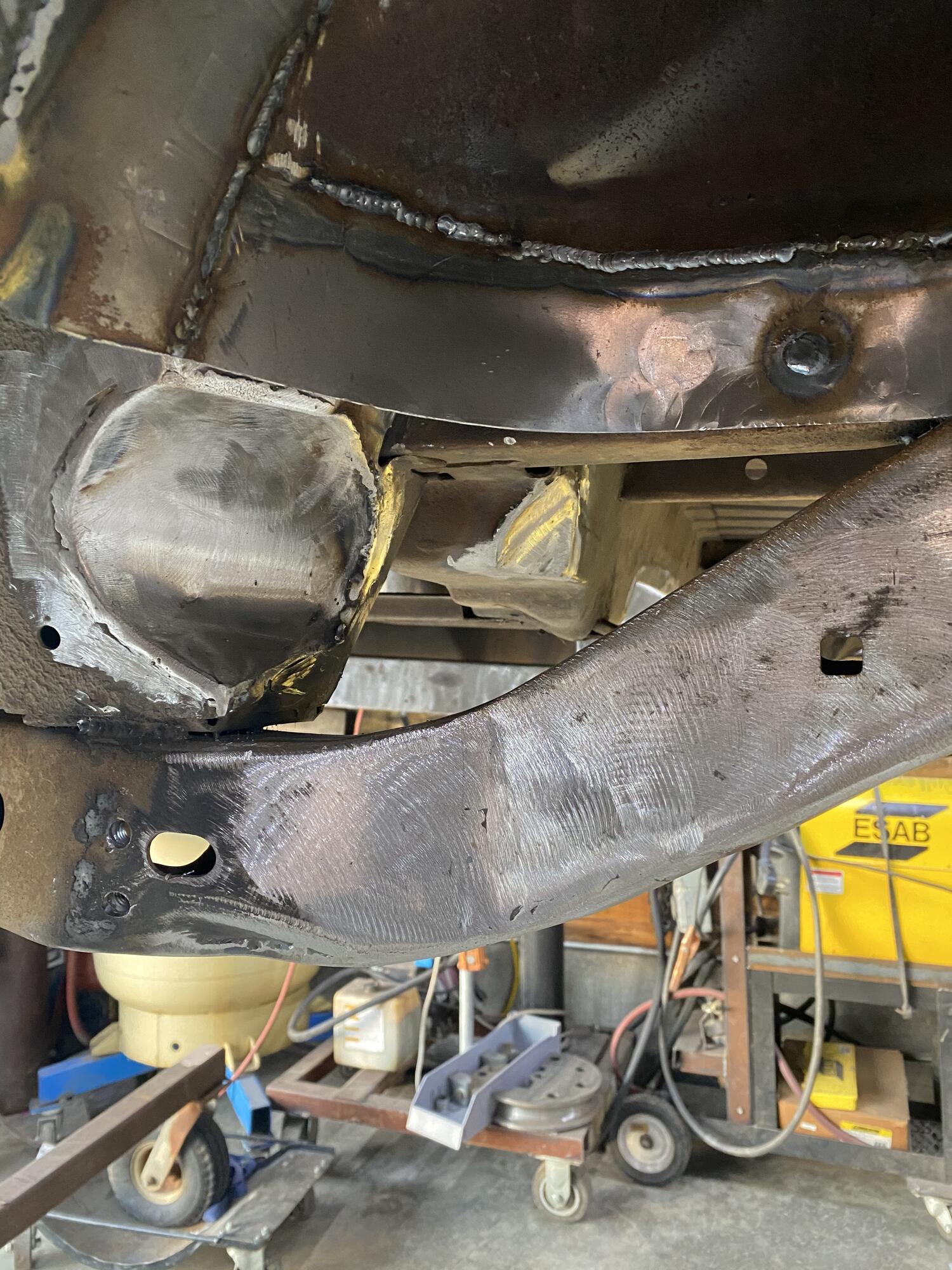

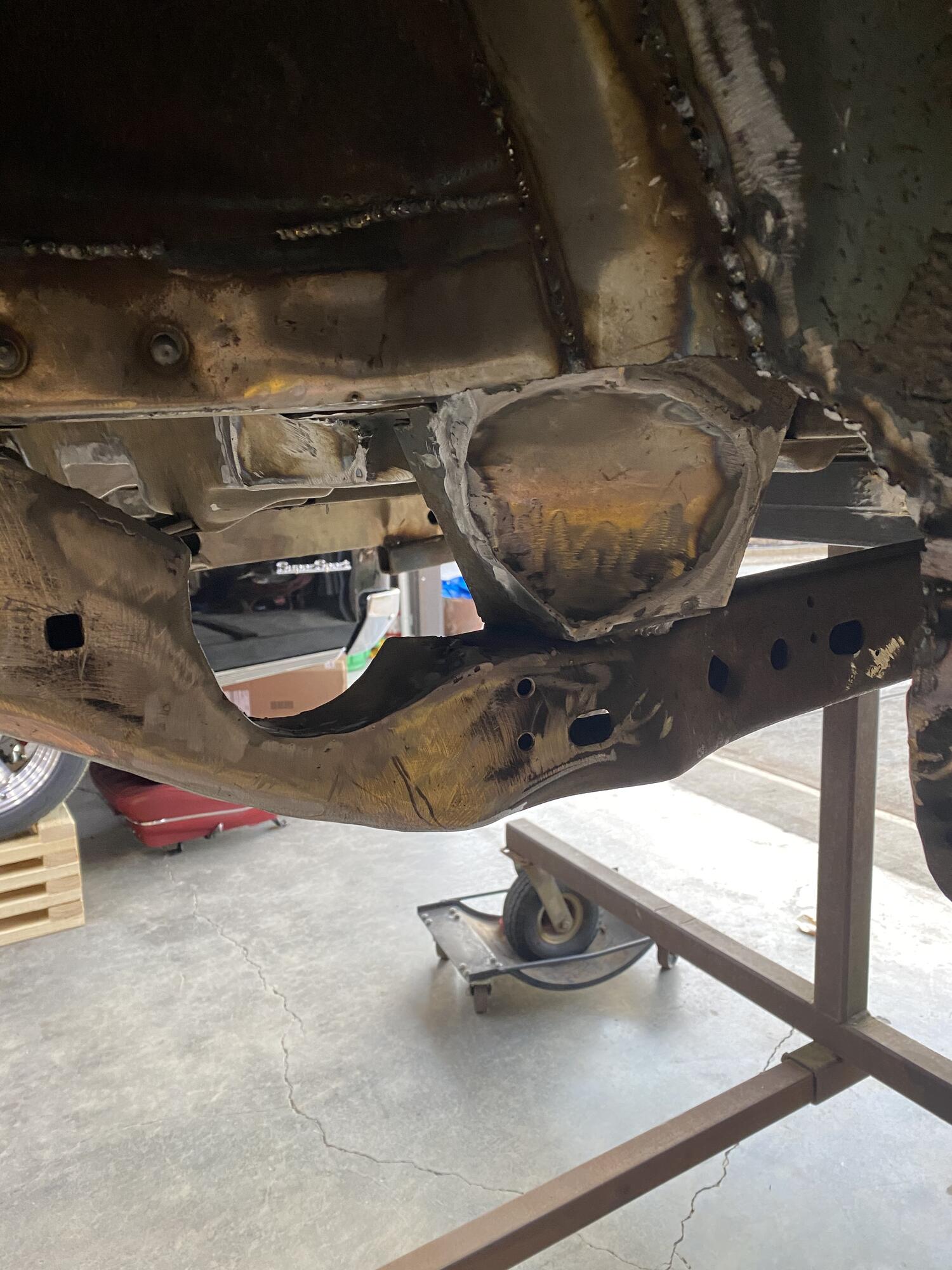

I’m at that point we’re I pulled all the mock up parts off the car, now I needed to fix the cut outs I made for the exhaust and the cold side going to the front of the car.

[David Sloan]

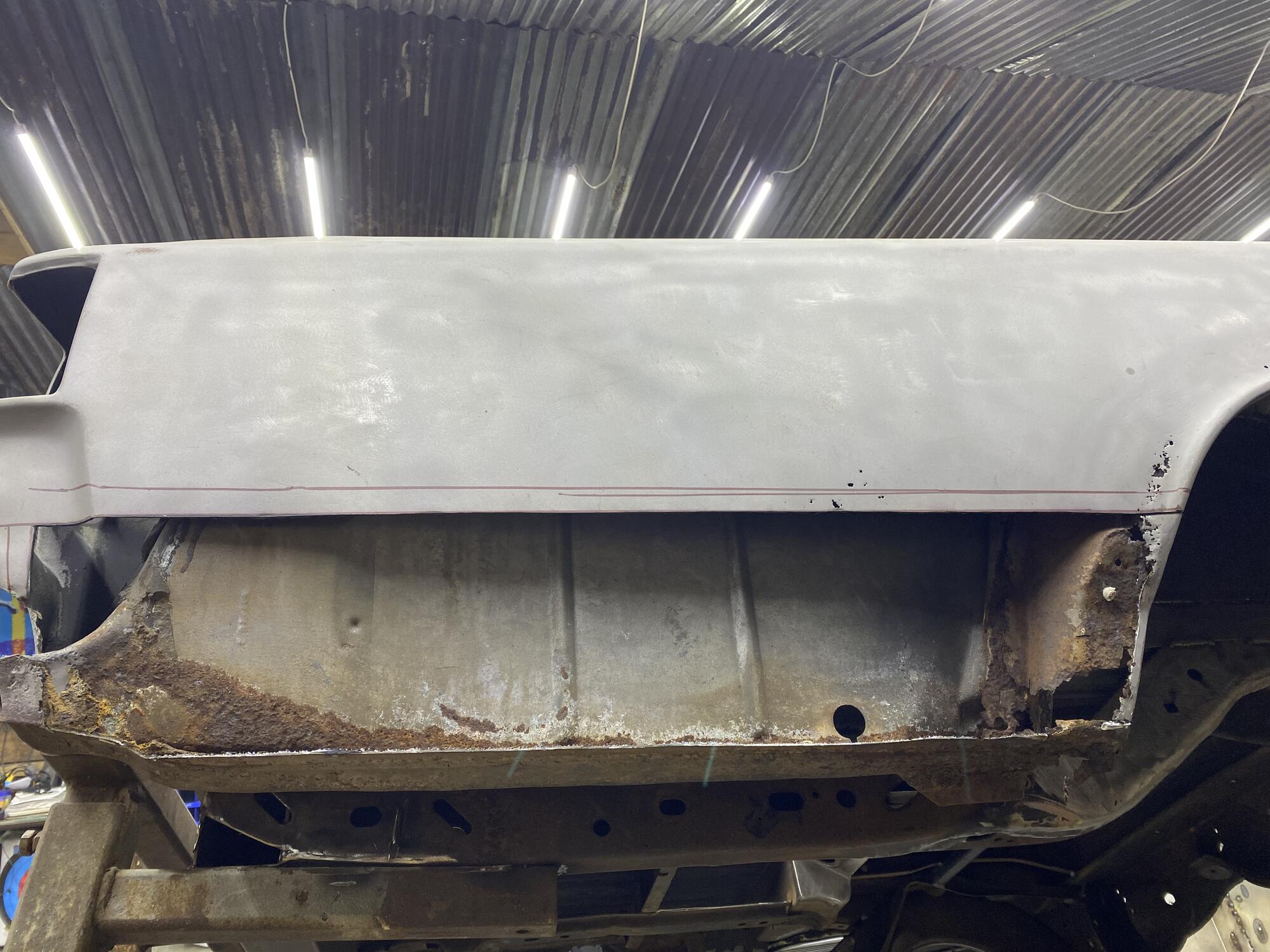

Next up is some rust repair.

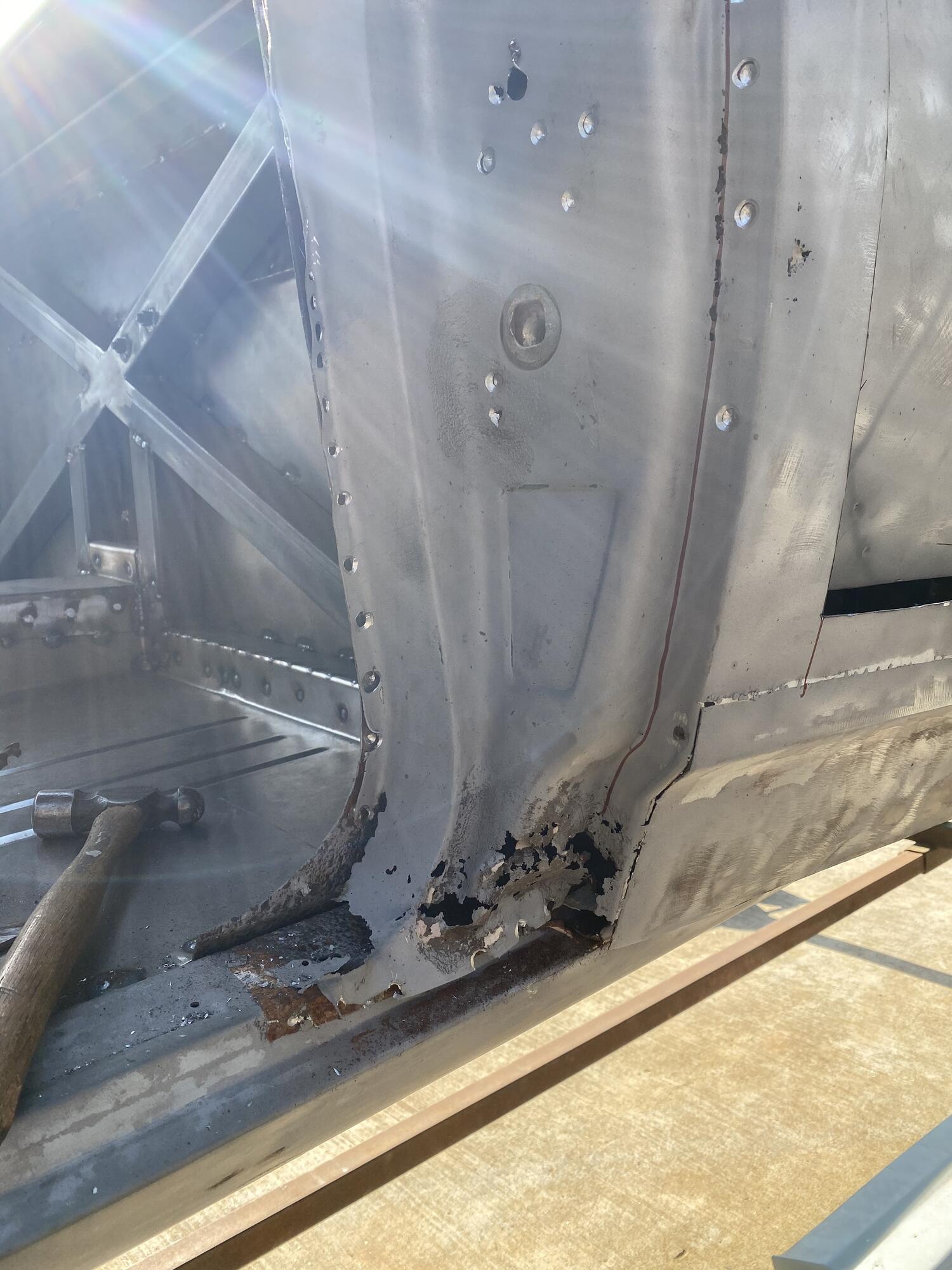

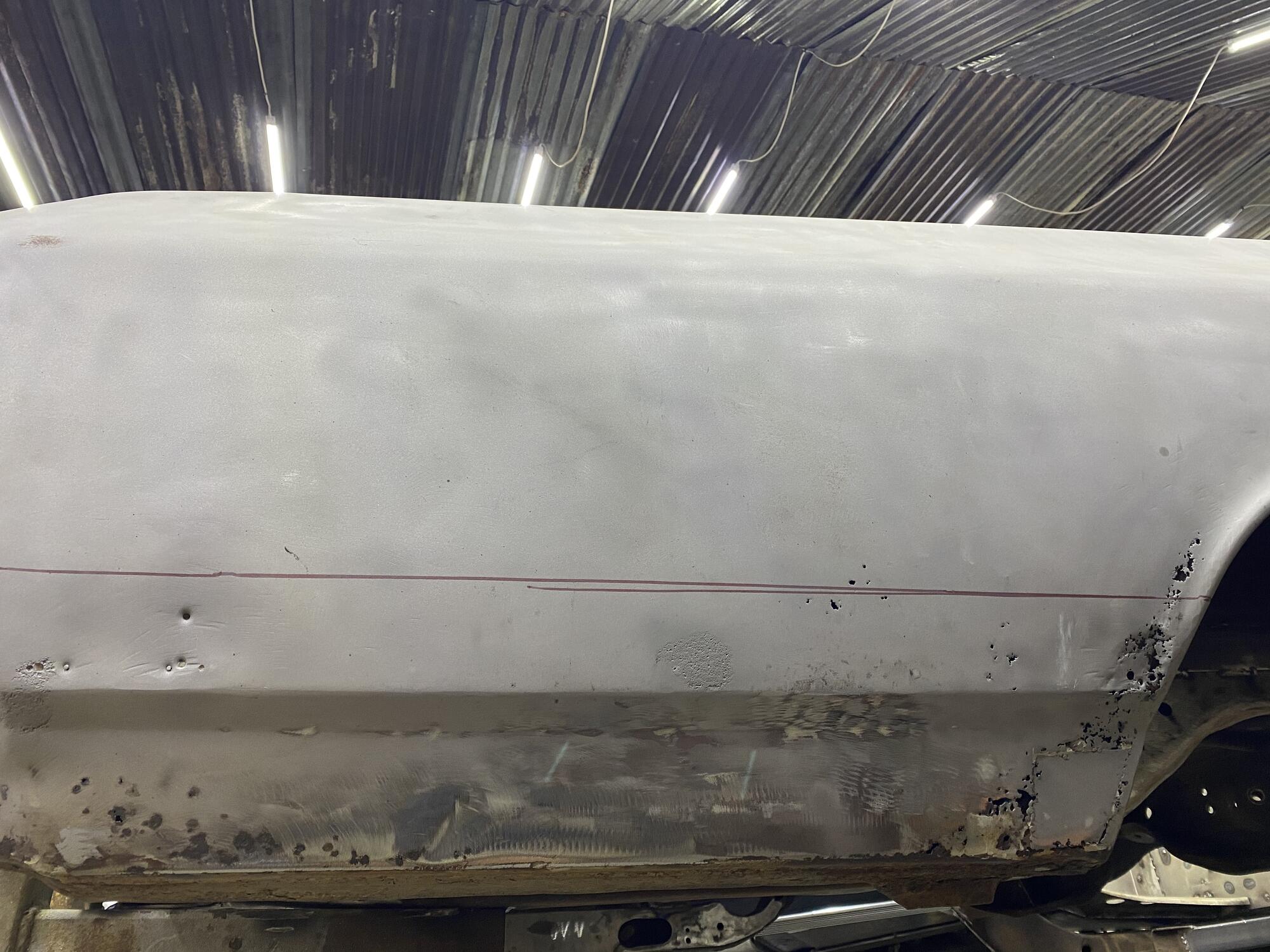

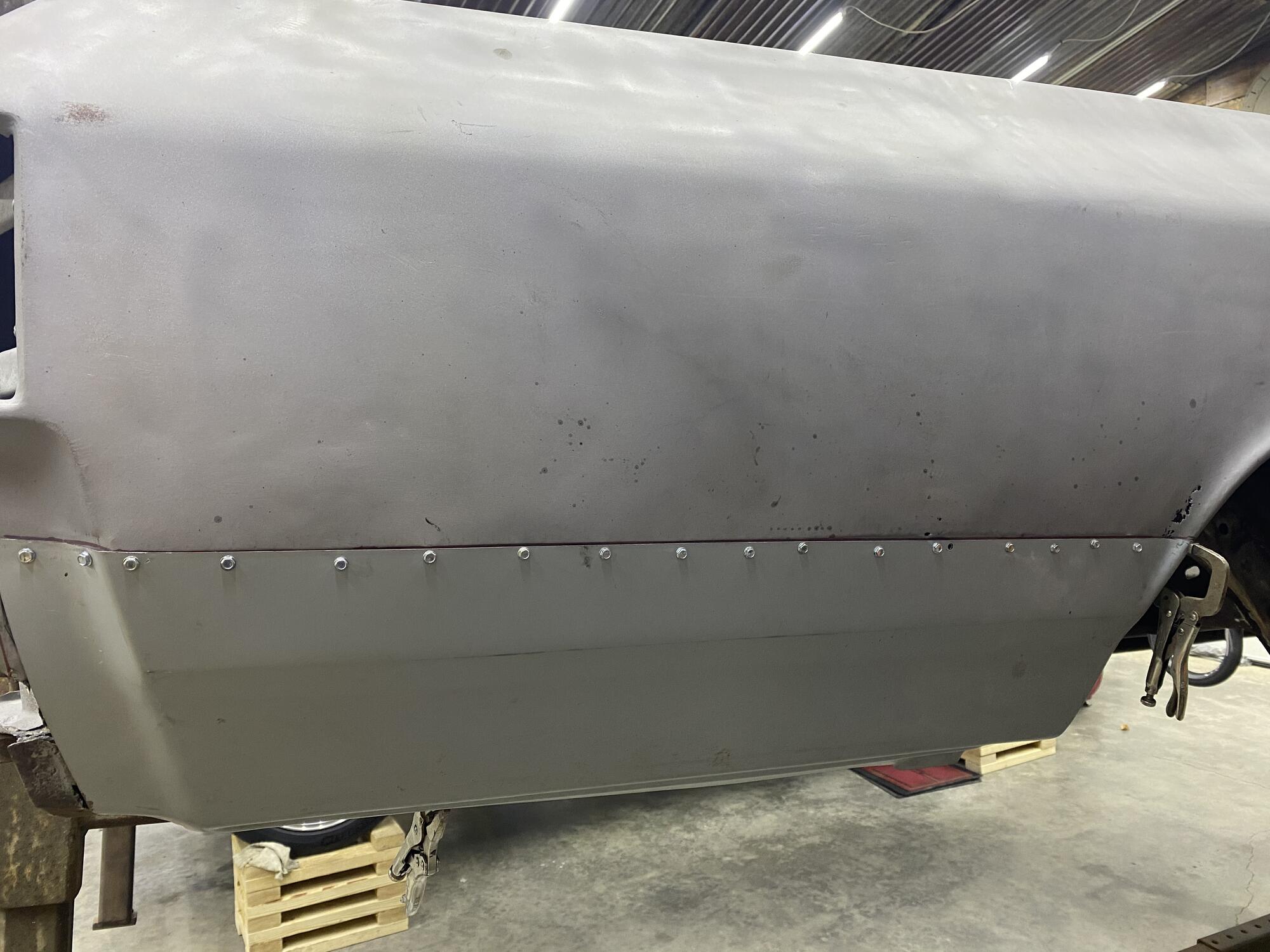

Passenger side quarter panel is repairable.

[Rubes]

Hi David...good to see you keep plugging away. Neat project.
Hope you are well buddy!! Gotta catchup at an event soon!!

Rubes

[andrewb70]

Hi David...good to see you keep plugging away. Neat project.
Hope you are well buddy!! Gotta catchup at an event soon!!

Rubes

Rubes! Glad to see you around!

Andrew

[Rubes]

Rubes! Glad to see you around!

Andrew

Thanx Andrew...I've been away for awhile, but I pop in now and again to check up on you guys.
Looks like you're going to town on the GTO too.
Even now that I'm retired I dont put in as much work on the car as you guys do.

[andrewb70]

Thanx Andrew...I've been away for awhile, but I pop in now and again to check up on you guys.
Looks like you're going to town on the GTO too.
Even now that I'm retired I dont put in as much work on the car as you guys do.

Well, get it together! Would be great to have you come down for LS Fest. There is a huge group that comes from the Chicago area.

Andrew

[wfo guy]

I'm aware that rear mount turbos are common. That's a lot of cubic inches or area. Is the lag minimal or something around a second to go from idle to full throttle?

[David Sloan]

1387372[/URL]]Hi David...good to see you keep plugging away. Neat project.
Hope you are well buddy!! Gotta catchup at an event soon!!

Rubes

Damn Rubes good to hear from you.
we are doing well can’t complain. Hope you’re doing well!
would love to meet up at an event that would be fun.
im retired as well, plugging away trying to have this one running by spring /summer!

[David Sloan]

1387420[/URL]]I'm aware that rear mount turbos are common. That's a lot of cubic inches or area. Is the lag minimal or something around a second to go from idle to full throttle?

Well I don’t have the answers to your questions as this is my first turbo build and I’m learning as I go!
i did some research, on remounted turbo and there’s no real conclusions on how it s going to work.
lots of people say it’s going to suck and others say it will work fine.
i fiqured this was an experiment and I’m learning so I’m prepared to make adjustments/changes
hope that helps.

[David Sloan]

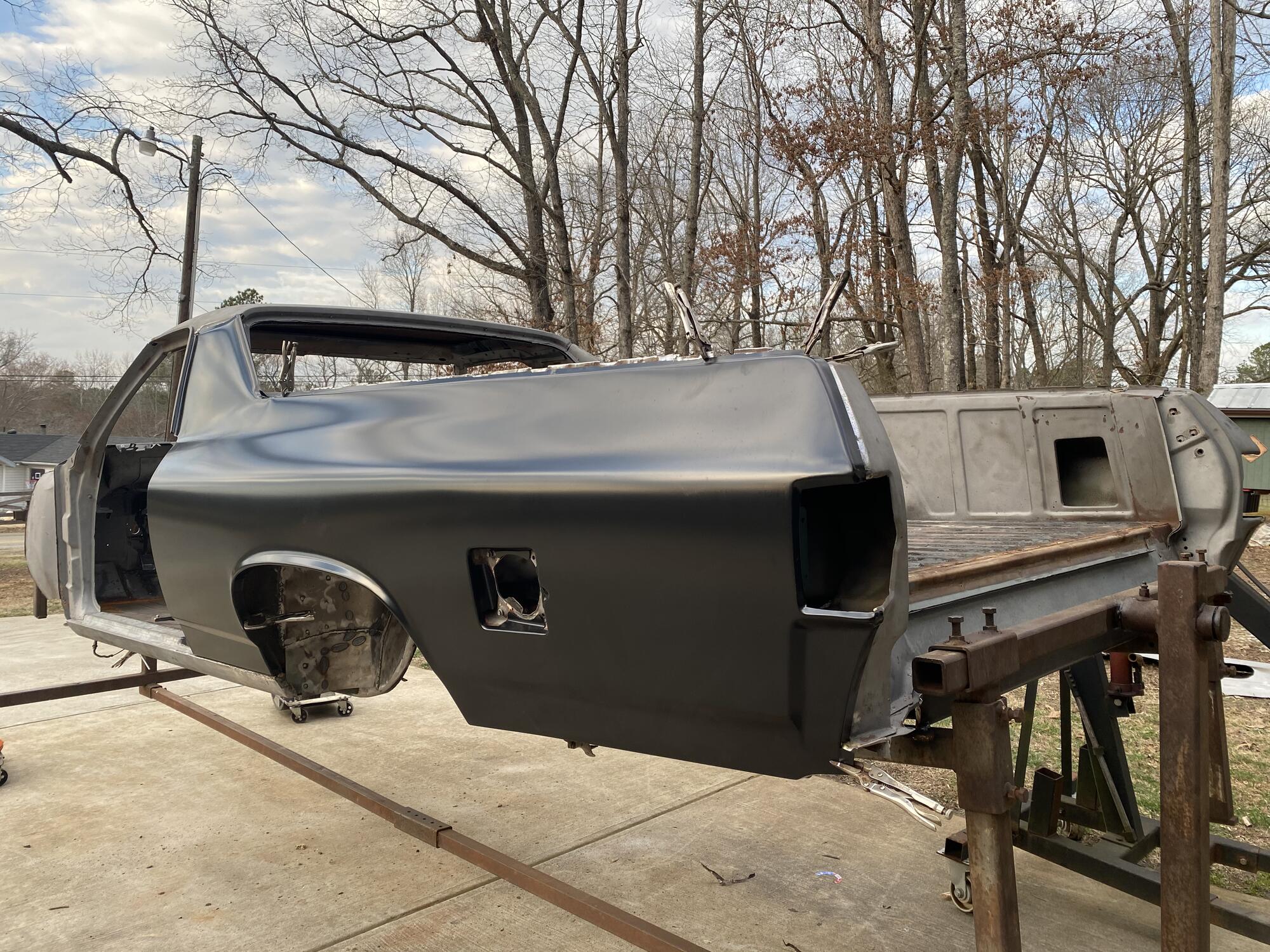

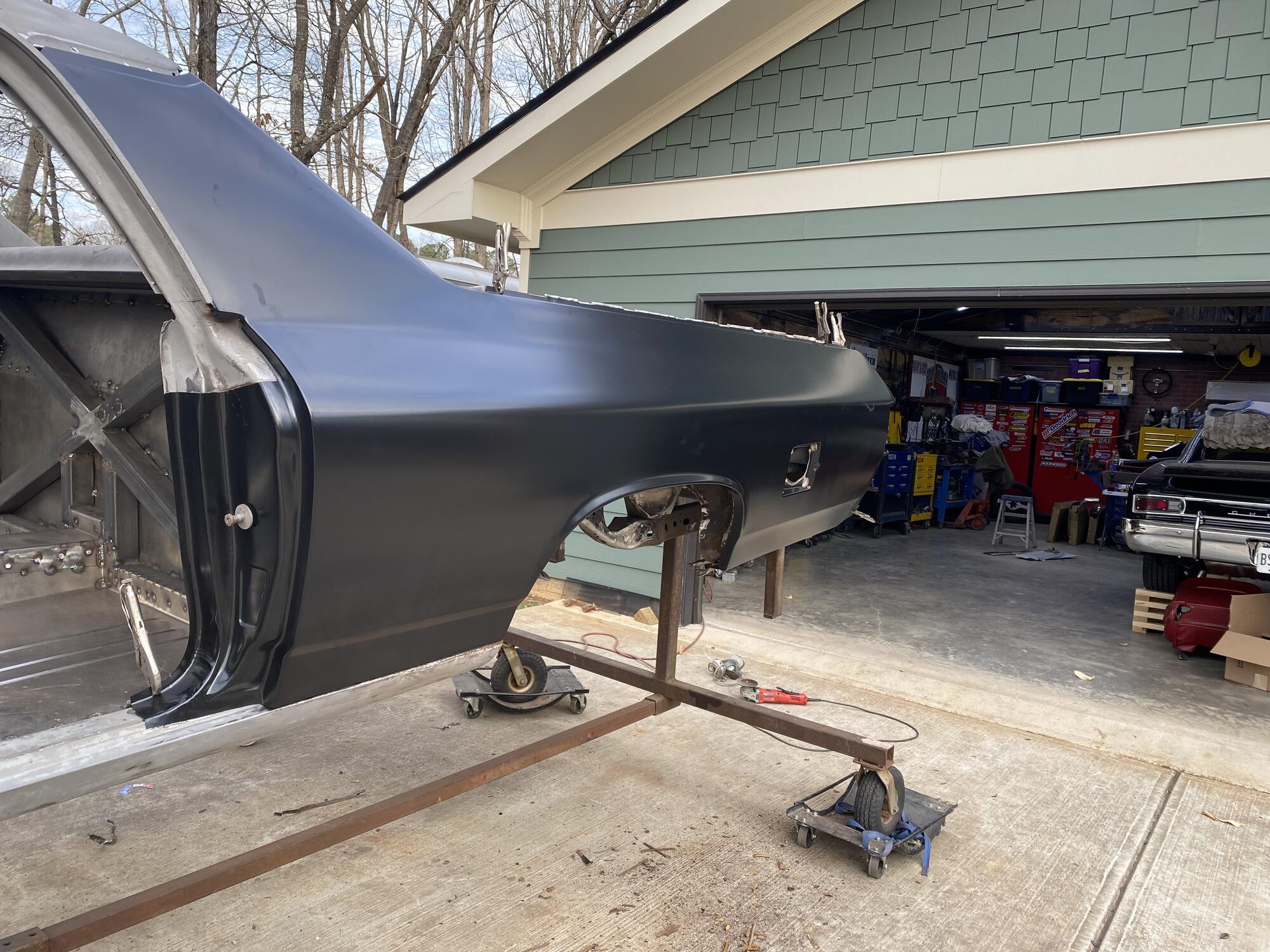

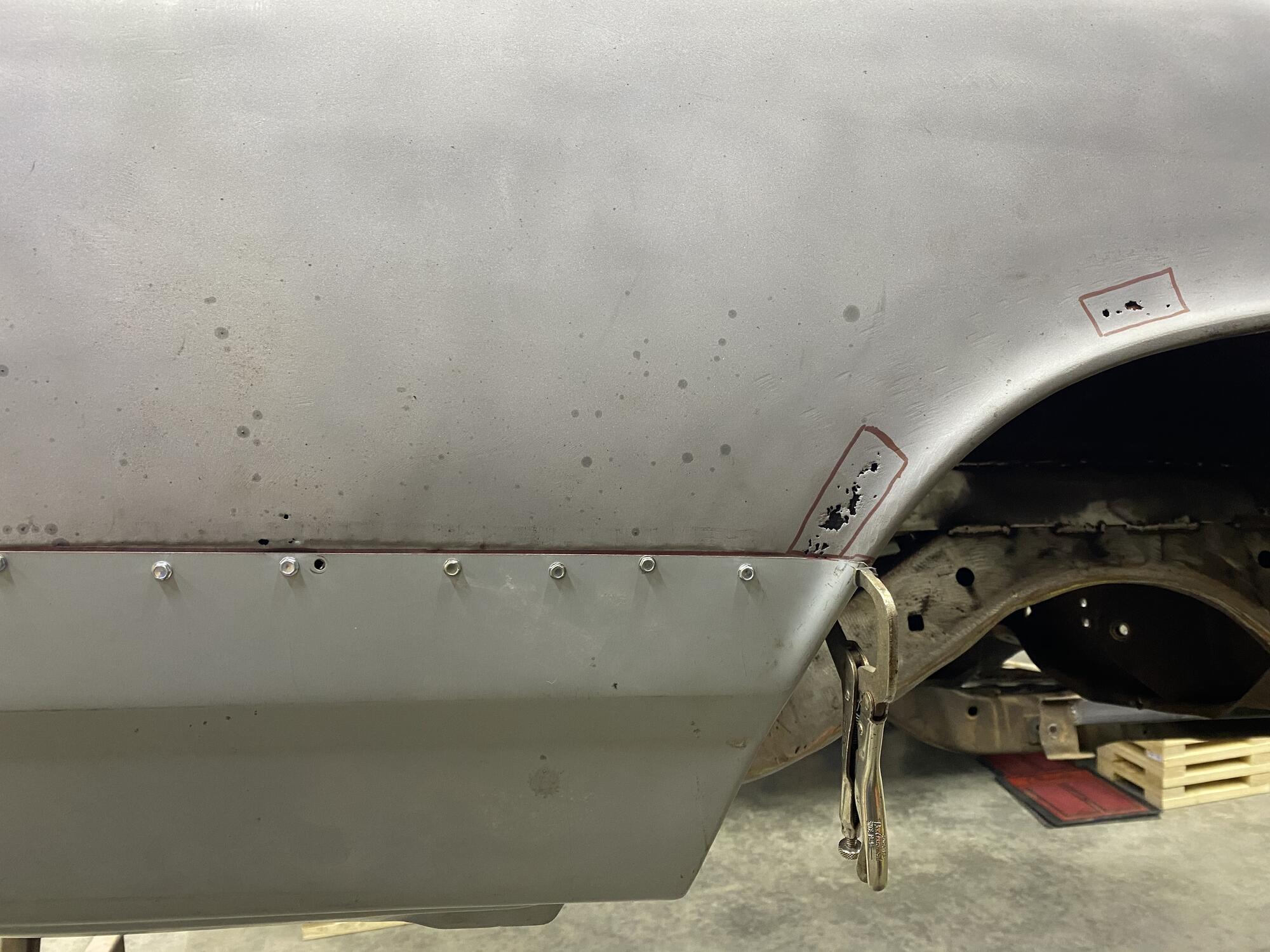

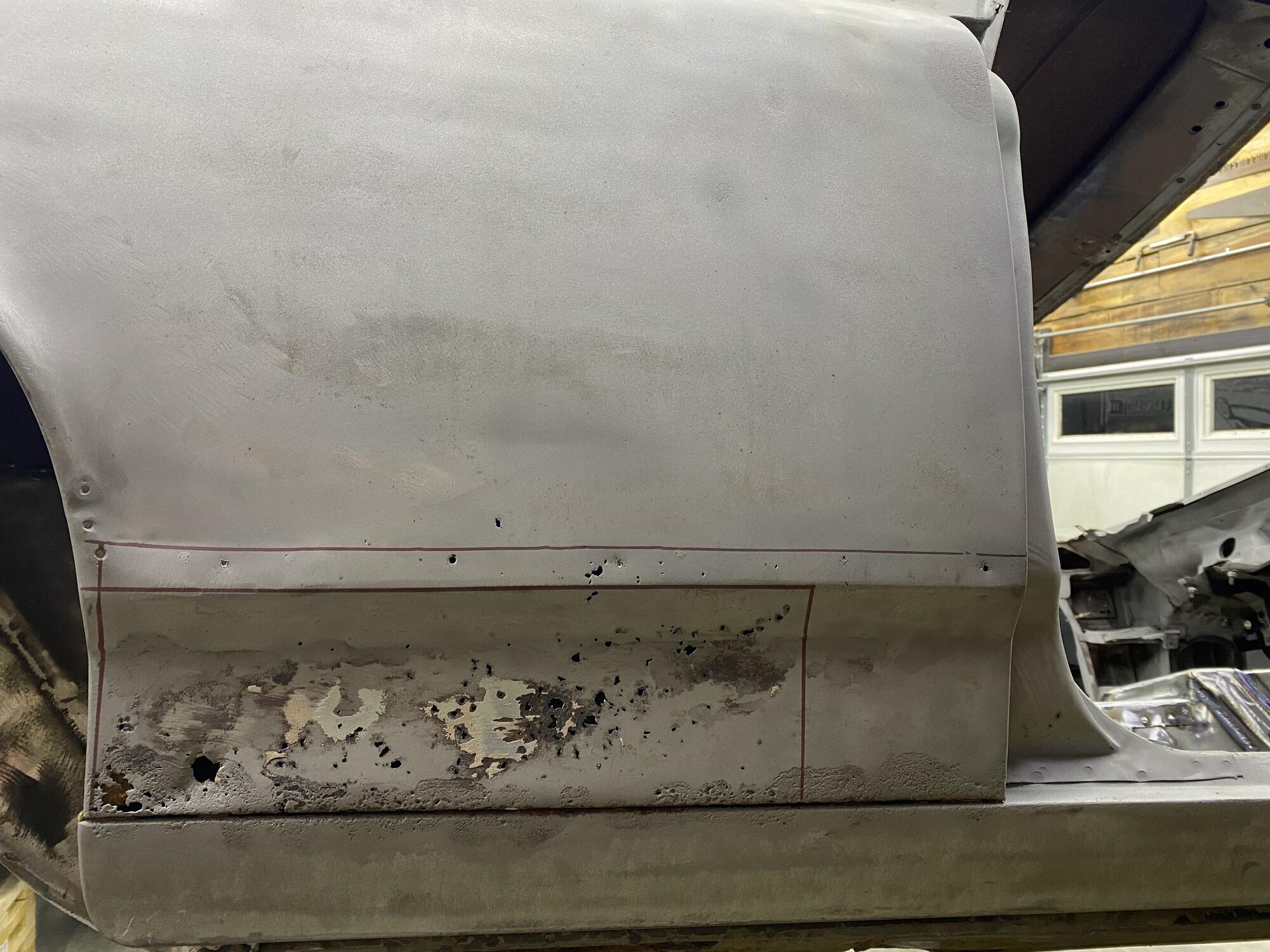

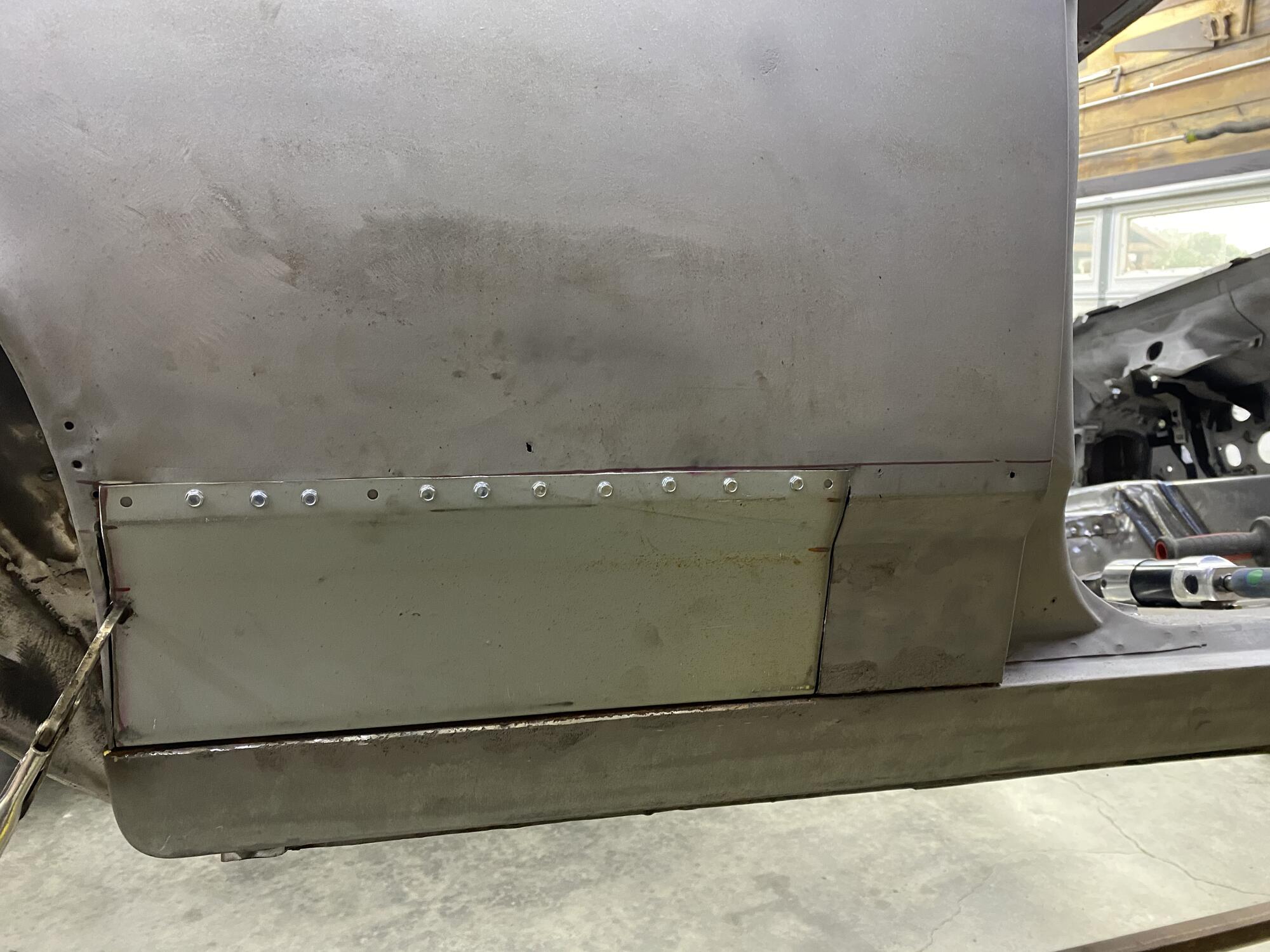

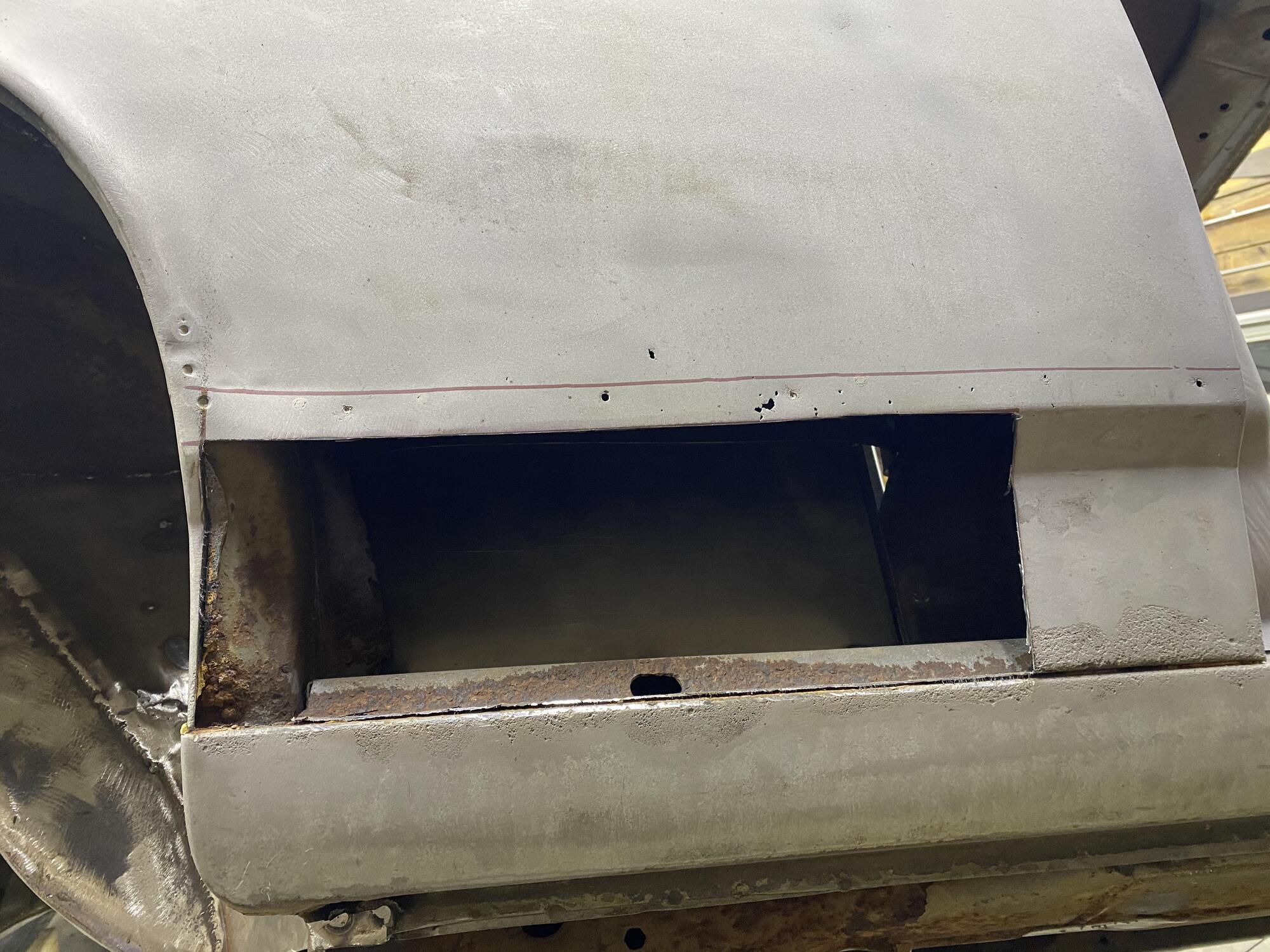

Driver side quarter panel was the worst so I’m just going to replace it. Need some good weather so i can get some sandblasting done the finish fitting the quarter panel.
