      LS Oil Pan Buyers Guide

      Preface: Just wanted to make something nice for this forum of which i've used countless times. My background is taking lots of random data and attempting to turn it into usable formated data. I have collected this information from all over the web in a attempt to help people out when looking for the proper oil pan for their applications. If you see anything wrong please let me know because I'd like it to be correct.

      Below are proven pans that work with the given application.
      64-72 A-Body - Holley 302-2, 302-3, Mast Retro Pan
      68-74 X-Body - Holley 302-2, 302-3, Mast Retro Pan
      67-69 F-Body - Holley 302-2, 302-3, Mast Retro Pan
      70-79 F-Body - F-Body Pan
      60-72 C-10 - Truck Pan Normal to 2/4 Lower, for 4/6 to bagged use a Holley 302-2/3 or F-Body Pan

      Name:  302-1-dimensions.jpg
Views: 2022
Size:  30.9 KB



      Holley 302-1
      Vehicles: Various GM muscle/classic car and truck chassis
      Capacity: 6.2 quarts
      Oil Filter Thread: M22 x 1.5mm

      Part Numbers & Links
      GM Part Numbers & Links:
      Oil pan: Holley 302-1 - https://amzn.to/2B5G1ZF
      Pickup tube: Supplied with the pan.
      Windage tray: 12611129 - https://amzn.to/31CK3n7
      Dipstick: 12634547 - https://amzn.to/2MESVDz
      Dipstick tube: 12625031 - https://amzn.to/33r5zNa
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

      Name:  302-2-dimensions.jpg
Views: 1296
Size:  30.9 KB

      Holley 302-2
      Vehicles:

      LS Swap A/F/X Body Cars
      LS Swap Bagged C10 Trucks
      Capacity: 6.2 quarts
      Oil Filter Thread: M22 x 1.5mm

      GM Part Numbers & Links:
      Oil pan: Holley 302-2 - https://amzn.to/35waePK
      Pickup tube: Supplied with the pan.
      Windage tray: 12558253 - https://amzn.to/2F2oDAln1
      Dipstick: 12634547 - https://amzn.to/2MESVDz
      Dipstick tube: 12625031 - https://amzn.to/33r5zNa
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

      Name:  302-3-2.jpg
Views: 1256
Size:  28.2 KB

      Holley 302-3
      Vehicles: More Clearance in the Steering Area and Has and oil return bung casted in.

      LS Swap A/F/X Body Cars
      LS Swap Bagged C10 Trucks
      Capacity: 6.2 quarts
      Oil Filter Thread: M22 x 1.5mm

      GM Part Numbers & Links:
      Oil pan: Holley 302-2 - https://amzn.to/35waePK
      Pickup tube: Supplied with the pan.
      Windage tray: 12558253 - https://amzn.to/2F2oDAln1
      Dipstick: 12634547 - https://amzn.to/2MESVDz
      Dipstick tube: 12625031 - https://amzn.to/33r5zNa
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

      Name:  Mast.jpg
Views: 1211
Size:  72.6 KB

      Mast Motorsport LS Swap Oil Pan
      Vehicles: - Has built in sump baffling
      Premier Pan Anything Stroked Road Raced
      Comes with baffle cast into pan
      Capacity: 6 quarts
      Oil Filter Thread: M22 x 1.5mm

      Part Numbers & Links
      GM Part Numbers & Links:
      Oil pan: Get Pan Here. - https://amzn.to/2pjrxCU
      Pickup tube: Supplied with the pan.
      Windage tray: 12558253 - https://amzn.to/2oDAln1
      Dip stick: 12551581 - https://amzn.to/2M8R6iU
      Dip stick tube: 12551577 - https://amzn.to/35vnfJp
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

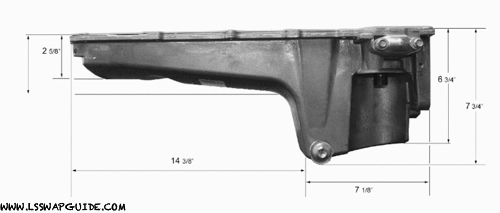

      Name:  lh8oilpandim1e1_zps24b6561c.jpg
Views: 1156
Size:  34.9 KB

      GM Muscle Car Oil Pan (H3 Hummer)
      Vehicles:
      H3 Hummer
      Capacity: 5.5 quarts
      Oil Filter Thread: Post June 2007 M22 x 1.5mm, Pre June 2007 13/16"-16


      Part Numbers & Links:
      Full Kit: 19212593 - https://amzn.to/2B4QOU0
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

      Name:  12640746-dimensions.jpg
Views: 1229
Size:  37.9 KB

      GM Truck / SUV Oil PanVehicles:
      1999-2014 Chevrolet/GMC Full Size LS V8's
      1999-2006 Drain in the rear
      2006-2014 Drain on the side
      Capacity: 6 quarts
      Oil Filter Thread: M22 x 1.5mm

      Part Numbers & Links:
      Oil pan: 12640746 - https://amzn.to/2VDCmfc
      Pickup tube: 12608579 - https://amzn.to/33pKZN6
      Windage tray: 12611129 - https://amzn.to/33rhVVm
      Dipstick: 12622055 - https://amzn.to/2Ma6g7L
      Dipstick tube: 12609269 - https://amzn.to/32cLGsO
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

      Name:  12628771-dimensions.jpg
Views: 1187
Size:  30.9 KB

      GM 1998-2002 F-Body LS1 Pan
      Vehicles:
      1998-2002 Chevrolet Camaro (5.7L V8)
      2002 Pontiac Firebird (5.7L V8)
      Capacity: 5.5 quarts
      Oil Filter Thread: Post June 2007 M22 x 1.5mm, Pre June 2007 13/16"-16

      GM Part Numbers & Links:
      Oil pan: 12628771 - https://amzn.to/2M8mDSf
      Pickup tube: 12558251 - https://amzn.to/2BcmiHH
      Windage tray: 12558253 - https://amzn.to/2oDAln1
      Dip stick: 12551581 - https://amzn.to/2M8R6iU
      Dip stick tube: 12551577 - https://amzn.to/35vnfJp
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

      Name:  c5vettec.jpg
Views: 1158
Size:  65.3 KB

      1997-2004 C5 Corvette
      Vehicles:
      C5 Corvettes
      Capacity: ?
      Oil Filter Thread: ?

      Part Numbers & Links
      Oil pan: 12561828 - https://amzn.to/2OG4E7d
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

      Name:  12624617-dimensions.jpg
Views: 1153
Size:  27.4 KB

      GM 2006-2013 C6 Corvette LS2/LS3 Pan
      Vehicles: 2005-2013 Chevrolet Corvette (non-dry sump)
      Capacity: 5.5 quarts
      Oil Filter Thread: Post June 2007 M22 x 1.5mm, Pre June 2007 13/16"-16

      Part Numbers & Links:
      Oil pan: 12624617 - https://amzn.to/2ILqdzt
      Pickup tube: 12624497 - https://amzn.to/2MEjRTR
      Windage tray: 12558189 - https://amzn.to/2MbeYmg
      Dip stick: 12570788 - https://amzn.to/2B5Hz6b
      Dip stick tube: 12570787 - https://amzn.to/31781a4
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

      Name:  12640748-dimensions.jpg
Views: 1160
Size:  39.1 KB

      GM 2010-2015 LS3, L99 Camaro / G8 / SS Oil Pan
      Vehicles:
      2010-2015 Chevrolet Camaro SS
      2008-2009 Pontiac G8
      2006-2017 Holden VE Commodore / Chevy SS
      Capacity: 8 quarts
      Oil Filter Thread: M22 x 1.5mm

      Part Numbers & Links:
      Oil pan: 12640748 - https://amzn.to/2q8OuJw
      Pickup tube: 12611904 - https://amzn.to/2B98AWm
      Windage tray: 12611129 - https://amzn.to/2oAp3zW
      Dipstick: 12634547 - https://amzn.to/2MESVDz
      Dipstick tube: 12625031 - https://amzn.to/33r5zNa
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

      Name:  12631828-dimensions.jpg
Views: 1167
Size:  36.7 KB

      GM 2004+ LS2 / LS6 / LSA Cadillac CTS-V Oil Pan
      Vehicles: 2008+ Cadillac CTS-V (2004-2007 oil pan is nearly identical)
      Capacity: 6 quarts
      Oil Filter Thread: M22 x 1.5mm

      Part Numbers & Links:
      Oil pan: 12631828 - https://amzn.to/31cmYHE
      Pickup tube: 12621299 - https://amzn.to/2oB8NPi
      Windage tray: 12611129 - https://amzn.to/2oB8ST6
      Dipstick: 12584737
      Dipstick tube: 12584738 - https://amzn.to/2q8QrWm
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

      Name:  12581209-dimensions.jpg
Views: 1227
Size:  99.2 KB

      GM 2004-2006 Pontiac GTO Oil Pan
      Vehicles:2004-2006 Pontiac GTO
      2001-2005 Holden Monaro (VT-VZ)
      2004-2006 Holden Commodore (VT-VZ)
      2001-2005 Vauxhall Monaro
      Capacity: 6 quarts
      Oil Filter Thread: Post June 2007 M22 x 1.5mm, Pre June 2007 13/16"-16

      Part Numbers & Links
      Oil pan: 12581209 https://amzn.to/2IJAqwg up to 2004; 12599397 2005 and later. Difference between part numbers is the newer model has a built-in pressure relief valve.
      Pickup tube: 12572654 - https://amzn.to/2MxyisK
      Windage tray: 12558189 - https://amzn.to/32c4msT
      Dipstick: 92067147
      Dipstick tube: 92066941
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y

      Name:  TBSS-OIL-PAN.jpg
Views: 1288
Size:  44.5 KB

      GM SSR & Trailblazer Oil Pan
      Vehicles:
      SSR
      Trailblazer
      Capacity: 6 quarts
      Oil Filter Thread:

      Part Numbers & Links
      Oil pan: 12579203
      Pickup tube o-ring: 12557752 - https://amzn.to/2phqmnk
      Gasket: 12612350 - https://amzn.to/2q3R03y
