ADVISE LS2 catch can plumbing

[MAGONSTERZ68]

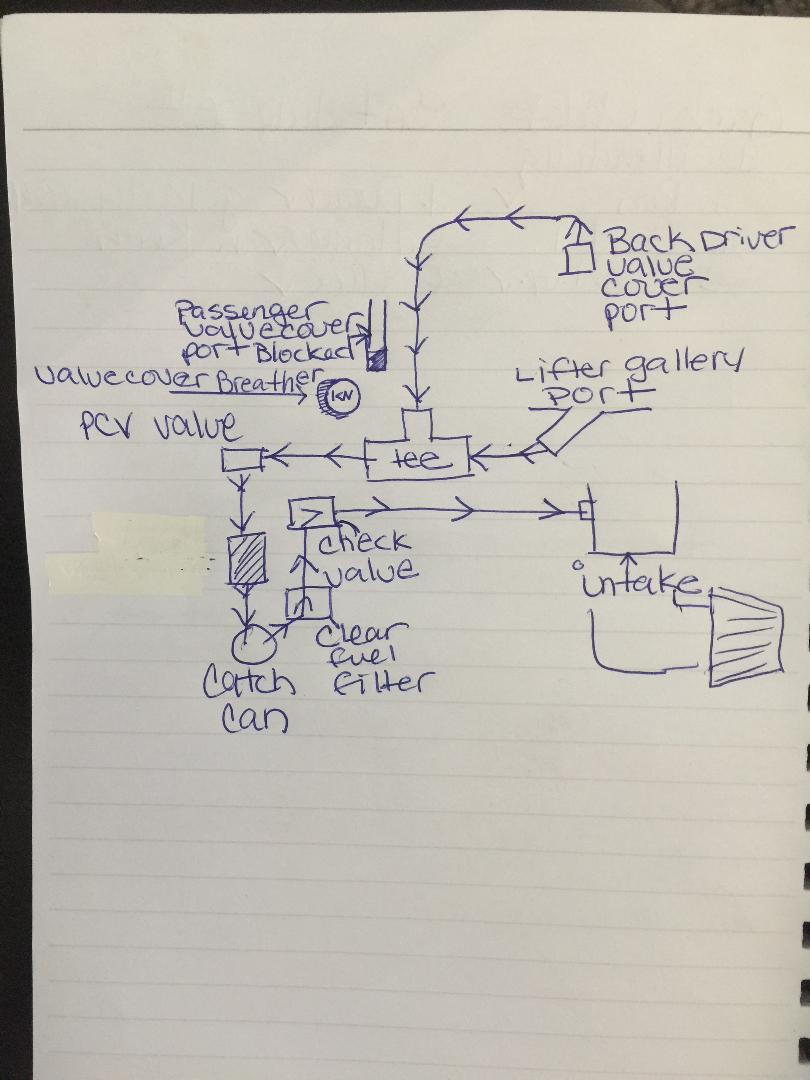

does my catch can plumbing look right?
Not any specific kit just a mash up of garage parts.
Can is non vented - modified ebay unit incorporating ported center inlet tube surrounded by steel wool.
K&N passenger valve cover filter for fresh air in the fill port.
Passenger valve cover clean air port blocked off.
Generic clear fuel filter

GM PCV inline with driver side rear valve cover port and lifter gallery port with a tee leading to catch can inlet.
FORD brake booster check valve inline with clear fuel filter leading back to intake vacuum port

[andrewb70]

All of your diagrams seem overly complicated. The stock systems are relatively simple and all you have to do is plumb your catch can before it goes to engine vacuum.

The driver's side valve cover is the fresh air inlet. It should get air AFTER the MAF.

The passenger side valve cover is the suction side. Plumb that to your catch can, then to the manifold.

If you have a port on the valley cover, plug the passenger side valve cover port. Run hose from valley port to catch can, then to manifold.

That's it...

Andrew

[dhutton]

You are burning unmetered air, assuming you have a MAF. The intake for you system should be in the intake tube after the MAF. If you are running an SD tune, never mind....

I have only seen check valves used in forced induction systems.

Don

[MAGONSTERZ68]

All of your diagrams seem overly complicated. The stock systems are relatively simple and all you have to do is plumb your catch can before it goes to engine vacuum.

The driver's side valve cover is the fresh air inlet. It should get air AFTER the MAF.

The passenger side valve cover is the suction side. Plumb that to your catch can, then to the manifold.

If you have a port on the valley cover, plug the passenger side valve cover port. Run hose from valley port to catch can, then to manifold.

That's it...

Andrew

copy that, plum driver to fresh air after MAF
Pull dirty from lifter valley through catch can.
so, i need to pull filter from the oil fill port put the stock fill cap cover back and block off the passenger valve cover port.
thx

[MAGONSTERZ68]

copy that, plum driver to fresh air after MAF
Pull dirty from lifter valley through catch can.
so, i need to pull filter from the oil fill port put the stock fill cap cover back and block off the passenger valve cover port.
thx

yes running MAF, will pull fresh from in intake after the MAF, THX.
