      1950 Ford F-1 project redo

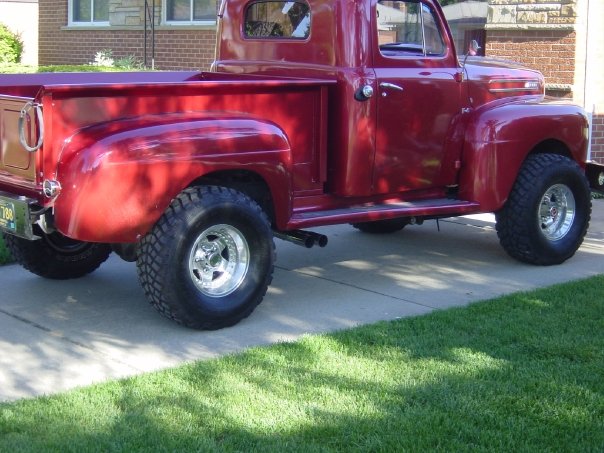

      So I've been a long time lurker, mostly because my truck projects were small, and later put on the back burner to build a race car. To start the story, my dad and I originally built the truck when I was 15. Living in MN it seemed like a good idea to have 4wd, so we swapped a 1979 F150 chassis and running gear underneath the 1950 body. It worked well, and was a blast to drive, but driving in the couple winters I did was a big mistake. It sat and started rusting as I went off to college, but moved with me out to Detroit. In Detroit I did a rebuild of the 351M up to a 408, but couldn't quite bite the bullet on starting a swap back to 2wd for more of a street truck. Below is a pic from its time in Michigan.



      Upon moving back to the Twin Cities, I promptly had the rear driveshaft break while at a cruise night. Luckily I just pulled it, locked my hubs and drove home. Where it sat for a few more years until I could decide how to fix it. Putting in a new driveshaft was too simple, and I had the nagging idea for years to put it back to a cruiser and make it 2wd. This is also the point where a race car hijacked my plans, and mostly my time.



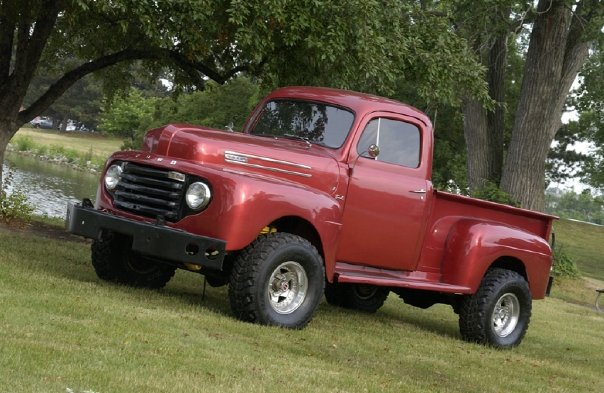

      In the long run, I learned a lot building the car, and that helped the truck project. Here are a few more of the truck in 4wd mode. These are all roughly circa 2005.










      Then in 2010 we began the teardown work in my dad's barn. Being an hour away slowed progress a bit as well. Having the one piece fiberglass front end made some of this work easier.



      More to follow...
      Attached Images Attached Images


    2. #2
      Join Date
      Feb 2005
      Location
      Minneapolis, MN
      Posts
      194
      Country Flag: United States
      I ended up deciding to go the budget route, and tried the Crown Vic front end. It would fit the 79 frame, but would drive me to run modern high offset wheels. It was tough finding a front end to work with the 79 frame, and the 50 overall width. In hindsight, now, I maybe should have cut off the front frame and narrowed it. But we can get to that later. Here are some pics after we had a shop do the main install work of the front end and rear end. For the rear suspension I went with a Welder Series triangulated four link, and 99 Crown Vic 8.8 axle, with a 3.55 limited slip and disc brakes.













      They did good work, but I wasn't happy with their solution for the rear mount of the lower control arm. It caused an interference with my headers. So we went to work redesigning it to use the stock Ford mount and free up space inside the frame. I also took this time to box the frame for stiffness, add the rear shock mount, then re-sandblast the frame to clean it up and re-paint it.





















      The last is where it sat in the fall, before we trailer-ed it up to my garage. My first child was born in October, and I knew I'd never finish it if it was an hour away. I finally moved the race car out to another shop, so the truck is just outside in the garage. I've made some more progress since October, but need to get pics. As you can see, I ended up using a kit for QA1 shocks in the front, its from Naake suspension, made for the Mercury Marauder. I wanted the ability to set my ride height and have additional spring choices. I also went with some QA1 rear coil-overs and will have pics of that to come. The truck also has an adapted Tremec TKO 5 speed. I'm in the process of swapping to a hydroboost brakes as well, from an F-250. Also moving to an electric fan, from the Lincoln Mark VIII, and starting to think about adding AC for the humid MN summers.
      Attached Images Attached Images

    3. #3
      Join Date
      Oct 2011
      Location
      Cincinnati Ohio
      Posts
      60
      Country Flag: United States
      That's my favorite body style old ford truck. And it looks good as a 4x4. Street truck or autocross always looks good to. Keep posting and we like all the pictures that you can post. Keith

    4. #4
      Join Date
      Sep 2012
      Location
      London, Ontario
      Posts
      291
      Country Flag: Canada
      Very Nice!

      73 Maverick Grabber Project

      My never ending project:
      https://www.pro-touring.com/threads/...hlight=grabber

    5. #5
      Join Date
      Feb 2005
      Location
      Minneapolis, MN
      Posts
      194
      Country Flag: United States
      Apparently its been awhile since I've done an update. Oops. Made a lot of progress in the last year or so, but still not driving.

      So this is who has been distracting me from working on the truck as much. It was supposed to be running before she was born, but now I'll be lucky if its running before her sister shows up. This is from almost a year ago.

      Name:  2015-12-06 11.15.46.jpg
Views: 2873
Size:  259.5 KB

      Had to chip away at things, and first that got done was the brake lines, here's the rears when I finished them up.

      Name:  2015-12-12 15.06.08.jpg
Views: 2856
Size:  97.9 KB

      The next two are when I got the new pulleys on. I really wanted serpentine, but thought the brackets on the March system were too futuristic. I thought about designing and making my own, but when I found this system by CVF racing, I decided to just get one done in the sake of time. Plus they'll let me get the parts I need to upgrade to AC.

      Name:  2016-01-08 20.47.50.jpg
Views: 2870
Size:  112.2 KB

      Name:  2016-01-08 20.48.08.jpg
Views: 2864
Size:  400.2 KB

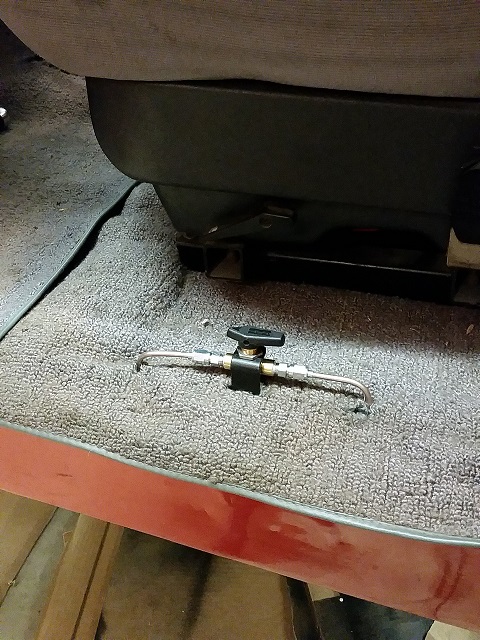

      I think I'm going back to a bench seat, to have room for kids, so I ditched the pull cable ebrake and decided to try a hydraulic one. I saw it first on a friend's Cobra kit car, and decided to try it. I'll probably hide it, I don't have a pic, but I have a pringles can rough fit to cover it. Not sure if I want to do a beer can and be more rat-rod. But I don't think I want to promote drinking and driving, so I'll probably do something else.

      Name:  2016-02-06 14.44.50.jpg
Views: 2852
Size:  146.4 KB

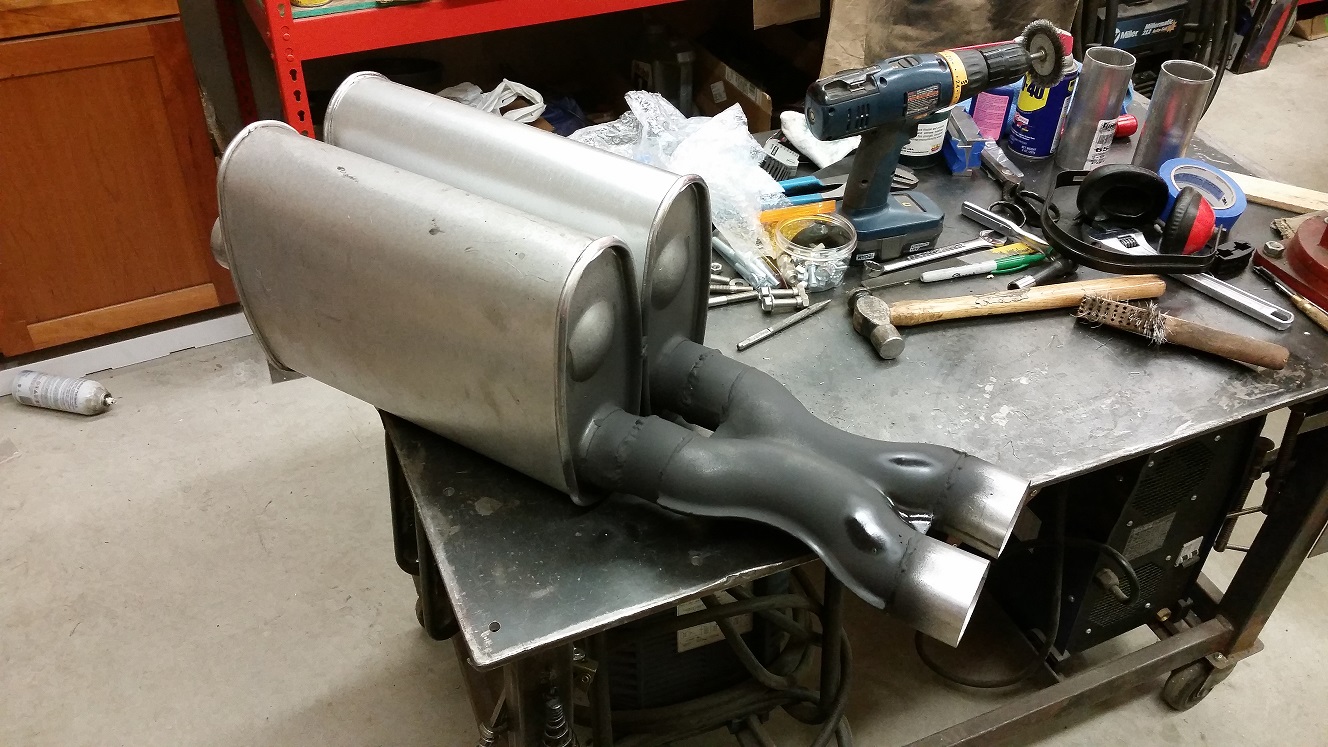

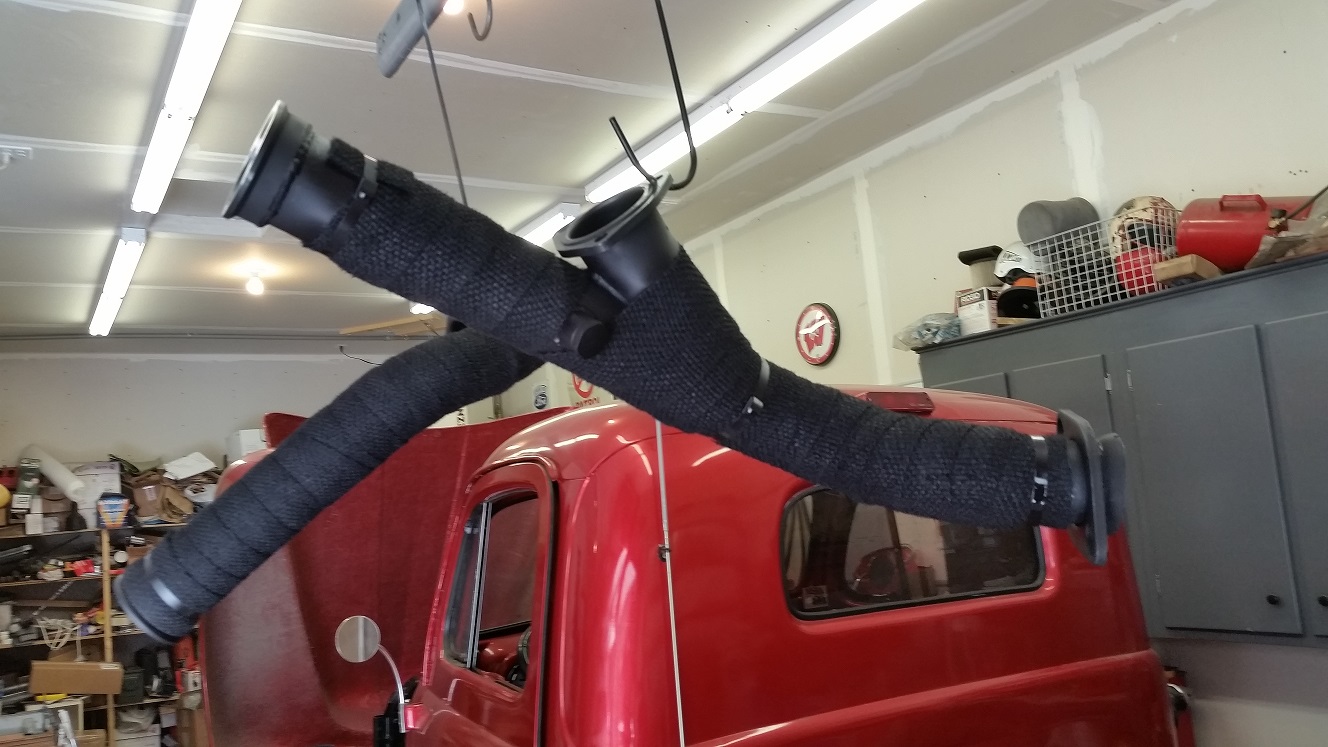

      I had to switch back to stock exhaust manifolds, my long tubes wouldn't fit with the steering. I just couldn't figure out how to make it work. And stockers were a lot less costly then short tubes. So I made some new down tubes, with spots for cutouts, and added an x-pipe. With side exit, I could barely squeeze it all in before the mufflers. Not ideal, but whatever.

      Name:  2016-04-02 16.03.00.jpg
Views: 2844
Size:  353.9 KB

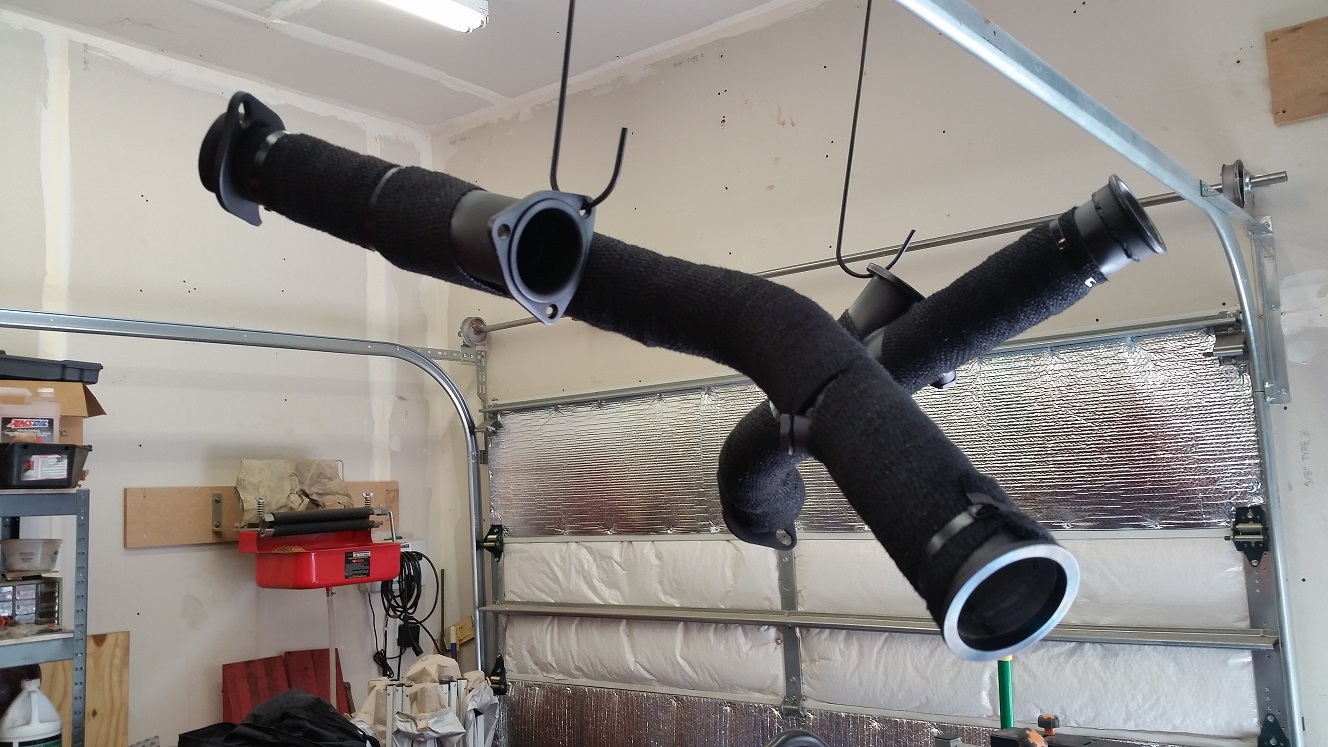

      Name:  2016-07-02 10.06.57.jpg
Views: 2837
Size:  312.3 KB

      Name:  2016-07-02 10.07.03.jpg
Views: 2853
Size:  249.2 KB

      Made a custom shift lever for the TKO. I couldn't find one the dimensions I wanted, so I drew it up in CAD and had a buddies shop mill it out for me. I haven't decided if I'll polish it or just powder coat it black.

      Name:  2016-07-29 16.25.13.jpg
Views: 2851
Size:  103.5 KB

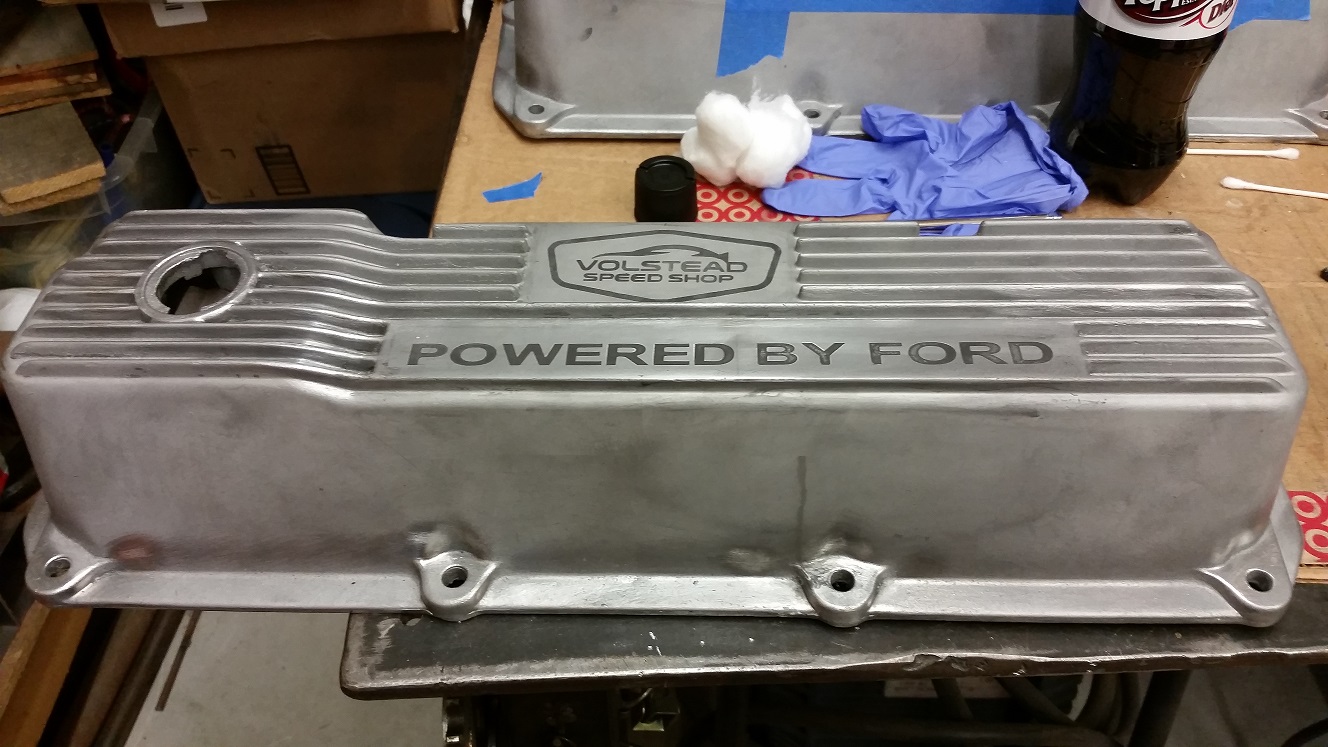

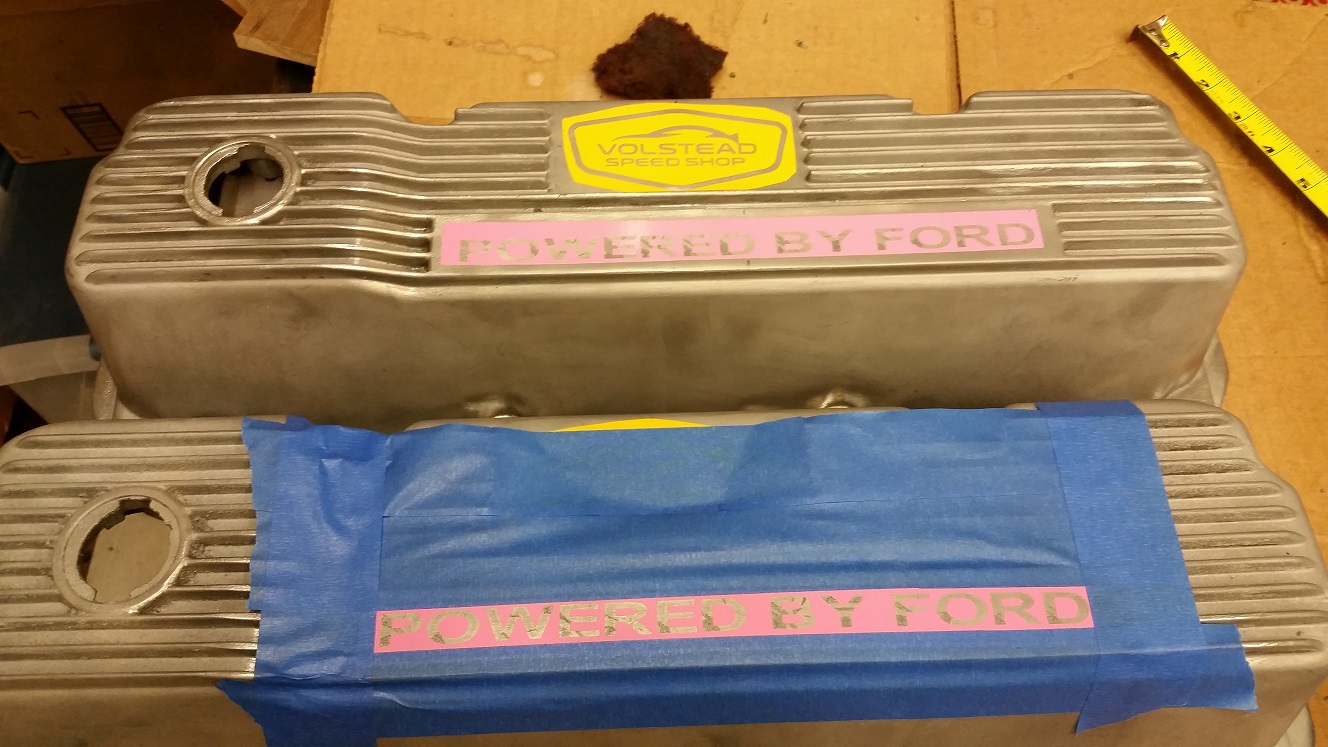

      Then I got side tracked on a project with the valve covers. I wasn't super happy with the silver and got something on them, so I decided to strip them down and powder coat them black. Then I decided to do some electro-chemical etching, which turned out cool. But then it wasn't deep enough for the powder coat to work out right. So I had to strip them again, ugh. But painted worked better, its subtle, but I like it.

      Name:  2016-09-10 11.20.04.jpg
Views: 2824
Size:  297.0 KB

      Name:  2016-09-13 16.17.21.jpg
Views: 2828
Size:  285.4 KB

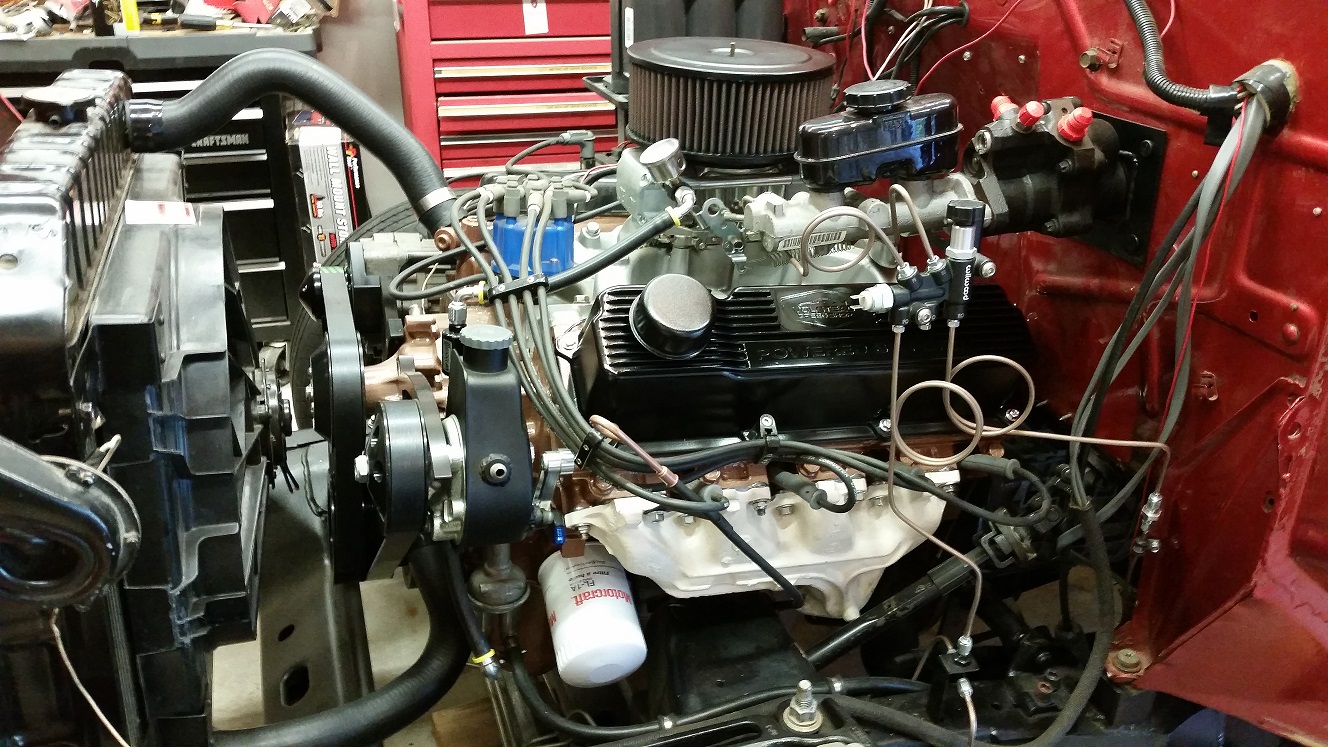

      This shows where it sits now. Forgot to mention I also got the hydroboost brake booster installed. Had to do some modifications to get the pedal rod to work. Next up is running the lines for the hydroboost. And finish installing the valve covers, and finish adding oil. I got exited the day I finished the fuel lines and the electrical, and got it to fire. Reminded me I need to install the cut-outs too. Haha. Love the sound of open headers!

      Name:  2016-09-30 16.20.09.jpg
Views: 2840
Size:  431.4 KB

      Name:  2016-09-30 16.20.51.jpg
Views: 2821
Size:  371.2 KB

    6. #6
      Join Date
      Nov 2006
      Location
      Ma.
      Posts
      5,391
      Country Flag: United States
      You have a nice project here and your doing a great job!
      Wayne
      Car FINALLY home !!!!!! lol
      Project FNQUIK https://www.pro-touring.com/showthre...ghlight=FNQUIK

    7. #7
      Join Date
      Feb 2005
      Location
      Minneapolis, MN
      Posts
      194
      Country Flag: United States
      Still slow progress. No picture, but in reference to the last picture above, during bleeding, I realized that I plumbed my master cylinder wrong. I had the front brake port (rear on the master) going to the rear brake port on the bias block. So I had to flip those around. Being just a cruiser, I wish I would have used DOT5 to begin with. Some drips already ate through paint and will require some touch up on the calipers and the frame.

      Didn't get done before #2 showed up. Now the truck is park jungle gym.

      Name:  2018.06.18 Girls.jpg
Views: 1634
Size:  179.8 KB

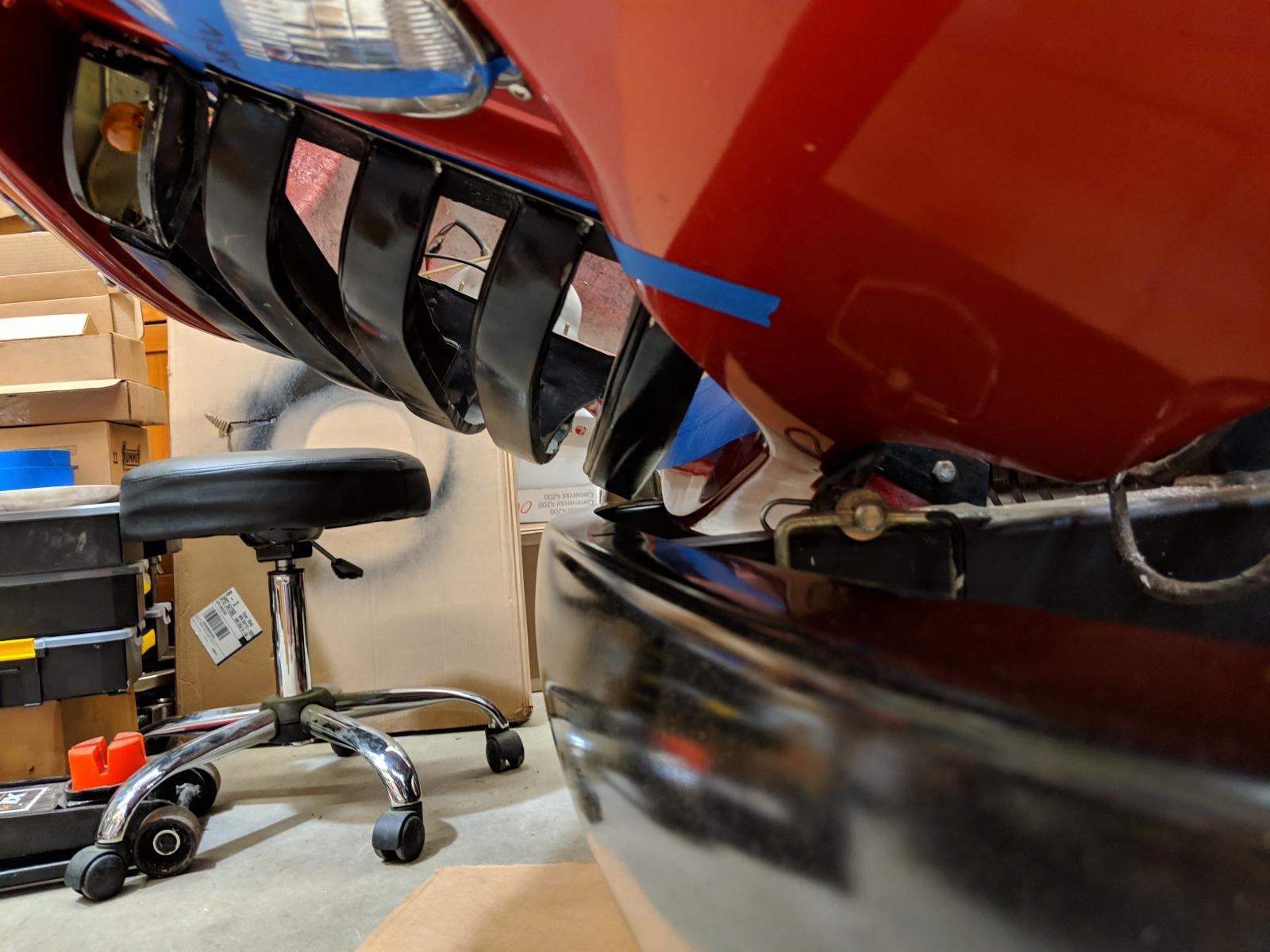

      At some point I noticed my grill stuck out from the front end. My dad and I had originally gotten this fiberglass front end in the 90s, because the original fenders were so rusted. Something made me notice it stuck out, vs sitting flush, which bugged. But then in finally trying to fit a new stock bumper, instead of my 4x4 front bumper, that the tilt was going to cause the grill to hit. So along with looking more correct and fixing the aesthetic of the grill, I had to fix it let things tilt again. It turns out that the fiberglass was meant to mount the headlights into, and just mount the grill bars. So I modified it to work and look more stock.

      Name:  2017.11.17 grill bumper potential issue.jpg
Views: 1650
Size:  206.2 KB

      Name:  2017.11.18 grill sticks out.jpg
Views: 1637
Size:  133.7 KB

      Name:  2017.11.18 inside grill mounting.jpg
Views: 1643
Size:  164.3 KB

      Name:  2019.03.06 new bumper 1.jpg
Views: 1642
Size:  229.0 KB

      Name:  2019.03.20 1 marking lights before grill removal.jpg
Views: 1645
Size:  197.6 KB

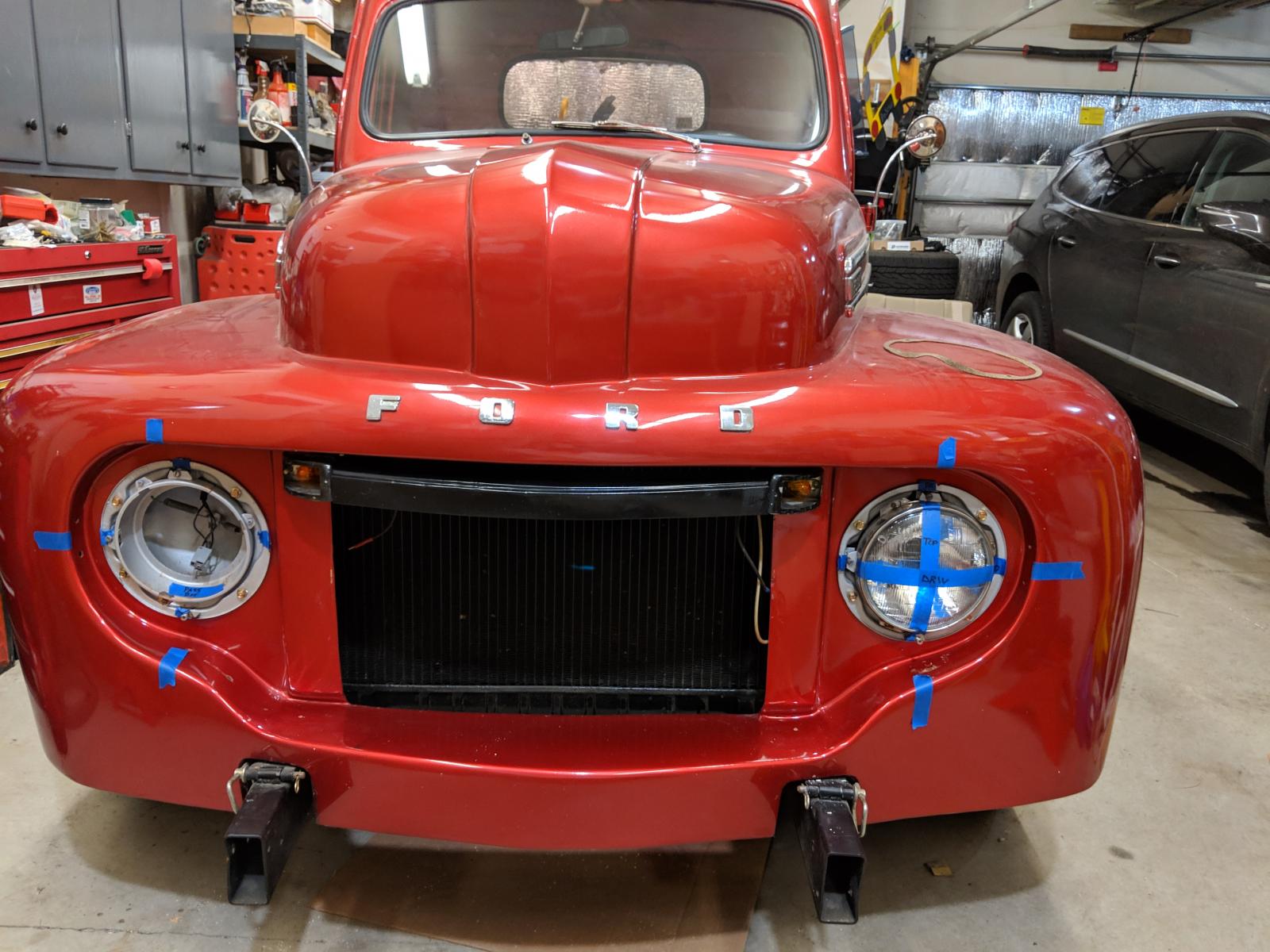

      Name:  2019.03.20 8 fitting top grill bar.jpg
Views: 1695
Size:  212.4 KB

      Name:  2019.03.24 main grill fitted.jpg
Views: 1652
Size:  233.0 KB

      Name:  2019.03.24 new grill clearance to bumper.jpg
Views: 1640
Size:  166.8 KB

      Name:  2019.05.02 grill with headlights.jpg
Views: 1648
Size:  244.6 KB

      Finally got everything bled for the brakes, just get along with bleeding the power steering to find a leak at a drain back bung. Oops. Apparently I should have leak tested it after welding. :( Once I get that fixed, we should be ready for a road test, then a drive up to my dad's shop to put the bed back on. Which we started re-assembling up there.

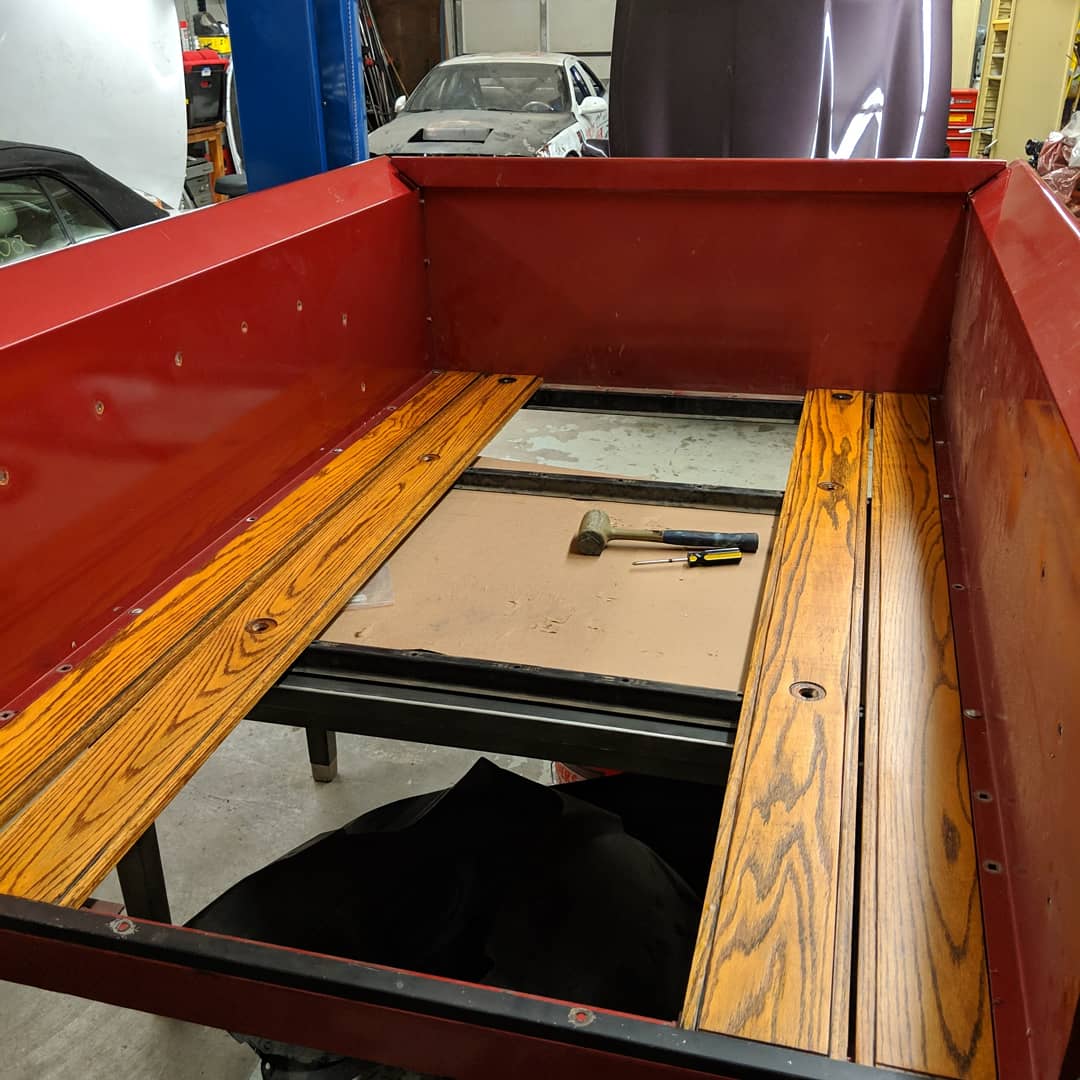

      Name:  2019.04.16_bed assembly2.jpg
Views: 1645
Size:  111.0 KB
      Attached Images Attached Images

    8. #8
      Join Date
      Feb 2005
      Location
      Minneapolis, MN
      Posts
      194
      Country Flag: United States

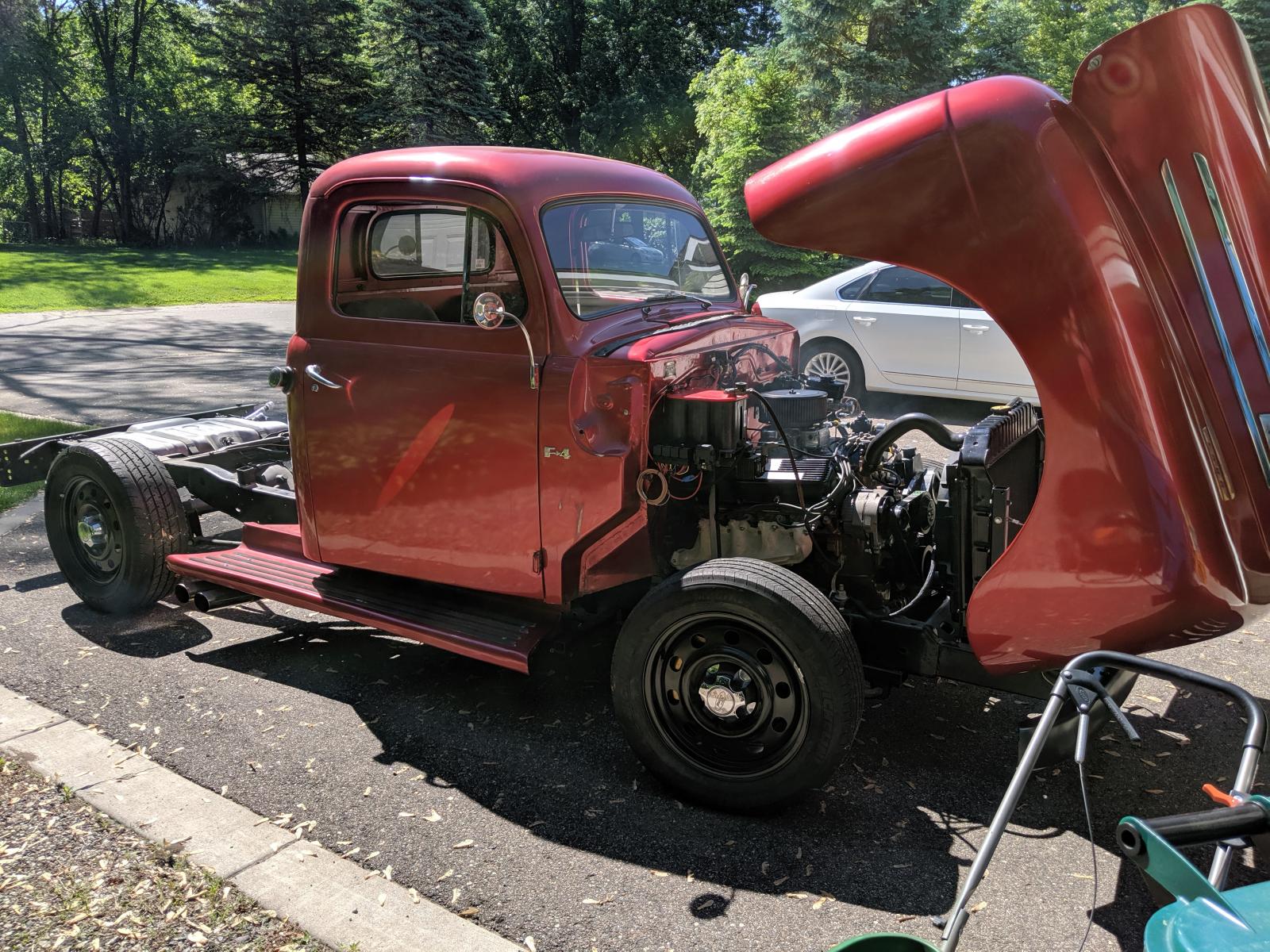

      Making more progress. My goal of driving to the Back to the 50's car show in St. Paul, MN is rapidly approaching on June 21st. I'm glad I set the goal, I feel like its pushed me more to get out there and spend every 5 minutes I can find on projects. Truck finally saw daylight for the first time in 10 years. Power steering didn't work first time out, but apparently I flipped the spring and flow valve after reassembling with a new tank to fix my leaky welded bung. Oops.

      Name:  2019.06.08 First daylight in 10 years1.jpg
Views: 1545
Size:  476.8 KB

      Name:  2019.06.08 First daylight in 10 years4.jpg
Views: 1876
Size:  390.8 KB

      Got the power steering fixed and drove it up to the shop to start putting the bed on.

      Name:  2019.06.09 bed on.jpg
Views: 1525
Size:  242.9 KB

      A couple days later, got the fenders hung. Now to get the rest of the wood pieces in.

      Name:  2019.06.11 rear fenders on.jpg
Views: 1666
Size:  216.9 KB

    9. #9
      Join Date
      Nov 2010
      Location
      Ma.
      Posts
      577
      Country Flag: United States

    10. #10
      Join Date
      Feb 2005
      Location
      Minneapolis, MN
      Posts
      194
      Country Flag: United States
      Made my goal, and drove the truck to Back to the 50's. First time getting the truck there and first time driving it in almost 8 years. The chassis redo took way longer then I originally thought.

      Name:  2019.06.21 After its first Back to the 50s.jpg
Views: 1142
Size:  504.9 KB

      This is right after the first day of the car show. Had to do a couple little fixes but nothing big.

      Name:  2019.06.22 Driving in to back to the 50s day 2.jpg
Views: 1148
Size:  382.3 KB

      Drove it in the next day, found a better spot to drive in and park without having to ride the clutch and drive 2mph through the grounds. Got some swirl marks I need to work out.

      Name:  2019.06.22 Back to the 50s girls first time.jpg
Views: 1163
Size:  177.4 KB

      Even brought the kids out, so they can start seeing cars moving, rather then just playing in the truck on jack stands. Haha.

      Name:  2019.07.27 Bent 1st Place.jpg
Views: 1142
Size:  328.0 KB

      Then I got the truck out to another local car show. It wasn't super big, but I surprisingly earned a 2nd place trophy.

      Name:  2019.07.27 Bent2.jpg
Views: 1146
Size:  540.5 KB

      Currently the truck is back on jack stands, getting ready to drop the tank and swap in an efi pump and tank with some baffling. I'm hoping to get my new to me single plane intake manifold powder coated this week. Then I can get moving on the Sniper EFI install. I'm so ready to be done with carbs. Not sure if I'll get going on the AC install this year, or wait until winter. Might have more time this summer without car shows for the near future.

    11. #11
      Join Date
      Dec 2014
      Posts
      188
      Country Flag: Australia
      Sweet!

    12. #12
      Join Date
      Feb 2005
      Location
      Minneapolis, MN
      Posts
      194
      Country Flag: United States

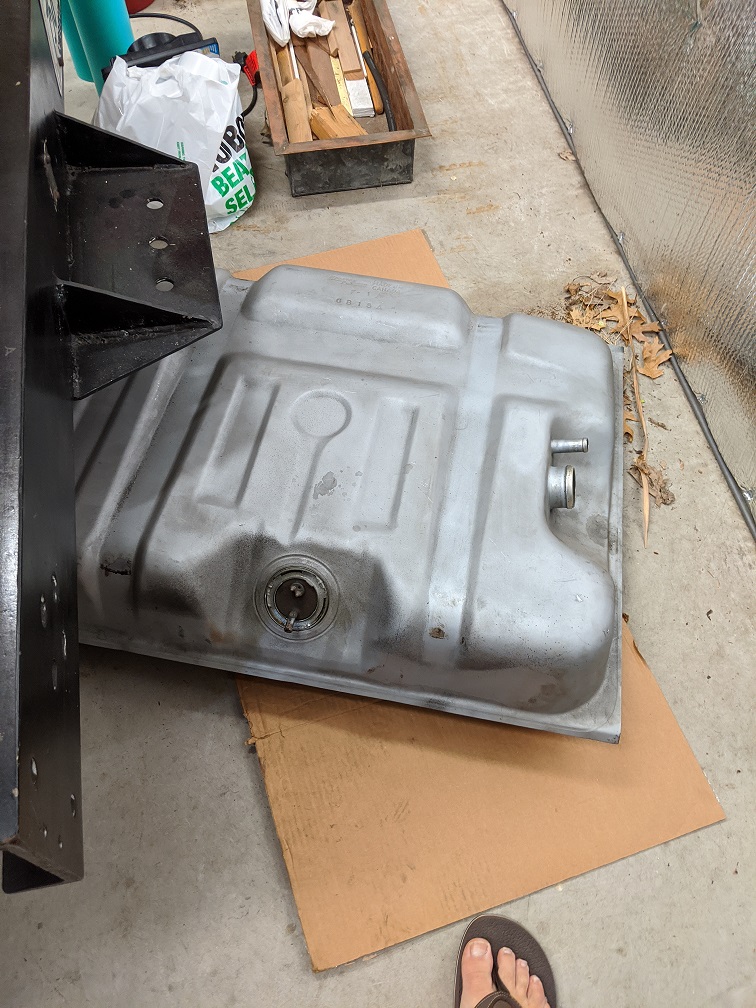

      Decided to try a late 80s, early 90s F150 EFI tank instead of the fancier custom aluminum tank. Found this interesting link from another guy who had done it.
      http://www.rowand.net/Shop/Cars/1979...EFIGasTank.htm

      The fuel pump for those era engines were still relatively low fuel pressure, so I'm planning to swap in a high pressure Walbro pump for the old Ford pump. Got my tank drained and dropped last weekend, and the new tank arrived yesterday. So out with the old tank, which was new about 10 years ago, and in with the new. (And yes, I've got summer footwear going on in the garage, can't drop stuff on your toes when you're laying on your back)

      Name:  2020.05.25 old tank out.jpg
Views: 964
Size:  313.1 KB

      And this LED headband is seriously my current favorite tool. So handy when working under the truck.

      Name:  2020.05.25 new fav tool.jpg
Views: 965
Size:  204.0 KB

      After starting my quarantine fun with sorting my jumbled mass of fasteners, and organizing them all. I moved into removing all my old ignition system from the truck. Hopefully I'll be able to sell the Crane distributor and ignition box.

      Name:  2020.05.15 Starting fuel injection swap.jpg
Views: 957
Size:  405.7 KB

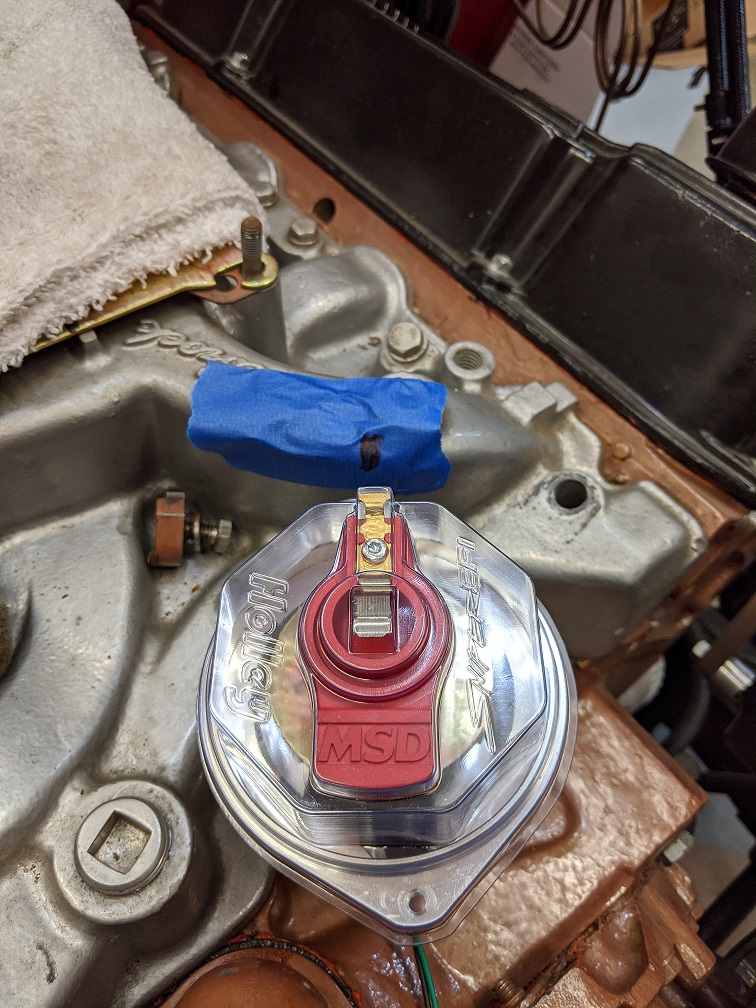

      Since I'm doing the Holley Sniper EFI system, I decided to just go with all their components in hopes that it would avoid issues. So in goes the Hyperspark distributor. Its nice to be finally installing parts that I've been gathering for 2 years. I didn't want the EFI work to delay my goal last summer, so I put off the EFI install.

      Name:  2020.05.28 Hyperspark Distributor.jpg
Views: 965
Size:  319.7 KB

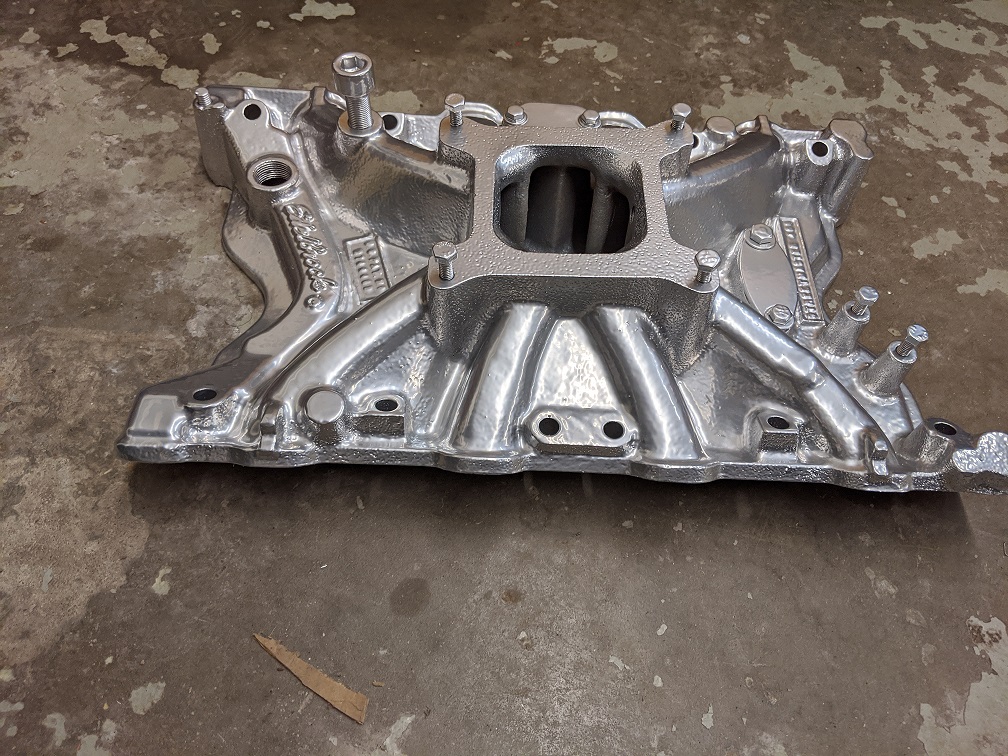

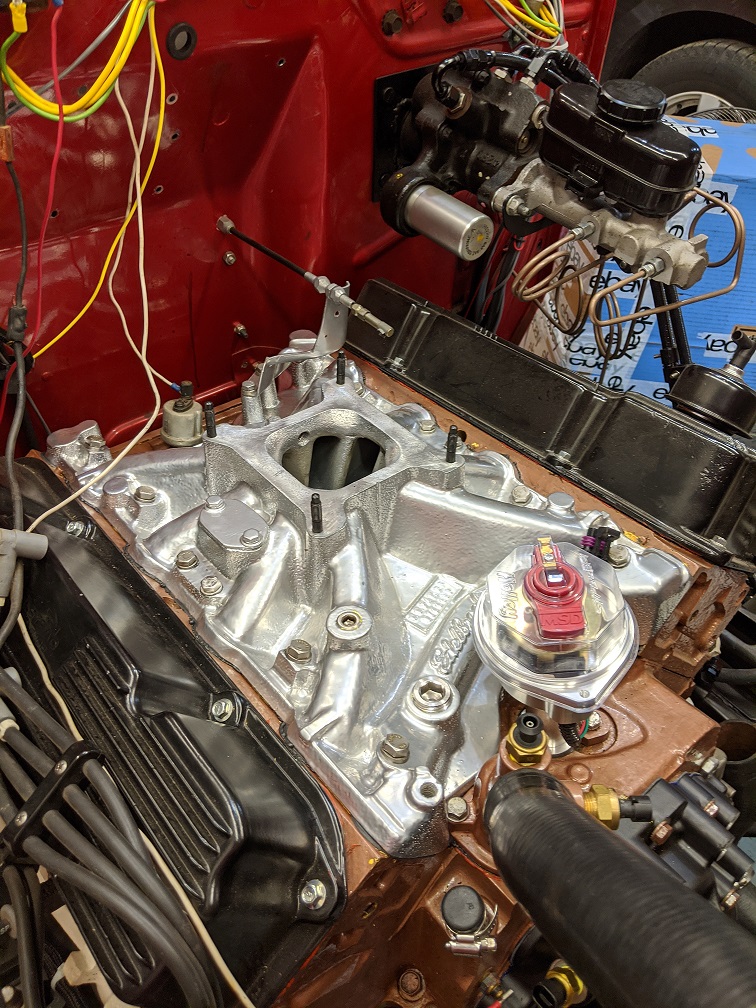

      Next up will be removing my intake manifold to on the reworked single plane manifold. From what I read the single plane worked better with the throttle body style injection, so I found an old Edelbrock single plane, since nobody makes them anymore. It had a lot of bumps and porosity, so I tried some powdercoat primer that's meant to fill and smooth parts. It worked pretty decent on the spots I got enough coverage. Apparently I needed a little more. Oh well. It'll be good enough, and at least the runners look pretty smooth. I should have gotten a before shot of the manifold. The carb mounting surface is cleaned off now, and ready for install.

      Name:  2020.04.22 powder coated intake.jpg
Views: 953
Size:  376.0 KB

    13. #13
      Join Date
      Dec 2014
      Posts
      188
      Country Flag: Australia
      Awesome, love it!

    14. #14
      Join Date
      Sep 2005
      Location
      San Diego, CA
      Posts
      707
      Country Flag: United States
      Awesome truck!
      John Brown
      1971 Nova - Project Car
      1990 Silverado - Ridetech StreetGRIP
      Instagram @wilwaxu
      Facebook @wilwaxu

    15. #15
      Join Date
      Feb 2005
      Location
      Minneapolis, MN
      Posts
      194
      Country Flag: United States
      Quote Originally Posted by WILWAXU View Post
      Awesome truck!
      Quote Originally Posted by brckmrphy View Post
      That is one hell of a truck.
      Thanks guys! Got the intake on, and forgot to take pictures of the block off plates I made for the exhaust running through the intake. I need one more plug to show up. And I started replacing the water pump to put on the new CVF Racing wraptor belt system, to prep for AC.

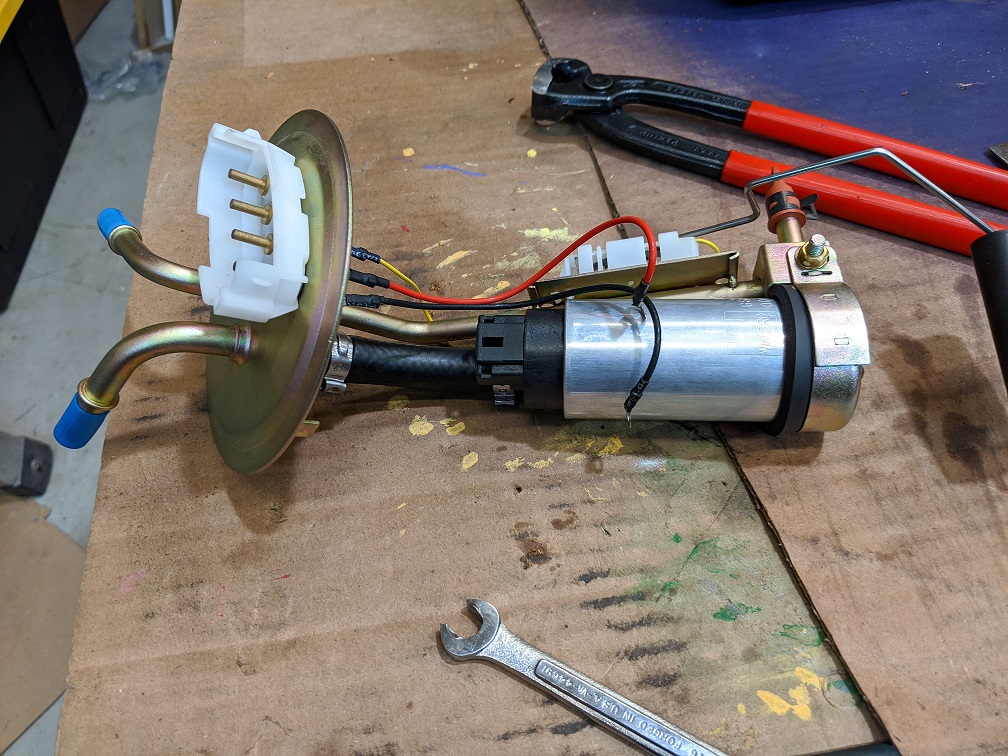

      Oh, and I got the fuel pump and pickup modified. I sold my 79 F150 tank, and got an 89. It had EFI, but the pump was low pressure compared to modern EFI. So I swapped the pump on the hanger. Just need to wire up the pump plug and its ready to go in.

      Name:  2020.05.31_fuel pump before.jpg
Views: 764
Size:  423.6 KB

      Name:  2020.06.09_new pump before.jpg
Views: 765
Size:  397.4 KB

      Name:  2020.06.09_new pump close.jpg
Views: 768
Size:  320.1 KB

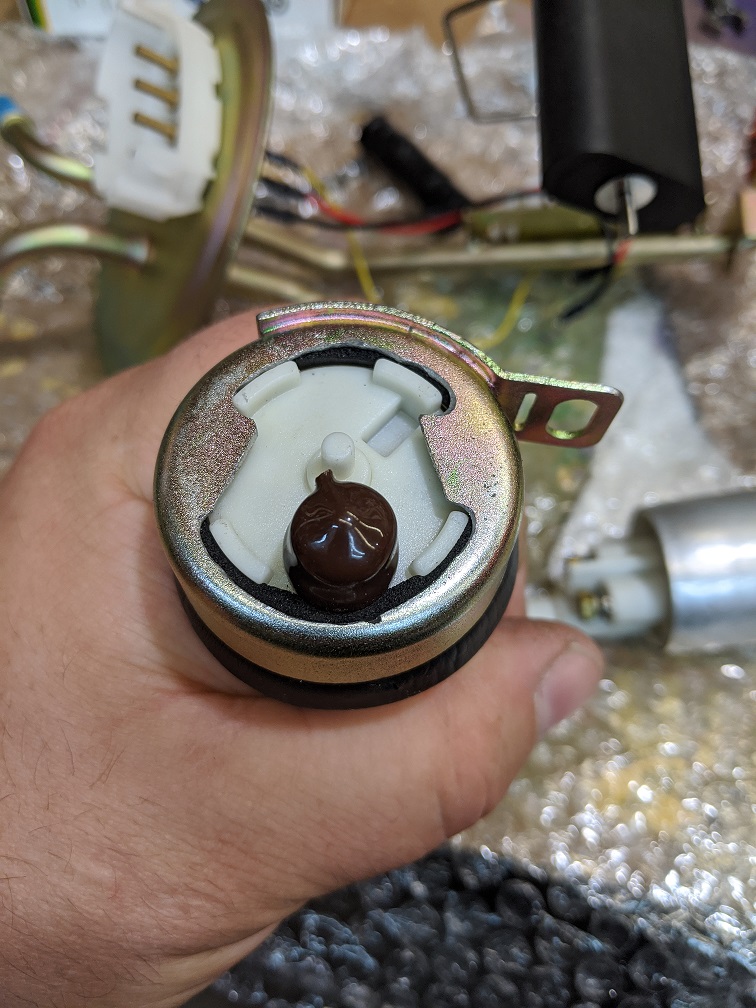

      Name:  2020.06.09_trimmed pump holder.jpg
Views: 773
Size:  256.9 KB

      Name:  2020.06.14_new pump connected close.jpg
Views: 774
Size:  295.7 KB

      Name:  2020.06.14_new pump ready for wiring.jpg
Views: 771
Size:  344.3 KB

    16. #16
      Join Date
      Sep 2013
      Location
      sw Kansas
      Posts
      1,283
      Country Flag: United States
      Did you get finished? I had missed your build somehow. Looks good.

    17. #17
      Join Date
      Jan 2020
      Posts
      39
      Classic beauty!

    18. #18
      Join Date
      Feb 2005
      Location
      Minneapolis, MN
      Posts
      194
      Country Flag: United States
      Yes WFO, I did get it running, just finishing up some stuff. After pushing the truck outside in October to do a garage birthday for my daughter, and about dying pushing it back in, I made a push to get it running by the beginning of November for my 2nd daughters birthday party, which was going to need an empty garage too. Prior to this point, I had gotten the intake manifold and new pulley system on back in July.

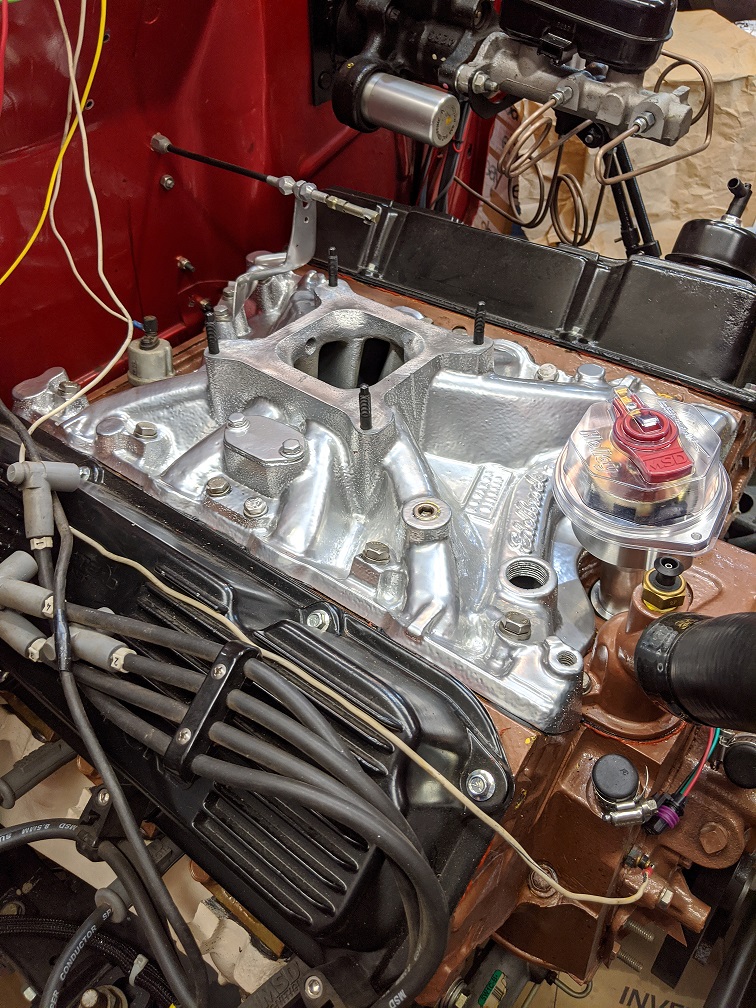

      Name:  2020.07.21_new CVF waterpump.jpg
Views: 164
Size:  375.2 KB
      Name:  2020.07.14_new manifold on.jpg
Views: 147
Size:  405.5 KB
      Name:  2020.07.21_new intake all plugged up.jpg
Views: 144
Size:  387.3 KB
      Name:  2020.07.21_test fit sniper.jpg
Views: 143
Size:  426.7 KB
      Name:  2020.07.23_FuelBlockOff.jpg
Views: 143
Size:  312.9 KB
      Name:  2020.07.24_wraptor1.jpg
Views: 145
Size:  335.7 KB
      Name:  2020.07.26_wraptor2.jpg
Views: 143
Size:  373.0 KB
      Name:  2020.07.26_wraptor3.jpg
Views: 144
Size:  394.3 KB

      Now it was crunch time to get under and finish adding a fuel filter and return line. I wish I'd have run the return line before I put the body on. I also added a fuel pressure gauge where I changed from hard line to flexible line to the Sniper.

      Name:  2020.10.23_fuel filter.jpg
Views: 143
Size:  377.0 KB
      Name:  2020.10.31_fuelpressuregauge.jpg
Views: 143
Size:  289.8 KB

      Mounted up the Sniper ignition box, and got a new air cleaner. Holley drop base style for the Sniper didn't fit with my distributor, but I liked the bigger air filter so I got a different base. I also 3D printed a knob, which is now painted red to match the body, but apparently I don't have a picture on my phone.

      Name:  2020.10.31_newairfilter.jpg
Views: 144
Size:  375.4 KB
      Name:  2021.01.16_AirCleanerKnob.jpg
Views: 144
Size:  331.5 KB

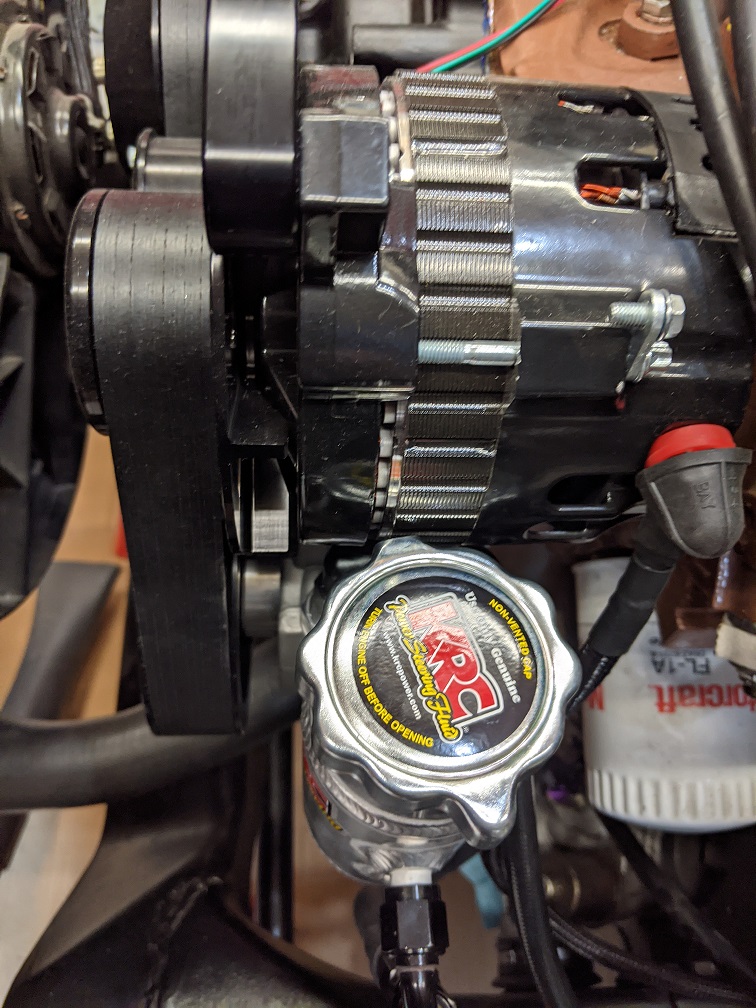

      I like how the CVF wraptor pulley system worked out, and I have an idler in place of the AC compressor, until I get my AC system installed. The only bummer was the placement of the powersteering reservoir to the alternator is a bit tight. I went with the upgraded pump hydroboost brakes, and the cap wouldn't open. Of course I noticed this after install, so it had to be cut to get it off to even put fluid in the system. In the end, whatever, it works now.

      Name:  2020.10.31_PSfail1.jpg
Views: 145
Size:  308.3 KB
      Name:  2020.10.31_PSfail2.jpg
Views: 142
Size:  293.6 KB

      I'm currently trying to clean up the wiring now and get it loomed and protected. Next up will be interior upgrades. I'm working on a new radio insert to mount a touchscreen radio with Android auto. It'll also have integrated locations for the HVAC controls, rather then mounting them under the dash. I got a prototype 3D printed for fitment. Making a couple tweaks before the final 3D print and paint. I'm also working on fitment of the Holley 6.8" Pro digital dash. I need to order a vehicle speed sensor conversion for my Tremec trans, and finalize placement in the gauge hole. With my radio change I'm removing my existing fuel, oil pressure and water temp gauges, which the digital dash will replace.

      Name:  2021.03.26_RadioMountTestFit.jpg
Views: 142
Size:  369.9 KB

      Thanks for reading. Other future updates include a new bench seat, rewiring the under dash panel, and relocating the battery to the bed for AC routing.
