RSX302 Future--Engine Poll...

[RSX302]

Any Updates on your Swap? I read through your original build years back, can't wait to see your changes.....

This is where I'm at until the funds increase:

Texas Speed 370cu LQ9 shortblock

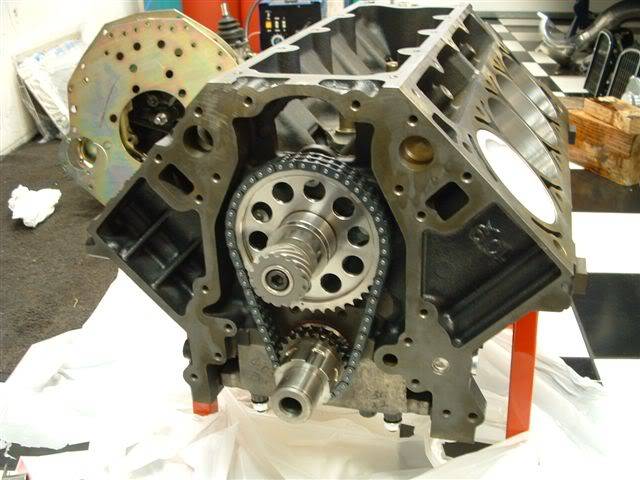

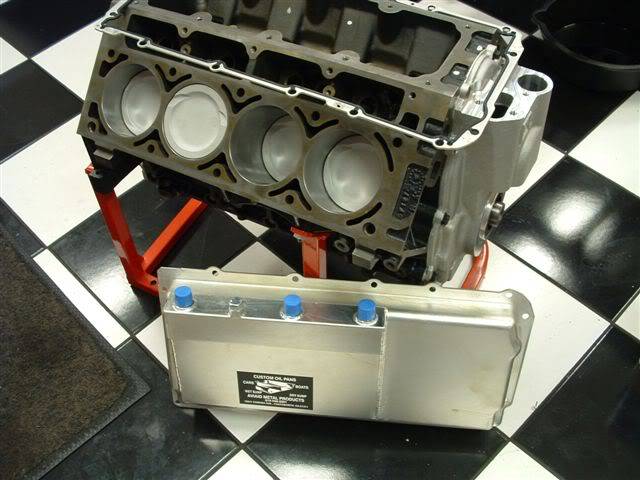

Installed front distributor conversion and Aviaid dry Sump pan



G-Force T56 input shaft replaced and McLeod bellhousing installed for LS.

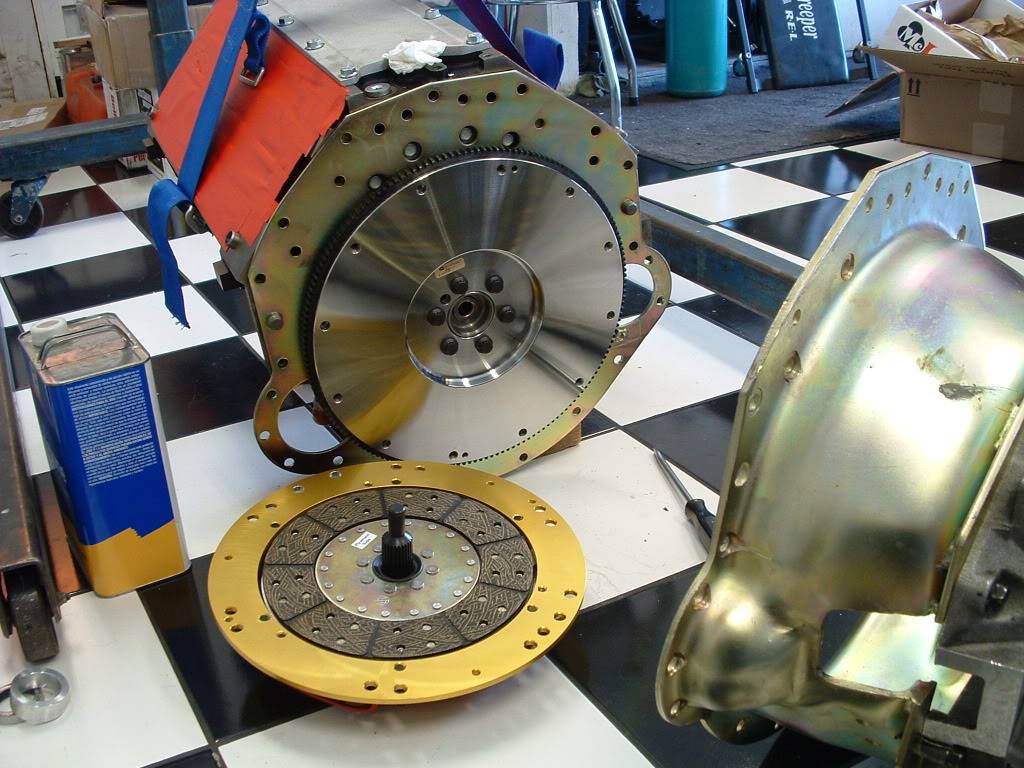

Went with a steel McLeod flywheel this time over the aluminum...

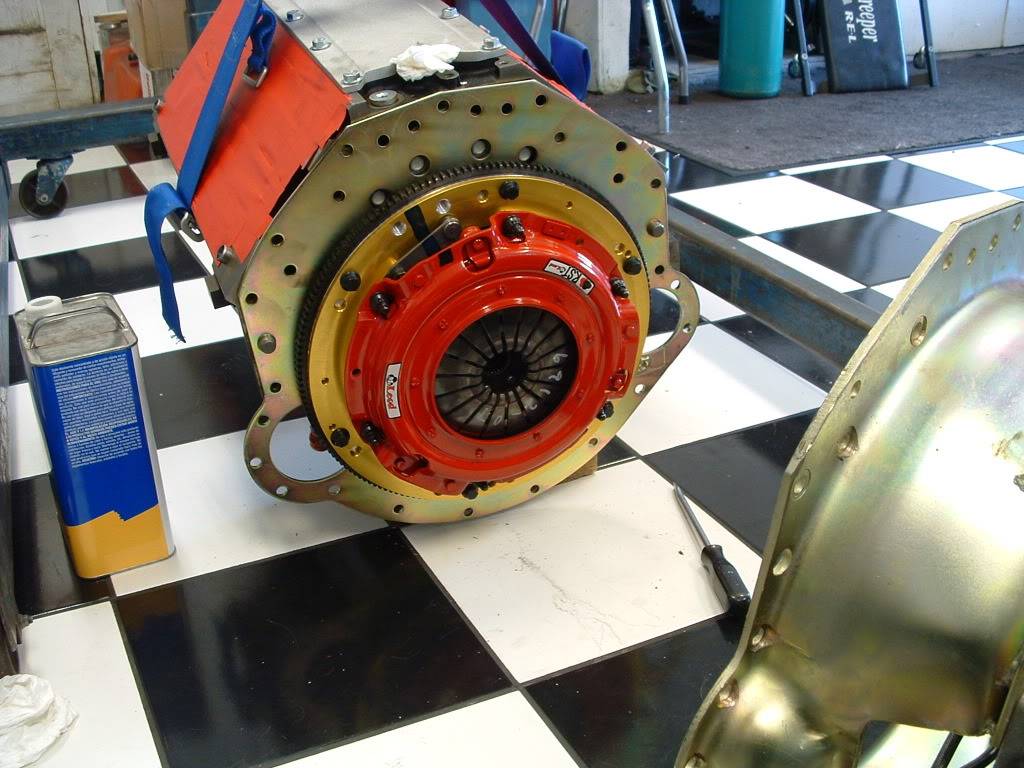

McLeod RST Twin Disc installed

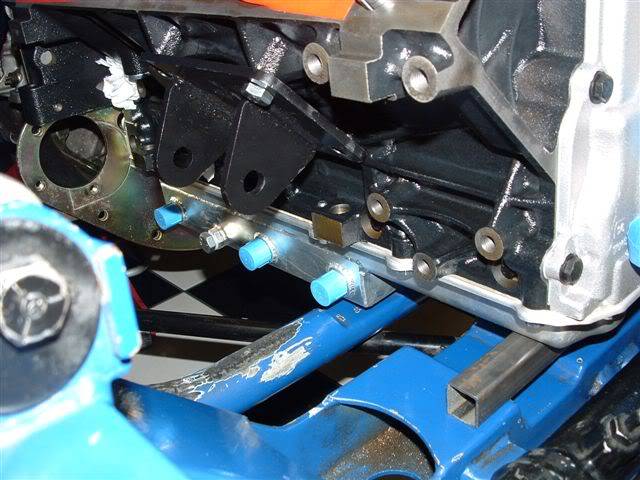

Mocking up motor mounts...The motor moved forward 2" from the Ford location. 1" beacause of the bellhousing depth and 1" for the whole thing for additional firewall clearance. Notice I was still able to pick-up the rear crossbar I added. I'm keeping the weight in the same place the Ford was..worked out that the centerline of the motor mount was directly over the crossbar..

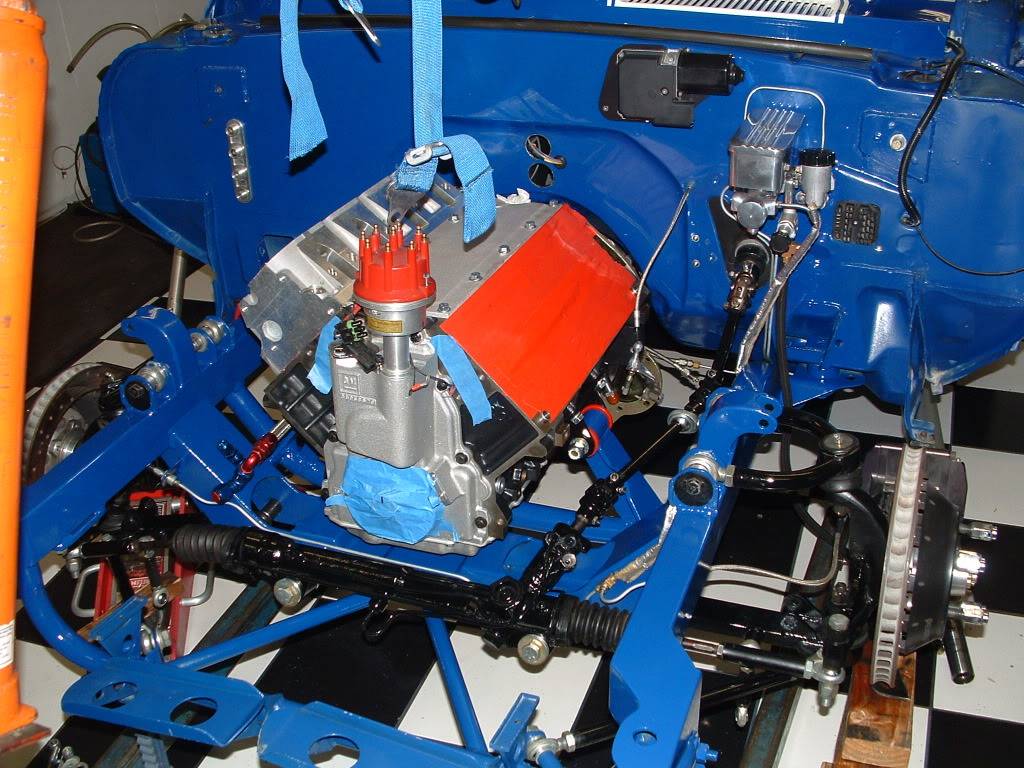

Front clip painted and hopefully motor in for good...Borrowed buddies heads during mock-up.


Suspension back on..

[Payton King]

Looks real nice. glad to see you are making progress!

[twosaturns]

sweet! w/ the front dizzy I bet most people will figure it IS a fomoco in there!

[RSX302]

Looks real nice. glad to see you are making progress!

Thx, Slow progress..but it's progress none the less...

[RSX302]

sweet! w/ the front dizzy I bet most people will figure it IS a fomoco in there!

I could have done what CarlC said, change the valve covers on the Ford I had in it and told everyone it was a chevy LS302 with the side strips..lol..would have made it a hellova lot cheaper..
