LS1 Rear Brake Part Numbers

[Joe_Rocket]

I have a late model LS1 12 inch disk setup going on the rear of my 69 Camaro.

The little rubber boots that keep the dirt out of the parking brake lever/actuator are shredded. I went to GM and the parts guy tells me I gotta buy the whole caliper braket assembly for like $150 to get the boots. Rediculous! Can that be right?

Does anyone have a part number for those boots, a diagram, suggestions or?

I thought someone made up a list of all the parts for the swap somewhere on the net.

Thanks.

[Poltergeist]

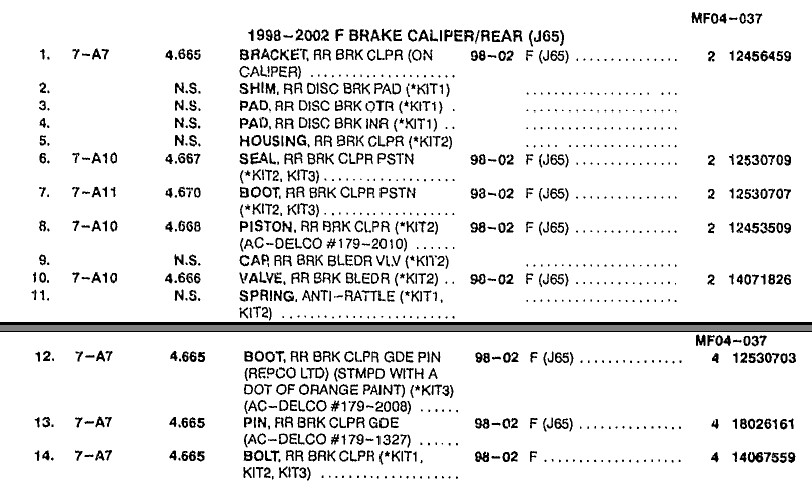

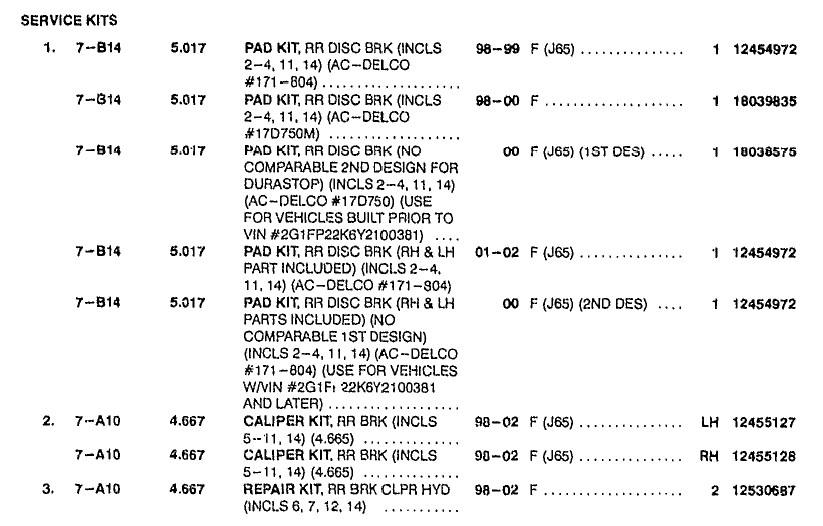

Rear picture rear parts list and just in case rear service kits

[Joe_Rocket]

Thanks, much!

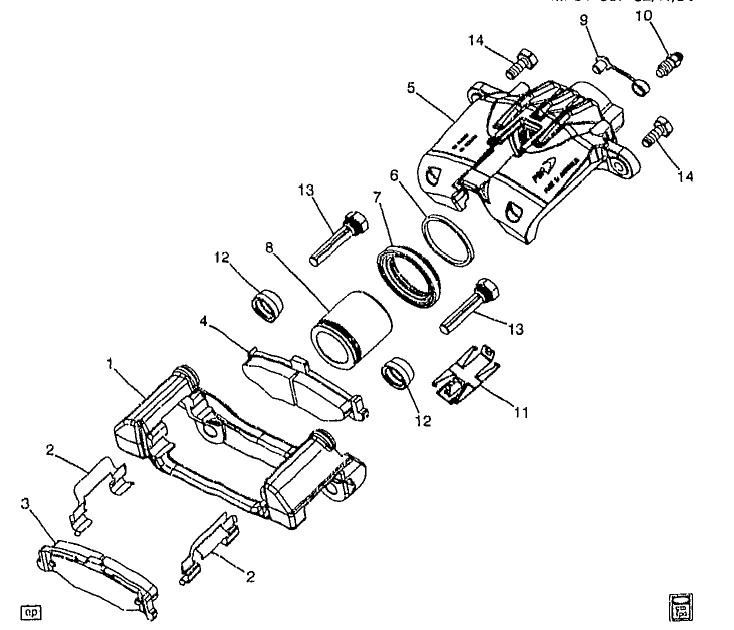

I just need to find a diagram of the backing plate/caliper bracket with related parts. I was trying to find something on gmpartsdirect.com, but no images of the part numbers.

[Poltergeist]

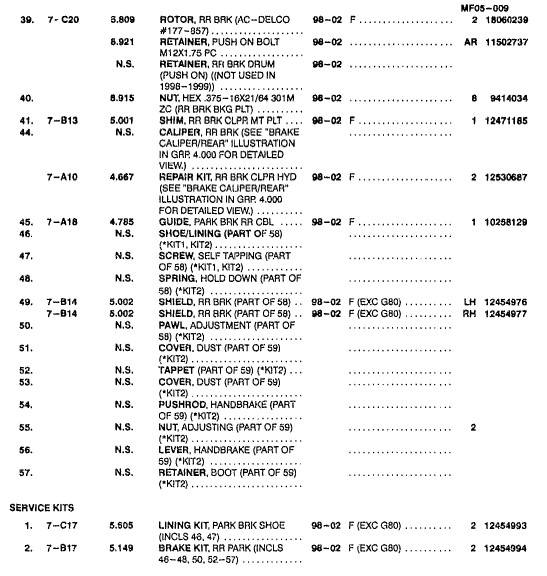

Rear diff picture Rear diff parts

[Joe_Rocket]

Thanks, again! That does the trick. Just where do you find this stuff?

[Poltergeist]

A while back I picked up a .pdf file that has all of the 4th gen parts. It's basically what the dealer uses. I captured the sections you asked for and posted them. The file is about 125 megs in size.
