Power steering line pictures

[tumper93]

Just wondering if a few of you could post some pictures of your plumbed power steering setups, preferable with hydraboost. From the posts I have decided against the braided line and am going to use either Earl's or Aeroquips HP hose, not sure which yet it all depends on who has the best price for everything. Please participate!!

[jimmer]

Here are 2 pics of a hydroboost on my dads 65 ElCamino.

They prob don't show you a ton...I know that he is running one of those "type 2" ps pumps...

He had an 11" booster with the KORE C5 brakes in front and a set of mustang SVO discs in rear. He said it stopped "OK" then...but now with the Hydratech hydroboost it flat out STOPS! He says that you better have your seatbelt on w/ shoulder strap!

Jim

[Yelcamino]

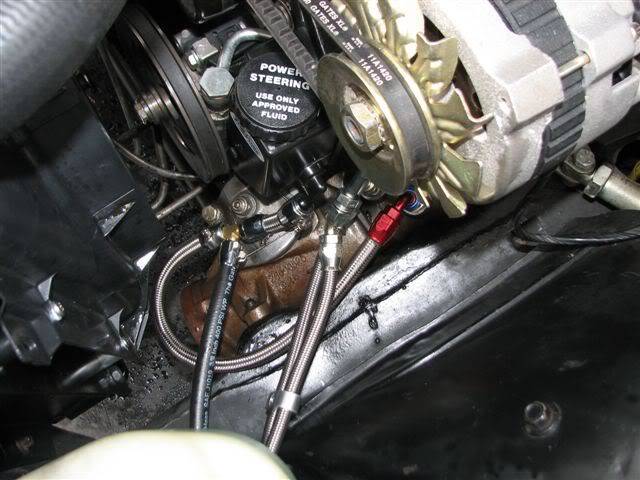

Here are a few pics of my set up...

FYI, the lines going through the core support are the feed & return lines for the p/s fluid cooler.
