      The Offical Demonic Obsidian build!

      Ok So i have started an Offical Thread dedicated to my chevelle. I didn't like my last thread so I am starting over. With some same pics and new pics that you have never seen before. Very good stuff here. Stay tuned as I progress on my project. Turning her in to a Mean Pro-Touring G-machine.

      Ok Now for some history. This car was bought in 1964 by my father. For reason the car sat at the coast with 40,000 miles on the clock. About 10 years ago it was given to me with many ideas in mind I spent most of my time figuring out what I wanted to do. Then I did it. The car was origionaly Tuxedo black with an light blue interior. munci 4 speed 3.08 posi 12 bolt and a 300 horse 327 4 barrel.


      The modifications

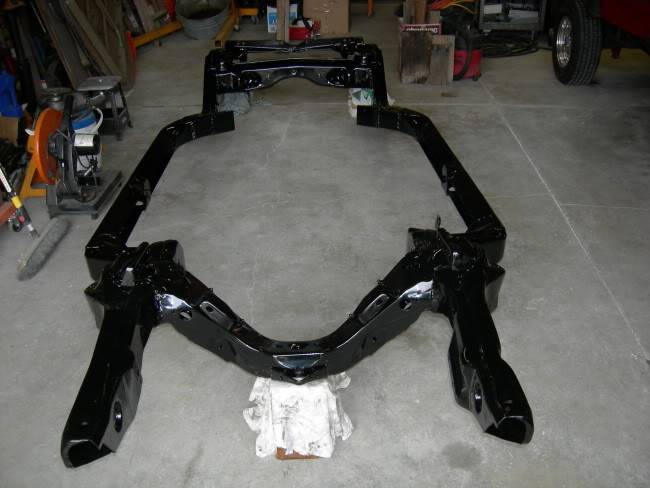

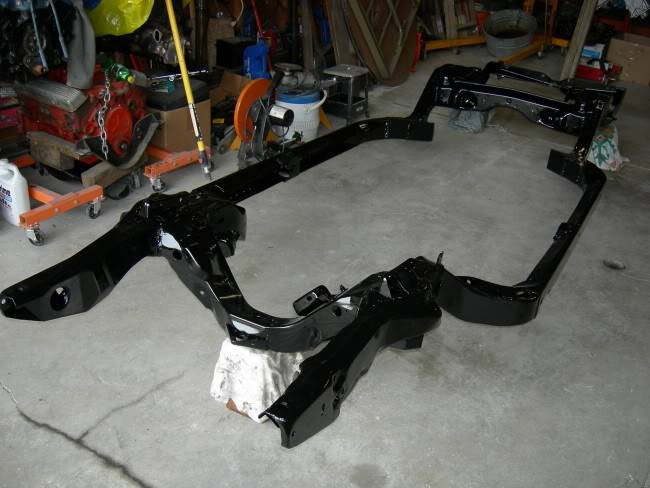

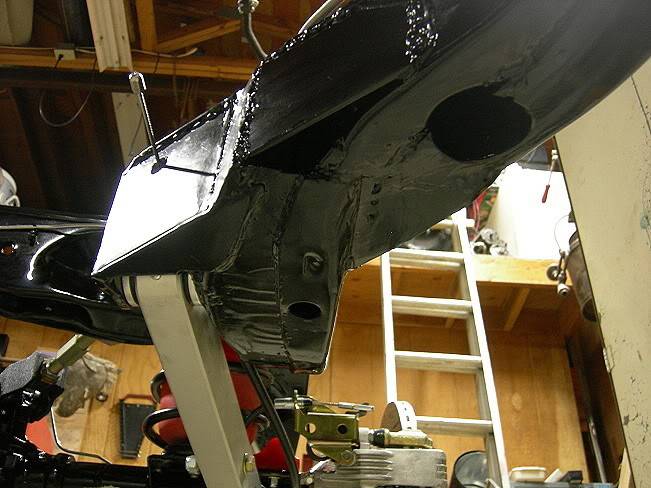

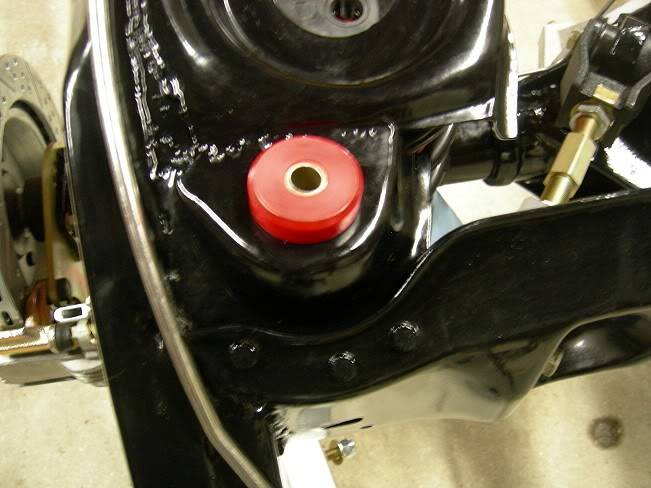

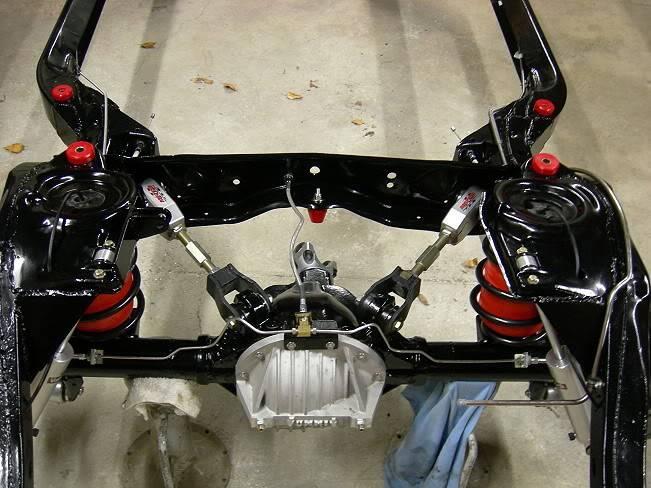

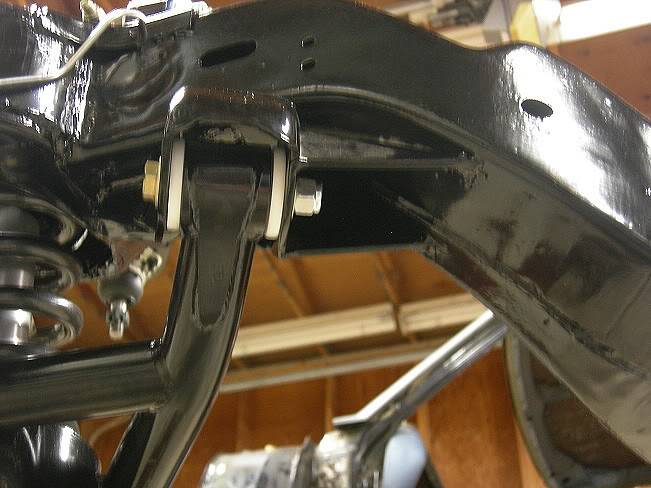

      Frame was boxed and strengthend
      Mini Tubbed 2" inboard per side
      Frame was then powdercoated

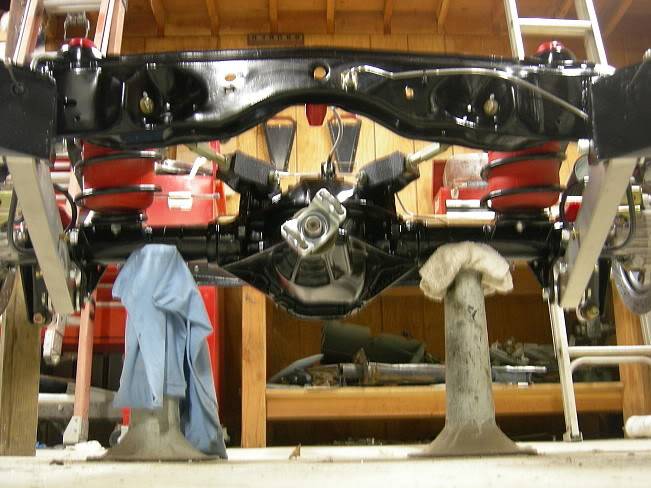

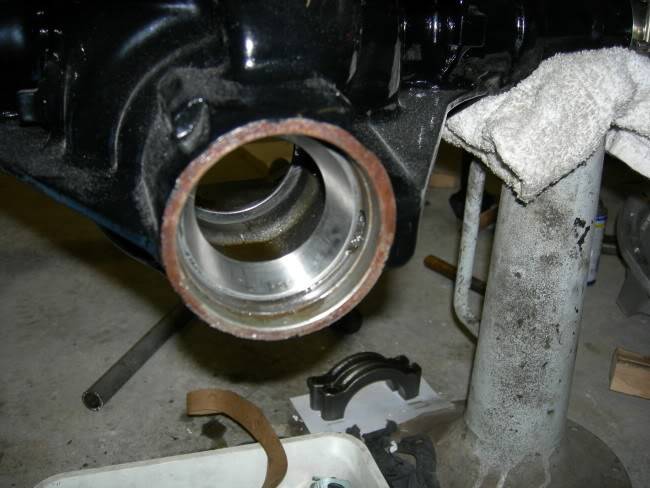

      Rear end was shortened 2" per side
      Then Powdercoated

      The parts List

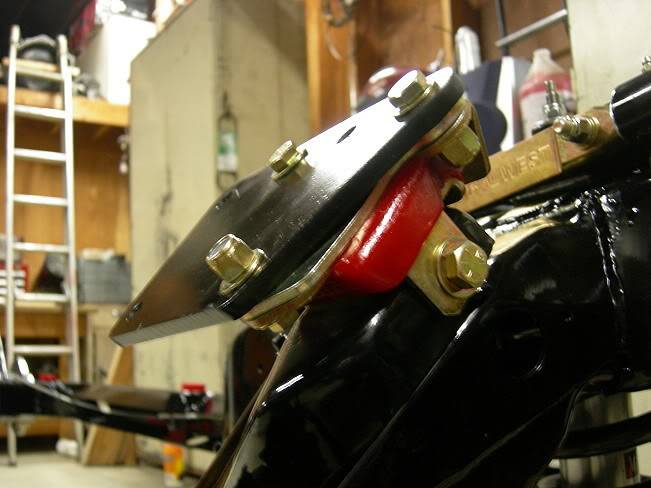

      Global West Upper A-arms (B-body Ball Joint)
      Global West Lower A-arms (B-body Ball Joint)

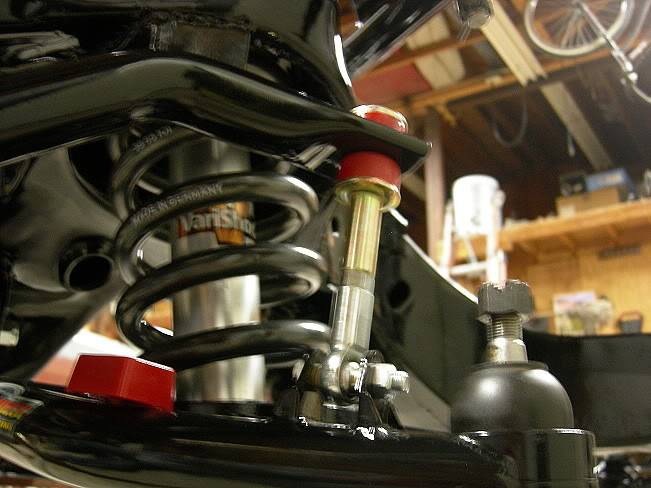

      Eibach Springs

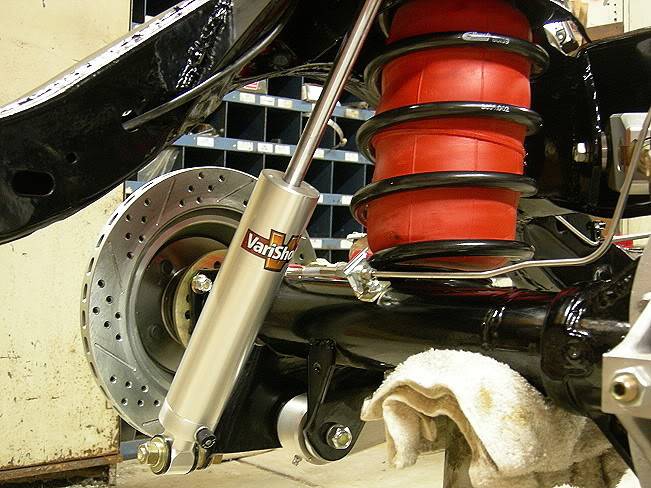

      Varishocks
      Hotckis 1 3/8 hollow Front sway bar
      AGR 13.1 Powersteering box
      All new steering
      Global West tie rod sleeves

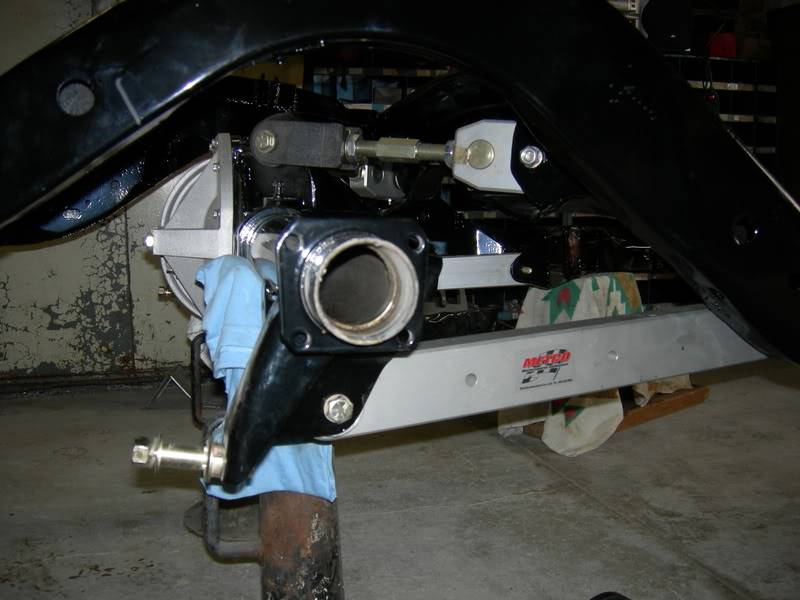

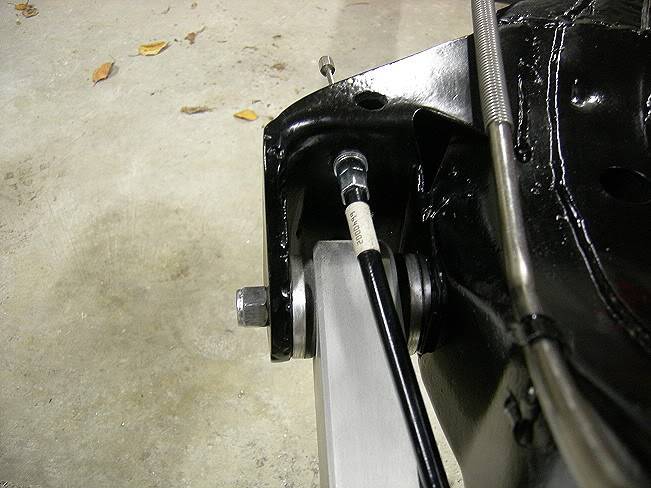

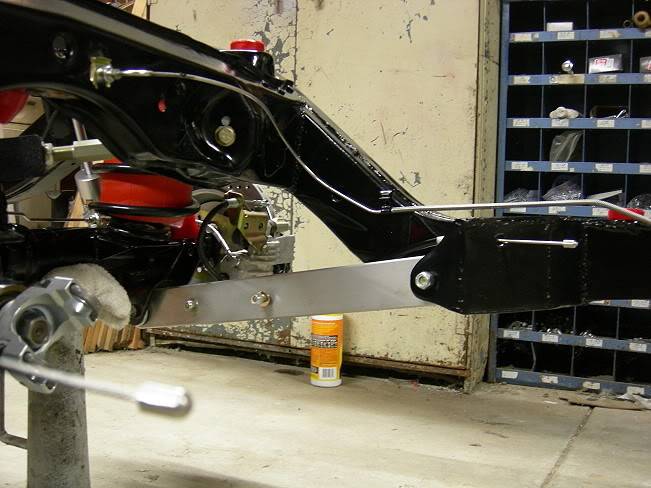

      Metco Aluminum Lower Trailing arms
      Metco Aluminum Adjutable Upper Trailing arms
      Moser Custom Alloy 30 spline axles

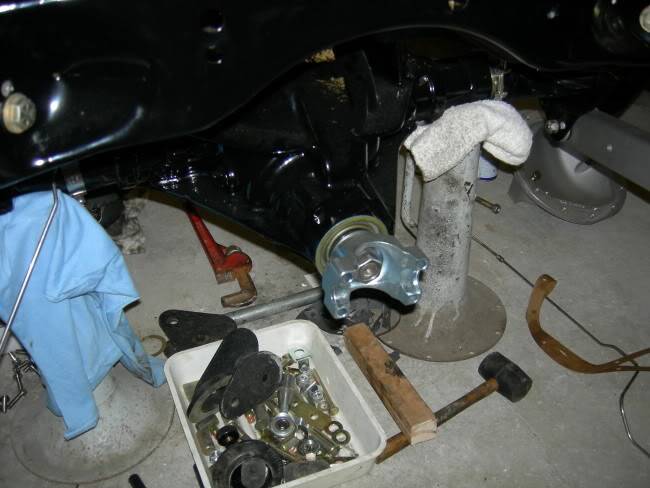

      Moser 1350 yoke

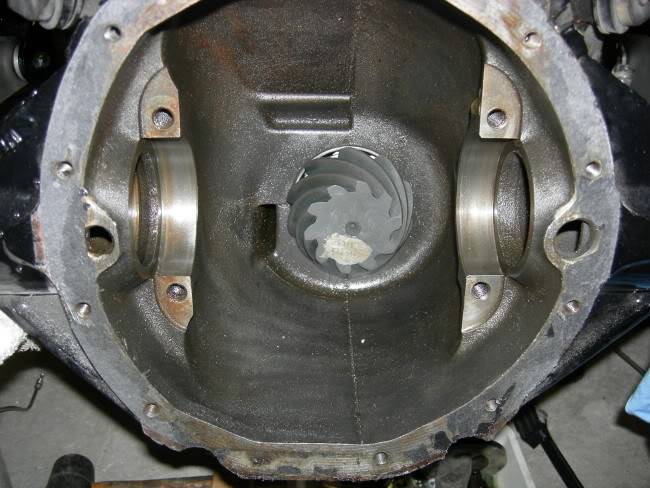

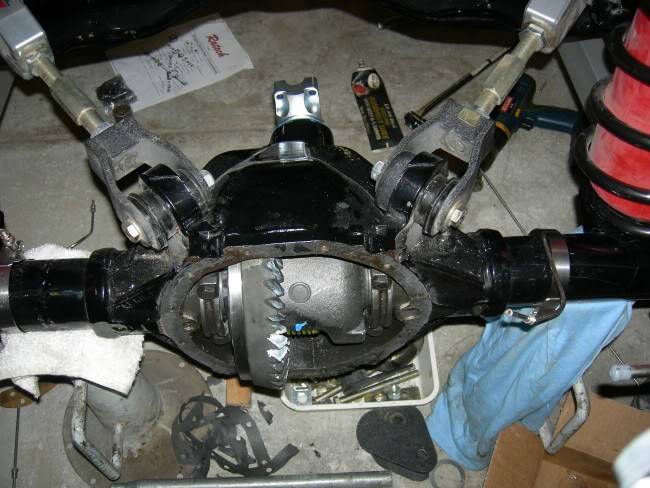

      Eaton 3 series Limited SLip
      Richmond 4.10's 3 series
      Ratech Insalation kit

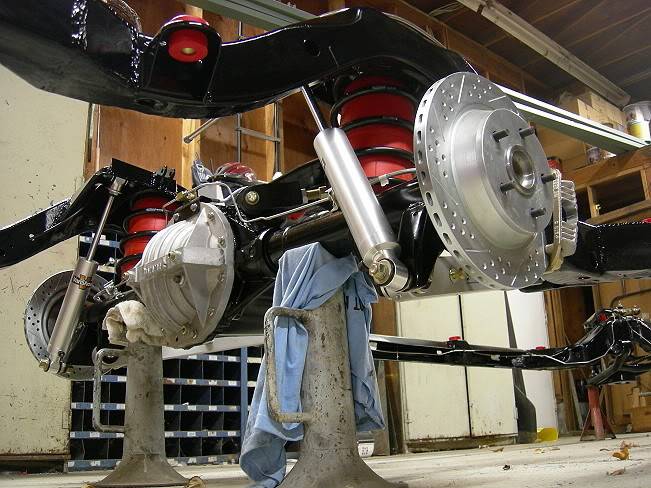

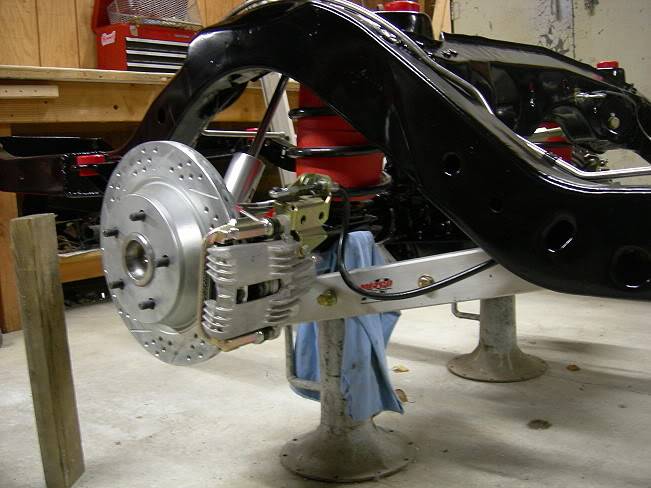

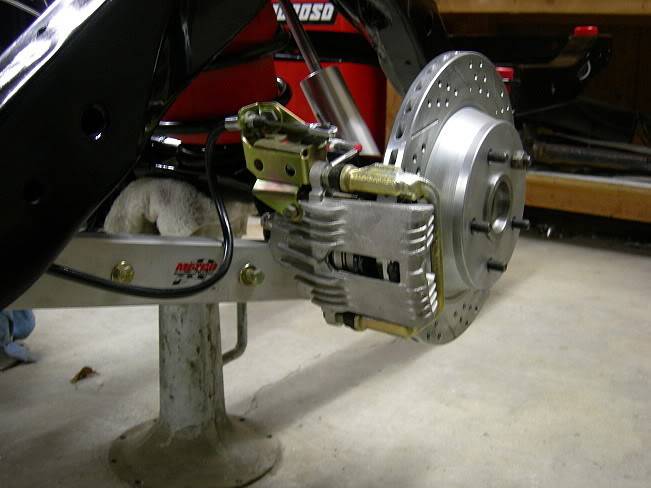

      Rear Baer 12" Brakes
      Stainless steel brake lines
      Stainless steel Fuel Line

      Future!!
      ATS,AFX Tall Spindle
      Baer Corvette C5 13" Brakes
      Tires 275's up front 315's rear
      Wheels undecided

      I might have forgotten somthing but enjoy the pics

      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    2. Sponsored Links
    3. 11-03-2007 #2
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States



      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    4. 11-03-2007 #3
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States




      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    5. 11-03-2007 #4
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States




      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    6. 11-03-2007 #5
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States




      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    7. 11-03-2007 #6
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States




      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    8. 11-03-2007 #7
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States




      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    9. 11-03-2007 #8
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States



      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    10. 11-03-2007 #9
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States
      Thats It for now Stay tuned for!

      Demonic Obsidian!
      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    11. 11-04-2007 #10
      LMDGUY's Avatar
      LMDGUY
      LMDGUY is offline Full Blown G-Machiner
      Join Date
      Jan 2007
      Location
      Phx, Az
      Posts
      924
      Nice!!
      1973 C10,400sbc, Baer Brakes, 4 link,TOYO tires
      2010 Charger RT
      __________________
      Joe
      Reply With Quote Reply With Quote
    12. 11-04-2007 #11
      carguy502's Avatar
      carguy502
      carguy502 is offline Registered User
      Join Date
      Mar 2006
      Location
      Los Angeles, CA
      Posts
      450
      Country Flag: United States
      That is so hot. In a few short pics, you have shown me what the frame under my car sould look like.
      Reply With Quote Reply With Quote
    13. 11-04-2007 #12
      got_hp?
      got_hp? is offline Registered User
      Join Date
      Apr 2007
      Location
      North Port, FL
      Posts
      174
      very nice!!
      current - 93 RX7 Twin Turbo Brilliant Black - awaiting LSx engine swap
      previous - 95 TransAm Red, 383ci Forged LT1/4, FMS 238/245 cam
      previous - 2000 BMW 740IL Black
      previous - 95 VR4 Twin Turbo Pearl White
      Reply With Quote Reply With Quote
    14. 11-04-2007 #13
      Mr.VENGEANCE's Avatar
      Mr.VENGEANCE
      Mr.VENGEANCE is offline Registered User
      Join Date
      Apr 2006
      Location
      Atlanta GA
      Posts
      7,477
      Frames lookin good..

      the STREETFIGHTERS c.c battalion
      Reply With Quote Reply With Quote
    15. 11-04-2007 #14
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States
      Thank you all I have work really hard getting her the way I wanted it. Hopfully she will be a complete rolling chassis by january
      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    16. 11-04-2007 #15
      muthstryker's Avatar
      muthstryker
      muthstryker is offline Registered User
      Join Date
      Jan 2006
      Location
      Snohomish, Washington
      Posts
      2,235
      Country Flag: United States
      randy it looks good, but i will catch up eventually ttyl bro.
      Matt
      Reply With Quote Reply With Quote
    17. 11-04-2007 #16
      WS6
      WS6 is offline Registered User
      Join Date
      Aug 2004
      Location
      Dunwoody, GA
      Posts
      4,984
      Country Flag: United States
      Looks great Randy. Where is the body? I presume the body shop getting everything done to it. Your plan sounds fantastic.
      Trey

      "The early bird may get the worm, but the second mouse gets the cheese."
      ~ Jon Hammond

      1979 WS6 Trans Am stock LT1/T56 drive train out of my Formula. BMW M-parallel rims. C5/C6 brakes

      build thread https://www.pro-touring.com/showthre...ghlight=begins
      Reply With Quote Reply With Quote
    18. 11-04-2007 #17
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States
      Quote Originally Posted by WS6
      Looks great Randy. Where is the body? I presume the body shop getting everything done to it. Your plan sounds fantastic.
      Well it sitting about 4 feet to the side of the frame. and I don't have the money to get it worked on. Bodywork is not my field. But I am running off to wyotech for school i figured I would hand it over and get some body work done along with a very sweet paint job
      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    19. 11-10-2007 #18
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States
      Quick Update

      I will be ordering my ATS AFX Tall spindles on the 23rd of this month I am really close on finishing up my frame. Then off to the body
      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
    20. 11-11-2007 #19
      nastynavy's Avatar
      nastynavy
      nastynavy is offline Registered User
      Join Date
      Oct 2006
      Location
      Lafayette, IN
      Posts
      79
      Wow! Looks incredible. Sounds like you started with a very rare car to begin with as well.
      Josh

      1968 Buick Sport Wagon, 6.0 LS motor & 6 speed coming soon along with paint!

      1987 Buick Regal Turbo, navy, Far from stock

      1970 Dodge Dart 340, all original, family owned since new!

      1974 Lincoln Continental, all original, family owned since new!
      Reply With Quote Reply With Quote
    21. 11-23-2007 #20
      Rantheman's Avatar
      Rantheman
      Rantheman is offline Registered User
      Join Date
      May 2007
      Location
      Eugene Oregon
      Posts
      293
      Country Flag: United States
      Quick update I ordered my ATS AFX tall spindles today so I am excited to get this car as a rolling chassis so thanks tyler for helping me out
      DEMONIC OBSIDIAN
      1965 Chevelle lt1 gen v /T56 project.
      Reply With Quote Reply With Quote
