1966 Chevelle - Project Bad Investment

[scott_fx]

I've been on here for a while now and have just gotten my car to where I'm happy...mechanically. I thought I'd share some pics of my ride.

Here are some specs on it:
LS376 Chevy Performance Crate Enging
Jasper rebuilt 4l80e
FTI 9.5 Billet Torque Converter
Quick Performance 9" Posi Rear End
SC&C Touring Plus Suspension
Bonspeed Huntington Wheels r: 18" x 10" / f: 18 x 8"
13.5 Willwoods: f: 6 piston, r: 4 piston
CPP Hydoboost
TMI sport r seat covers on factory buckets
Vintage Air Conditioning
2017 Camaro center console
Functional electronic parking brake
Custom Vinatage air controller
Custom Radio
Speedhut Gauges (soon to be thrown in the trash)
Toyota Asphalt Gray
Shaved drip rails, Malibu emblems and antenna delete

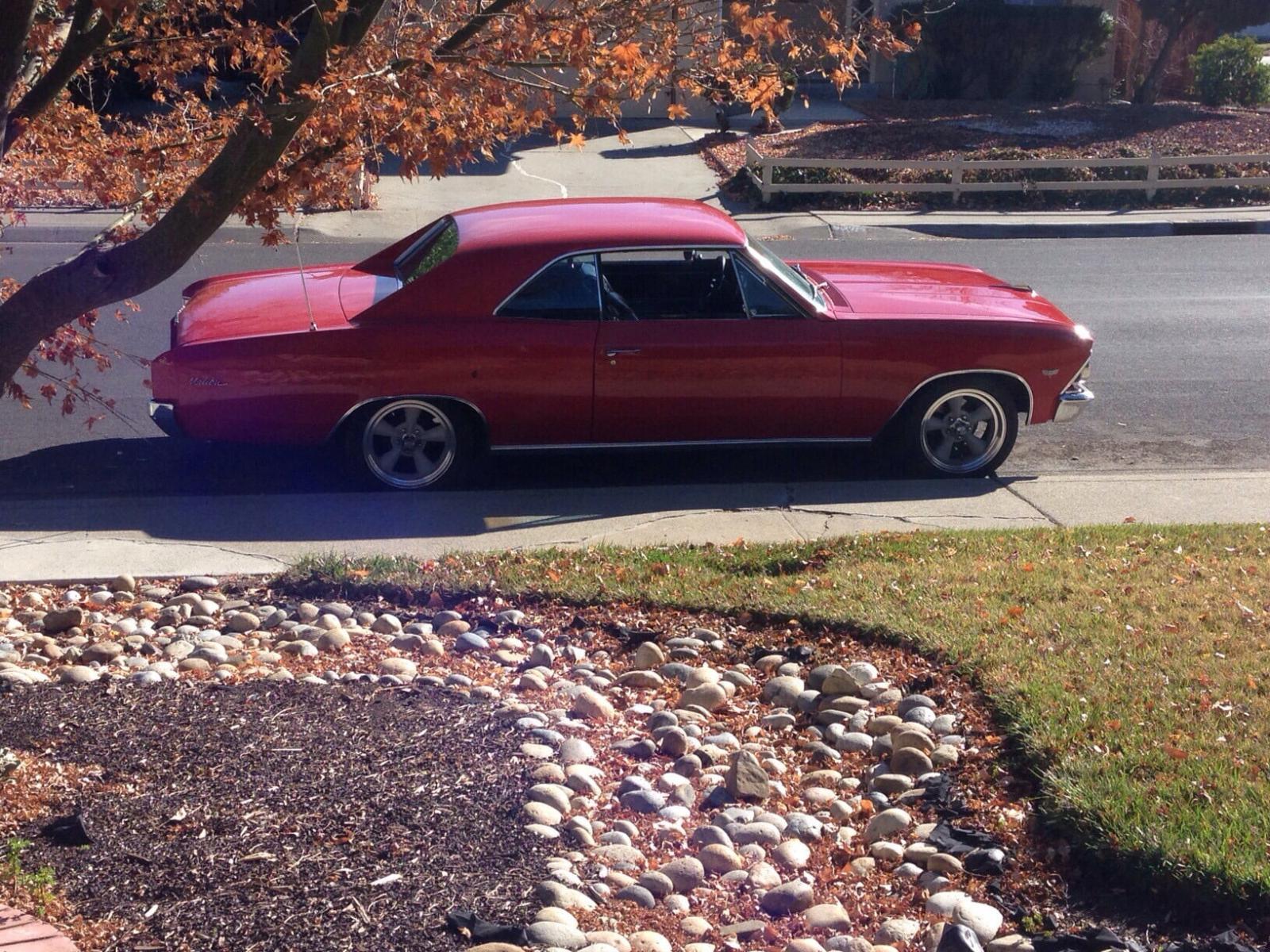

Here is the car the day I purchased it:

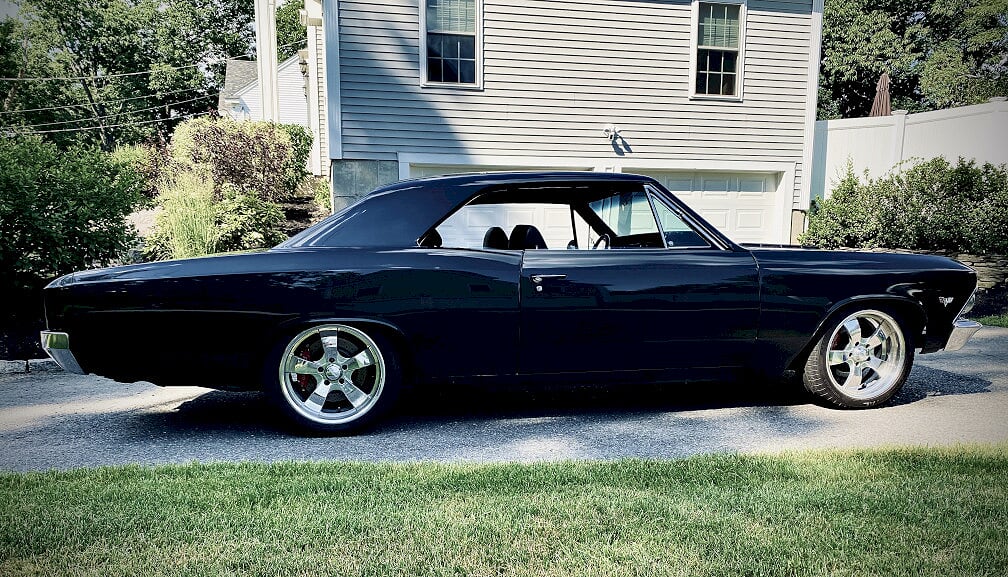

Here is the car as it sits now:

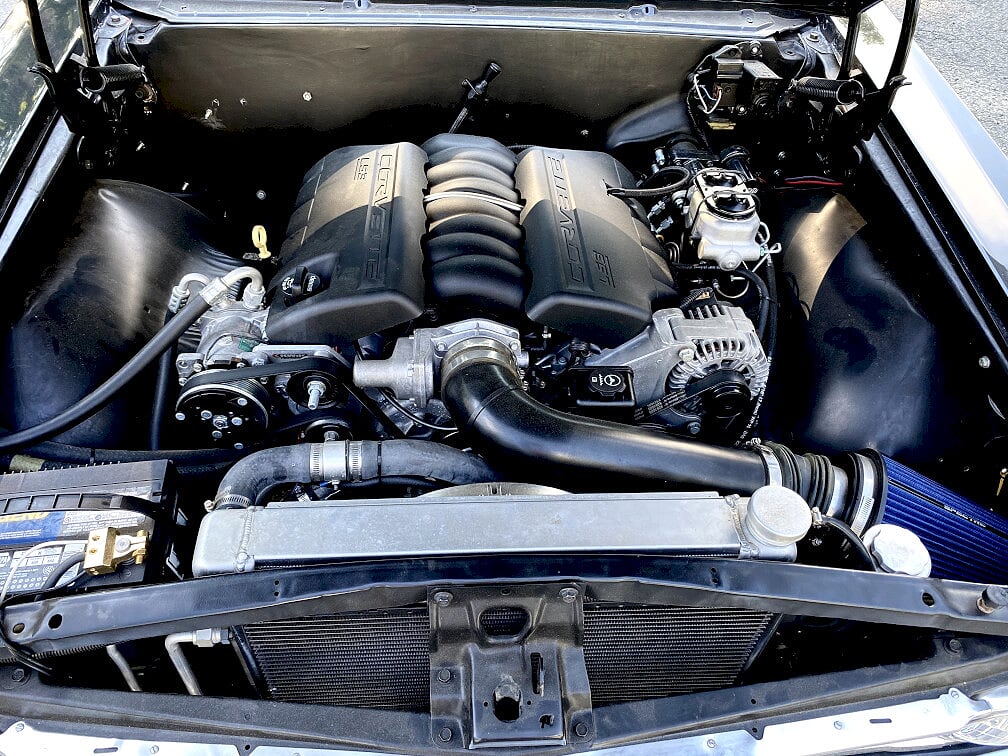

Here is the LS376

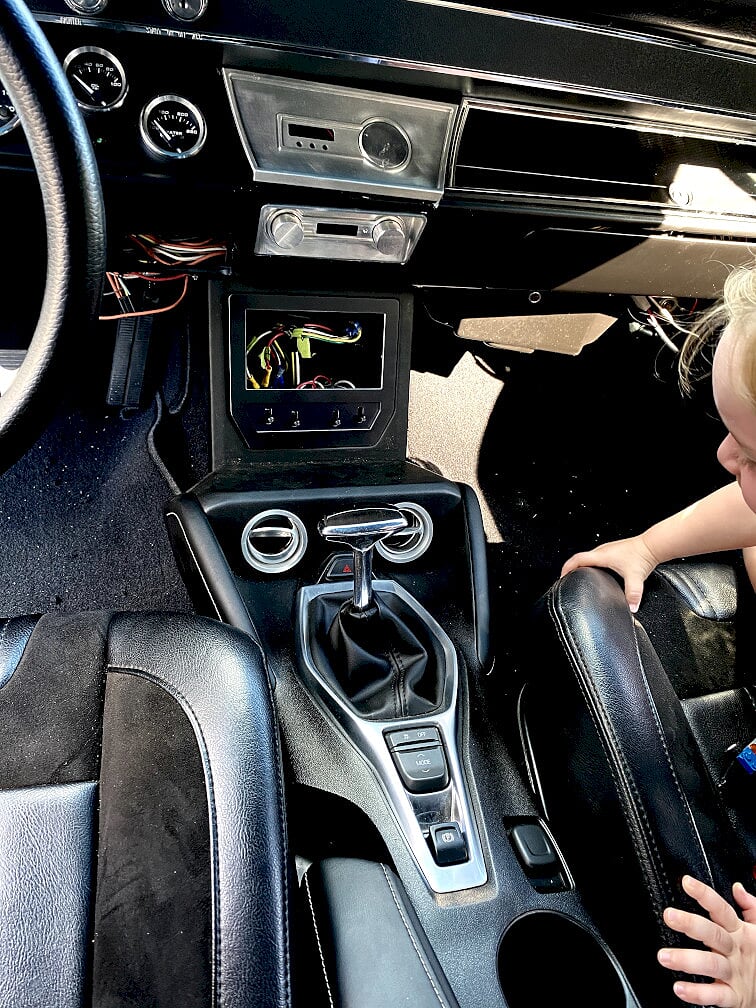

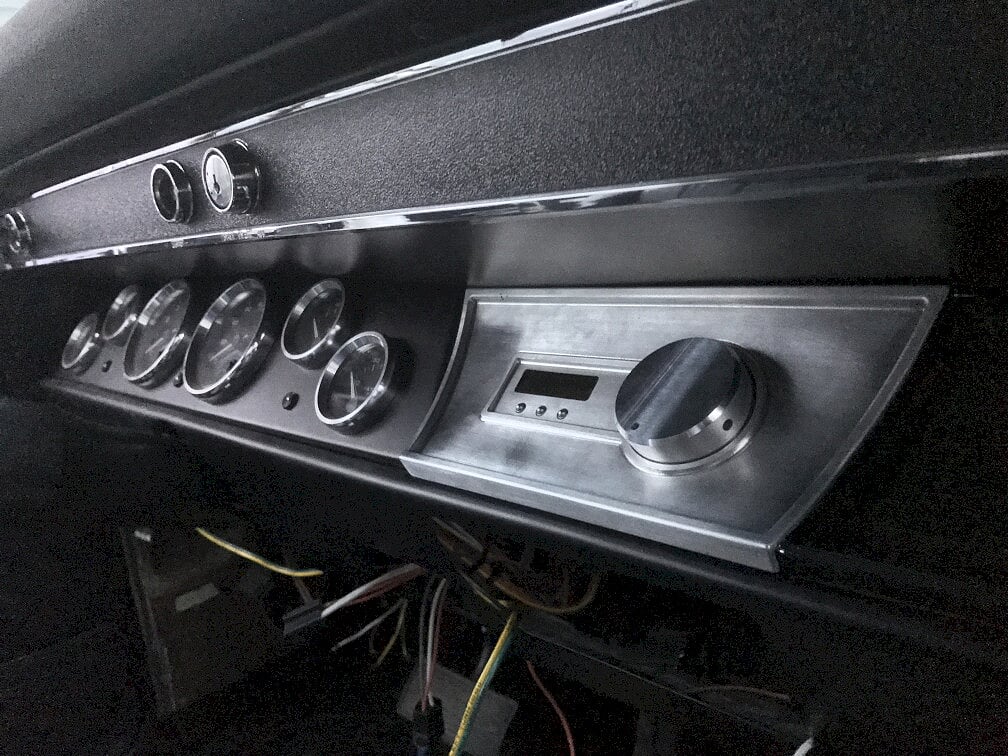

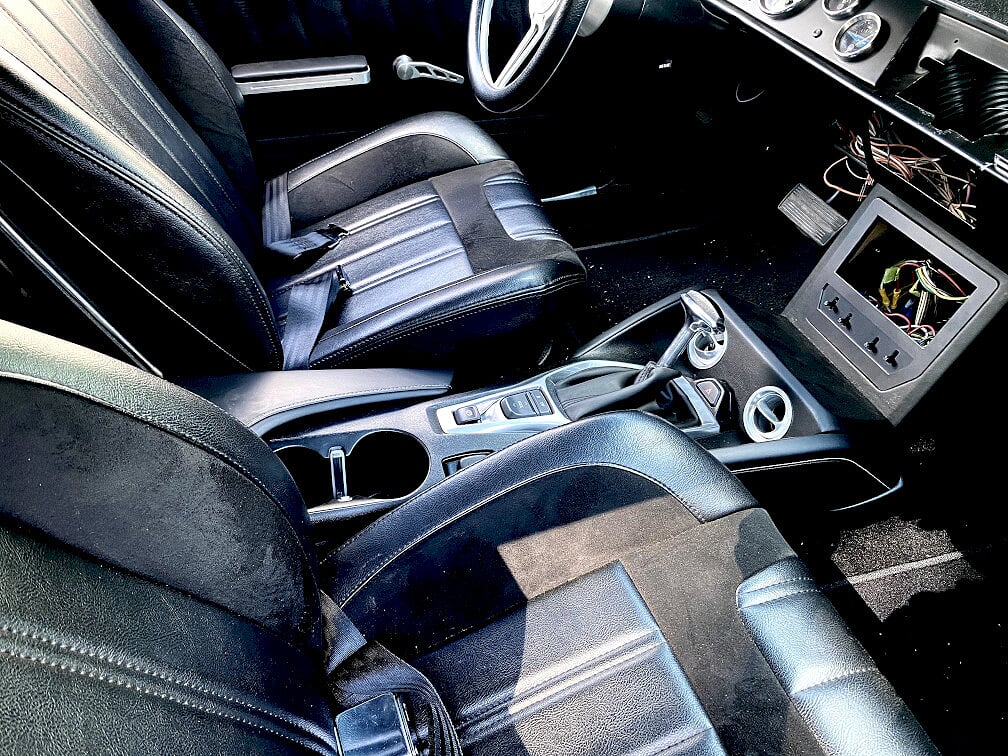

The 2017 Camaro console (still working on the interior) and custom electronics:


(ignore the misaligned radio, I just placed it in there without securing it)

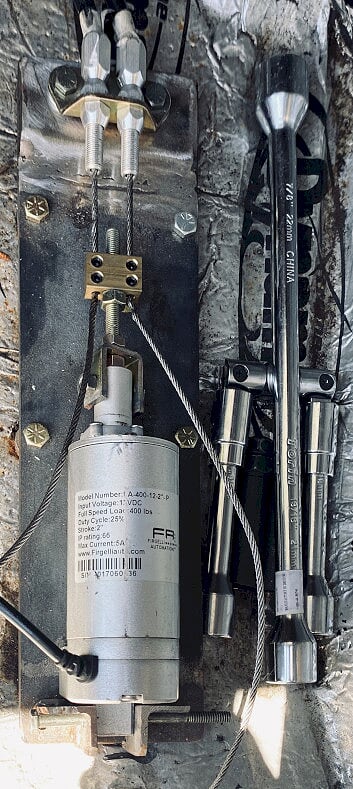

Here is the actuated parking brake bracket:



I have more pictures if anyone is interested, but decided to keep the post pretty short to spare you from the monotony.
