    1. 12-16-2019 #1
      HotWheelz's Avatar
      HotWheelz
      HotWheelz is offline Registered User
      Join Date
      Sep 2017
      Posts
      120

      Forming the outboard passenger and driver side panels

      How the rear trunk panels were fabbed up.

      Pic of a fresh piece of 16 gauge sheetmetal. Next is the dies i made for rolling the flange. Next is the flange that was rolled on the sheet.

      Attached Images Attached Images
      Reply With Quote Reply With Quote
    2. Sponsored Links
    3. 12-16-2019 #2
      HotWheelz's Avatar
      HotWheelz
      HotWheelz is offline Registered User
      Join Date
      Sep 2017
      Posts
      120

      Fabbing the trunk hinge support bracket

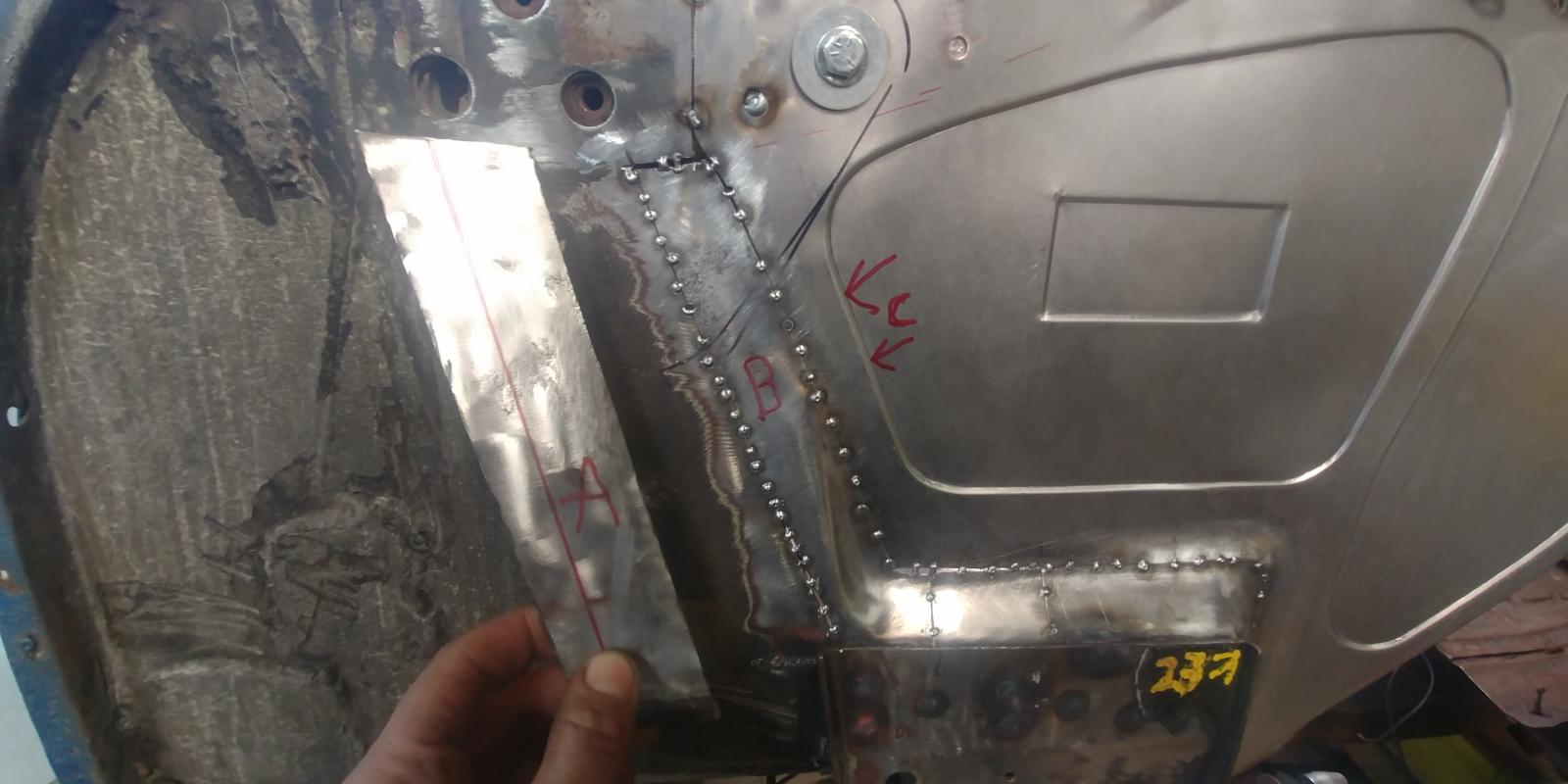

      Sequence on making the trunk hinge support bracket.
      First is the cutout.
      2rolling the flange
      3 stretching the flange to make it fit contour of inner wheel well
      4 bending the 90 in the brake
      5 what it looks like after the flange and the bend are done

      6 cut hole for radius die

      7 after using the radius die

      8 fit in place

      9 finished piece





      Pic of the finished piece and fitted in place
      Attached Images Attached Images
      Reply With Quote Reply With Quote
    4. 01-05-2020 #3
      Motown 454's Avatar
      Motown 454
      Motown 454 is offline Registered User
      Join Date
      Nov 2006
      Location
      Ma.
      Posts
      5,560
      Country Flag: United States
      Nice looking tank, great job!!
      Wayne
      Car FINALLY home !!!!!! lol
      Project FNQUIK https://www.pro-touring.com/showthre...ghlight=FNQUIK
      Reply With Quote Reply With Quote
    5. 01-09-2020 #4
      HotWheelz's Avatar
      HotWheelz
      HotWheelz is offline Registered User
      Join Date
      Sep 2017
      Posts
      120

      Completing The Trunk Panels

      Completed trunk panel in place
      Attached Images Attached Images
      Reply With Quote Reply With Quote
    6. 03-03-2020 #5
      ryeguy2006a's Avatar
      ryeguy2006a
      ryeguy2006a is offline Registered User
      Join Date
      Sep 2009
      Posts
      2,998
      Country Flag: United States
      Wow, the metal work is amazing!! Nice work guys.


      1955 Nomad project LC9, 4L80e, C5 brakes, Vision wheels
      1968 Camaro 6.2 w/ LSA, TR6060-Magnum hybrid and etc SOLD
      1976 T/A LS1 6 Speed, and etc. SOLD
      Follow me on Instagram: ryeguy2006a
      Reply With Quote Reply With Quote
    7. 03-03-2020 #6
      Bugzilla's Avatar
      Bugzilla
      Bugzilla is offline Registered User
      Join Date
      Feb 2016
      Location
      SoCal
      Posts
      475
      Hey Hotwheelz. Can I ask you not to post up any more updates? My level of jealousy is through the roof right now and I dont think I can take anymore pictures of perfection in every way possible. The amount of work that went into the sheet metal is truly driving me crazy. Thanks for understanding!
      1970 VW Bug - Just your average mid engine Bug
      Track toy - 06 Evo - E85 and lots of boost
      Newest track toy - 2021 Supra
      Reply With Quote Reply With Quote
    8. 01-05-2021 #7
      HotWheelz's Avatar
      HotWheelz
      HotWheelz is offline Registered User
      Join Date
      Sep 2017
      Posts
      120

      Howdy Folks! we're Back with updates!

      The Tranny Tunnel:


      The fabbed up tunnelName: Tweaked and Fitted Funnel to the Tunnel.jpg Views: 1402 Size: 222.0 KBName: Fitting the Funnel to the Tunnel.jpg Views: 1424 Size: 224.5 KBName: Fitting the tunnel.jpg Views: 1369 Size: 173.8 KBName: The Fitted tunnel.jpg Views: 1437 Size: 224.1 KBName: Tranny Tunnel Bell.jpg Views: 1407 Size: 242.5 KBName: Pre Tranny Tunnel.jpg Views: 1369 Size: 261.6 KB

      The fitted, One piece from rail to rail tunnel funnel:
      Reply With Quote Reply With Quote
    9. 01-05-2021 #8
      HotWheelz's Avatar
      HotWheelz
      HotWheelz is offline Registered User
      Join Date
      Sep 2017
      Posts
      120

      Cabin Floor Work

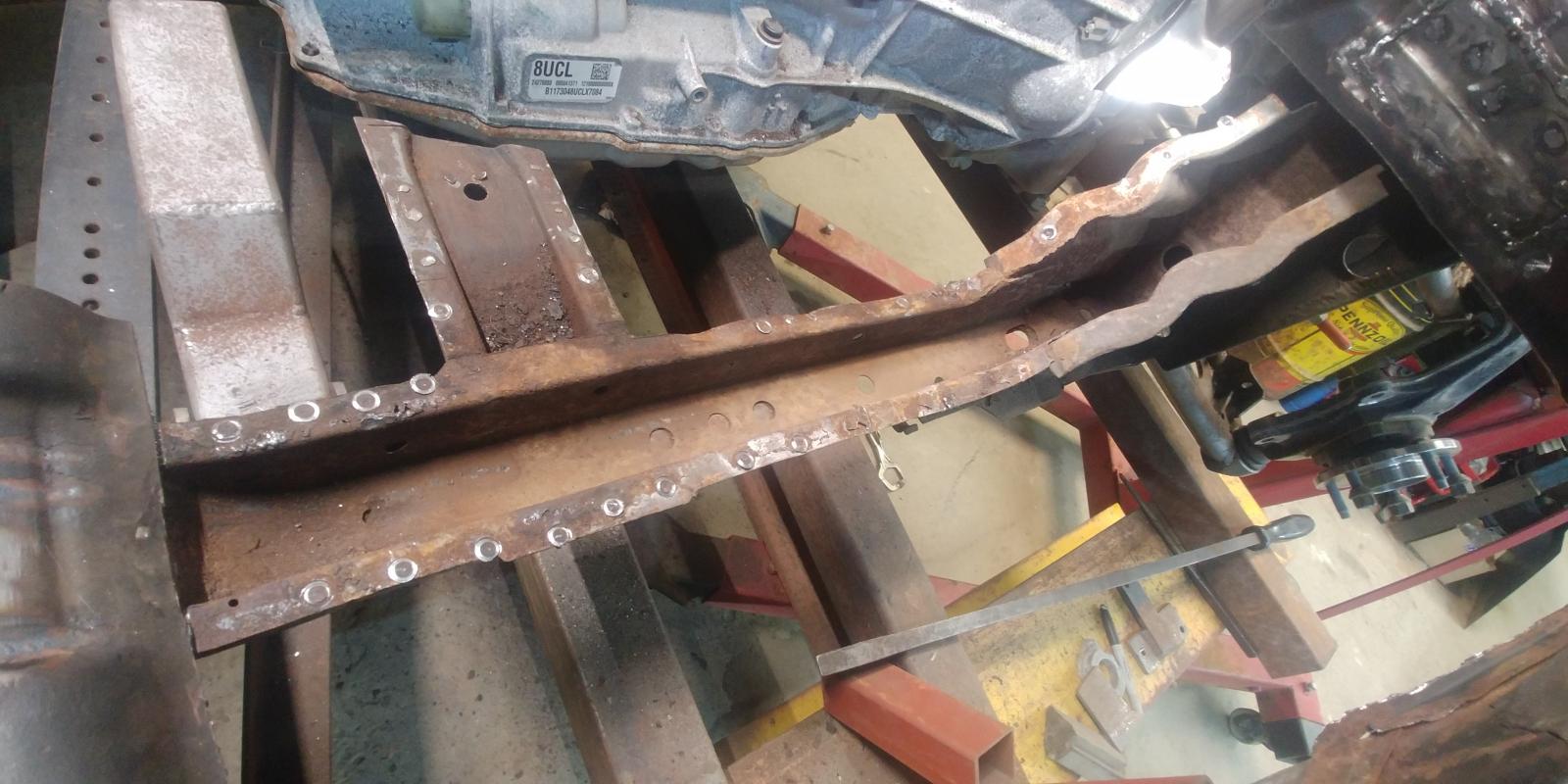

      Time for the cabin floor! first is removal of the floor between the rails. we will be fabbing and locating the exhaust, brake line ans fuel line hangers, the drive shaft and loops and locating the real-estate these and other items will occupy.
      Attached Images Attached Images
      Reply With Quote Reply With Quote
    10. 01-05-2021 #9
      HotWheelz's Avatar
      HotWheelz
      HotWheelz is offline Registered User
      Join Date
      Sep 2017
      Posts
      120

      The Rear Axle

      The rear axle and Brake setup:
      Attached Images Attached Images
      Reply With Quote Reply With Quote
    11. 01-06-2021 #10
      64G-lark's Avatar
      64G-lark
      64G-lark is offline Registered User
      Join Date
      Aug 2004
      Location
      Mapleton, IL.
      Posts
      252
      Country Flag: United States
      Nice Build. The fabrication skills are over the top.
      Mark
      Current project 1963 Chevy II
      https://lateral-g.net/forums/showthread.php?t=58772

      1964 Buick Skylark
      Build thread https://www.pro-touring.com/threads/...t-budget-build
      Reply With Quote Reply With Quote
    12. 01-08-2021 #11
      pannetron
      pannetron is offline Registered User
      Join Date
      Jul 2011
      Location
      Colorado high country
      Posts
      28
      Country Flag: United States
      Yes, really nice fabrication skills and a beautiful build! Thanks for the continuing updates! And I'm also envious!
      Reply With Quote Reply With Quote
    13. 01-08-2021 #12
      HotWheelz's Avatar
      HotWheelz
      HotWheelz is offline Registered User
      Join Date
      Sep 2017
      Posts
      120

      The Rear Axle At Full Suspension Compression

      Name: Axle at Full suspension compression.jpg Views: 1140 Size: 190.3 KB
      Reply With Quote Reply With Quote
    14. 01-12-2021 #13
      HotWheelz's Avatar
      HotWheelz
      HotWheelz is offline Registered User
      Join Date
      Sep 2017
      Posts
      120

      Fabbibg the rear axle hump panel and driveshaft tunnel

      Name: Rear panel ove rear axle.jpg Views: 1036 Size: 231.4 KB
      Crossmember above axle. Made from 16 gauge. Had to make a bulkhead to pass the fuel lines thru from fuel tank

      Name: Crossmember over rear axle.jpg Views: 985 Size: 295.2 KBName: Drive Shaft Tunnel.jpg Views: 1031 Size: 257.8 KBName: Port side View of Drive Shaft Tunnel.jpg Views: 998 Size: 260.3 KB
      Reply With Quote Reply With Quote
    15. 01-18-2021 #14
      HotWheelz's Avatar
      HotWheelz
      HotWheelz is offline Registered User
      Join Date
      Sep 2017
      Posts
      120

      Cabin Gets A Floor!

      A rear crossmember was fabricated to go up and over the drive shaft and fit under the tunnel.
      The floor pans are fitted and will be installed after we install the exhaust system and hangers, drive shaft loops, seat support cross members, lines and pipes and whatever needs mto be under there.
      Attached Images Attached Images
      Reply With Quote Reply With Quote
    16. 01-23-2021 #15
      TANKMASTERJ's Avatar
      TANKMASTERJ
      TANKMASTERJ is offline Registered User
      Join Date
      Sep 2017
      Posts
      839
      Country Flag: United States
      Very nice fabrication work
      TANKMASTERJ
      https://www.pro-touring.com/threads/...touring-Camaro
      Jasons Toys
      67 Camaro White Lightning LMR LS7 powered, Speed tech Front and Rear.
      2023 Rapid Blue ZL1 the Blue Devil
      2000 HD Softail
      1989 CBR Hurricane anniversary edition
      Reply With Quote Reply With Quote
