      Help wiring 220v 1phase reversing switch

      I have a 220v reversible motor and need help wiring it to a fwd/reverse switch. The motor can be wired to run in reverse.

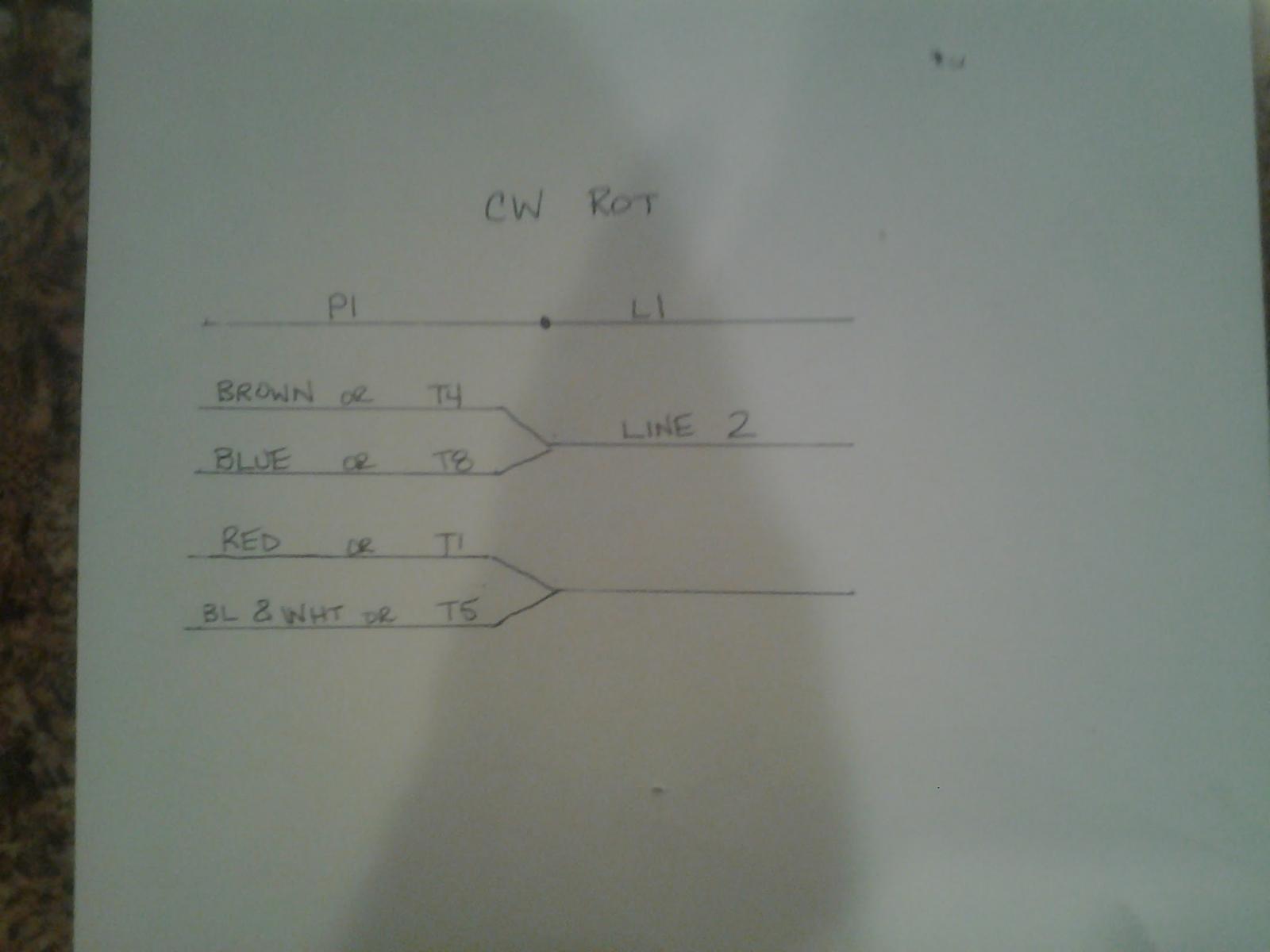

      Name: motor 1.jpg Views: 263 Size: 67.9 KBName: motor 2.jpg Views: 302 Size: 73.7 KB

      I find schematics for motors with 7 wires, but not like mine with 5.

      Can anybody help?

      Reply With Quote Reply With Quote
    2. Sponsored Links
    3. 06-02-2017 #2
      Yukon Cornelius
      Yukon Cornelius is offline Registered User
      Join Date
      Mar 2012
      Posts
      87
      Country Flag: Canada

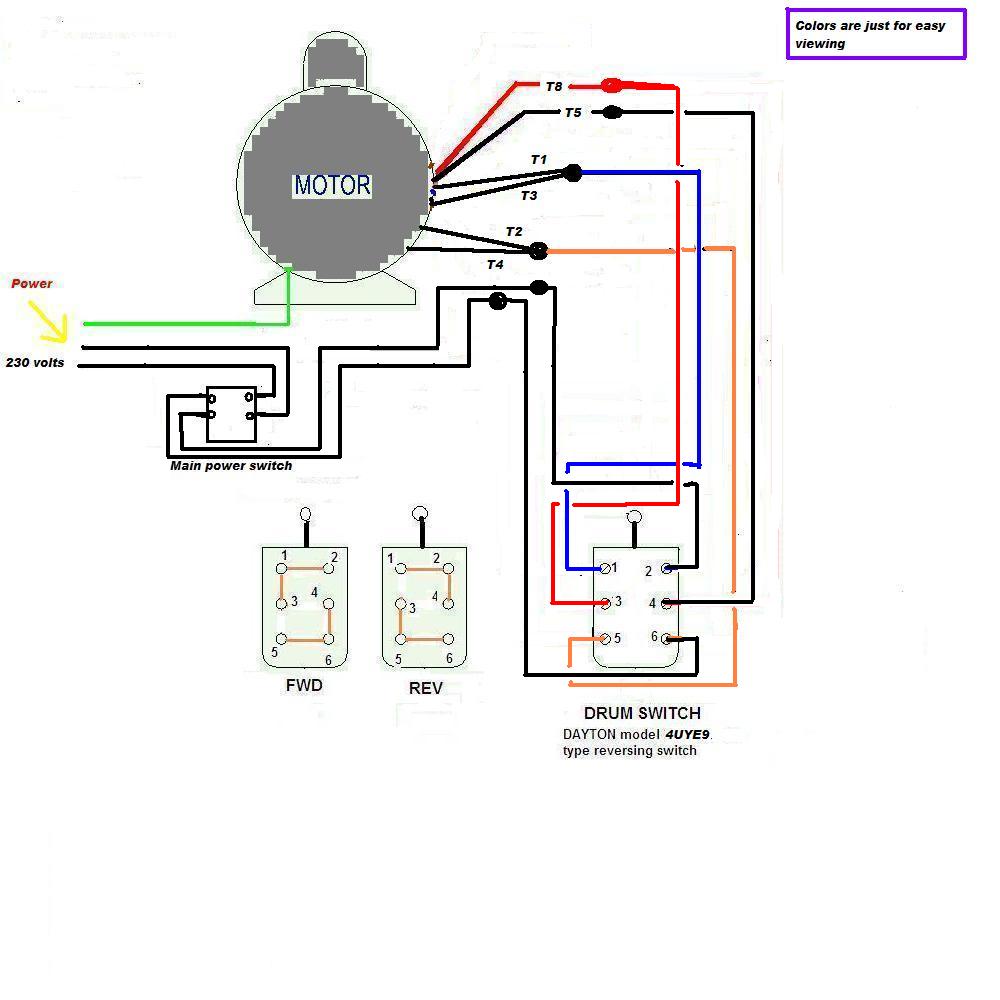

      Will this work, even though I'm missing T2, and T3?
      Name: 2014-08-09_150748_horse_walker_motor_and_4uye9_drum.jpg Views: 551 Size: 73.9 KB
