Thread: fan wiring question
-
05-06-2015 #1
Registered User
- Join Date
- Mar 2013
- Location
- San Jose,CA
- Posts
- 250
fan wiring question
Hey everyone I'm installing my ls1 style fans and had a member make me a quality style wiring setup..
All I need to wire up is a ground(which I'll mount near the fender), ign source and battery source..
I would like to wire these 2 on the fuse block however I have the msd box and radio connected to the BATT on the fuse and radio to the IGN source..
Should I add a inline fuse between the ign and batt wires on the fan harness?
Or should I just find somewhere else to hook them up to?

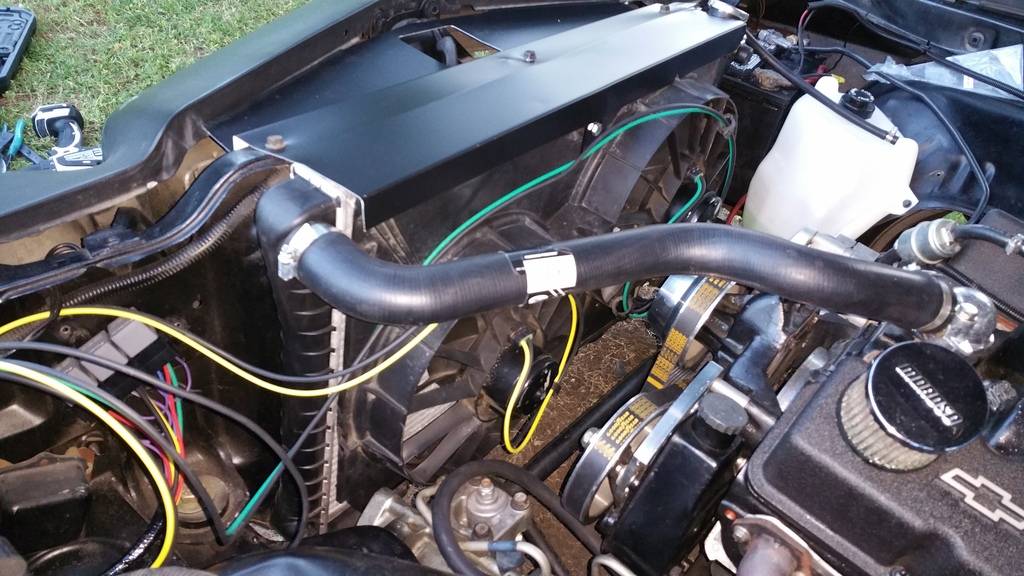

Also here's a pic of the wires to the fans. I'm going to use wire loom around them and also mount the relays where the I believe the voltage regulator is and move that over a bit
-
05-06-2015 #2
-Moderator/Sponsor-
- Join Date
- Jun 2001
- Location
- Orlando, FL
- Posts
- 10,604
I'd use inline fuses and go directly from the battery, given it's proximity. You need 12g (30A) wires to supply the relay... you might not find that very easily.
John Parsons
UnRivaled Rides -- Modern upgrades for your ride.
UnRivaled Rides recent project -- LS9-powered 69 Camaro
05-06-2015 #3
Registered User
- Join Date
- Mar 2013
- Location
- San Jose,CA
- Posts
- 250
thank you for the response.. so battery source to the battery with a inline fuse.
how about the ign. source?
05-06-2015 #4
Registered User
- Join Date
- Feb 2009
- Location
- muggy midwest
- Posts
- 533
Wait a sec....isn't there a sealed 40A inline fuse already coming from the relay bank?
"...if at first you don't succeed, try again.
If you still don't succeed, then quit-no sense being a damn fool about it..."
-W.C. Fields
HARNESSWORX
(formerly gmachinz)
05-06-2015 #5
Registered User
- Join Date
- Mar 2013
- Location
- San Jose,CA
- Posts
- 250
it has the 3 relays(left of picture) and im sure their is a inline fuse wrapped in the built harness..
I just didn't know if its ok to add the batt and ign sources from the harness to my already crowded fuse block without adding a inline fuse between them
05-06-2015 #6
Registered User
- Join Date
- Feb 2009
- Location
- muggy midwest
- Posts
- 533
Oh OK. There should be (unless specified to NOT include via custom routing) a sealed 630-series fuse holder with a 40A rated fuse in it.
"...if at first you don't succeed, try again.
If you still don't succeed, then quit-no sense being a damn fool about it..."
-W.C. Fields
HARNESSWORX
(formerly gmachinz)
05-06-2015 #7
Registered User
- Join Date
- Mar 2013
- Location
- San Jose,CA
- Posts
- 250
just read the description and that's exactly what is included in it..
05-06-2015 #8
Registered User
- Join Date
- Feb 2009
- Location
- muggy midwest
- Posts
- 533
OK....lol I just wanted to make sure. I believe you got that harness from me awhile ago. iirc its an LT1/LS1 dual fan assembly correct? The main supply lead is 12ga as are the fan leads too. The harness kit is wired in series @ the relays to provide low and high speed operation via (2) GM style temp switches. If you have any technical questions you can always PM me here on the board too.
"...if at first you don't succeed, try again.
If you still don't succeed, then quit-no sense being a damn fool about it..."
-W.C. Fields
HARNESSWORX
(formerly gmachinz)
05-06-2015 #9
Registered User
- Join Date
- Mar 2013
- Location
- San Jose,CA
- Posts
- 250
Pm sent thank you
