Dads k10 square will never be the same

[brawls43]

Ah, PB, I thought the lasered in logo's were RS. My bad. Looks like a nice suspension! In for front suspension pics! Did you go with a crate engine?

[2feathers]

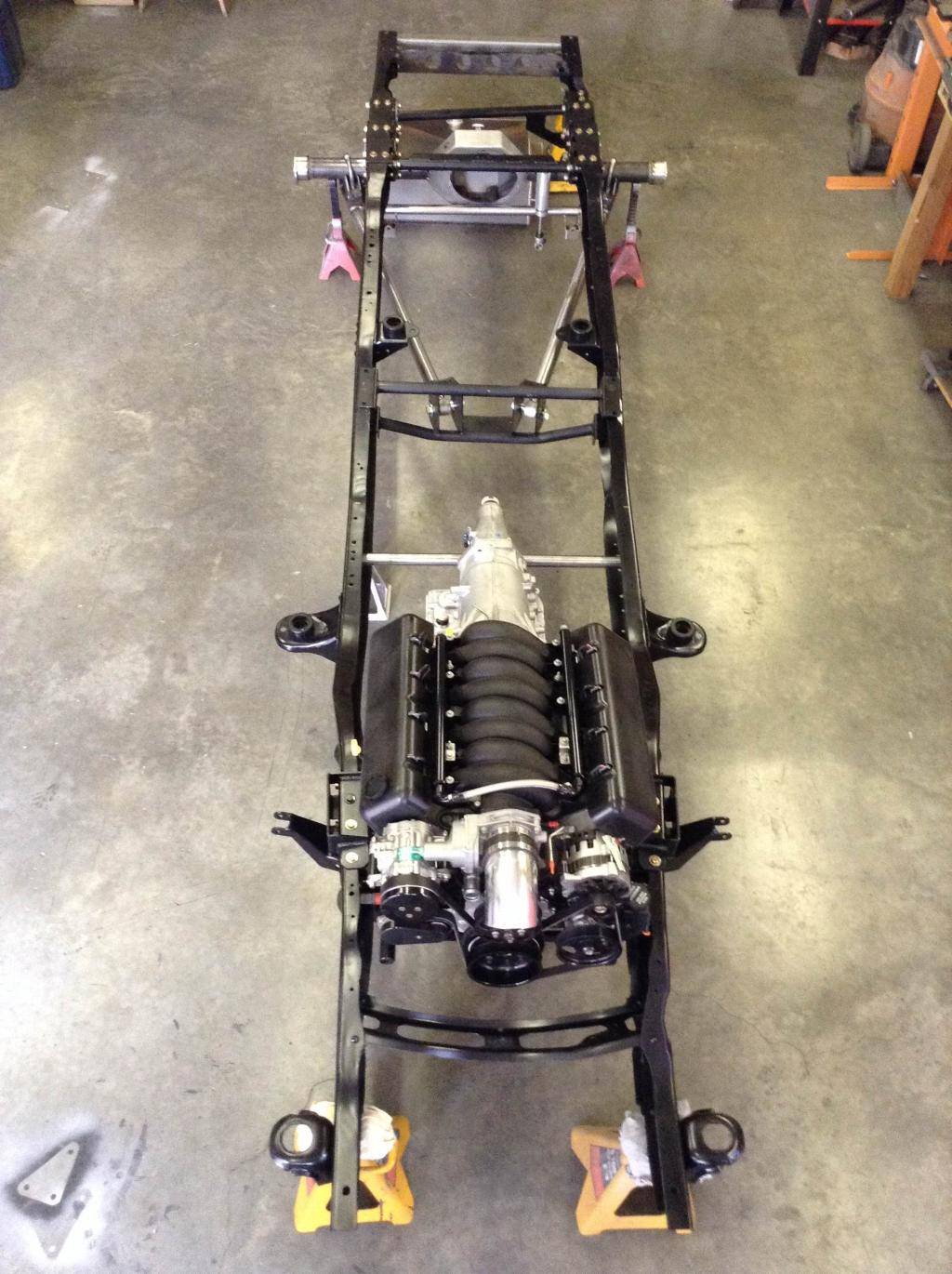

I went with a crate ls376 525hp.

[2feathers]

[brawls43]

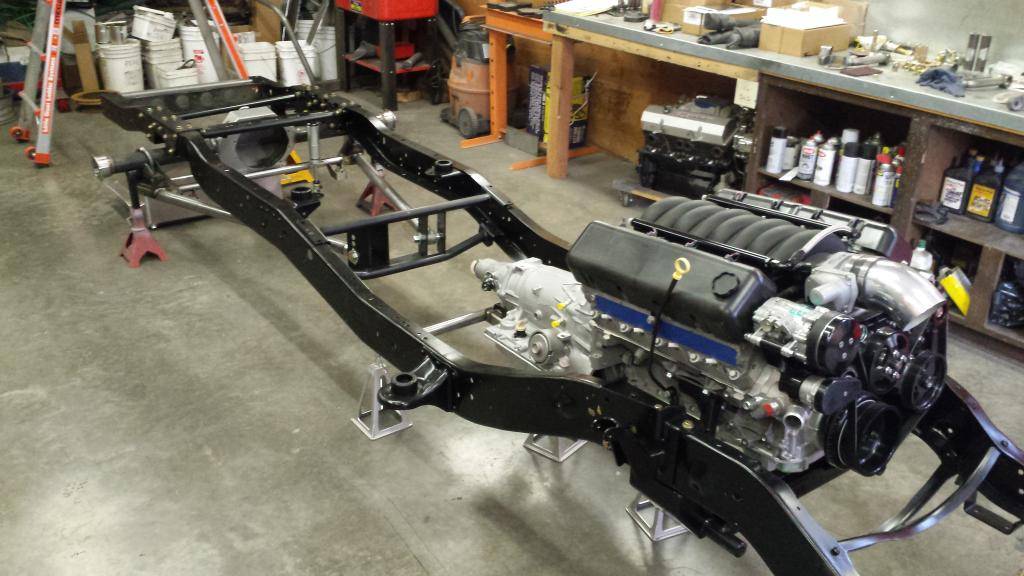

Looking good! Are those the Holley coil/valve covers? Makes it look more like a big block.

[2feathers]

[2feathers]

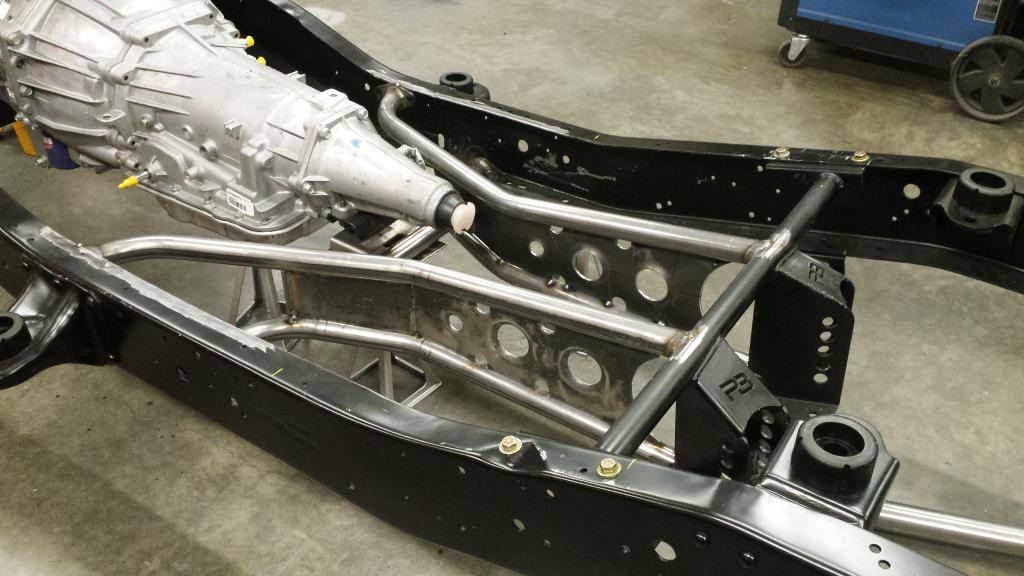

building my own inner frame support will have a center drop out for the trans.

[Tig]

That looks incredible, nicely done.

[mooseknuckles]

cool build!

[joemac]

Enjoying the progress.

[2feathers]

cool build!

thank you I'm shooting for cool.

Enjoying the progress.

thank you it seems like I'm one step forward two steps back.

That looks incredible, nicely done.

thank you im a firm believer that form and function should be together.

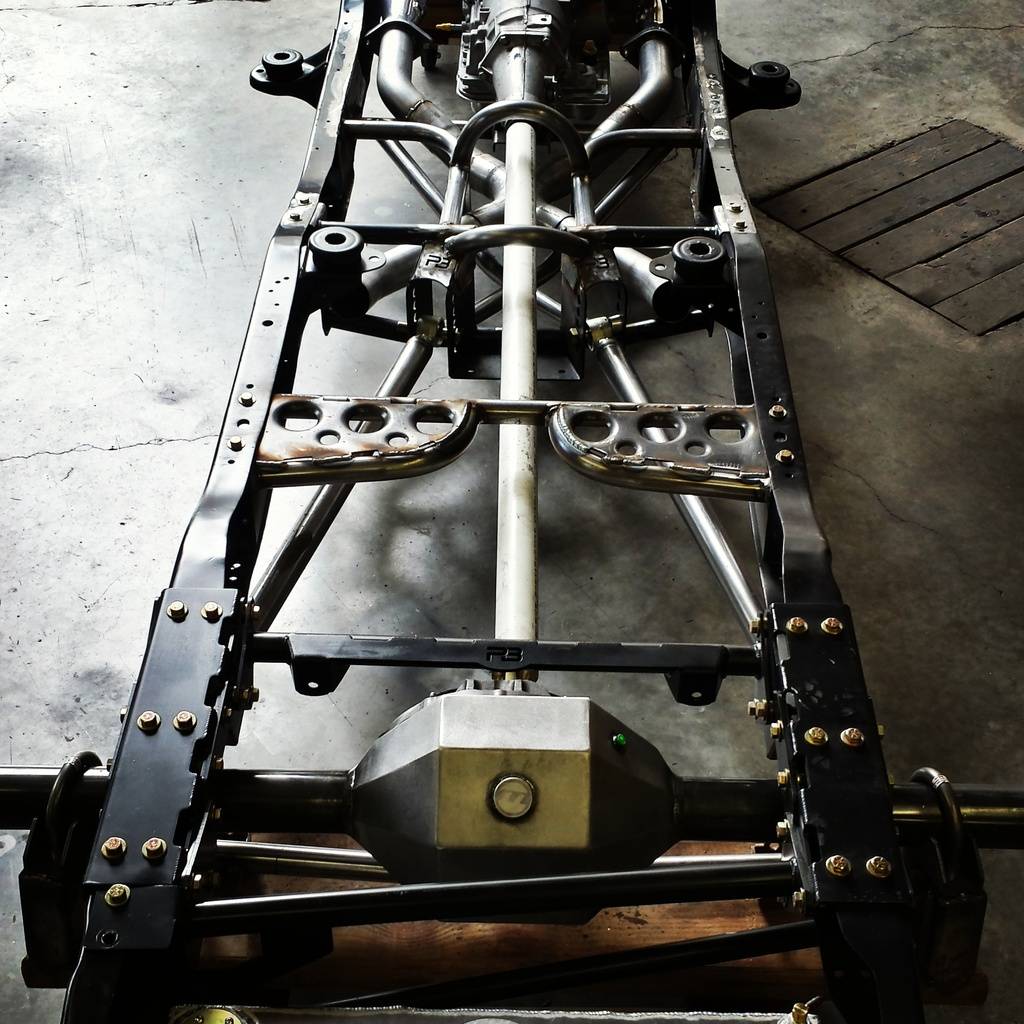

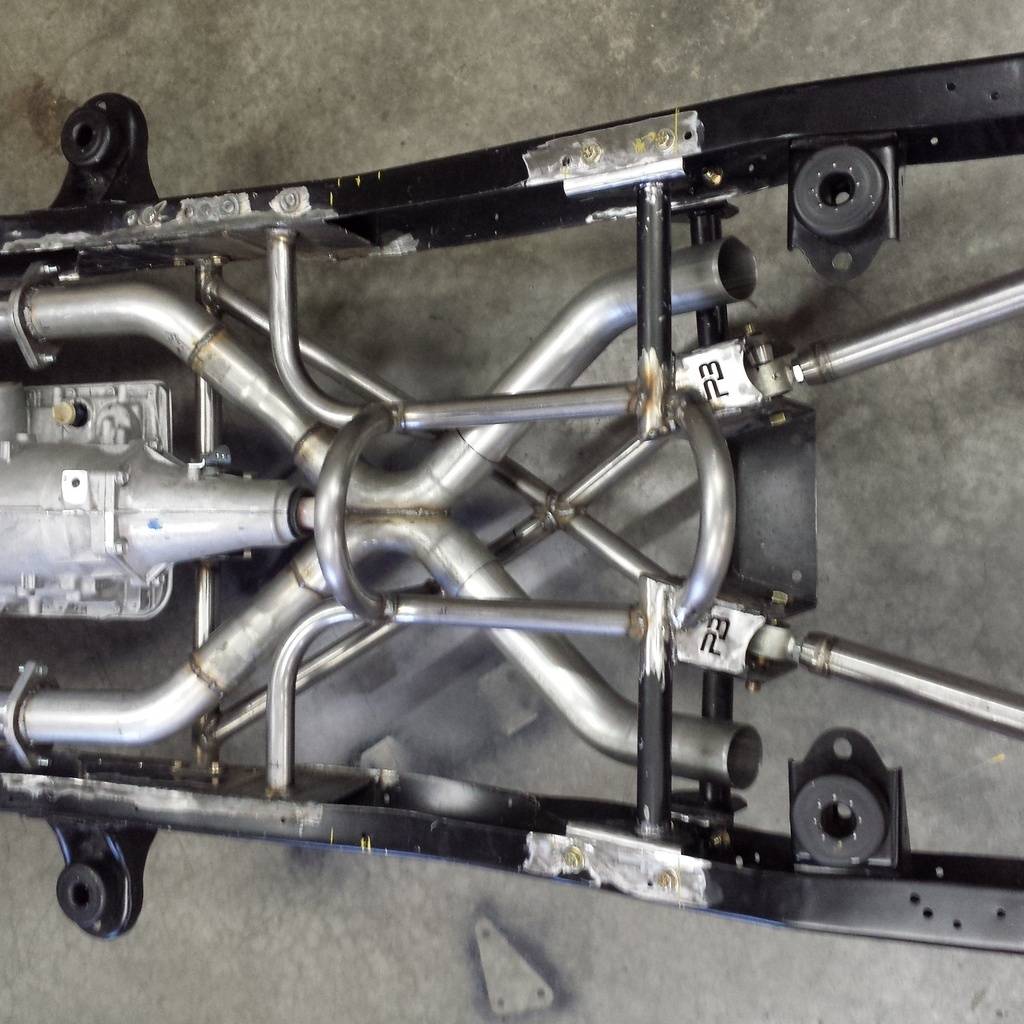

I had a set back with the frame stiffener. The porterbuilt x member/link mount was contacting the bottom of the cab. I couldn't move it rearward because it would put the rear axle back as we'll due to I was adjusted all the the way in on my spherical ends. Plus I wanted to run long tube headers to scavenge the exhaust. Turns out they exit at the top of the frame where my stiffener was. So long story short i cut it all out. Here is my solution. Move the member down in the chassis. Then put 3" x pipe in to scavenge the exhaust further and build a new frame stiffener around this new configuration.

[Bone]

Sweet truck... Subscribed
