      II Much Fabrication LS9-powered 69 Camaro

      Hey guys,

      This has been a low-key project this year, and I've been a bit reluctant to share it. This is a local customer, with all the high-end stuff: LS9, T56 Magnum, DSE suspension, Anvil CF, and with lots of custom touches like a full ISIS Wi-Fi system, Cobra Misano seats, Dakota VHX gauges, MCI door and dash panels, etc.

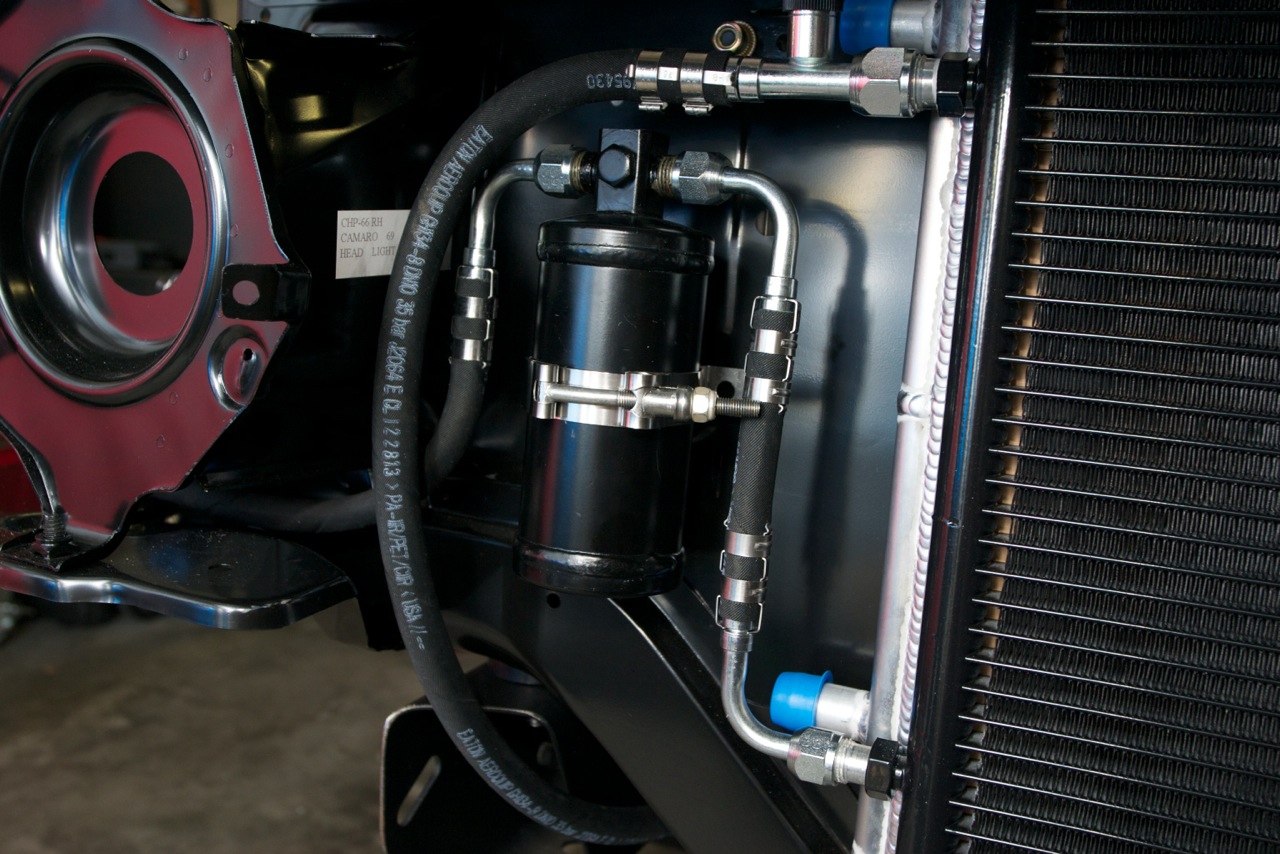

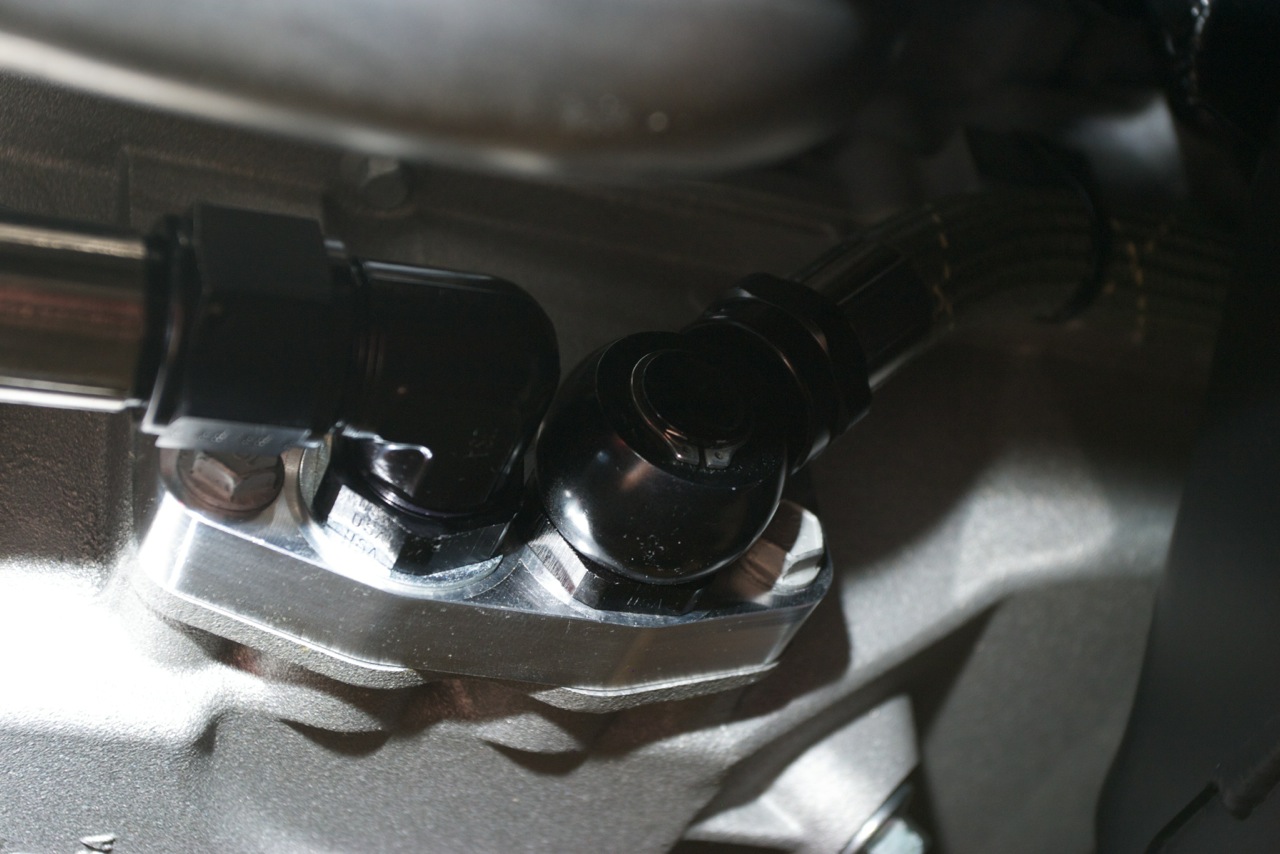

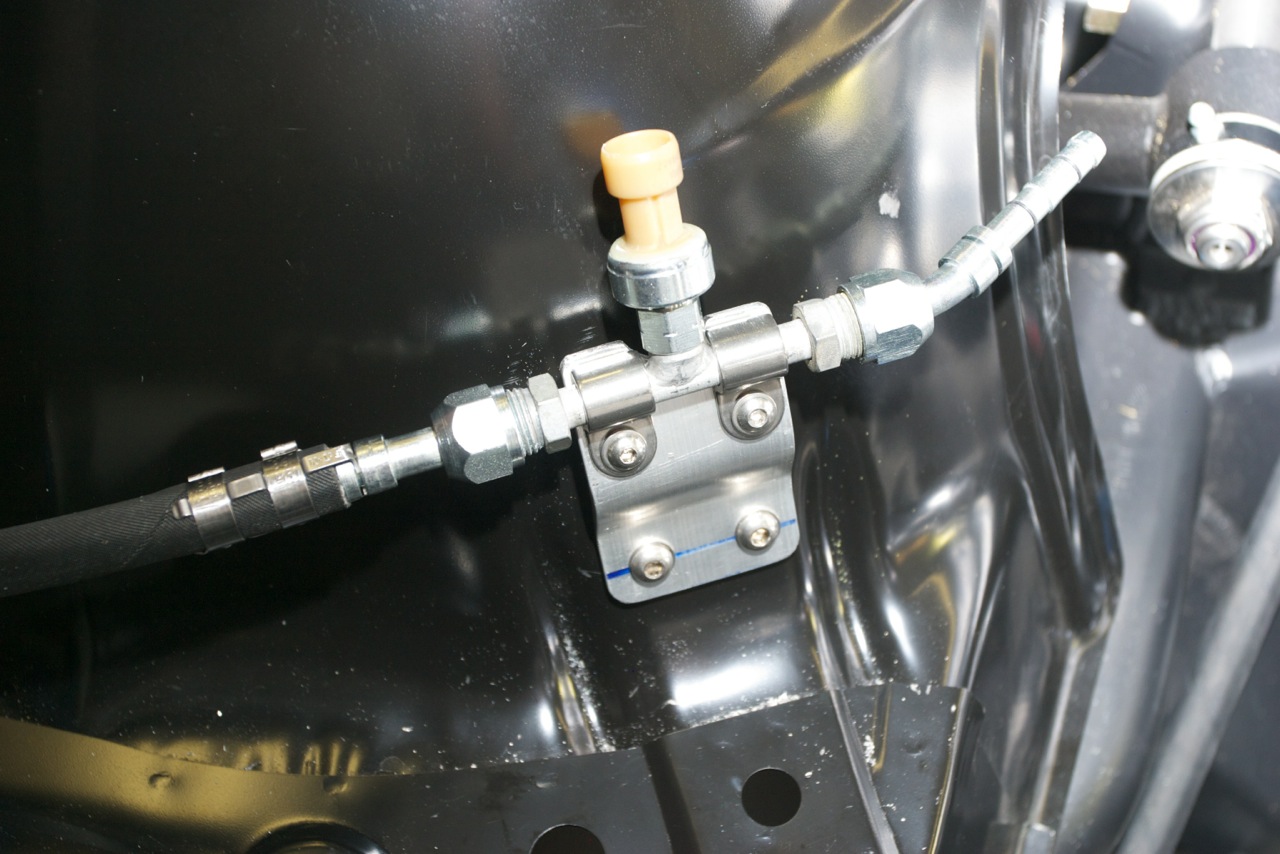

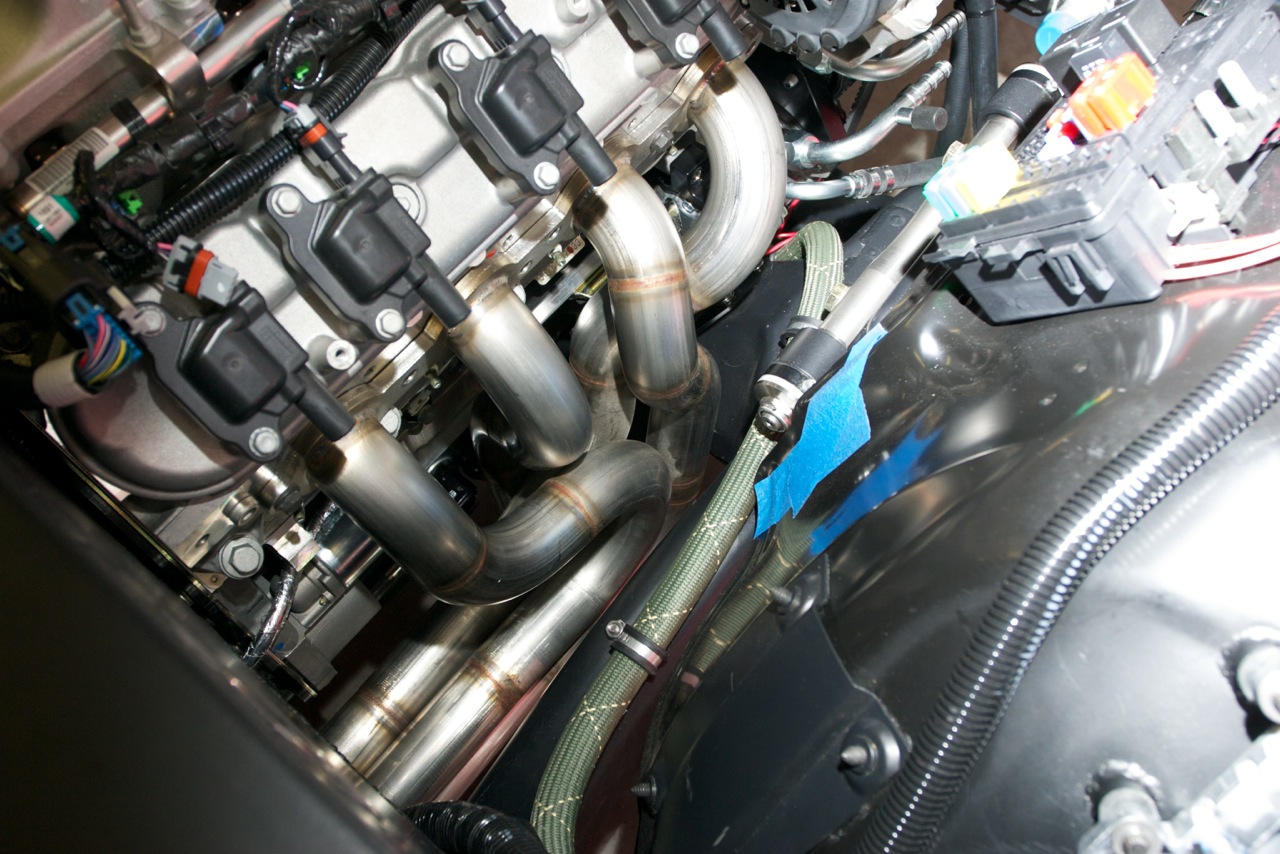

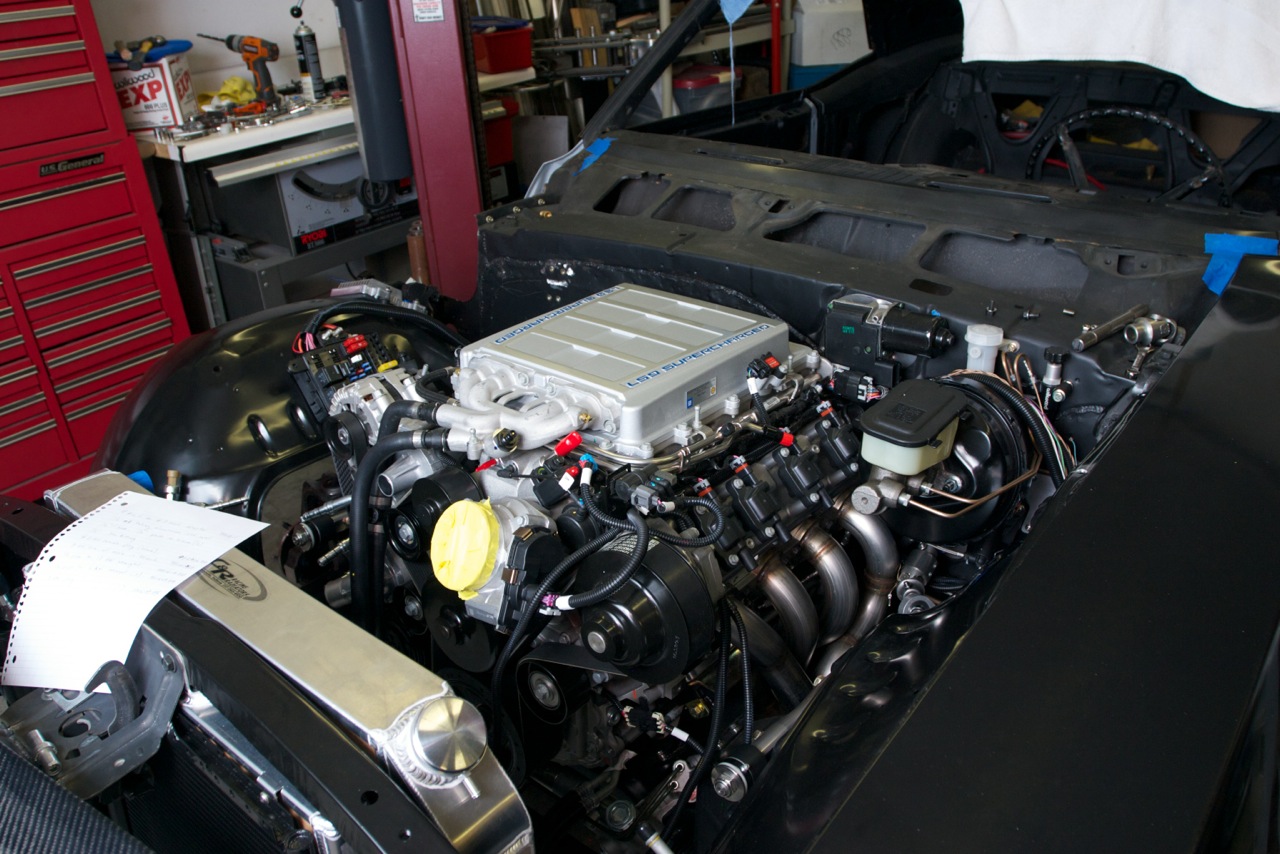

      Here's a few pics to show you guys what we've been up to:



      Name:  Unknown-1.jpeg
Views: 10303
Size:  223.3 KBName:  Unknown-2.jpeg
Views: 10929
Size:  303.2 KBName:  Unknown-3.jpeg
Views: 10270
Size:  311.2 KBName:  Unknown.jpeg
Views: 10233
Size:  198.2 KBName:  CRW_3012.jpeg
Views: 10239
Size:  302.2 KB
      Last edited by parsonsj; 09-23-2015 at 10:36 AM.
      John Parsons

      UnRivaled Rides -- Modern upgrades for your ride.

      UnRivaled Rides recent project -- LS9-powered 69 Camaro


    2. #2
      Join Date
      Apr 2012
      Location
      Woodstock, IL
      Posts
      2,411
      Country Flag: United States

      II Much Fab Shop has an LS9-powered 69 Camaro in the works.

      Looking good!

      -Dale
      SchwartzPerformance
      The leader in bolt-in muscle car chassis
      SchwartzPerformance.com | GMachineChassis.com | Facebook | Twitter | Instagram

      Dealer for: Forgeline, RideTech, Tremec, American Powertrain, Silver Sport Transmissions, GM Performance Parts, RECARO, Cerullo Seats, TMI Products, Vintage Air, Baer Brakes, Wilwood, BeCool, AFCO, Tanks Inc, Holley / Hooker, Ultimate Headers, Rick's Tanks, Moser Engineering, Currie, TechAFX, Stainless Works, II Much Fabrication, and many more

    3. #3
      Join Date
      Jun 2010
      Location
      Georgia
      Posts
      2,214
      Country Flag: United States
      nice looking!

    4. #4
      Join Date
      Sep 2010
      Location
      Santa Clara, CA
      Posts
      586
      Country Flag: United States
      Wow, John, that's a lot of stuff to have to pack into that engine bay. Very impressive, Is that the ECU I see mounted to the back of the inner fender? I'm struggling with location for mine right now. Between my thought to run the A/C lines and the heater hoses under the fender, a) I'm not sure that there's room for everything; b) I don't know if running hot hoses filled with water is a good idea right next to the computer and the wiring, and c) I wish that I had the guts to pull the fender off to work in that area, but my car is so pretty and all put together right now with trim and everything that I just don't trust myself to be able to remove it.... Anyway, looks like a great project!
      Steve

    5. #5
      Join Date
      Nov 2011
      Location
      Riverton, Wyo,
      Posts
      330
      Country Flag: United States
      John, glad to see some pictures of this project, I have the same setup for the heat exchanger, I put my hood on and it is super close when you pull the hood latch to jamming it into the ac condenser, I am not sure if you have had the hood on yet but just a heads up. What is the notch in the right side of the firewall for? Looks good keep posting updates

    6. #6
      Join Date
      Aug 2008
      Location
      jacksonville,fl
      Posts
      964
      Country Flag: United States
      Nice small detail work. Small details all add up. wish my ac lines looked like that.

      Used to have my ls computer mounted in about that same spot,see nothing wrong with that.

    7. #7
      Join Date
      Jun 2001
      Location
      Orlando, FL
      Posts
      10,908
      Country Flag: United States
      Traveling... In NorCal this week.

      Thanks all, I appreciate it.

      Yes, that's the ECM on the passenger inner fender, mounted using FabBosses, natch. The notch in the firewall is for the oil tank. I'll post more pics of that when I get back to the shop. We're using dual Mann-Hammel ProVent 200 catch cans too. I'll share more of that too.

      I think the hood latch is going to be fine -- but I've already made a bunch of mods on that. More to come on that too.
      John Parsons

      UnRivaled Rides -- Modern upgrades for your ride.

      UnRivaled Rides recent project -- LS9-powered 69 Camaro

    8. #8
      Join Date
      Jun 2001
      Location
      Orlando, FL
      Posts
      10,908
      Country Flag: United States

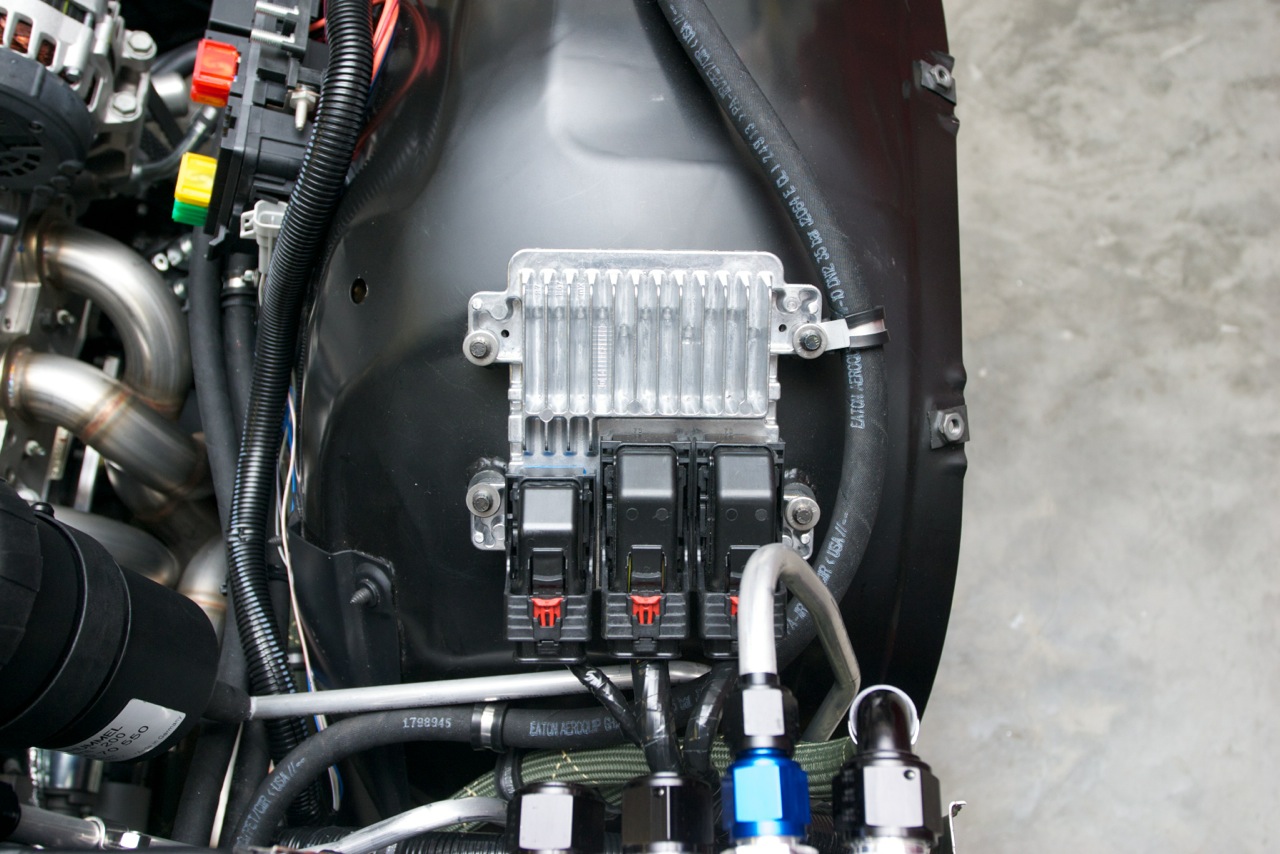

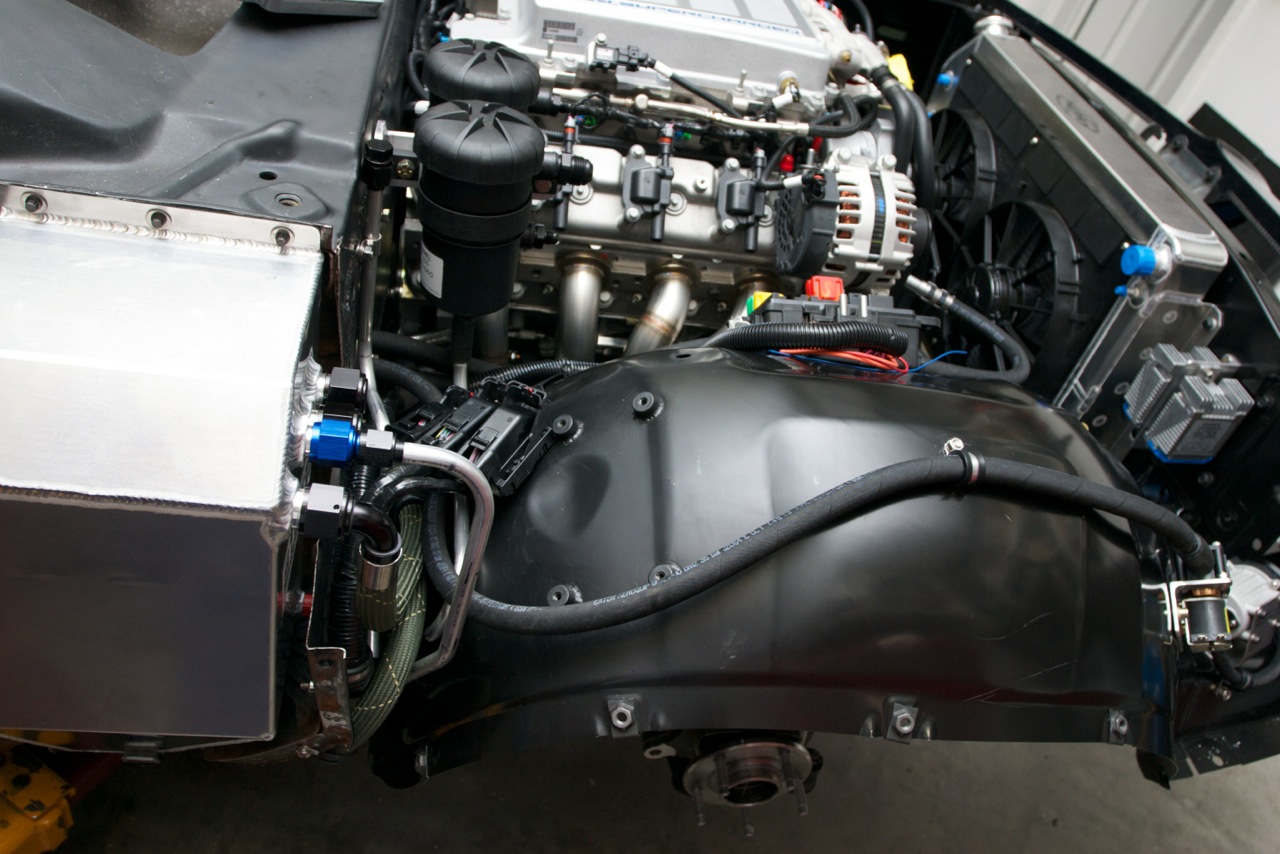

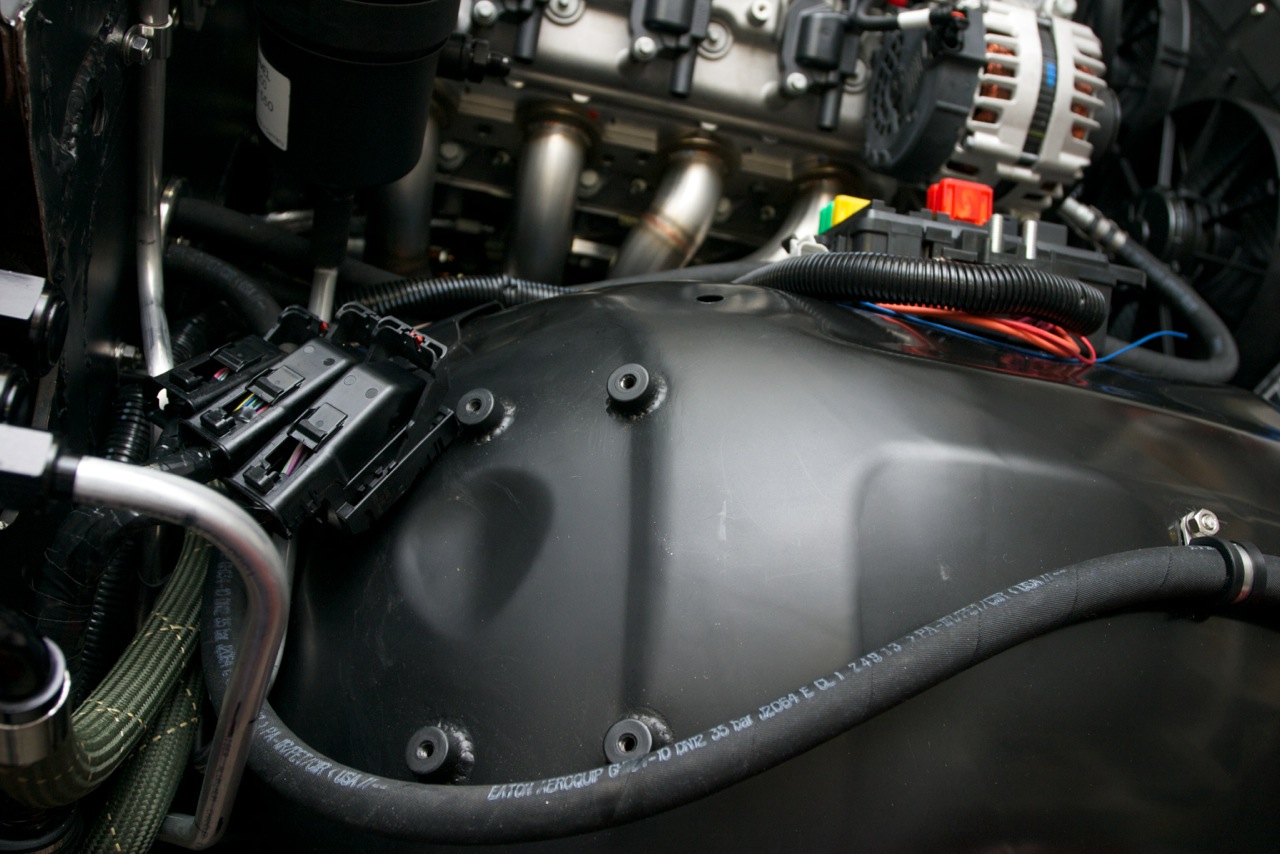

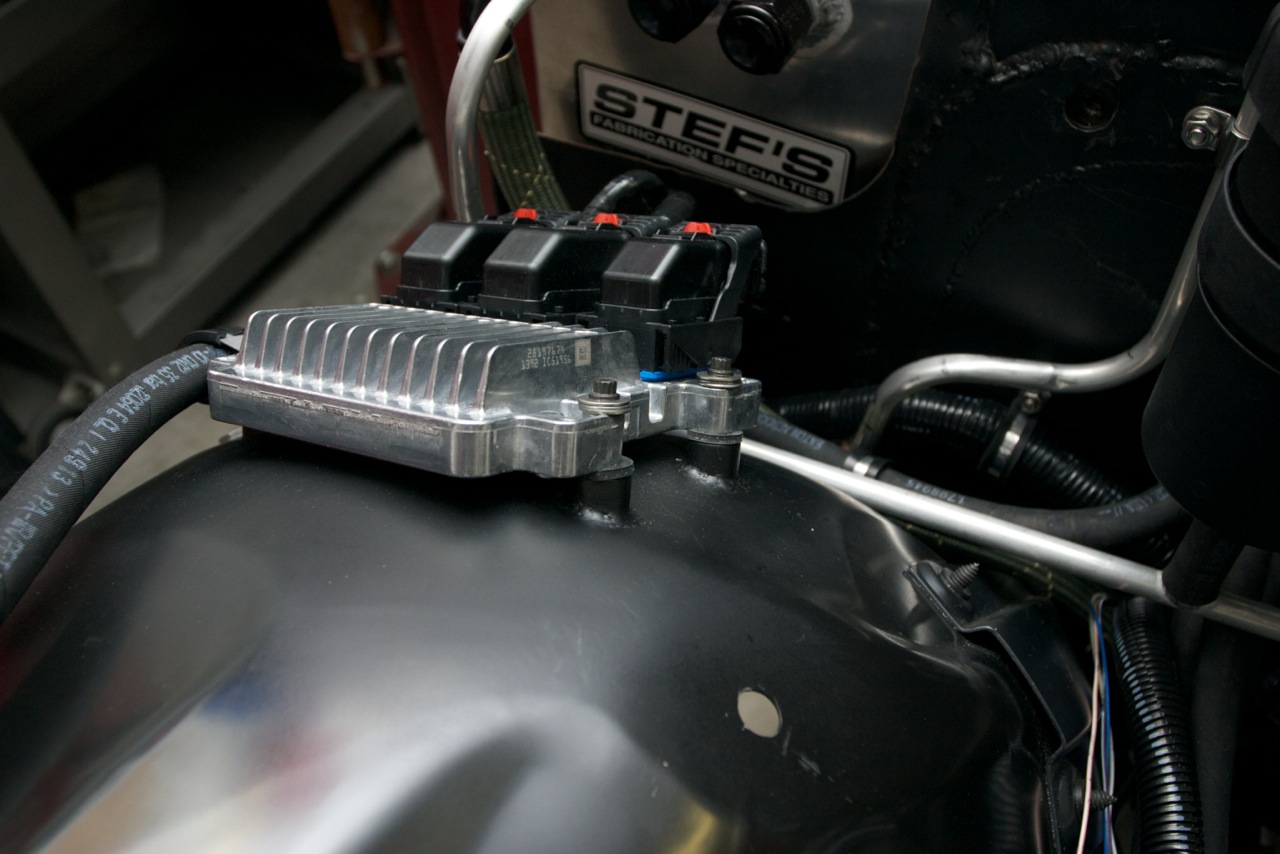

      Some photos of the ECM mount (using our FabBosses, of course), along with the oil tank and dual Mann-Hummel ProVents.

      Name:  CRW_3056.jpeg
Views: 13709
Size:  250.3 KBName:  CRW_3057.jpeg
Views: 9696
Size:  199.3 KBName:  CRW_3058.jpeg
Views: 9619
Size:  255.6 KBName:  CRW_3064.jpeg
Views: 9612
Size:  235.1 KBName:  CRW_3067.jpeg
Views: 9729
Size:  258.7 KB
      John Parsons

      UnRivaled Rides -- Modern upgrades for your ride.

      UnRivaled Rides recent project -- LS9-powered 69 Camaro

    9. #9
      Join Date
      Dec 2009
      Location
      Carson City, NV
      Posts
      860
      Country Flag: United States
      Looking good John... you do some really nice work.

    10. #10
      Join Date
      Apr 2001
      Location
      The City of Fountains
      Posts
      15,511
      Country Flag: United States
      Hey John,

      Great work as always.

      What are the things on the core support to the right of the radiator?

      Andrew
      1970 GTO Version 2.0
      1967 Cougar build
      GM High-Tech Performance feature
      My YouTube Channel Please Subscribe!
      Instagram @projectgattago
      Dr. EFI
      I deliver what EFI promises.
      Remote Holley EFI tuning.
      Please get in touch if I can be of service.

      "You were the gun, your voice was the trigger, your bravery was the barrel, your eyes were the bullets." ~ Her

    11. #11
      Join Date
      Jun 2001
      Location
      Orlando, FL
      Posts
      10,908
      Country Flag: United States
      Sorry Andrew, missed your question. Those are C6 fan controllers. There are two, one for each fan, and they'll be under ECM control for coolant and oil temp along with refrigerant pressure. (the refrigerant pressure sensor is located right by the fan controllers on the inner fender well).
      John Parsons

      UnRivaled Rides -- Modern upgrades for your ride.

      UnRivaled Rides recent project -- LS9-powered 69 Camaro

    12. #12
      Join Date
      May 2002
      Location
      Northern California
      Posts
      10,773
      Country Flag: Bosnia Herzegovina
      Nice work John. Theres a lot going on under the fenders.
      MrQuick ΜΟΛ'ΩΝ ΛΑΒ'Ε

      https://www.pro-touring.com/image.php?type=sigpic&userid=4&dateline=1323422564
      Follow us on Facebook

    13. #13
      Join Date
      Jun 2001
      Location
      Orlando, FL
      Posts
      10,908
      Country Flag: United States
      Thanks guys. The LS9 plus adding the ECM control of the fans really raises the complexity level. Add in engine oil cooler, power steering fluid cooler, the dual ProVents, and the plumbing will be a maze of hoses. The hard part will be bringing order to it all so that it isn't a nightmare to look at.
      John Parsons

      UnRivaled Rides -- Modern upgrades for your ride.

      UnRivaled Rides recent project -- LS9-powered 69 Camaro

    14. #14
      Join Date
      Apr 2001
      Location
      The City of Fountains
      Posts
      15,511
      Country Flag: United States
      Quote Originally Posted by parsonsj View Post
      Thanks guys. The LS9 plus adding the ECM control of the fans really raises the complexity level. Add in engine oil cooler, power steering fluid cooler, the dual ProVents, and the plumbing will be a maze of hoses. The hard part will be bringing order to it all so that it isn't a nightmare to look at.
      John,

      Is the ECU package from GMPP? It looks like the standard LS9 kit using the E67 computer. If so, how do you go about wiring in the C6 fan controllers? I want to do this on my GTO that uses the E67 computer and the GMPP kit.

      Andrew
      1970 GTO Version 2.0
      1967 Cougar build
      GM High-Tech Performance feature
      My YouTube Channel Please Subscribe!
      Instagram @projectgattago
      Dr. EFI
      I deliver what EFI promises.
      Remote Holley EFI tuning.
      Please get in touch if I can be of service.

      "You were the gun, your voice was the trigger, your bravery was the barrel, your eyes were the bullets." ~ Her

    15. #15
      Join Date
      Jun 2001
      Location
      Orlando, FL
      Posts
      10,908
      Country Flag: United States
      Quote Originally Posted by Andrew
      Is the ECU package from GMPP? It looks like the standard LS9 kit using the E67 computer. If so, how do you go about wiring in the C6 fan controllers? I want to do this on my GTO that uses the E67 computer and the GMPP kit.
      Yes, it's the standard LS9 kit, but I can make the programming changes with HPTuners. As far as wiring it into the harness, look over the LSA Camaro thread from C6Z06. The pinouts and everything is in that build thread.
      John Parsons

      UnRivaled Rides -- Modern upgrades for your ride.

      UnRivaled Rides recent project -- LS9-powered 69 Camaro

    16. #16
      Join Date
      Dec 2009
      Location
      Carson City, NV
      Posts
      860
      Country Flag: United States
      Quote Originally Posted by parsonsj View Post
      Yes, it's the standard LS9 kit, but I can make the programming changes with HPTuners. As far as wiring it into the harness, look over the LSA Camaro thread from C6Z06. The pinouts and everything is in that build thread.
      Hi John,

      I looked through the threads from C6Z06 but didn't see any wiring diagrams... care to help a brother out and provide a link. Would be nice to know wire those up.

    17. #17
      Join Date
      Jun 2001
      Location
      Orlando, FL
      Posts
      10,908
      Country Flag: United States
      Here ya go, my brotha:

      http://www.lateral-g.net/forums/showthread.php4?t=40215

      You'll recognize some of the participants. It's a worthwhile read from the beginning.
      John Parsons

      UnRivaled Rides -- Modern upgrades for your ride.

      UnRivaled Rides recent project -- LS9-powered 69 Camaro

    18. #18
      Join Date
      Dec 2009
      Location
      Carson City, NV
      Posts
      860
      Country Flag: United States
      Quote Originally Posted by parsonsj View Post
      Here ya go, my brotha:

      http://www.lateral-g.net/forums/showthread.php4?t=40215

      You'll recognize some of the participants. It's a worthwhile read from the beginning.
      Well, that explains why I couldn't find it, it was on LatG. Thanks John...

    19. #19
      Join Date
      Sep 2010
      Posts
      56
      Hello,
      Any updates on this build? Thanks!

    20. #20
      Join Date
      Jun 2001
      Location
      Orlando, FL
      Posts
      10,908
      Country Flag: United States
      The car is at the body shop, getting all snazzy. The build will resume in the summer when it returns to my shop.
