New Forgeline Grip Equipped Rebel

[Forgeline Wheels]

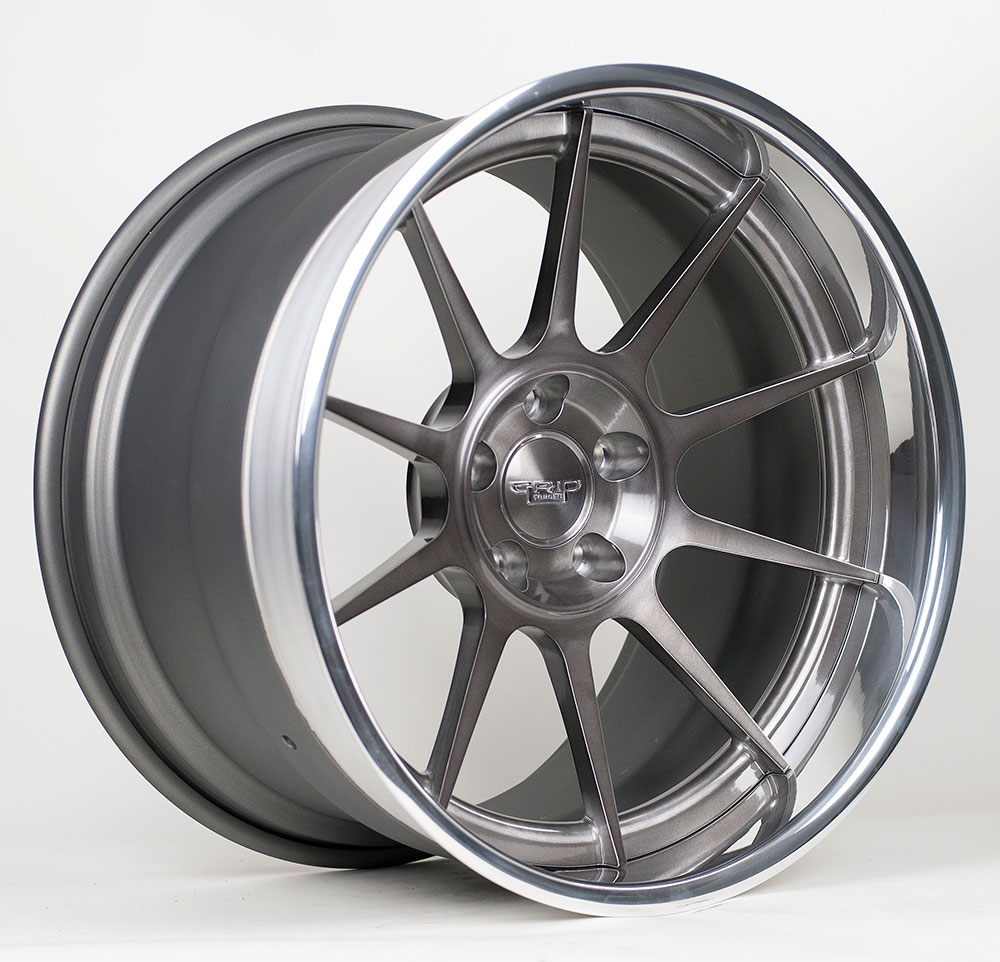

The Grip Equipped Rebel is a stylish and sleek concave wheel that is engineered for weight savings and strength. It draws some aesthetic inspiration from both popular vintage mag wheels and contemporary multi-spoke designs for a unique look, especially with the variety of premium finishes available. Learn more at: http://www.forgeline.com/products/gr...ies/rebel.html

[DJ Mabe]

I'll take a set just like the one above!!! Great looking wheel! If you want a test car I'm all over it. Plus I have a photo shoot coming up in the next month or two for my car to get into MM and FF.

[Forgeline Wheels]

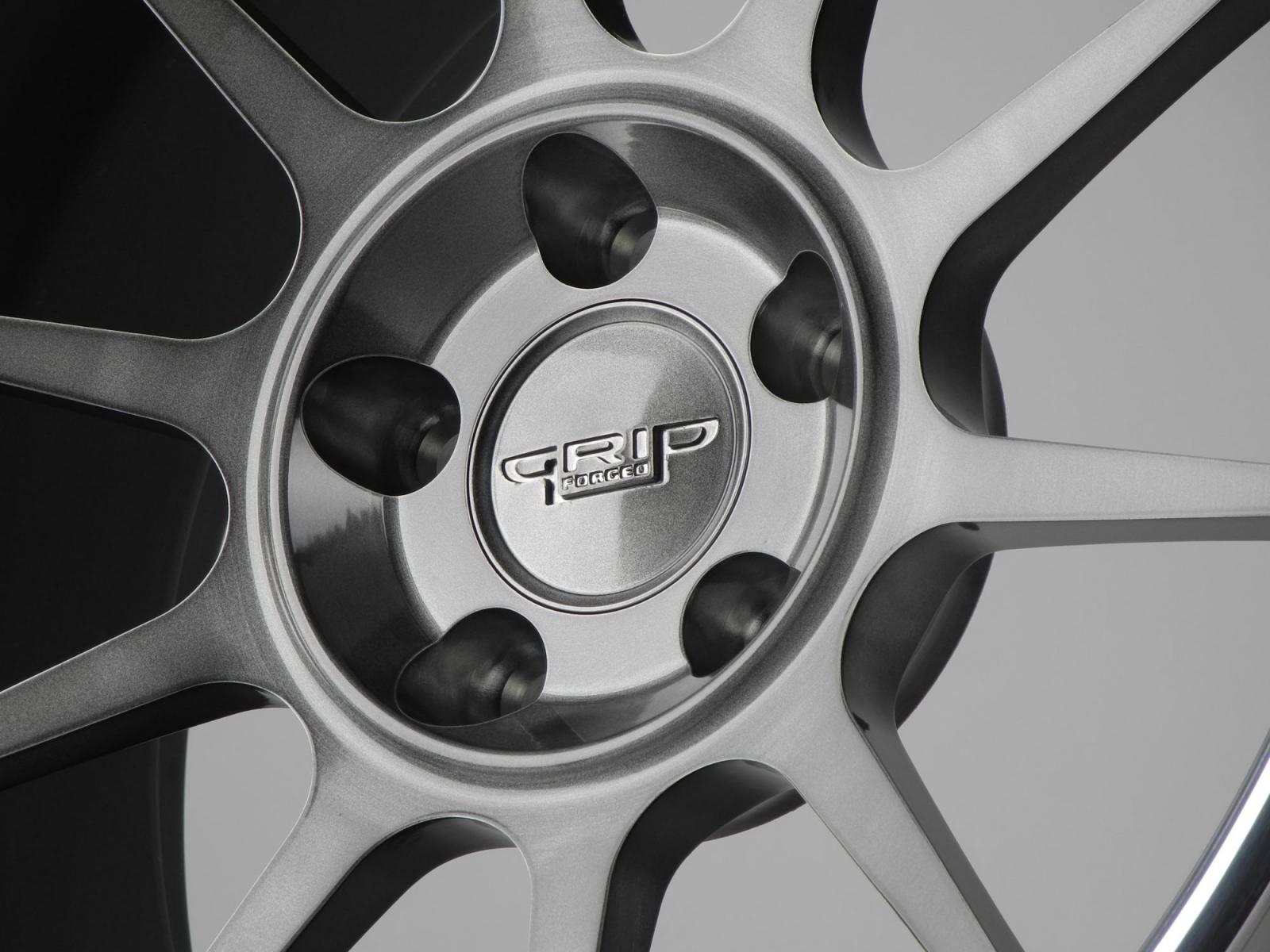

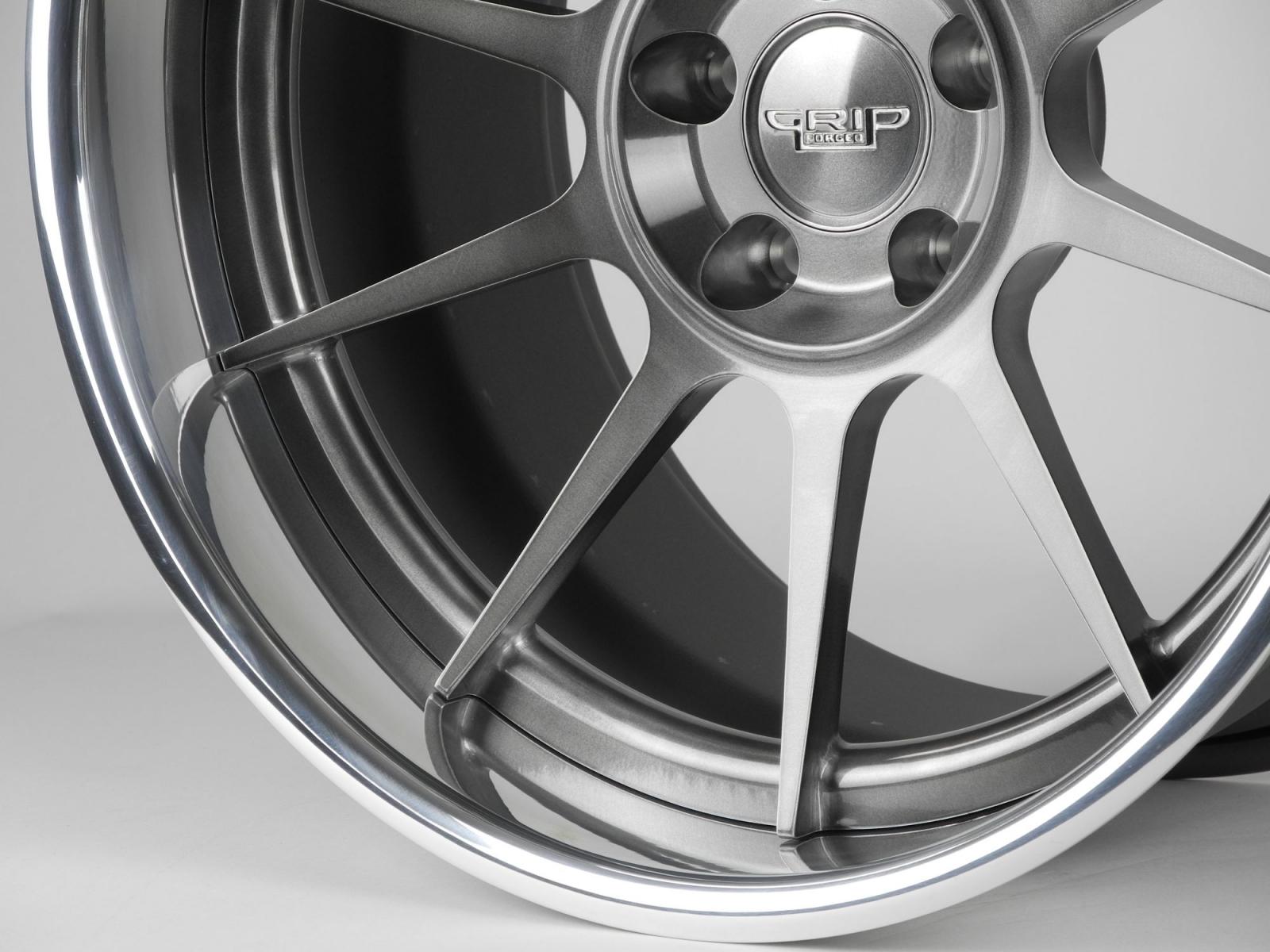

Here are a few fresh shots from some new angles of the new Grip Equipped Rebel. Shown here with a Transparent Smoke center and Polished outer. See more (including sizes and pricing) at: http://www.forgeline.com/products/gr...ies/rebel.html

[Quickboat]

Got any pics of those on a muscle car?

[32deucecoupe]

And these go on sale when..

[Quickboat]

And these go on sale when..

lol

[Forgeline Wheels]

Got any pics of those on a muscle car?

Haven't seen anything yet. Maybe we can ask Ben Hermance to make a rendering for us.

[Forgeline Wheels]

And these go on sale when..

I'm sorry, I don't get it.

[Quickboat]

What is the main difference between this Grip Rebel and the very similar Concave RBC3 series?

[Todd in Vancouver]

...

[Todd in Vancouver]

...

[Todd in Vancouver]

Haven't seen anything yet. Maybe we can ask Ben Hermance to make a rendering for us.

Not a good idea, I think you would be better served sending me a promo set and we get some nice pics on my car

Even with my car in a bunch of pieces you could say,
"these wheels are so nice that even this pile of scrap metal looks good."

[Forgeline Wheels]

What is the main difference between this Grip Rebel and the very similar Concave RBC3 series?

Well, they are both 10 spoke wheels designed for flat reverse lip rims. But the RB3C has a longer spoke with a directional twist in the spokes. They are also different at the bottom of the spoke where it meets the rim register. And the lug centers are different; on the RB3C, the lug holes reach out beyond the center recess.

You have to look closely to see the details. Here are a few comparison shots.

Grip Rebel:


RB3C:


Grip Rebel:


RB3C:


Grip Rebel:


RB3C:

[Quickboat]

Ah yes...both are art work......
Can you still get the deep concave on the narrower fronts? I see many examples of guys who opt for a flatter look on the fronts. I like the concave but don't want to lose it on the front. Like maybe a 9" wide wheel?

[Forgeline Wheels]

Ah yes...both are art work......
Can you still get the deep concave on the narrower fronts? I see many examples of guys who opt for a flatter look on the fronts. I like the concave but don't want to lose it on the front. Like maybe a 9" wide wheel?

Just depends on your car and what it can fit. The concave profile obviously pushes the end of the spoke outboard from the hub surface. So if your hub surface is already close to your fender, then a deep concave profile will be sticking out beyond the fenders. If the hub is far enough inboard of the fenders, then you probably have room for the concave profile.

If you're using a narrow outer because you don't have much space between the hub and the fender, then you probably don't have room to squeeze in the deep concave center either (unless you want to stick out beyond the fenders). Of course, you can always widen your fenders, and then you can fit whatever you want.

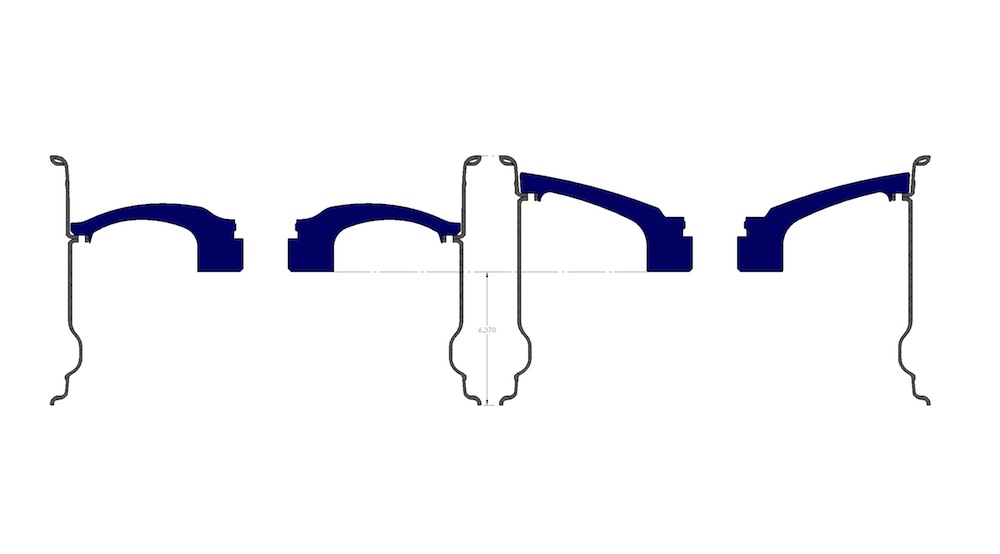

The graphic below hopefully illustrates this. Two wheels with the exact same backspacing and overall width, one with a flat profile and one with a concave profile. See how the end of the concave spokes push out so much farther toward the fender? In this example, we made up the difference with the width of the outer. But if you are already using a small outer, then where do you find this extra space?



Also see: http://blog.forgeline.com/2012/07/11...a-closer-look/

[Quickboat]

On the first gen Camaros the BS is close to mid point with a 8 inch wheel? Can the concave work on the front of a first gen using a 9" and say a 5 inch BS??

[Forgeline Wheels]

On the first gen Camaros the BS is close to mid point with a 8 inch wheel? Can the concave work on the front of a first gen using a 9" and say a 5 inch BS??

We can do a 9" wheel with a 5" BS. The hub length is going to determine the amount of outer lip you will have. An example would be if you had C6 spindles, we could do the 9" @ a 5" BS and the outer lip would be 2". If your running a stock spindle, the same wheel with the same specs would have a 1" lip.

Both examples are based on using the flush Forgeline engraved cap. If you were to use the optiional cap that protrudes out, you could increase the outer lip by at least 1/2 inch.

[Quickboat]

We can do a 9" wheel with a 5" BS. The hub length is going to determine the amount of outer lip you will have. An example would be if you had C6 spindles, we could do the 9" @ a 5" BS and the outer lip would be 2". If your running a stock spindle, the same wheel with the same specs would have a 1" lip.

Both examples are based on using the flush Forgeline engraved cap. If you were to use the optiional cap that protrudes out, you could increase the outer lip by at least 1/2 inch.

Those examples are with the full concave?

Have you sold this wheel to any first gen owners? Gosh I have to see this before I could pull the trigger.

[Forgeline Wheels]

Those examples are with the full concave?

Have you sold this wheel to any first gen owners? Gosh I have to see this before I could pull the trigger.

Both examples are with the deep concave center (pictured above). The Grip line is relatively new and we do not have as many photos of actual builds as we obviously do for Forgeline. I will request a rendering from Ben.

[Forgeline Wheels]

Gosh I have to see this before I could pull the trigger.

Just got this photoshop from Ben. Grip Equipped Rebel on a '69 Camaro. Shown with a stepped lip outer.
