      Shelby Cobra - Pro-Touring style

      I had owned a Cobra replica that was very true to the original. It even had a period correct 427 side oiler, and the 4 speed top-loader tranny. Even though these cars are still among the fastest production cars ever sold, the 60s suspension and brakes were not up to what is available today. This time I wanted a car that would be true to the theme of the original, but with improvements in braking and handling, plus the ability to cruise all day comfortably, but still perform at the track.....Pro-Touring stuff. Another goal was a meaner, cooler look (if at all possible). A lower and wider stance would acheive this.

      So this car has actually been on the road for while now. I started it in 2009, but I just finished building the interior for the trunk.

      Some of the specs are:

      1. Engine - Ford SBF 418 stroker, Dart aluminum heads, roller rockers, roller cam, forged crank and pistons, Air Gap intake, 750 double pumper, custom headers, 517 hp.
      2. TKO 600 tranny, 5 speed with .64 overdrive, Quicktime bellhousing, lightweight flywheel, Tilton hydro throw out bearing.
      3. IRS - based on Thunderbird uprights, 8.8 pumpkin with 3.27 gears, Torsen Tru-Trac differential.
      4. QA1 double adjustable coilovers all corners.
      5. Brakes - 14' six piston Wilwoods on front, 12" Mustang Cobra rotors on rear with t-bird calipers. Wilwood pedals and brake/clutch cylinders.
      6. Wheels - BRM GT 40 style pin drives from Vintage Wheels, 17x9.5 front, 17x11.5 rear (custom width added by Weldcraft)
      7. Tires - 255/40 front, 315/35 rear Sumitomo HTR Z
      8. Mezeire electric water pump, aluminum 4 core radiator with custom shroud.
      9. HDI headlights
      10. Sube Cobra SS seats.
      11. Revolution gauges from Speedhut. Wideband AFR gauge.

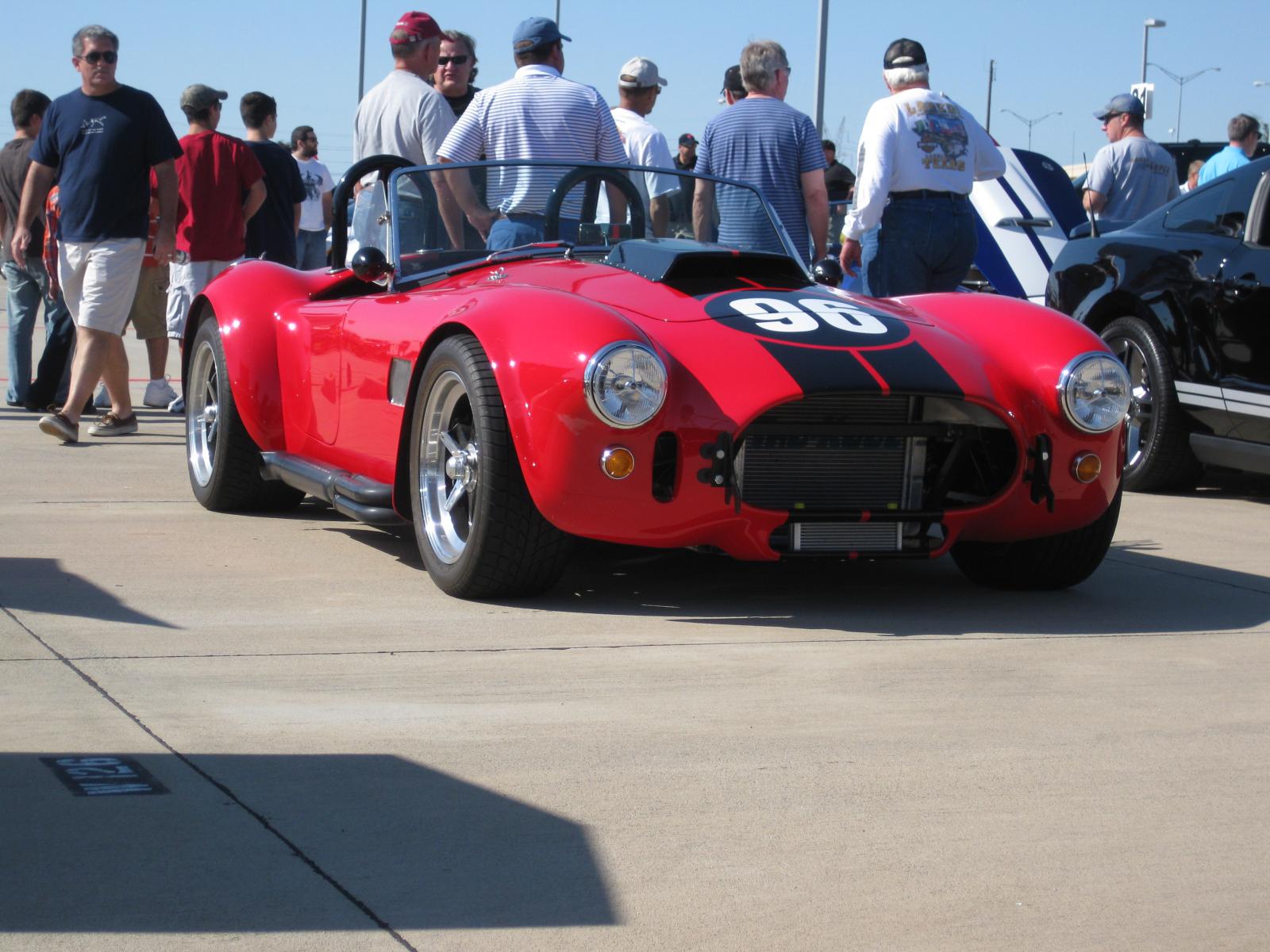

      Here is the finished car:

      Name:  Finished for show.jpg
Views: 6795
Size:  209.5 KB

      To get the wider, longer look for the Cobra body, it was spliced lengthwise and sectioned across the doors. This is better for track behavior and adds more cockpit room.

      Name:  Body Splice.jpg
Views: 4887
Size:  48.4 KBName:  Body Stretch.jpg
Views: 6616
Size:  77.1 KB

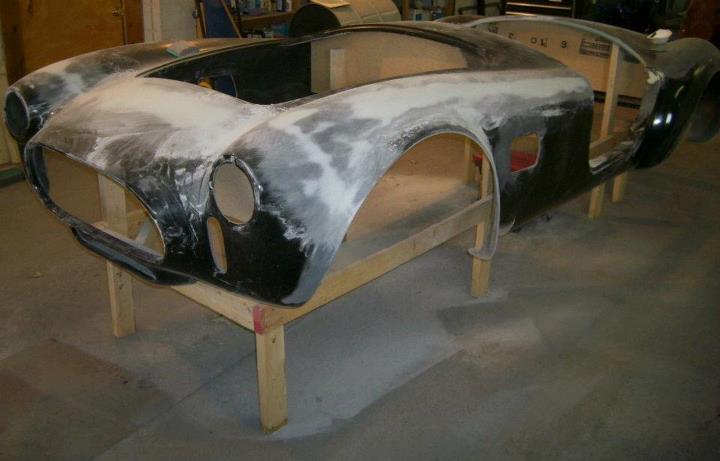

      So my body is derived from this version of the fiberglass mold, but updated with wider rear fender flares. It was then smoothed, blocked and primered.

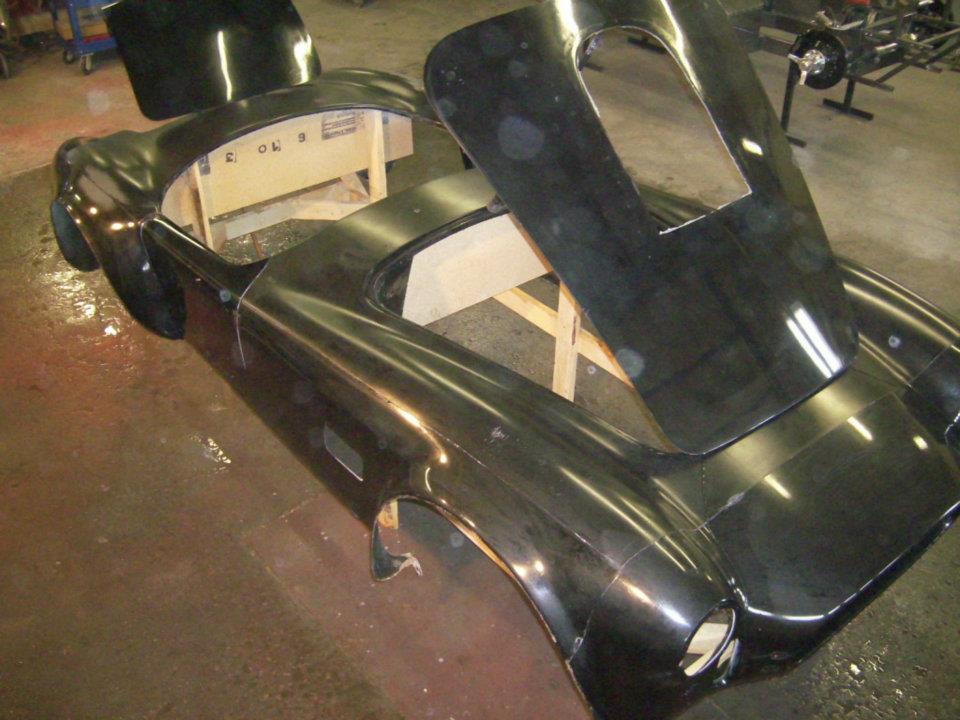

      Name:  Body buck work.jpg
Views: 7008
Size:  91.3 KBName:  Body work.jpg
Views: 3979

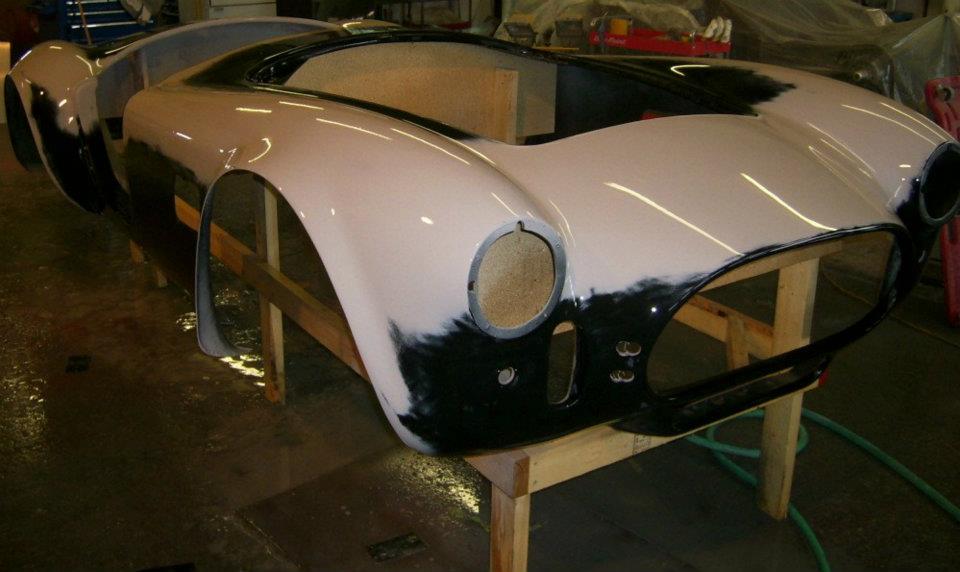

Size:  35.7 KBName:  Body work 2.jpg
Views: 4110
Size:  63.3 KBName:  Brakes1 body.jpg
Views: 3869
Size:  6.7 KBName:  Body Front_Primer.jpg
Views: 3850
Size:  13.7 KBName:  Body primer.jpg
Views: 3863
Size:  13.0 KB

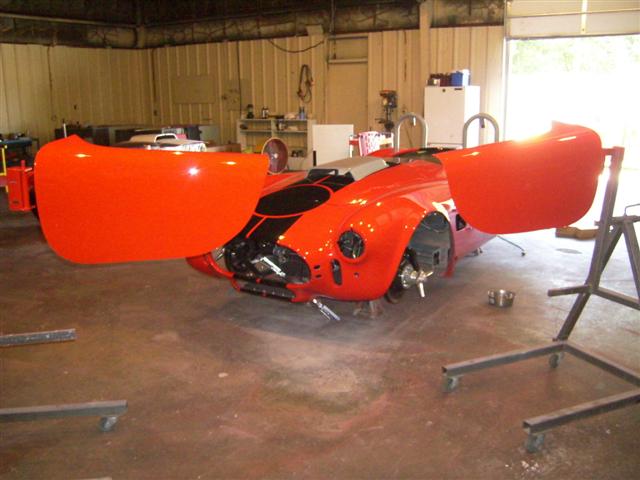

      I picked popping version of Porshe Guards Red with black stripes, with meatballs painted on for numbers.

      Name:  Painted parts.jpg
Views: 4131

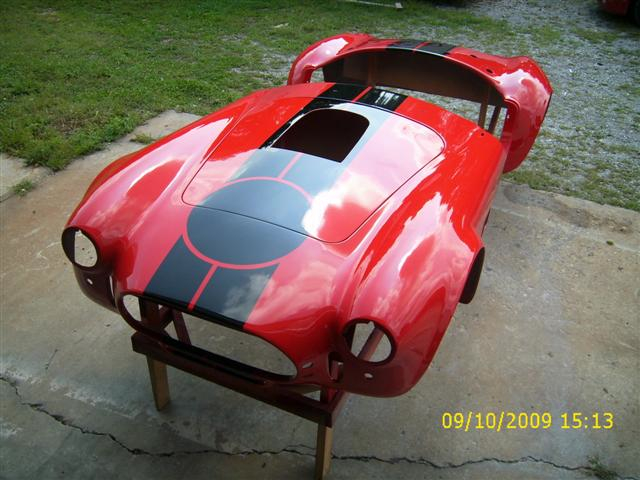

Size:  47.7 KBName:  Painted body on stand.jpg
Views: 4155
Size:  249.3 KB


      Next thread is the chassis section.


    2. #2
      Join Date
      Sep 2012
      Posts
      15
      Country Flag: United States

      Chassis fabrication

      The body and chassis I have are revised versions of the JBL Cobra. At the time I was looking for a good base to start with, JBL had the body and chassis that fit what I wanted, but due to the economy, they were out of business at the time. Fortunately for me, one of the founders/designers still had the patterns, mold and jigs and agreed to create the body and chassis for me. He is Larry Goins. He still builds a few per year to order. The chassis and suspension were designed by Richard Hudgins. The chassis is known as a semi-monocoque design. It is very rigid with 4500 lbs per degree of deflection. Fairly thick steel panels cover the frame, giving more strength and safety. Footwells are all enclosed steel too. You can also see in the rear that the gas tank has protection from being fully enclosed in steel. You might think all of this would make for a heavy car. Not so as the completed car only weights 2487 pounds. This chassis design puts the engine way back in the car. Weight distribution front/rear is 49/51.

      Name:  Chassis Front Frame.jpg
Views: 4899
Size:  103.2 KB

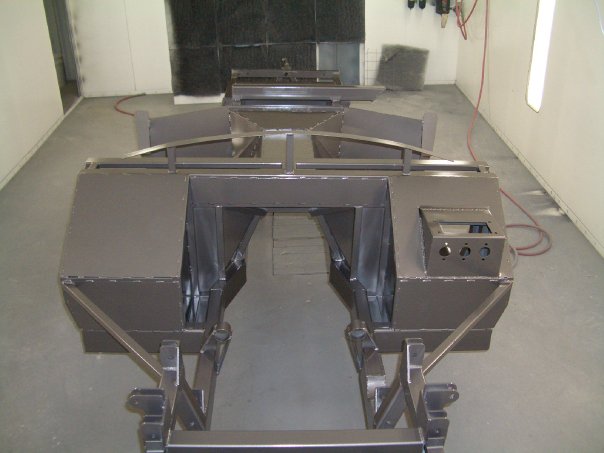

      Name:  Chassis front.jpg
Views: 3889
Size:  40.2 KB

      Name:  Chassis Panels.jpg
Views: 4121
Size:  54.7 KBName:  Panels welded.jpg
Views: 3911
Size:  66.5 KB

    3. #3
      Join Date
      Sep 2012
      Posts
      15
      Country Flag: United States

      Engine install

      While the body was at the shop being painted, put the in the engine/tranny.
      Attachment 64736Attachment 64737Attachment 64738Attachment 64739Attachment 64740Attachment 64741

    4. #4
      Join Date
      Sep 2012
      Posts
      15
      Country Flag: United States

      Engine install

      While the body was at the shop being painted, put the in the engine/tranny.
      Name:  Engine angle.jpg
Views: 5939
Size:  267.8 KBName:  Engine front.jpg
Views: 3970
Size:  253.3 KBName:  Engine tranny.jpg
Views: 3881
Size:  272.4 KBName:  Engine tranny top.jpg
Views: 3941
Size:  241.0 KBName:  Engine_Front1.jpg
Views: 3785
Size:  8.0 KBName:  Exhaust ready for coating.JPG
Views: 3762
Size:  8.1 KB

    5. #5
      Join Date
      Sep 2012
      Posts
      15
      Country Flag: United States

      Suspension, brakes, wheels, gas tank install

      Next is the suspension, wheels, gas tank etc.

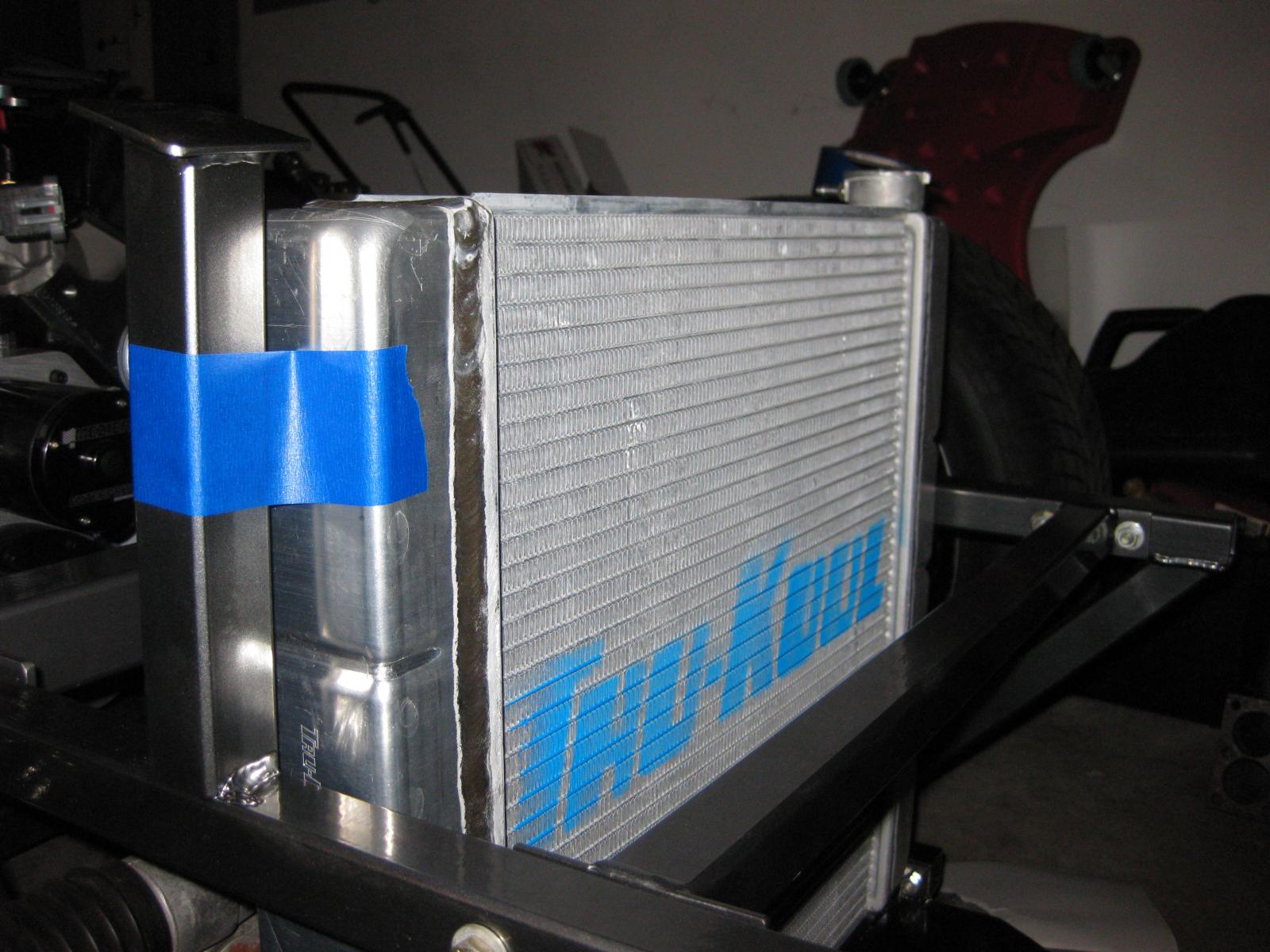

      Name:  Radiator mock 1.jpg
Views: 3913
Size:  204.9 KBName:  Radiator mock top.jpg
Views: 3916

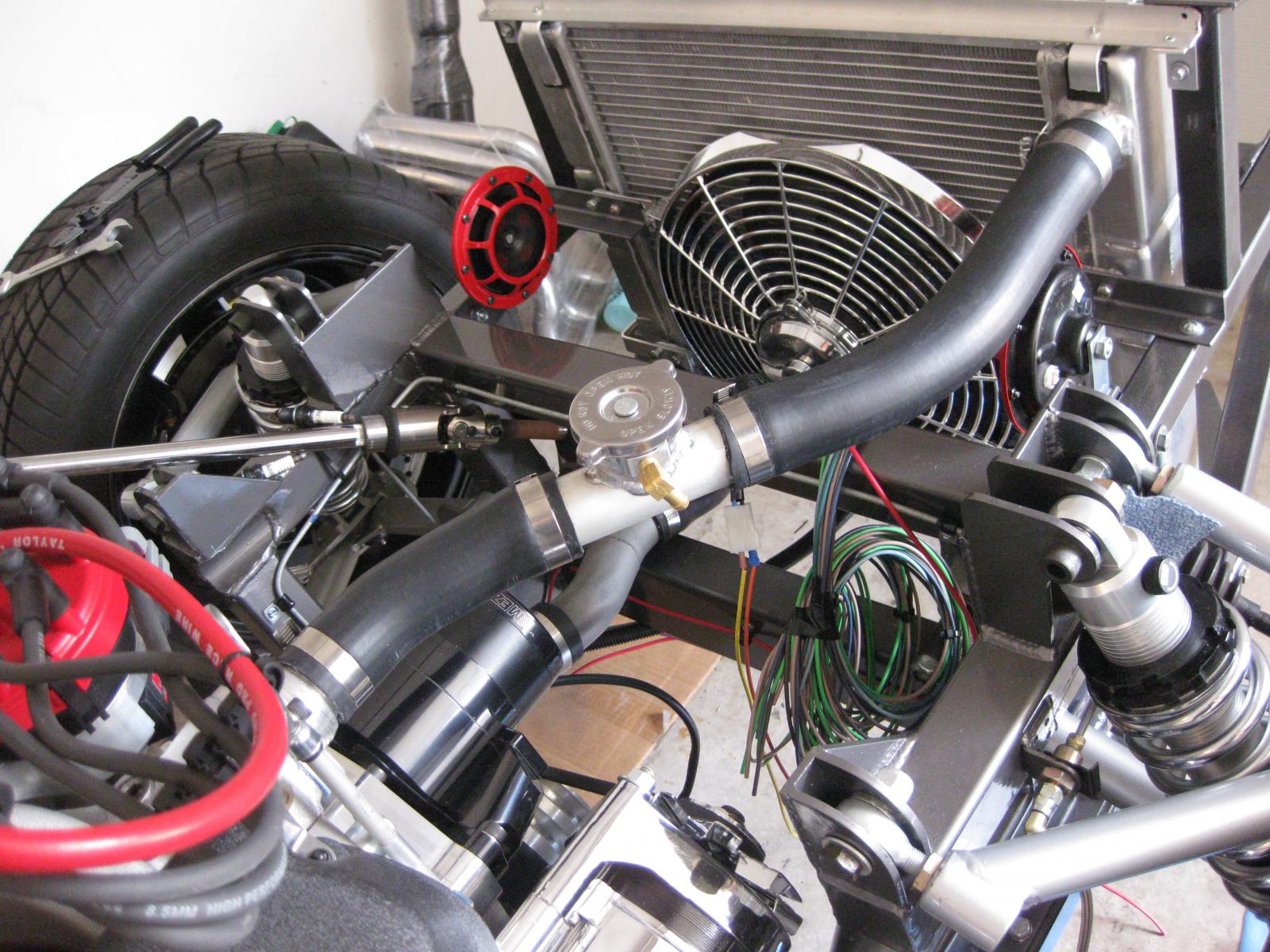

Size:  265.5 KBName:  Radiator hose fan mock.jpg
Views: 3936
Size:  290.8 KBName:  Rear a arm mock.jpg
Views: 3744

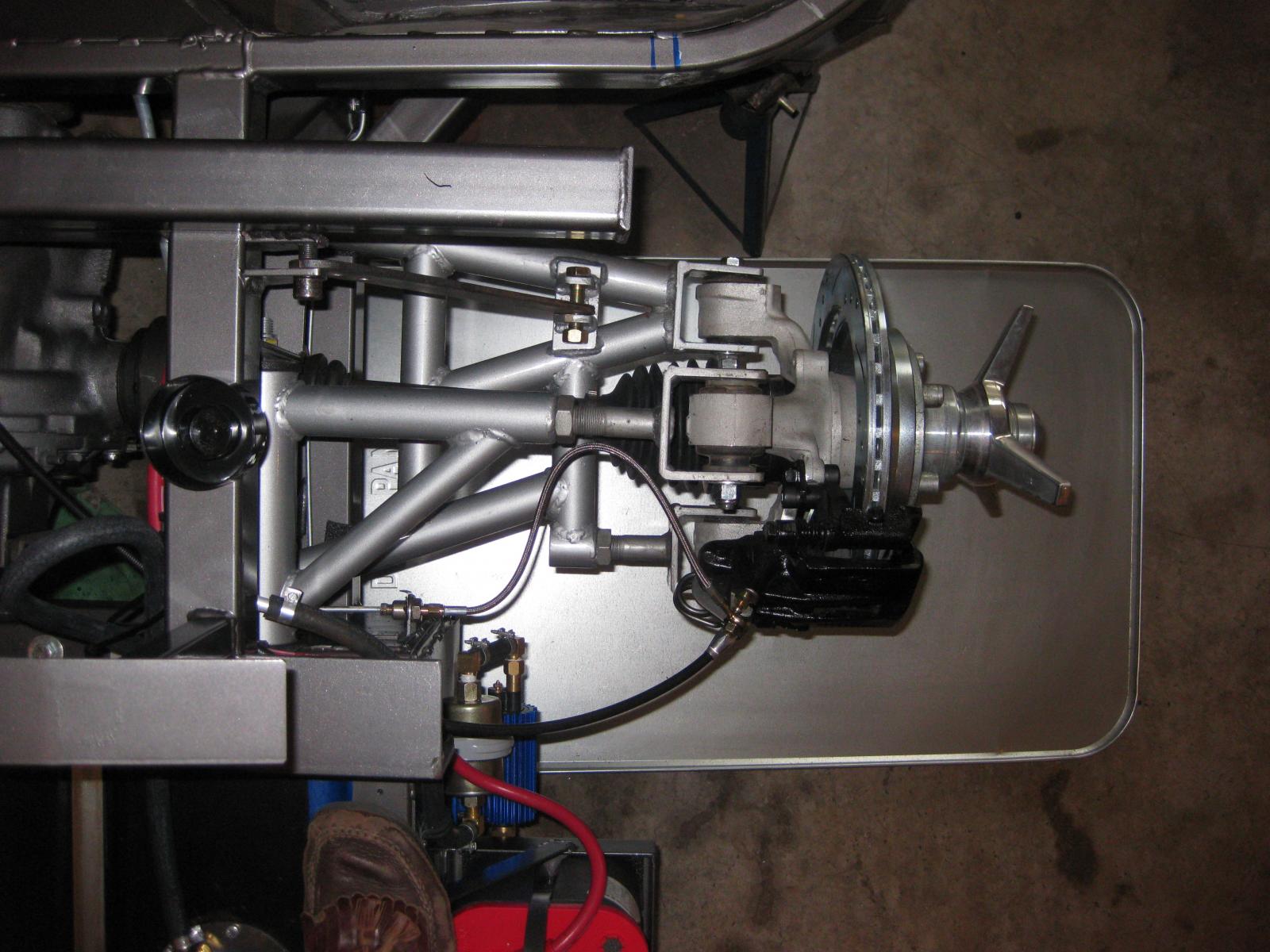

Size:  230.4 KBName:  Rear a arm mock top.jpg
Views: 3825
Size:  208.5 KBName:  Rear brakes.jpg
Views: 3924
Size:  216.5 KBName:  Rear top.jpg
Views: 3682
Size:  214.1 KB

    6. #6
      Join Date
      Sep 2012
      Posts
      15
      Country Flag: United States

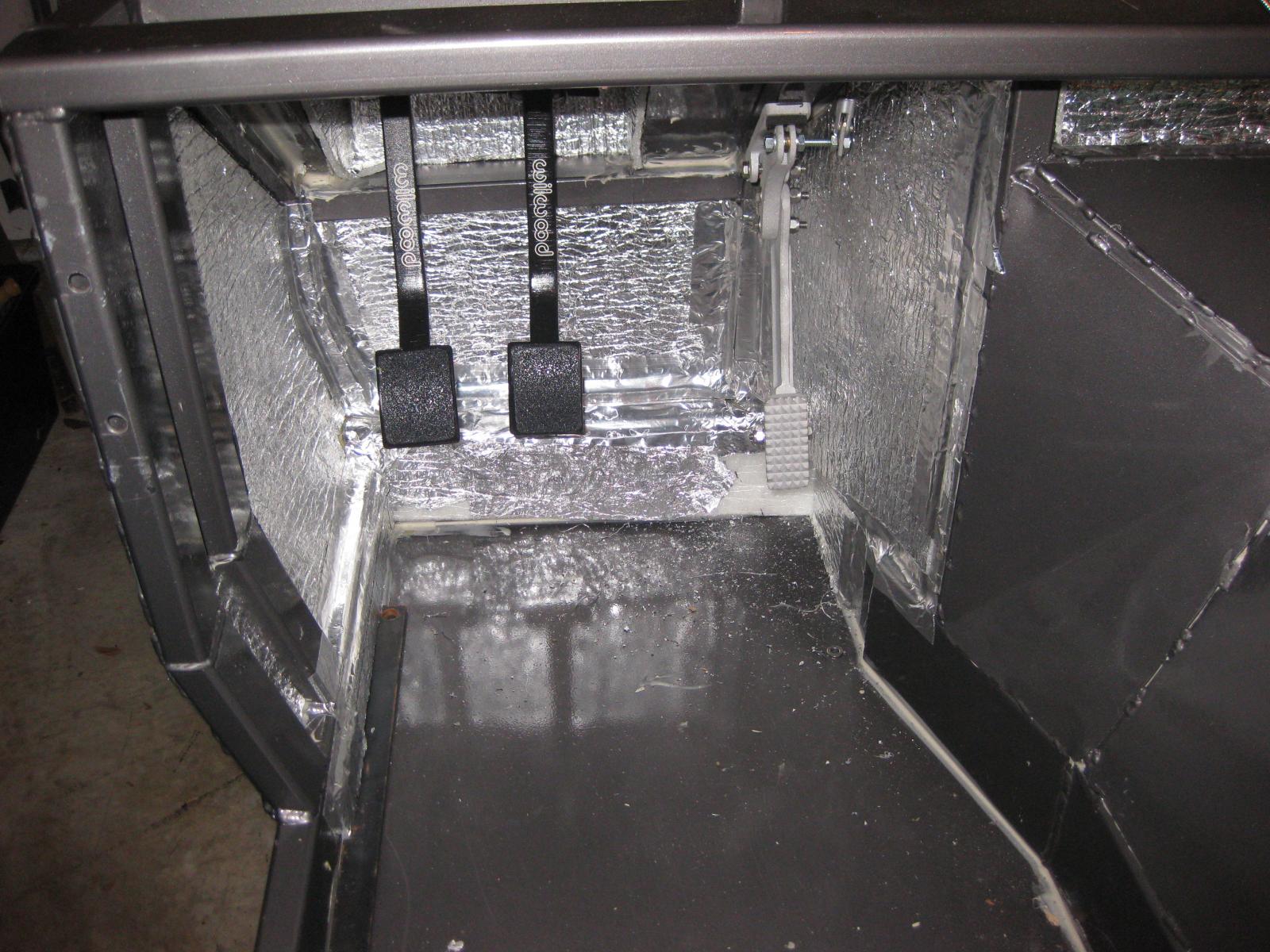

      Name:  Foot box.jpg
Views: 3828
Size:  277.0 KBName:  Suspension top.jpg
Views: 4446
Size:  140.6 KBName:  topfront suspension.jpg
Views: 3604
Size:  4.4 KBName:  sidefrontJBL.jpg
Views: 3568
Size:  3.6 KBName:  dash mock 2.jpg
Views: 3773
Size:  283.5 KBName:  Dash_Lights 2.jpg
Views: 3585
Size:  2.7 KBName:  Ground_clearance.jpg
Views: 3575
Size:  2.5 KBName:  Loading for paint.jpg
Views: 3573
Size:  4.0 KBSteering, dash and basically getting to the go-kart stage.

    7. #7
      Join Date
      Sep 2012
      Posts
      15
      Country Flag: United States

      Interior finished

      Here the finished interior along with the mock up before it was finished.

      Name:  JBL Cockpit.jpg
Views: 3753

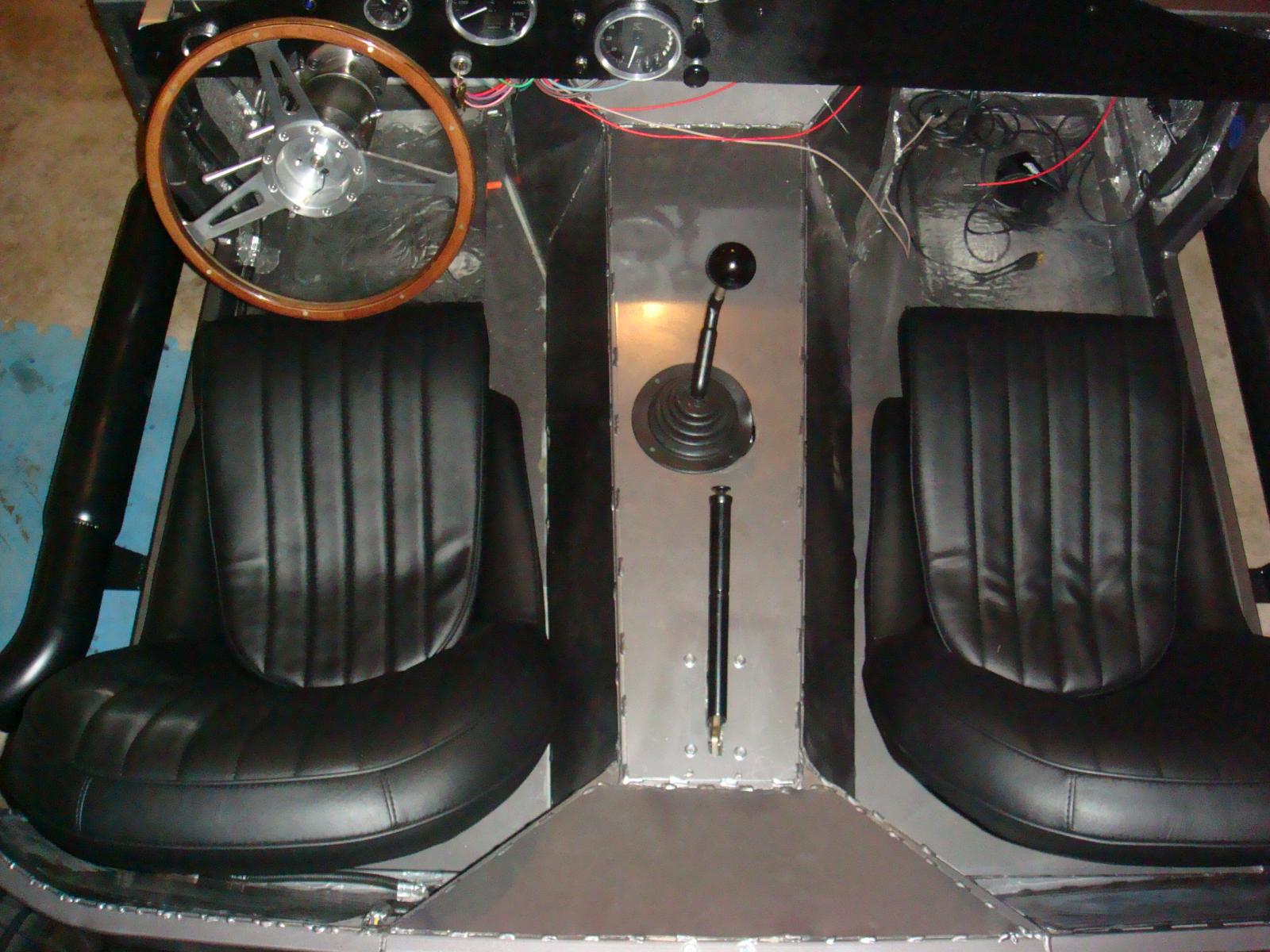

Size:  170.4 KBName:  Cockpit mock top.jpg
Views: 3665
Size:  211.7 KB

    8. #8
      Join Date
      Sep 2012
      Posts
      15
      Country Flag: United States

      Go-Kart drive

      Here are videos of the go-kart running around. All ready for the body, windshield, roll bars etc.


      http://www.youtube.com/watch?v=RGoNq...=ULRGoNqbD0CWc

      http://youtu.be/FboRgUEgoeM

    9. #9
      Join Date
      Sep 2012
      Posts
      15
      Country Flag: United States

      Finished except for trunk

      Name:  Finished rear.jpg
Views: 3697
Size:  208.0 KBName:  Lower wider 4.jpg
Views: 4165

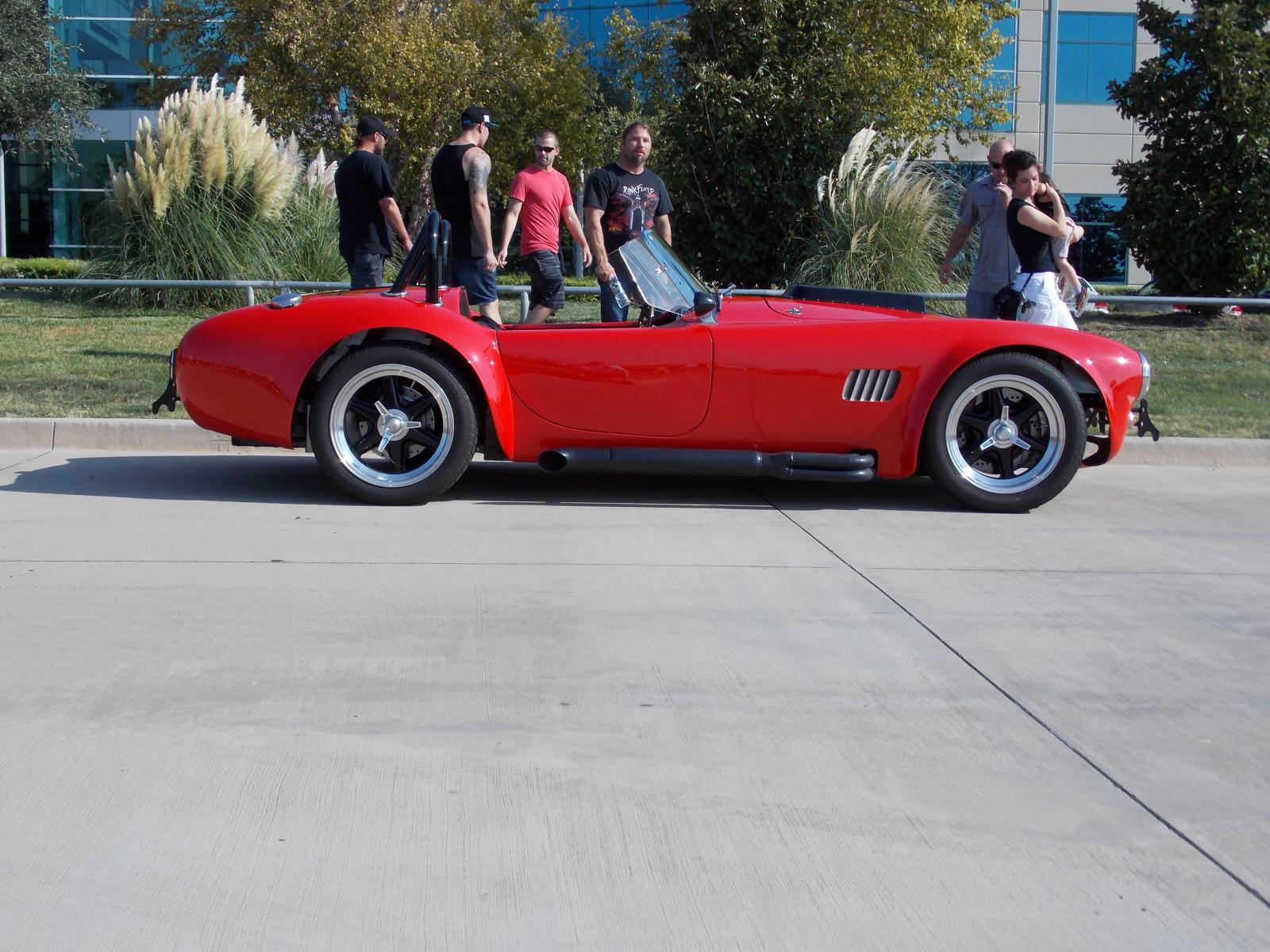

Size:  313.5 KBName:  Side view cc.jpg
Views: 3762
Size:  284.9 KBName:  3_4 view cc.jpg
Views: 4329
Size:  250.5 KBOK so that's about 3 years worth in a few minutes. Here are more picks of the finished car......but you can tell it is lower and wider than the original type dimensions. The purists HATE that!

    10. #10
      Join Date
      Sep 2012
      Posts
      15
      Country Flag: United States
      Some pics of the trunk, before and after. Just finished it two weeks ago. Lots of work making about a dozen different pieces, since there was nothing there at all before. The battery is under the floor panel on the right.

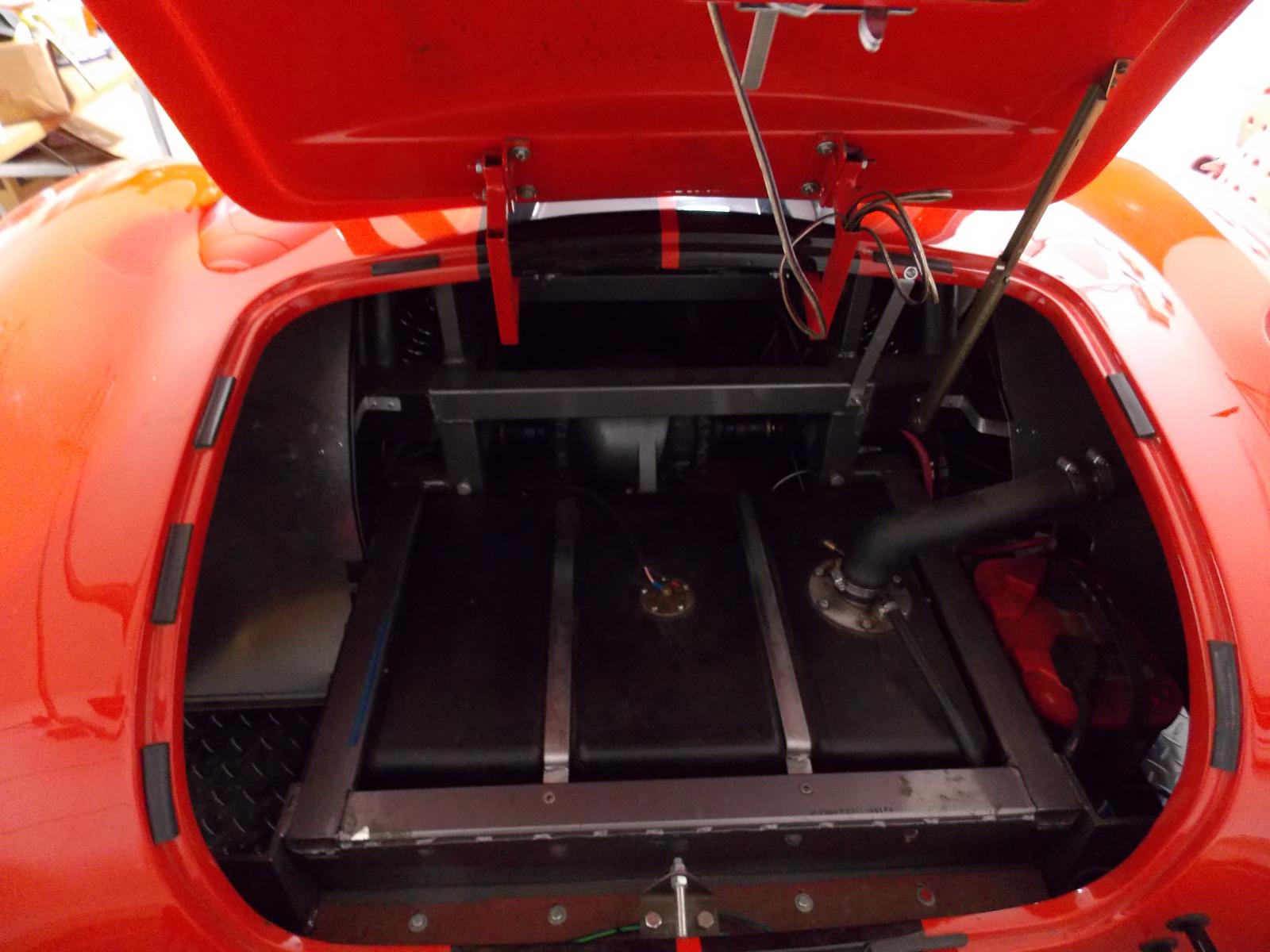

      Name:  JBL Trunk before.jpg
Views: 3850
Size:  158.7 KBName:  Trunk finished.jpg
Views: 3613
Size:  326.6 KB

    11. #11
      Join Date
      Sep 2012
      Posts
      15
      Country Flag: United States
      Video of the car idling.

      http://youtu.be/026Ui1qiaJs

    12. #12
      Join Date
      Nov 2011
      Posts
      89
      Beautiful car! A lot of great ideas went into making the car comfortable to drive. I have a love for these cars inherited from my Dad who has a Cobra built by Ted Thomas, The Riddler Award winner. While not quite as radical in the frame it has some other things like a removable hard top, side windows, AC and a stereo. AT 67 he wanted his dream car to be comfortable.


      Greg

    13. #13
      Join Date
      Jul 2009
      Location
      Grand Rapids, MI
      Posts
      1,559
      Country Flag: United States
      Great looking Cobra. You've done some things there that I have in mind for a Cobra later in life, particularly lengthening, widening, and lowering... Very nice work.
      Will Ellis
      1969 Dodge Dart Swinger, 1/2 Dart / 1/2 Viper...
      Build Thread

    14. #14
      Join Date
      Jun 2009
      Location
      Central FL
      Posts
      1,240
      Outstanding. Simply outstanding.
      Dan
      1968 Camaro v2
      LS6 :: Viper T56 :: C5 Brakes :: Hotchkis Suspension


    15. #15
      Join Date
      Nov 2011
      Location
      Massachoosetts.
      Posts
      43
      Country Flag: United States
      Beautiful. I love it! Looks outstanding, great stance, great lines, you name it!
      Ahh the purists... gotta love (read: hate) them.
      You'd figure Ol' Carroll Shelby himself would probably appreciate one made a little wider and better in the handling department. After all, I recently read that he rarely drove his own Cobras and preferred his Mustangs and some of the Chrysler turbo cars because they gave him more room!
      1969 Dodge Coronet Coupe - PT Project
      1974 Dodge Dart Swinger - The Cruiser

    16. #16
      Join Date
      Dec 2009
      Location
      Carson City, NV
      Posts
      860
      Country Flag: United States
      Love the wider body, looks more aggressive then the other one's. great job....

    17. #17
      Join Date
      Nov 2008
      Location
      NC
      Posts
      574
      Country Flag: United States
      That looks great.
      I like the idea of having everything steel and welded. That must be a joy to drive.
      Do you have any video of it in action?

    18. #18
      Join Date
      Apr 2004
      Location
      Cedar Rapids, IA
      Posts
      994
      That is very cool. What a mountain of work!

      How did you determin how much to widen the body? Was the plan to widen the body to match the frame or was the frame dimension already planed and the body was matched.

      Once the body was widened how did you make the windshield?

      How did you fill in the gaps of the door and body? I wouldn't think you could just use fiberglass matt? Did you have some donner body parts?
      Some times I'm fast sometimes I'm half-fast

    19. #19
      Join Date
      Sep 2012
      Posts
      15
      Country Flag: United States
      rohrt,

      The body that was cut in the pictures was to make the mold that the body was pulled from. Here are pics of making the mold. The body and frame were a joint design project between Richard Hudgins (frame and suspension) and Larry Goins and others back in the late 90's in the San Diego area when they started the JBL business. Richard has done a lot of work in designing racing suspension geometry. The windshield is standard dimensions, and can be bought as an aftermarket part.

      Name:  MOld fabrication.jpg
Views: 4623
Size:  45.8 KBName:  Mold fabrication 2.jpg
Views: 3282
Size:  52.0 KBName:  mold platform.jpg
Views: 3284
Size:  89.4 KB
