1970-81 Camaro door lock install kits

[Modo Innovations]

This kit is designed to fit the 1970-81 2nd Gen F-bodies. Just like our MI 900 for the 1967 F-body and the MI 910 for the 1968-69 F-body, this kit is designed to use the MES actuators supplied in our MI 700 keyless entry kit.

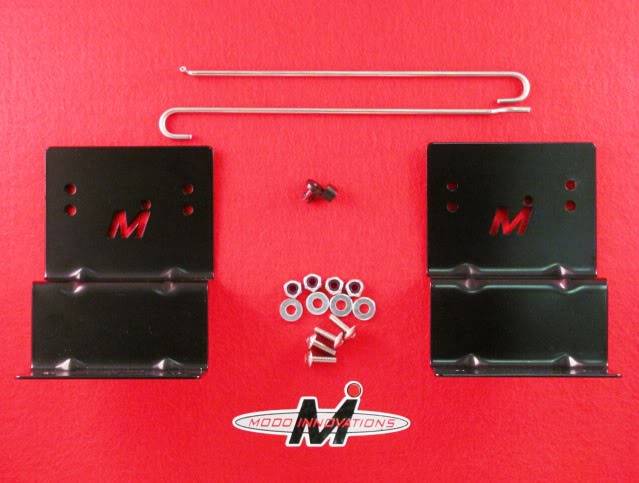

Included in each kit are powder coated steel brackets, fixture formed 304 stainless steel rods, rod clip for passenger door, hardware, detailed instructions and drill templates.

The drill templates locate the mounting hardware for the brackets. The mounting hardware is hidden behind the door panels. The brackets are manufactured so that they place the actuator out of the way of all the internal moving window mechanisms. The brackets also place the actuator in the proper alignment with the latch. The kit utilizes the unused hole in the door latch as the hook up point for the supplied fixture formed actuator rods. One end of the rod is manufactured to fit into the actuator and the other for the latch. (there is a driver’s rod and a passenger’s side rod and clip) The driver's side latch has an hour glass shaped hole and the rod is designed to fit into this hole and lock itself in place. On the passenger's side, the rod clip snaps into this unused hole, then the rod into the clip. With a ¼ twist of the clip, it snaps over the rod to secure it into place

The price for the kit is $64 + $12 shipping (there will be a price increase on 1/1/11)
To order call 940-391-9002 or buy online at our website.




Below is a picture of the door with the partial skin removed so the installation can be viewed.

[LeighP]

Hi,
Very interested in this new kit.
I have a couple of questions....
1. Do you ship international (Australia)?
2. I'm adding a locally available security system with door actuation control, so I don't need your full kit containing the control system....I'd like to buy just the 2nd gen mounting system (above) and the two door lock actuators only.....can I do that?
Thanks.

[Modo Innovations]

Hi Leigh,

Shipping is not an issue, you can choose which carrier you would like to use. I will just need to get you a quote on the carrier you would like to use.
No problem on buying just the actuators and the install kit either.

You can contact me thru my website or by phone 940-391-9002.

[LeighP]

Thanks, I'll give you a call...these are just what I need.

[LeighP]

Thanks for the help...nice talking to you yesterday.

[Modo Innovations]

Thanks for the help...nice talking to you yesterday.

Nice to talk to you as well Leigh. Thanks again for your business.

[BOBBYA312]

These are just what I need Thanks
