wilwood master

[$Mike70Z-28]

need to know ? the wilwood master has 4 ports can i use the 2 for the front brake lines so wont need to use the tee

[wmhjr]

There have been a couple threads about this, but as I recall the answer is yes.

[$Mike70Z-28]

trying to find threads but cant find them......... thanks

[staged67gspwr]

ttt

[LONE*STAR]

I did hope it's fine

[protour73]

I think the ultimate answer to this question requires a call to Justin or someone else at Wilwood's Tech Support.

Based on the information in the instructions that come with each Tandem Master Cylinder you have to take away that only one can be used:

Two hex head plugs are
supplied to block the unused outlet ports. Pressure may be taken from either side of the master cylinder.

• Connect one of the primary outlet ports (A) to the brakes at the end of the vehicle with the greatest total effective piston bore area.
On most vehicles, this will be the front brake line (see note next page).
• Connect one of the secondary outlet ports (B) to the brakes at the end of the vehicle with the lesser total effective piston bore
area. On most vehicles, this will be the rear brake line (see note next page).

Just for an example go through the Engine Picture thread, you'll not find one Wilwood Tandem Master with both ports plumbed for the front brakes https://www.pro-touring.com/forum/sh...ad.php?t=60345

[$Mike70Z-28]

thanks protour

[dipren443]

The Tee makes it alot cleaner. I can take pics of what I am running if you are curious. I am using the Wilwood tandem master with an adjustable prop valve on a 2nd gen.

[staged67gspwr]

The Tee makes it alot cleaner. I can take pics of what I am running if you are curious. I am using the Wilwood tandem master with an adjustable prop valve on a 2nd gen.

Yes i`d like to see a pic if possible.

Hey Mike you order the pinion yoke yet?

Thanks

[dipren443]

Yes i`d like to see a pic if possible.

Hey Mike you order the pinion yoke yet?

Thanks

I will snap pics of the lines tonight. Engine is out currently so I should be able to take good pics.

[$Mike70Z-28]

Yes i`d like to see a pic if possible.

Hey Mike you order the pinion yoke yet?

Thanks

yes lalin

[staged67gspwr]

yes lalin

Ok Saso,lolol

[protour73]

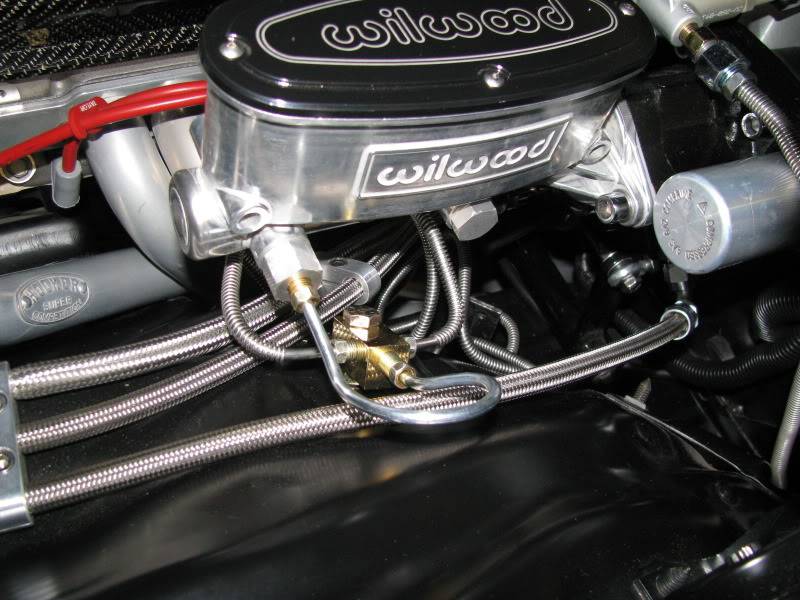

This is what I ended up with after installing my Hydroboost setup



The Wilwood proportioning valve for the rear brakes

[absintheisfun]

This is what I ended up with after installing my Hydroboost setup



The Wilwood proportioning valve for the rear brakes

Just so I'm certain here, you have one line out running to a "T" to the front and one line out running to a prop for the rear? I'm assuming you have another "T" at the differential?

Thanks!
