Thread: NEW RideTech Modular Sway Bar
-
12-18-2009 #1
Registered User
- Join Date
- Oct 2005
- Location
- Jasper,IN
- Posts
- 540
NEW RideTech Modular Sway Bar

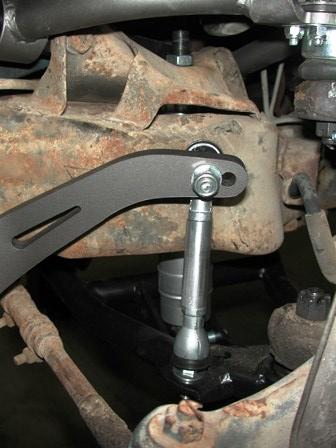

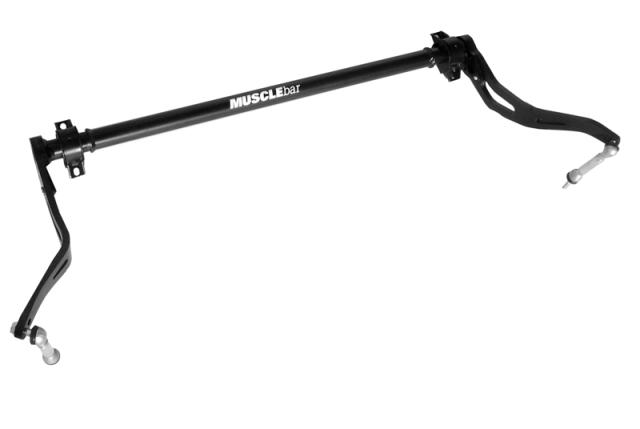

Rodney just finished development on the new MuscleBar sway bar for the front of the 78-88 GM "G" Bodies (Monte Carlo, Cutlass, Malibu, Regal, GN). This bar uses a modular design similar to out Imapla, Chevelle, and Camaro Musclebar. It also utilizes the PosiLink enlinks to eliminate freeplay associated with conventional poly bushing endlinks.
http://www.ridetech.com/shop/index.p...roduct_id=6477
Last edited by darren@ridetech; 12-18-2009 at 12:46 PM.
-
12-19-2009 #2
Registered User
- Join Date
- Dec 2006
- Location
- Out of the Burbs of Detroit to SoCal, then onto my ancestral homeland, the woods of Cascadia
- Posts
- 1,753
Ao the arms are bolted to flanges secure to the bar?
Greg Fast
(yes, the last name is spelled correctly)
1970 Camaro RS Clone
1984 el Camino
1973 MGB vintage E/Prod race car
(Soon to be an SCCA H/Prod limited prep)
12-21-2009 #3
Registered User
- Join Date
- Oct 2005
- Location
- Jasper,IN
- Posts
- 540
Yes the arms are attached to the flange with 3 3/8" Allen bolts. It's located by the end of the tube.
12-21-2009 #4
Registered User
- Join Date
- Oct 2006
- Location
- So Cal San Dimas Ca.
- Posts
- 352
Sweet!! Are shorter links available for cars with lower ride heights??
12-21-2009 #5
Registered User
- Join Date
- Jun 2007
- Location
- Auburn, CA
- Posts
- 613
What specific benefits will this give me? Wider tire less rubbing? Better sway bar spring rate?
Tim Tracy
68 Camaro 496 / T56 - Never Finished
68 Camaro Real Z/28 - Under Restoration
67 Camaro Project - Never going to have time
12-22-2009 #6
Registered User
- Join Date
- Oct 2005
- Location
- Jasper,IN
- Posts
- 540
This bar was designed on our StrongArms with a 2" drop ride height. So you should be fine. The sway bar mount location on the StrongArms is the same as factory, so fitment is possible on other arms but we have not test fit them yet.
Originally Posted by nowukno
12-22-2009 #7
Registered User
- Join Date
- Oct 2005
- Location
- Jasper,IN
- Posts
- 540
I know on the A Bodies we gained a fair amount of tire clearance. We were able to run a 10" whell w/ 275's. Not sure on this car yet. I'll find out though, and report back. Originally Posted by TT302Z28
- Uses a 1.5" diameter .188" wall tubing
- The PosiLinks eliminate the poly bushing, so you are always on the bar, not compressing the poly.
- It looks cool.....
12-22-2009 #8
Registered User
- Join Date
- Oct 2006
- Location
- So Cal San Dimas Ca.
- Posts
- 352
Thank you Darren
12-24-2009 #9
Registered User
- Join Date
- Aug 2004
- Location
- Rowlett Tx.
- Posts
- 201
What specific g-body are you guys testing on? What wheel width & BS-ing?
12-29-2009 #10
Rat Pack Member
- Join Date
- Nov 2004
- Location
- LYNCHBURG,OHIO
- Posts
- 512
I am also interested n knowing the specs on wheel and tire combo?
Greg Tholen
GT Motorsports
Dealer for Wilwood,Baer,Viking,Moser,BMR,Earl's
(937)763-7272
08-06-2012 #11
Registered User
- Join Date
- Aug 2012
- Posts
- 7
Has anyone intstalled the on an 85 monte carlo ss?
