Idler Arm Relocation

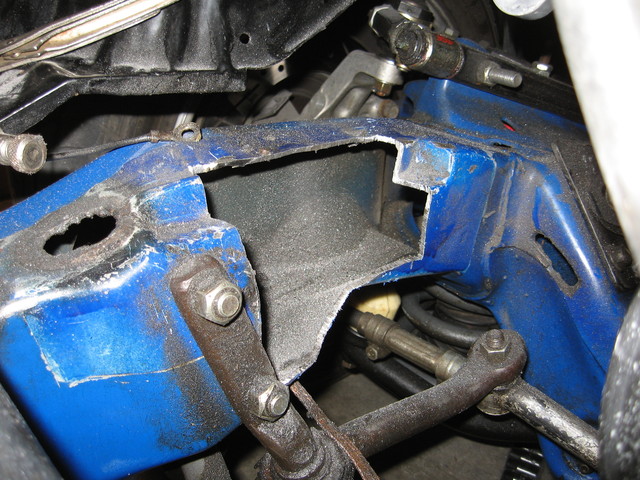

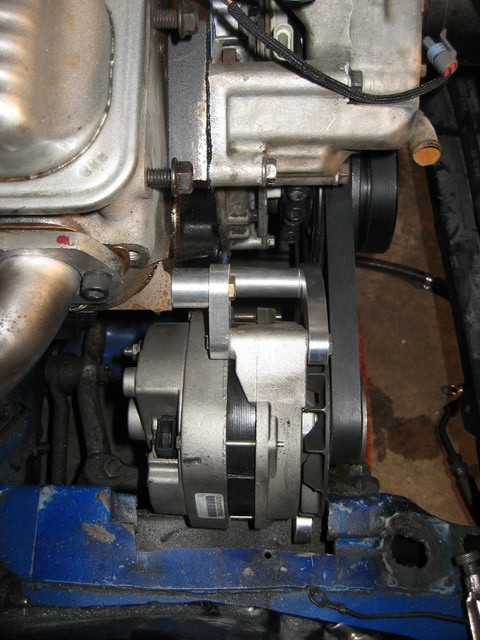

I installed an alternator relocation bracket meant for a fourth gen F-body on my LT1 motor which resides in my S10. I had heard there would be interference with the frame. I was okay with cutting the frame so I bought the kit and got to work. The notch was much larger than expected (see pictures). But that's okay because I'm getting ready to box in this area...

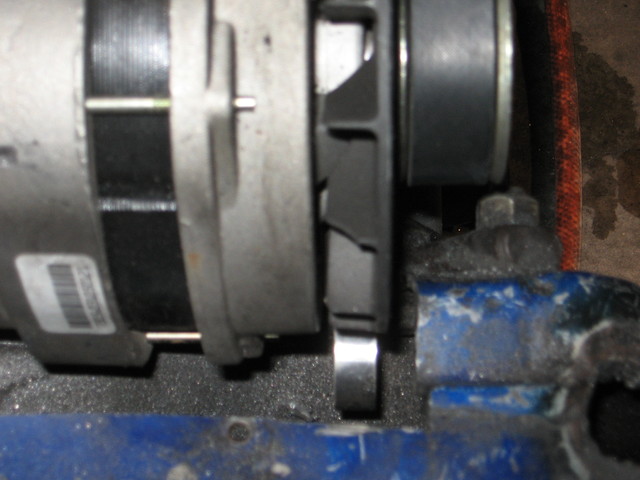

...But then I had to keep cutting. And cut some more. And finally I got to within 1/4" of where the bracket needed to reside. Unfortunately that was directly in the path of the idler arm bracket that bolts to the frame. So I notched the idler arm bracket.
Now my problem is that the two rattle against each other and it's really loud and obnoxious. It's transferring sound to the frame. Ehhhhh...
I want to relocate my idler arm bracket. I basically want to "swing" it 90-degrees toward the front of the truck.
So my question is this: As long as I keep the "axis" of the idler arm the same as well as the "height" of the pivot point the same...WILL THIS BE OKAY??
Hopefully someone like Marcus will see this and chime in as I bet this setup is similar to G-body stuff...

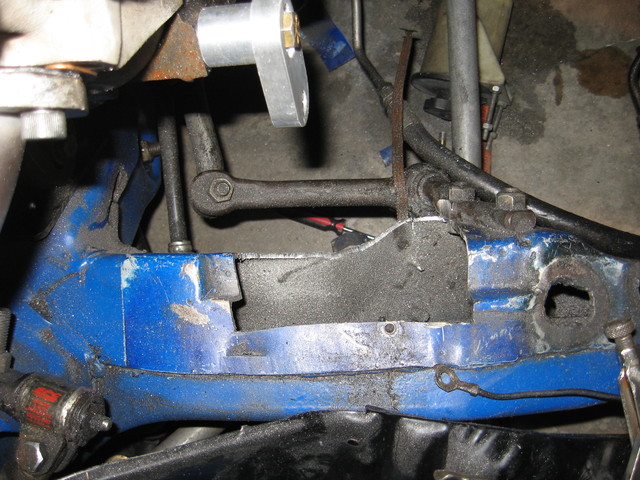

Just beginning my cut for the notch:

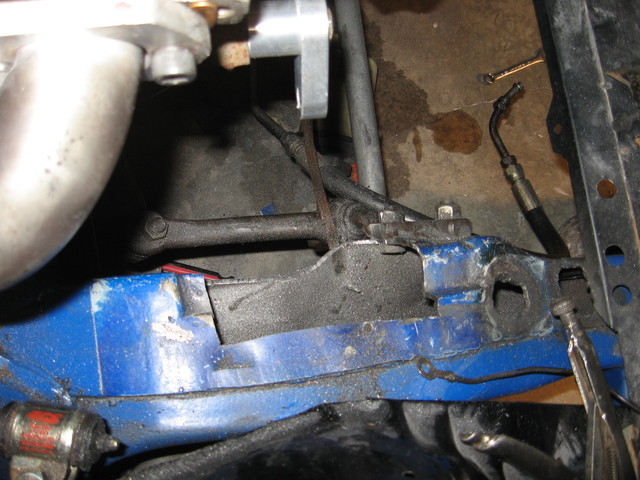

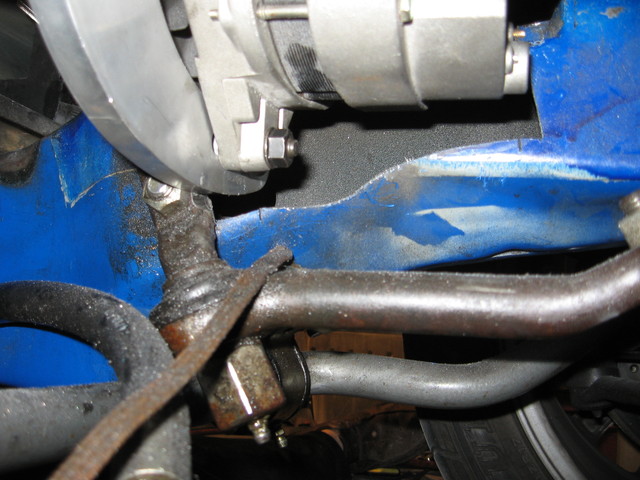

Thinking I'm getting close here:

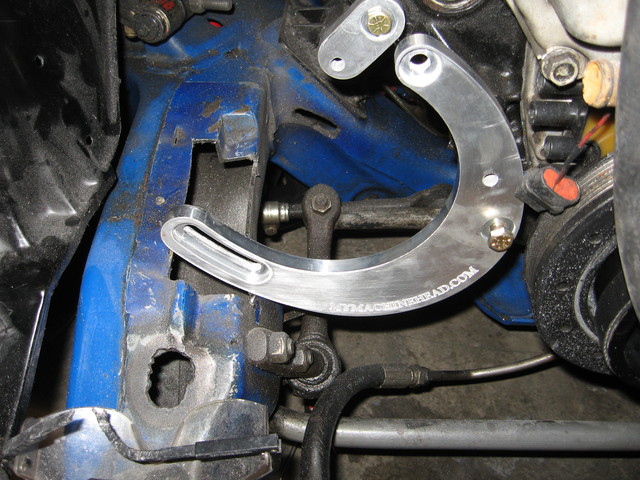

I had to go a little bigger than planned:

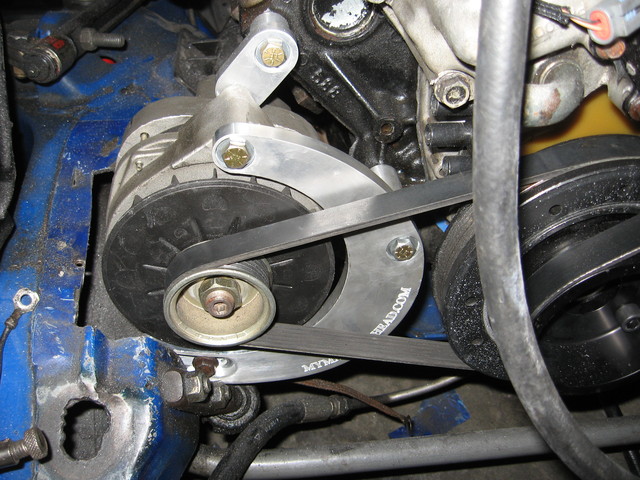

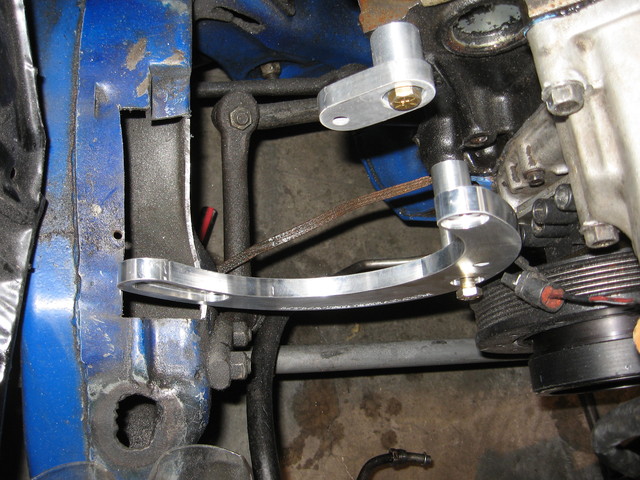

In and mocked up:
Adam
1985 S10 - LT1 + T56
1964 Chevy II 4-Door - LS1 + T56
-
06-09-2009 #2
Registered User
- Join Date
- Sep 2007
- Location
- Buford, GA
- Posts
- 923
I want to unbolt the idler-arm bracket from the frame and swing it forward.

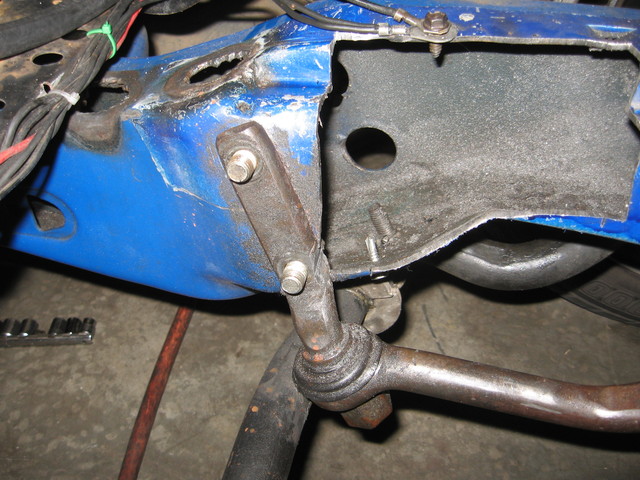

Unbolted:

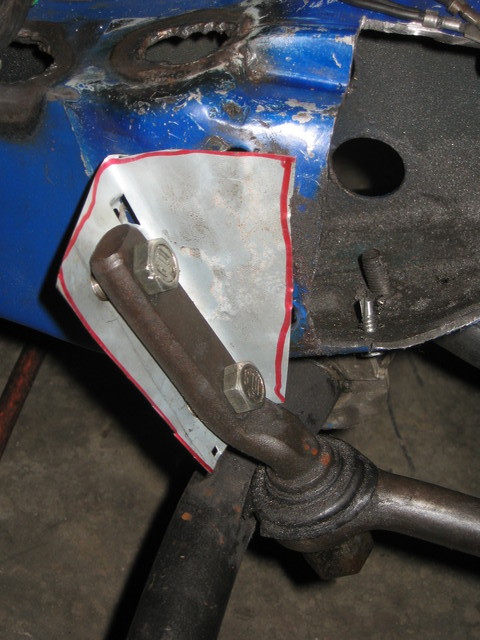

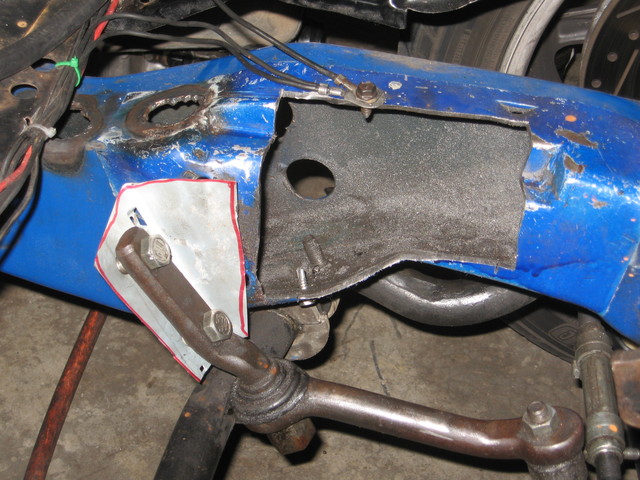

Swung forward with a mock-up bracket:
Any feedback on this? Good, bad, indifferent??
TIAAdam
1985 S10 - LT1 + T56
1964 Chevy II 4-Door - LS1 + T56
06-09-2009 #3
Registered User
- Join Date
- Dec 2006
- Location
- Out of the Burbs of Detroit to SoCal, then onto my ancestral homeland, the woods of Cascadia
- Posts
- 1,753
If the pivot axis is the same, should have no impact...
Greg Fast
(yes, the last name is spelled correctly)
1970 Camaro RS Clone
1984 el Camino
1973 MGB vintage E/Prod race car
(Soon to be an SCCA H/Prod limited prep)
06-09-2009 #4
-Moderator-
- Join Date
- Apr 2005
- Location
- USA
- Posts
- 4,462
That looks good Adam .
Jeff Tate
U.S.A.
"The best thing about participating in these events is that you get to hang out with a group of intelligent like minded people who live to achieve things in their lives. You won't find a lazy, mean, or dumb bone in their bodies." Bret Voelkel, RideTech
06-09-2009 #5
Registered User
- Join Date
- Oct 2007
- Location
- Newark DE
- Posts
- 238
I see no problem with it.
06-09-2009 #6
Registered User
- Join Date
- May 2005
- Location
- Fontana, CA
- Posts
- 4,960
Correct.
Originally Posted by Twentyover
Just ensure you use additional bracing as the current single bent piece doesn't appear substantial enough.Nick R.
69 Camaro - 383, 700R4, 12 bolt 3.55, Hotchkis, Bilstein, Global West, Morris Classic
08 HHR SS - Still Stock for now
Do you still believe in all the things that you stood by before? Are you out there on the front lines, or at home keeping score?
Do you care to be the layer of the bricks that seal your fate? Would you rather be the architect of what we might create?
06-09-2009 #7
Registered User
- Join Date
- Sep 2007
- Location
- Buford, GA
- Posts
- 923
Yeah, that's just thin tin so I could get a template to take to the metal shop. Good idea on the reinforcing. Originally Posted by 6'9"Witha69
Adam
1985 S10 - LT1 + T56
1964 Chevy II 4-Door - LS1 + T56
