New Brake, Clutch Throttle Assembly from Clayton Machine Works

[TitoJones]

Erik,

These are designed to drop right into the stock pedal hanger/bracket as well as utilze existing clutch, brake rods, etc. However, it's obvious that we need to develop an "adapter" to fit applications such as yours.

Here is an image I found that shows what has previoulsy been done to accomodate a LS1 hydraulic clutch to a '69 Camaro pedal assembly. This image came from a build that was on Street And Performance's website.

I hope this helps.

Or you can use ATS modified hydraulics; they bolt up to factory pedals with out the need for an addtional adapter. I gave Ron Wilson a firewall bracket and hydraulic master to give to you to add that feature to your pedals; I'm guessing it never reached you.

Tyler

[clay johnson]

Or you can use ATS modified hydraulics; they bolt up to factory pedals with out the need for an addtional adapter. I gave Ron Wilson a firewall bracket and hydraulic master to give to you to add that feature to your pedals; I'm guessing it never reached you.

Tyler

Tyler,

Thanks for the input, and no I never received the parts. I'll check on them and see if we can get them headed this way.

[scherp69]

I'd be interested to see if you can get an adapter for a LS hydraulic clutch as I'm running that set up also and was planning on getting a set of the pedals in the near future.

[gggoad]

Clay, I am using an American Autowire Classic Update kit on my 69 and the pedal are hitting the fuse box - it will have to be relocated about an inch. Have you had any issues with this?

[clay johnson]

Clay, I am using an American Autowire Classic Update kit on my 69 and the pedal are hitting the fuse box - it will have to be relocated about an inch. Have you had any issues with this?

Gerald,

Bill Panouses had the same problem with Evade. I'm pretty sure he has the same fuse-box, and the issue was the signal flasher interfered. He simply mounted the flasher in a remote location and it worked fine. I hope this solves your problem. If there's anything else I can do, feel free to give me a call.

[John Wright]

I'm looking at getting two.. one for Track Rat and one for Penny.. they are just beautiful looking..

Curious about the fly-by-wire deal...

As for finishes I would offer the grey and the raw. That way if someone wants something special (ie, polished, black, etc) they can buy the raw and have it done.

Steve, Did you spring for these? Just wondering how the heel-toe worked for you....the factory spacing works for me, so if this mimicks the same spacing it should be fine.....just asking to see if someone has purchased these and their opinion of them.

(send me a PM if you don't have a favorable comment that you want to share in the open forum)

[clay johnson]

Steve, Did you spring for these? Just wondering how the heel-toe worked for you....the factory spacing works for me, so if this mimicks the same spacing it should be fine.....just asking to see if someone has purchased these and their opinion of them.

(send me a PM if you don't have a favorable comment that you want to share in the open forum)

John,

The pedal spacing on ours is the same as the OEM pedal assembly, so you should be fine.

[John Wright]

^Thanks....I keep coming back and looking at them.....LOL

They are purdy.

[protouring70]

Beautiful design work. It is like a piece of art!!

[Blitz]

I can't wait to see the steering piece!

[jocko124]

When will the steering wheel be available?

[Blitz]

When will the steering wheel be available?

Been wanting to ask the same thing but didn't want to be the only one asking.

[clay johnson]

Been wanting to ask the same thing but didn't want to be the only one asking.

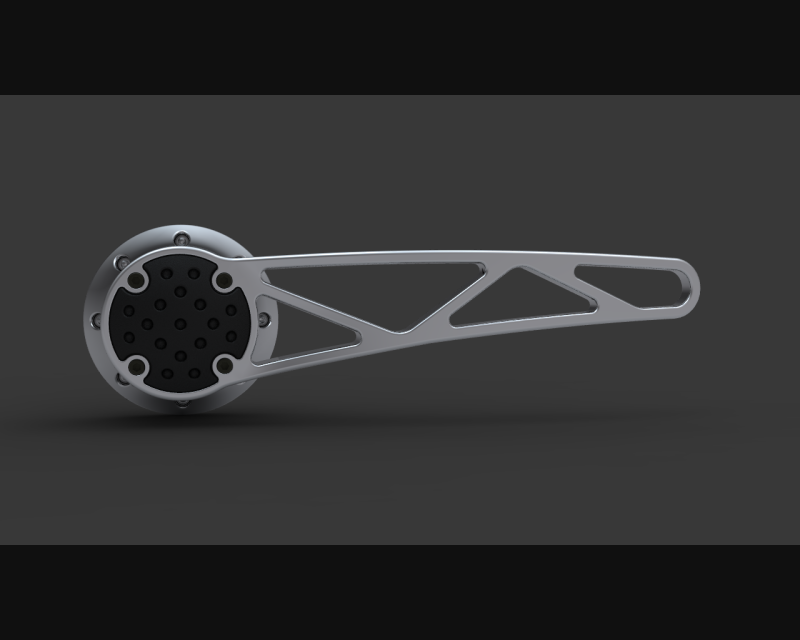

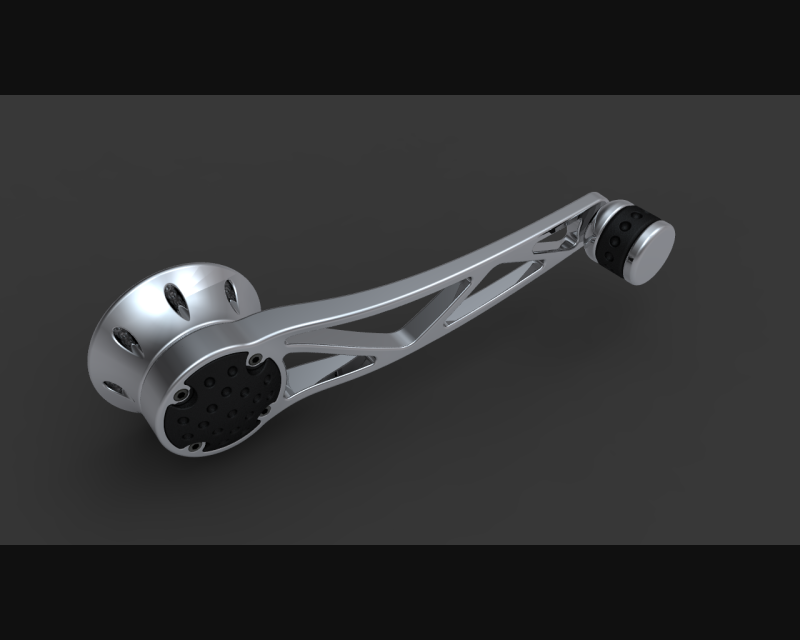

The steering wheel is a ways off. Here are our latest products, and should be shipping in a few weeks. Door handles that match our pedal assemblies, as well as two new fender braces.

[scherp69]

Clay...just wondering about the raw finish you offer. I know you have a DBW set up that includes the pedal cover, but I was looking at the new Lokar DBW pedal. I would swap out their cover for yours. I know the design of their arm is a bit different, but I don't think many people would notice the difference in the two. And if they are close enough to see the difference, I better be standing beside them. What I'm wondering though, how close do you think the color of the arms would be in raw finish in comparison to the Lokar arm? Do you have any pics with the pedals in raw finish. Here's the new Lokar for comparison:

[clay johnson]

Mike,

We don't offer them in a raw finish....only powdercoated. I think, your best best would be to send us the Lokar throttle arm, and have us powdercoat it the same as ours. That way, it will all be dead on matching.

Clay

[weircc]

do you guys have a website? i know this is a old post

[JTs67]

Claytonmachine.com

[tbal]

Is this available?
