T/T Headers for SBC

[ItDoRun]

Does anyone have some pictures of headers for a SBC T/T setup that they could post or PM me? I found a photo last week but forgot where I found it. I need to get a photo to my header guy for a rough price on him building them. Thanks.

[Y-TRY]

Here's one of mine from Kook's. I had to make the intermediate 'wastegate boxes' to position the turbos and give a place for the wastegates to bolt up.

Click here
and here

[ItDoRun]

Have you finished the t/t set up in your car? I would like to see some photos of some completed engine compartments.

[Overkill]

Have you finished the t/t set up in your car? I would like to see some photos of some completed engine compartments.

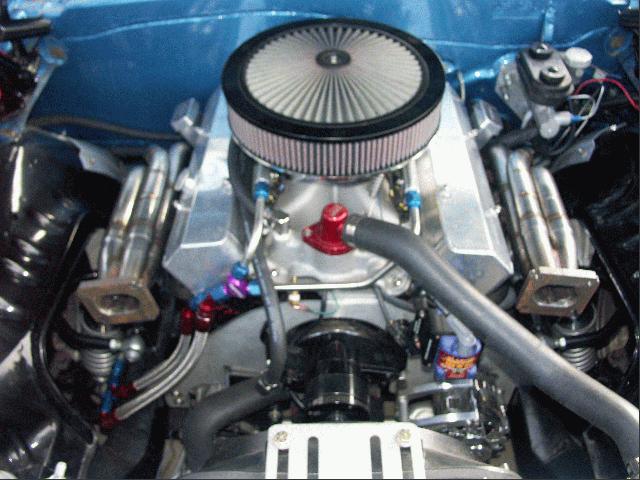

Not completed, but a mock-up off the same style of headers on my car. No turbos yet since I haven't figured out exactly what I want.

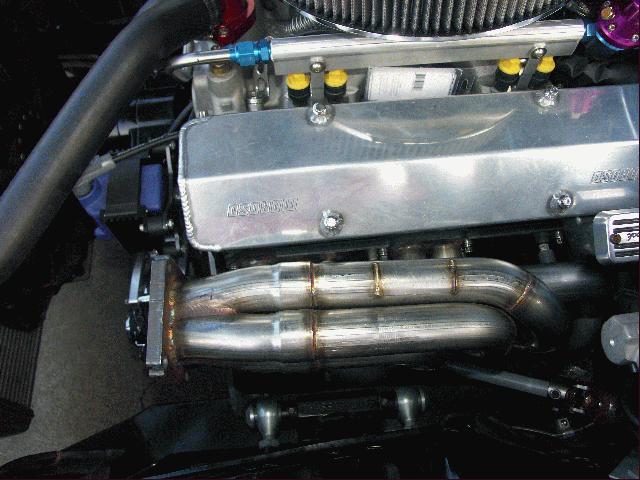

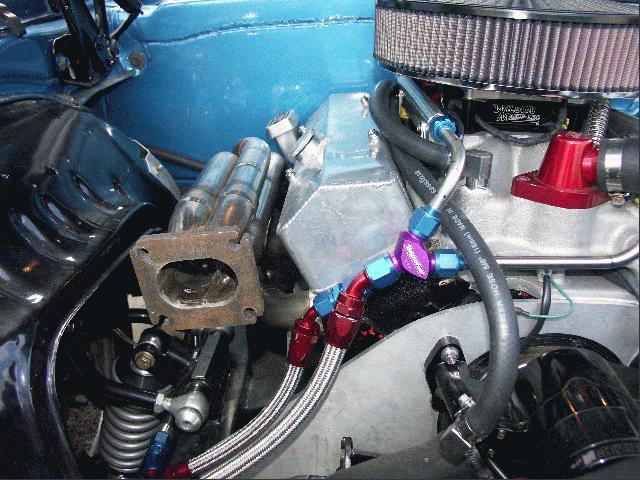

A little blurry, I know. But didn't look at the pics until I had already removed the turbo headers and put the SuperComps back on...

[ItDoRun]

Any clearance issues with the upper control arms and headers?

[Overkill]

Any clearance issues with the upper control arms and headers?

Doesn't look like there will be. They are a lot higher than the arms, but I do have an aftermarket subframe, so I'm not sure how they would fit with larger stock A-arms.






Hope those pictures help a little.

[Y-TRY]

Wow, those appear to be the EXACT Kook's headers I have. Designing those boxes was a bit tricky. Also, the #1 and #2 tubes had to be changed to clear the stock A-arms. Luckily, that was done prior to me getting them.

Overkill, what are your plans with the downpipes?

I think this is the latest, dirtiest picture of how my stuff is arranged...
