      1951 Ford F1 Build

      Picked up this 1951 Ford F1. Done a bit of work on it so far but here's the progress! Sorry for some of the sideways pictures!

      It's going to have a flat bed made to fit 2 motorcycles side by side, the motor i will put in it is an old chevy small block out of a c3 corvette because It's free. Going to build a box tube frame with '89 corvette suspension up front and a ford 9" in the rear with a 3 link set up. not sure which trans will go in it yet, but i'll let my available funds decide that later haha

      Name:  IMG_3569.jpg
Views: 1356
Size:  250.3 KBName:  IMG_3571.jpg
Views: 1295
Size:  250.2 KB
      Got it home. The rear wheels kept locking up the whole way home!



      Name:  IMG_3577.jpg
Views: 1195
Size:  236.1 KBName:  IMG_3601.jpg
Views: 1134
Size:  209.4 KB
      Stripping 'er down. built a simple wooden frame to hold it by the cab corners.

      Name:  IMG_3646.jpg
Views: 1100
Size:  210.4 KBName:  IMG_3628.jpg
Views: 1085
Size:  187.2 KBName:  IMG_3602.jpg
Views: 1081
Size:  159.2 KB
      Driver's side cab corner almost replaced. More updates soon!


    2. #2
      Join Date
      Apr 2018
      Location
      Ozarks
      Posts
      46
      Country Flag: United States
      Love those 50's Fords!

    3. #3
      Join Date
      Jan 2019
      Posts
      26

      Been off the grid, but here's a big update!

      Been a while since i've posted here, so i'll post my progress in a couple posts...

      Had to replace the rear cab corners, inside and outside.

      Name:  image1_c79f87a932d5f9517856c04f1663d23803134788.jpeg
Views: 1042
Size:  106.4 KBName:  Back driver's Structure.jpeg
Views: 1034
Size:  63.1 KBName:  Back Drivers Corner.jpeg
Views: 1039
Size:  159.9 KBName:  Back Passenger Corner.jpeg
Views: 1047
Size:  192.7 KBName:  Back Replaced Corners.jpeg
Views: 1039
Size:  119.5 KB

    4. #4
      Join Date
      Jan 2019
      Posts
      26

      Cab Nearing Completion!

      I decided to go ahead and buy the stock replacement floor instead of making one channeled to have the car sit low to the ground. With this floor i'll have the raise the rideheight a bit but it will be on the road sooner!

      I also decided to buy the Direct Sheetmetal 2" recessed firewall. it required some fitment. i needed to weld in 1/4" strip to make it fit the cab as it was too narrow. but even with that it was half a day to install.Name:  Firewall.jpg
Views: 1033
Size:  228.0 KB

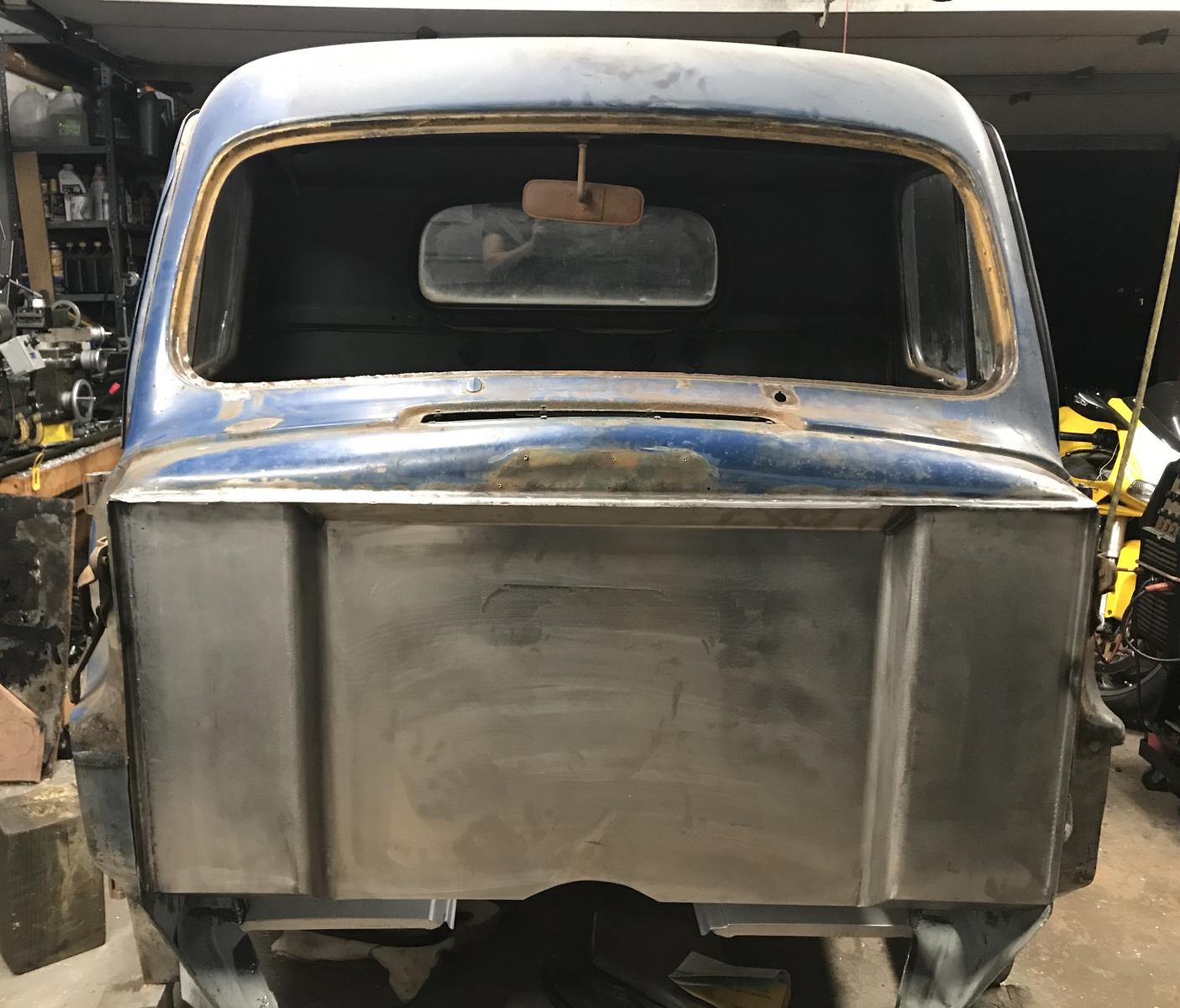

      Name:  image1.jpg
Views: 1058
Size:  167.9 KB
      My Mig welder is brocken so i had to do TIG rosette welds to fill the spot welds. it was a pain in the ass but none the less i am happy with the result


      Name:  image2.jpg
Views: 1042
Size:  159.9 KB
      The floor fit in with no issues. it wasn't a perfect fit but it is good enough for me!

      Name:  image3.jpg
Views: 1047
Size:  136.4 KB

      Name:  Door Gap Check.jpeg
Views: 1036
Size:  108.4 KB
      I made sure the the door gap was perfect before i welded in the floor...

    5. #5
      Join Date
      Jan 2019
      Posts
      26

      Body Mount Mock Up

      Just wanted to share how i am doing the body mounds in the front...

      I made mock ups from cardboard and made sure they were fitting exactly how i wanted. I then layed each of the pieces out on the table next to a ruler and to a birdseye photo of them. I brought this into Fusion 360 and calibrated it and vectorized it. then i can export as a .dxf and shoot to the waterjet to cut them out and weld them up.

      Name:  IMG_4645.jpg
Views: 1061
Size:  205.8 KB

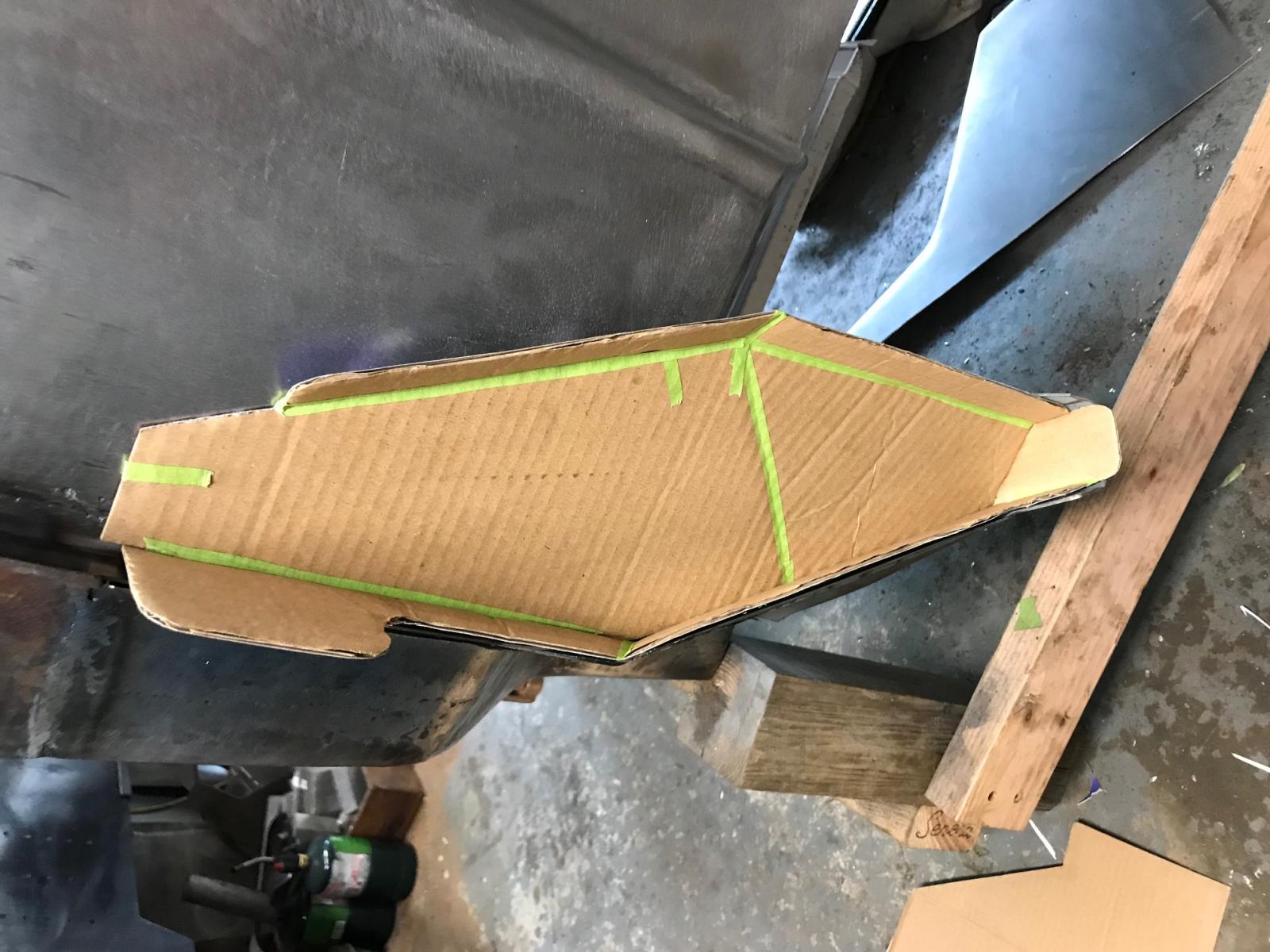

      Passenger side body mount

      Name:  IMG_4646.jpg
Views: 1042
Size:  210.6 KB
      Driver side body mount

      Name:  IMG_4654.jpg
Views: 1038
Size:  245.6 KB
      Fusion 360 vectorization...

    6. #6
      Join Date
      Jan 2019
      Posts
      26

      Beginning the Frame

      So the Frame is going to be a box tube frame built to fit the '89 corvette front clip i have in the front and a triangulated 4 link in the rear.

      Before i go buying material i want to model the whole frame up in Fusion 360 so i can create a cut list and make sure everything mates up as it should without any guess work.

      i Pulled the '74 sbc that i will be using for a temporary power unit. I will mount that motor onto the corvette clip sitting on wheels to take measurements so i know exactly how much i can lower the cab before i start interfering with the drivetrain. So that still needs to be done before i can finalize the frame model but here is what i have mocked up so far...

      Name:  Frame Rendering.jpg
Views: 1040
Size:  52.3 KB
      This is the 3D rendering of the frame

      Name:  Frame with Canvas.jpg
Views: 1086
Size:  305.8 KB
      i was able to use the factory drawings of the cab in order to rough out the geometry quickly

      Name:  Frame with Canvas.2.jpg
Views: 1115
Size:  238.9 KB

    7. #7
      Join Date
      Jan 2019
      Posts
      26

      Replaced the Front Corner (Again)

      After doing the rear corners, i knew i could do a better job on the driver's side front... so i cut it out and did it again!

      Name:  IMG_4666.jpg
Views: 1004
Size:  302.0 KB

      Name:  IMG_4669.jpg
Views: 1009
Size:  170.0 KB

      Name:  IMG_4672.jpg
Views: 1007
Size:  203.7 KB

      The door gap is not perfect but this truck is going to be driven, not perfect!

    8. #8
      Join Date
      Aug 2007
      Location
      Jonesboro, Arkansas
      Posts
      2,474
      Country Flag: United States
      I'm impressed that you've got a vertical mill! Welcome aboard.

      Carl Wilson
      1968 Camaro - T-56 6 speed - 383 Stroker, 2014 Mustang GT seats

    9. #9
      Join Date
      Jan 2019
      Posts
      26
      Quote Originally Posted by minendrews68 View Post
      I'm impressed that you've got a vertical mill! Welcome aboard.
      Thank you, Carl! Wouldn't live without one!

    10. #10
      Join Date
      Jan 2019
      Posts
      26

      Failed Attempts...

      Not every panel goes smoothly! I have had two failed attempts at this back panel and wasn't able to get the result i wanted. So i will move on and come back to it later...


      Name:  IMG_4687.jpg
Views: 989
Size:  242.3 KB
      This was attempt number 2... it was close but i couldn't get the the welds planished back out to get the warpage out of the panel after welding. When i bought the car, there was a panel riveted over the back section to cover it up, so i will just throw that back on and worry about this panel when the list of other **** to do gets much shorter haha


      Name:  IMG_4690.jpg
Views: 998
Size:  172.0 KB
      i began to finish out the rear quarters, mating them to the floor i installed a few weeks back. just needed to make a flange to spot weld to the floor. Got it tacked in for now and will finish weld soon (yes, my brother put a dent in my freshly formed panel ;) it gives it character)

    11. #11
      Join Date
      Jan 2019
      Posts
      26

      Frame Commencement

      I disassembled the corvette front clip that i'm putting in the truck to get some dimensions i need in order to CAD up the frame. i have a rendering of the frame finished. i will order material hopefully this week and get it started!

      Name:  IMG_4688.jpg
Views: 1014
Size:  295.5 KB
      This is the clip i am putting int he truck, it's from an '89 corvette. i originally thought the frame rail had to be horizontal in order to fit in but it turns out the frame rail needs to be 12 deg. facing up towards the front.


      Name:  IMG_4694.jpg
Views: 1009
Size:  150.5 KB
      i modeled it up with the new measurements. should be the final rendering. just need to make a cut list and order the box tubing


      Name:  IMG_4683.jpg
Views: 1404
Size:  185.8 KB
      This is the ride height i'm going for, will be a few inches lower than stock but nothing crazy. i want this to be a go anywhere vehicle

    12. #12
      Join Date
      Dec 2017
      Posts
      56
      Great project! Love where this is going. Keep it up!
      1951 Ford F1, 1967 RS Camaro, 1979 Firebird Formula, 1979 Trans Am/LS swap.

    13. #13
      Join Date
      Sep 2013
      Location
      sw Kansas
      Posts
      1,283
      Country Flag: United States
      What wall thickness are you going to use for the main rails?

    14. #14
      Join Date
      Jan 2019
      Posts
      26
      Quote Originally Posted by wfo guy View Post
      What wall thickness are you going to use for the main rails?
      I'm using 1/8" wall tubing for the 2x4 sections. the middle 2x6 will be .187 because that's as thin as they go for 2x6

      - - - Updated - - -

      Quote Originally Posted by FormTA View Post
      Great project! Love where this is going. Keep it up!
      Thank you! Much Appreciated!

    15. #15
      Join Date
      Sep 2013
      Location
      sw Kansas
      Posts
      1,283
      Country Flag: United States
      I used .125 on mine on the 2x6 but if I had it to do over, I would have used 3/16" on all the frame rails. I would still use 1/8" on cross pieces though. Mine has a stock 4.6 2v in it with a 5 speed. It has 8500 miles with no surprises but for no more weight than you add, I would have liked to have the added strength of the thicker wall material. I don't have access to solidworks or any software such as that so my design was not subject to F.A..

    16. #16
      Join Date
      Jan 2019
      Posts
      26
      Quote Originally Posted by wfo guy View Post
      I used .125 on mine on the 2x6 but if I had it to do over, I would have used 3/16" on all the frame rails. I would still use 1/8" on cross pieces though. Mine has a stock 4.6 2v in it with a 5 speed. It has 8500 miles with no surprises but for no more weight than you add, I would have liked to have the added strength of the thicker wall material. I don't have access to solidworks or any software such as that so my design was not subject to F.A..
      I might go with 3/16 on the 2x4 as well to be consistent. The place i get material from only has 3/16 on the 2x6. Why would you have gone thicker, did you notice any flexing or anything to make you change your mind?

    17. #17
      Join Date
      Jan 2019
      Posts
      26

      Rear Suspension

      As i am preparing for the frame build, i am realizing all the **** i forgot to take care of that i need in order to build it! One of those being… the rear suspension. I have planned a triangulated 4 link rear with box tube lower control arms and dom round tube uppers.


      Name:  F7AC0C3A-78EE-46DA-BCAA-F3AE364287F5.jpg
Views: 949
Size:  178.7 KB
      It’s not finished yet, still need to design the upper links on the housing, but it’s designed for a 40” lower arm and a 28” upper. I drew just enough data from the rear end to mock up the links. Getting ready to have these waterjet next week.

    18. #18
      Join Date
      Sep 2013
      Location
      sw Kansas
      Posts
      1,283
      Country Flag: United States
      I daily drive this truck. It has enough ground clearance to drive off curbs. It has ridetech coilovers on all 4 corners. 4 bar on the rear and a modified camaro front spindle setup on the front. The main reason for my statement was that the frame wasn't as rigid as I wanted before mounting the sheetmetal. There seems to be 2 thoughts on frame design: absolute rigid and flexible. The original frame on most trucks is designed to flex when doing normal duty. With me watching AME and the Roadster shop selling many frames that appear to be quite rigid, I'm speculating that for upper performance duty, less flex can be advantageous. From my drag racing back ground, I know that anything that flexes fatigues and fails. So is it worth a few pounds to shorten the life of the basic frame? If you have access to software that can answer that question, I'd like to know if I'm all wet.
      Attached Images Attached Images

    19. #19
      Join Date
      Jan 2019
      Posts
      26
      Quote Originally Posted by wfo guy View Post
      I daily drive this truck. It has enough ground clearance to drive off curbs. It has ridetech coilovers on all 4 corners. 4 bar on the rear and a modified camaro front spindle setup on the front. The main reason for my statement was that the frame wasn't as rigid as I wanted before mounting the sheetmetal. There seems to be 2 thoughts on frame design: absolute rigid and flexible. The original frame on most trucks is designed to flex when doing normal duty. With me watching AME and the Roadster shop selling many frames that appear to be quite rigid, I'm speculating that for upper performance duty, less flex can be advantageous. From my drag racing back ground, I know that anything that flexes fatigues and fails. So is it worth a few pounds to shorten the life of the basic frame? If you have access to software that can answer that question, I'd like to know if I'm all wet.
      Thanks for the info! The truck looks great!!! If i were to make the frame from .125 wall it would weight about 288 lbs as opposed to 350lbs for 3/16 wall. The weight savings is only about 60lbs so it’s definitely worth it for me as i will be towing around large equipment with this truck!

    20. #20
      Join Date
      Jan 2019
      Posts
      26

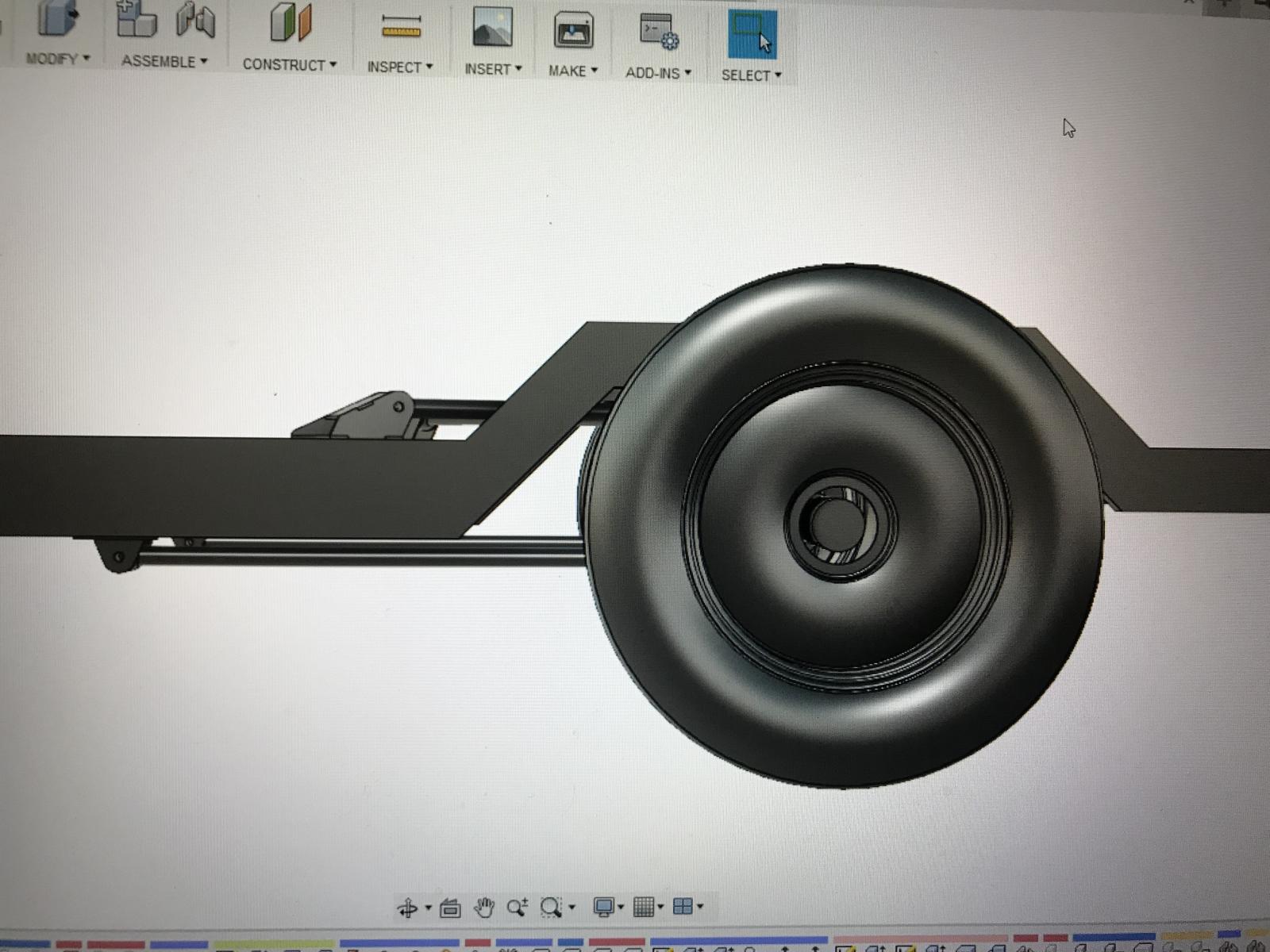

      Rear Suspension Update

      Been working on the design for the 4 link. They’re pretty close. I made the brackets so they can all be waterjet cut, welded and fit nicely to the frame and axle/housing with good welding joints so they’ll be sturdy as hell. This is with a 40” lower arm and a 28” upper arm parallel to the ground at ride height. It’s got 3” bushings and 1.25” 10ga DOM tube for the control arms. Still have a bit or work to do but it’s getting there



      Name:  CF8655C0-F641-438D-8867-C457002CF68E.jpg
Views: 925
Size:  172.4 KB

      Name:  60074E5A-6B6D-4B7C-80A1-E97D8F2257A6.jpg
Views: 901
Size:  187.4 KB

      Name:  301A5C67-139E-4311-BE62-AA8428D37DE4.jpg
Views: 910
Size:  174.8 KB

      Name:  F9EAFAB9-30DC-4826-B295-44752A60564D.jpg
Views: 893
Size:  186.7 KB
