      1970 Camaro RS - LS3/6l80 Build "Project Glo"

      I purchased this car almost 10 years ago for $250. Car was a full roller minus glass. My dad has wanted this car, so I gave it to him and decided to move forward full speed with this frame off build. I've been working on this car for a little bit and will post progress pics and try to keep this build process up to date. Car is pretty solid but over time rust has spread in a few areas. The car has the following so far.



      Drivetrain: LS3/6L80E out of 2014 Camaro with 19k miles
      Suspension: DSE 3" drop leaf springs, Hotchkis 2" lowering springs
      Brakes: Right Stuff 4 wheel disc
      Differential: 10 Bolt Eaton Posi Unit

      Name:  Camaro.jpg
Views: 3573
Size:  90.2 KB
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC


    2. #2
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States

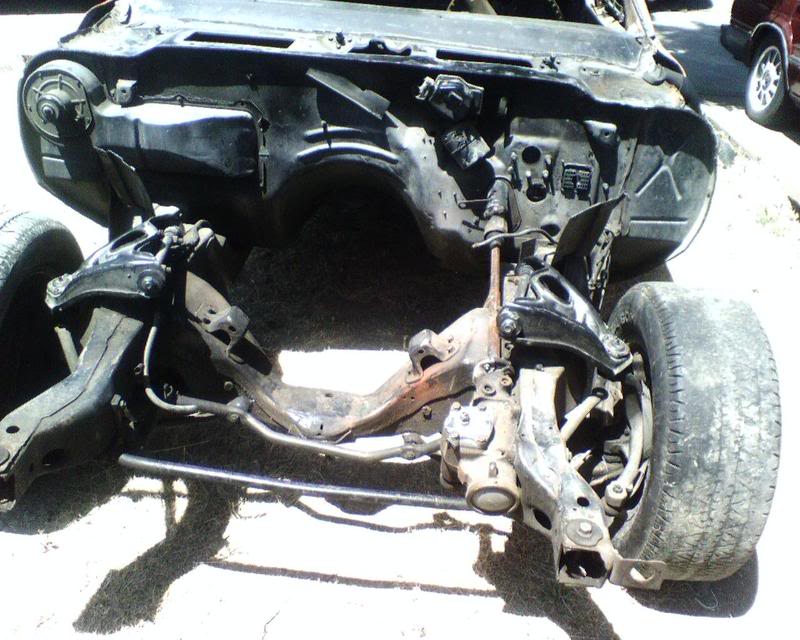

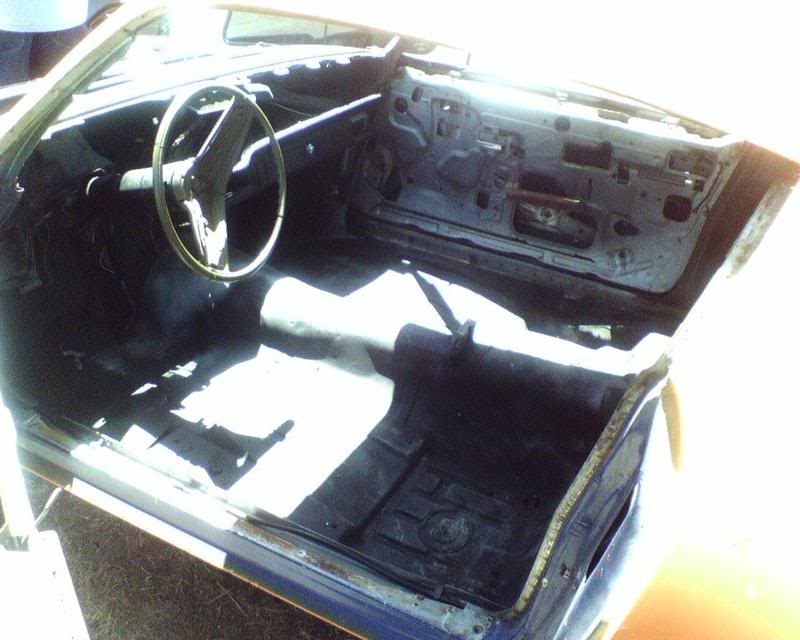

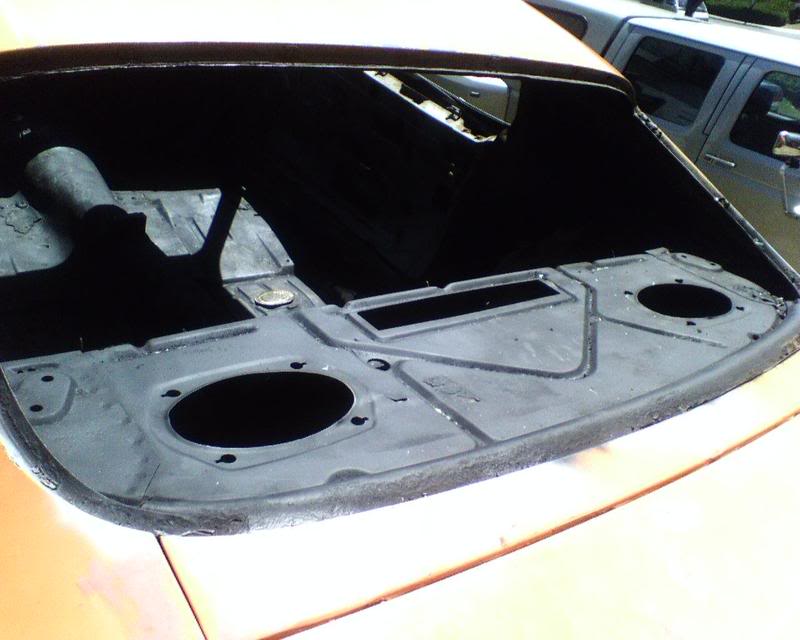

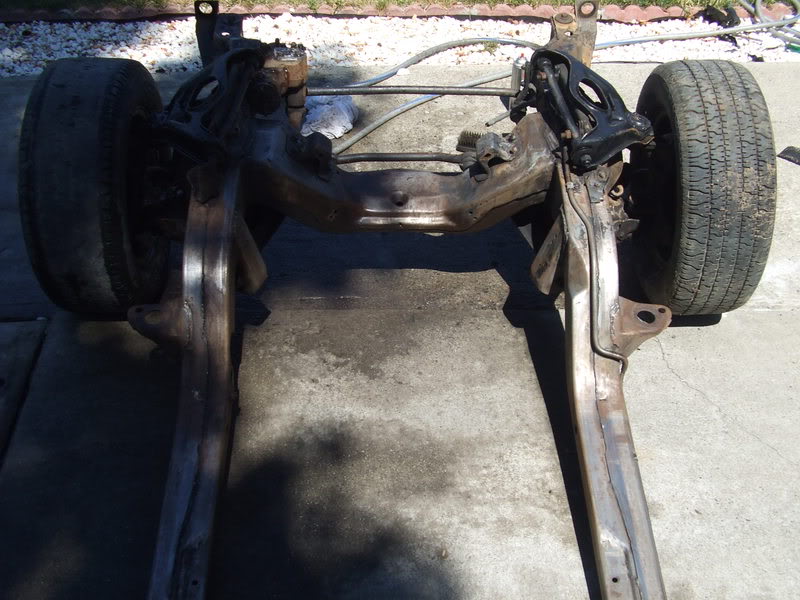

      Interior stripped, front panels and subframe removed

      Name:  Camaro3.jpg
Views: 3603
Size:  66.2 KB
      Name:  Camaro7.jpg
Views: 3620
Size:  52.8 KB
      Name:  Camaro4.jpg
Views: 3606
Size:  88.7 KB
      Name:  CamaroSubframe.jpg
Views: 3590
Size:  89.5 KB
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    3. #3
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States

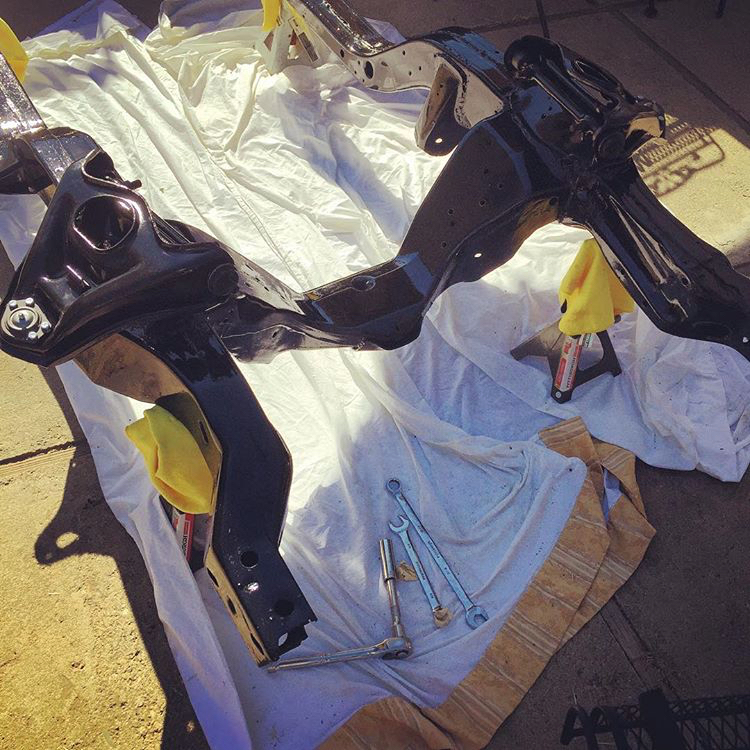

      Subframe after POR-15
      Name:  IMG_4831.jpg
Views: 3584
Size:  526.2 KB

      Assembling front suspension and brakes
      Name:  IMG_7815.JPG.jpg
Views: 3594
Size:  154.7 KB

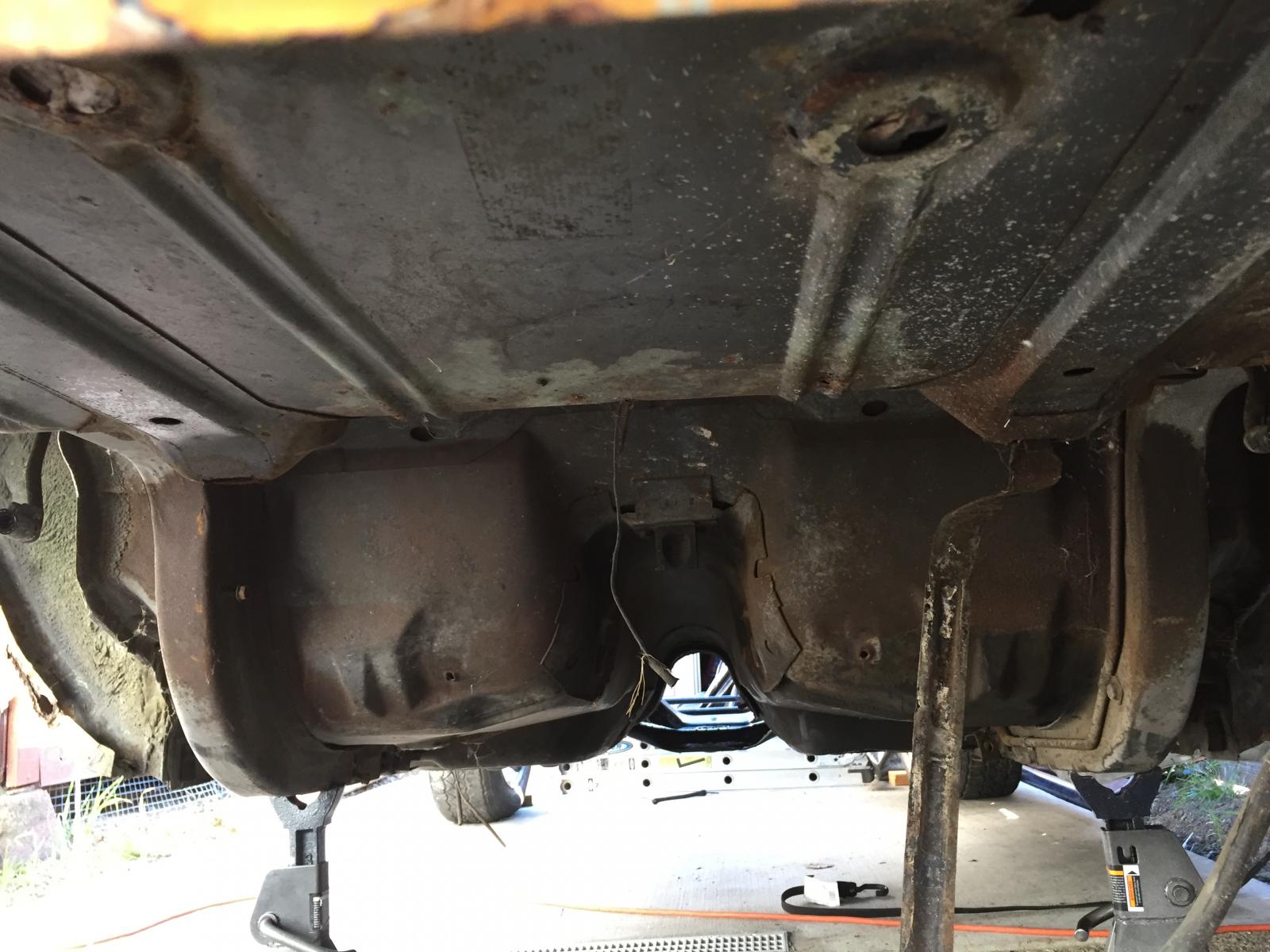

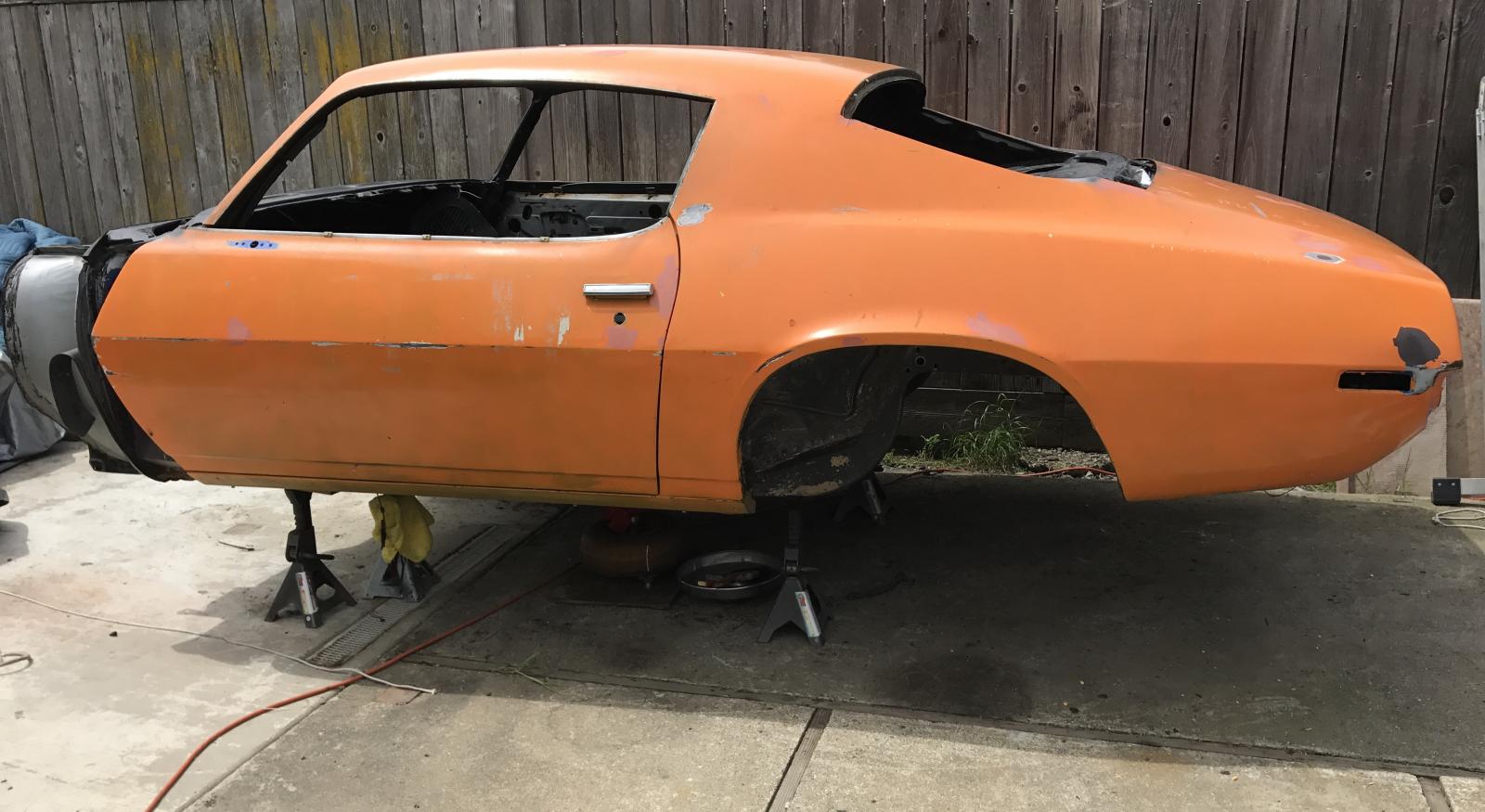

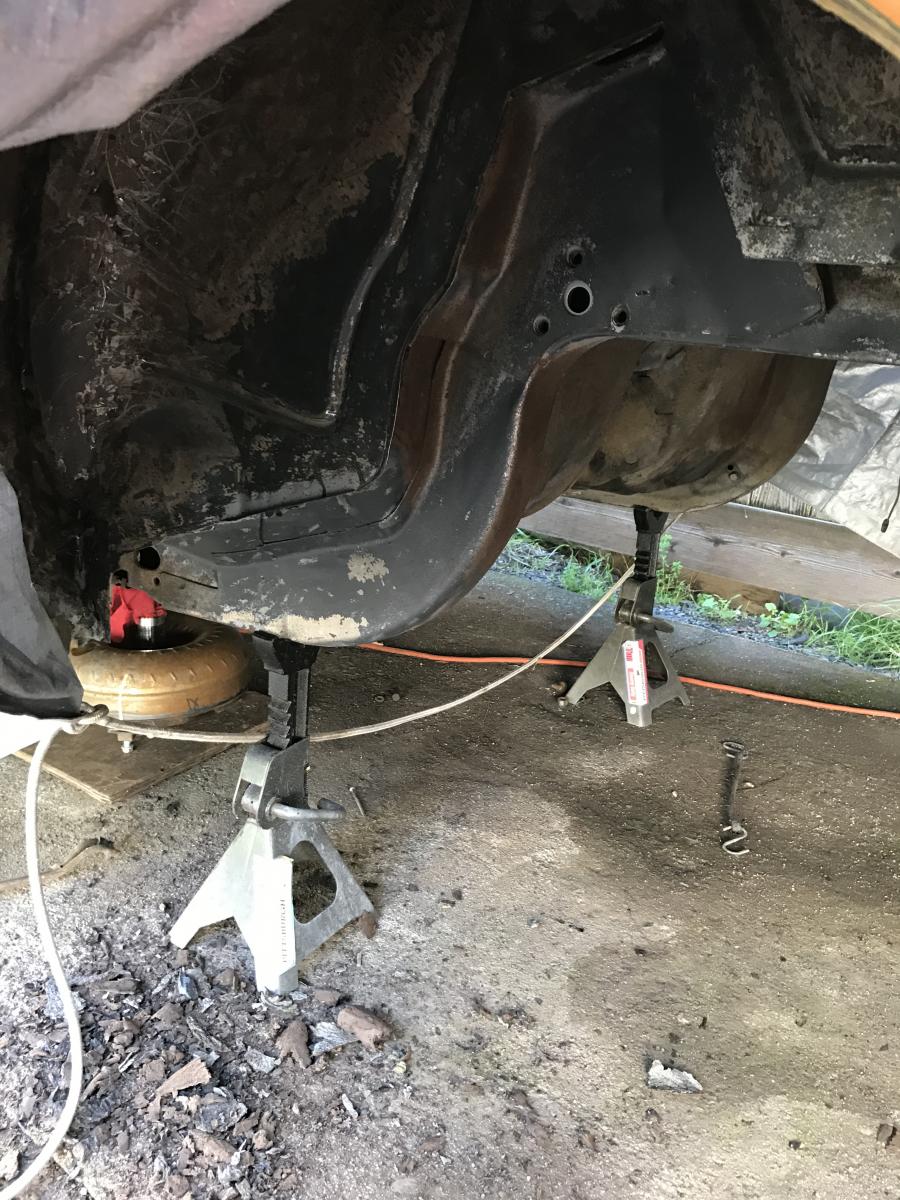

      Rear suspension completely removed. Time to strip clean and prep for undercoating
      Name:  IMG_9063.JPG.jpg
Views: 3610
Size:  190.1 KB

      Name:  FullSizeRender.jpg
Views: 3592
Size:  153.0 KB
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    4. #4
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States
      Name:  IMG_0002.jpg
Views: 3577
Size:  198.4 KB
      Name:  IMG_0430.jpg
Views: 3564
Size:  174.0 KB
      Name:  IMG_0443.jpg
Views: 3569
Size:  331.4 KB
      Name:  IMG_0496.jpg
Views: 3567
Size:  473.8 KB

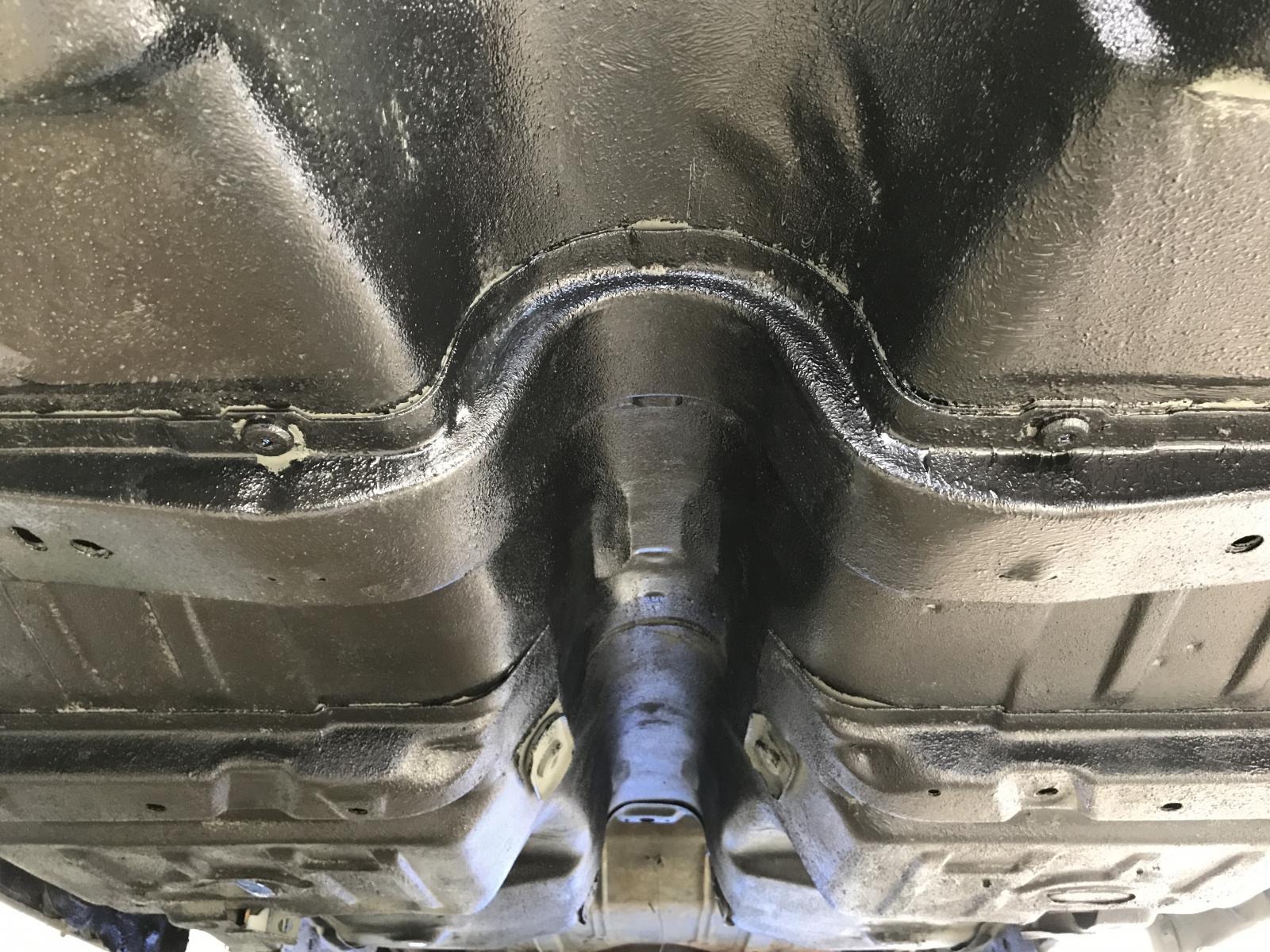

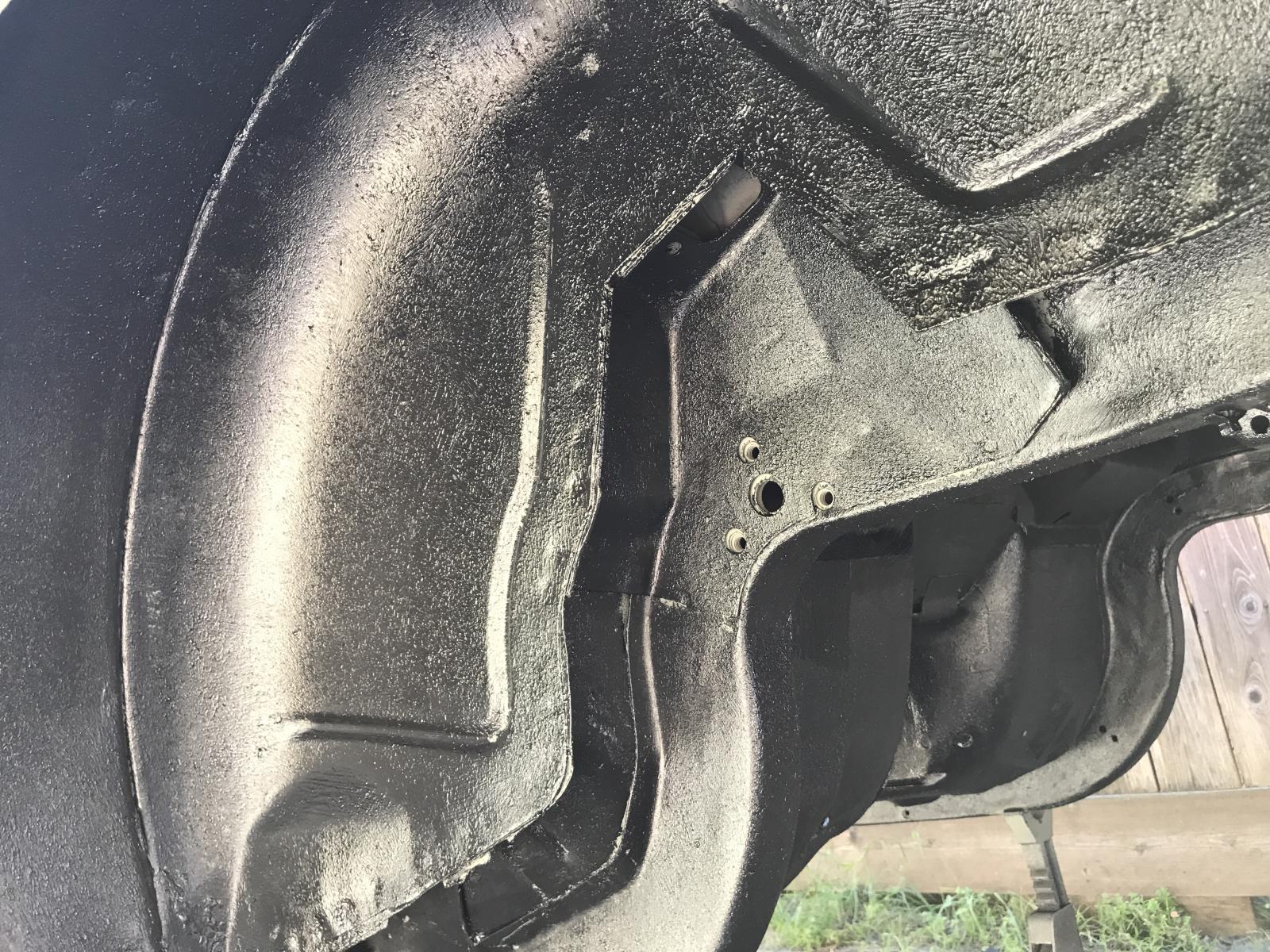

      First coat of Raptor Bedliner applied
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    5. #5
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States

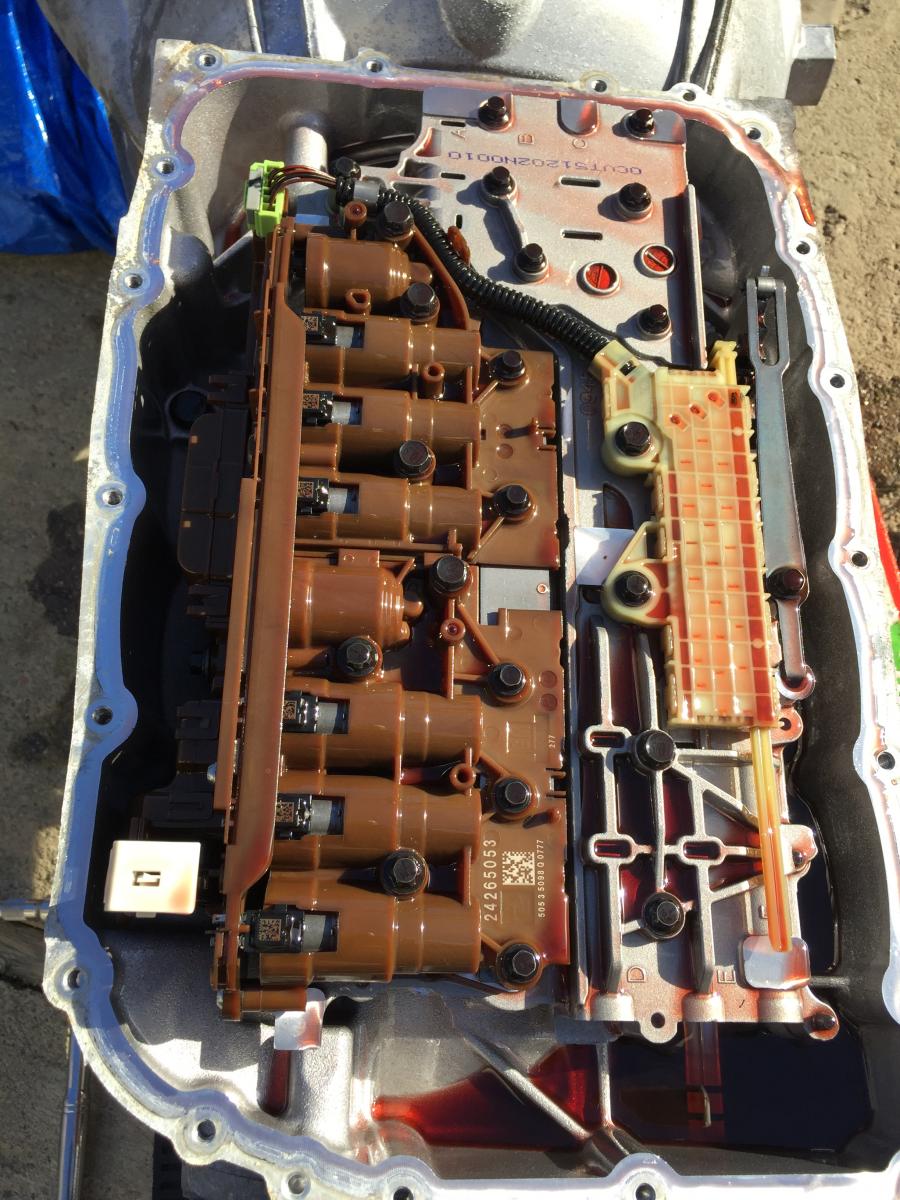

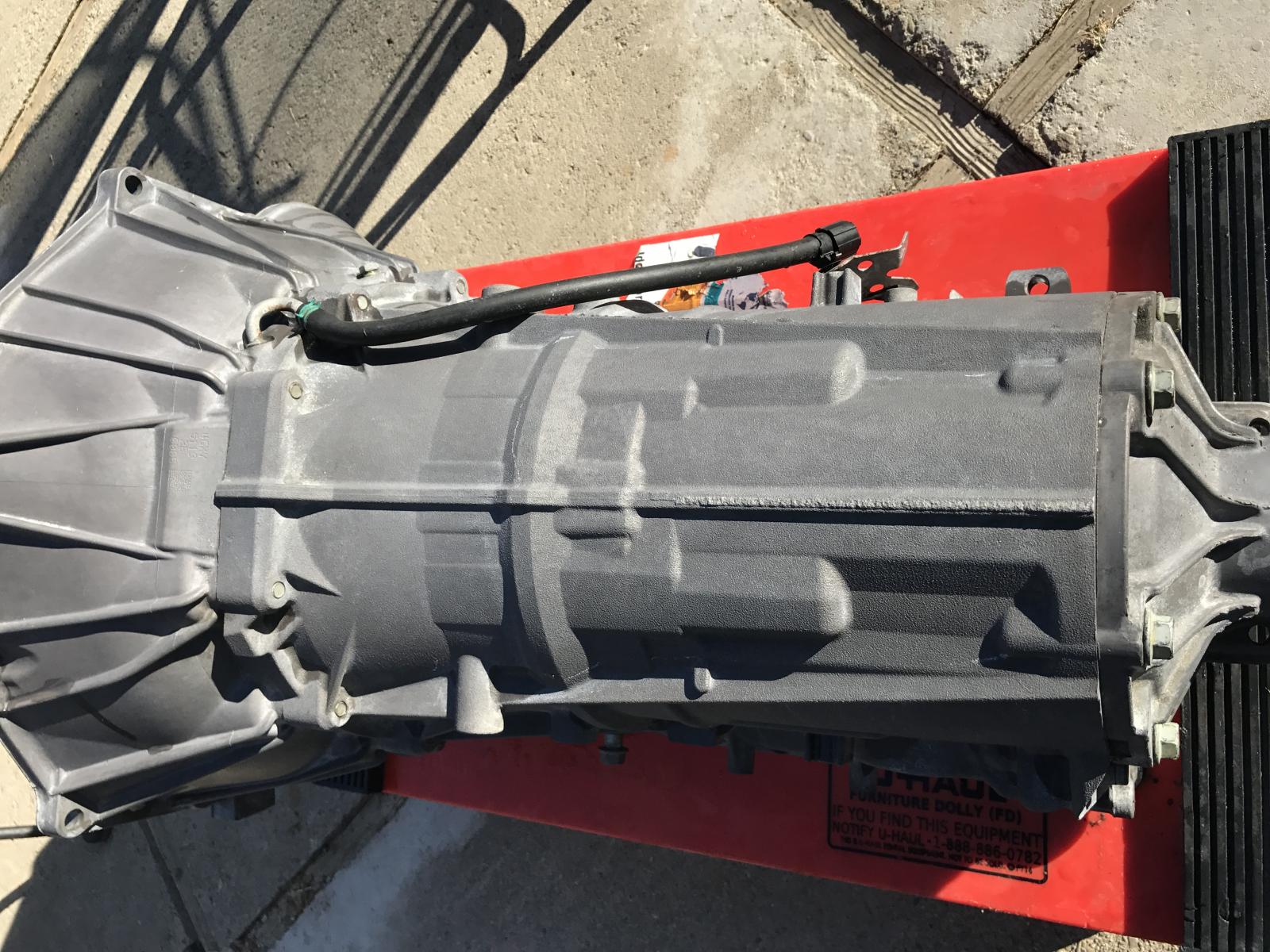

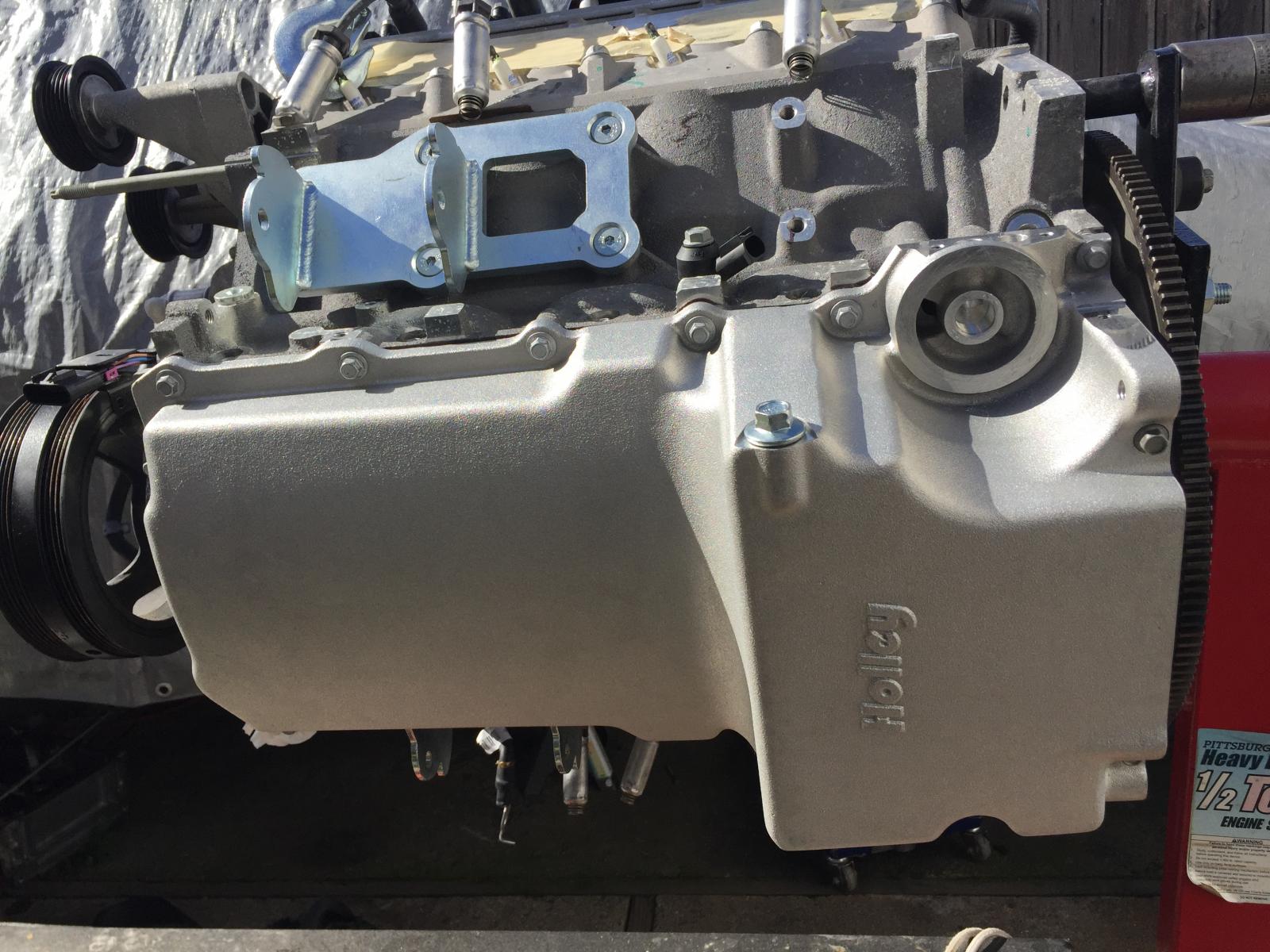

      LS3 complete with ECU and gas pedal.
      Stock exhaust manifolds, oil pan, and engine mounts removed and replaced with Holley's LSX swap kit
      Removed TCM to send off for computer tuning along with ECU.


      Name:  IMG_6214.jpg
Views: 3593
Size:  207.5 KB
      Name:  IMG_2536.jpg
Views: 3539
Size:  295.6 KB
      Name:  IMG_9703.jpg
Views: 3563
Size:  241.1 KB
      Name:  IMG_9709.jpg
Views: 3527
Size:  179.0 KB
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    6. #6
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States

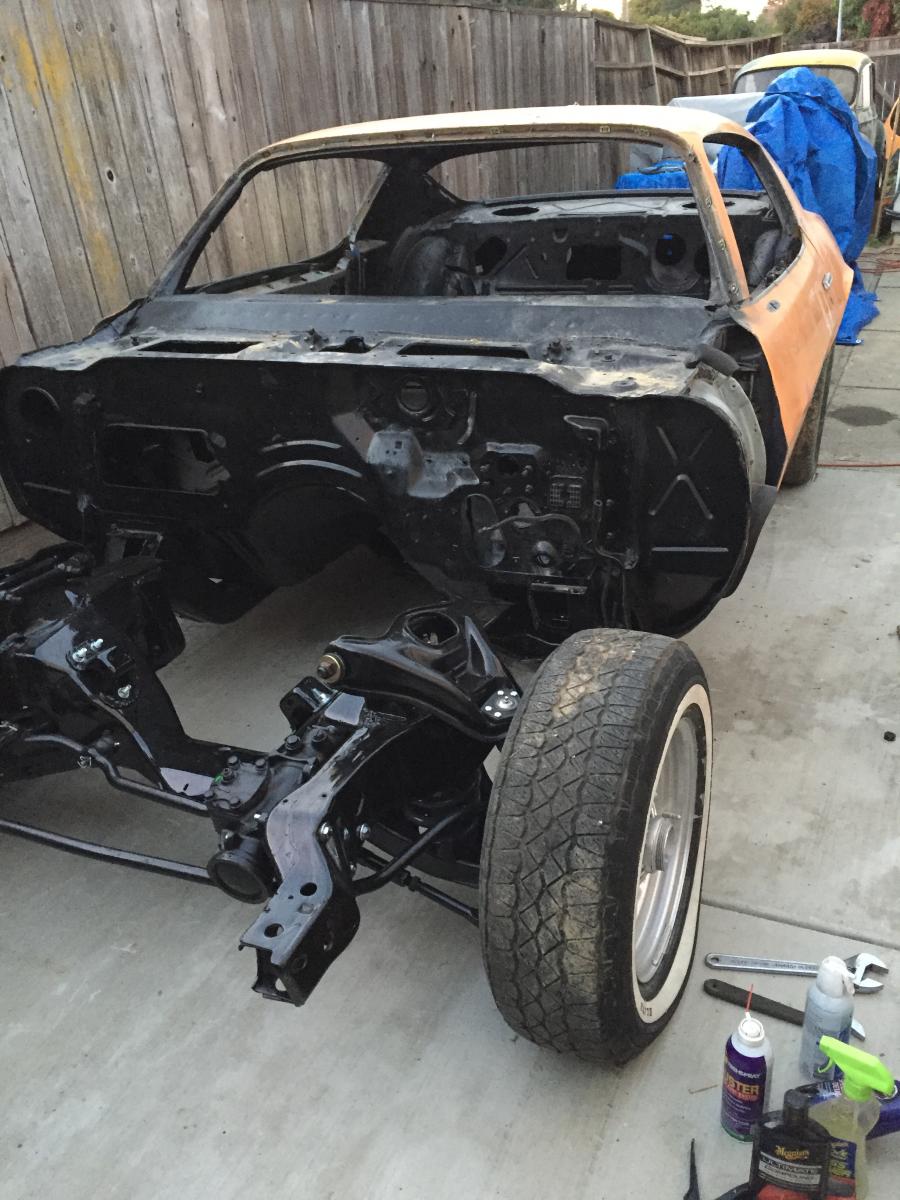

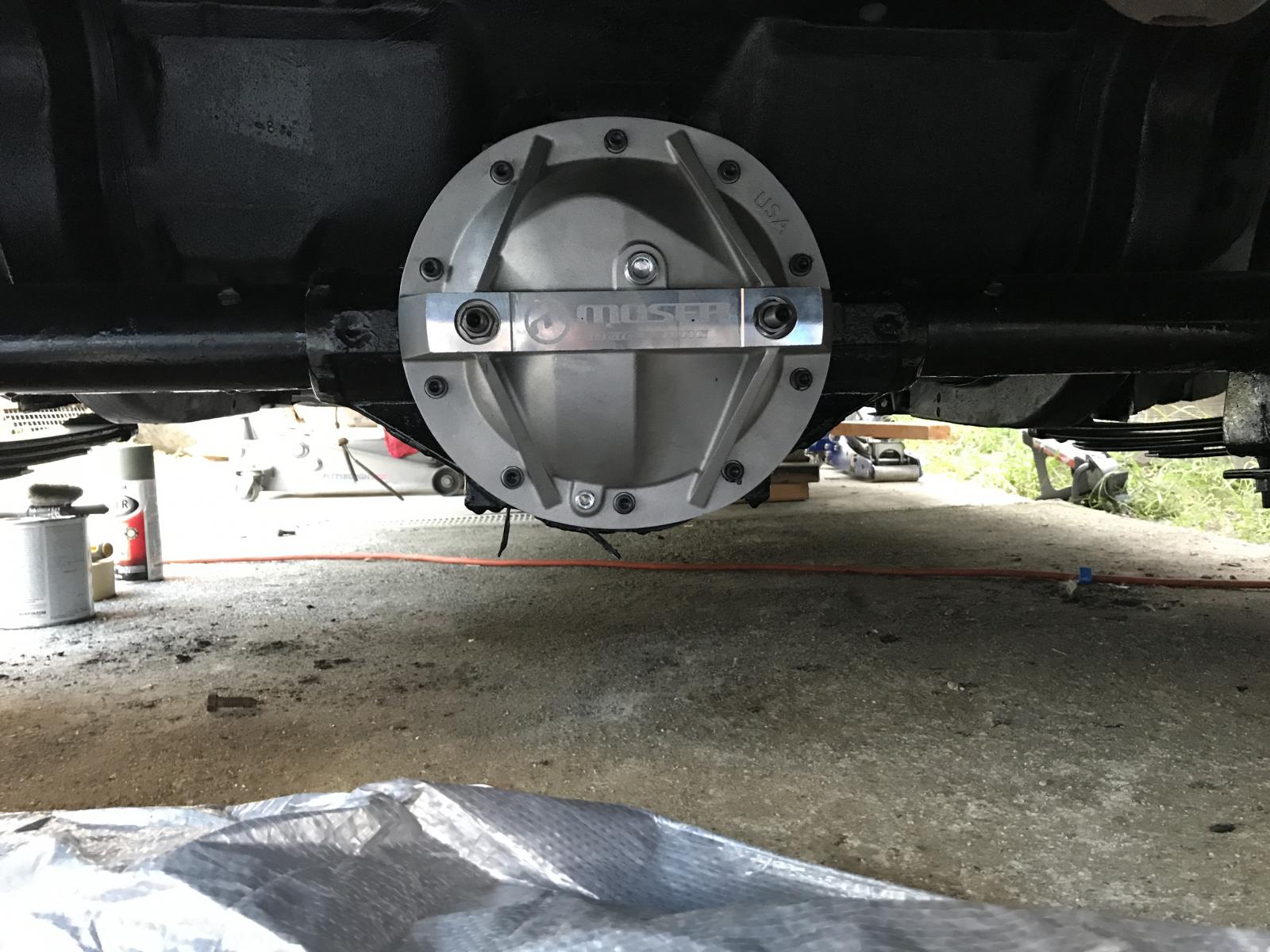

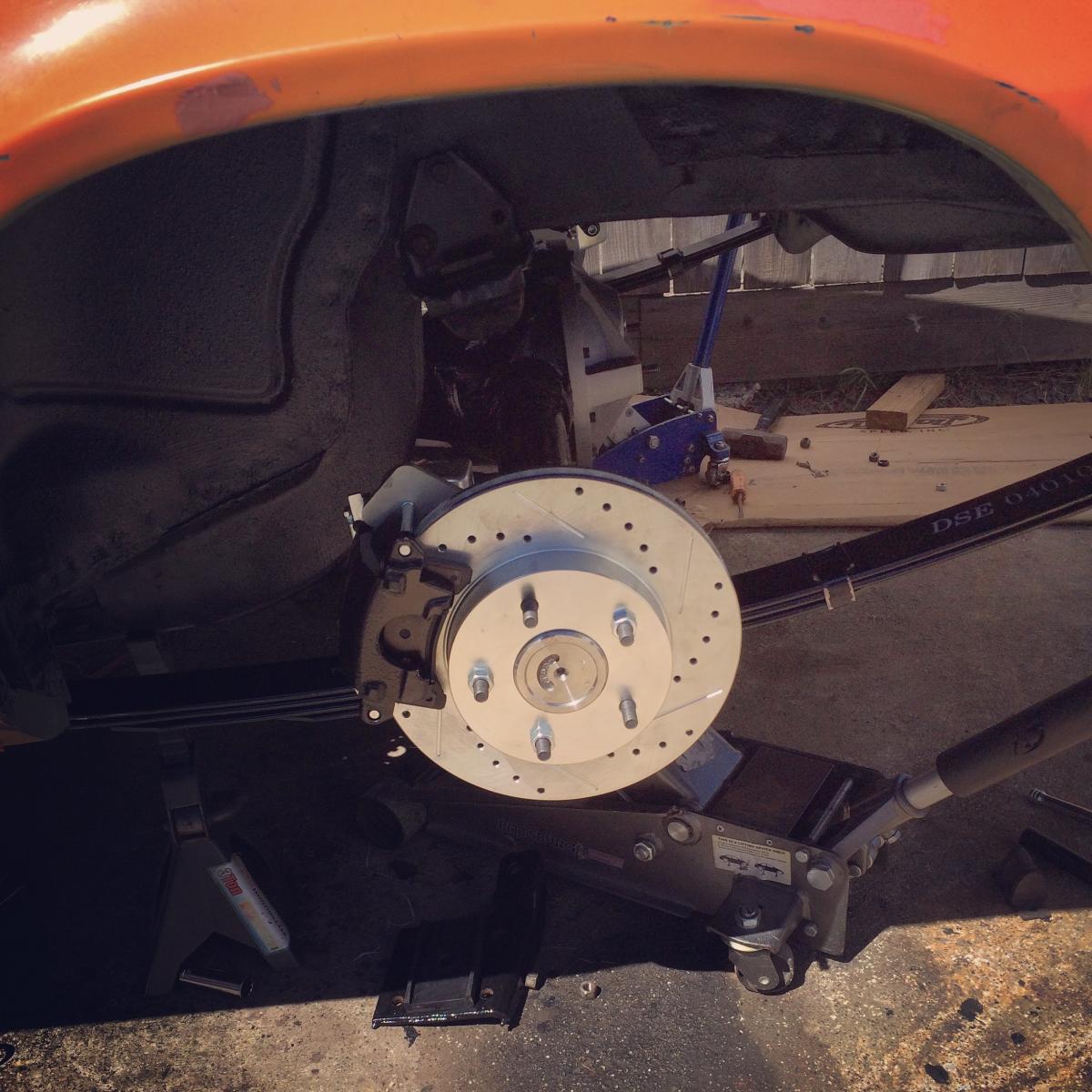

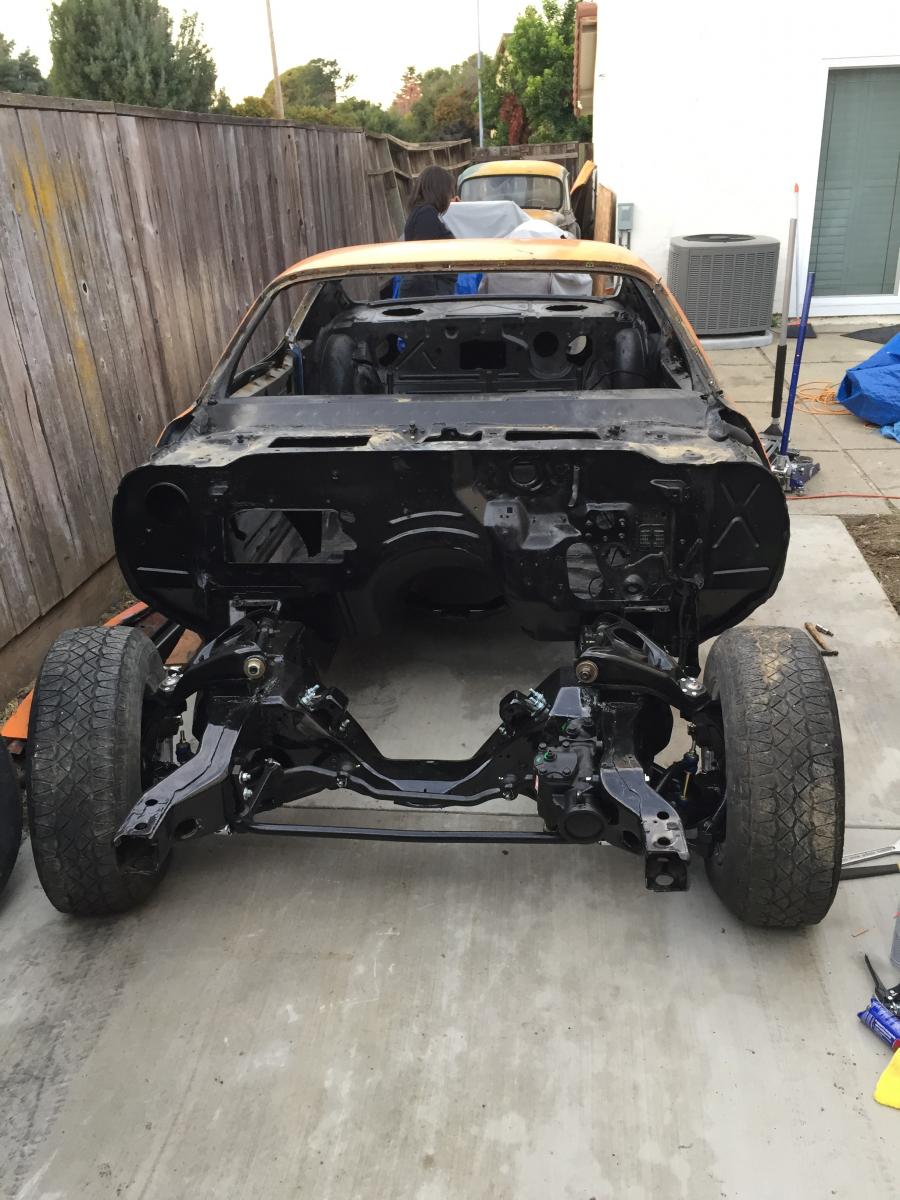

      Body placed back on subframe and rear suspension installed.

      Name:  IMG_0558.jpg
Views: 3413
Size:  160.3 KB
      Name:  IMG_0791.jpg
Views: 3457
Size:  226.9 KB
      Name:  IMG_8517.jpg
Views: 3458
Size:  140.9 KB
      Name:  IMG_8518.jpg
Views: 3524
Size:  144.9 KB
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    7. #7
      Join Date
      Apr 2001
      Location
      The Netherlands
      Posts
      1,495
      Country Flag: Netherlands
      looks a lot like my own build...POR15 on the subframe, the Moser diff cover..... your post reminds me of all the work I've done...cool! Keep up the good work :-)
      1st 2nd
      Pro-Touring outside the USA !
      Martin's Camaro Page

    8. #8
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States
      Thanks!
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    9. #9
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States
      Name:  IMG_0110.jpg
Views: 3341
Size:  173.4 KB
      Name:  IMG_9707.jpg
Views: 3426
Size:  298.8 KB
      Name:  IMG_1131.jpg
Views: 3406
Size:  368.2 KB

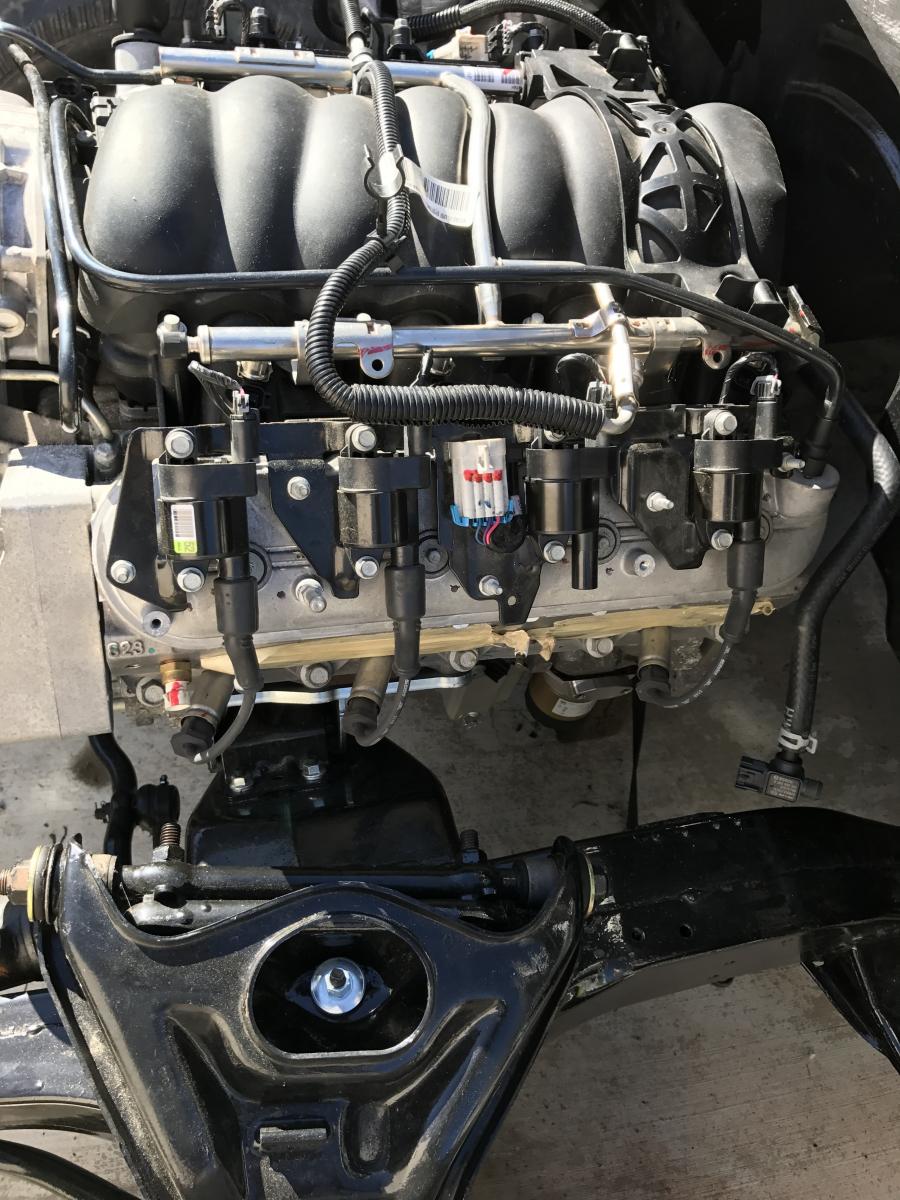

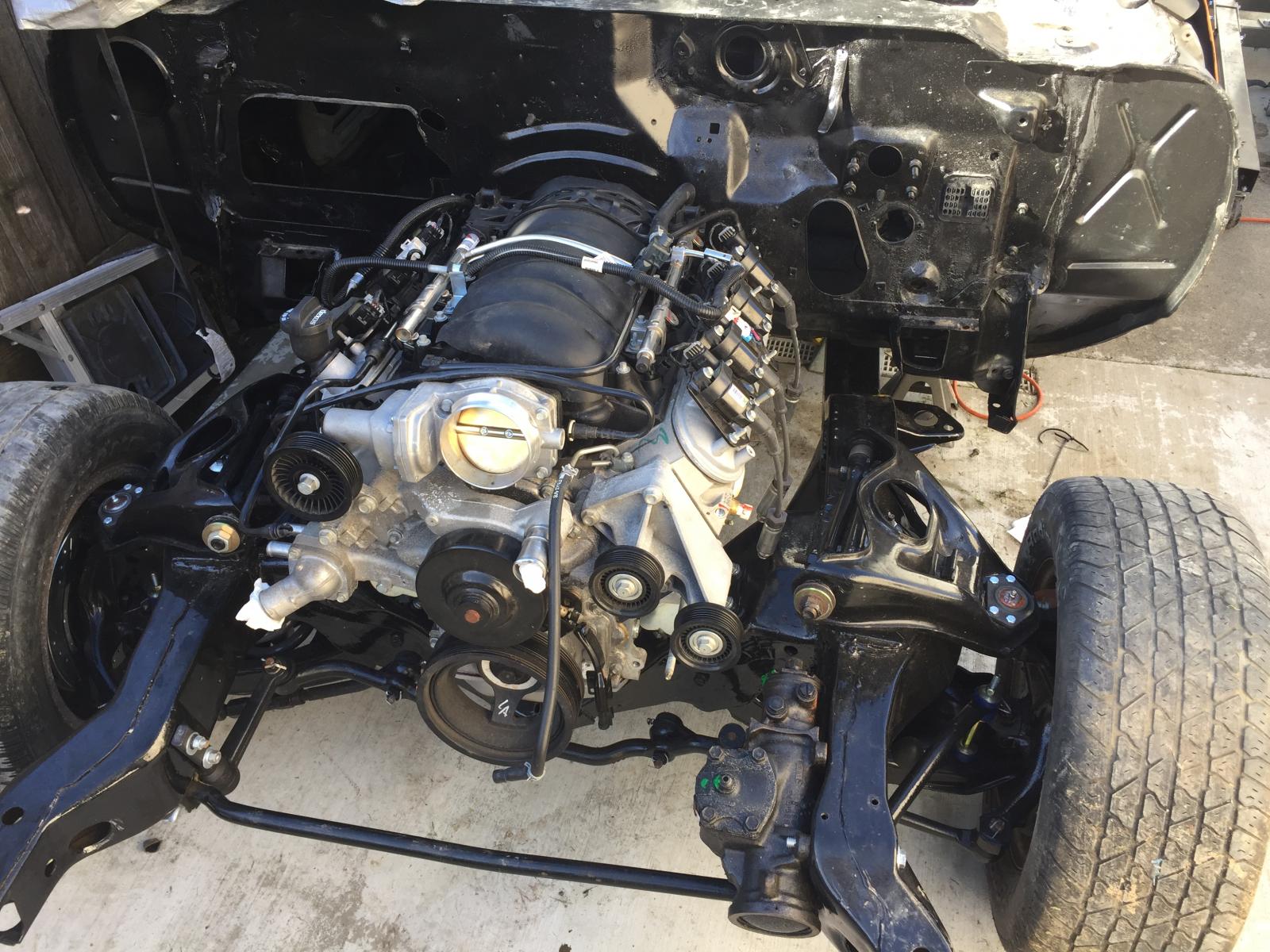

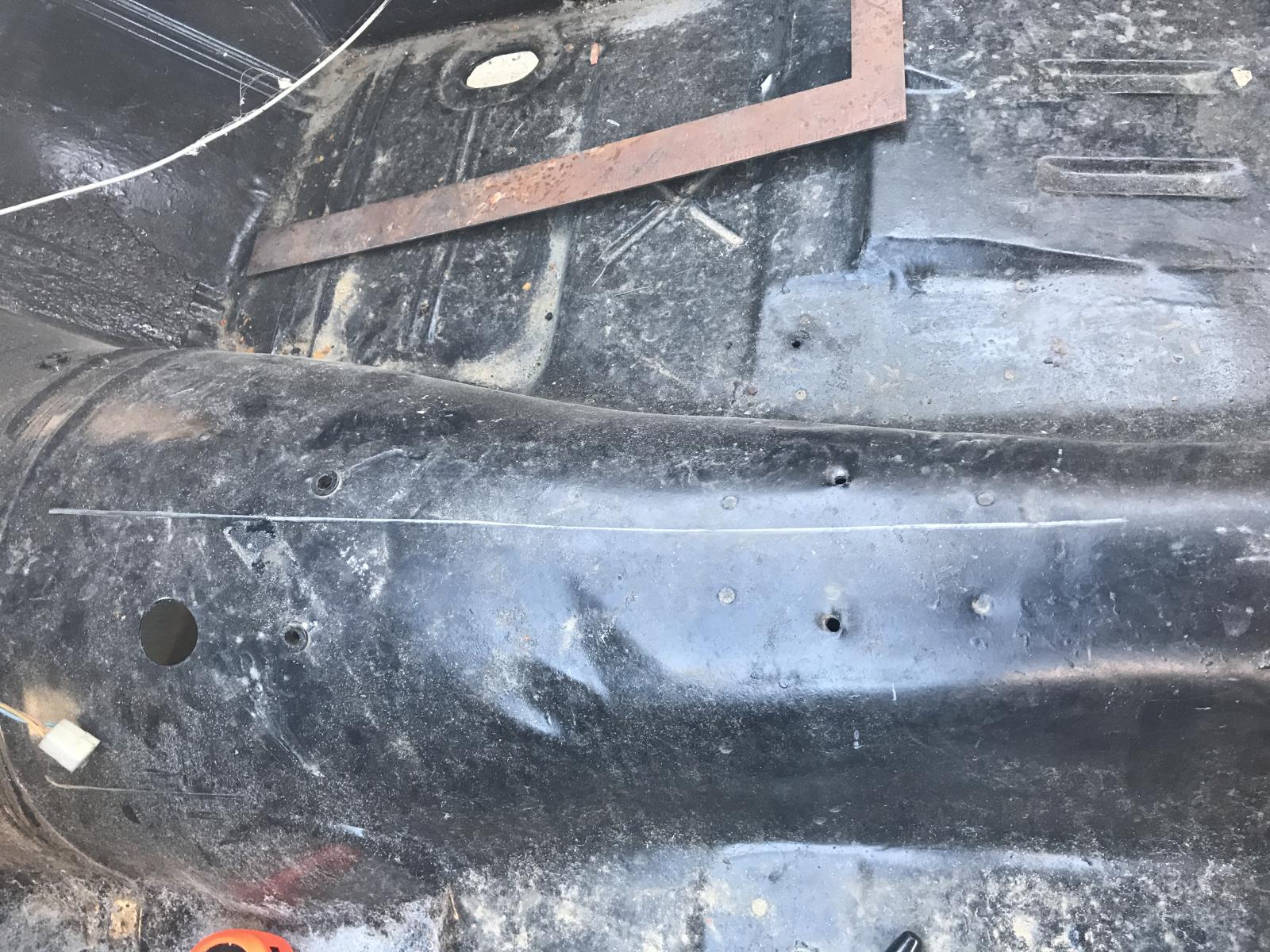

      Engine mounted and checking clearance before cutting transmission tunnel for the massive 6L80E
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    10. #10
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States

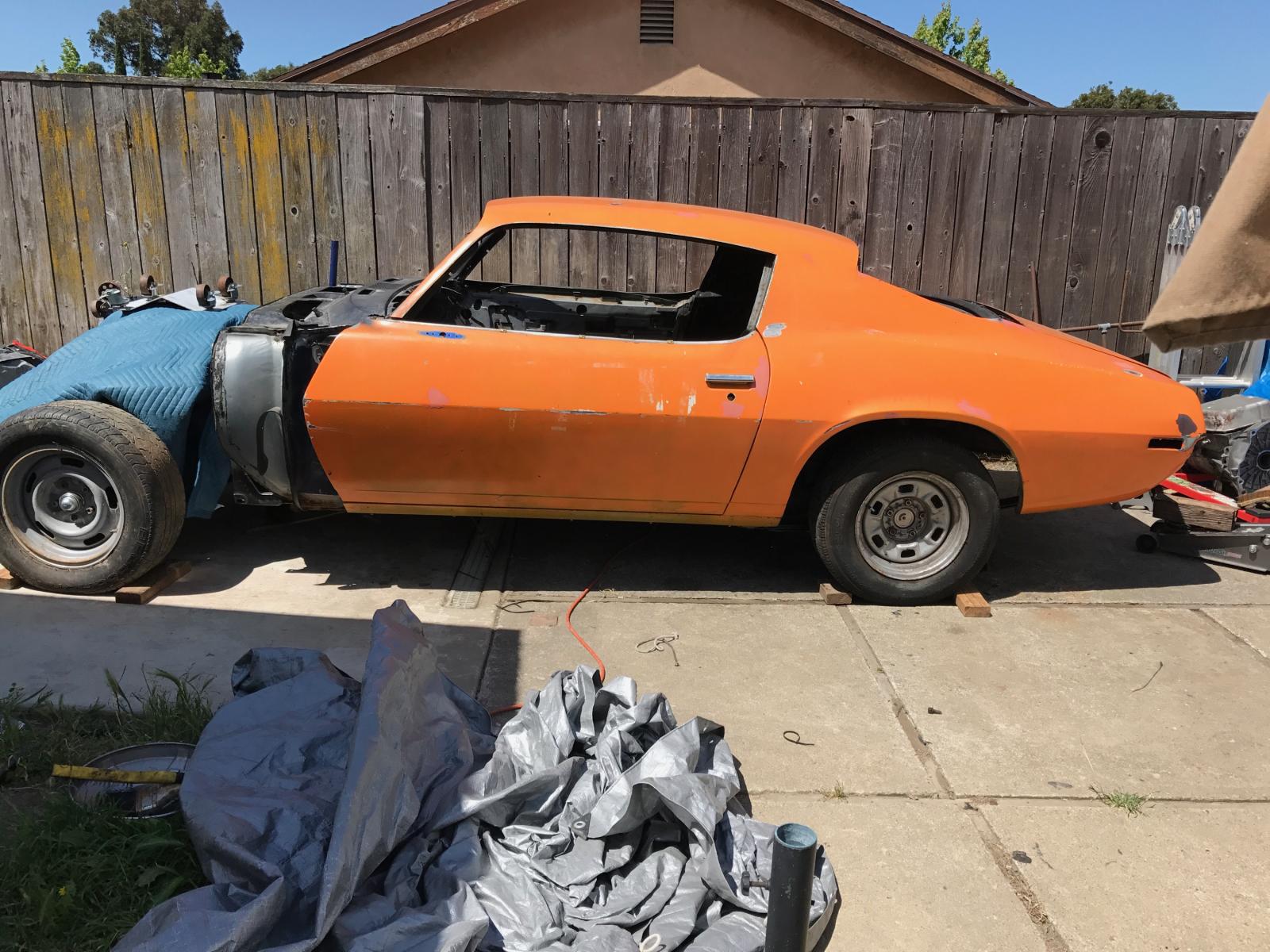

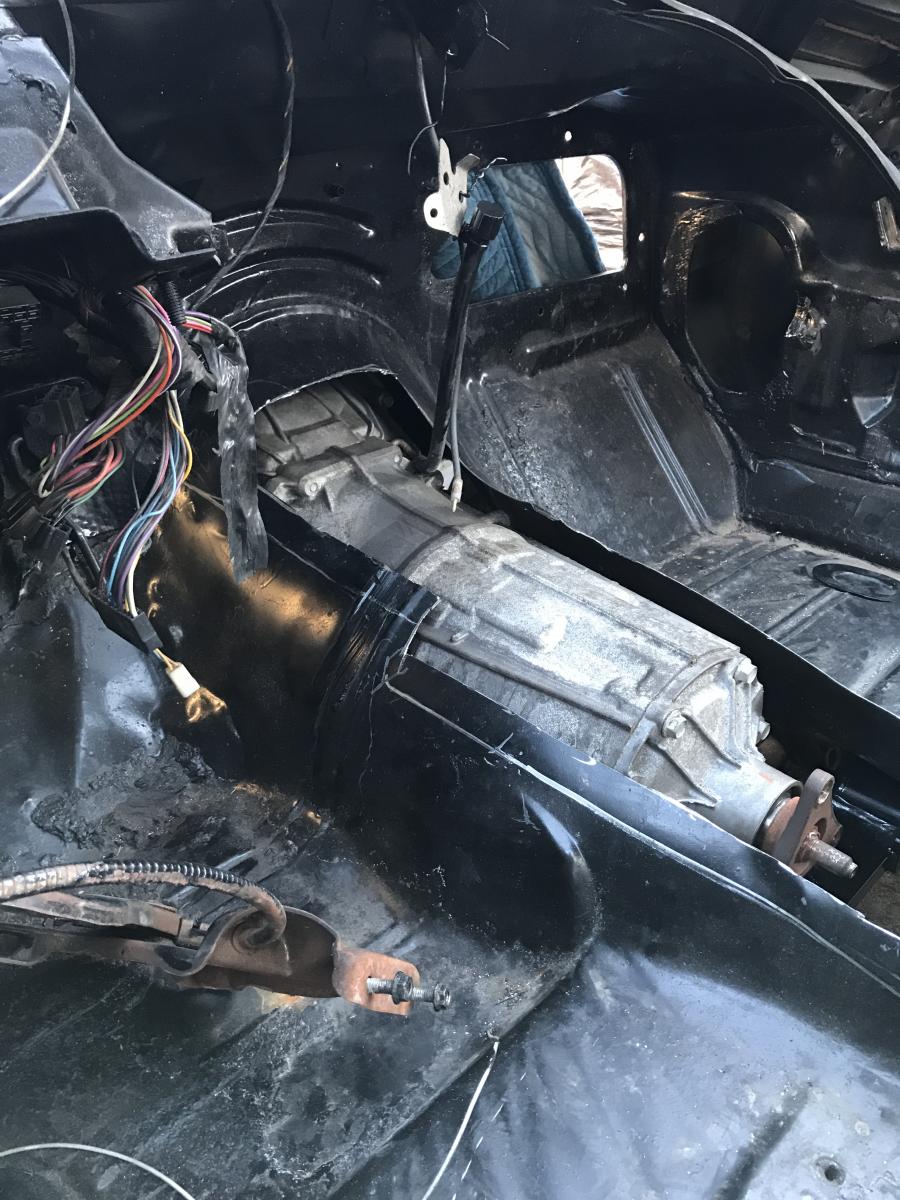

      Finally got the masssive 6L80e trans fit and mounted in the transmission tunnel.I purchased Speedtech's T-56 Transmission Tunnel to be welded on for required clearance. The guys at speedtech provided pictures of where to cut, since the 6L80 isn't as small as the t-56. The crossmember I used is by Hooker, provides total clearance for exhaust and the trans pan was change from stock to a G8 pan for more clearance.

      Name:  IMG_1252.jpg
Views: 3383
Size:  167.8 KBName:  IMG_0498.jpg
Views: 3312
Size:  192.2 KBName:  IMG_0631.jpg
Views: 3311
Size:  268.3 KB
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    11. #11
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States

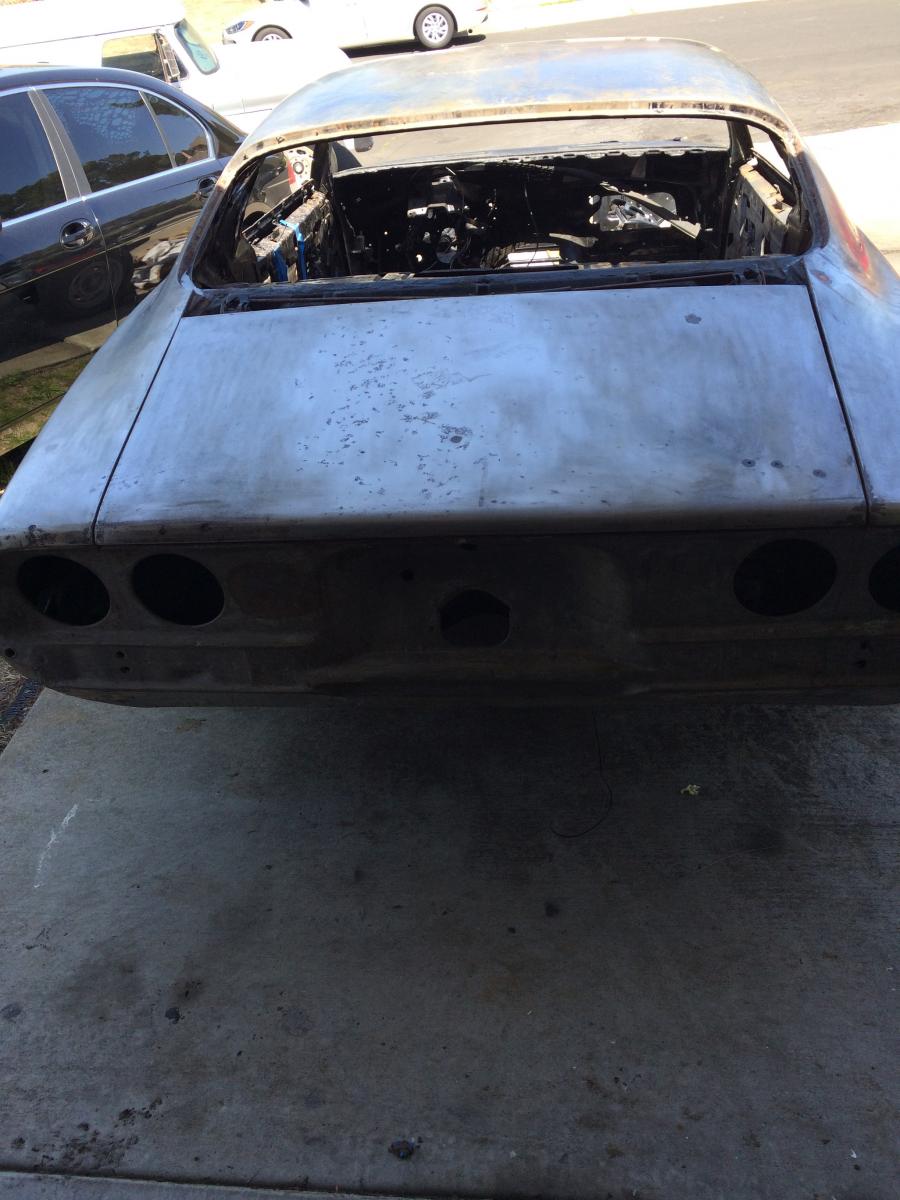

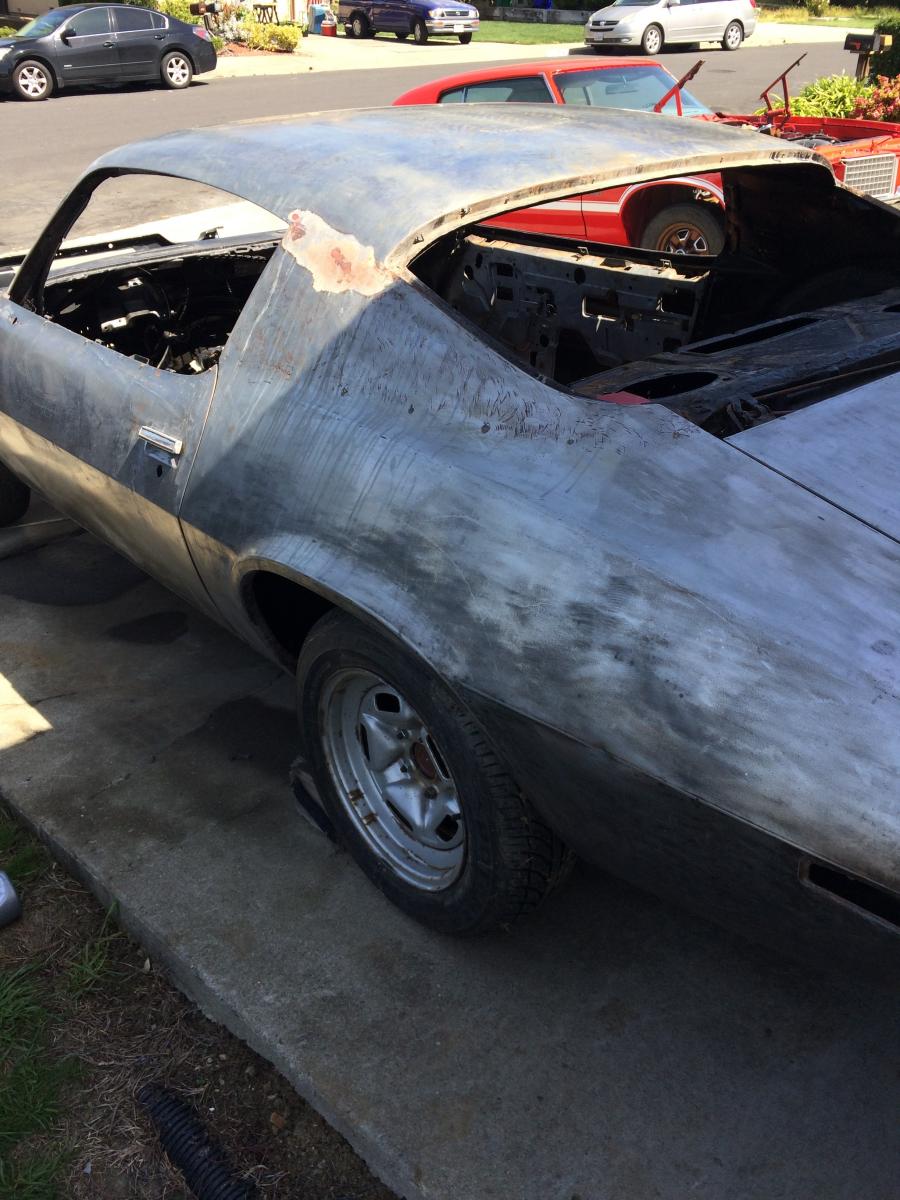

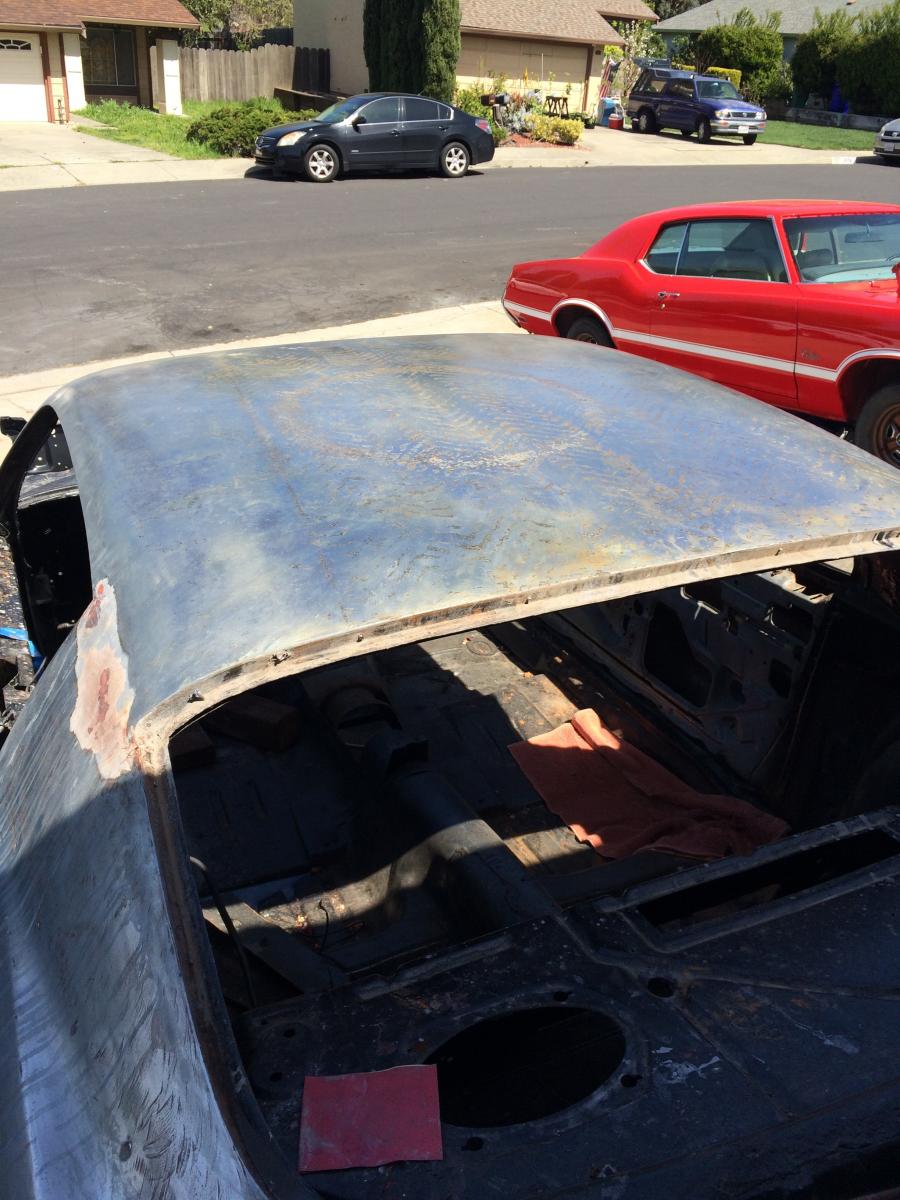

      Drivetrain removed after fitment for transmission tunnel. Paint stripped and ready for body work and paint.
      New sheetmetal going on the complete front end.
      Name:  maro4.jpg
Views: 3210
Size:  164.5 KBName:  maro2.jpg
Views: 3211
Size:  143.4 KBName:  maro3.jpg
Views: 3207
Size:  117.2 KBName:  maro1.jpg
Views: 3196
Size:  140.7 KBName:  maro.jpg
Views: 3176
Size:  140.3 KB
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    12. #12
      Join Date
      Sep 2015
      Location
      SW KS
      Posts
      162
      Country Flag: United States
      Looking forward to the progress. Cool ride!

      Chris

    13. #13
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States
      Thanks, I'll try to update as much as possible while in the body shop
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    14. #14
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States
      It's been a while with any progress due to the paint shop being overly full. Finally was able to take it down and get a quote on the job. Next month finally off to get this body massaged and sprayed
      Attached Images Attached Images
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    15. #15
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States

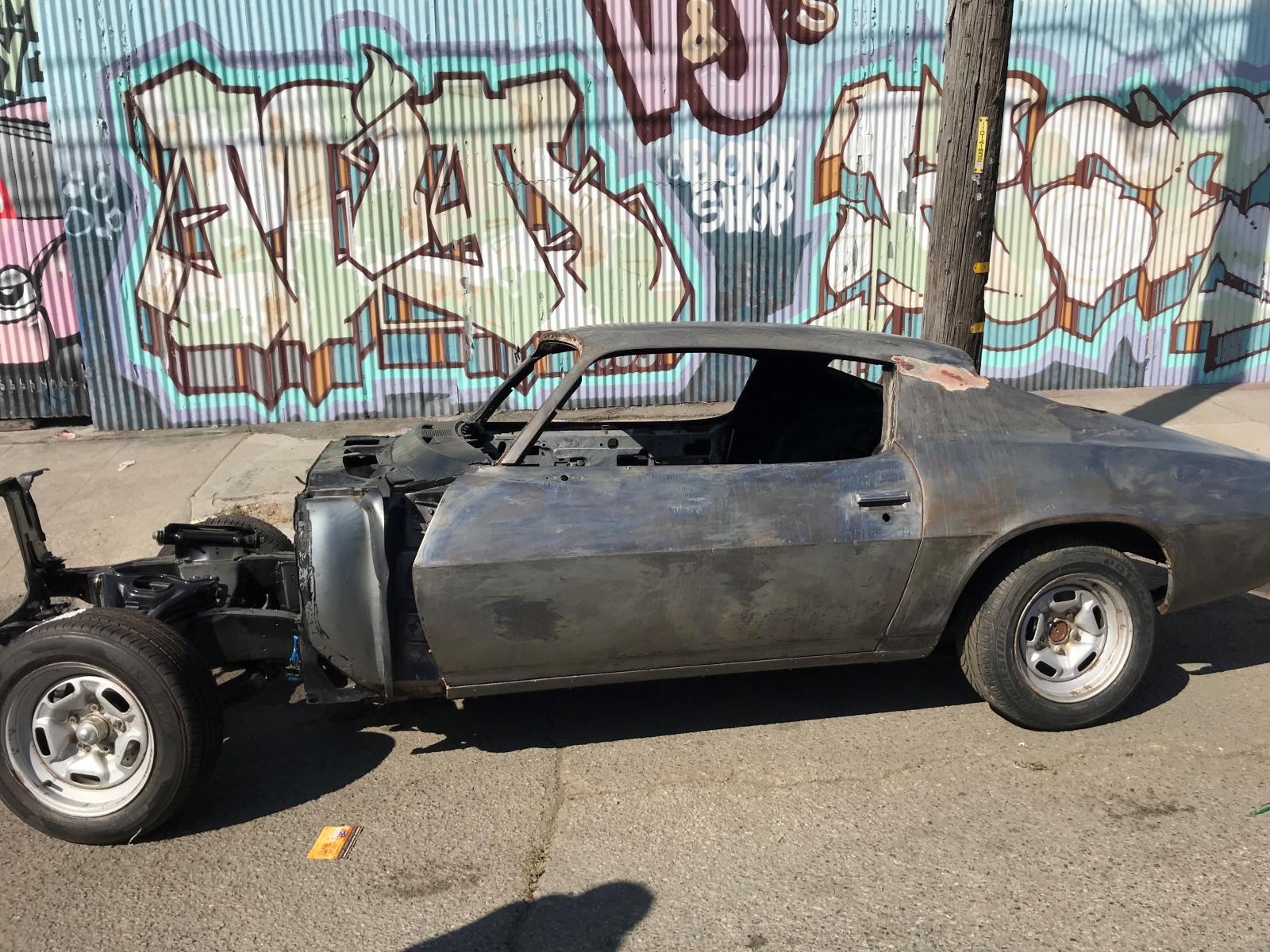

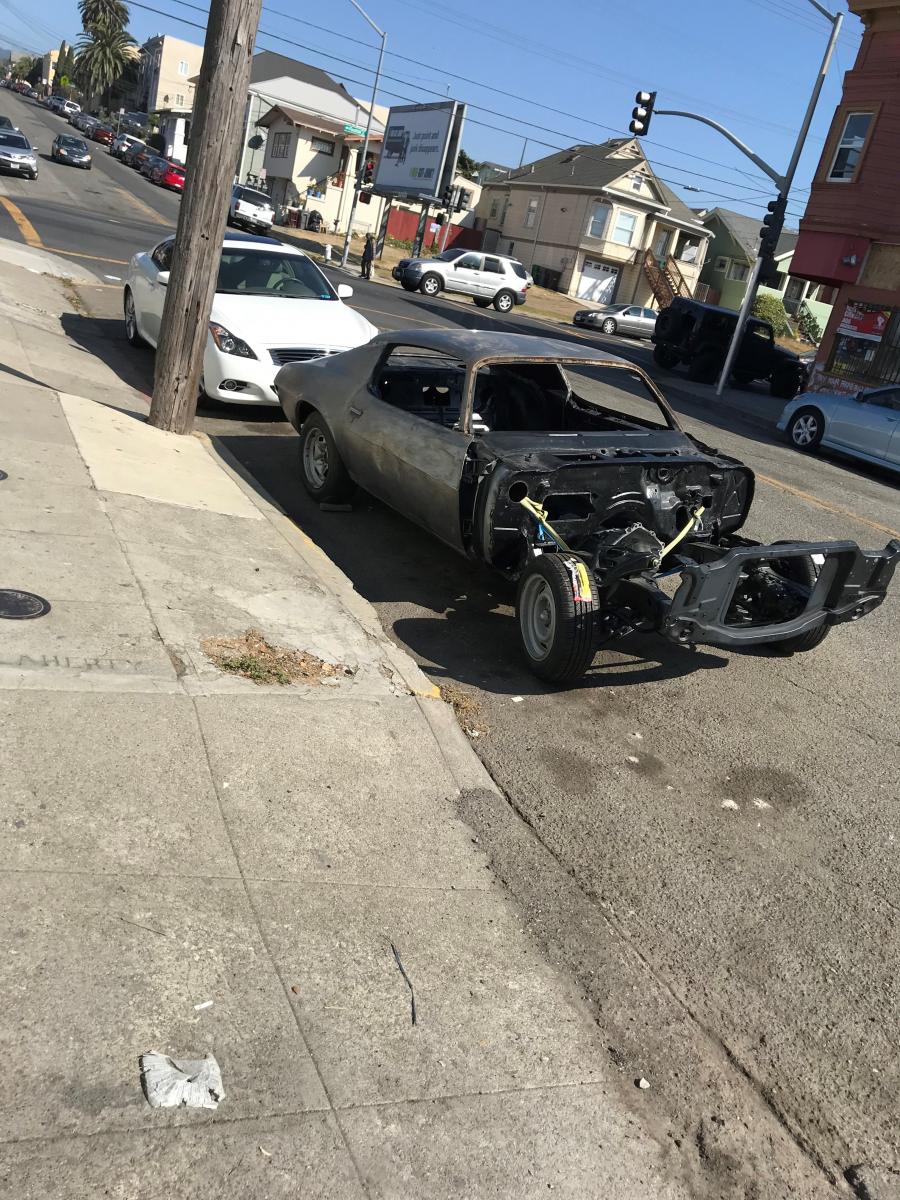

      Hopefully I can see some progress real soon. Finally dropped it off at the body shop.

      Name:  shop2.jpg
Views: 2569
Size:  349.5 KB
      Name:  shop.jpg
Views: 2574
Size:  232.9 KB
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    16. #16
      Join Date
      Oct 2018
      Location
      San Jose, CA
      Posts
      518
      Nice project - look forward to watching the progress. I am building a 71 with similar suspension set-up and T56 but sticking with an old school motor since I'm starting with a finished car. I will get a project thread going this week - bought the car last week and first update will be started this weekend.

      I am not far from you - down in the South Bay, San Jose.

    17. #17
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States
      Quote Originally Posted by c4racer2 View Post
      Nice project - look forward to watching the progress. I am building a 71 with similar suspension set-up and T56 but sticking with an old school motor since I'm starting with a finished car. I will get a project thread going this week - bought the car last week and first update will be started this weekend.

      I am not far from you - down in the South Bay, San Jose.
      Thanks - it's currently in the long process of paint and body shop jail. I checked out your thread, nice starting point. Only about 45 minutes away
      ------------------------------
      69 Camaro LS3/6L80e
      70 Camaro RS LS3/6l80e
      74 Nova 434 SBC

    18. #18
      Join Date
      Sep 2013
      Location
      Oakley, CA
      Posts
      91
      Country Flag: United States

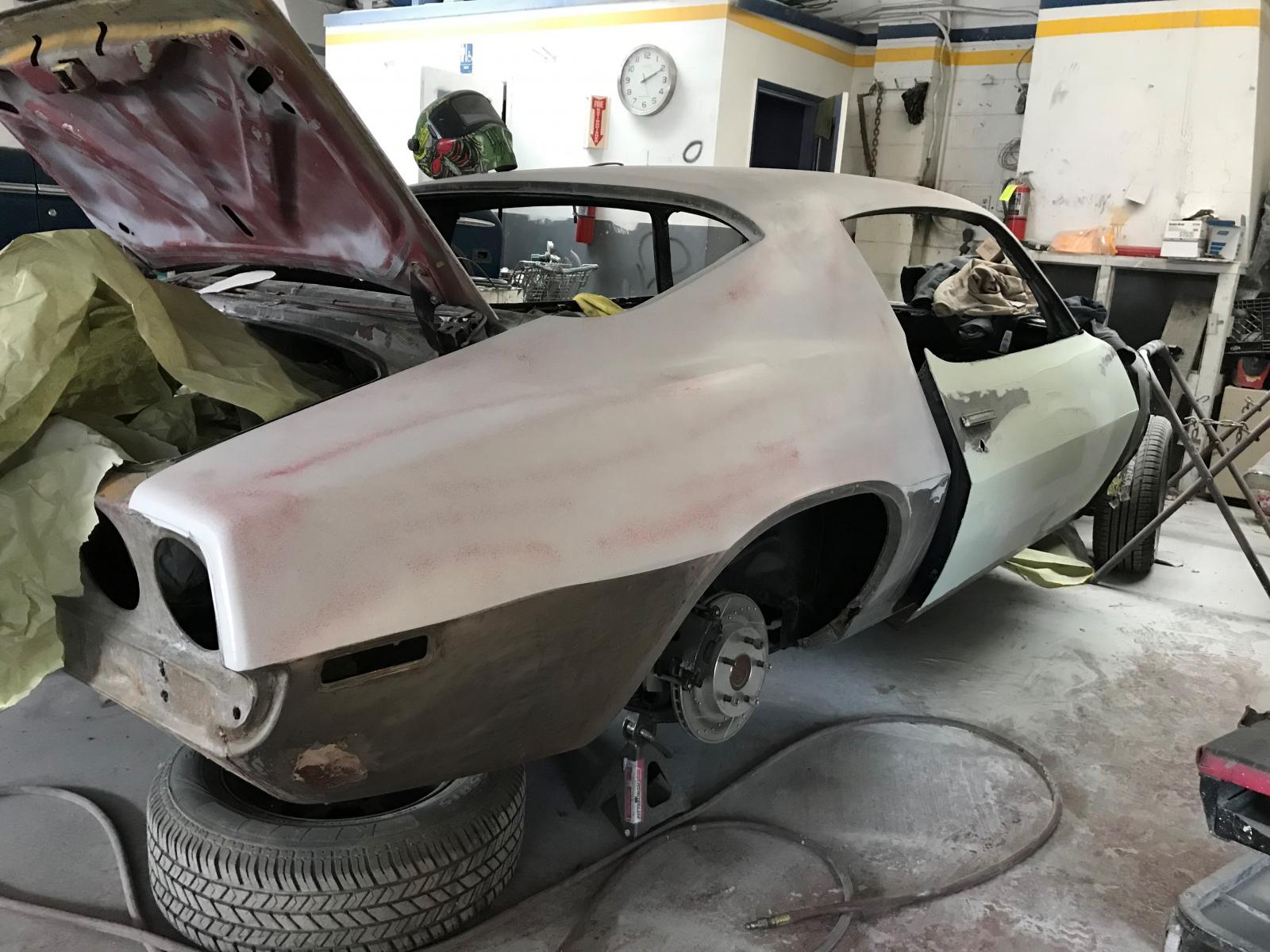

      No real update, finally starting to see straight lines and all bad metal is being removed and replaced.
