      1970 Mustang Mach 1 Restomod/Pro-Touring Build

      Hello everyone.

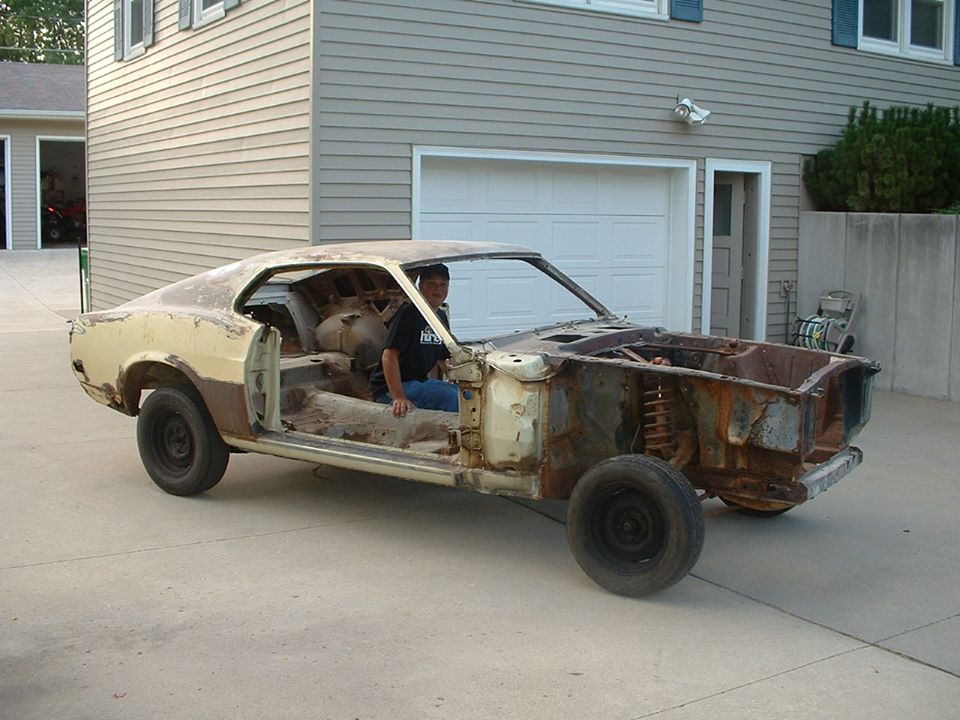

      I am in the middle of a re-build on my 1970 Mustang Mach 1. I purchased the car as a junior in high school in 2002 and the car was pretty rough as you can see in the photo. I took the car with me to my collision repair program after high school and did a complete restoration on it starting in the fall of 2003 and finishing the project in the summer of 2005. I have enjoyed the car through the years until I got rear ended in the spring of 2015. I decided after the collision and the insurance work was all worked out to not only repair the car but to completely re do it with some changes and take care of things that weren't up to my standards from the original restoration.

      Purchased as a parts car from a friend in 2002. My friend Doug inside the car demonstrating the flinstone brakes. He has a sweet 69 Camaro!
      Name:  Mach1 original.jpg
Views: 6774
Size:  110.1 KB

      A photo of my Mach 1 next to a 69 GT pro-touring car I built back in 2010-2011 and has been featured in a few different mustang magazines.
      Name:  70Mach 69 GT.jpg
Views: 9827
Size:  123.6 KB

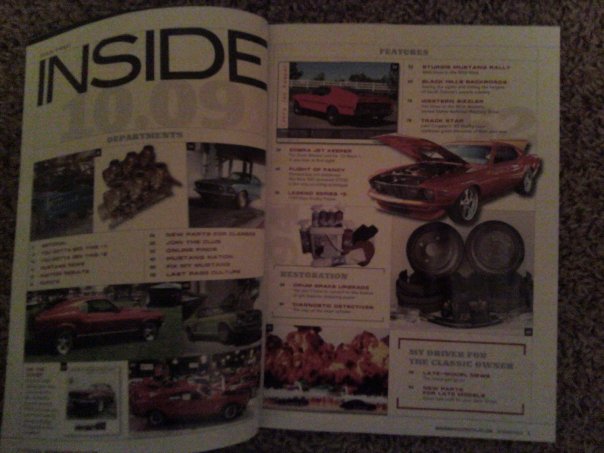

      My car was lucky enough to be shown in Mustang magazine a while back and grace it with the Ring Brothers Reactor 67 Mustang.
      Name:  Magazine cover.jpg
Views: 5212
Size:  34.0 KB
      Name:  Mustang Magazine.jpg
Views: 5215
Size:  49.0 KB
      Name:  Mustang Magazine insert.jpg
Views: 5222
Size:  57.6 KB

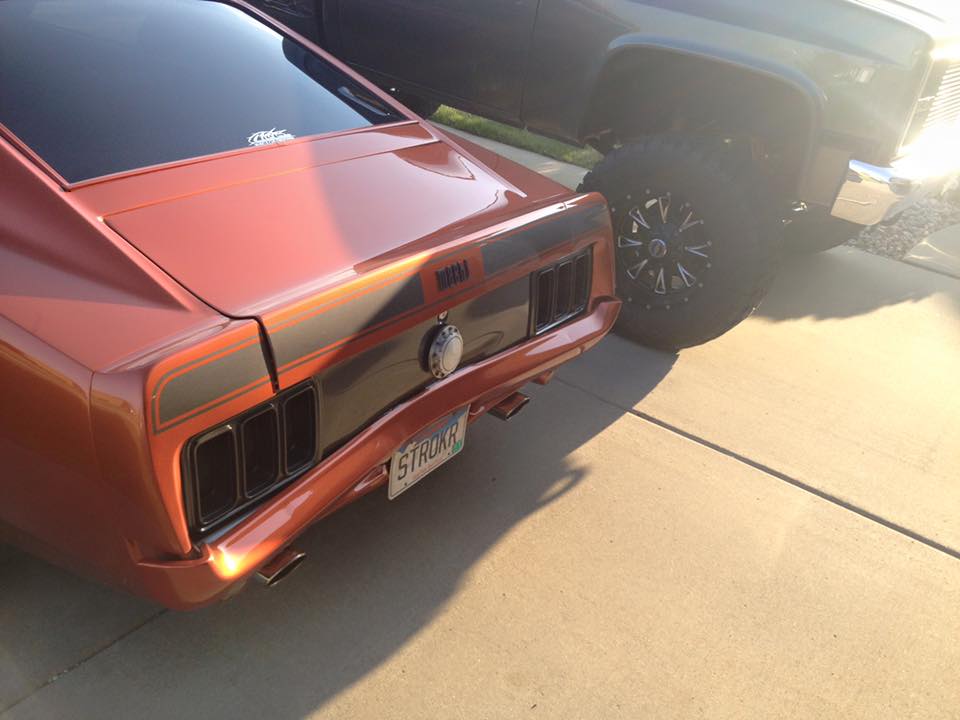

      Spring 2015 My first outing of the season with the car and a guy in a GMC Jimmy bumped into the back of me at a red light. Didn't look too bad but looks can be deceiving. The insurance estimate at $8,500 may have been a bit light but even being in the business it's tough to estimate vintage cars.
      Name:  Mach Rear Ended.jpg
Views: 5397
Size:  56.3 KB



    2. #2
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

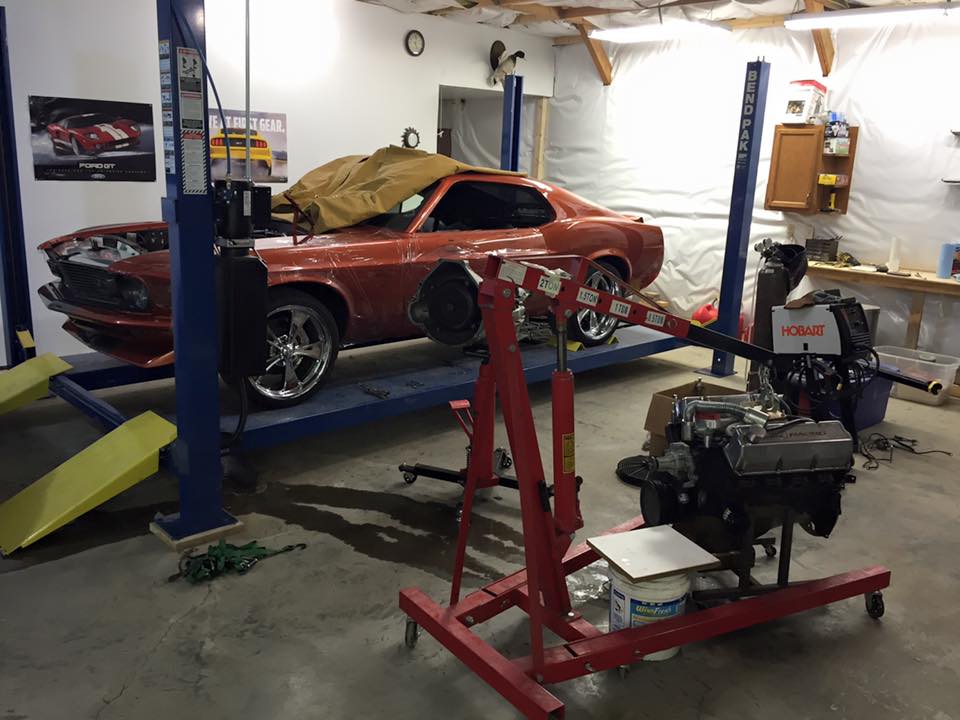

      Initially I was going to repair the car and go just a few steps further but that snowballed quickly! When I originally restored the car some parts weren't available like full quarters and I was never happy with my panel fit and gaps. Now that full quarters have been made available I decided this was a good opportunity to replace the partial skins with new full quarters and things kept going from there. I also never liked The way my long tube Hooker headers came down so low and you could see so much of the exhaust from the side. That and some oil leaks equaled the engine coming out and going in for a "freshen up".

      Name:  Mach1 engine out.jpg
Views: 5160
Size:  80.4 KB

    3. #3
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

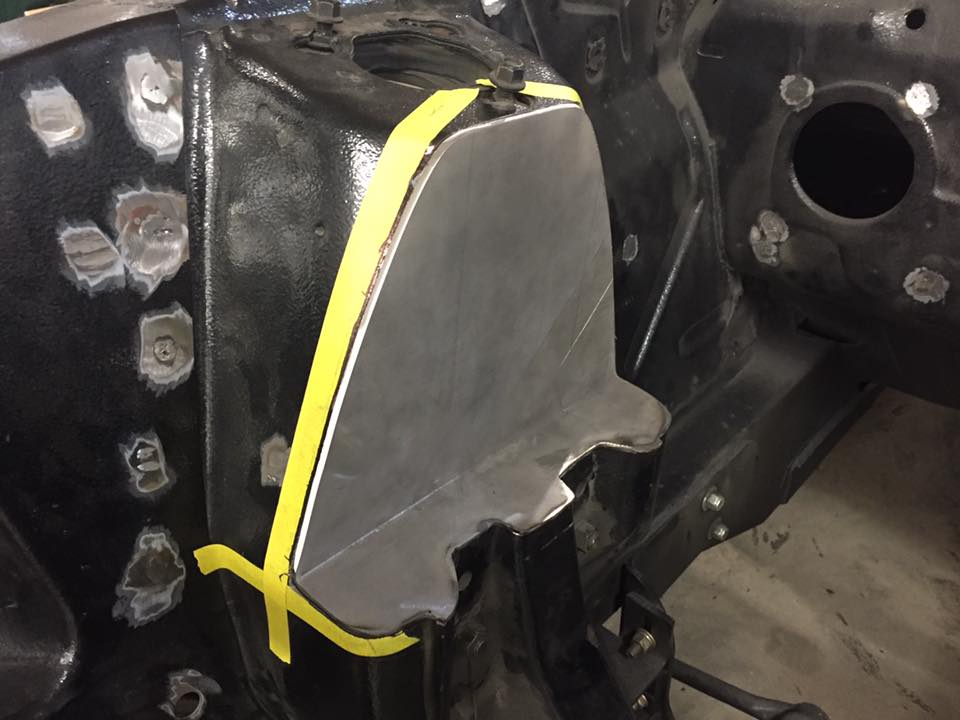

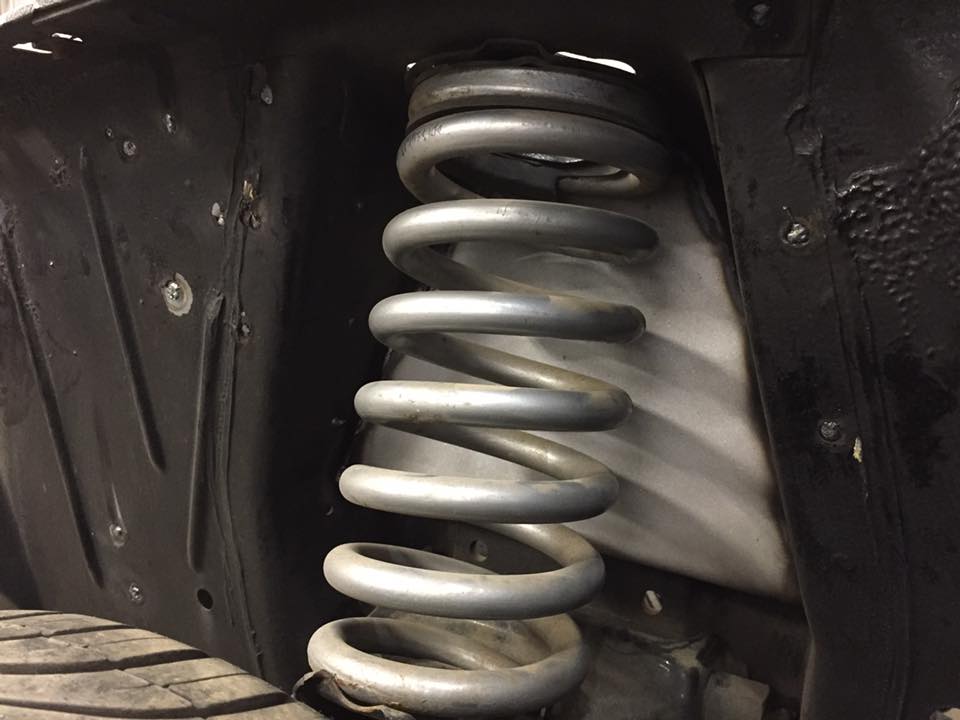

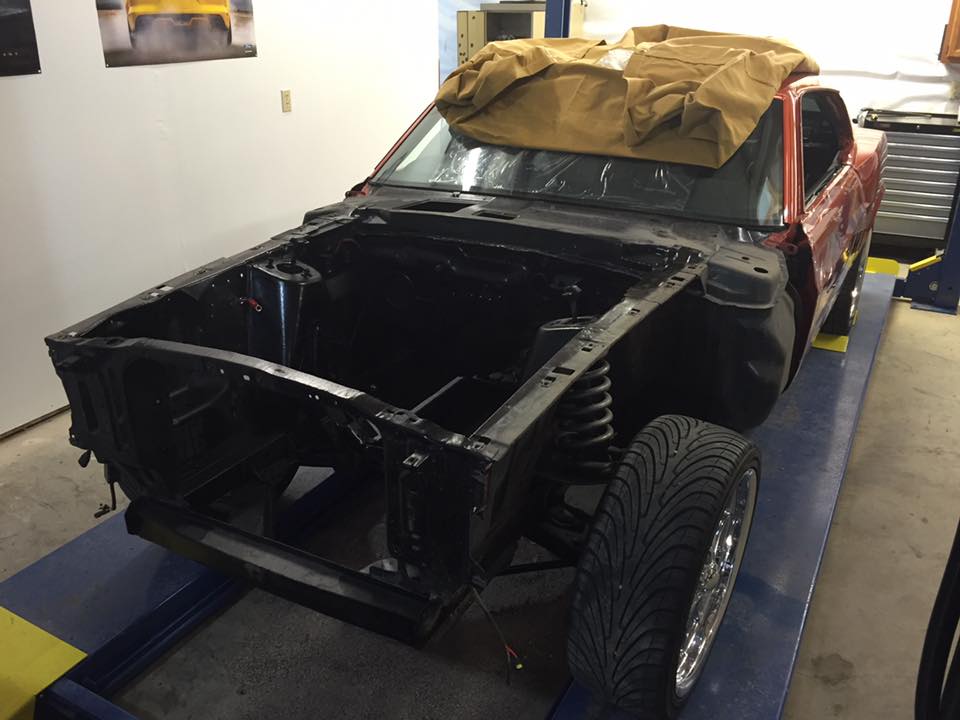

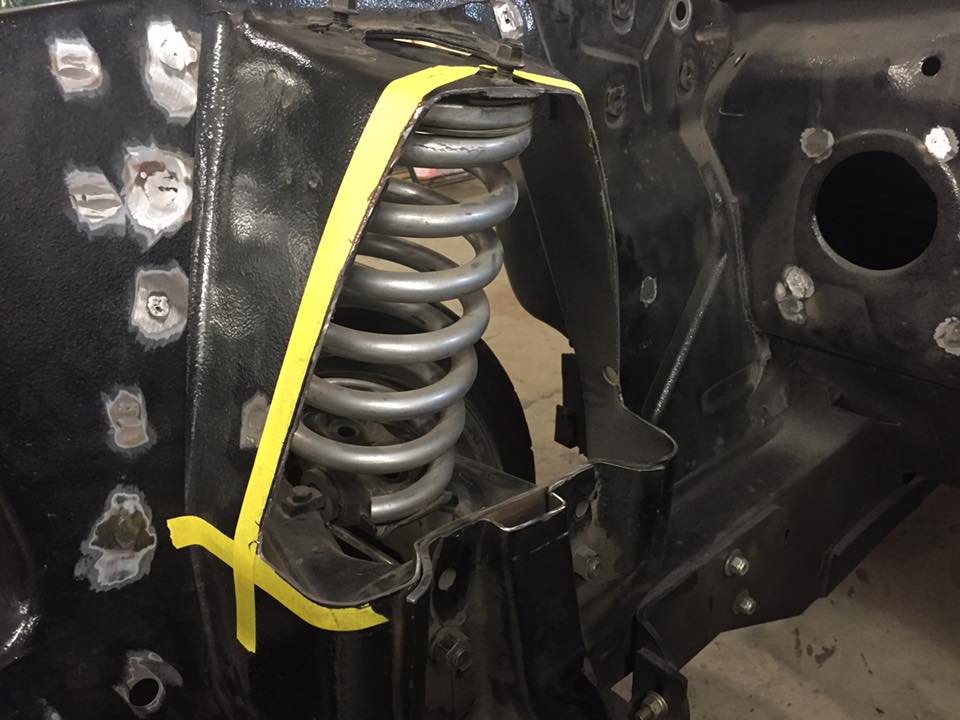

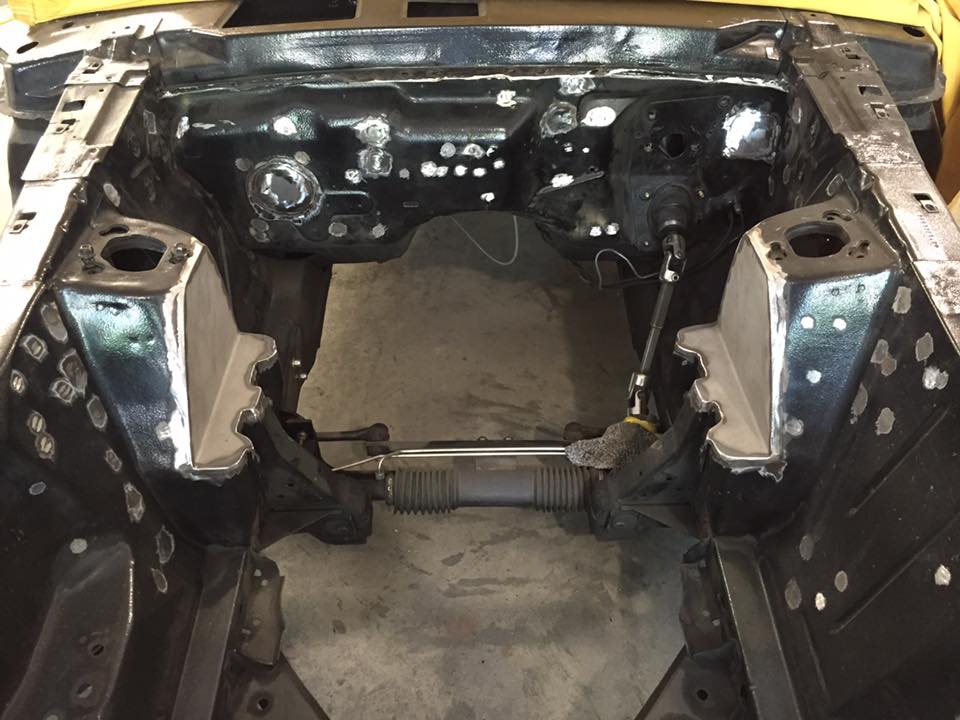

      After removing the the 408 Cleveland 4V from the car and going down memory lane I decided that getting to plug wires and header bolts is a bit tight and not the most fun. With that in mind I decided to do an old school notch on the shock towers to allow for easier access and more engine bay room. I notched the towers as much as I could but wanted to leave enough room to use factory style suspension if I ever wanted to return it that way but I will be installing my ridetech level II coilovers with strong arms and muscle bar up front. I also shaved up any unwanted/needed holes in the engine bay at this time to give a cleaner appearance.
      Name:  20727983_10159613304315354_1567773850426351560_n.jpg
Views: 5147
Size:  63.0 KB
      Name:  20638975_10159613304335354_5634279493984170967_n.jpg
Views: 5106
Size:  71.2 KB
      Name:  20638296_10159613304350354_3244393781113170698_n.jpg
Views: 5107
Size:  63.6 KB
      Name:  20620985_10159613304475354_2301282439218705592_n.jpg
Views: 5100
Size:  54.3 KB
      Name:  20621771_10159613304485354_3569830931145634037_n.jpg
Views: 5123
Size:  84.3 KB

    4. #4
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

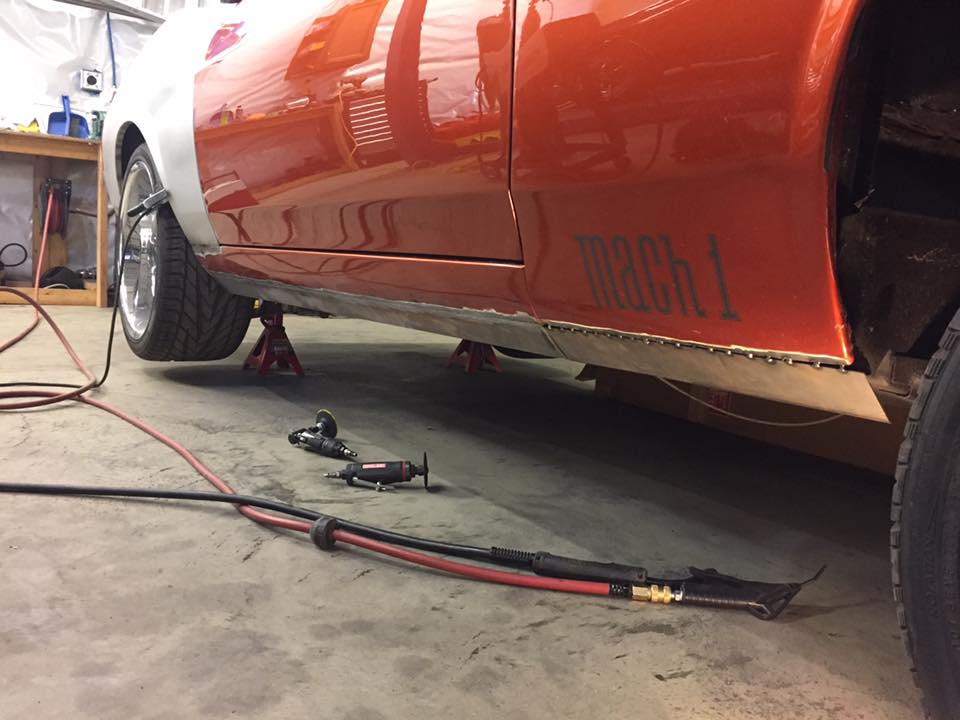

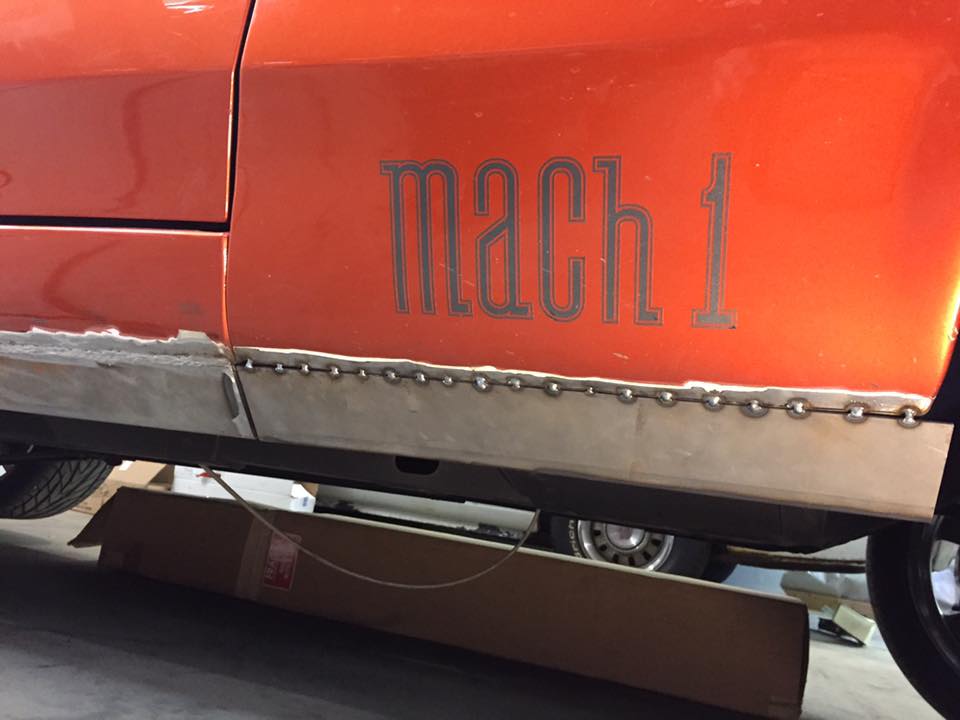

      In another attempt to hide the 3" exhaust system and also make the car appear lower without hurting actual ground clearance, suspension travel, or drastically altering the appearance of the car I extended the rockers, fenders, and quarters slightly hiding the pinch weld and adding a little cover for the exhaust and frame connectors. I had done this on the red 69 GT pro-touring build and also a few other projects and really liked the result.
      Name:  20664680_10159613501155354_728725464384688424_n.jpg
Views: 5102
Size:  67.0 KB
      Name:  20621936_10159613500955354_5045945432924121203_n.jpg
Views: 5121
Size:  50.2 KB
      Name:  20604551_10159613500675354_5461650443153310329_n.jpg
Views: 5078
Size:  44.9 KB
      Name:  20664680_10159613501155354_728725464384688424_n.jpg
Views: 5102
Size:  67.0 KB

    5. #5
      Join Date
      Mar 2015
      Location
      FL
      Posts
      318
      Country Flag: United States
      Wow, in the magazine, very cool! Lookin' good. Version 2.0, good luck.
      -Mitch
      G8 GXP, White Hot, Auto, bone stock
      68 Firebird, 428 Pontiac, CNC'd KRE Al d-ports, hyd roller, EFI, TKO600, TCI Eng complete chassis, Ridetech, Kore3 C6Z brakes, C5Z 18" with 315 rivals x4, C6zr1 mufflers
      RRR, NASA HPDE https://youtu.be/DPp1l9-FuNE

    6. #6
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

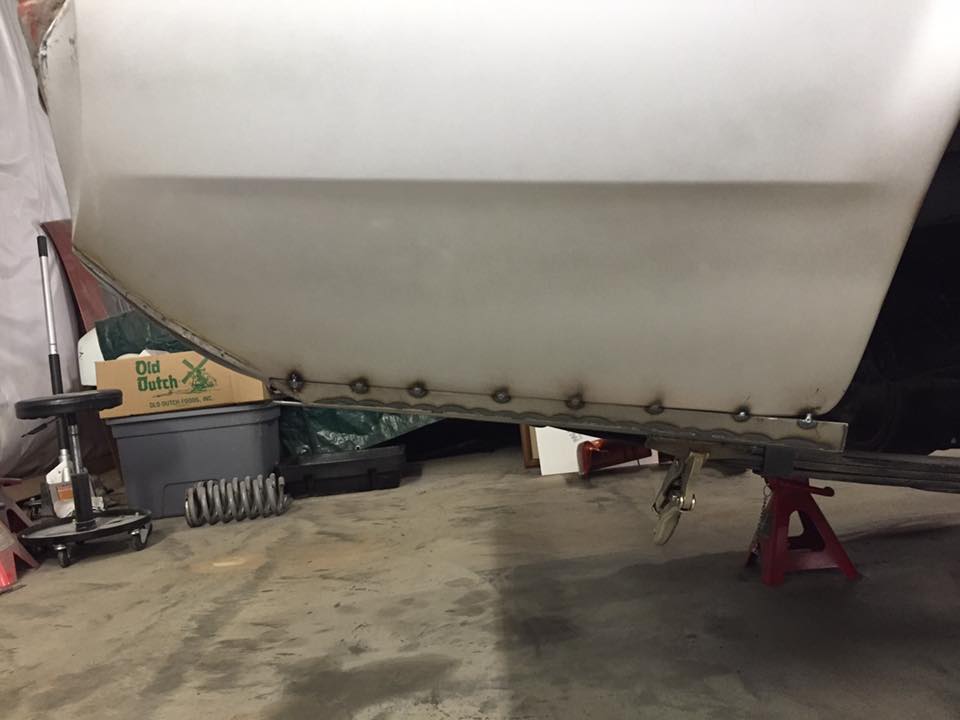

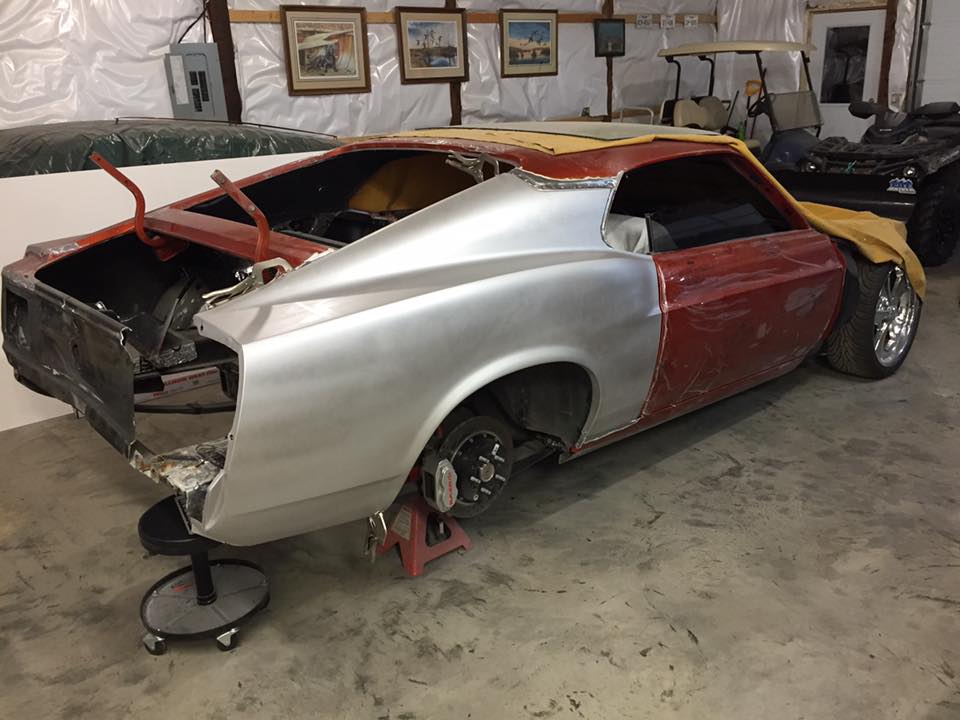

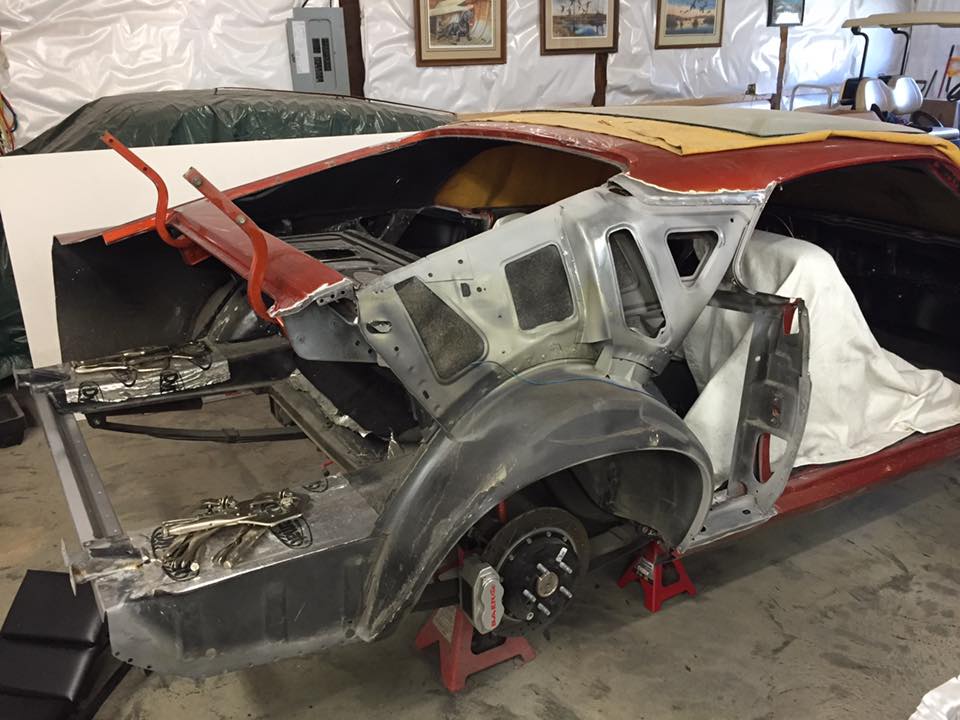

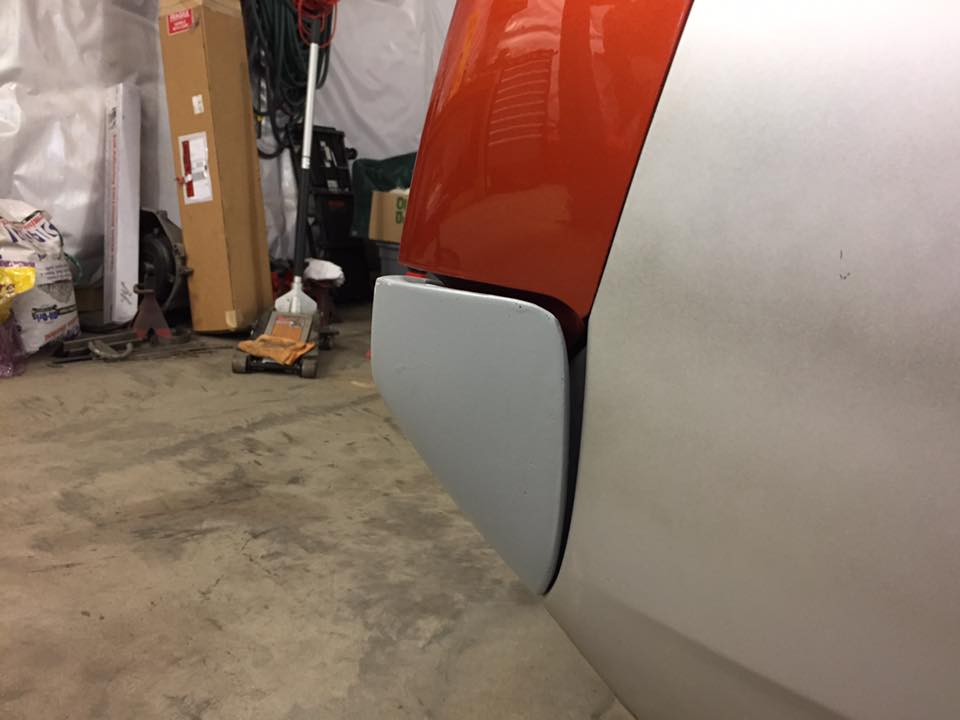

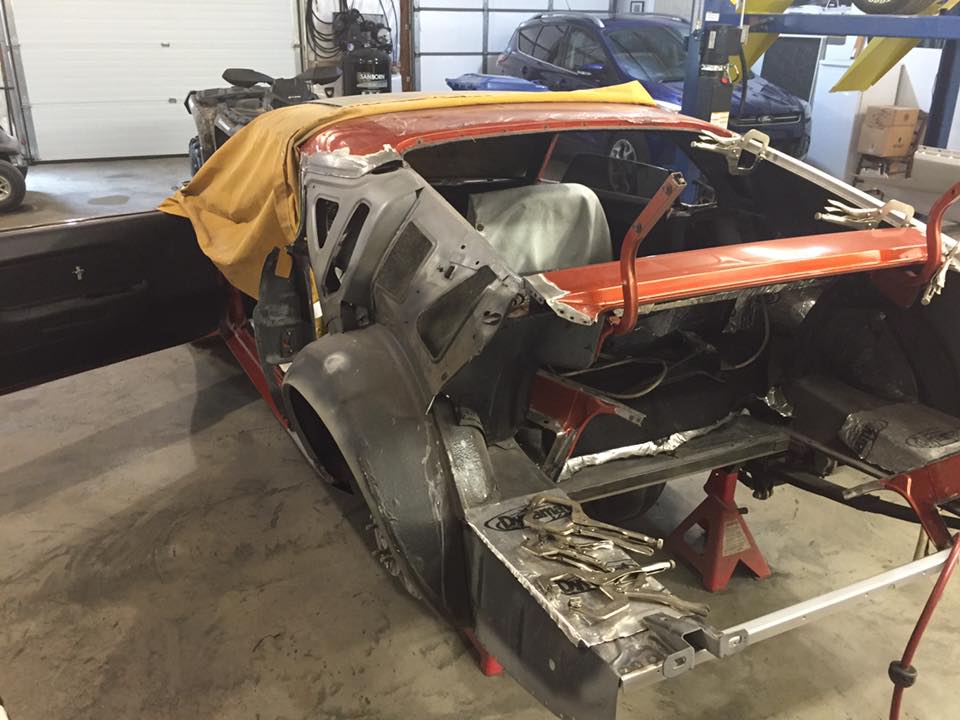

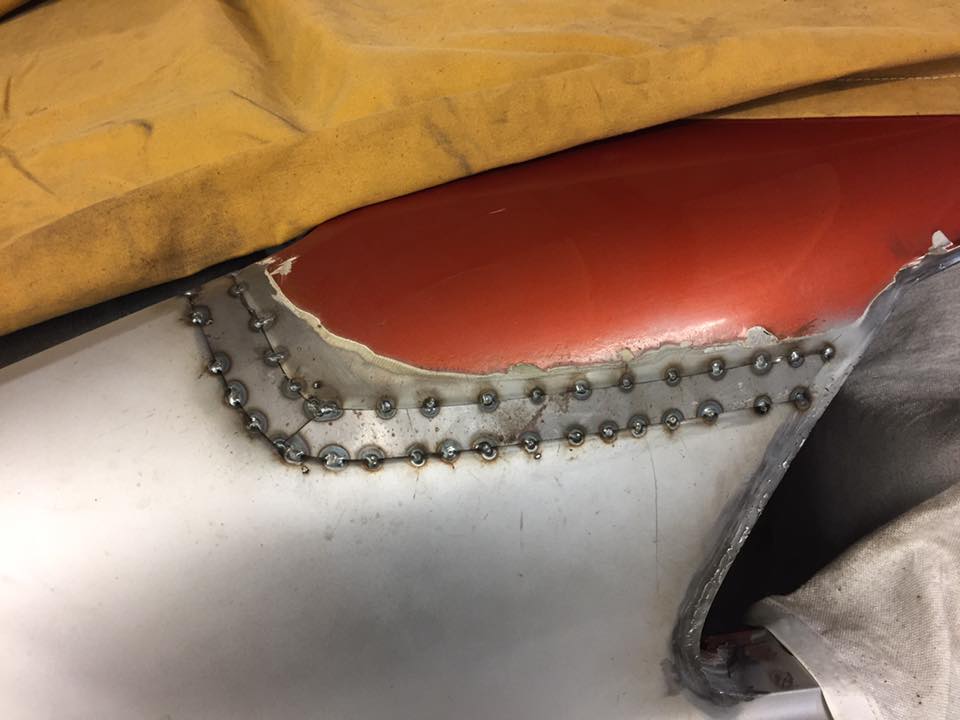

      On to the quarters. I also shaved the drip rails this time around as this is a common mod performed at my shop and really cleans the cars looks up. I made some patches to bridge the gap of the factory roof to quarter panel seam to add some strength and reduce the body works chances of shrinking in that location over time. I went ahead and welded up the other seams as well.

      Name:  20620842_10159613500415354_3303661297100537688_n.jpg
Views: 5118
Size:  88.1 KB
      Name:  20620822_10159613500615354_2169335117432964300_n.jpg
Views: 5085
Size:  82.5 KB
      Name:  20622267_10159613500395354_2383949468270639692_n.jpg
Views: 5166
Size:  75.8 KB
      Name:  20663932_10159613500895354_3572093189121150553_n.jpg
Views: 5077
Size:  54.8 KB
      Name:  20621911_10159613541805354_2672877771099722465_n.jpg
Views: 5065
Size:  56.7 KB

    7. #7
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

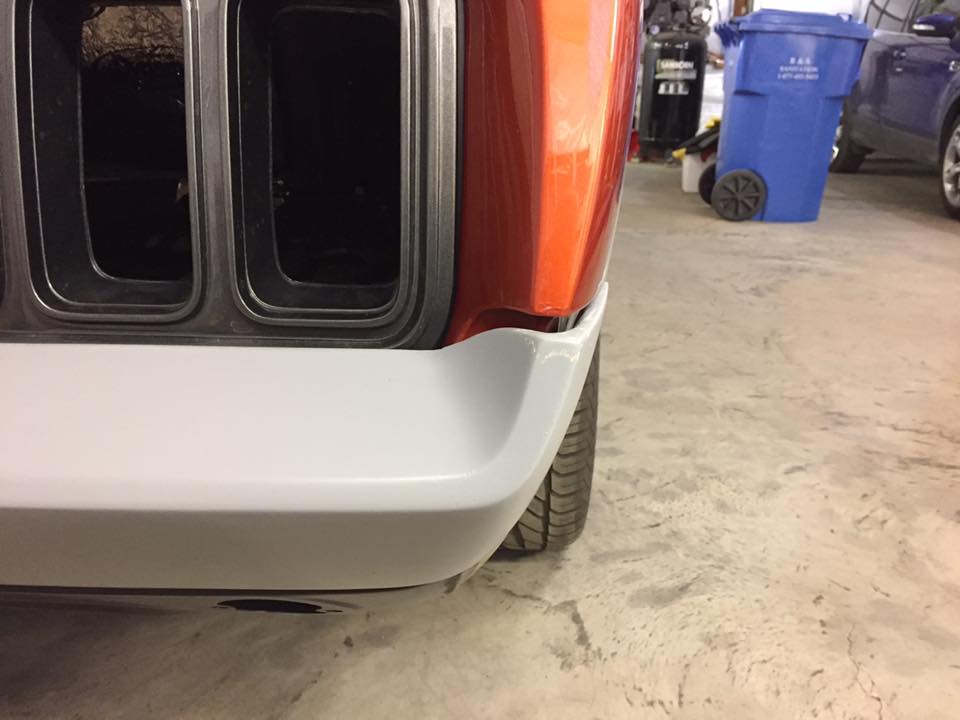

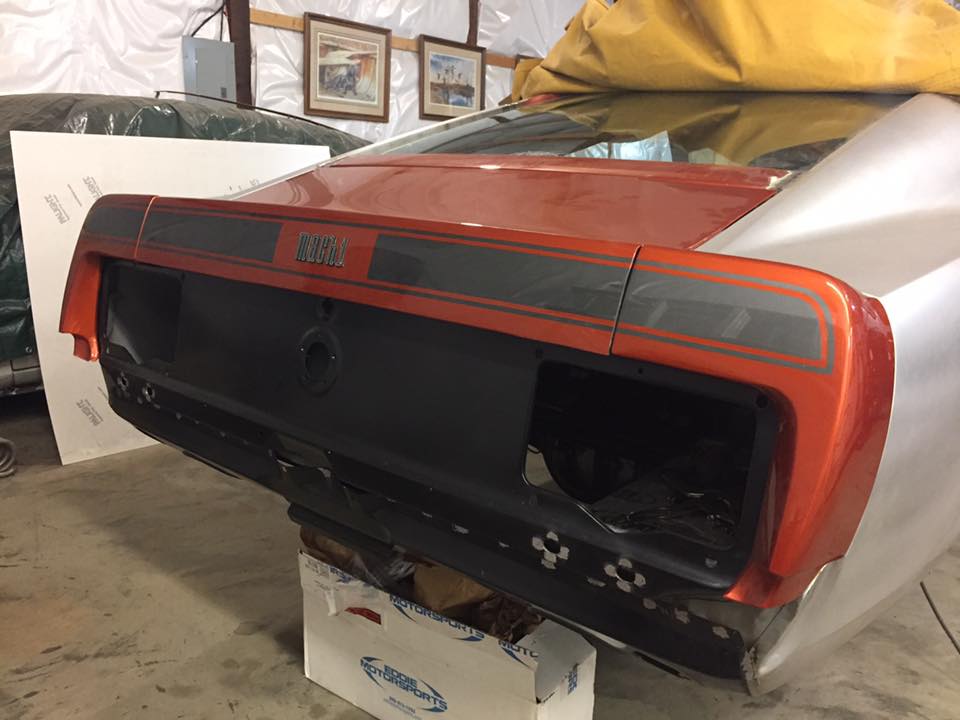

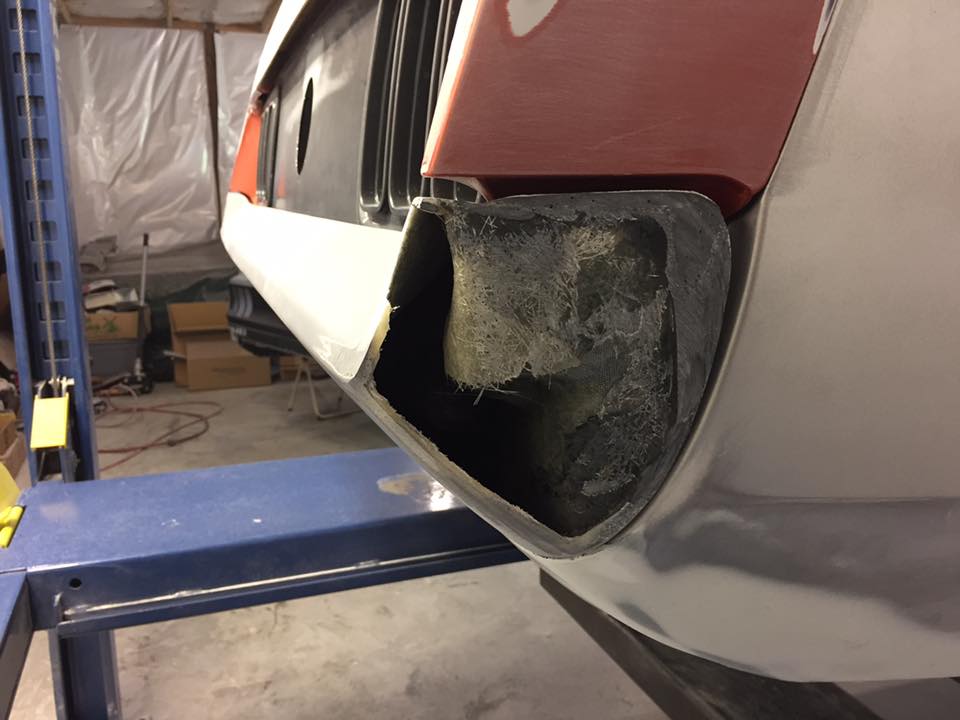

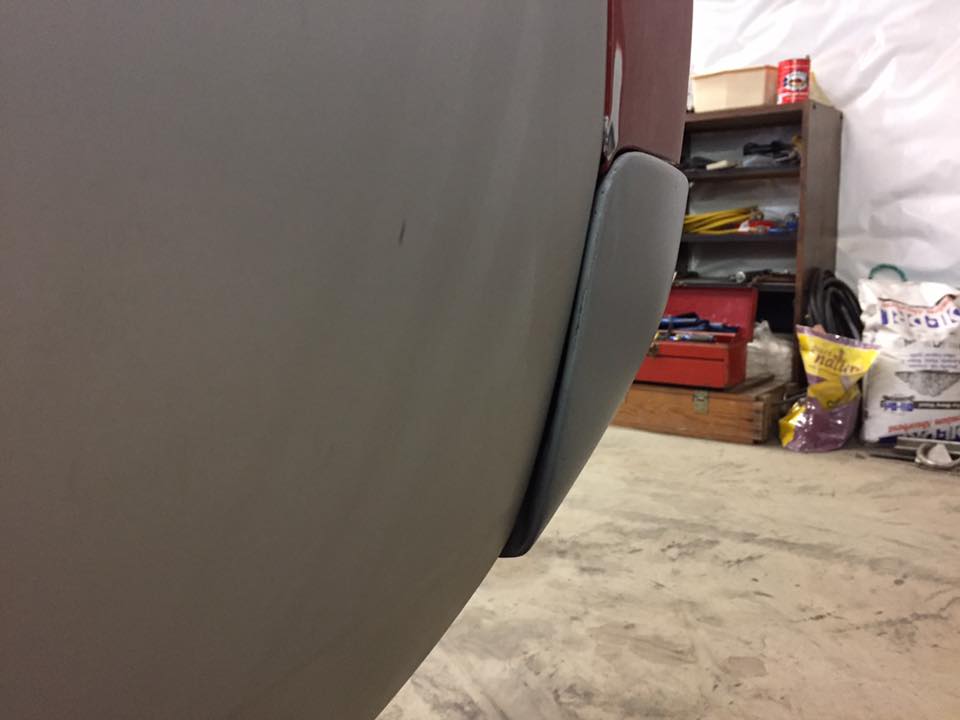

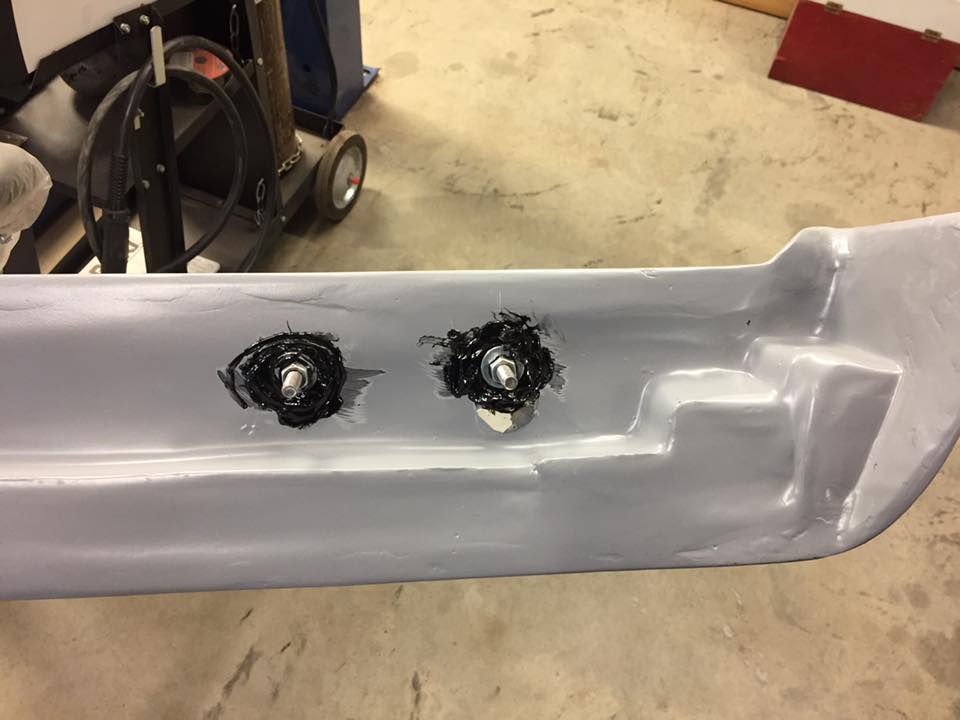

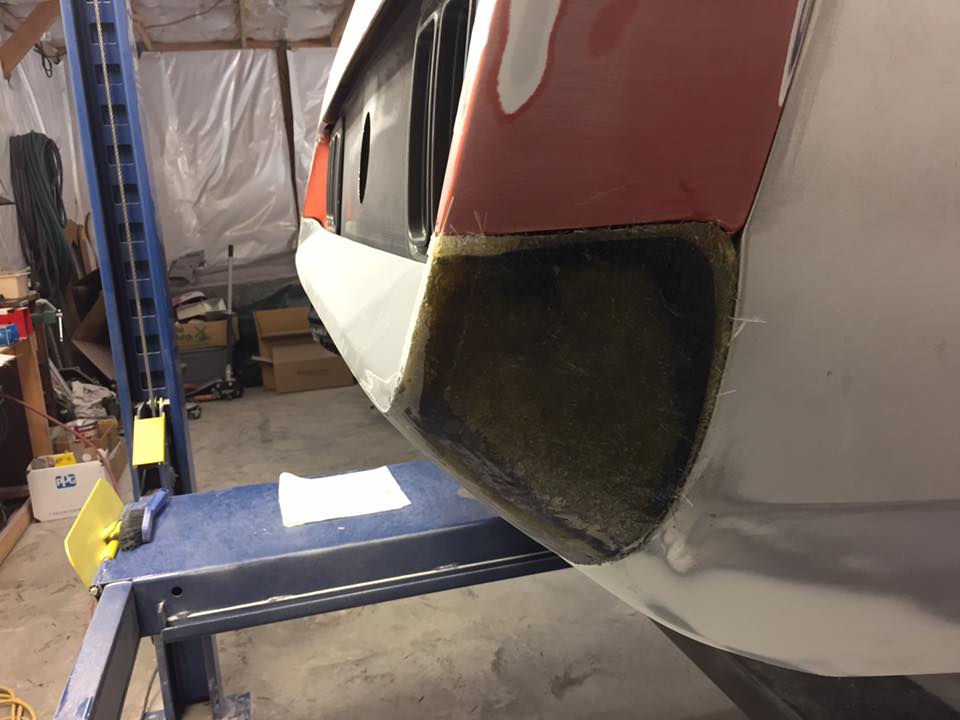

      I got my rear tail panel on and welded on the lower valance like I had before for a cleaner seamless look. At this point I had decided that because I was in need of a new rear bumper from the accident anyway I may as well use a fiberglass flush mount style. I have done two 69 sportroofs with this style bumper one a Anvil and the other a Mustangs To Fear. They both fit like a typical fiberglass part and needed plenty of work to make fit right. I am glad both companies are offering these parts and I know it is tough to make a part fit every car as there are slight inconsistencies in these cars. With that being said it would appear both of these companies designed them to fit a 69 model and simply assumed they would also work on a 70 like the factory steel bumper does. The factory steel bumper had such a large gap that it was much more forgiving in its fitting both years than these flush mount bumpers are. From personal experience the Mustangs to fear bumper fit a touch better out of the box for a 69 car and needed less work. I chose an Anvil fiberglass one for mine as it lent itself better to a 1970 model. After some surgery I have it fitting pretty good with a little finish work left. I also had to change the bumper mounting studs as they were too low for my 70 but I didn't have this issue with either of the 69's I did.

      Name:  20620795_10159613500940354_8366121420699770185_n.jpg
Views: 5058
Size:  61.2 KB
      Name:  20621347_10159613501170354_453889072265426378_n.jpg
Views: 5127
Size:  60.7 KB
      Name:  20621851_10159613501160354_5591658544452337475_n.jpg
Views: 5033
Size:  53.5 KB
      Name:  20708067_10159613501410354_6152325348296337847_n.jpg
Views: 5049
Size:  53.8 KB
      Name:  20638670_10159613501380354_8176208905814518764_n (1).jpg
Views: 5028
Size:  37.7 KB
      Name:  20604579_10159613501390354_7140247482874392189_n.jpg
Views: 5025
Size:  45.4 KB
      Name:  20621961_10159613543405354_4075605203991560261_n.jpg
Views: 5011
Size:  60.1 KB
      Name:  20604370_10159613543420354_733559259038256186_n.jpg
Views: 5025
Size:  42.9 KB
      Name:  20621749_10159613543615354_8686598823403994345_n.jpg
Views: 5029
Size:  60.2 KB
      Last edited by builttodrive; 08-06-2017 at 07:57 PM. Reason: add photo

    8. #8
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

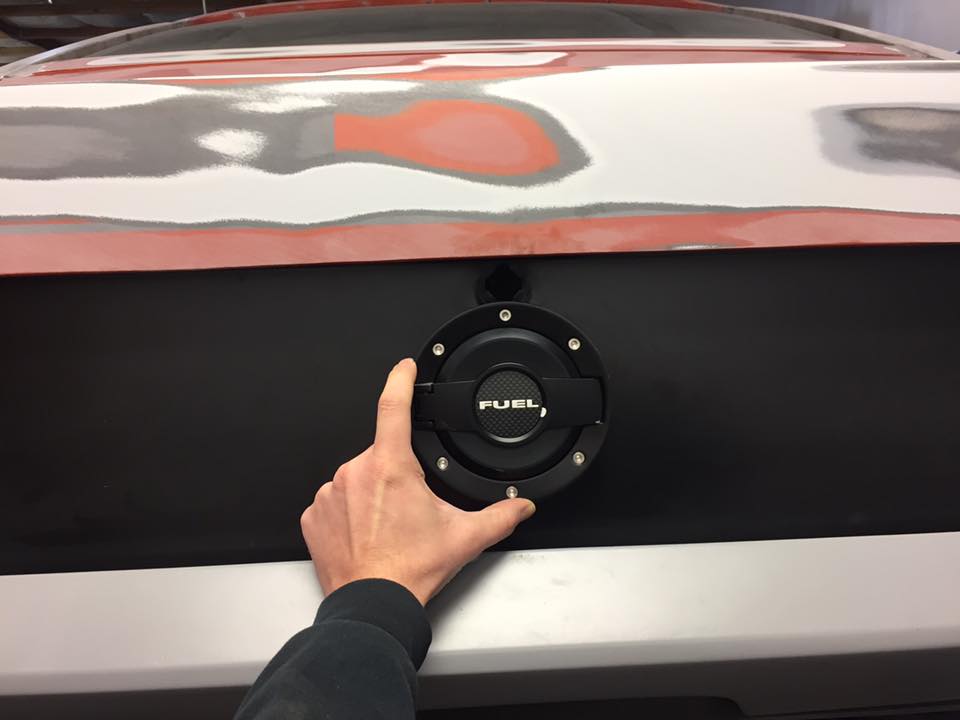

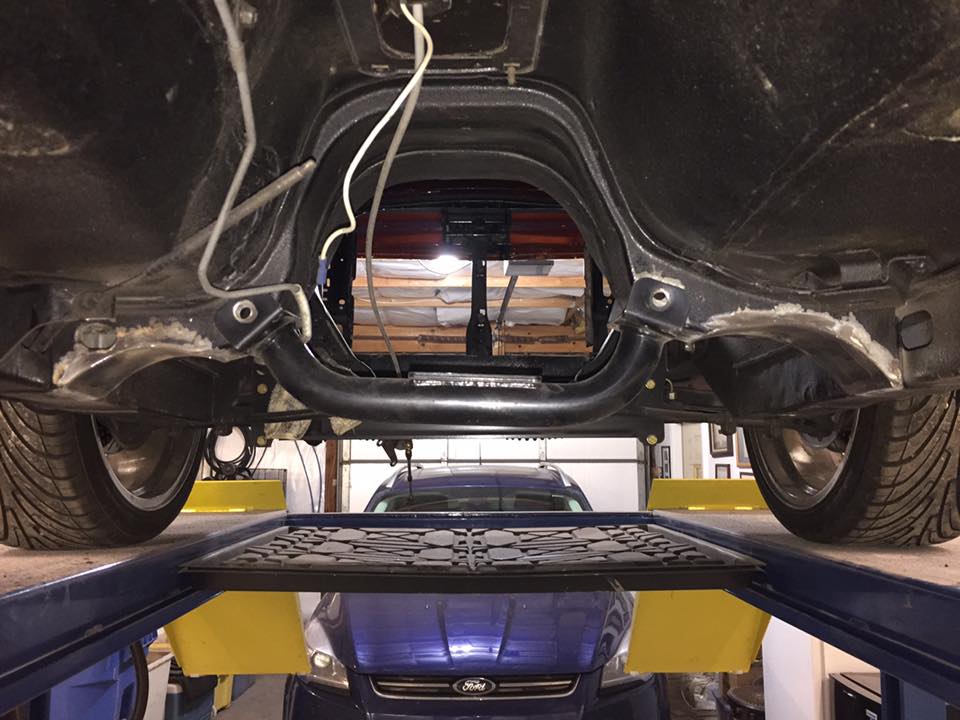

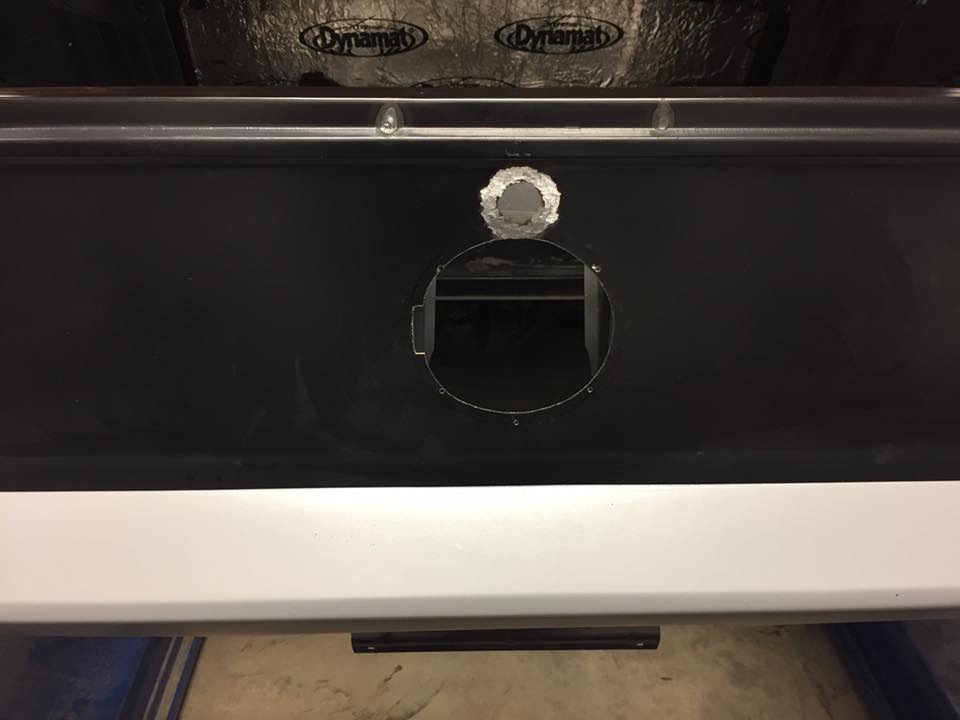

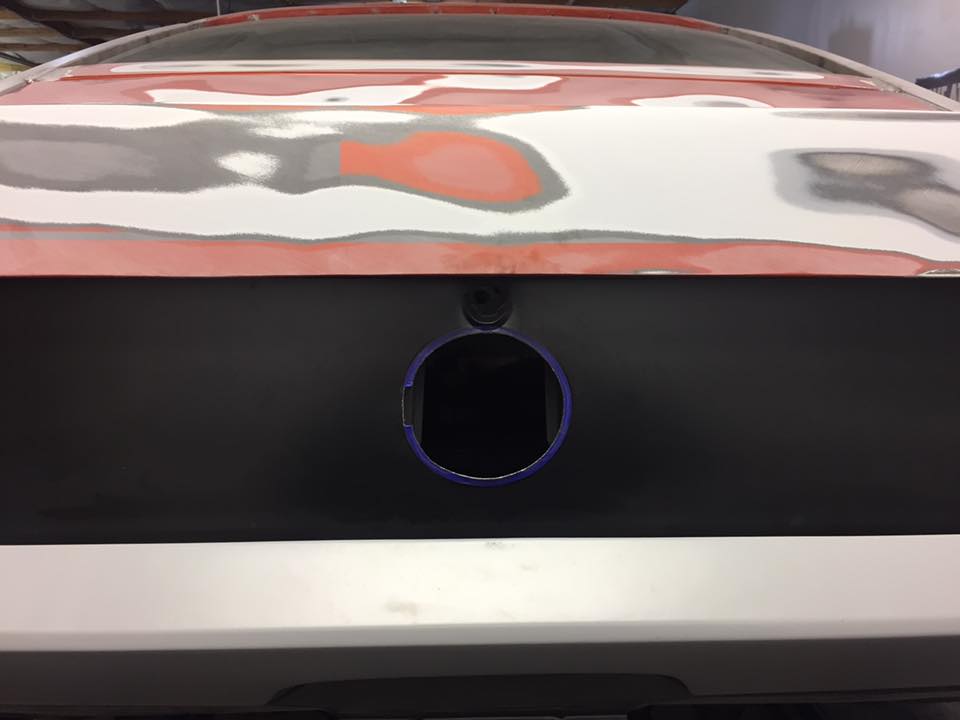

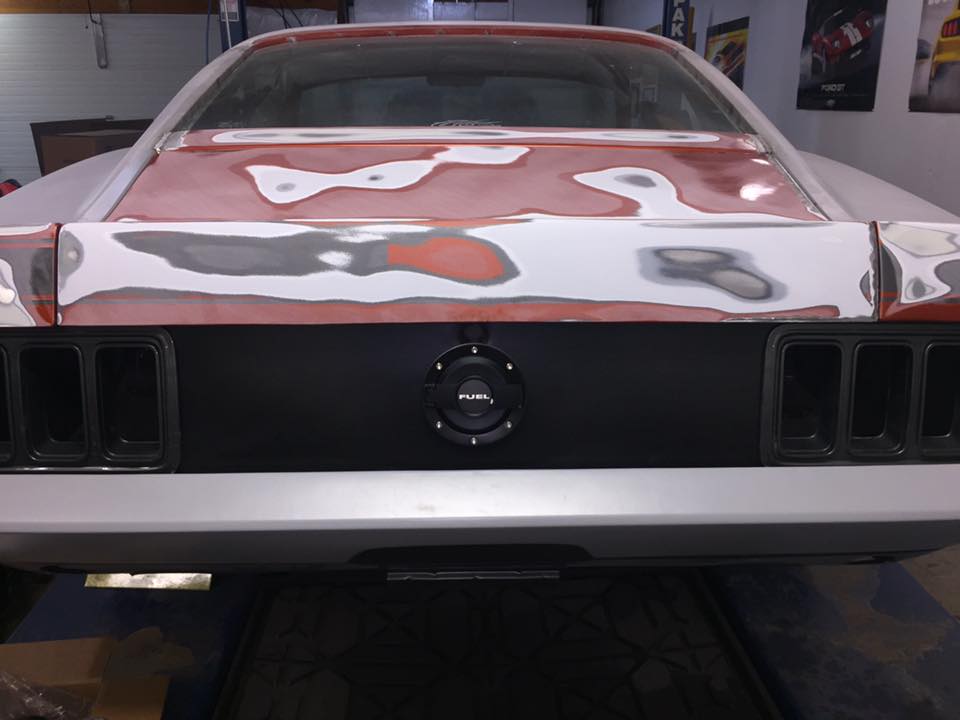

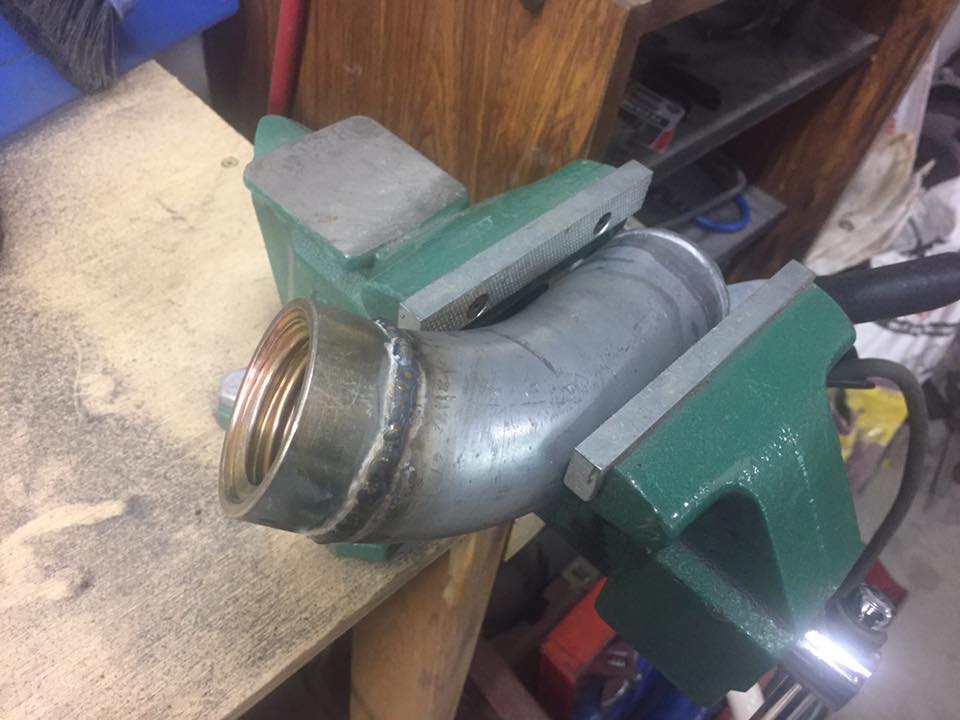

      Still working in the rear I decided I wanted to come up with a better gas cap solution. I didn't want to use the stock style pop open cap but the billet aftermarket twist off cap with cable wasn't cutting it. I searched the internet for ideas and better alternatives when I came across another members 69 Mustang with a Challenger Cap that I really liked. So I borrowed his idea and needed to figure out how to make it work for my 70. After getting the cap in place I decided the trunk lock needed to go and shaved that for a cleaner look. I will use one of the electric remote latches.

      Name:  20622171_10159613502405354_1378366602517918548_n.jpg
Views: 4994
Size:  39.3 KB
      Name:  20664145_10159613502425354_4575392734143700959_n.jpg
Views: 4997
Size:  35.8 KB
      Name:  20638308_10159613502435354_4571371129161688093_n.jpg
Views: 5018
Size:  49.1 KB
      Name:  20604718_10159613503600354_4561337281326170227_n.jpg
Views: 4973
Size:  34.5 KB
      Name:  20622116_10159613503040354_8130838280235546037_n.jpg
Views: 4968
Size:  66.2 KB
      Name:  20664583_10159613503075354_3992543764789947358_n.jpg
Views: 4955
Size:  50.5 KB
      Name:  20664002_10159613503080354_1324407072482586091_n.jpg
Views: 4962
Size:  46.8 KB

    9. #9
      Join Date
      Mar 2009
      Location
      Houston, TX
      Posts
      1,185
      Country Flag: United States
      Nice progress. I really like the subtle mods you've done so far. I've been mulling over extending the rockers on my 67 Firebird, but as bolt on extensions instead of welding them in permanently.
      Tu Ho
      Firebird V2-LS swap

    10. #10
      Join Date
      Jun 2017
      Posts
      66
      You are an artist!! Wow, amazing work.

    11. #11
      Join Date
      Jan 2009
      Location
      Chattanooga, TN
      Posts
      268
      Nice!
      What do you think of that cap and Tanks INC set up? I watched the '69 build on here go with that cap and loved it too! I'll be putting one on my '67 here shortly.

      Glad to follow along, thanks for posting!
      Stephen S.
      1967 Ford Mustang 4.7L, T5

    12. #12
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States
      Thanks for all the kind words everyone! I do call this my profession and I have a small restoration shop but I am somewhat young yet and have a lot to learn. With this project being that it is my own I have more time than funds and so if some of these mods take a little more time but save me money and achieve the same end result thats ok.

      MSTSFabbed. I liked the way the cap looked on his 69 and really liked not having to worry about where to set a cap when filling up or letting it hang down against my painted bumper from a cable. Tanks sells a nice product and I will be using their 22 gallon EFI tank as well. The Scott Drake Challenger cap looks nice and is a good piece but the base isn't flat. It's concave and its the opposite direction of the 67-69 Mustang tail panel. If you have more room the same version of the cap is offered for a Jeep but it is much larger. I used the challenger cap and machined the mounting base flat to work for my 70.

    13. #13
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

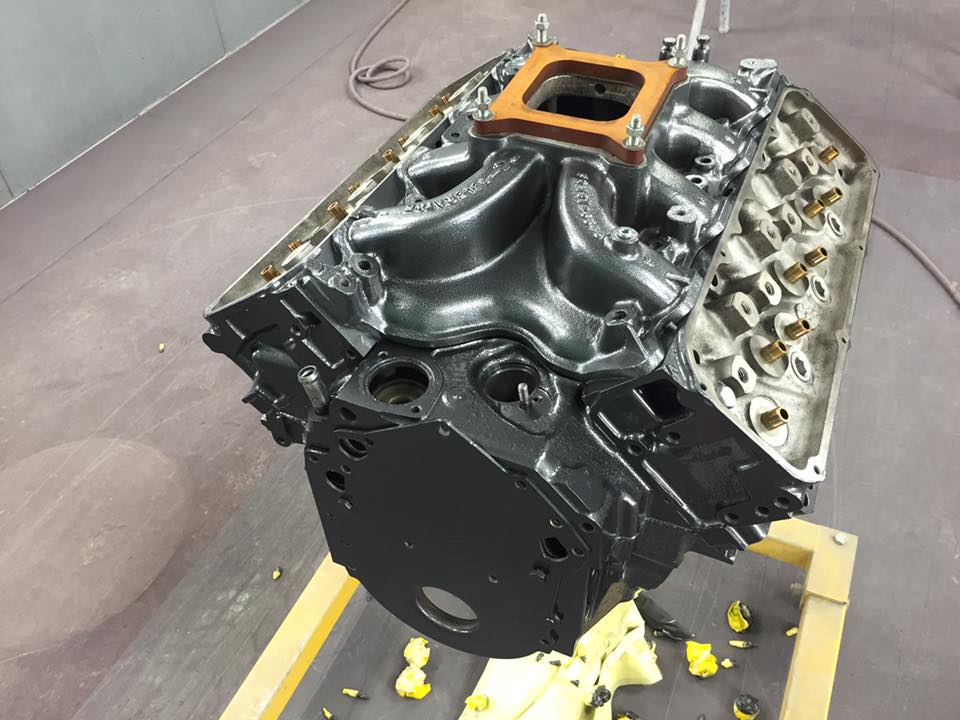

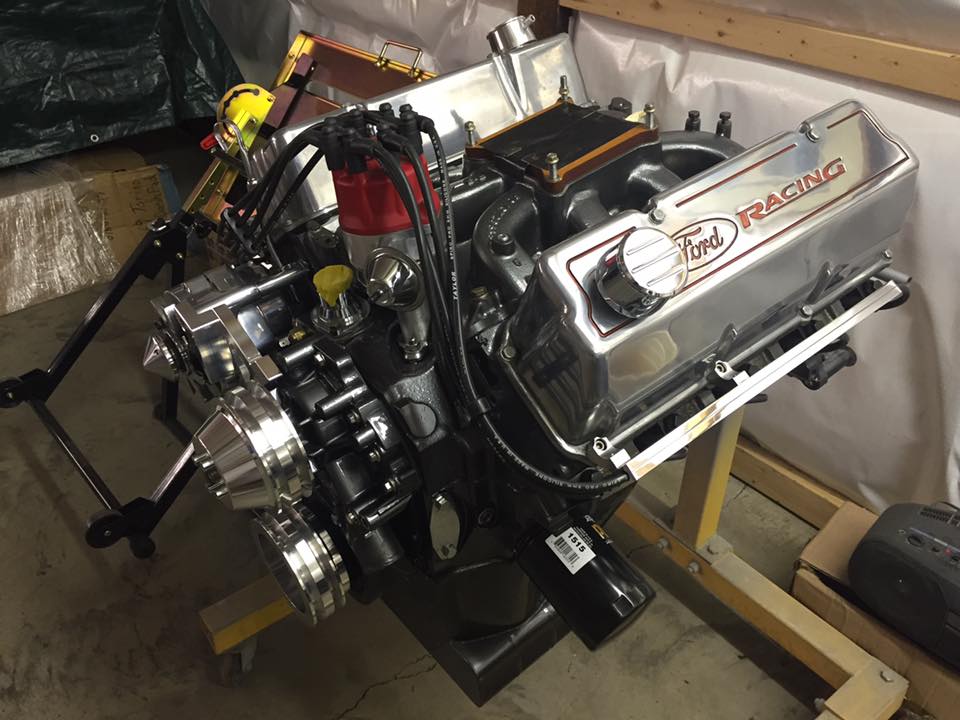

      After pulling the Cleveland out to get a freshen up and re-seal I come to find out it was a good thing I did. It turns out that my first engine guy may have done me more harm than good with the machine work. After further inspection the cylinders had some issues and needed to be bored. My 408 Cleveland turned into a 409 and needed a new set of JE forged pistons. While we were at it we did a port match and clean up on the heads and went with some larger intake valves. I also changed from a Holley 750 Street avenger carb and went with Holley's Terminator Stealth EFI unit. The engine was good for roughly 500HP and 475ftlbs and made peak power just before 6K. Not earth shattering power but good street-able power on pump gas with iron 4v heads naturally aspirated.

      I gave the block and heads a coat of base coat and clear in the matching Shadow Grey accent color I'm using on the car and powder coated the intake a silver vein.

      Name:  20663860_10159613500640354_2349354494761117779_n.jpg
Views: 4898
Size:  83.9 KB
      Name:  20663958_10159613500685354_3469422486236419742_n.jpg
Views: 4919
Size:  87.1 KB

    14. #14
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

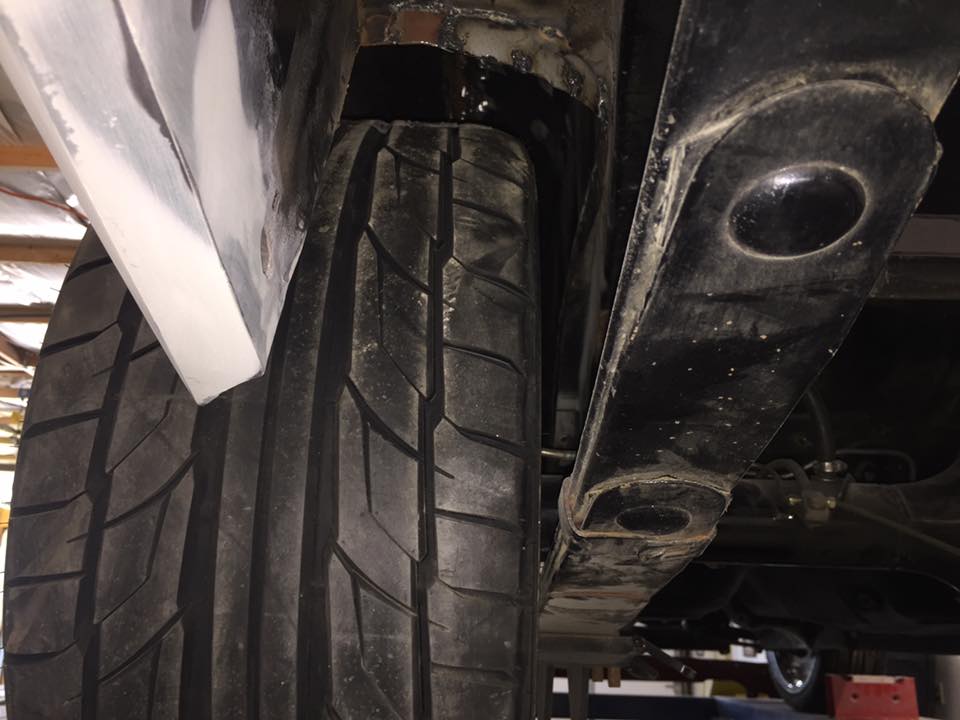

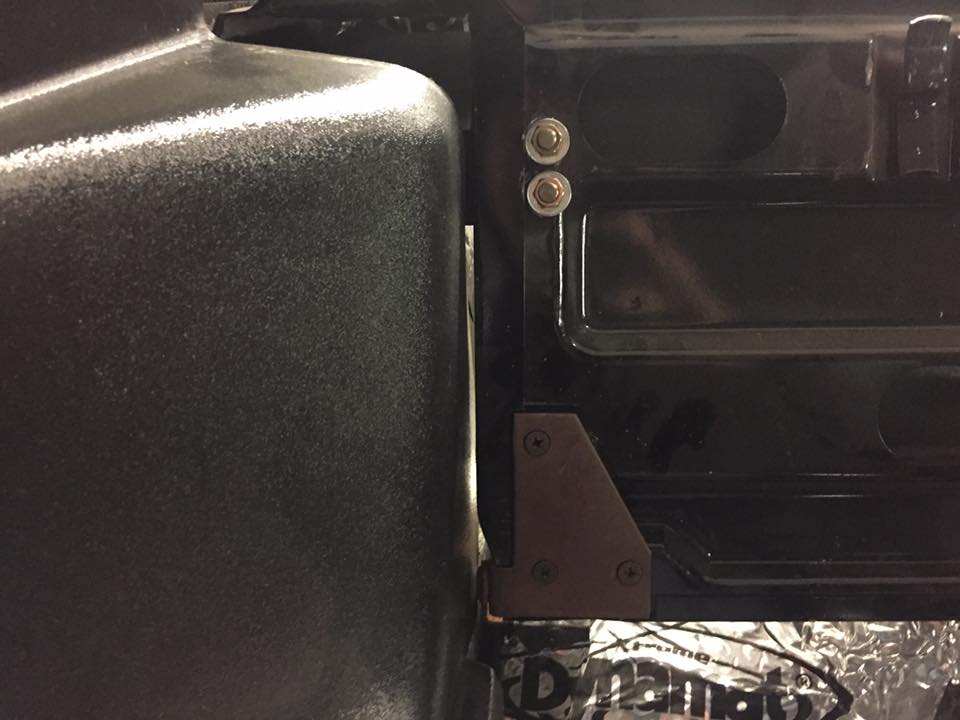

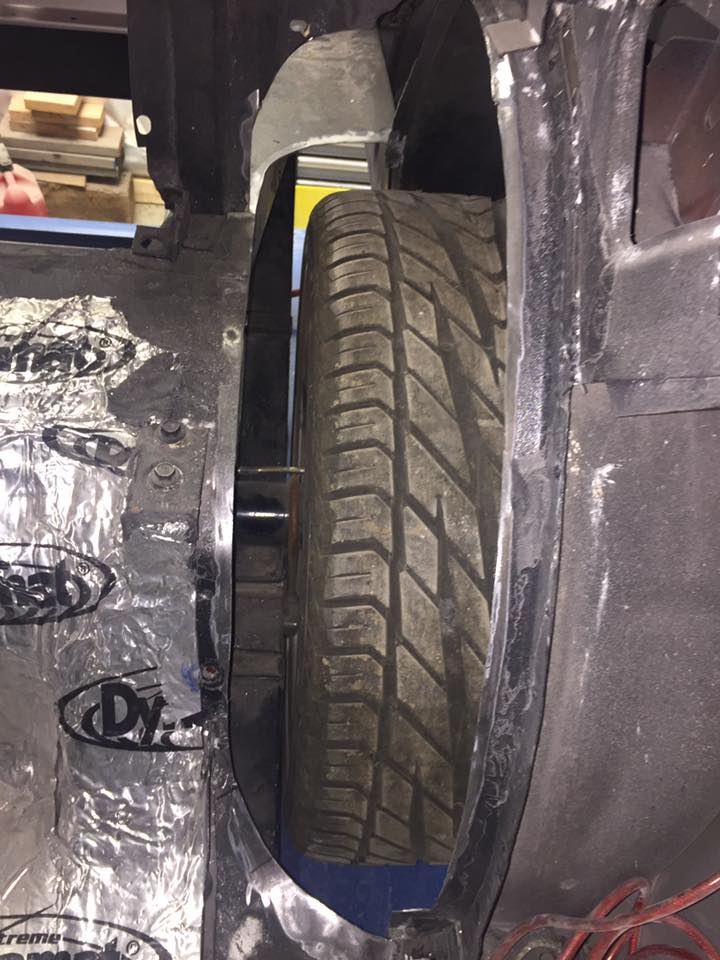

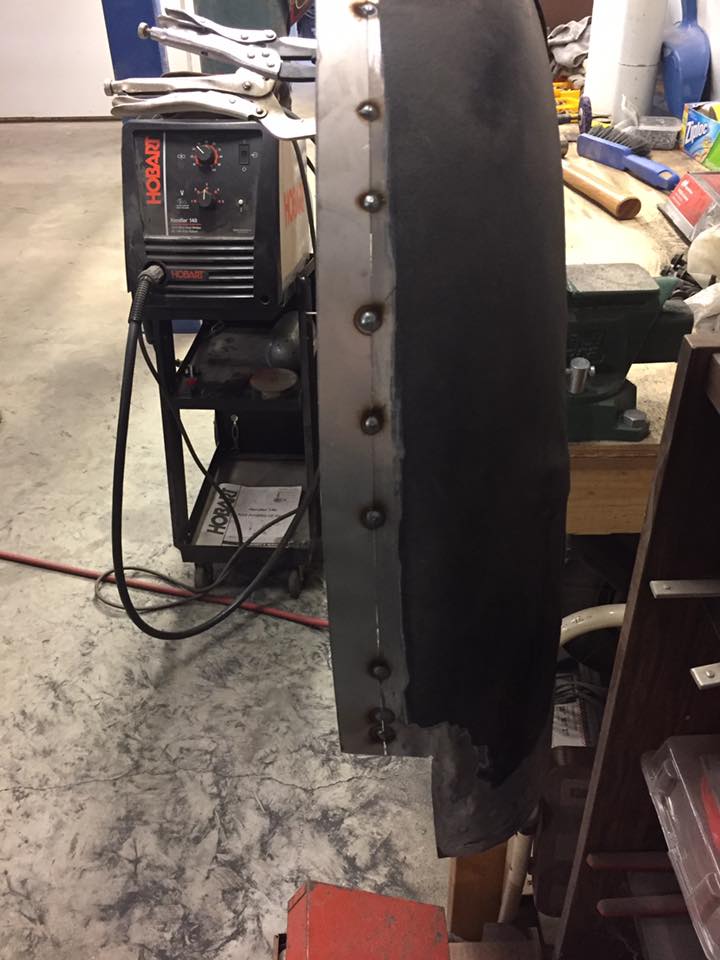

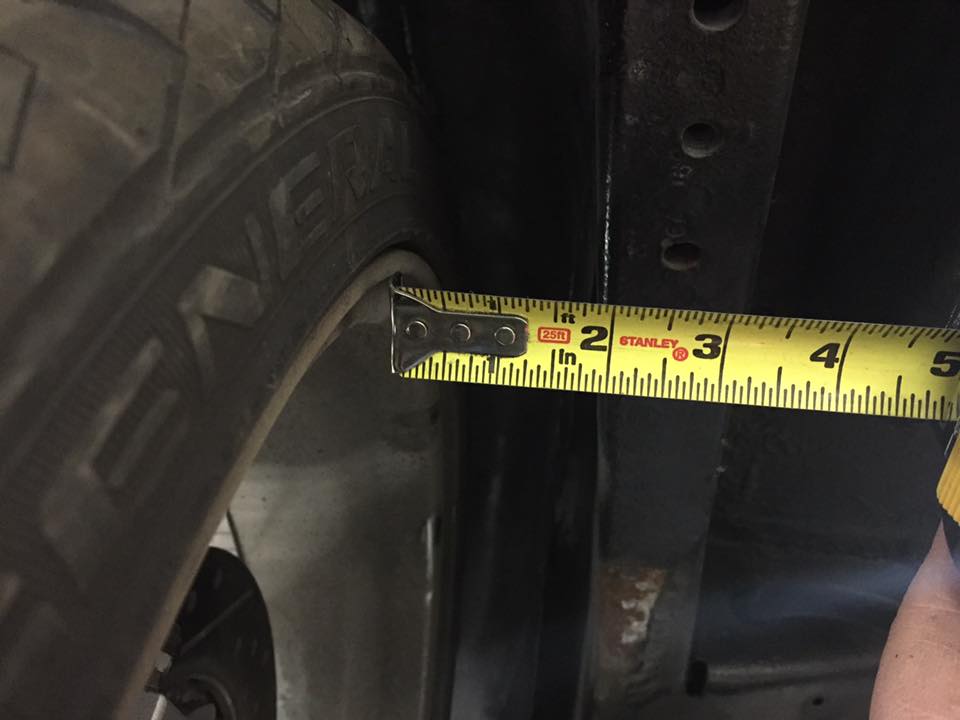

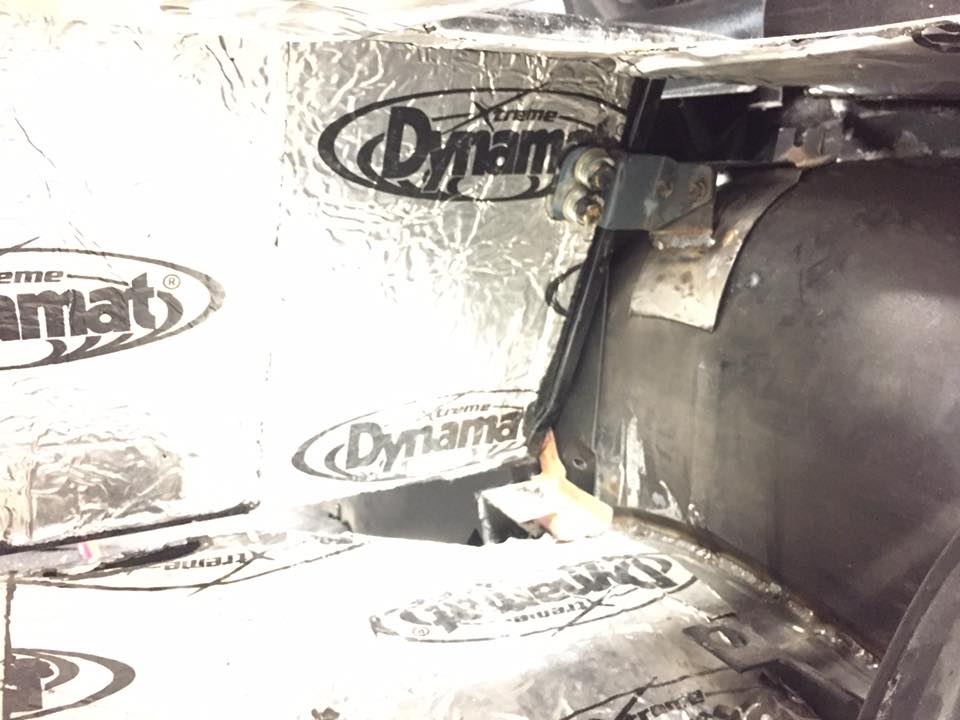

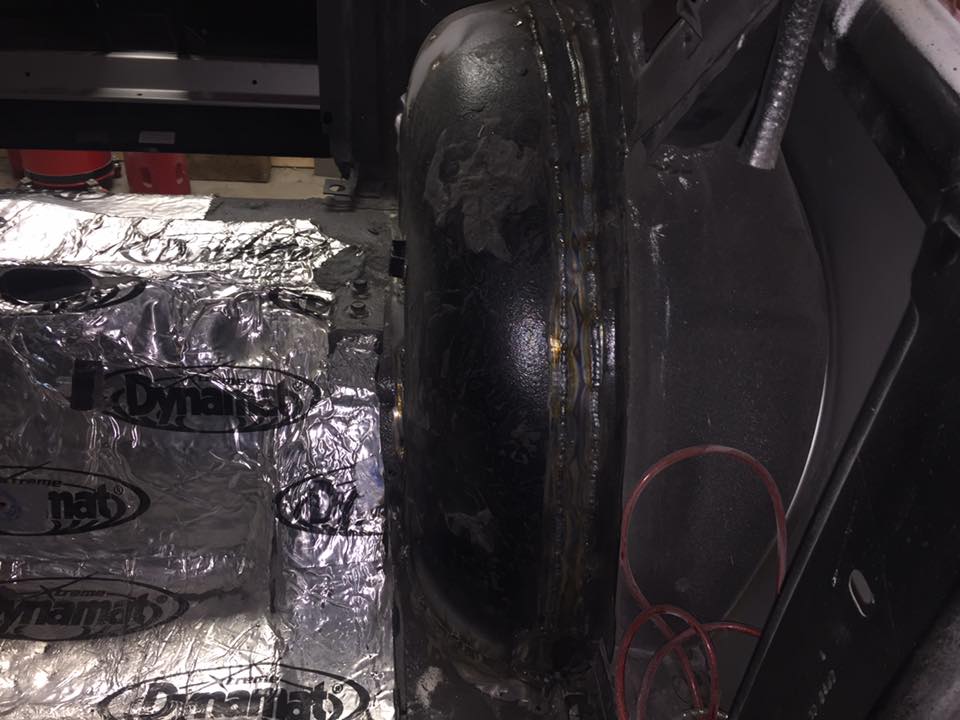

      I went back and forth on doing a mini tub on the car and finally decided to pull the trigger. I had been running a 295/30-20 on the rear with decent room after I used a precision tool to make clearance where necessary. (BFH) I was able to get a 305/30-20 under the car as well but thought I may as well make a little extra room for the future because now is the time to do it. The 305 was really about as big as I could go with the perfect back space on the wheels and using leaf springs. At least if you like a low stance with the tires tucked up in the wheel well.

      My plan for the mini tub was to be able to use the stock seat and interior panels as normal without having to modify them. The stock rear seat is small as it is but I wanted my son to be able to ride back there when we go out as a family in the car. I used a 1" strip of steel and added it to the inner wheel well to gain an approximate inch at the top. I gained just a little bit more at the bottom and took the tub to the outer seat belt bolt bracket and went to the frame rail on the back side. I then modified the rear seat brackets to work with the wider wheel tub. I have the non fold down back seat but this should also work for the fold down.

      I am currently limited to my 20x10 wheels so a 305 is as wide as I can really get away with without the tire looking funny on the wheel. Some day when funds allow I would like to get a nice set of forged wheels in either a 18" or 19" diameter and going a touch wider to get a little more tire under the car. I think with this set up i could easy get a 315 under there and maybe a 325-335 if everything was perfect. The ridetech four link system will give me a touch more room over the leaf springs as well.

      Name:  20728062_10159613542750354_1989727926237210890_n.jpg
Views: 4894
Size:  74.1 KB
      Name:  20637881_10159613541945354_3591737253568425614_n.jpg
Views: 4866
Size:  92.8 KB
      Name:  20604517_10159613541940354_4904483359829403655_n.jpg
Views: 4883
Size:  75.9 KB
      Name:  20620776_10159613542760354_5393420287703417296_n.jpg
Views: 4875
Size:  68.7 KB
      Name:  20620944_10159613543235354_8926226357120481338_n.jpg
Views: 4882
Size:  65.4 KB
      Name:  20621217_10159613542715354_5822971413386242497_n.jpg
Views: 4863
Size:  42.6 KB
      Name:  20637954_10159613542940354_514537326032677217_n.jpg
Views: 4855
Size:  57.3 KB

    15. #15
      Join Date
      Oct 2009
      Location
      CT.
      Posts
      730
      Nice build so far!!!

    16. #16
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

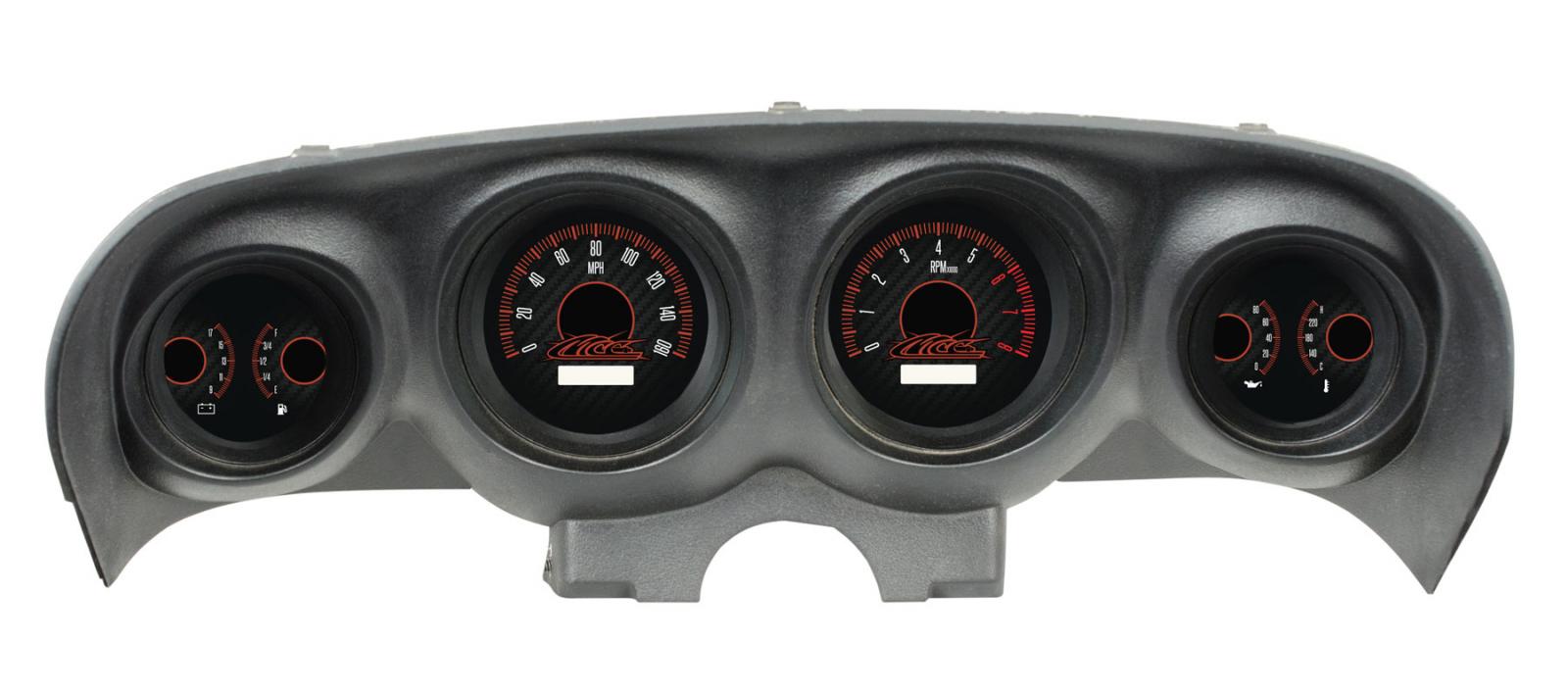

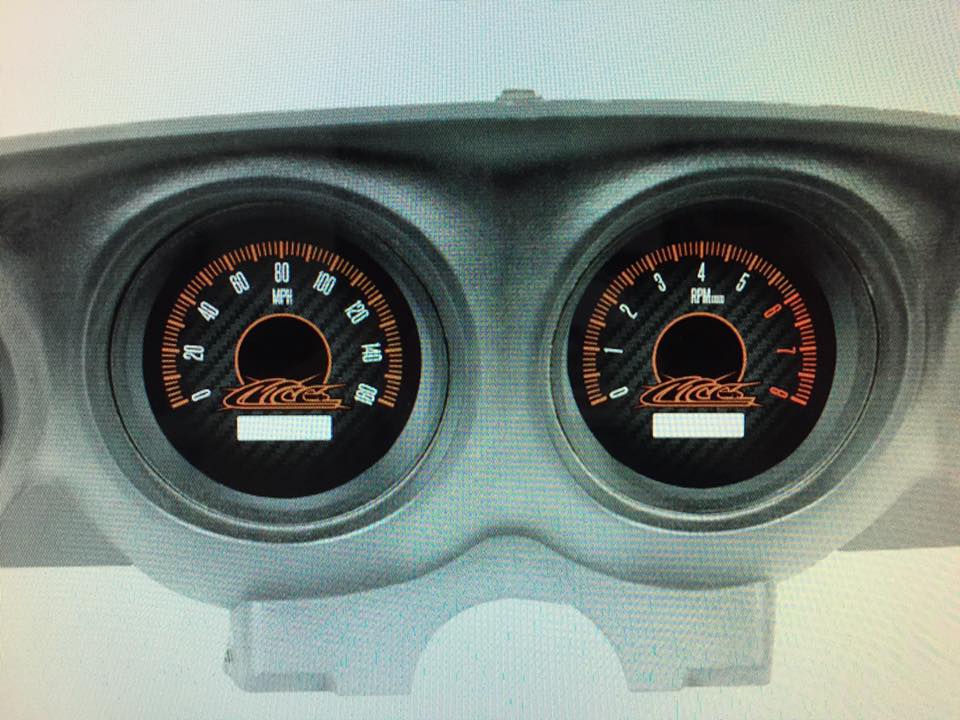

      I'm fortunate enough to have Dakota Digital just down the road from me and we use a lot of their gauges on our projects in the the shop. Now and then we will have a project car in our shop that is on their list that they do not yet produce a gauge for and we are able to allow their engineers to come out to take measurements and borrow dash or gauge clusters to help them produce a new gauge set for their lineup. That allows us to work out some deals for our personal projects. I was able to negotiate a new custom gauge cluster for my 70 and also do a matching clock for the other side. I think they turned out pretty good. I haven't decided if I want to keep the gauge bezels the pearl orange body color or do something different this time around. The pictures are not the best but they look really good in person!

      Name:  69F-MUS-Cust-Mockup (003) (1).jpg
Views: 4842
Size:  85.6 KB

      Name:  20638087_10159621628470354_4749606714260342345_n.jpg
Views: 4832
Size:  88.2 KB

      Name:  20664090_10159621628465354_7891135770717660102_n.jpg
Views: 4851
Size:  106.3 KB

    17. #17
      Join Date
      Jan 2010
      Location
      Long island NY
      Posts
      320
      Country Flag: United States
      Nice ride
      70 Mustang fastback 428 sb

    18. #18
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

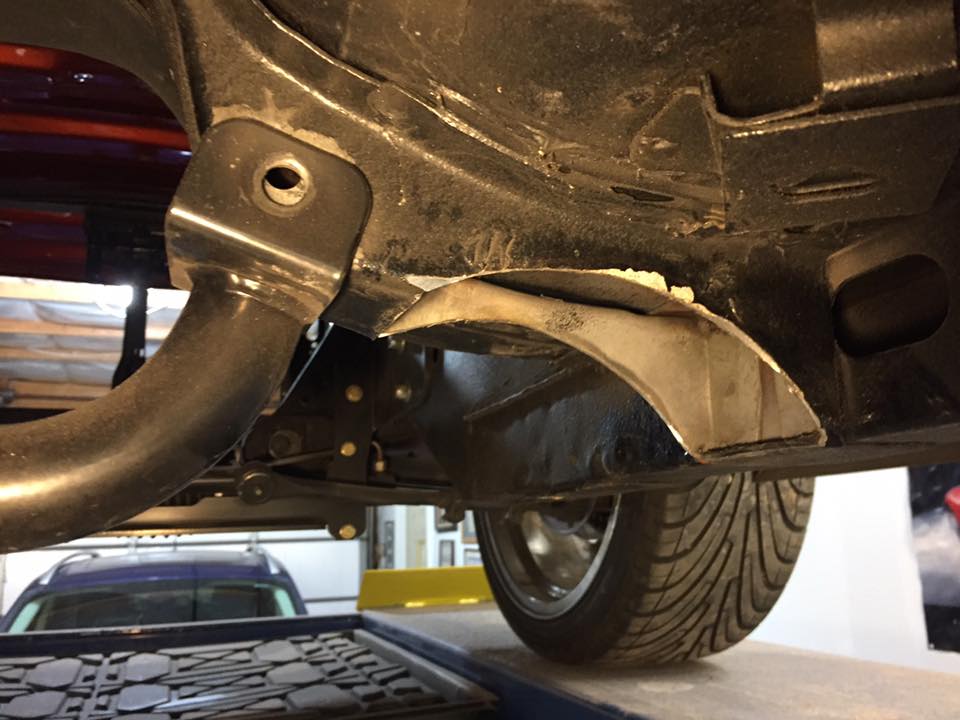

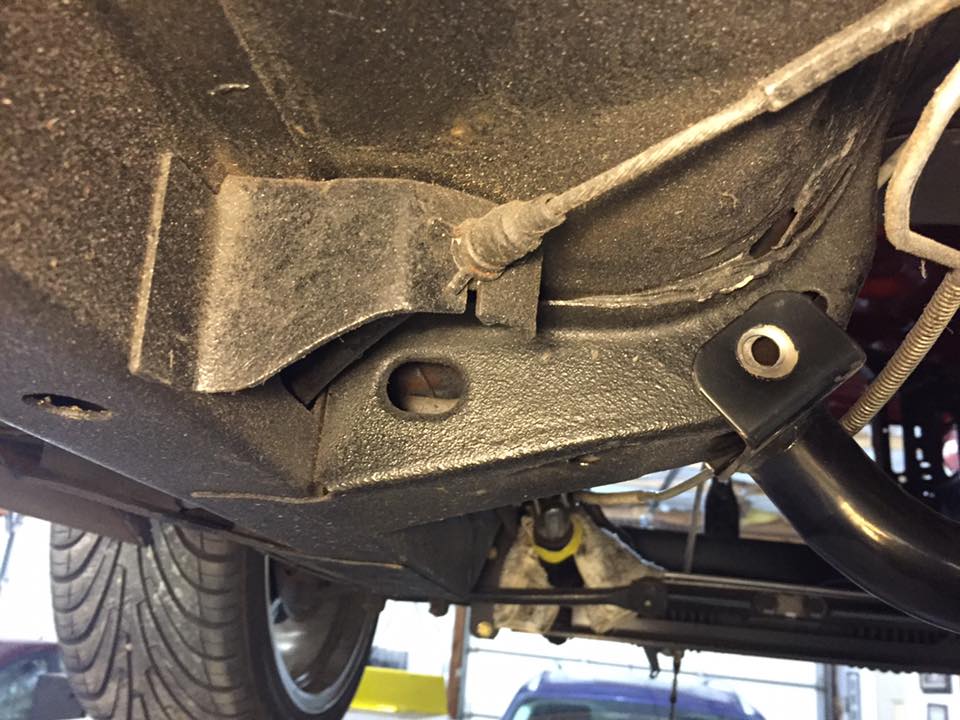

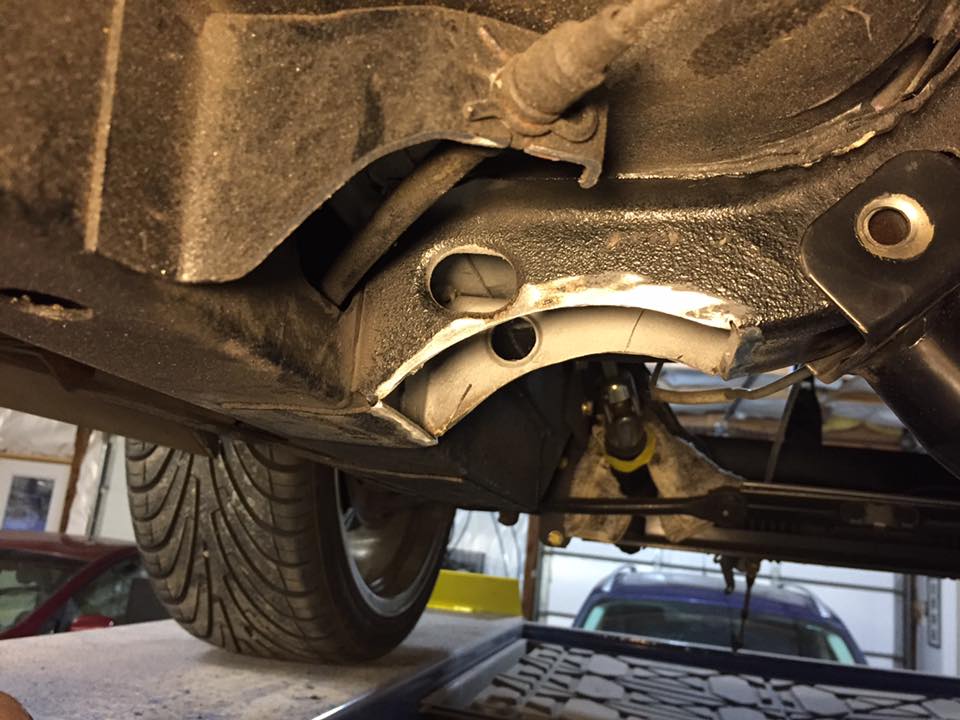

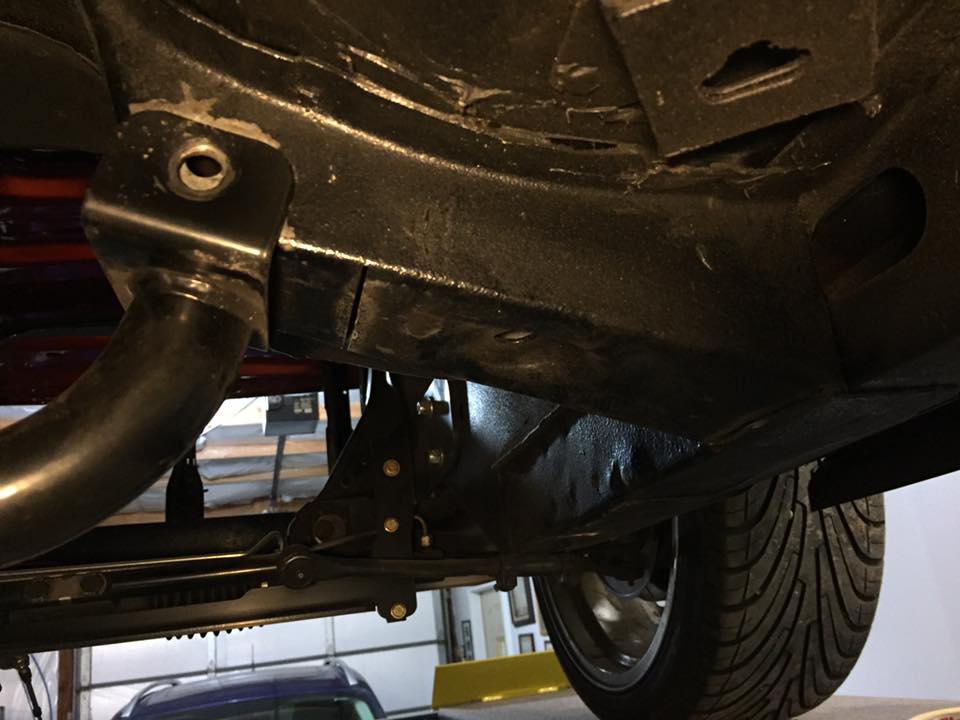

      Still on my exhaust preparation kick I decided to make one more modification to make sure I could keep everything tucked up tight. I sold my existing Hooker Competition long tubes. Having done quite a few Mustangs and knowing my goals I picked up a set of FPA headers for the car. They are between a mid length header and a long tube and fit really well and are a quality set of headers. They don't come down near as far as the Hooker's but where there is a little bit of and issue is the floor pan brace where the transmission crossmember bolts to. I decided I could make a little room for some extra clearance here.

      Name:  20663670_10159613501985354_6341270205854520920_n.jpg
Views: 4744
Size:  102.8 KB

      Name:  20708449_10159613501860354_7968390248399257868_n.jpg
Views: 4757
Size:  64.5 KB

      Name:  20663627_10159613502010354_2637812355924219656_n.jpg
Views: 4758
Size:  89.7 KB

      Name:  20638336_10159613501995354_6902708618411770201_n.jpg
Views: 4738
Size:  75.6 KB

      Name:  20638368_10159613502060354_2766714771539027961_n.jpg
Views: 4707
Size:  84.5 KB

    19. #19
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

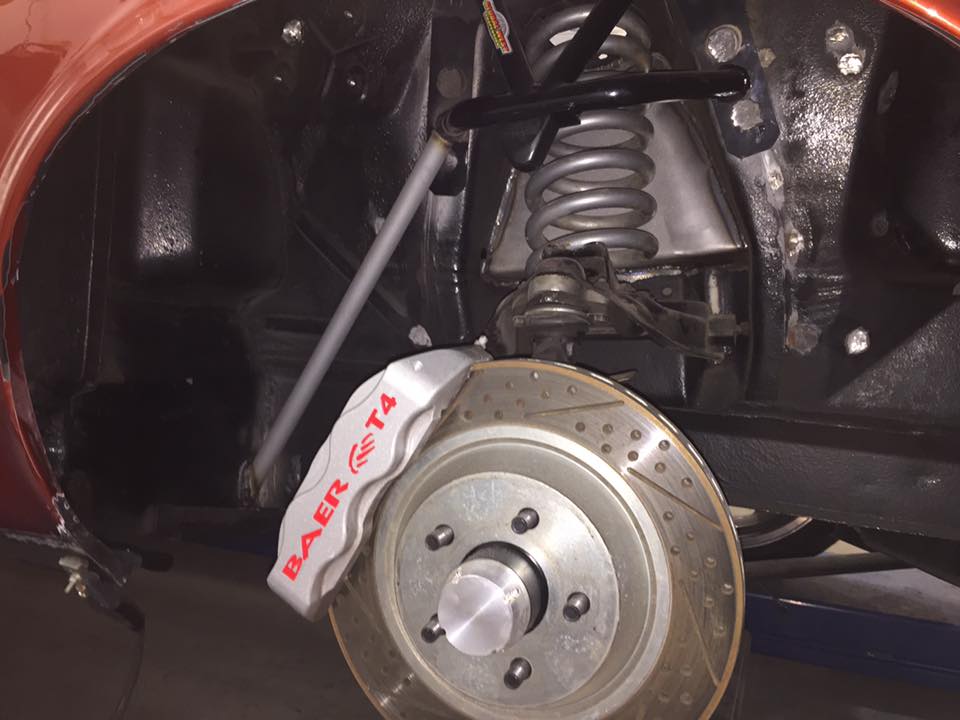

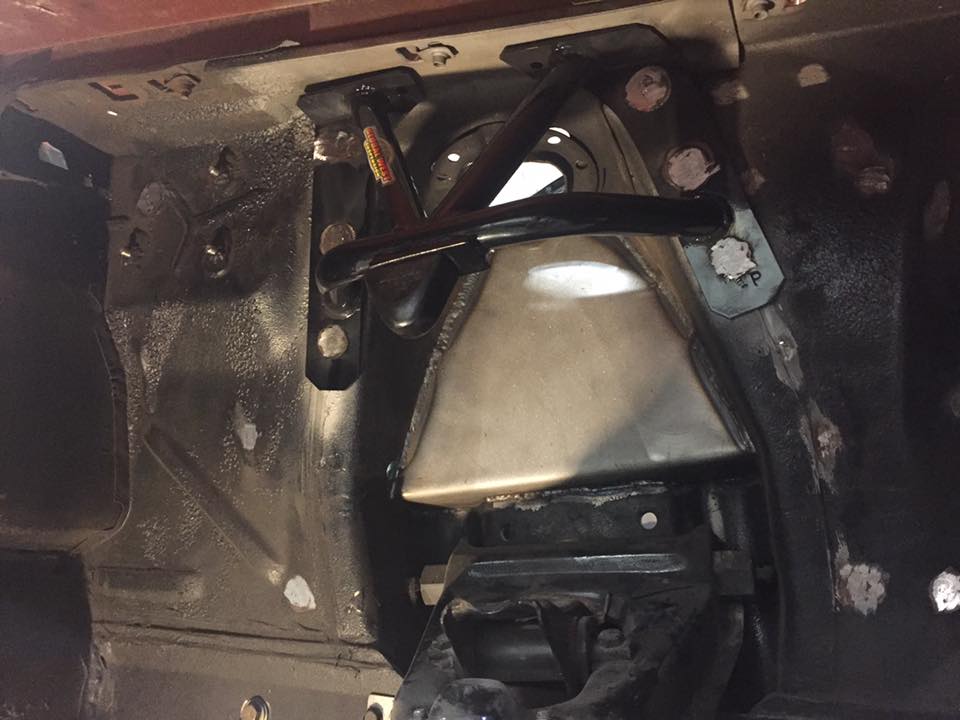

      I wanted to do a tittle chassis stiffening up front and picked up a set of Global West outer shock tower braces. I gave them a trial run and had no issues getting the coil springs in and out with them in place so I decided to weld them on rather than bolting so I could keep a cleaner look in the engine bay with a little less hardware showing. I also made a brace to go from the Global West brace down to the torque box to tie the two together for some added strength. I will also be using the Total Control export brace with Monte Carlo bar and trusses.

      Name:  20621081_10159613501445354_8290445348331423631_n.jpg
Views: 4698
Size:  63.7 KB

      Name:  20622033_10159613502255354_2894850712807904920_n.jpg
Views: 4733
Size:  63.4 KB

      Name:  20638978_10159613502215354_7009878716489451777_n.jpg
Views: 4756
Size:  58.6 KB

    20. #20
      Join Date
      Aug 2017
      Location
      South Dakota
      Posts
      144
      Country Flag: United States

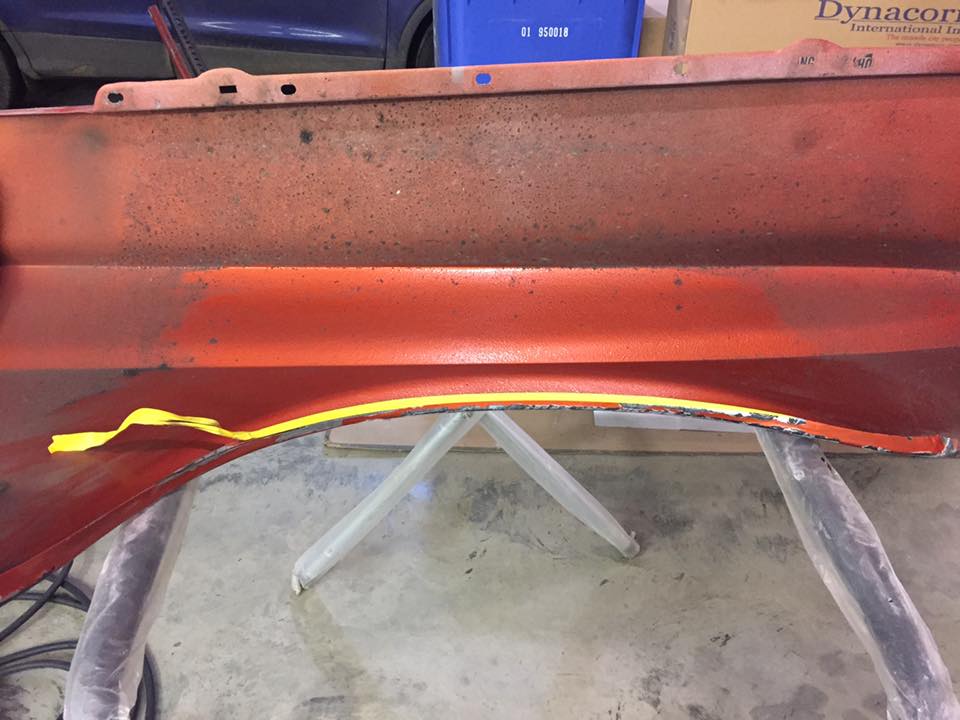

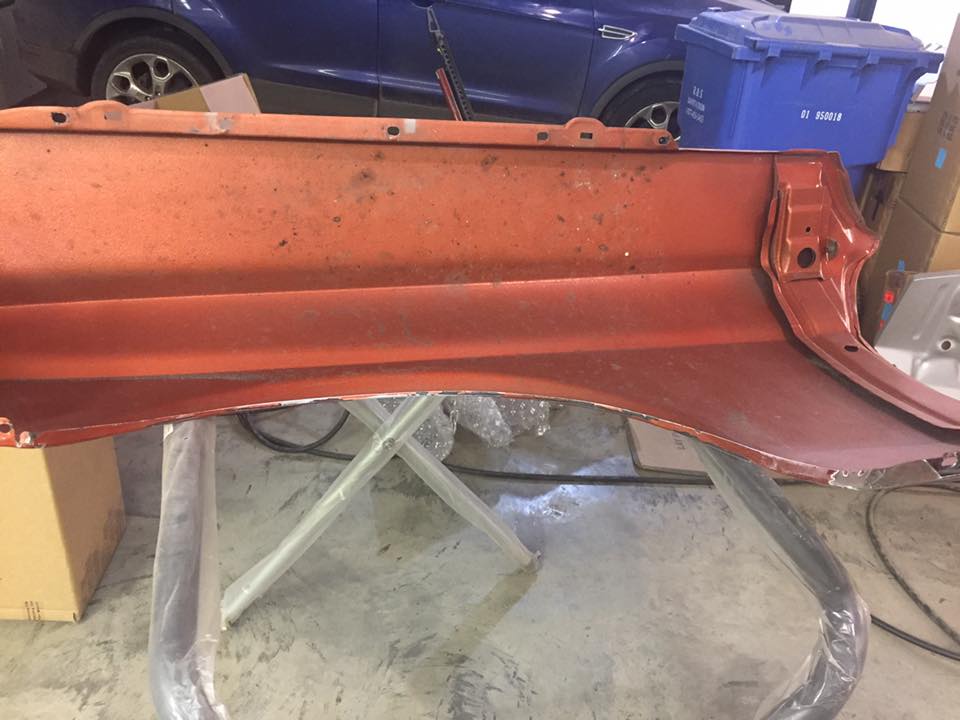

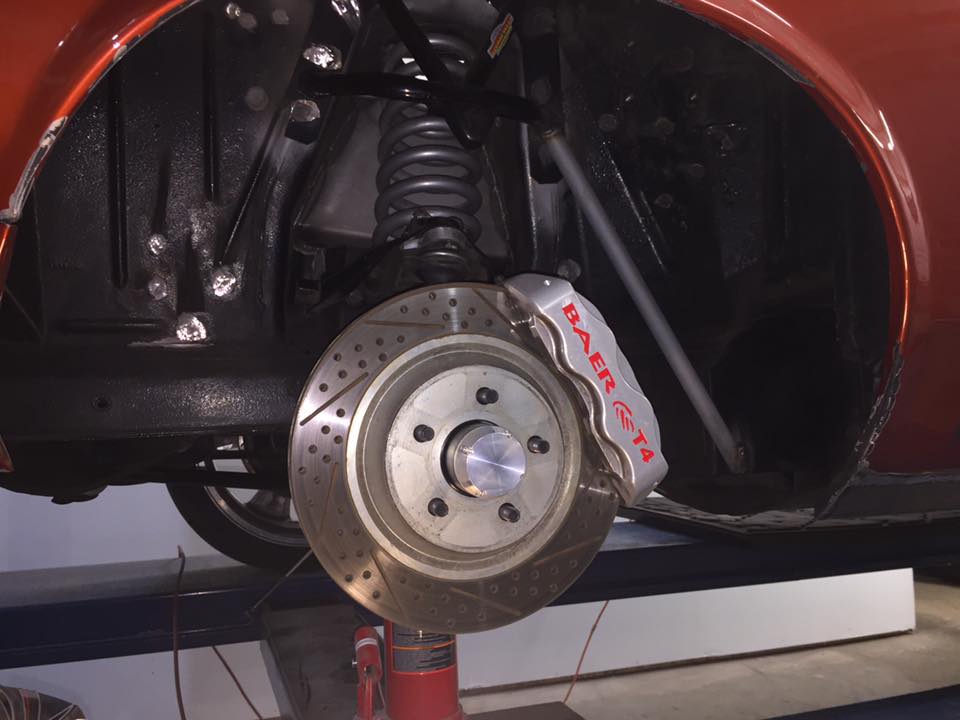

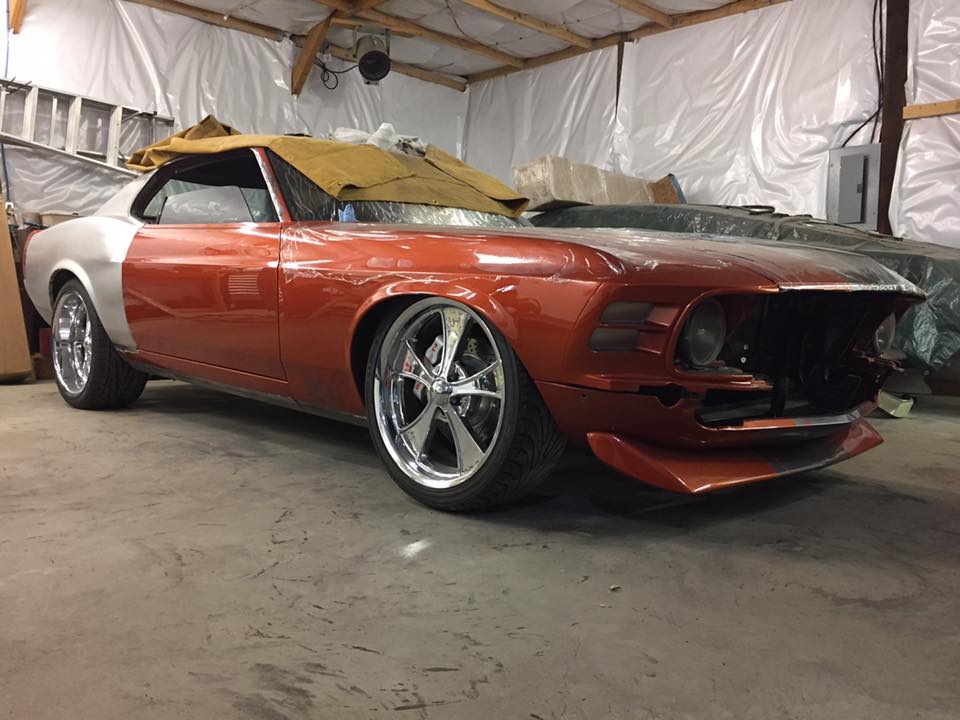

      Knowing that I wanted a low ride height stance and needing everything to work well with wider tires and no rubbing issues I addressed a few things. Besides the mini tub in the rear I also let the quarts move as far out as possible before plug welding it to the outer wheelhouse lip gaining some extra room there also. I then trimmed back the lip using 3/4" masking tape as my guide for a nice consistent lip with a somewhat factory appearance. It seems like flares are real popular right now but I wanted to gain the clearance and maintain a factory look.
