    Buick Grand National Twin Scroll EFR Turbo build

    Hey guys, I haven't posted on here in a very long time but I wanted to share a project I'm just now finishing. I don't know how many of you guys are familiar with the Borg Warner EFR turbos but in my opinion they are simply the best turbochargers available on the market. I'll let you guys look them up but they are the quickest spooling turbos due to several neat features but the main one being the gamma titanium turbine wheel and shaft. After having a timing chain failure in my buick and having to build the motor, I decided that I had to have this turbo along with the advantages of doing a twin scroll setup. Unfortunately, nothing off the shelf was available so I had to build several custom parts to get it to work. The final result is still to be seen as I have not finished tuning the car or broken in the motor but I will say that the spool up is phenomenal and the car feels as fast now at 10 psi than it was before at 20. Any ways Here are the pictures of the build.

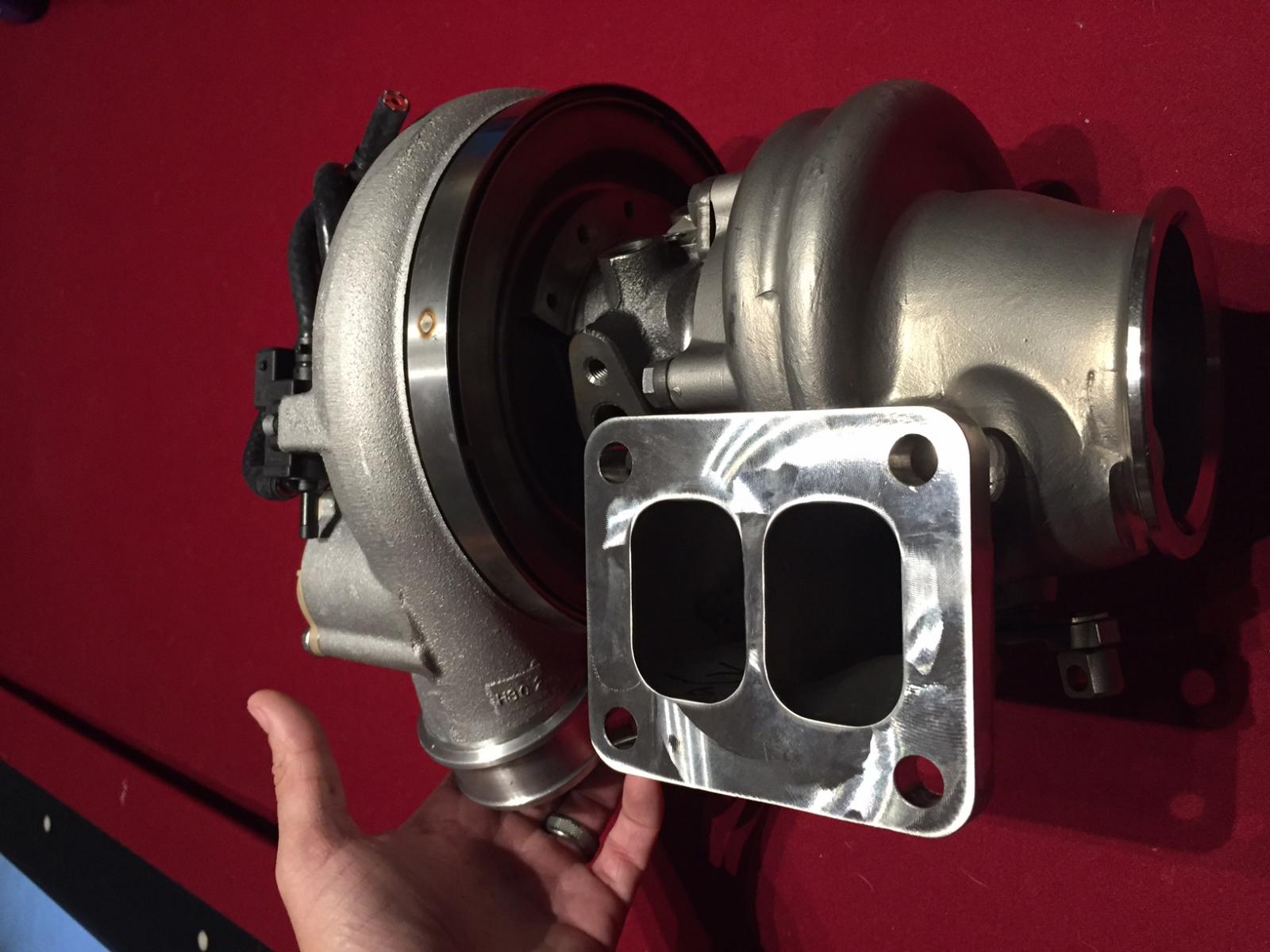

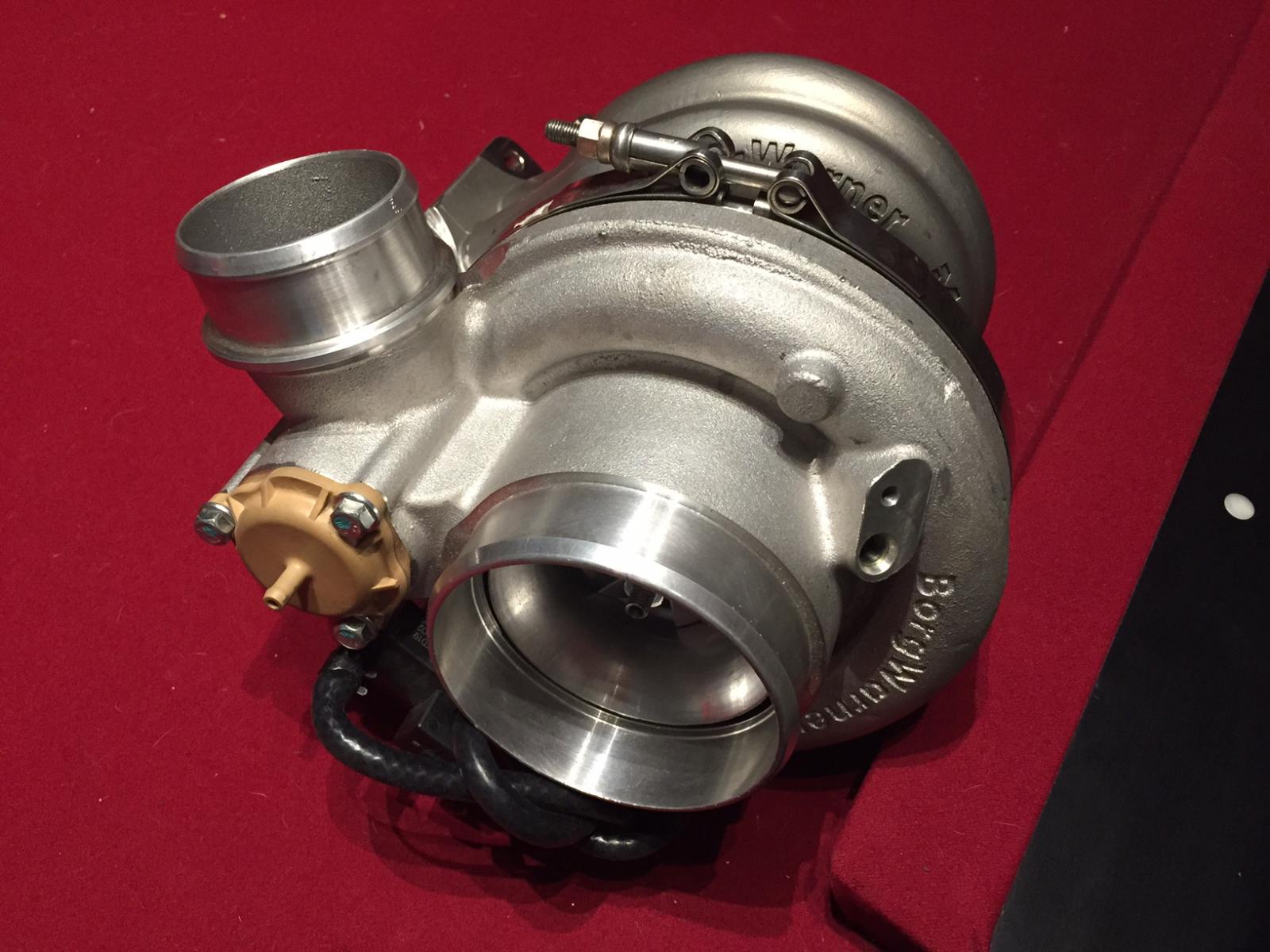

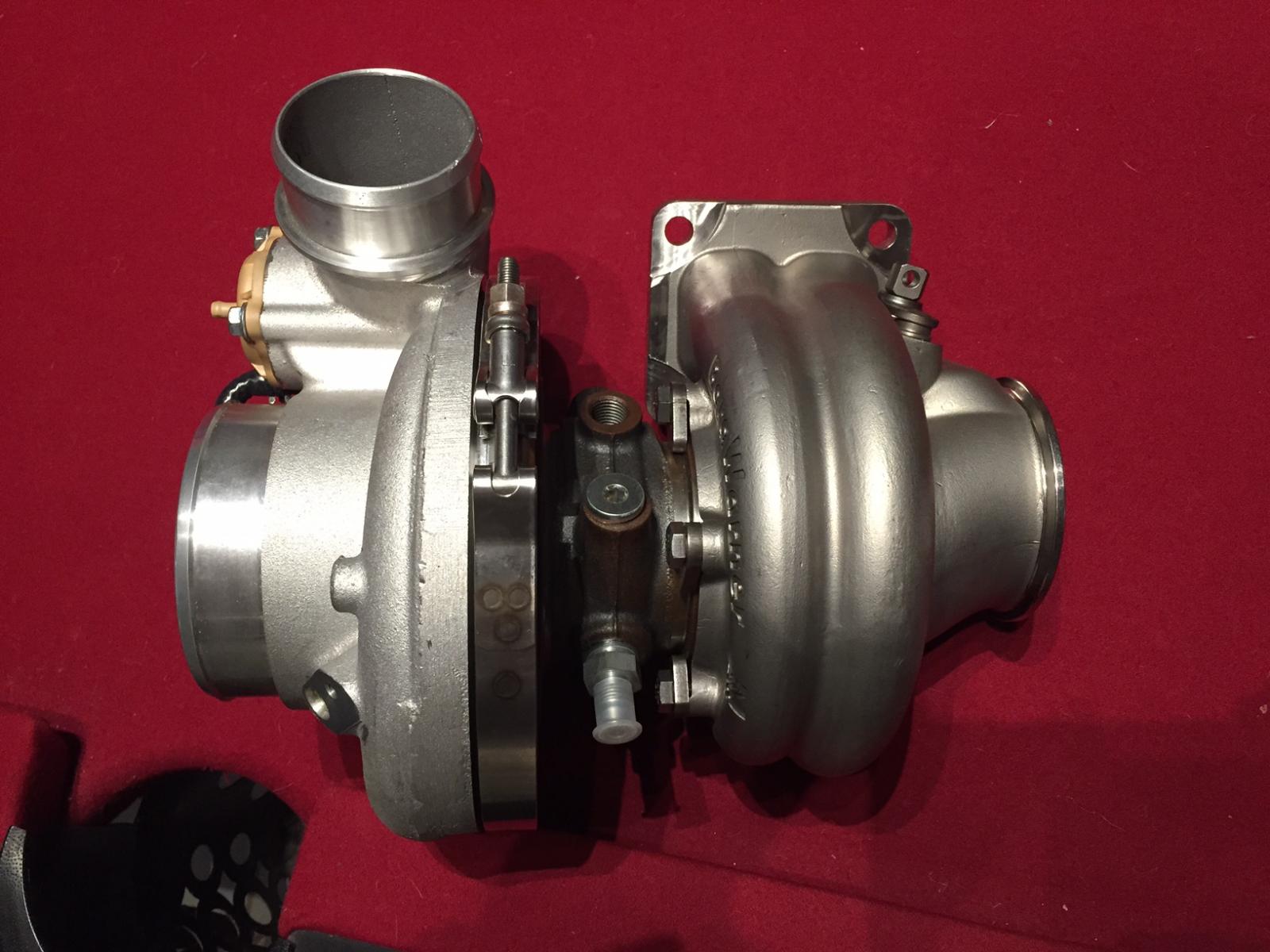

    The Turbo when it arrived
    Name:  IMG_7959.jpg
Views: 722
Size:  190.2 KBName:  IMG_7962.jpg
Views: 671
Size:  155.7 KBName:  IMG_7960.jpg
Views: 671
Size:  173.7 KBName:  IMG_7961.jpg
Views: 680
Size:  162.8 KB

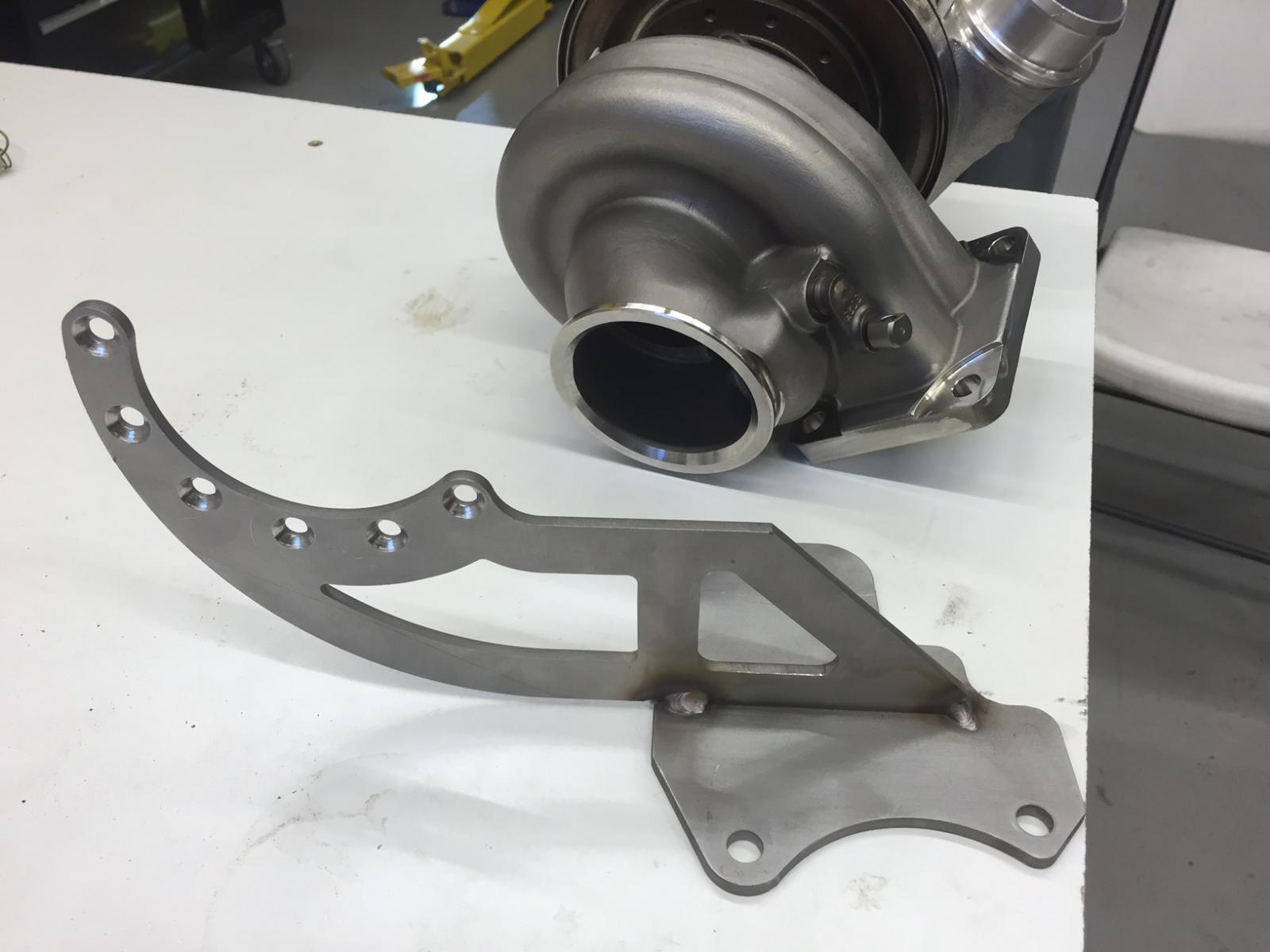

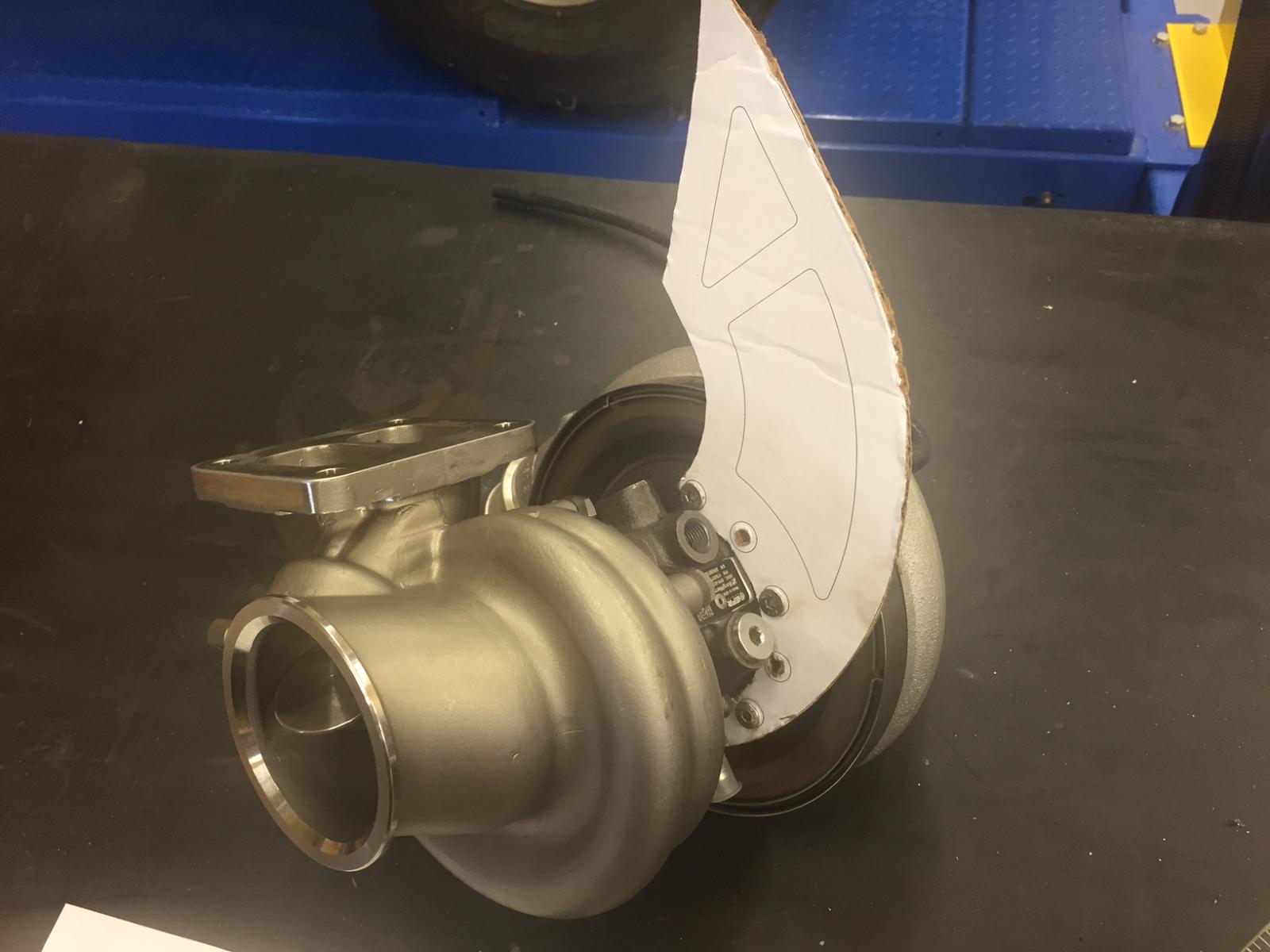

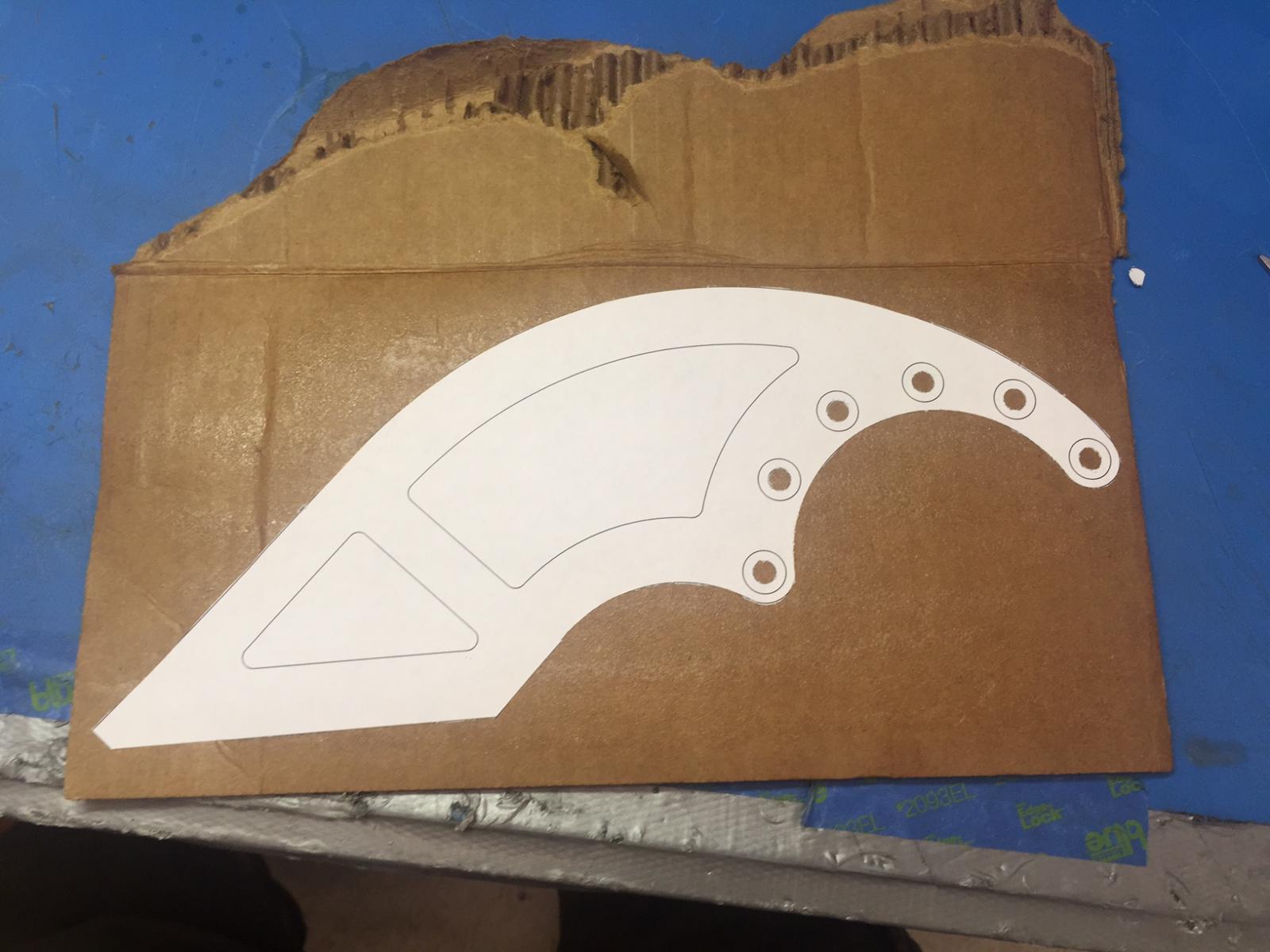

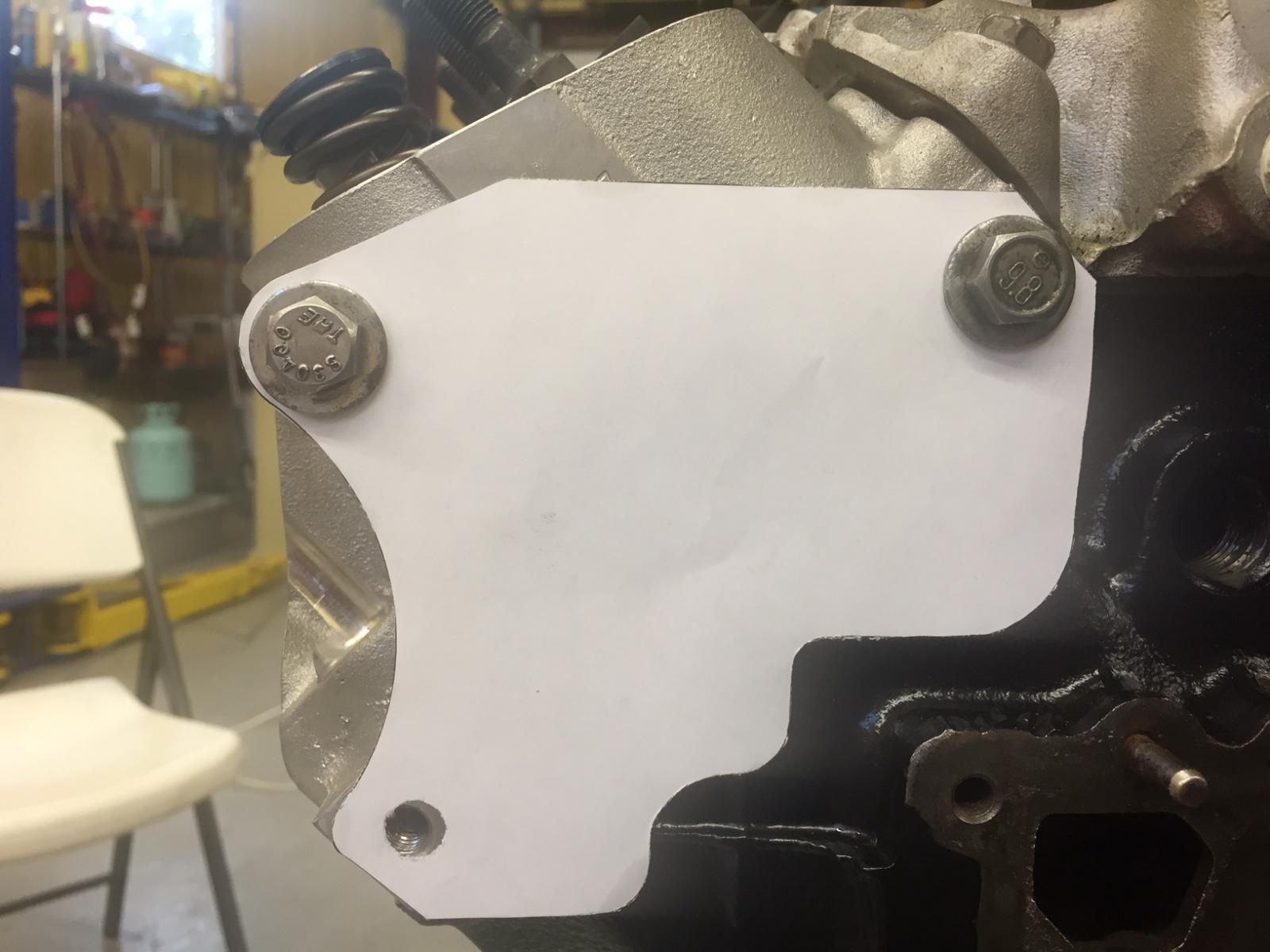

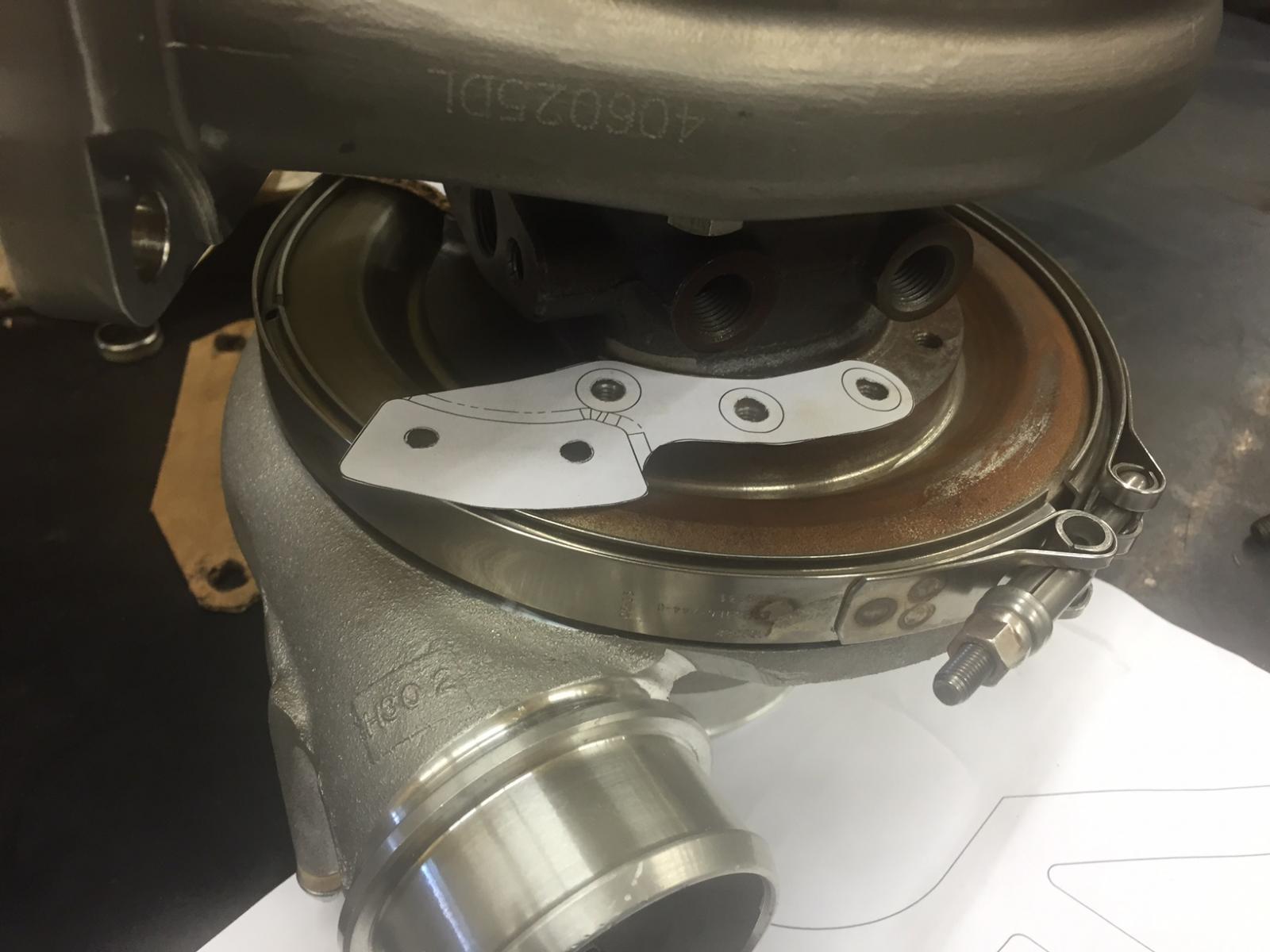

    The mocking up of brackets
    Name:  IMG_7996.jpg
Views: 639
Size:  131.6 KBName:  IMG_7995.jpg
Views: 629
Size:  150.7 KBName:  IMG_7997.jpg
Views: 633
Size:  109.4 KBName:  IMG_7998.jpg
Views: 643
Size:  128.4 KB

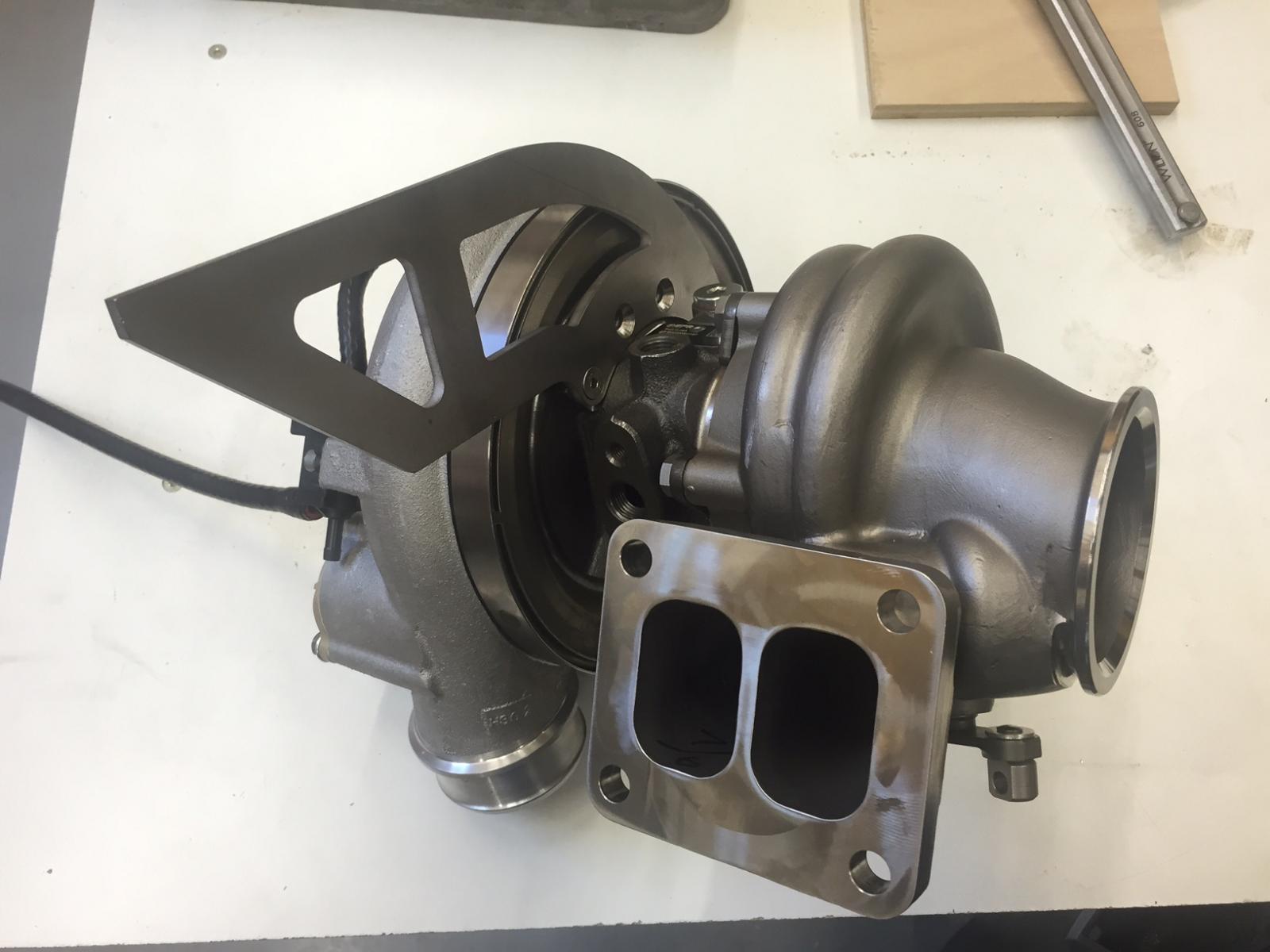

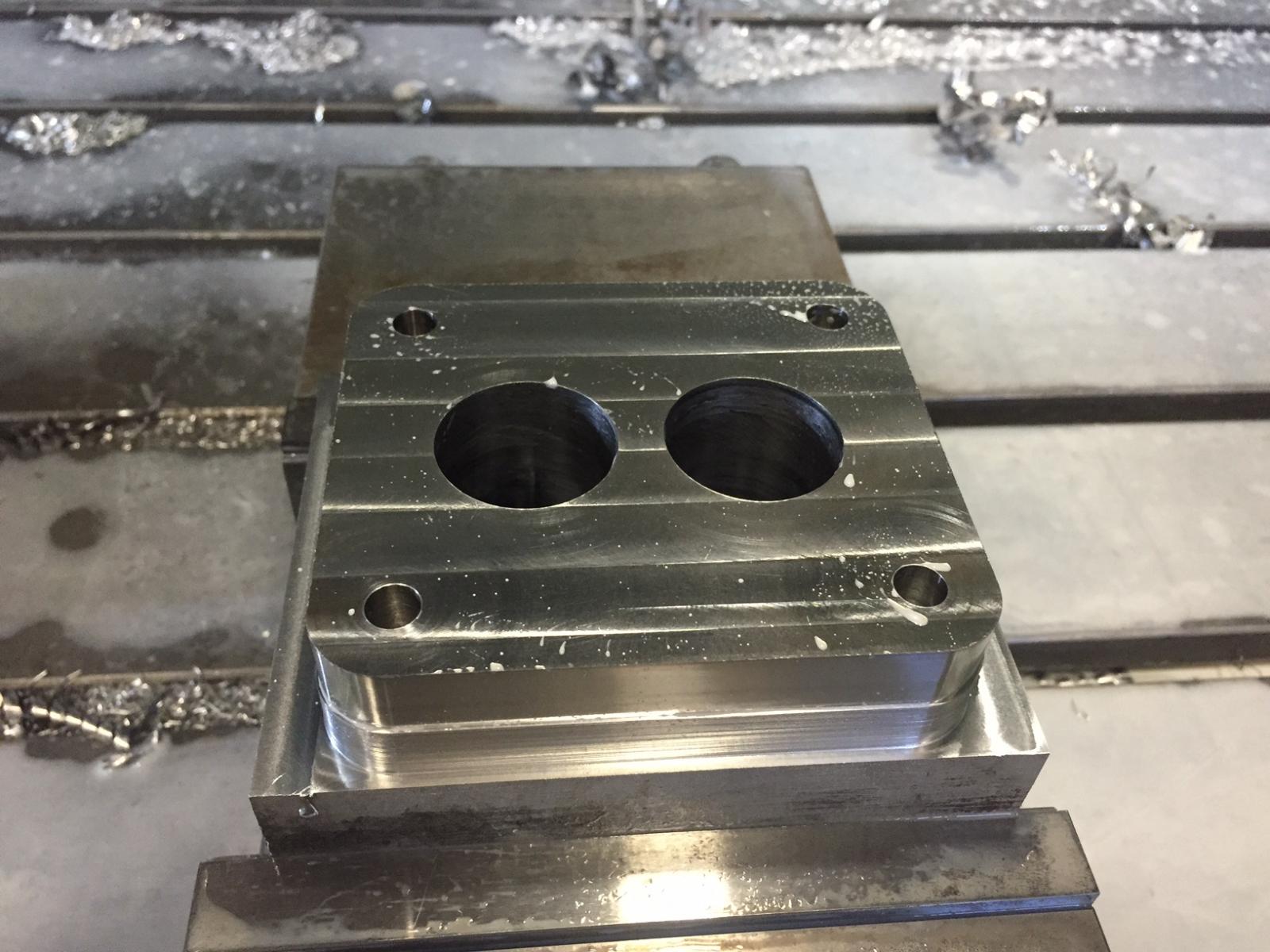

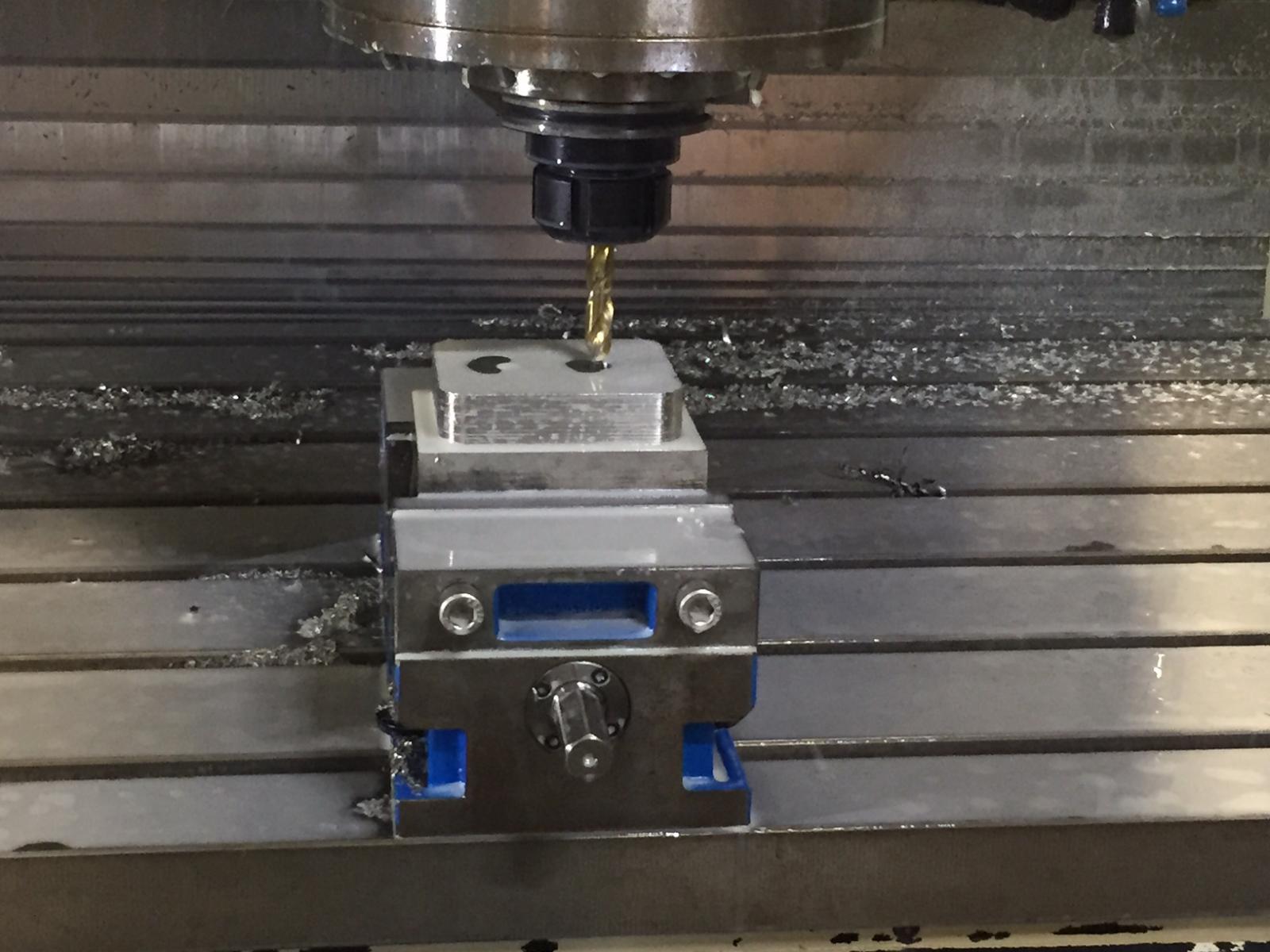

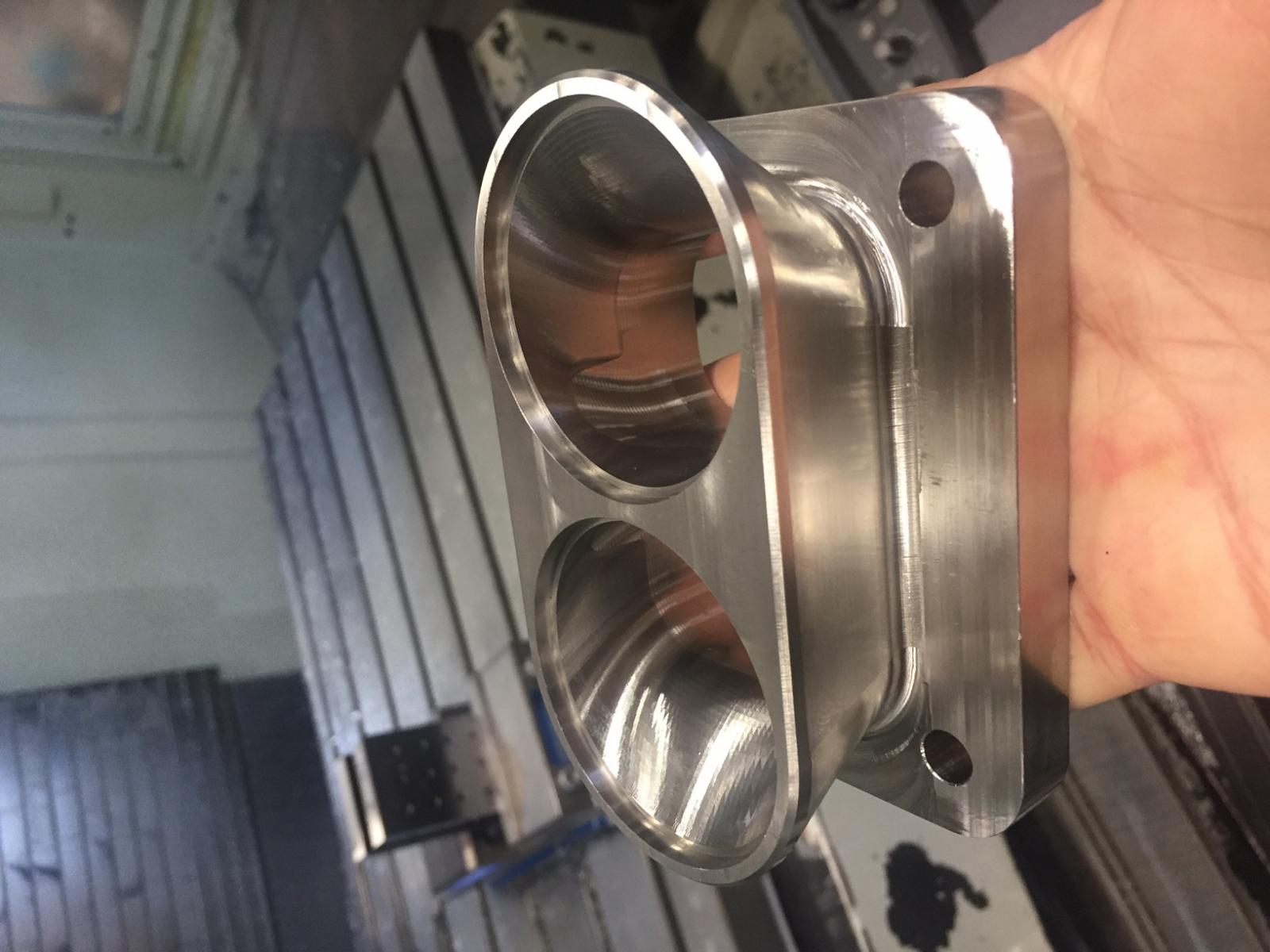

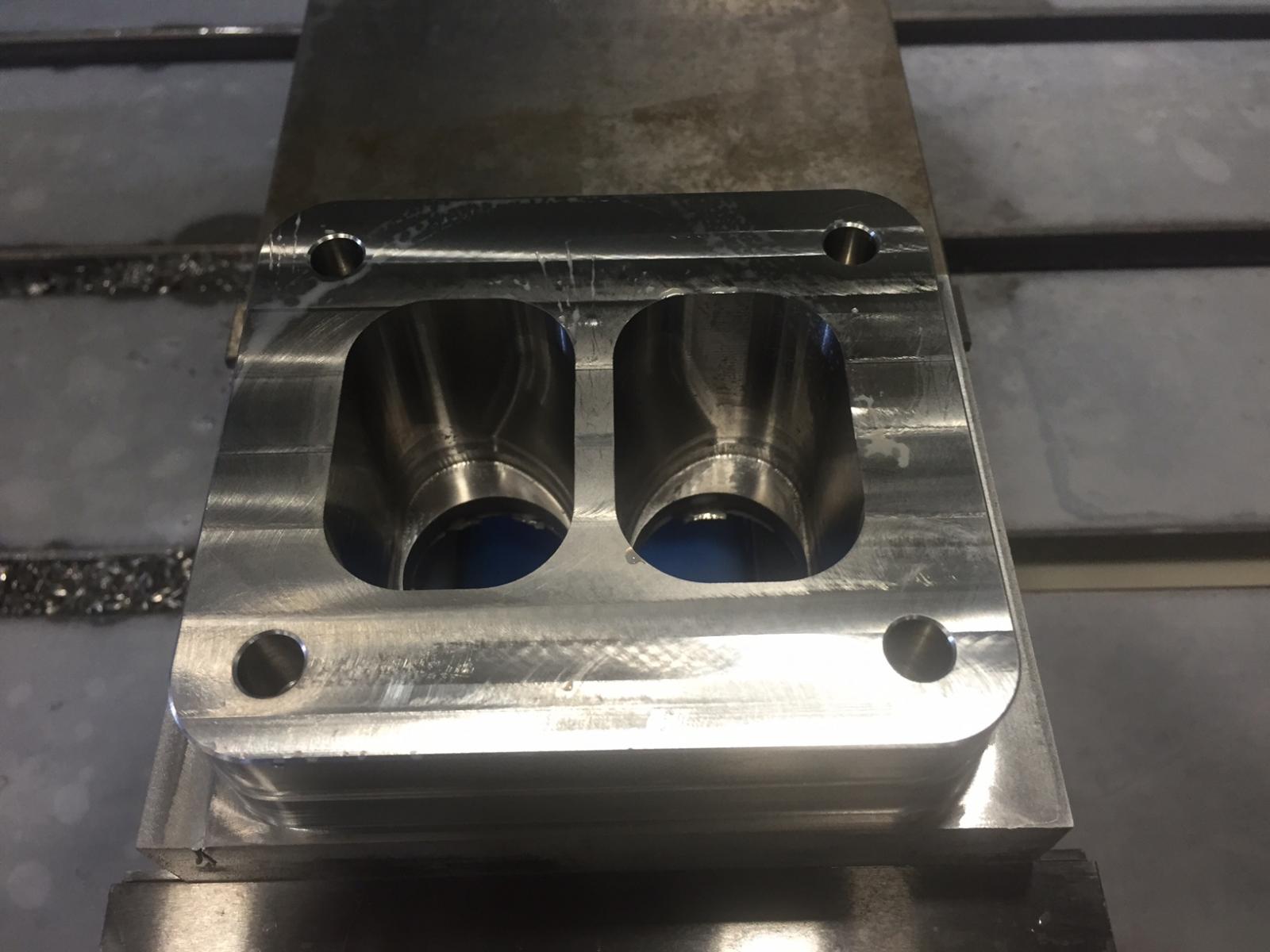

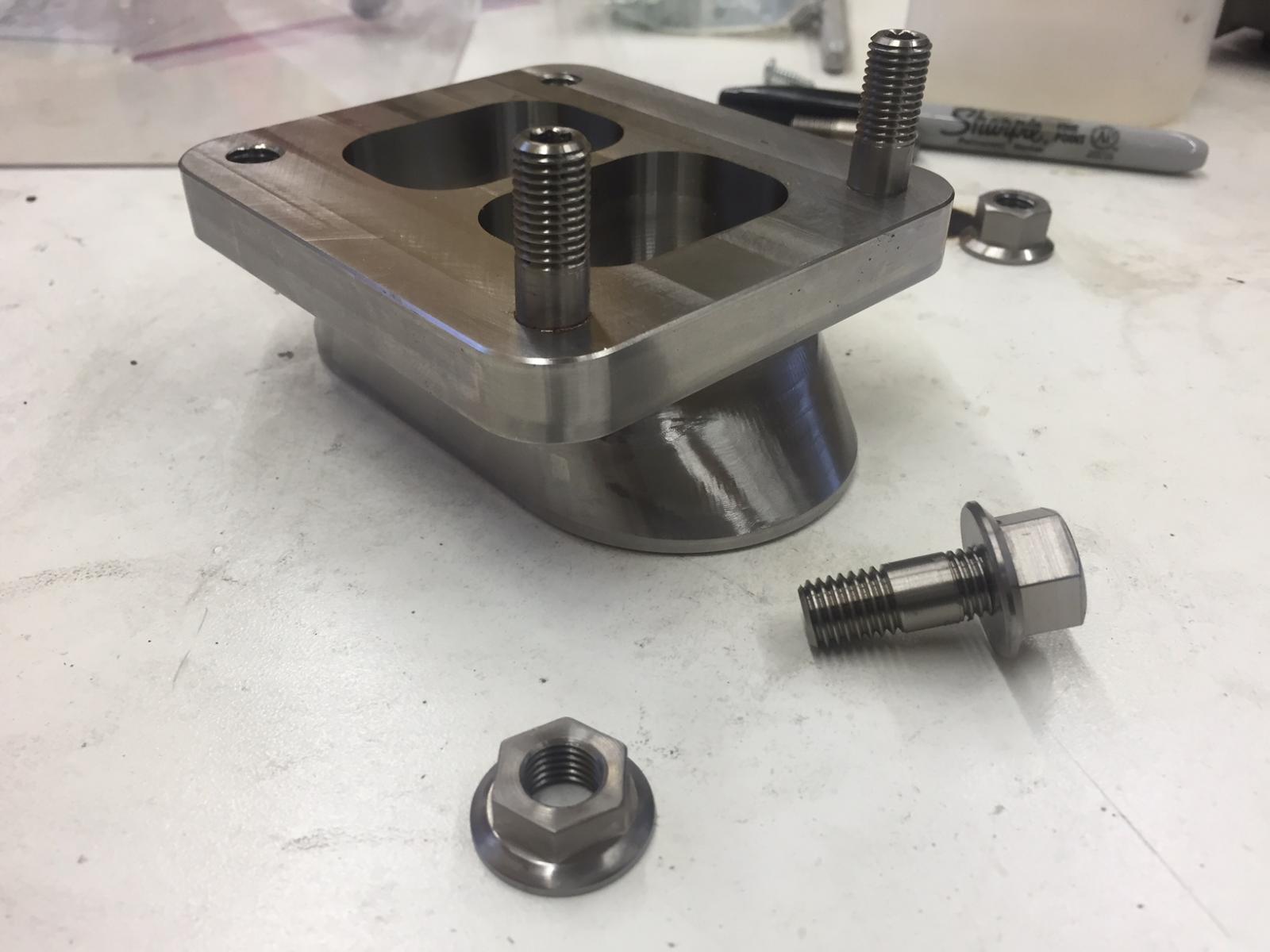

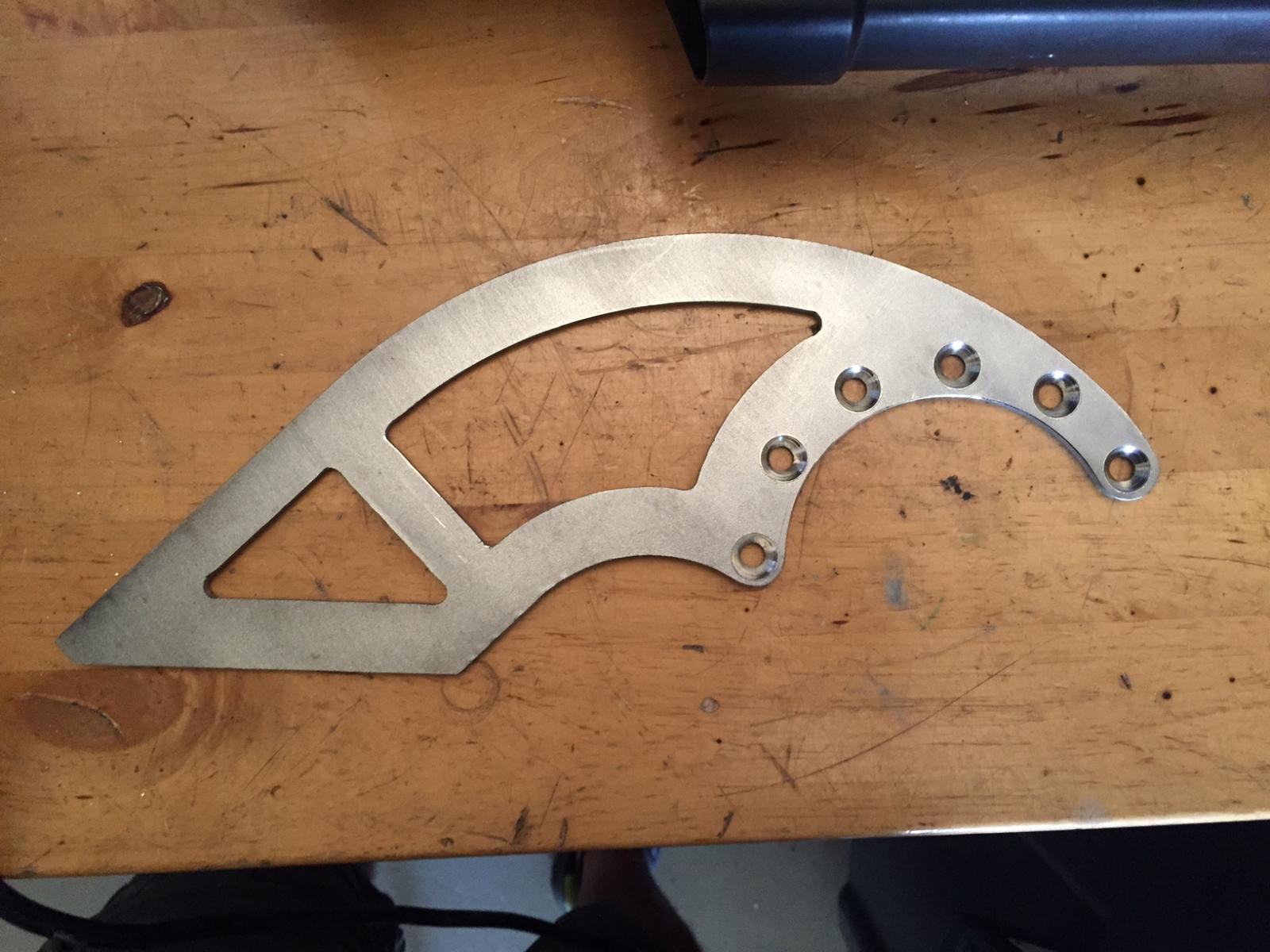

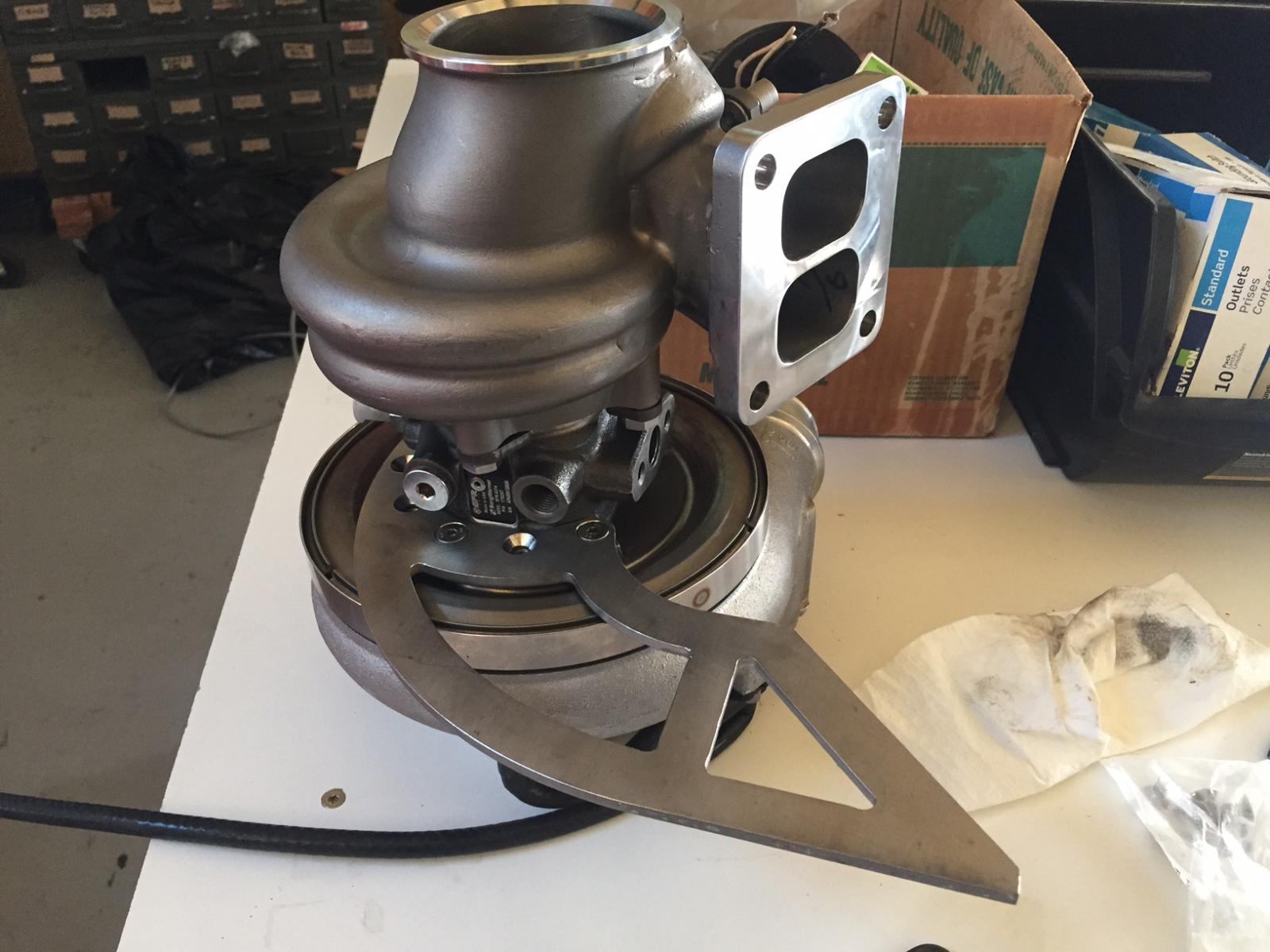

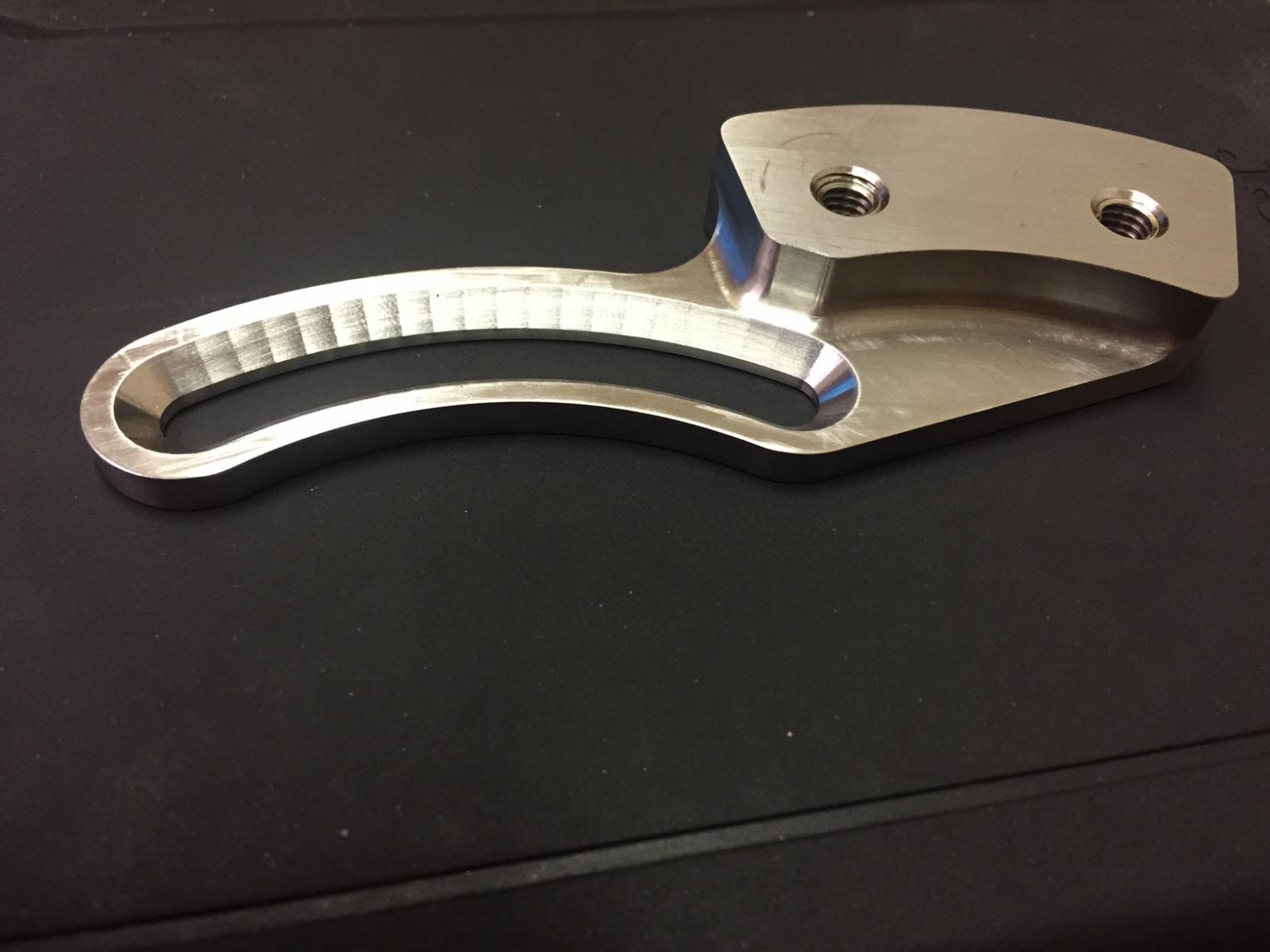

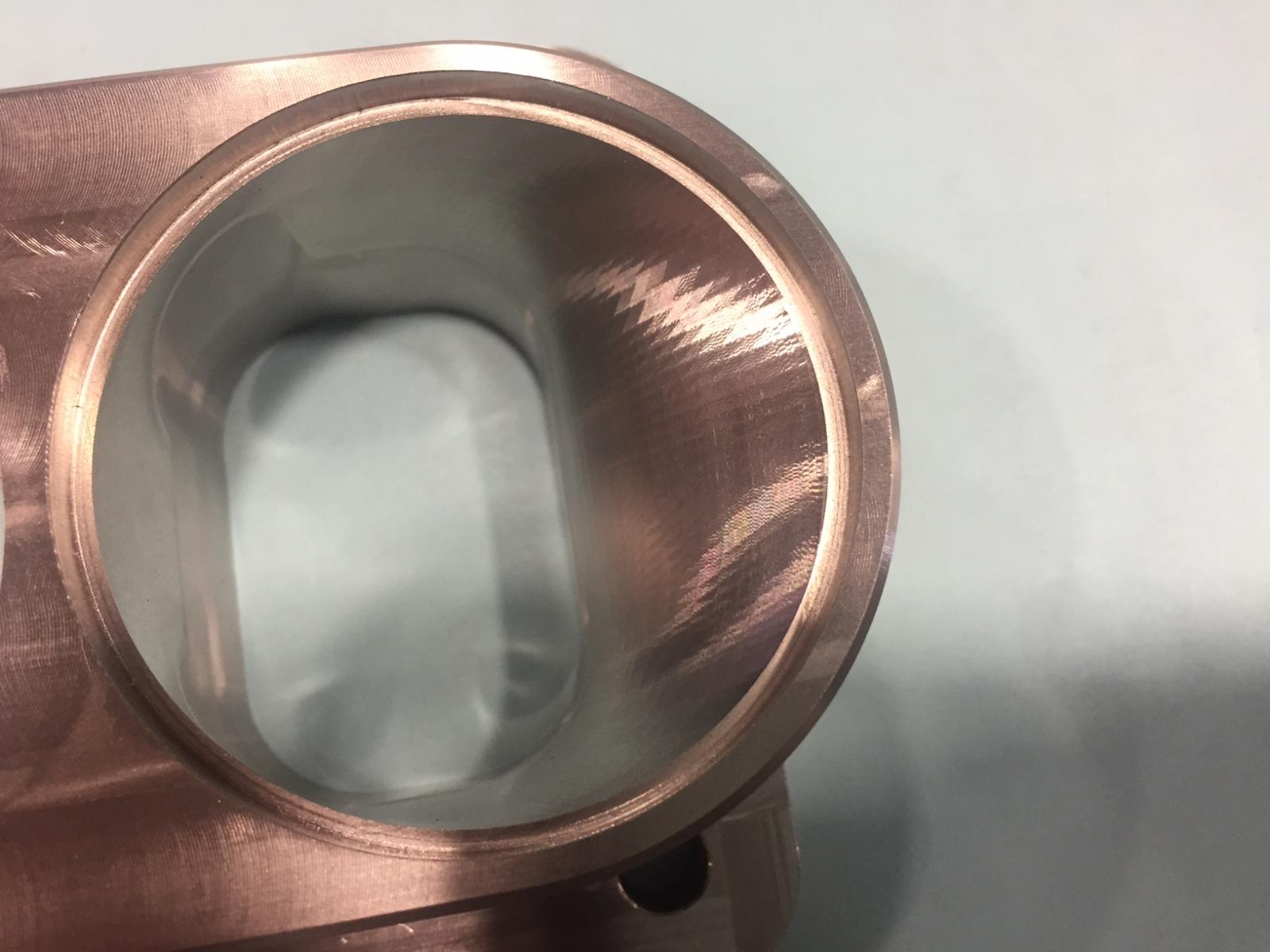

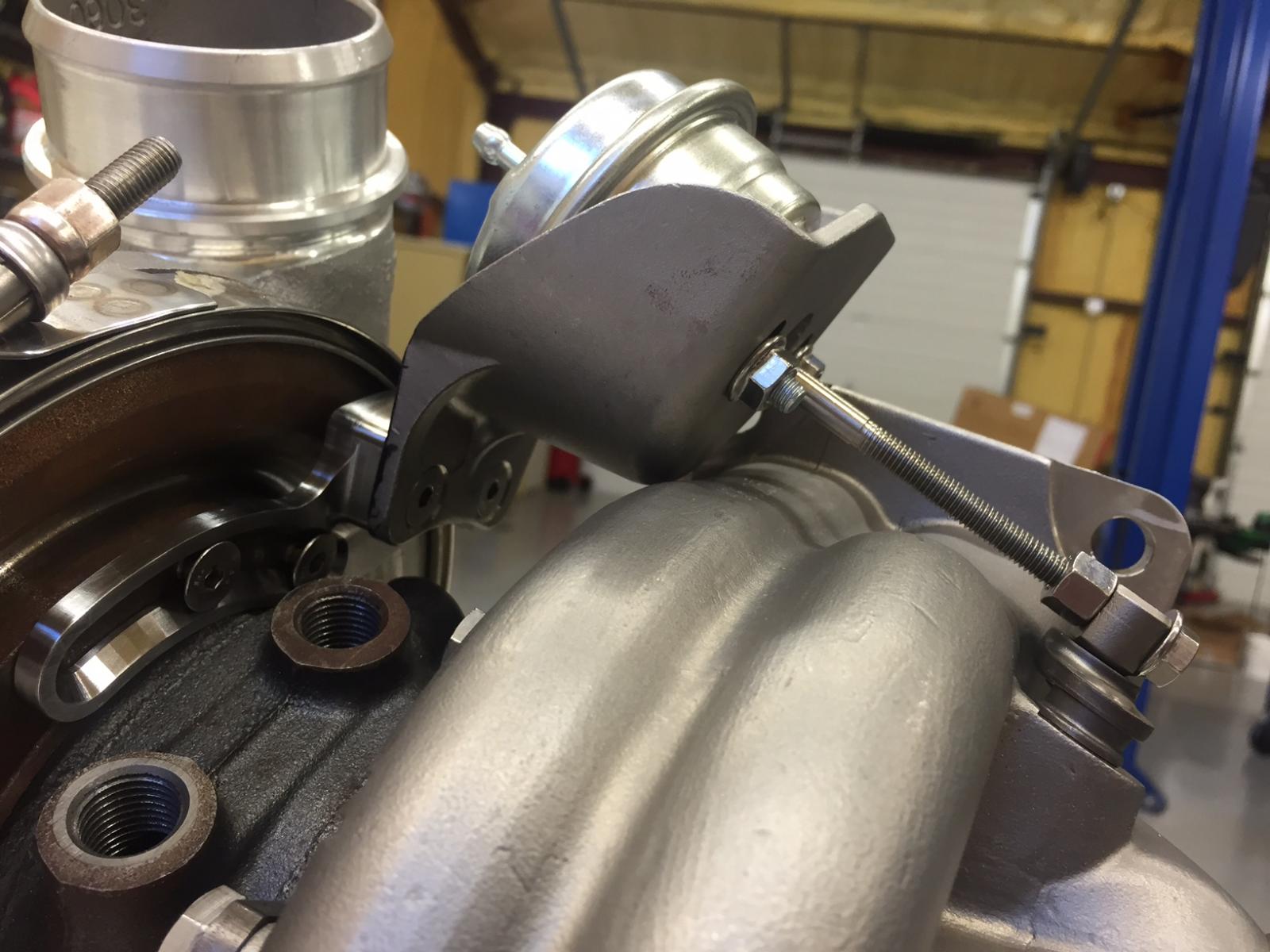

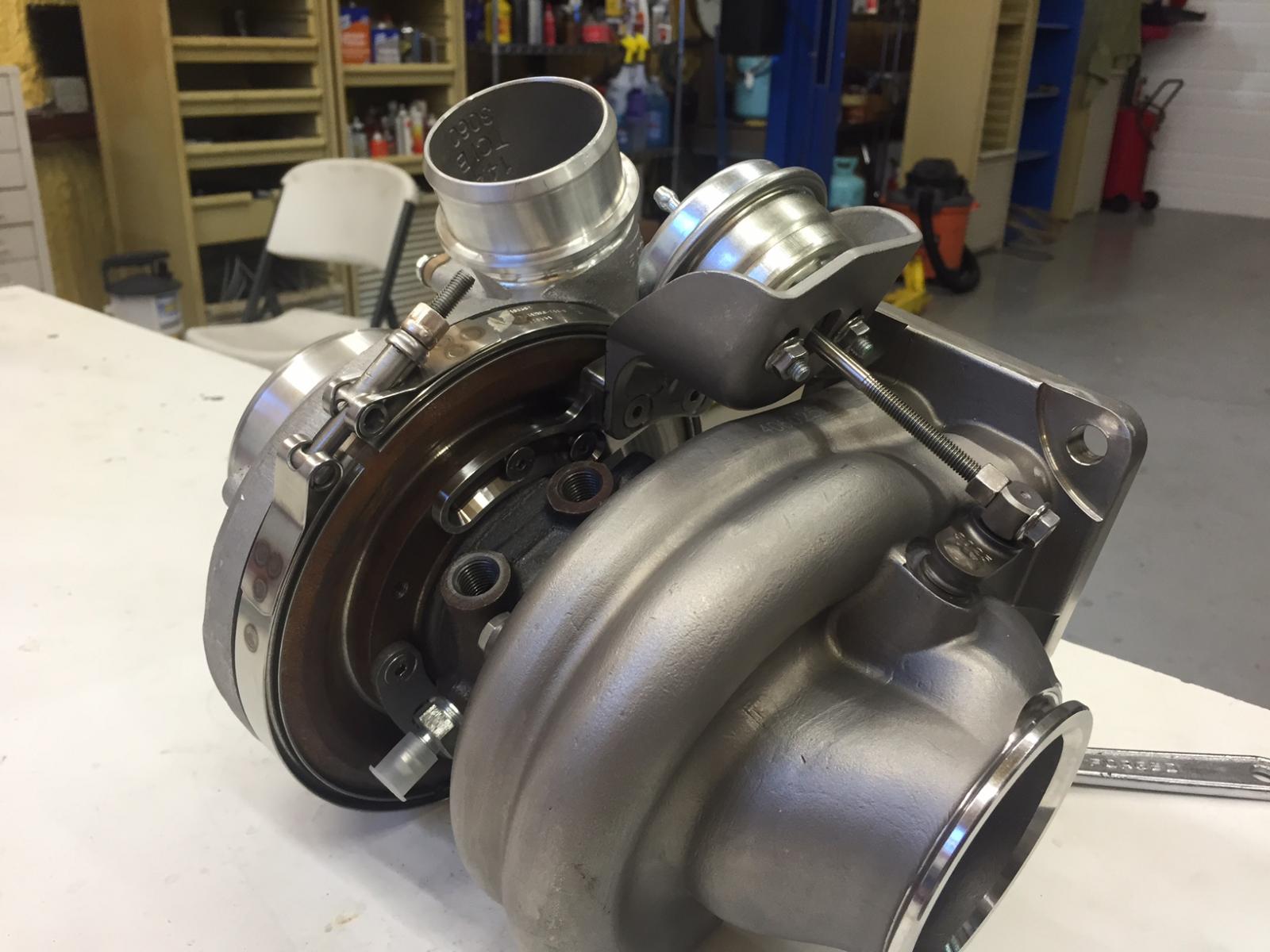

    The finished products
    Name:  IMG_8007.jpg
Views: 624
Size:  185.3 KBName:  IMG_8010.jpg
Views: 627
Size:  134.1 KBName:  IMG_8035.jpg
Views: 658
Size:  117.3 KBName:  IMG_8008.jpg
Views: 623
Size:  163.7 KBName:  IMG_8047.jpg
Views: 629
Size:  109.0 KBName:  IMG_8142.jpg
Views: 623
Size:  110.6 KBName:  IMG_8147.jpg
Views: 620
Size:  159.1 KBName:  IMG_8151.jpg
Views: 621
Size:  173.3 KBName:  IMG_8183.jpg
Views: 620
Size:  166.9 KBName:  IMG_8256.jpg
Views: 614
Size:  119.3 KBName:  IMG_8210.jpg
Views: 621
Size:  127.1 KBName:  IMG_8209.jpg
Views: 612
Size:  147.0 KBName:  IMG_8193.jpg
Views: 611
Size:  132.4 KBName:  IMG_8184.jpg
Views: 613
Size:  192.2 KB

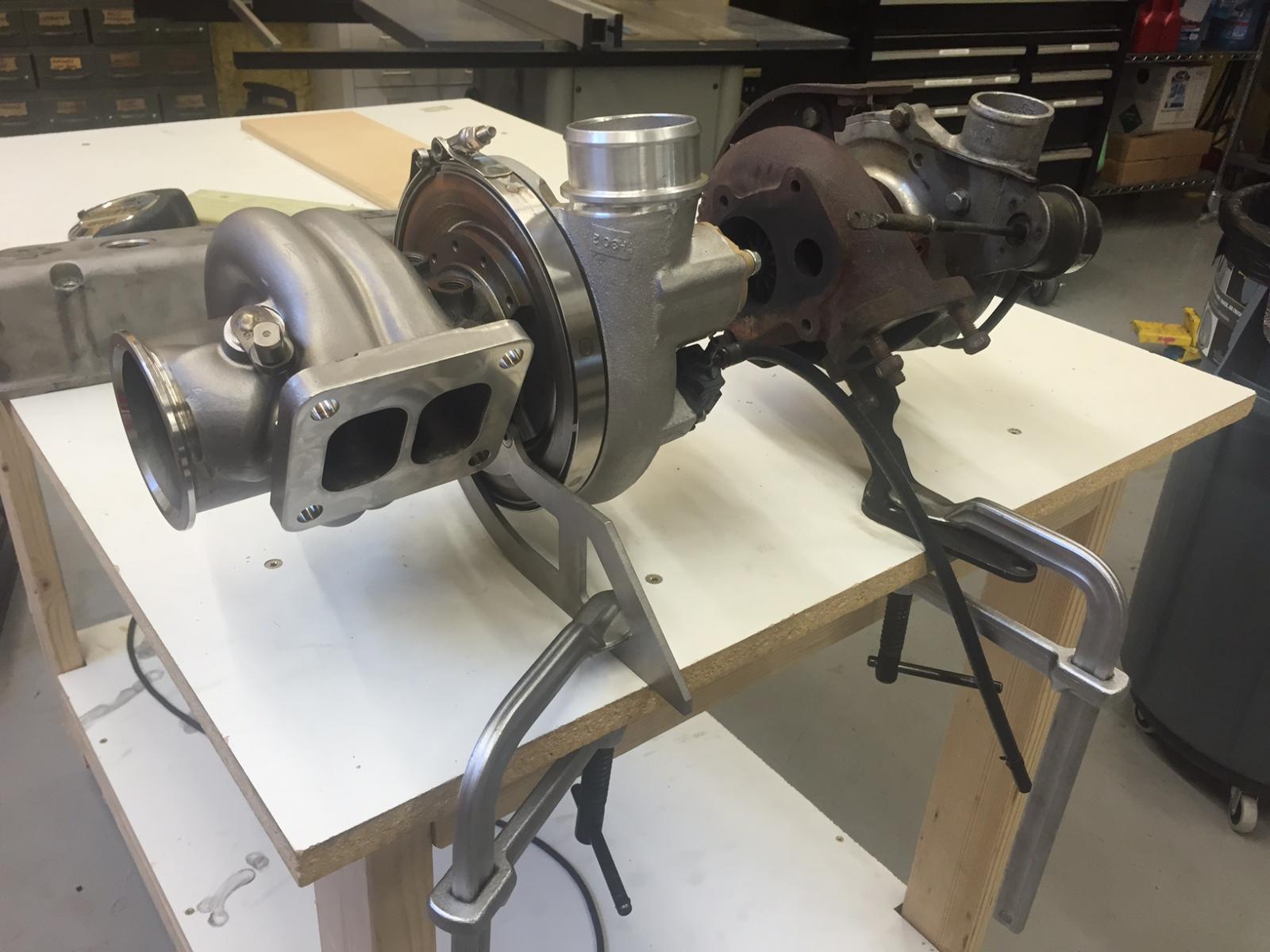

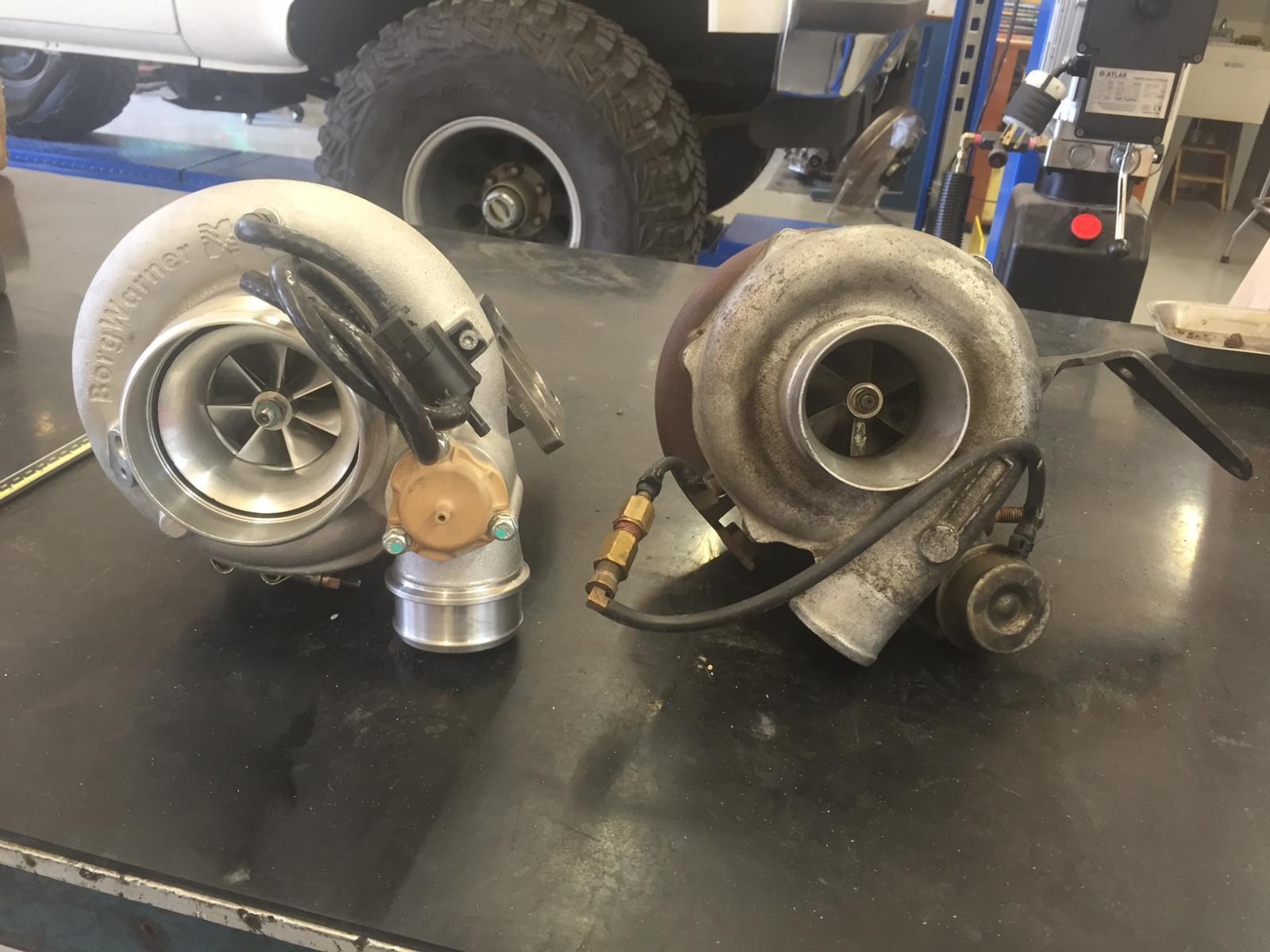

    Turbo Comparison to TE-44
    Name:  IMG_7971.jpg
Views: 619
Size:  177.7 KBName:  IMG_8036.jpg
Views: 609
Size:  155.4 KB

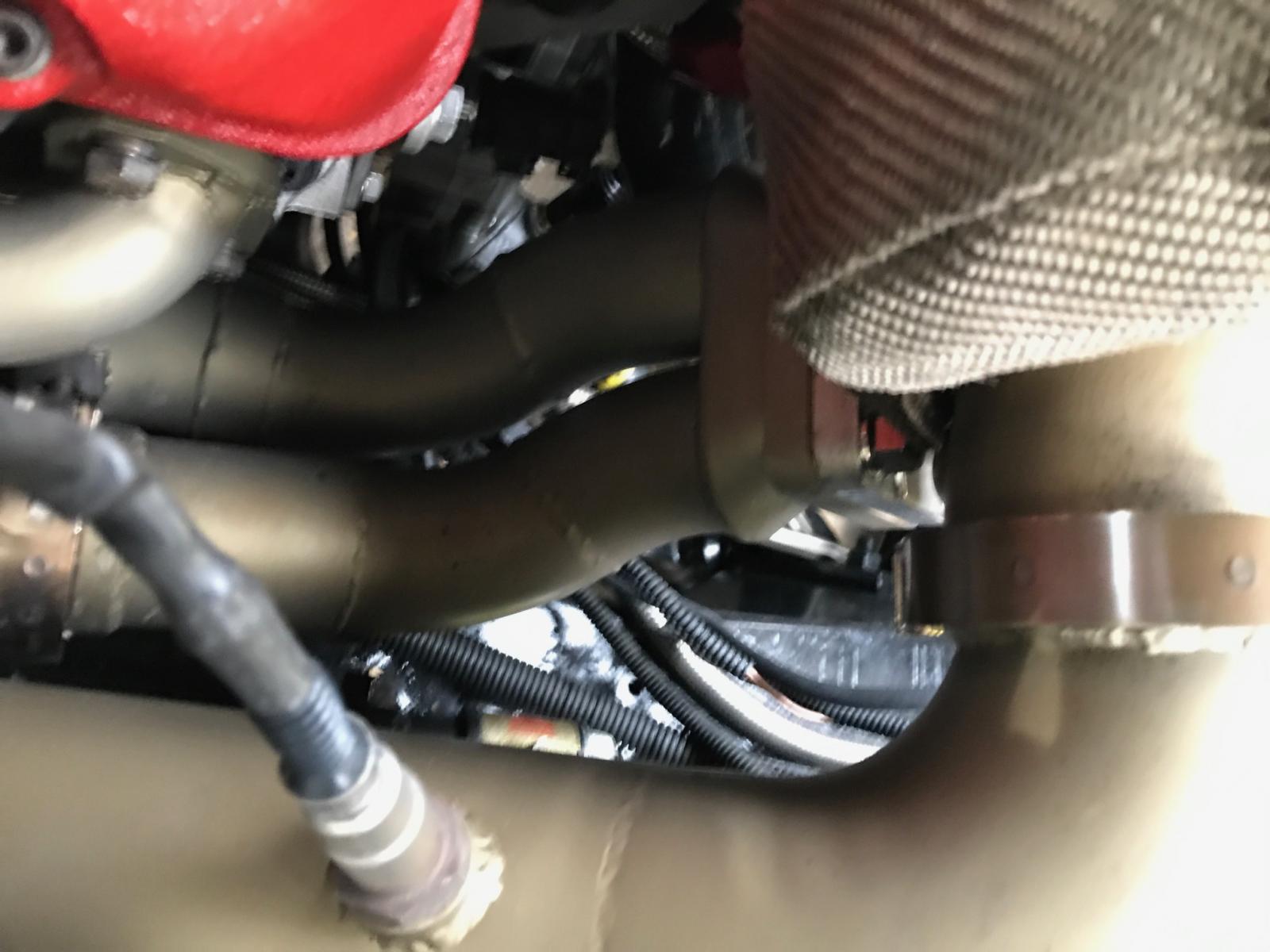

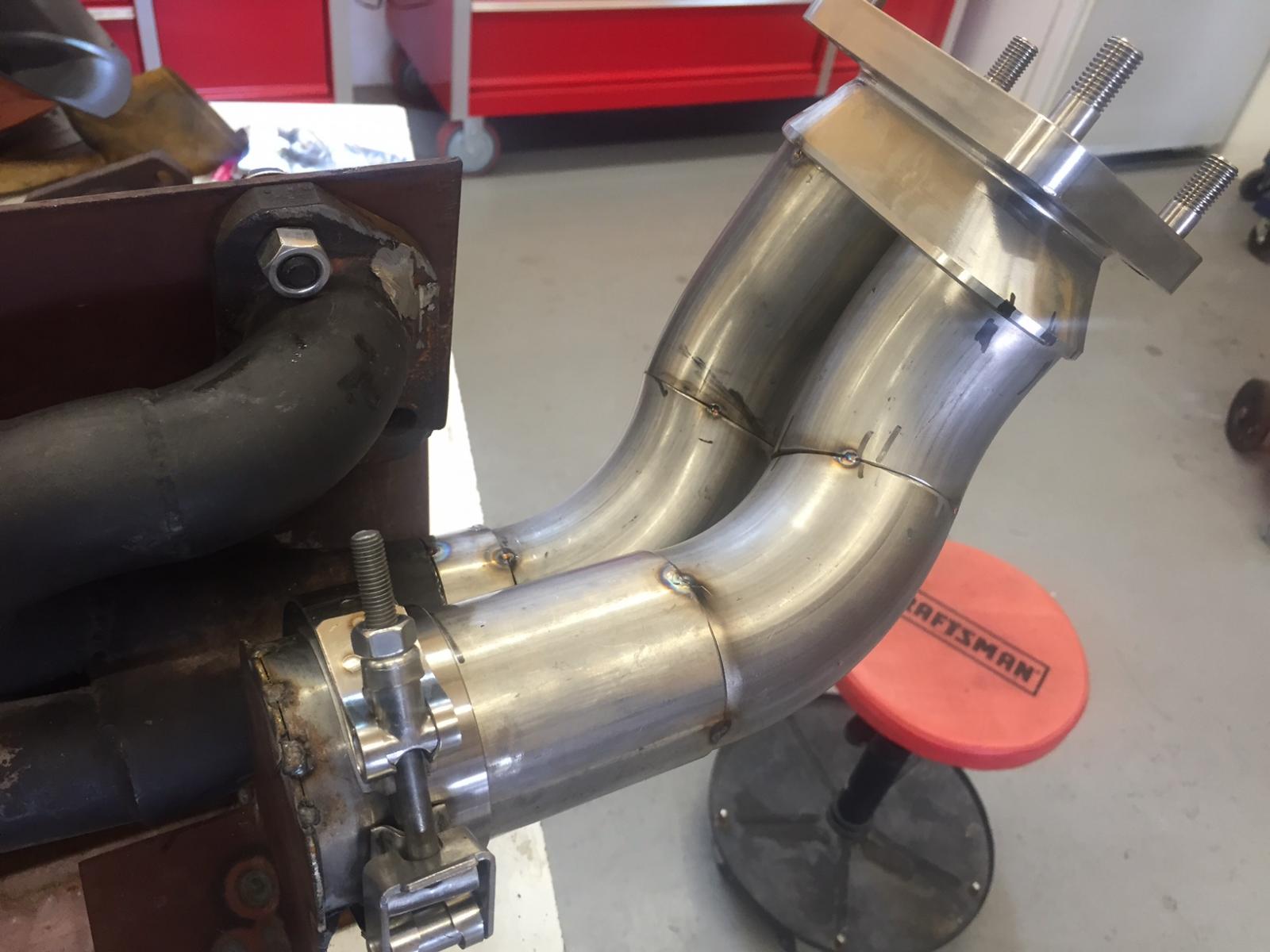

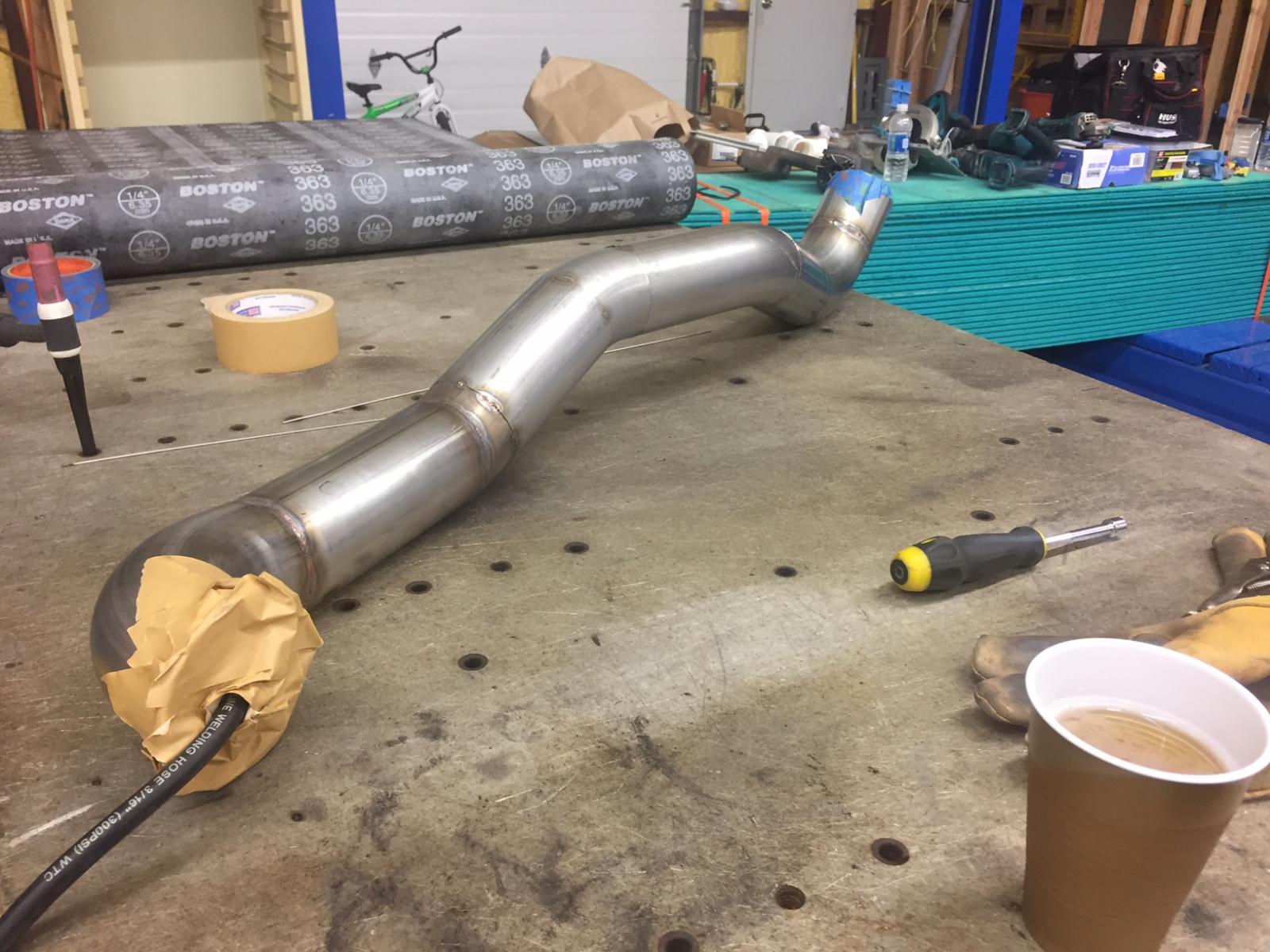

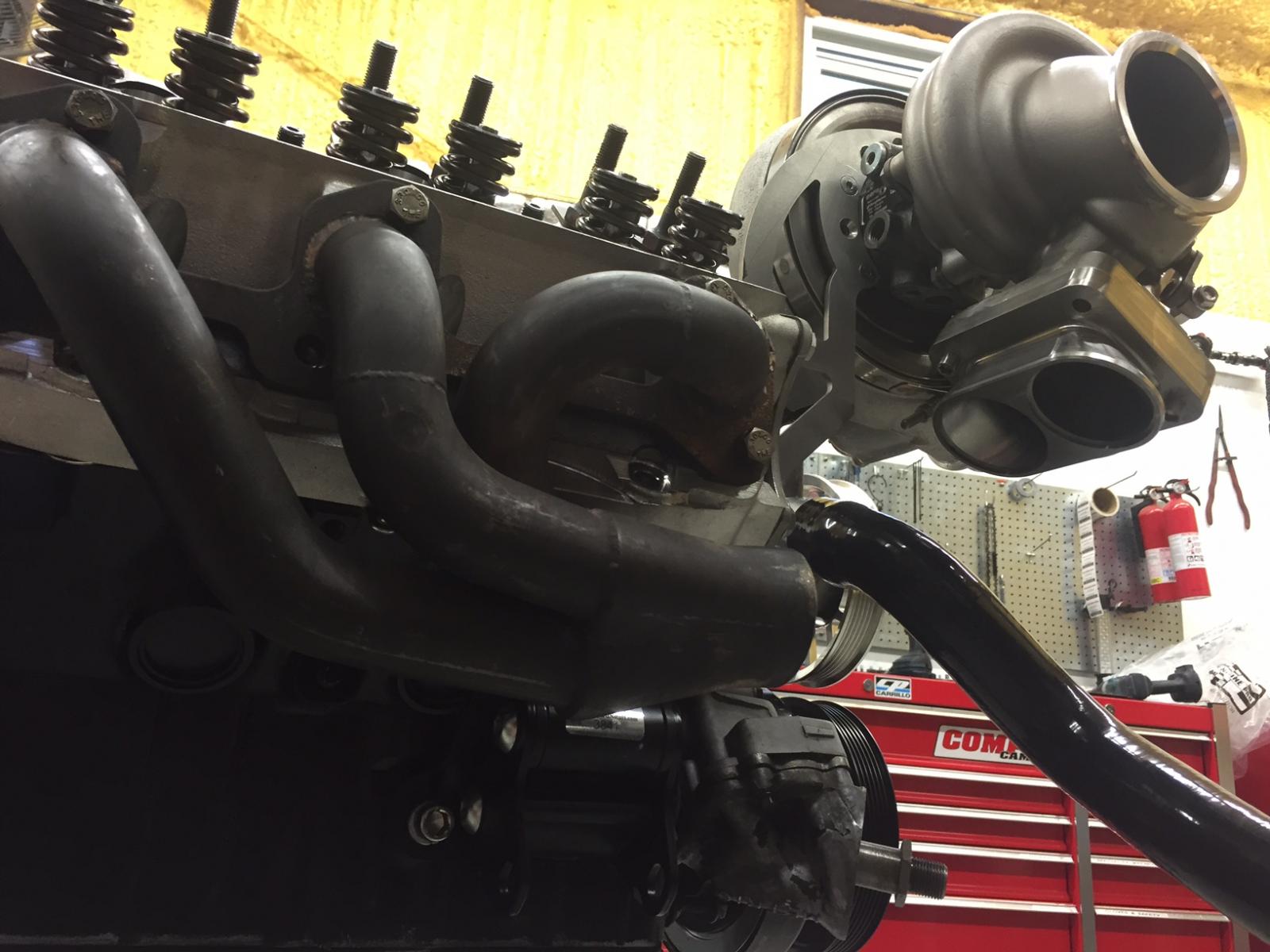

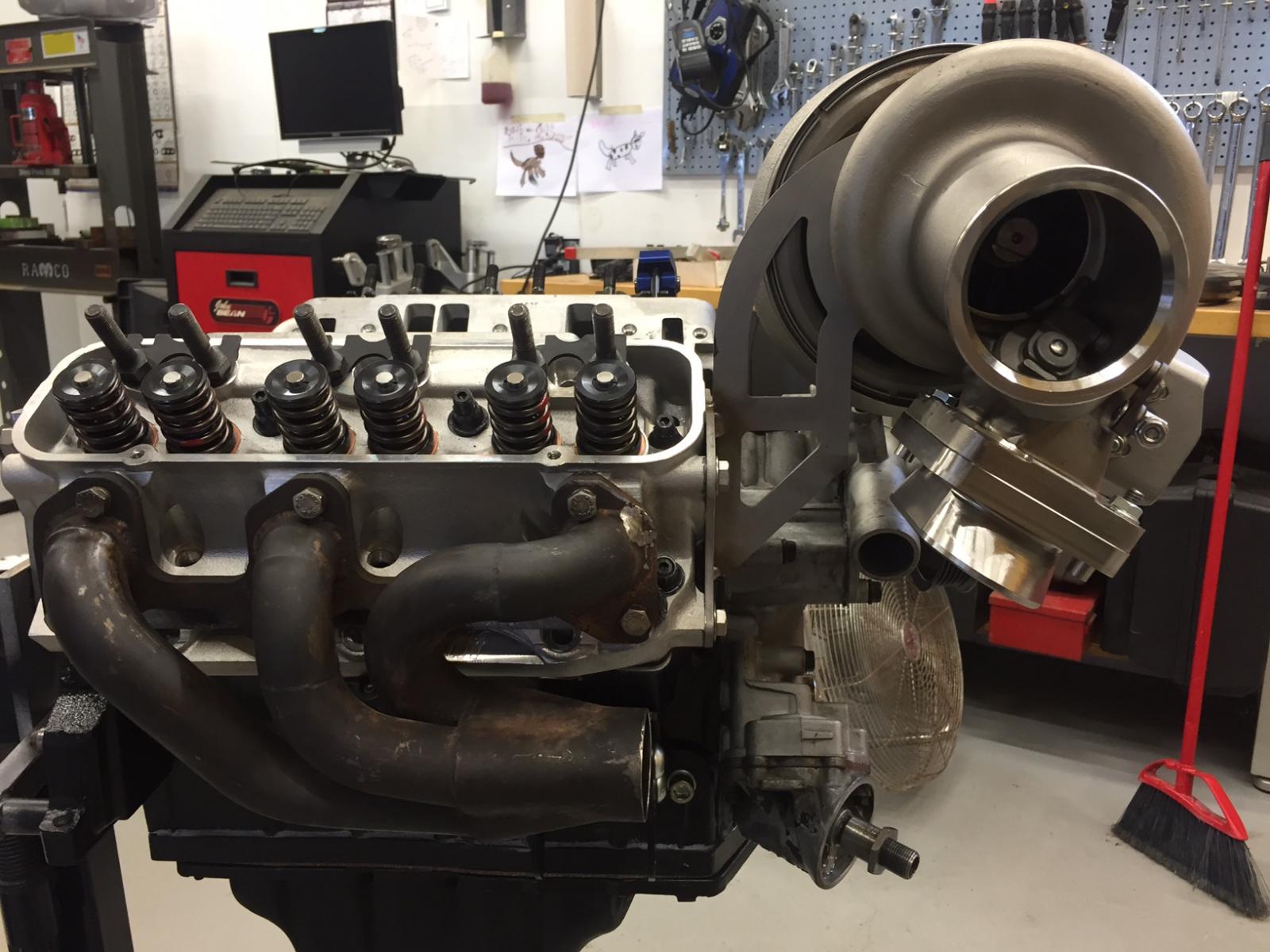

    Exhuast Moddifications
    Name:  IMG_8221.jpg
Views: 638
Size:  191.9 KBName:  IMG_8226.jpg
Views: 617
Size:  163.8 KBName:  IMG_8267.jpg
Views: 605
Size:  121.9 KBName:  IMG_8265.jpg
Views: 625
Size:  135.1 KBName:  IMG_8268.jpg
Views: 600
Size:  128.6 KBName:  IMG_8539.jpg
Views: 609
Size:  229.8 KB

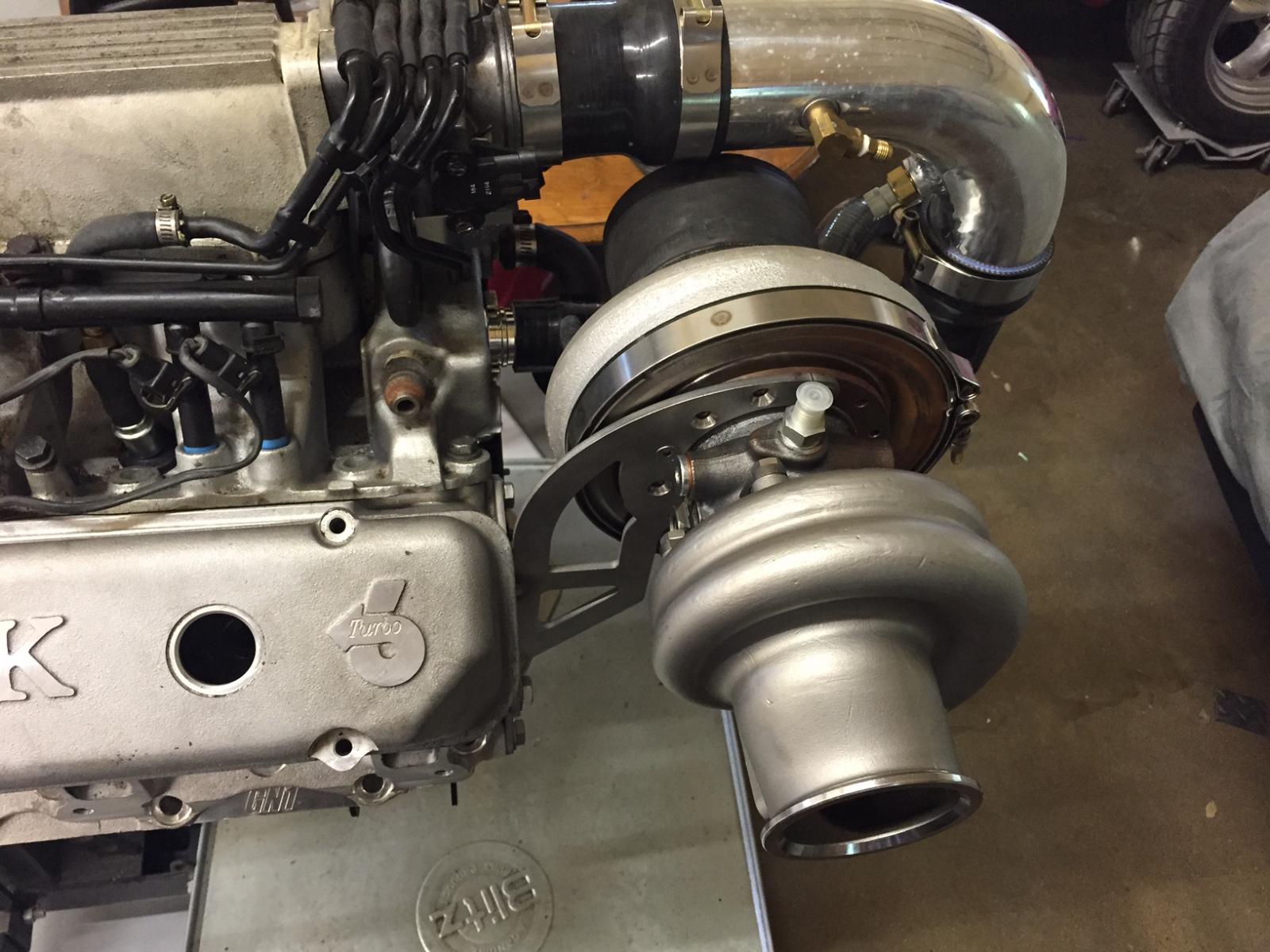

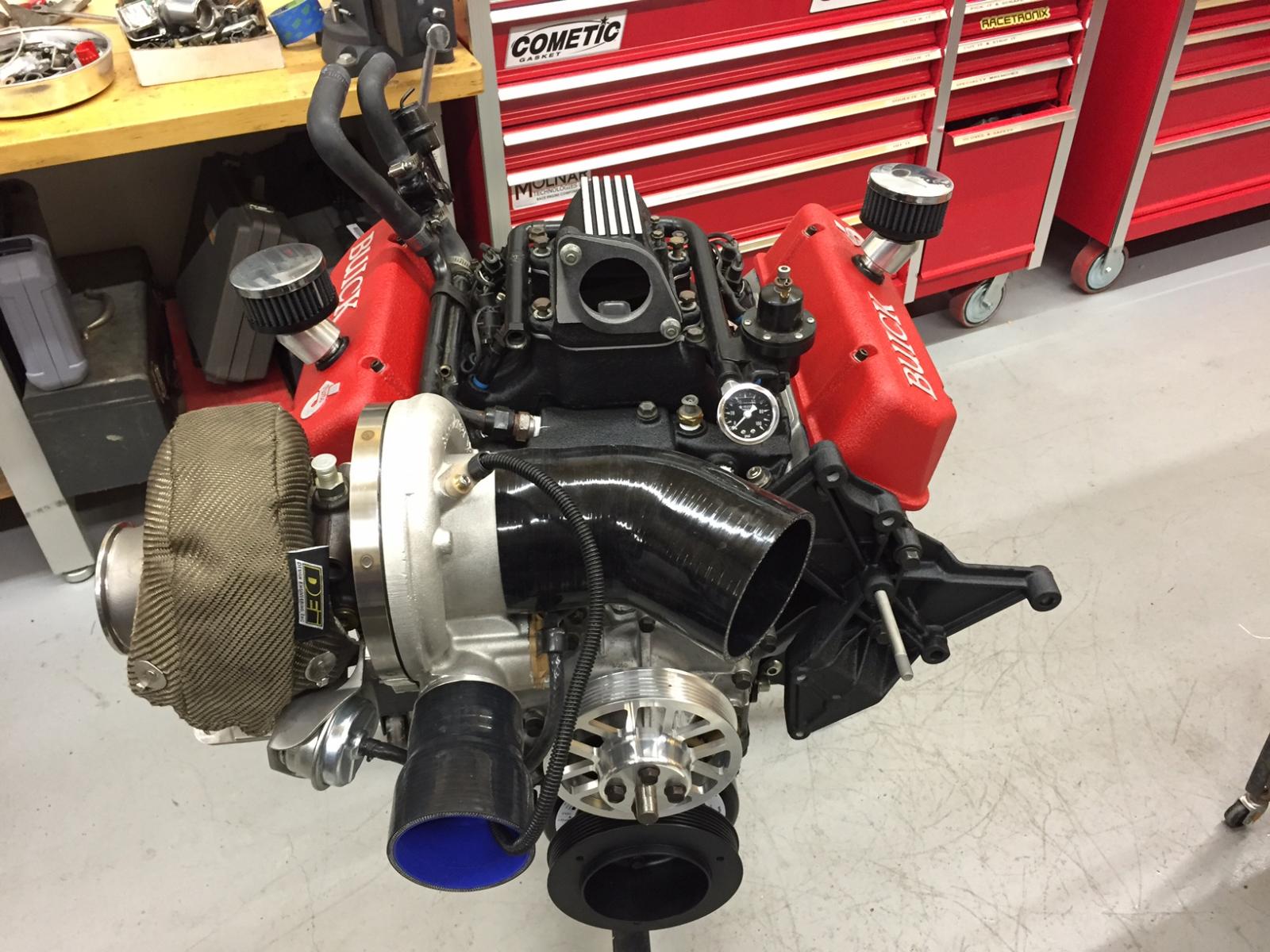

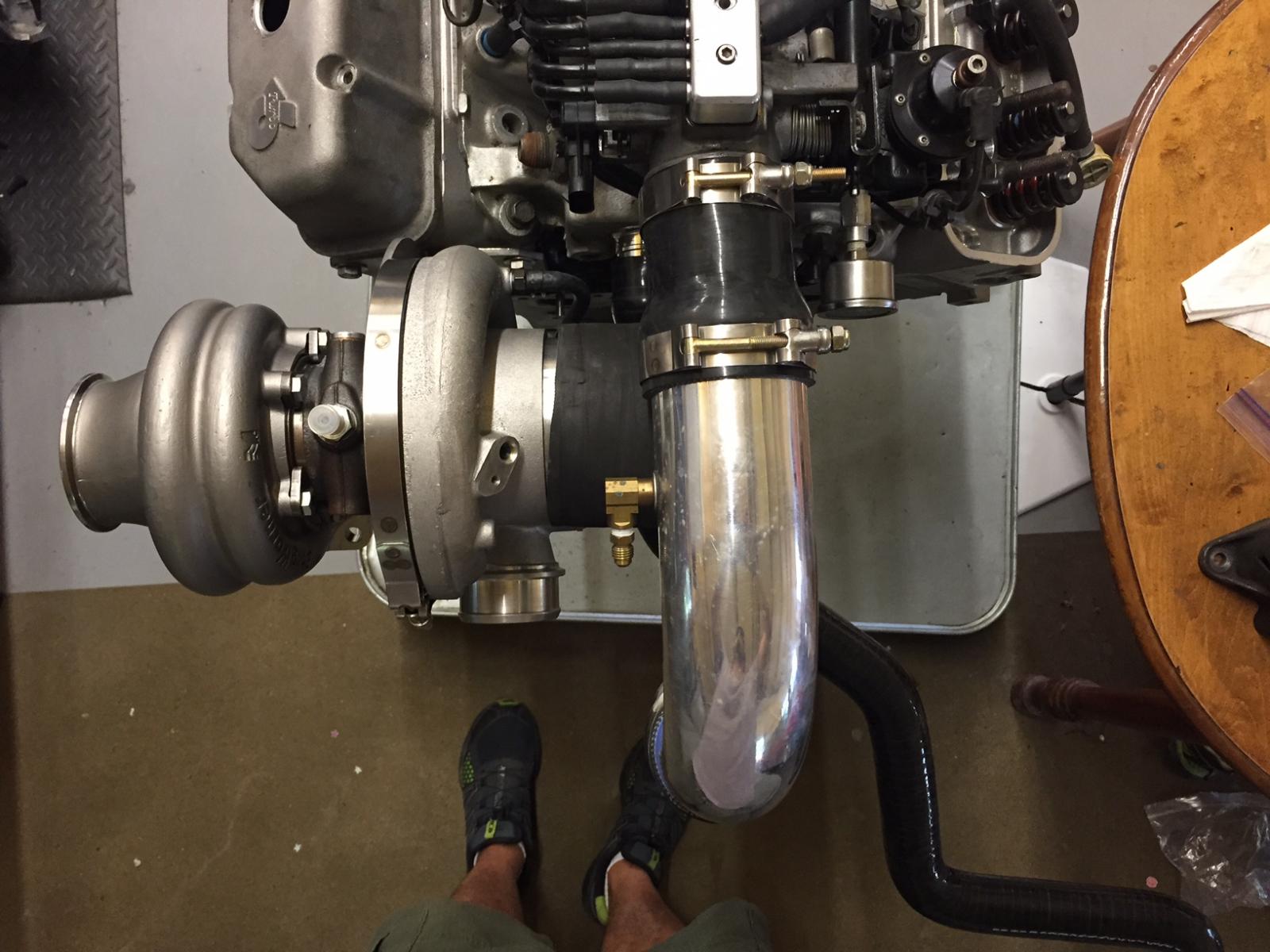

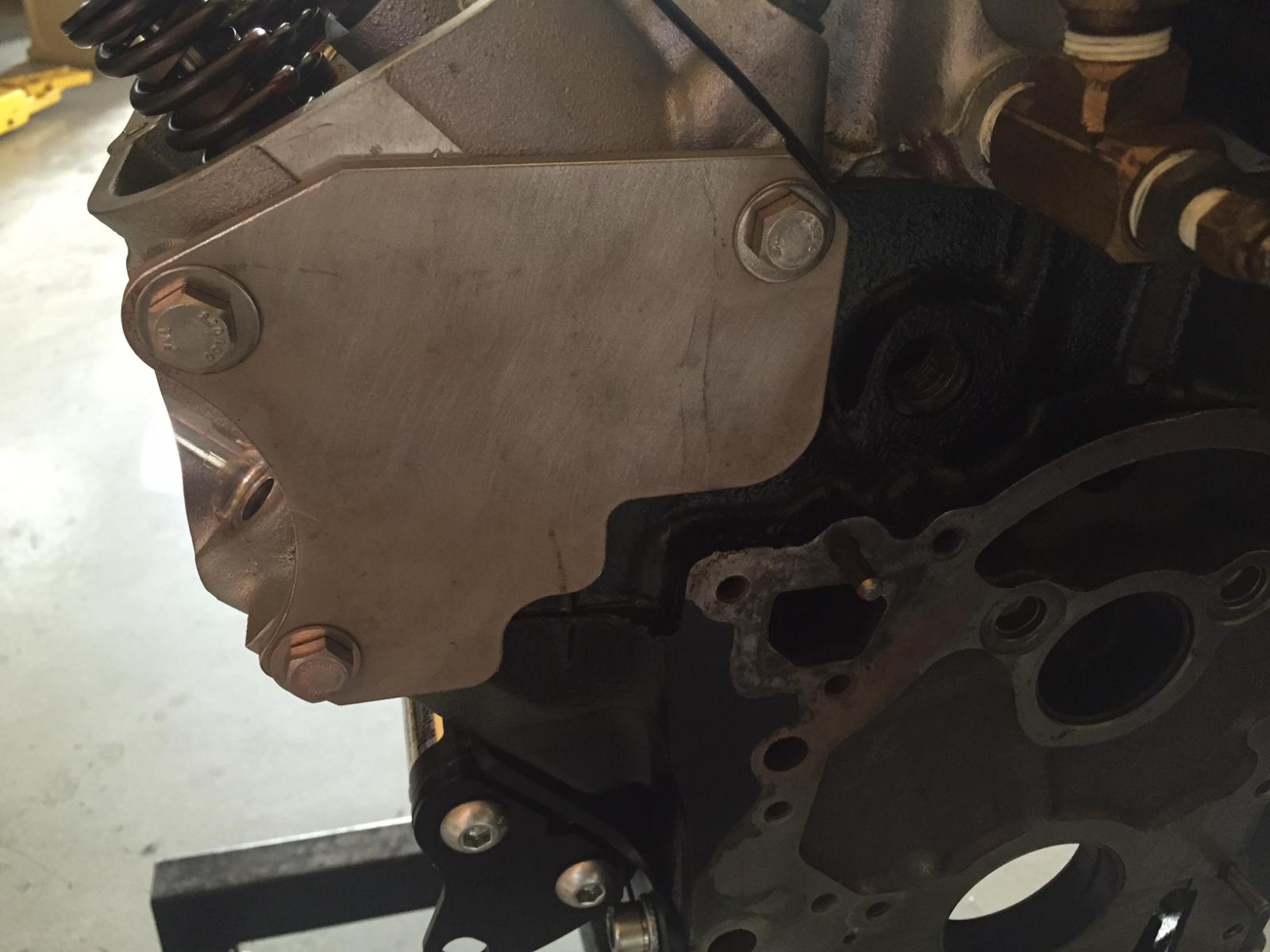

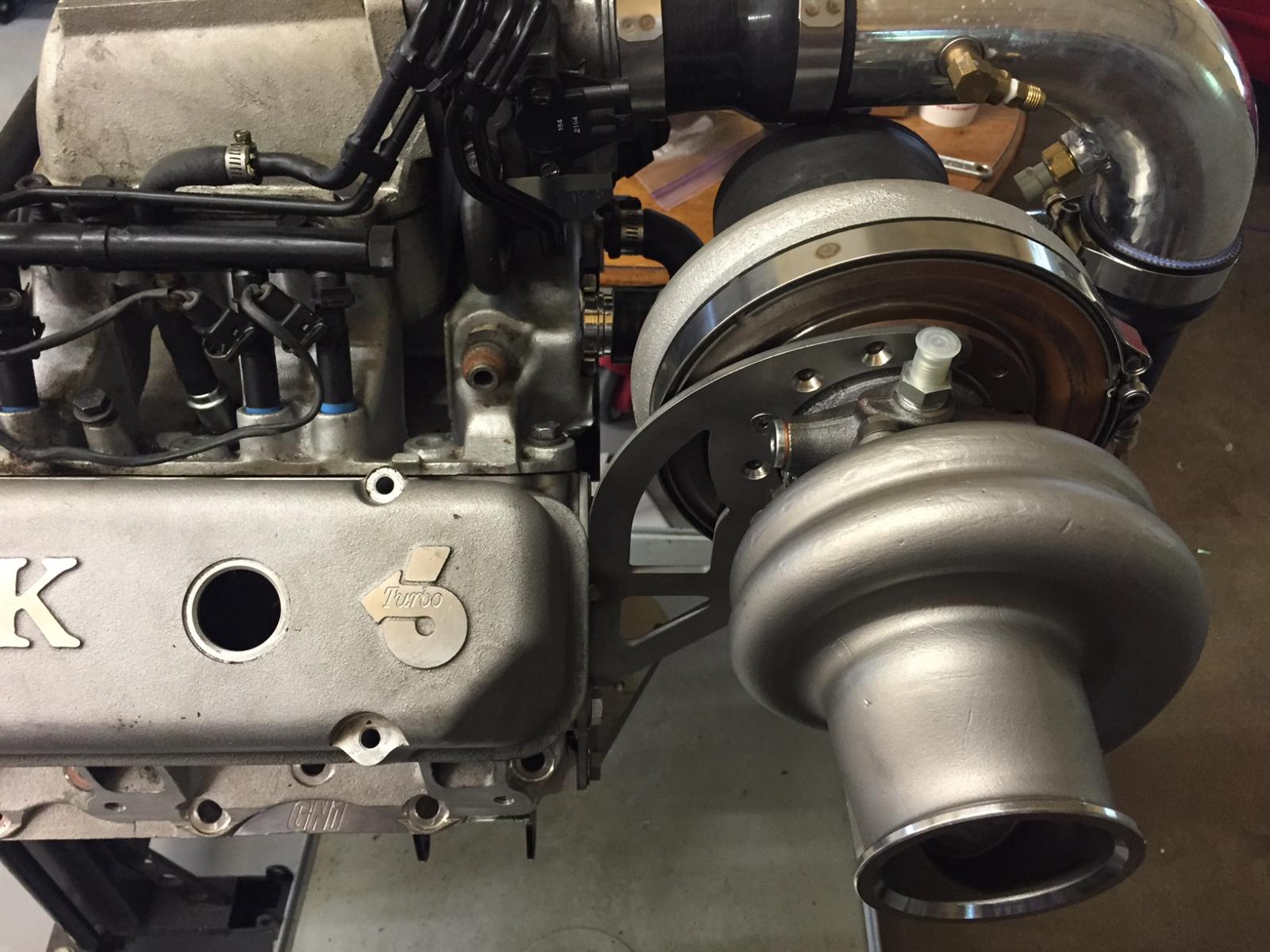

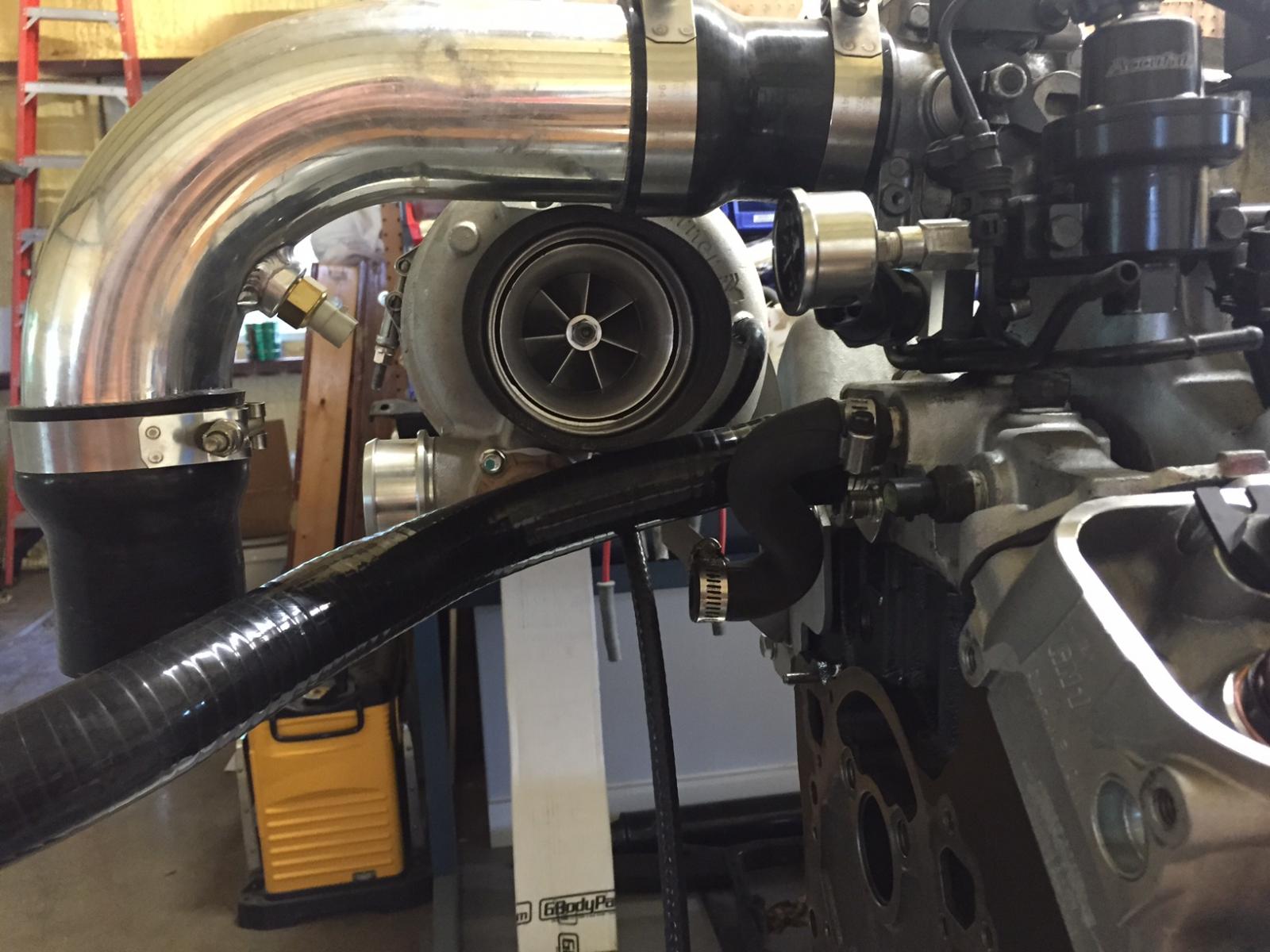

    Going on the motor
    Name:  IMG_8052.jpg
Views: 617
Size:  208.2 KBName:  IMG_8051.jpg
Views: 612
Size:  177.1 KBName:  IMG_8053.jpg
Views: 623
Size:  182.8 KBName:  IMG_8327.jpg
Views: 621
Size:  240.2 KBName:  IMG_8331.jpg
Views: 670
Size:  217.9 KB

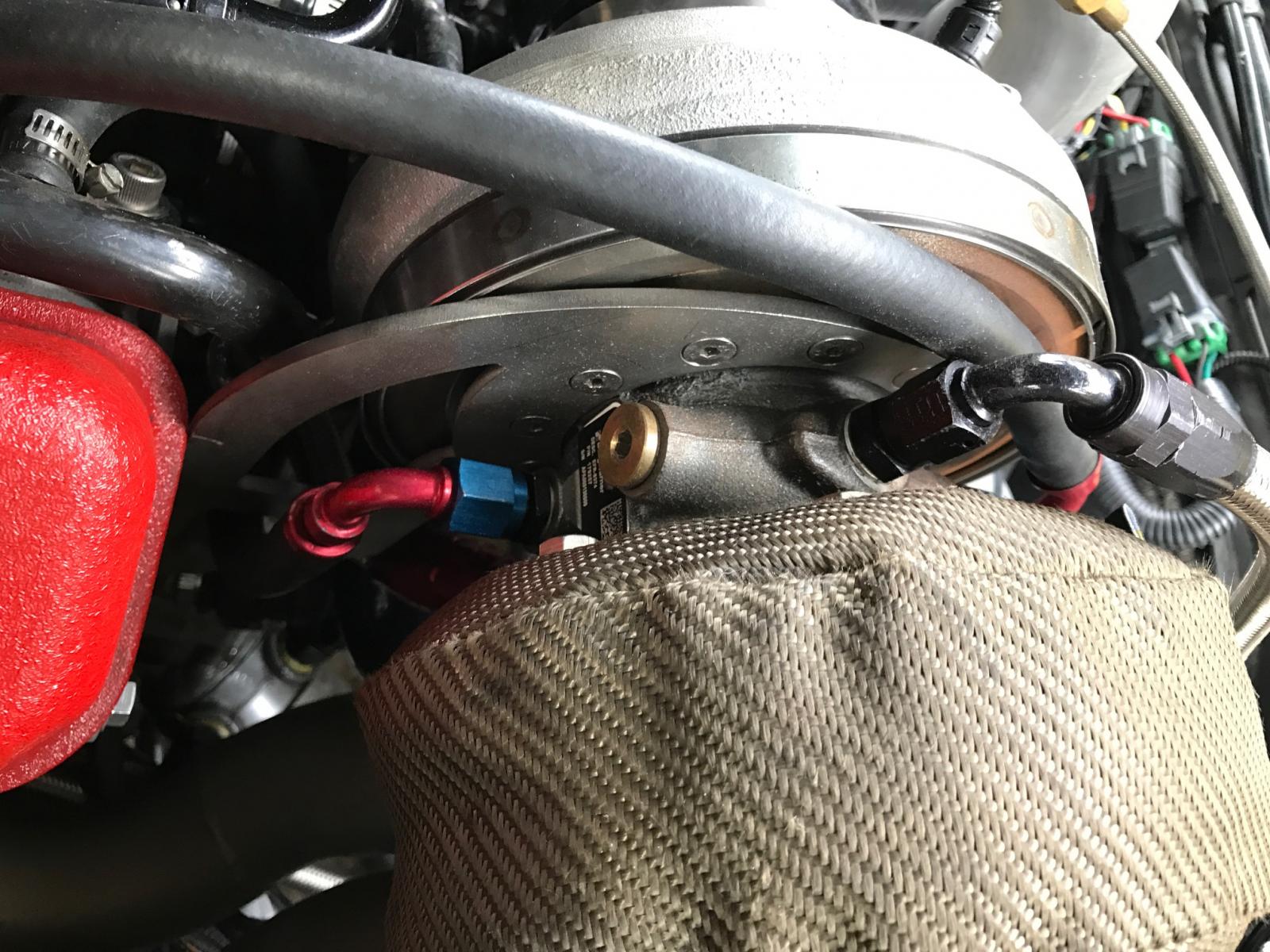

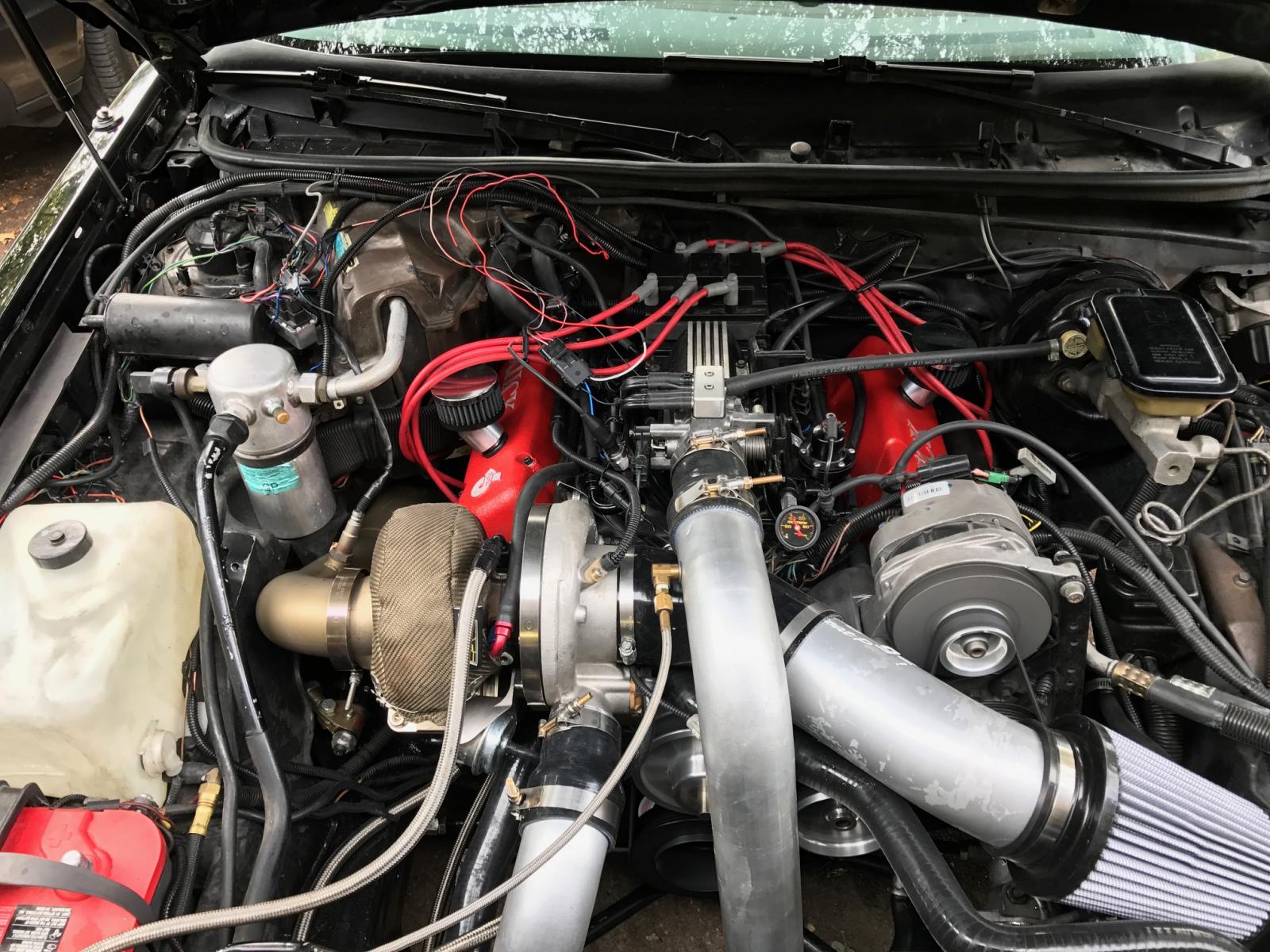

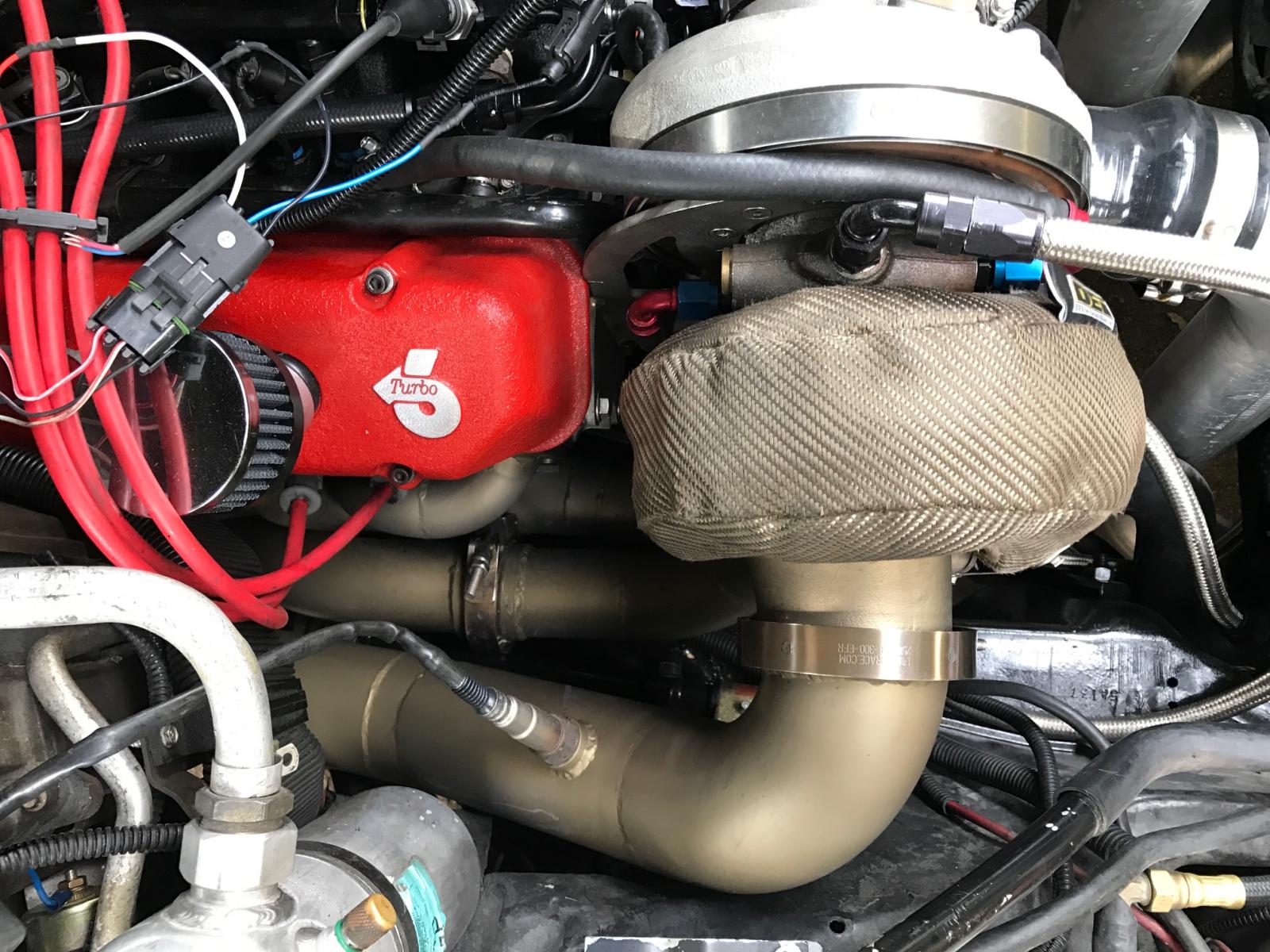

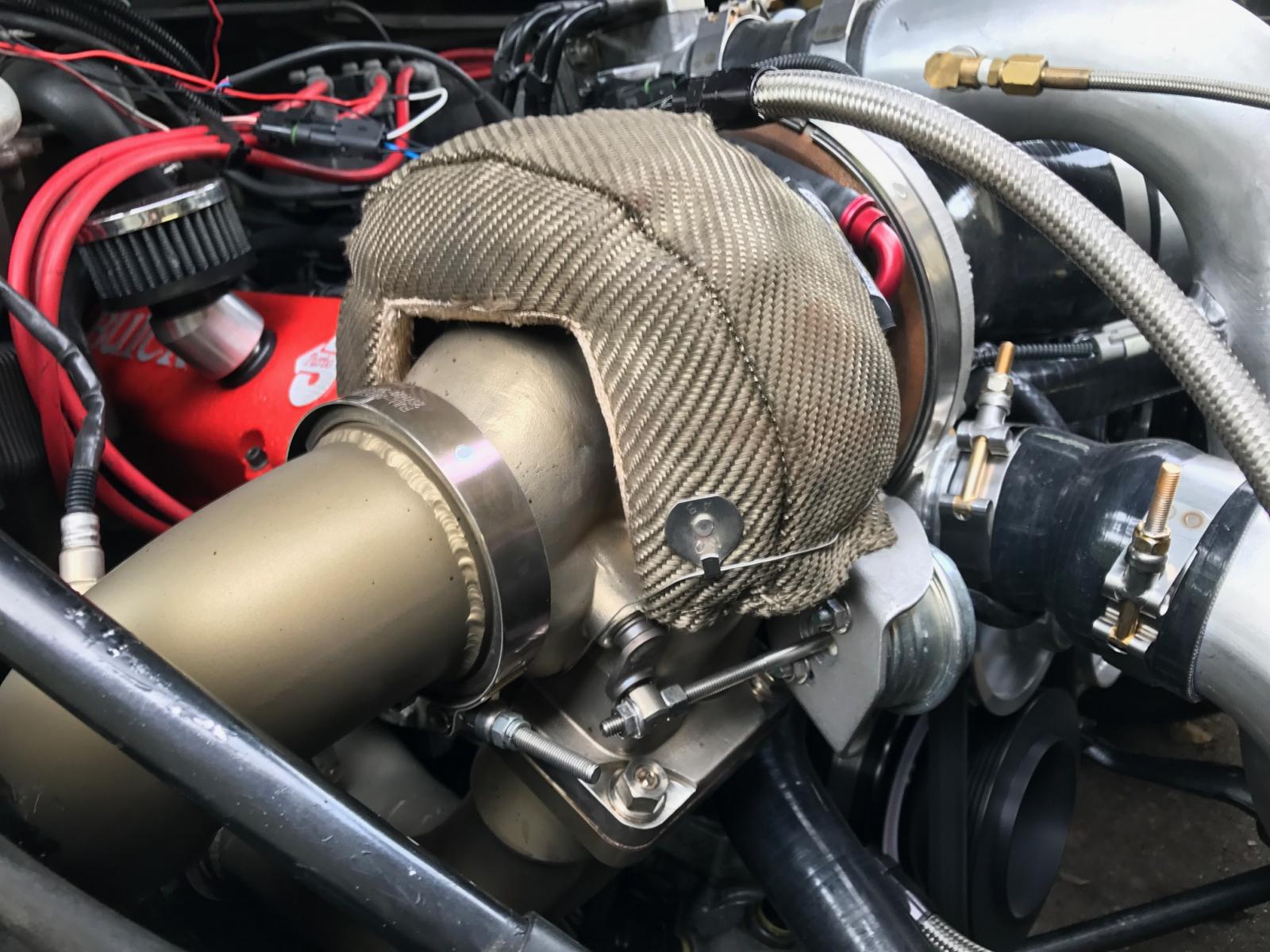

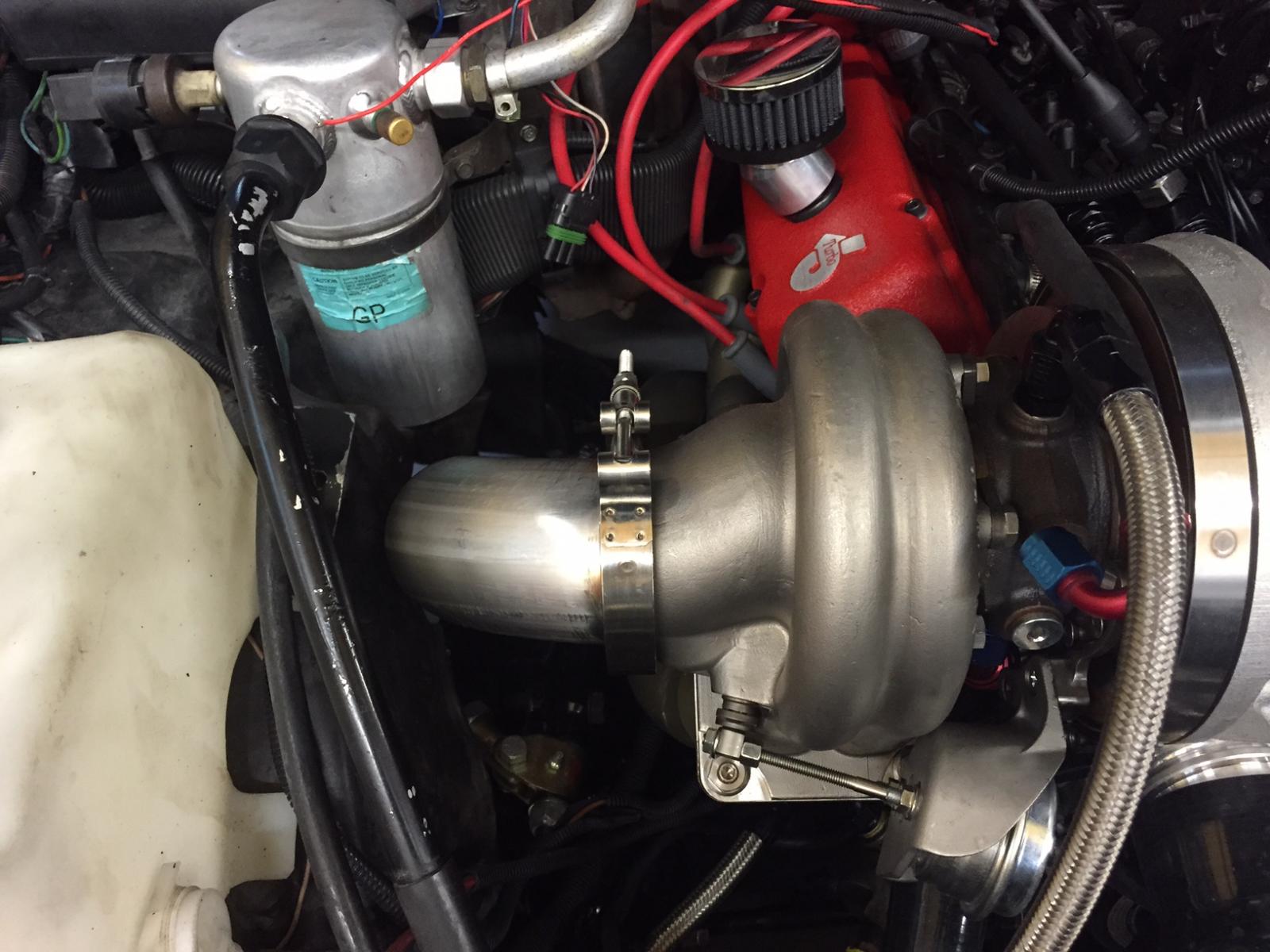

    In the Car
    Name:  IMG_8599.jpg
Views: 608
Size:  288.7 KBName:  IMG_8597.jpg
Views: 649
Size:  280.8 KBName:  IMG_8595.jpg
Views: 621
Size:  229.0 KBName:  IMG_8412.jpg
Views: 605
Size:  182.8 KBName:  IMG_8390.jpg
Views: 601
Size:  252.6 KBName:  IMG_8600.jpg
Views: 602

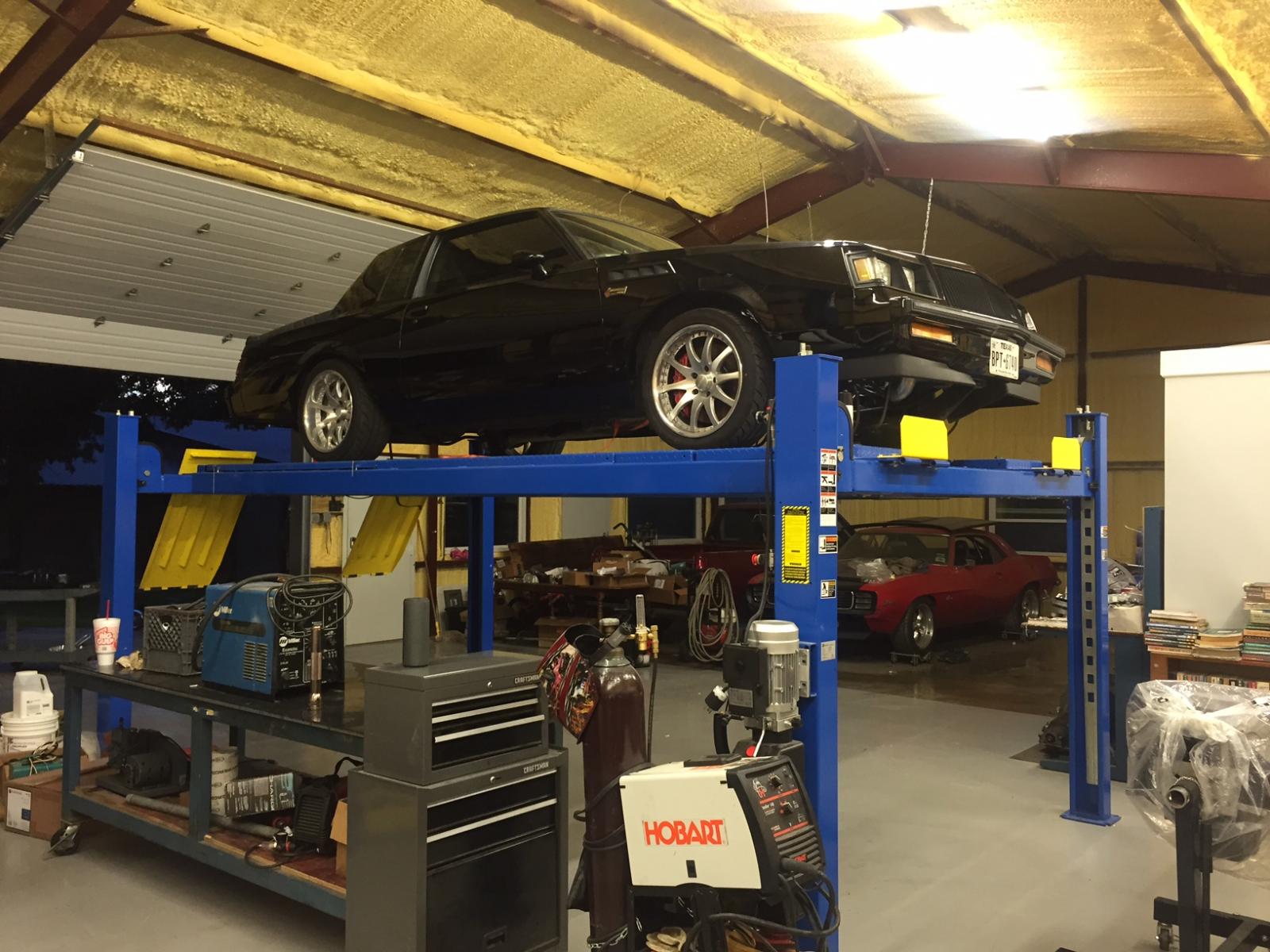

Size:  132.0 KBName:  IMG_8272.jpg
