1951 Chevy Truck 3100

Started out with just the body of the truck. It has a compete custom 2x4 chassis the myself and a friend/co-worker built. The chassis of the truck and all work done so far has been done right, no corners cut.

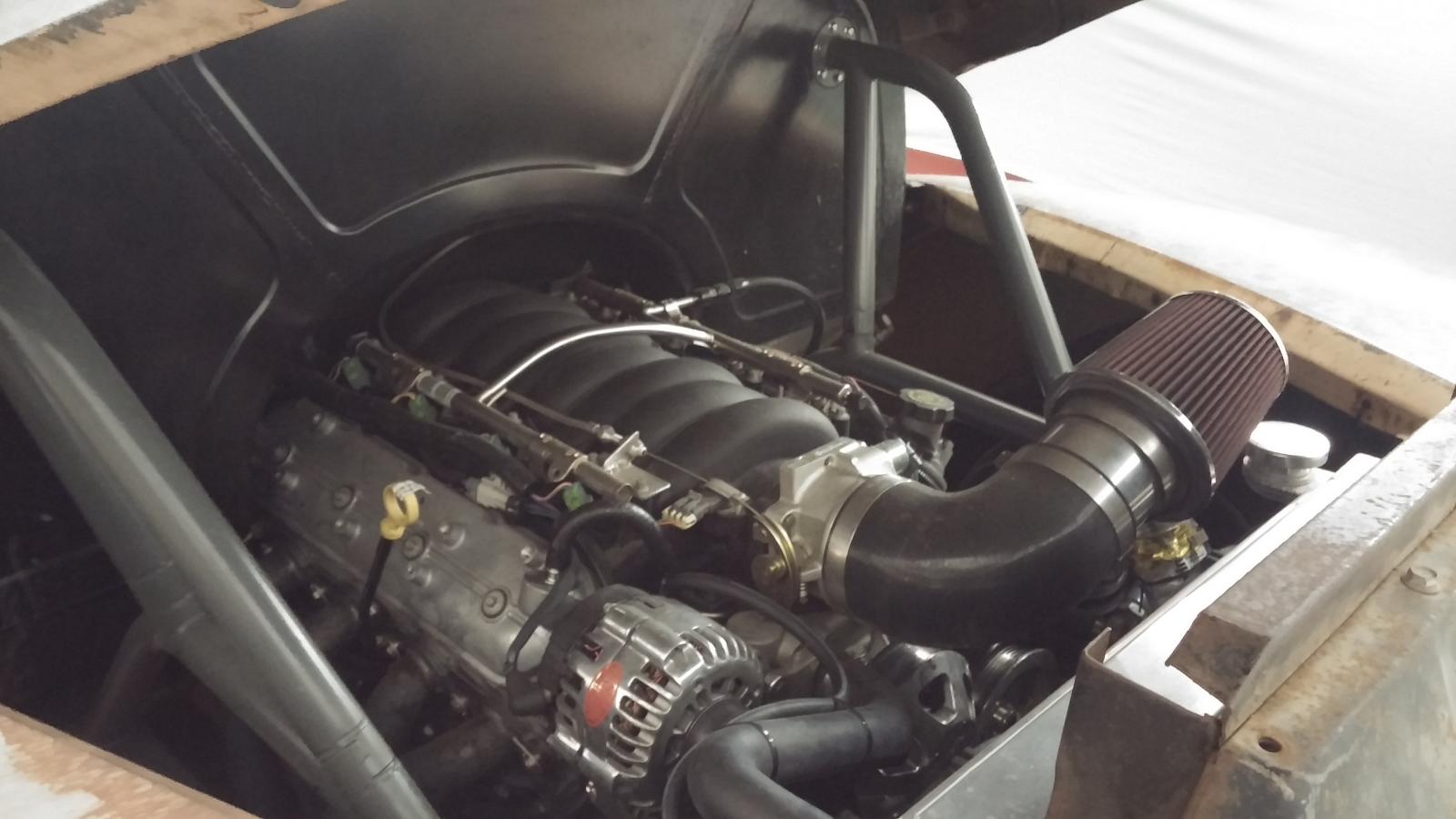

- 6.0 ls iron block, ls3 heads, Brian Tooley Cam, Stock crank, forged rods, forged pistons, ls3 intake, modified schoenfield headers, comp rockers, tuned by Carl at CJ tunes, 550 est hp, professionally built
- T56 magnum, ls2 flywheel, ls7 clutch
- 3" driveshaft 1350 u joints
- Winters quick change rear end, dpi center section, 4.17 ratio
- C6 brakes through KORE3, 14" front 13" rear, bendex pads
- Fabricated fuel cell, stealth pump, corvette filter
- Forgestar wheels, 19x12 rear with 345 Michelin ps2s, 18x10 fronts with 295 Michelin ps2s
- Kugel components underdash brake and clutch pedal assembly, wilwood masters
- Flaming river steering column and joints
- PRC radiator and shroud
- American autowire wiring and PSI engine harness

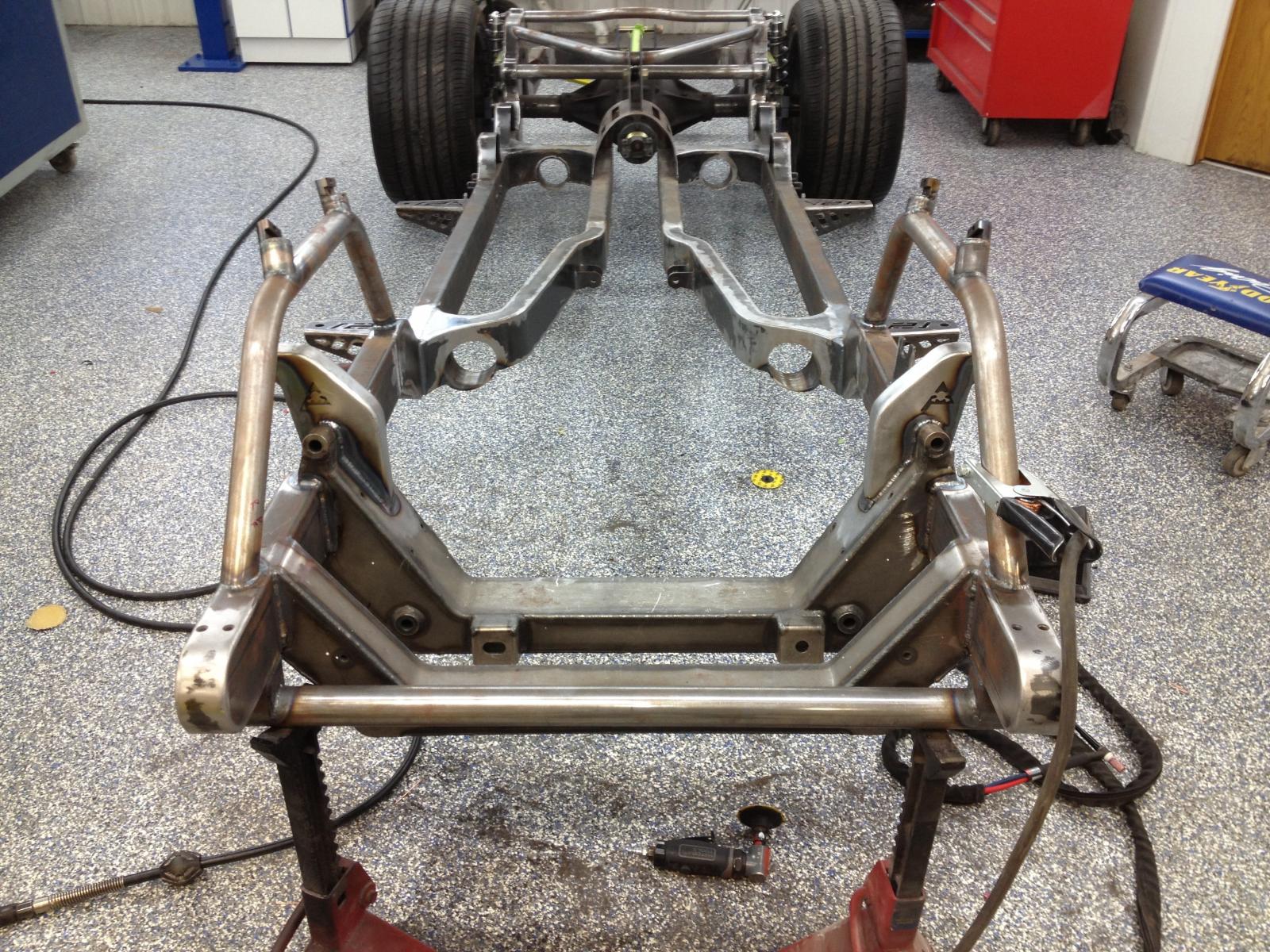

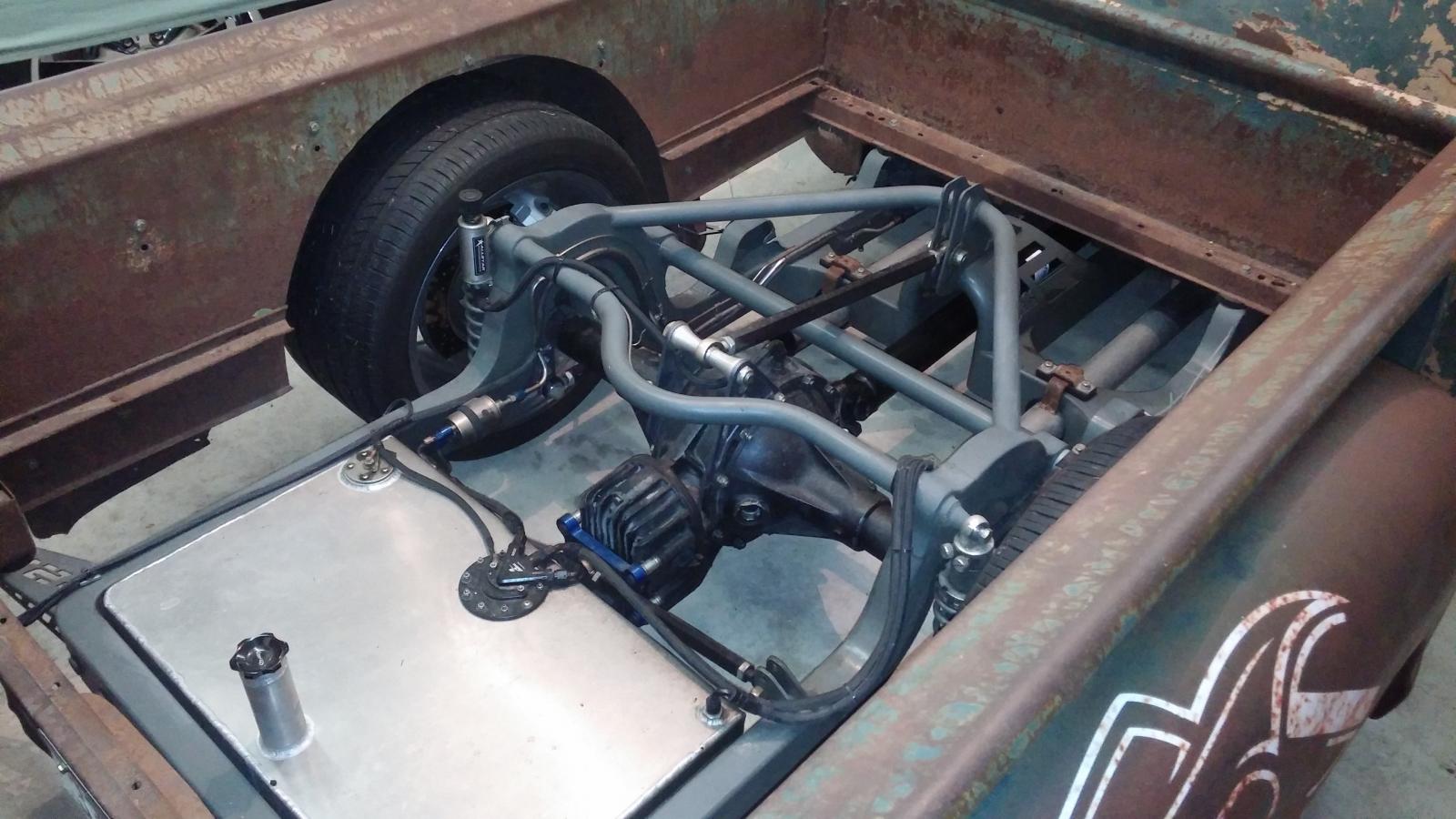

- The chassis of the truck is built very well. A modified heidts pro g is the front suspension. 7 degree caster control arms and adjustable up to 11 plus if desired. Custom built steering arms and bump steer correctors. Power rack. 1.25" solid splined sway bar. The rear is a 3 link with a watts link that bolts to the back of rear end. There is plenty of adjustment for fine tuning. Howe racing front 3 link bar mounts and joes racing axle bar mounts. All sections of chassis are molded together to smooth transitions, no mider cutting at 45s on this chassis anywhere.

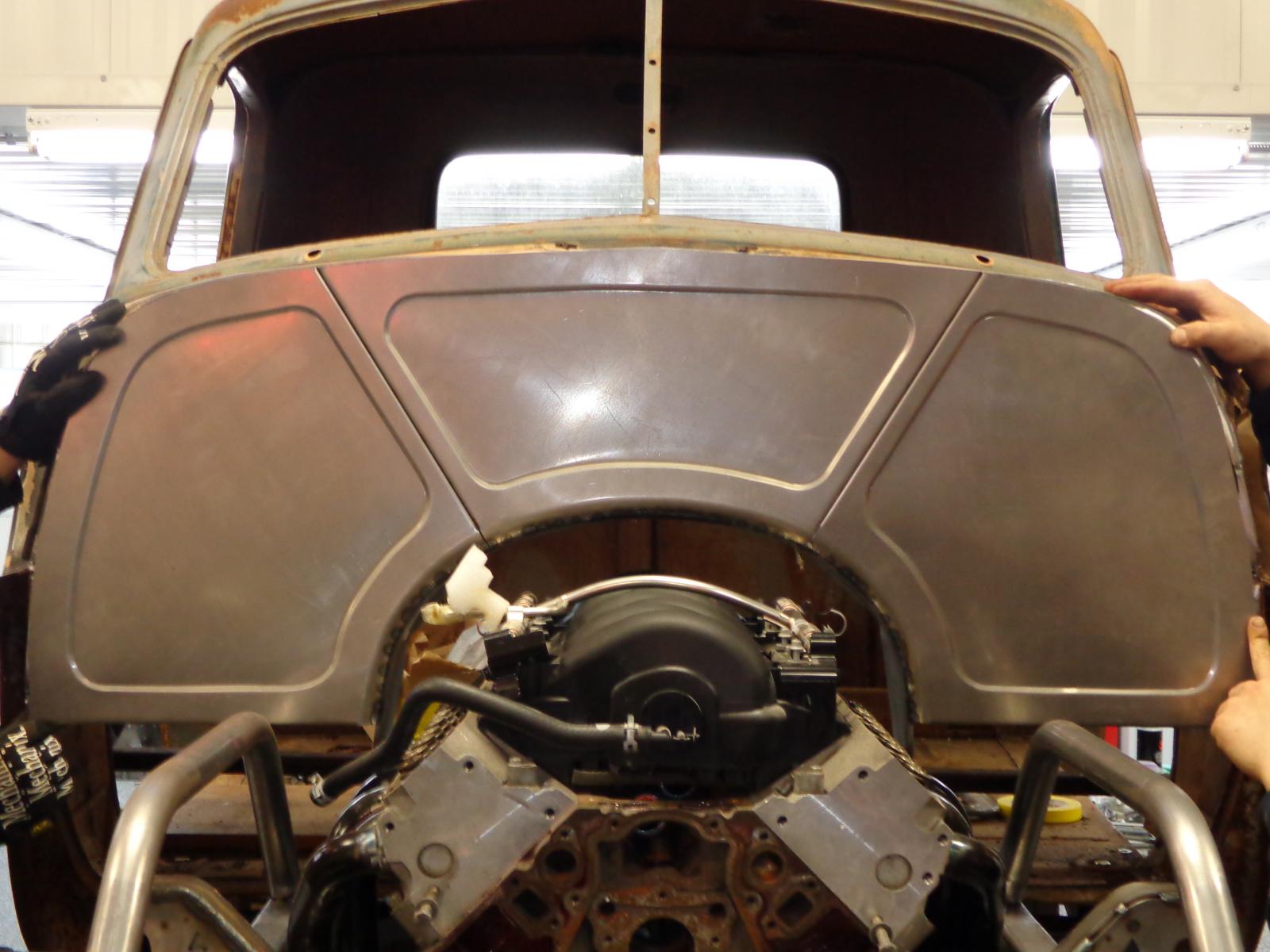

- Motor was moved 6" back into the firewall for better weight balance. It weighed 3020 pounds with 53F-47F balance. Complete custom floors and firewall were built. Bay bars with bolistic fab joints in engine comp.



The truck has been built well and handles awesome. Everything has been done right. We won the truck class at Goodguys Des Moines autcross and were .19 seconds away from the invite to Scottsdale.

You can see the quality of the work in the truck. And when finished (if you really want to) you will have quite a truck.

$25,000 obo

Please dont low ball

Charlie 952-334-Three Three One Three
Call or message with further questions



Build pics on Pro Touring forum under 1951 Chevy Area 51
https://www.pro-touring.com/threads/...=area+51+chevy

[rayy]

Very nice!

[GSDave]

Awesome truck, can you post some interior pics engine comp pics with the truck assembled.

[LIL' JT hauler]

You leaving the patina?

[cmhyatt]

Extra doors 2 pass 2 driver are also included. 2 with out wing window.

[all4sho]

very cool

[cmhyatt]

[emcfarland23]

Are there any videos of the truck?

[cmhyatt]

Also does have mandrel j bend tailpipes built for it, just currently not installed

[eric1967]

I see the tire size now. Sorry I over looked it.

[eric1967]

What size tires? I have always liked this truck. I saw it a Des Moines.

[cmhyatt]

Truck has sold
